Description

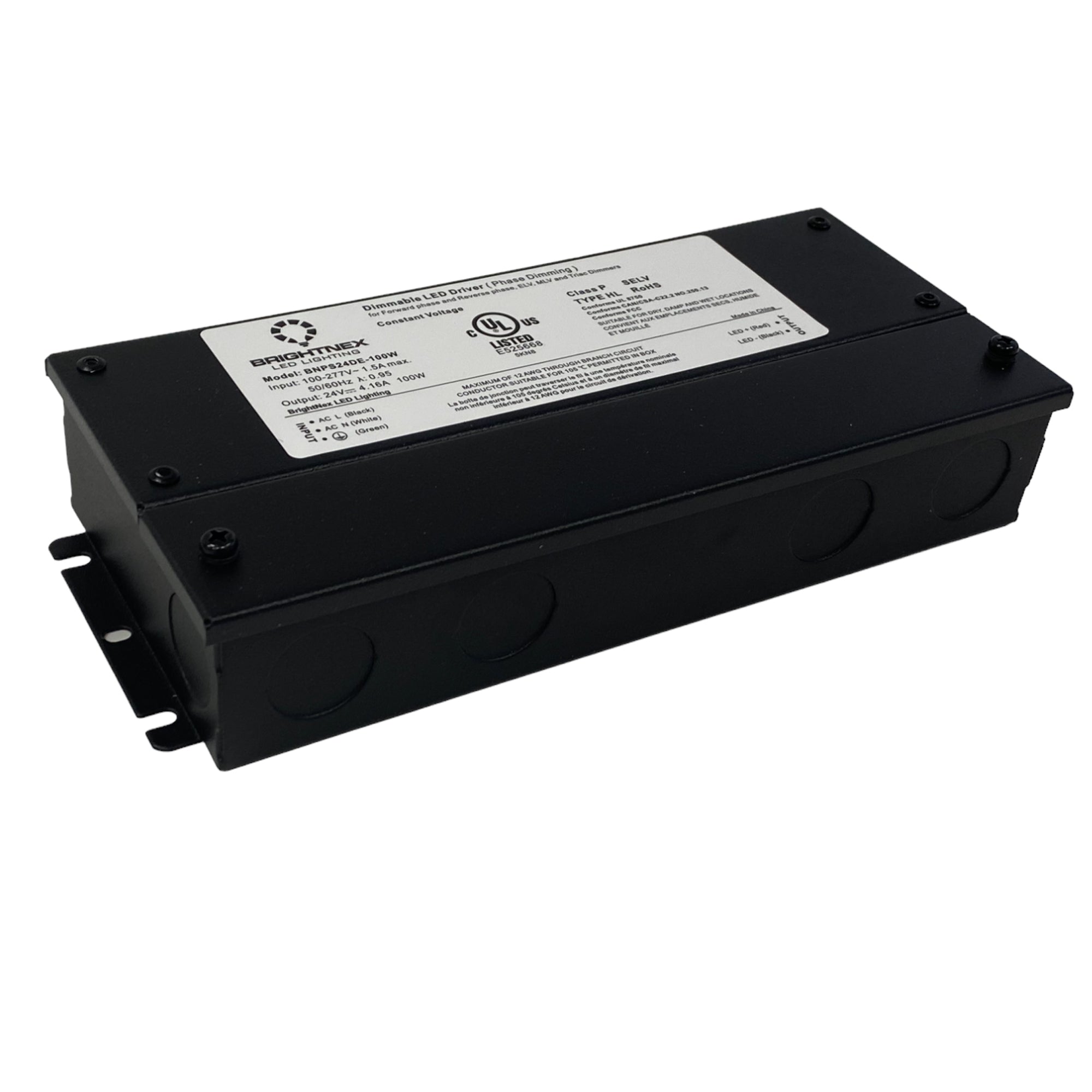

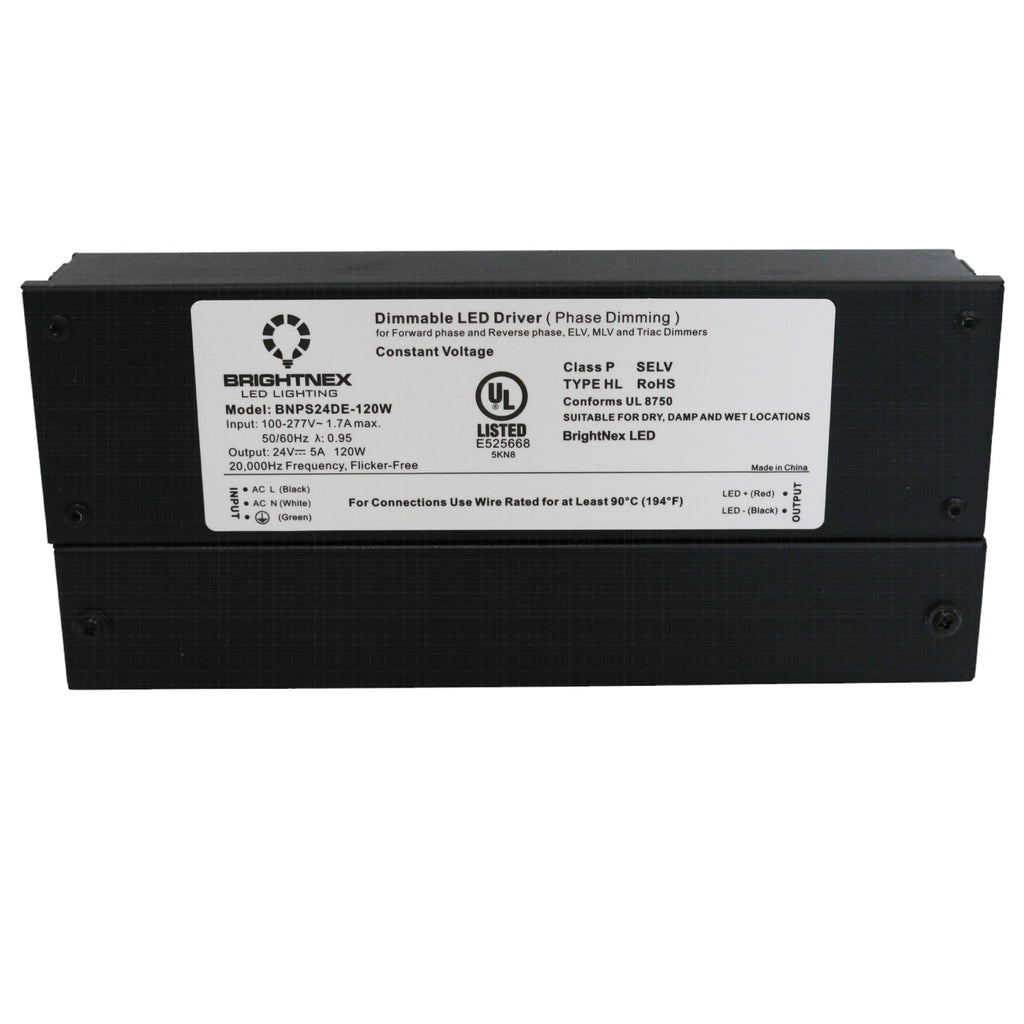

This 120W LED Driver offers reliable and smooth flicker-free dimming for a wide range of LED lighting applications. Compatible with TRIAC, ELV, and MLV (forward/reverse phase) dimmers, this constant voltage driver delivers precise control across a dimming range of 0.1–100% using PWM output.
Certified under UL, FCC, Class P, Type HL, SELV, RoHS, and Reach, and featuring a robust iron housing, it is rated for installation in dry, damp, and wet environments. With integrated active PFC, PF > 0.9, and THD < 20%, it ensures energy-efficient, quiet operation with strong electrical performance.
🔹 Key Features:
-
Output Power: 120W
-
Output Voltages:
-
12V DC @ 10A
-
24V DC @ 5A
-
-
Input Voltage: 100–277V AC, 50/60Hz
-
Efficiency: 82% @ 120V & 277V
-
Power Factor: > 0.9 (typical)
-
THD: < 20%
-
Dimming Type: TRIAC / ELV / MLV
-
Dimming Range: 0.1%–100% (PWM, flicker-free)
-
Certifications: UL Listed, FCC, Class P, Type HL, RoHS, SELV, Reach
-
Protection Features:
-
Short Circuit: auto shutdown & recovery
-
Overload: ≤120%, auto-recovery
-
Over-temperature: shuts off at 100°C ±10°C
-
-
Cooling: Natural air convection
-
Environmental Rating: Dry, damp, and wet locations (Not for Submersion)
🔹 Mechanical & Wiring Details (Page 5):
-

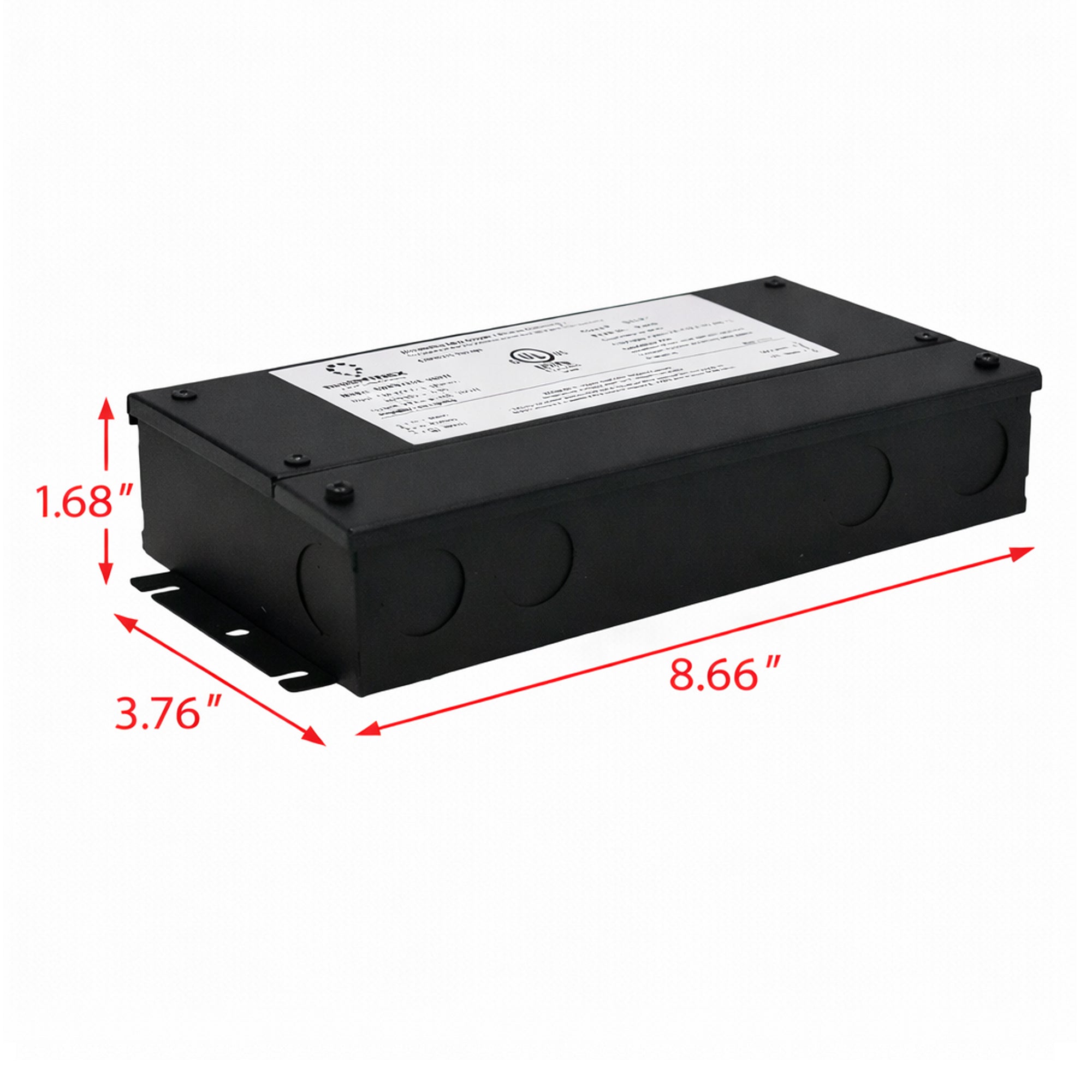

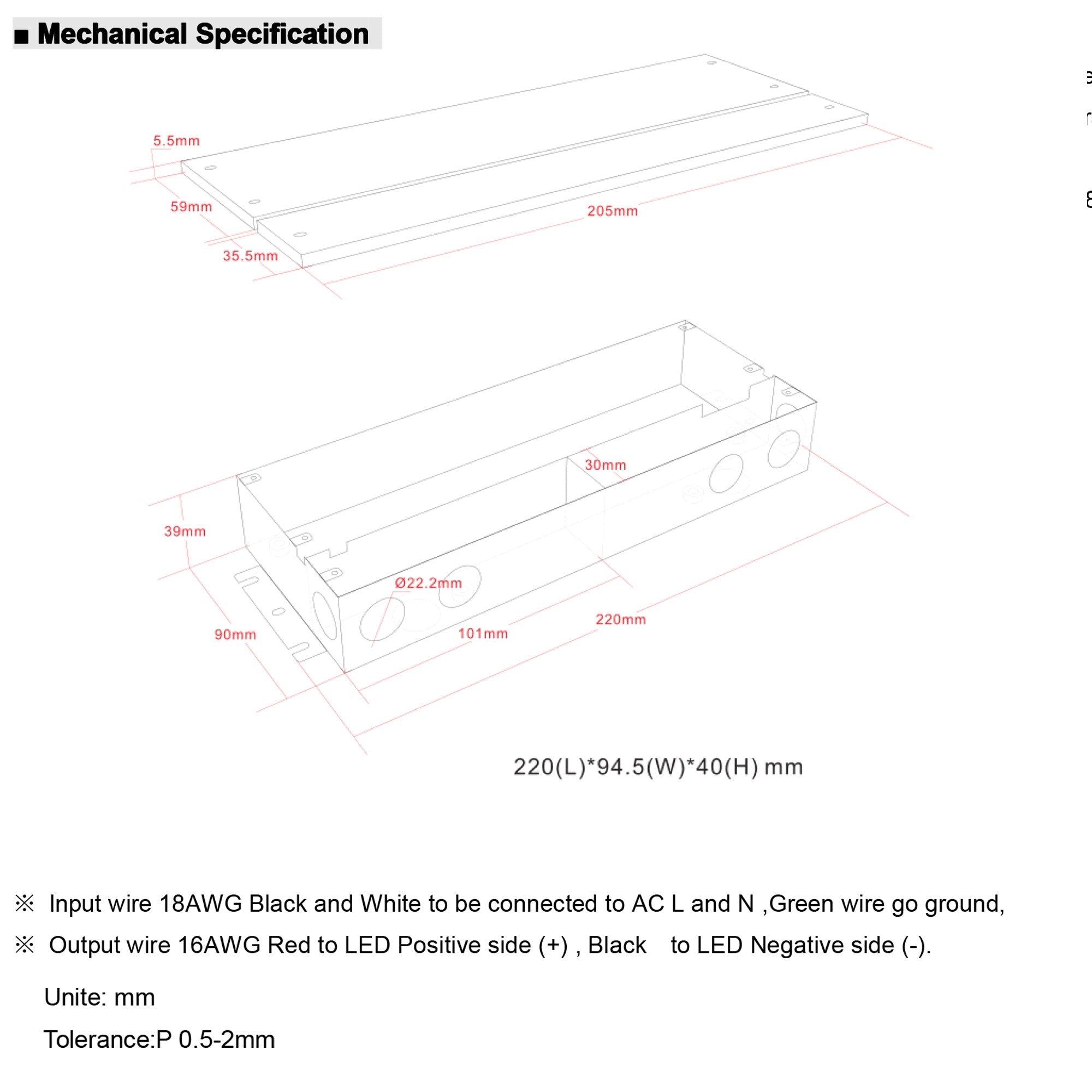

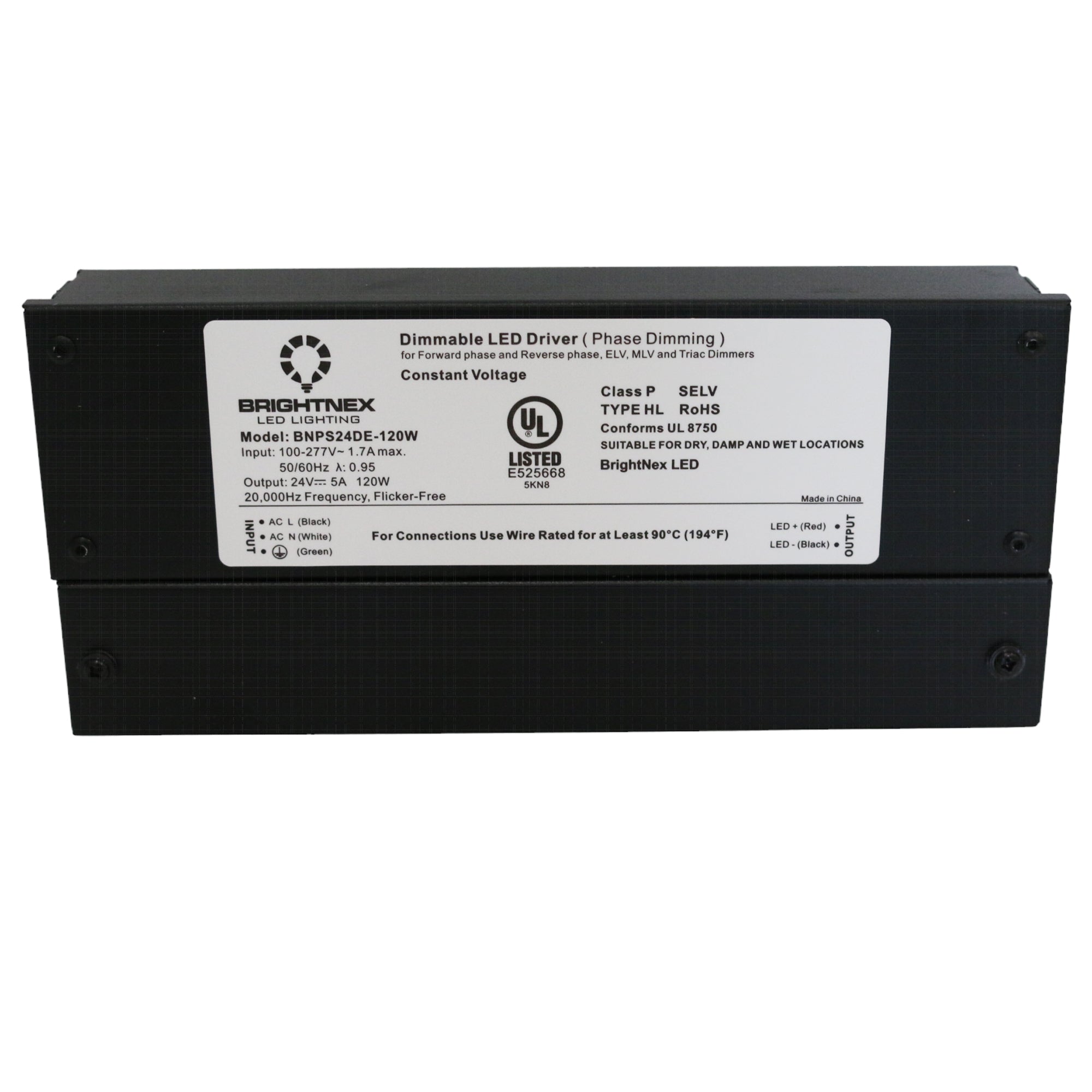

Dimensions: 8.66 × 3.76 × 1.68 inches
-
Weight: 2.82 lbs
-

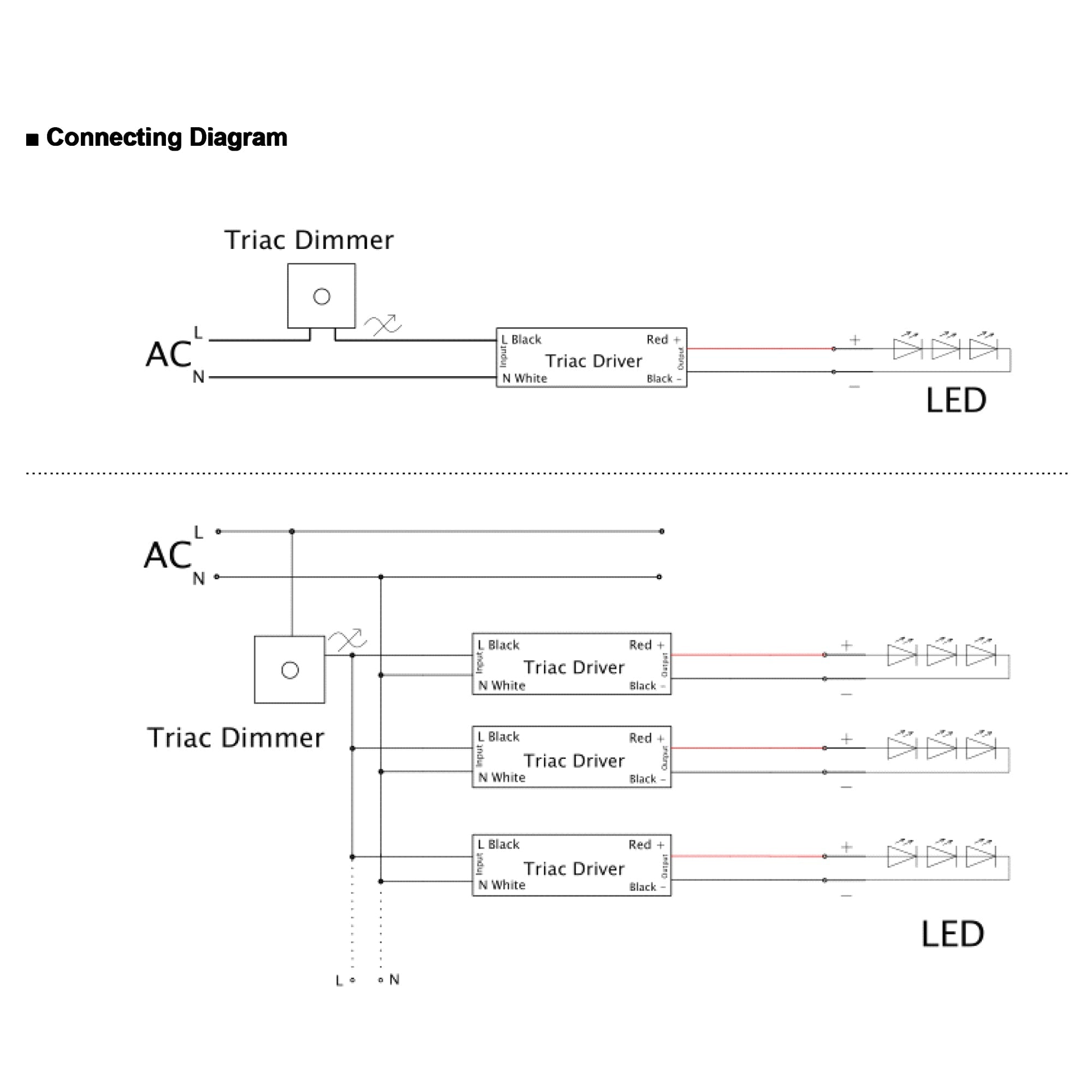

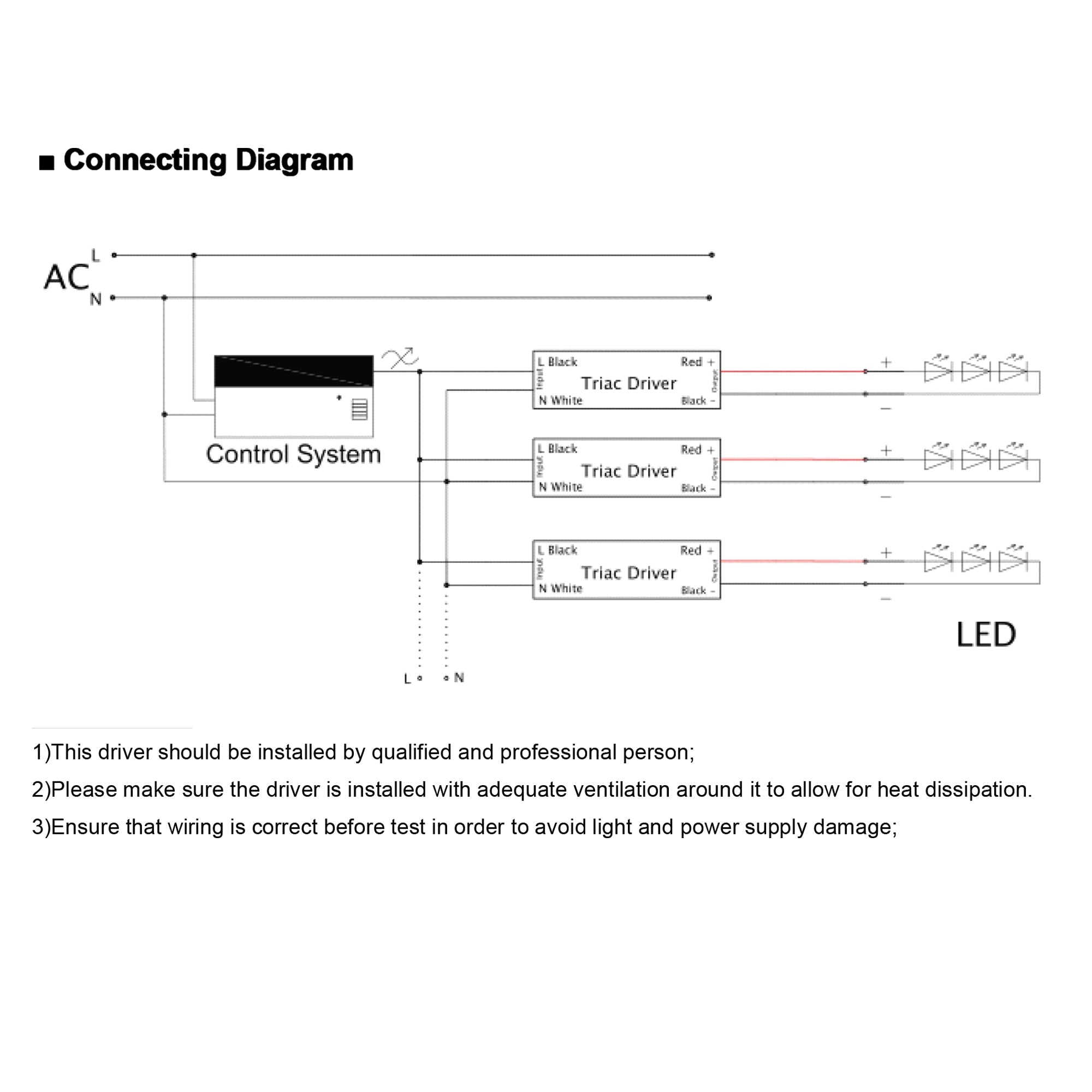

Input Wiring: Black (L), White (N), Green (GND) – 3×18 AWG
-
Output Wiring: Red (V+), Black (V–) – 2×16 AWG
-
Mounting: Junction-box style with integrated knockouts for easy conduit connection
🔹 Applications:
-
LED strip and tape lighting
-
Cove and under-cabinet lighting
-
Outdoor LED installations
-
Commercial and architectural dimmable lighting projects
-
Areas requiring stable, flicker-free dimming in wet-rated environments
-
Part Number:
LA-DRV-F1-12V-120W-JB-S1
LA-DRV-F1-24V-120W-JB-S1
