Description
This 150W LED Driver is a reliable, high-performance constant voltage driver designed for advanced lighting systems requiring smooth, flicker-free dimming. Fully compatible with TRIAC, ELV, and MLV dimmers (forward and reverse phase), it features PWM output, a wide 0.1% to 100% dimming range, and high energy efficiency up to 86% .
With UL, FCC, Class P, Type HL, RoHS, SELV, and Reach certifications, the driver is wet-location rated, making it ideal for indoor and outdoor LED strip lighting. Built with a durable full-iron housing, it provides protection against short circuits, overload, and overheating, and features auto-recovery for long-lasting performance .
🔹 Key Features:
-
Output Power: 150W
-
Voltage Options:
-
12V DC @ 12.5A
-
24V DC @ 6.25A
-
-
Input Voltage: 110–277V AC, 50/60Hz
-
Efficiency:
-
85% @ 120V AC (12V model)
-
86% @ 277V AC (24V model)
-
-
Dimming Type: TRIAC / ELV / MLV (Phase-Cut)
-
Dimming Range: 0.1–100% (Flicker-Free PWM)
-
Power Factor: > 0.9 (typical)
-
THD: < 20%
-
Protection:
-
Short-circuit
-
Overload (≤120%)
-
Over-temperature (shutdown at 100 °C ±10 °C, auto-recovery)
-
-
Certifications: UL, FCC, Class P, Type HL, SELV, RoHS, Reach
-
Environmental Rating: Dry, damp, and wet locations (Not for Submersion)
-
Cooling: Natural air convection
-
Part Number:
LA-DRV-F1-12V-150W-JB-S1
LA-DRV-F1-24V-150W-JB-S1
🔹 Mechanical & Wiring Info:
-

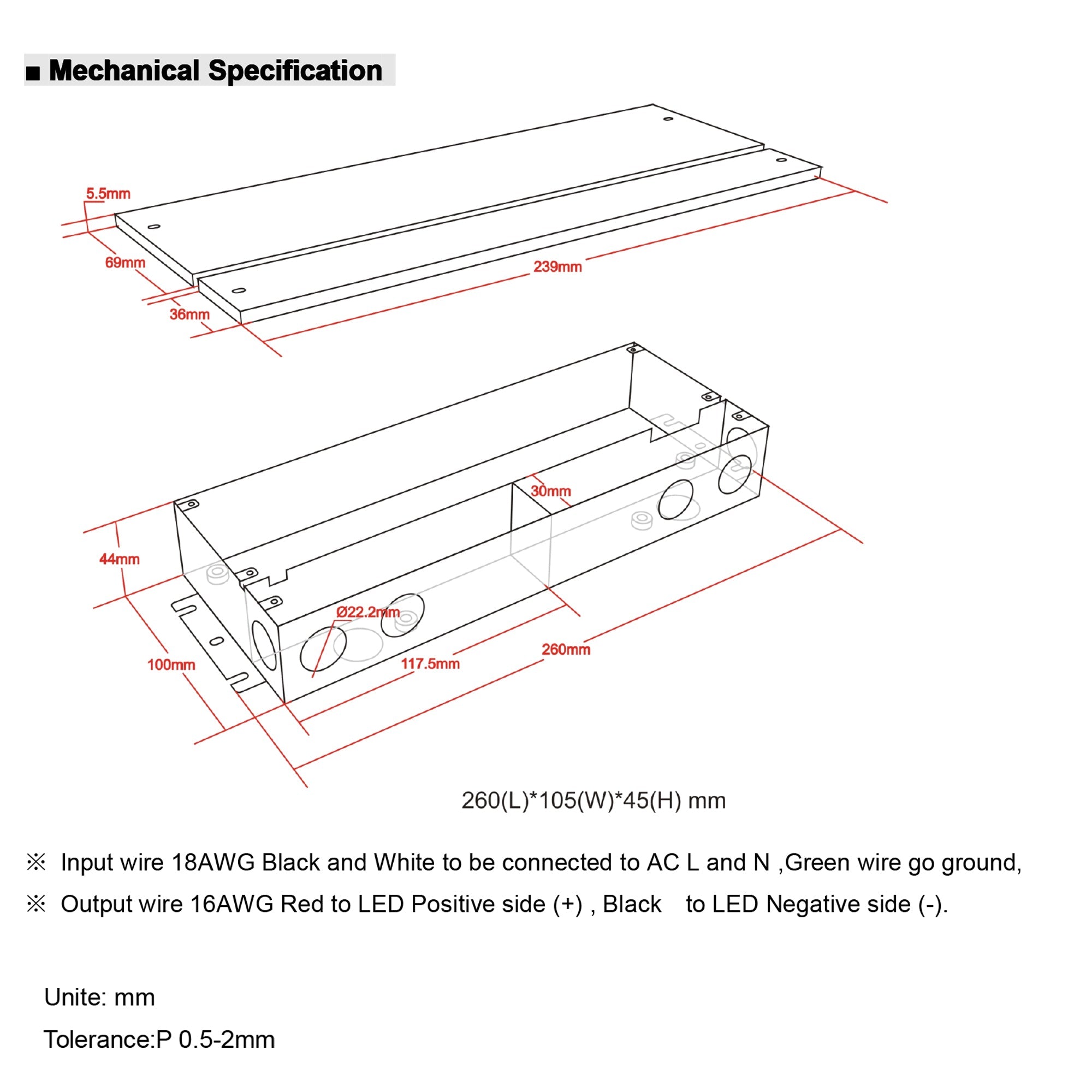

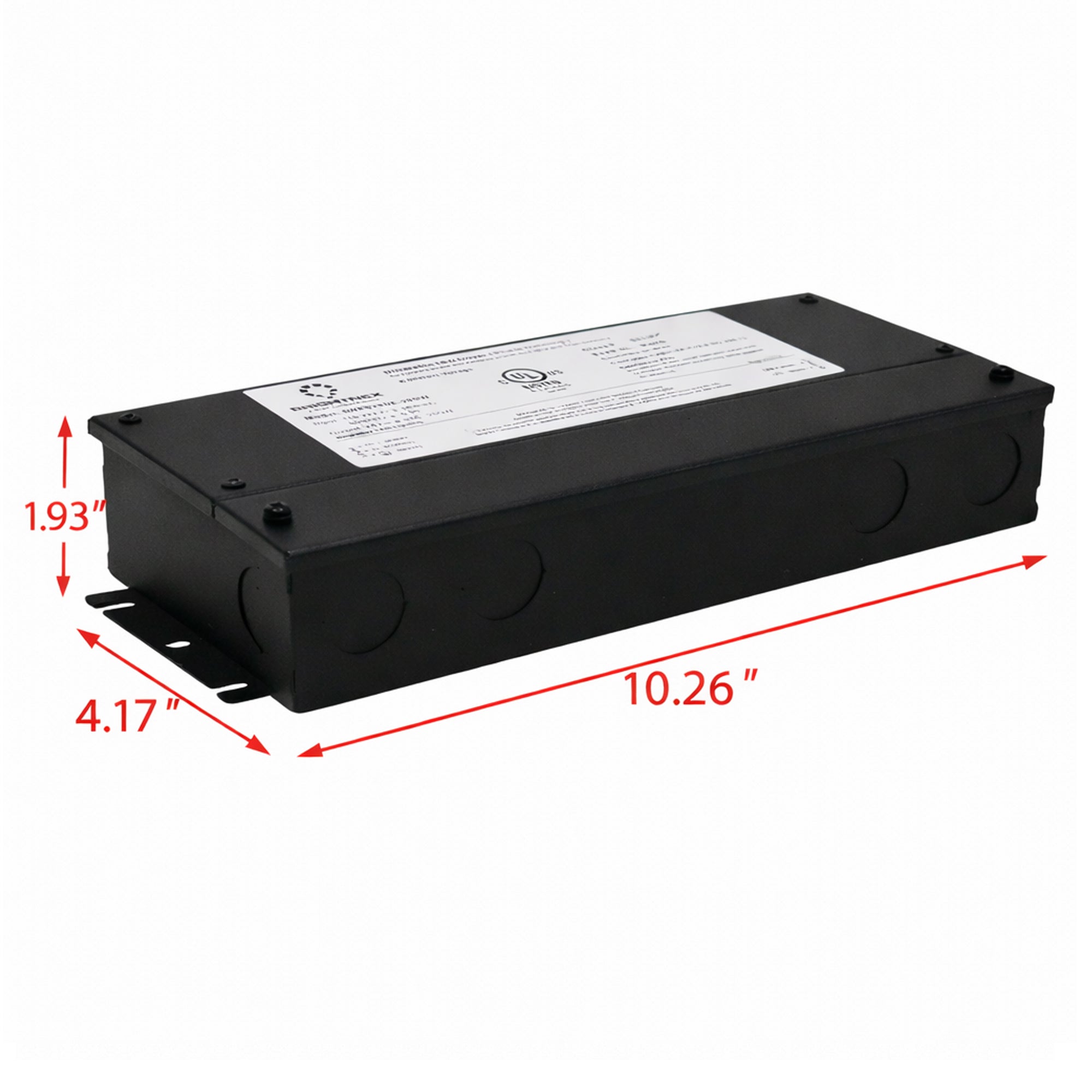

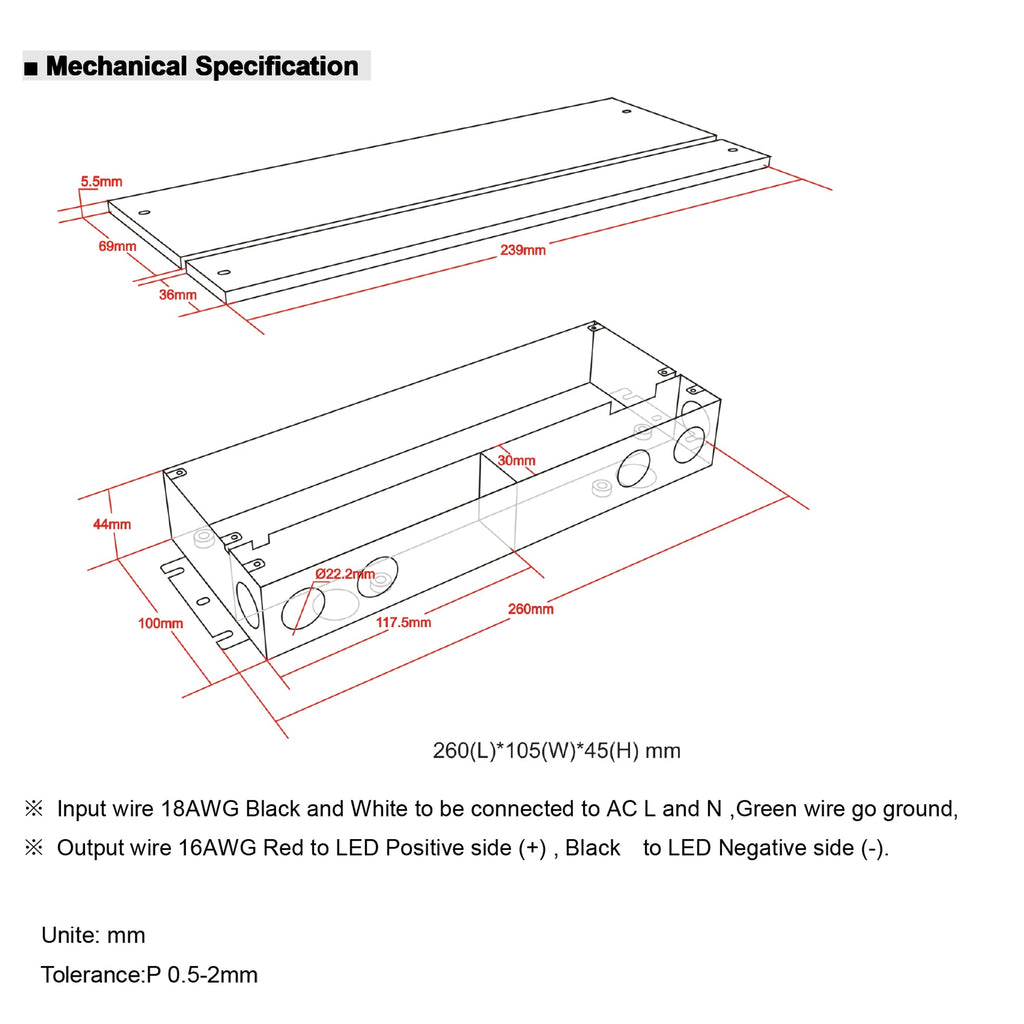

Dimensions: 10.26 × 4.17 × 1.93 inches
-
Weight: 3.97 lbs
-

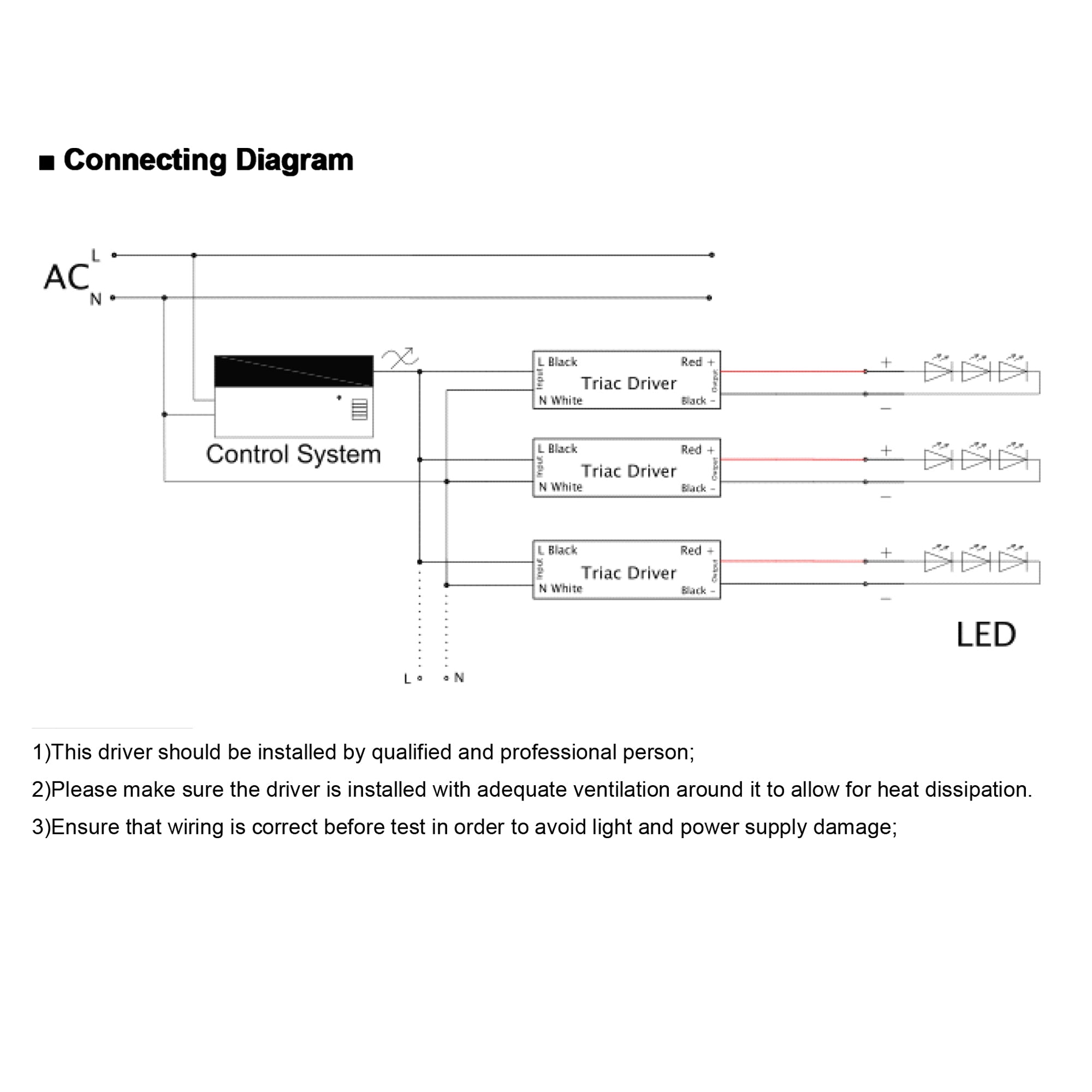

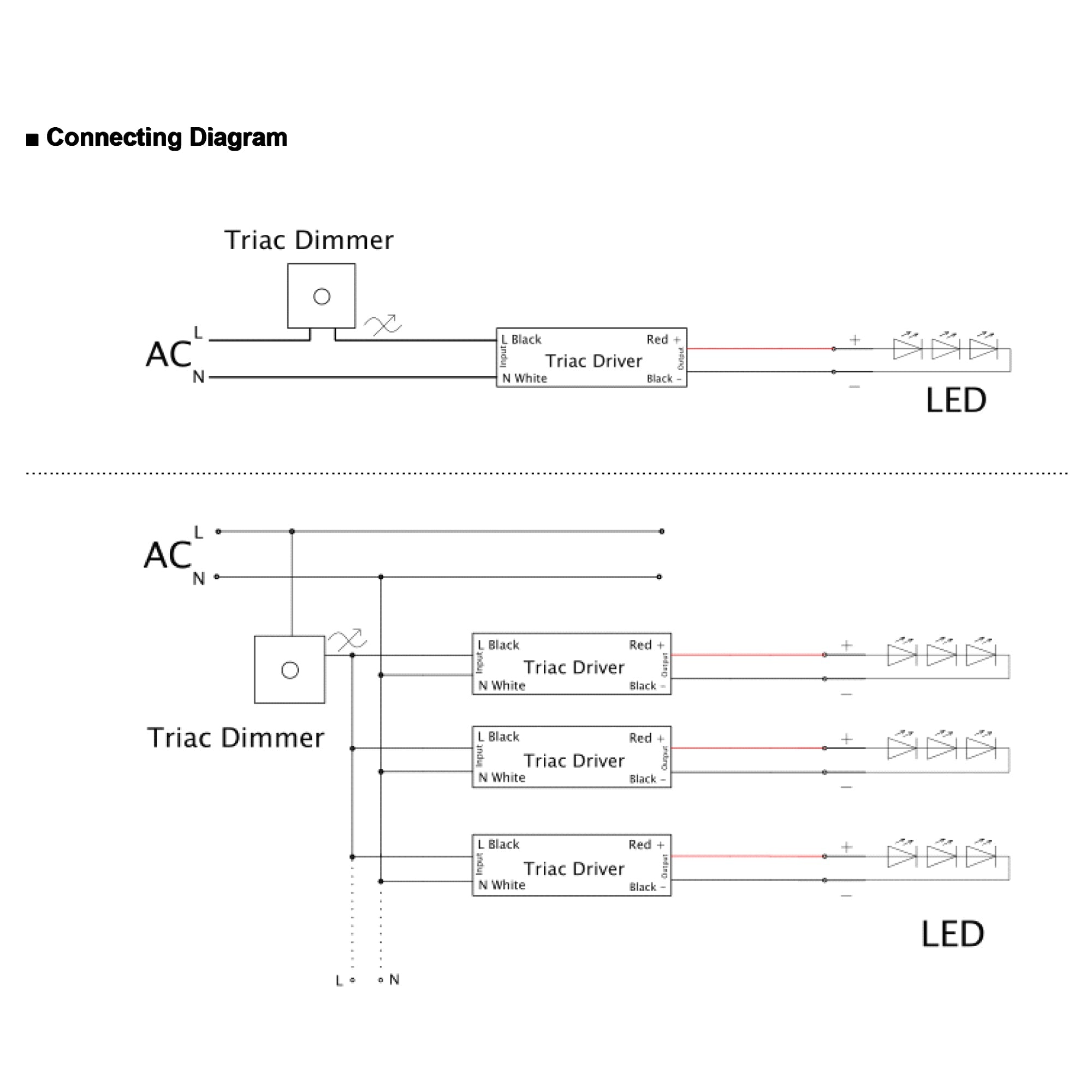

Input Wiring: Black (L), White (N), Green (GND) – 3×18 AWG
-
Output Wiring:
-
12V: 2× Red (V+), 2× Black (V–) – 2×16 AWG
-
24V: Red (V+), Black (V–) – 2×16 AWG
-
-
Mounting: Multiple side and bottom knockouts for junction box installation
🔹 Applications:
-
LED strip and bar lighting
-
Indoor/outdoor architectural lighting
-
Commercial LED systems
-
Damp or wet installation areas requiring stable, flicker-free dimming
