Description
This 200W Constant Voltage LED Driver delivers professional-grade dimming performance with flicker-free output (PWM control) and wide compatibility with TRIAC, ELV, and MLV dimmers (forward & reverse phase). Available in both 12V (16.66A) and 24V (8.33A) options, it’s designed for high-load LED applications across indoor and outdoor environments.

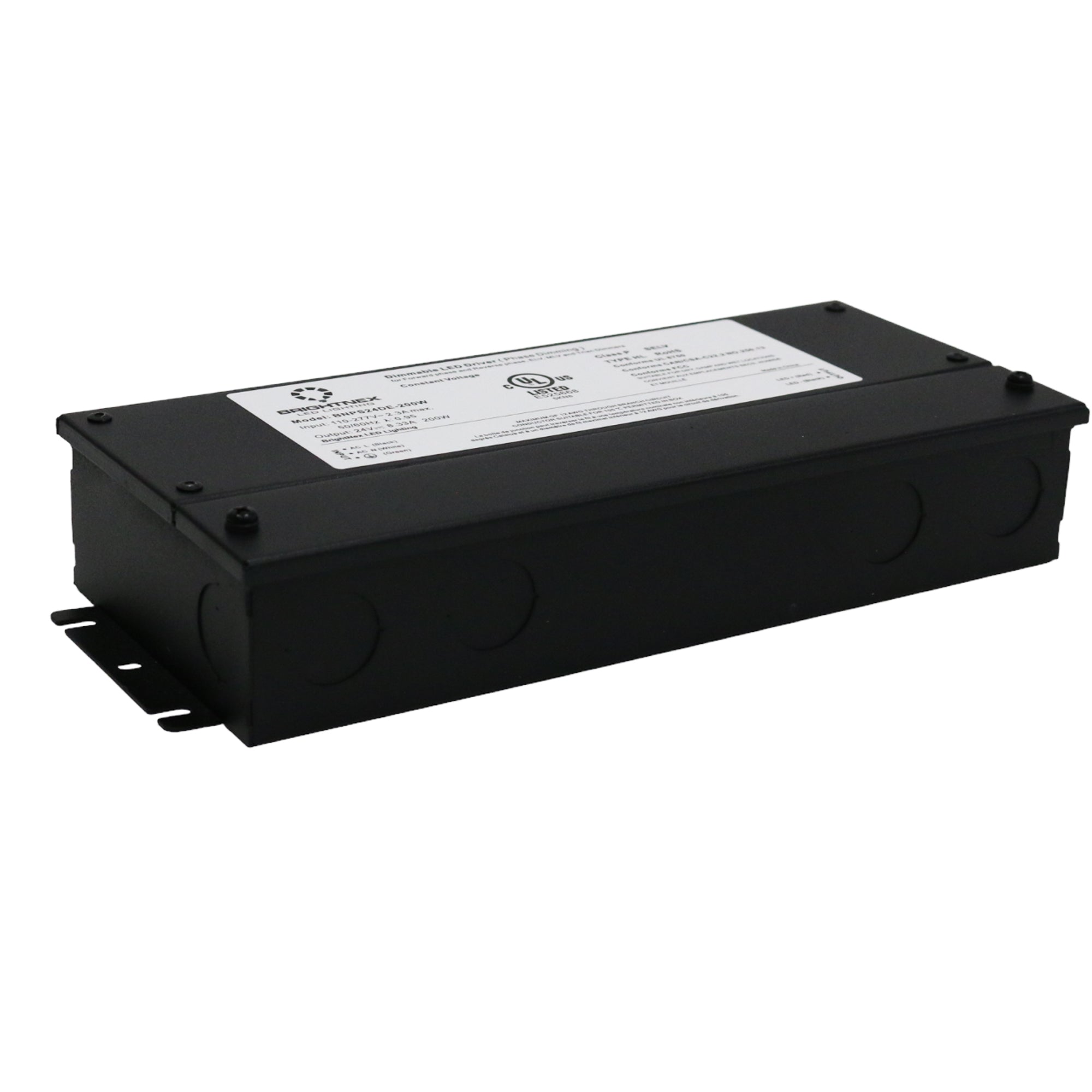

Housed in a rugged iron enclosure, it is UL certified for Class 2, Type HL, and FCC compliant, with RoHS, SELV, and Reach approval. Integrated active power factor correction and short circuit / overload / thermal protection ensure reliability even under heavy conditions.
🔹 Key Features:
-
Output Power: 200W
-
Voltage Options:
-
12V DC @ 16.66A
-
24V DC @ 8.33A
-
-
Input Voltage: 110–277V AC, 50/60Hz
-

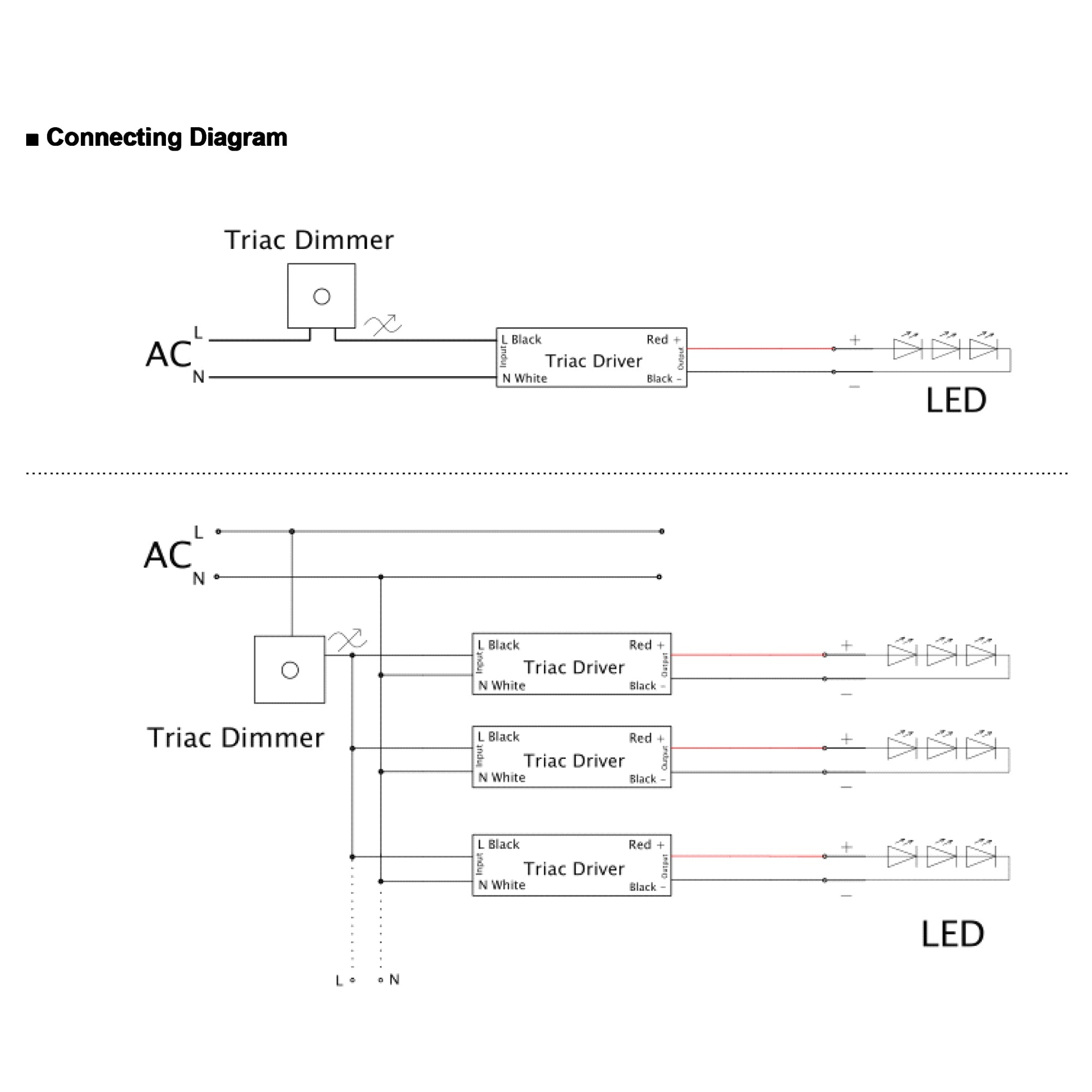

Dimming Type: TRIAC, ELV, MLV (Phase Cut – Forward & Reverse)
-
Dimming Range: 0.1% – 100%
-
Flicker-Free: Yes (PWM dimming output)
-
Efficiency:
-
83% @ 120V AC (12V model)
-
86% @ 277V AC (24V model)
-
-
Power Factor: >0.9
-
THD: <20%
-
Leakage Current: <0.5mA
-

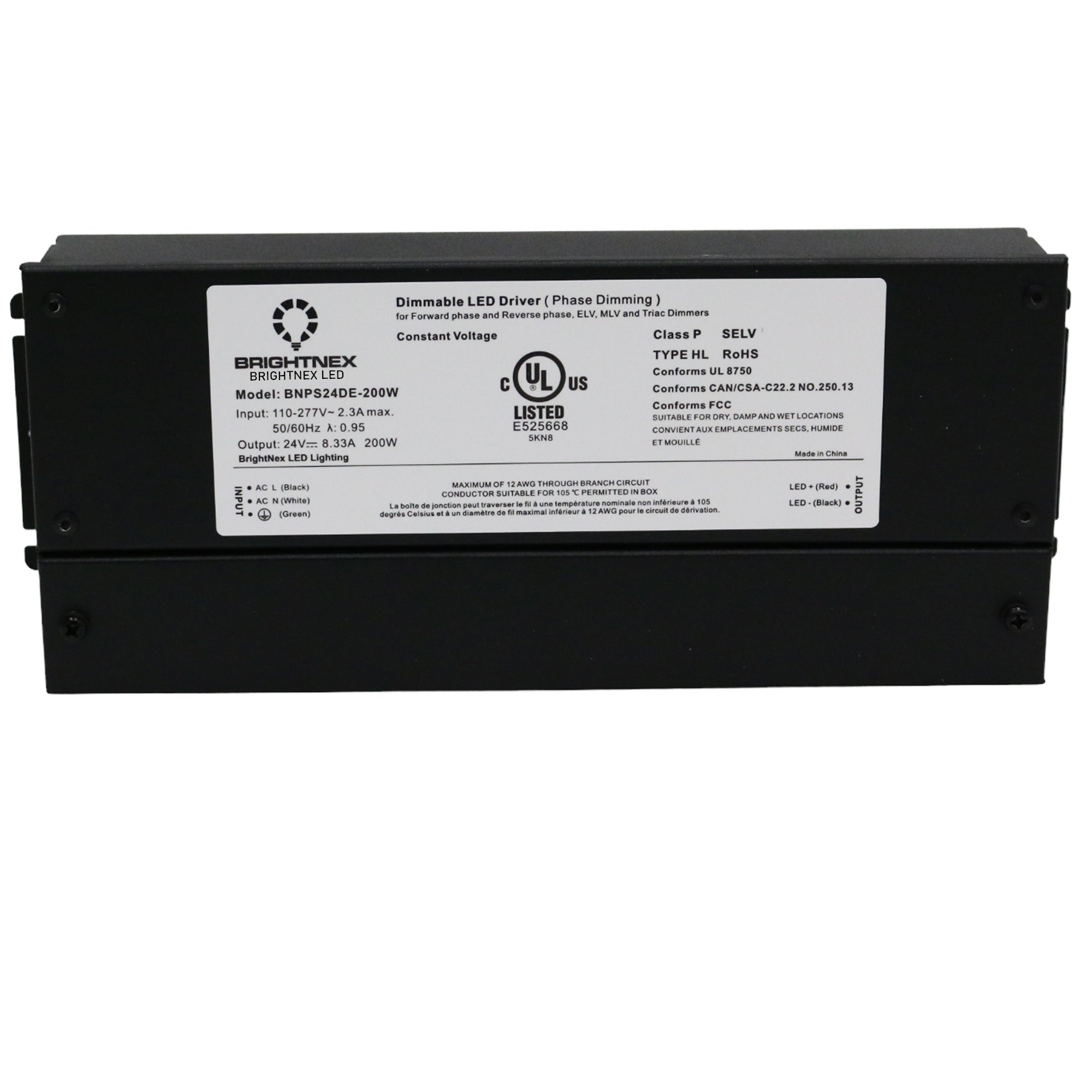

Certifications: UL Listed, Class 2, Class P, Type HL, FCC, RoHS, Reach, SELV
-
Protection:
-
Short Circuit: auto shutoff & recovery
-
Overload: ≤120%
-
Over Temperature: shutdown @ 100°C ±10°C, auto-recovery
-
-
Cooling: Natural air convection
-
Environment: Suitable for dry, damp, and wet locations (Not for Submersion)

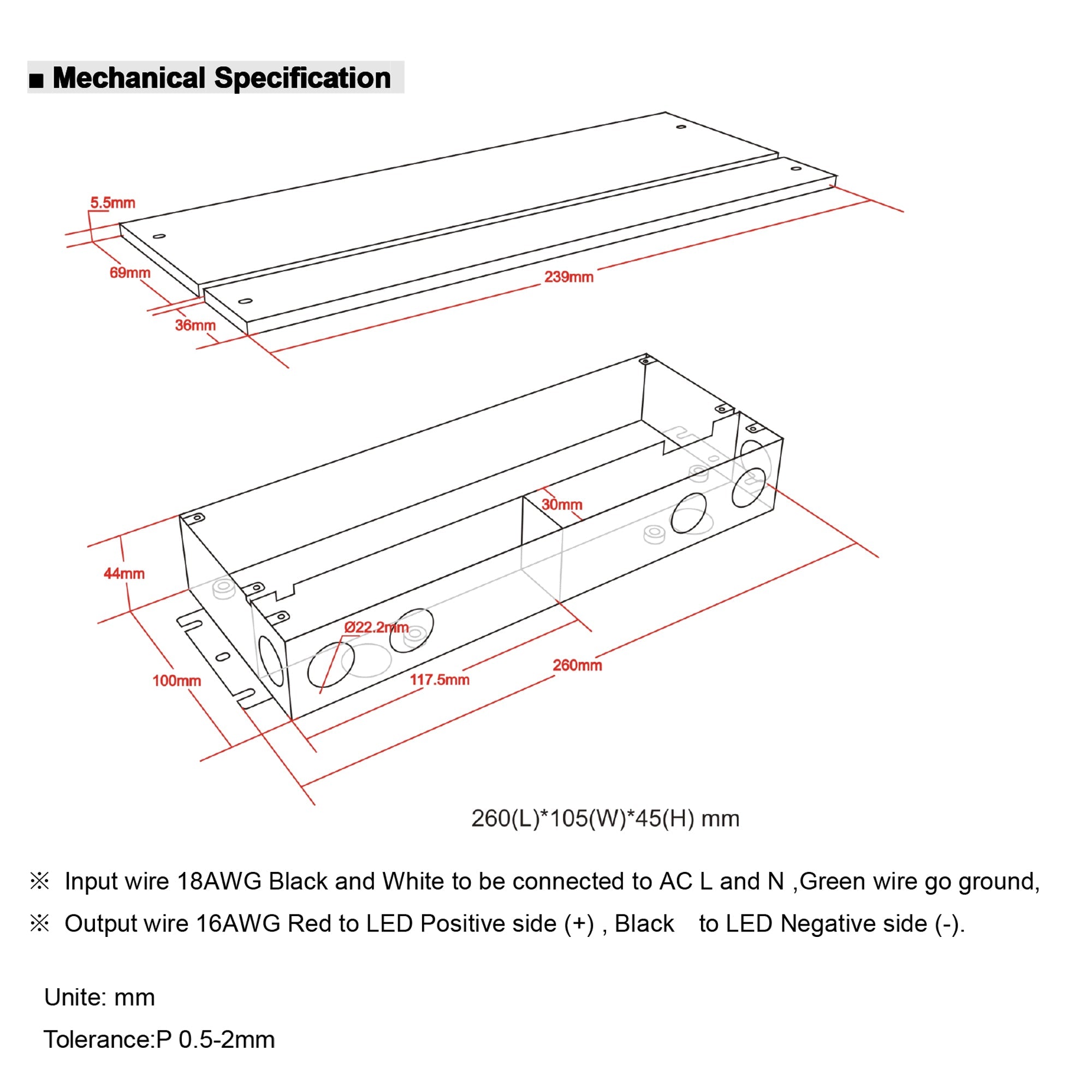

🔹 Mechanical & Wiring:
-

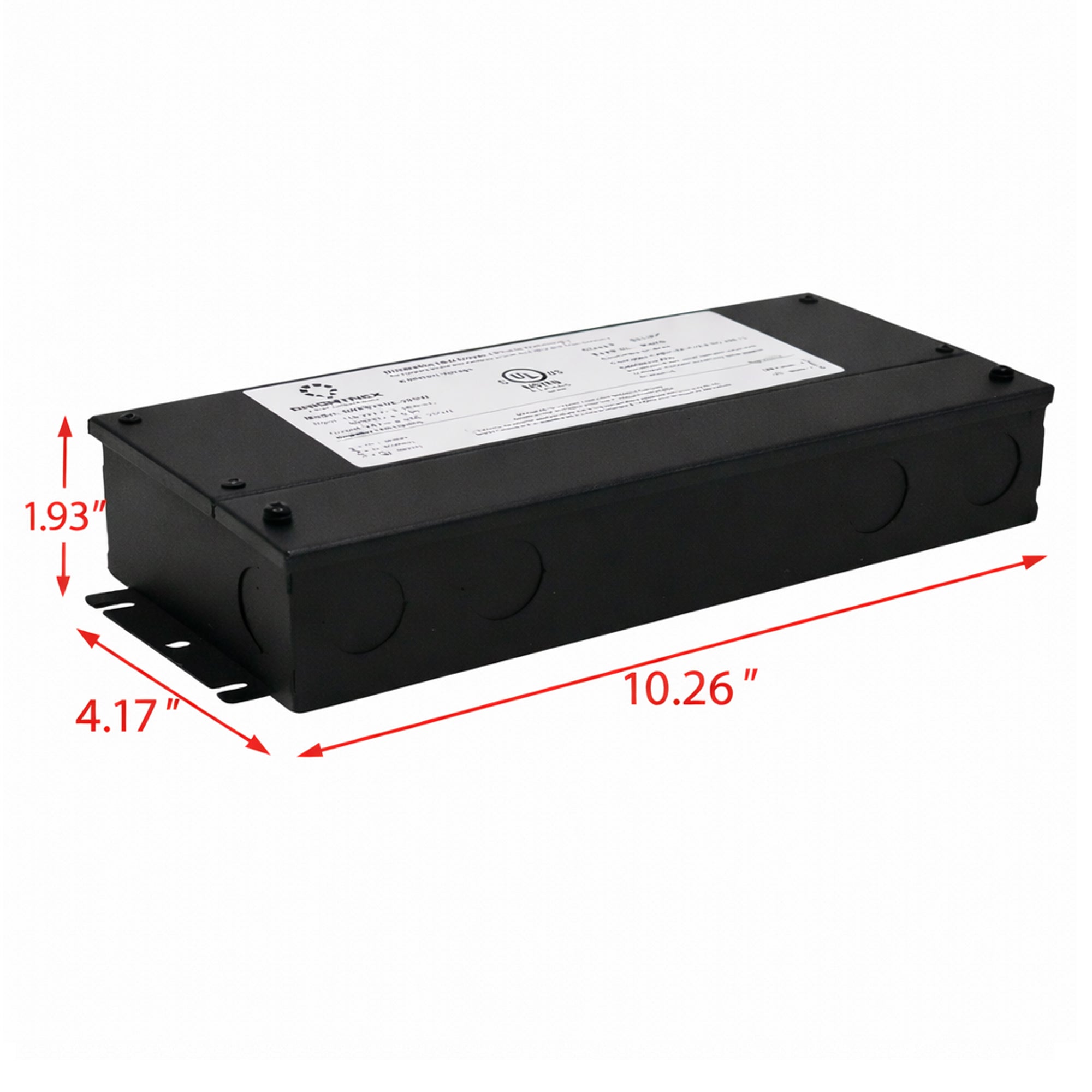

Dimensions: 10.26 × 4.17 × 1.93 inches
-
Weight: 14.01 lbs
-

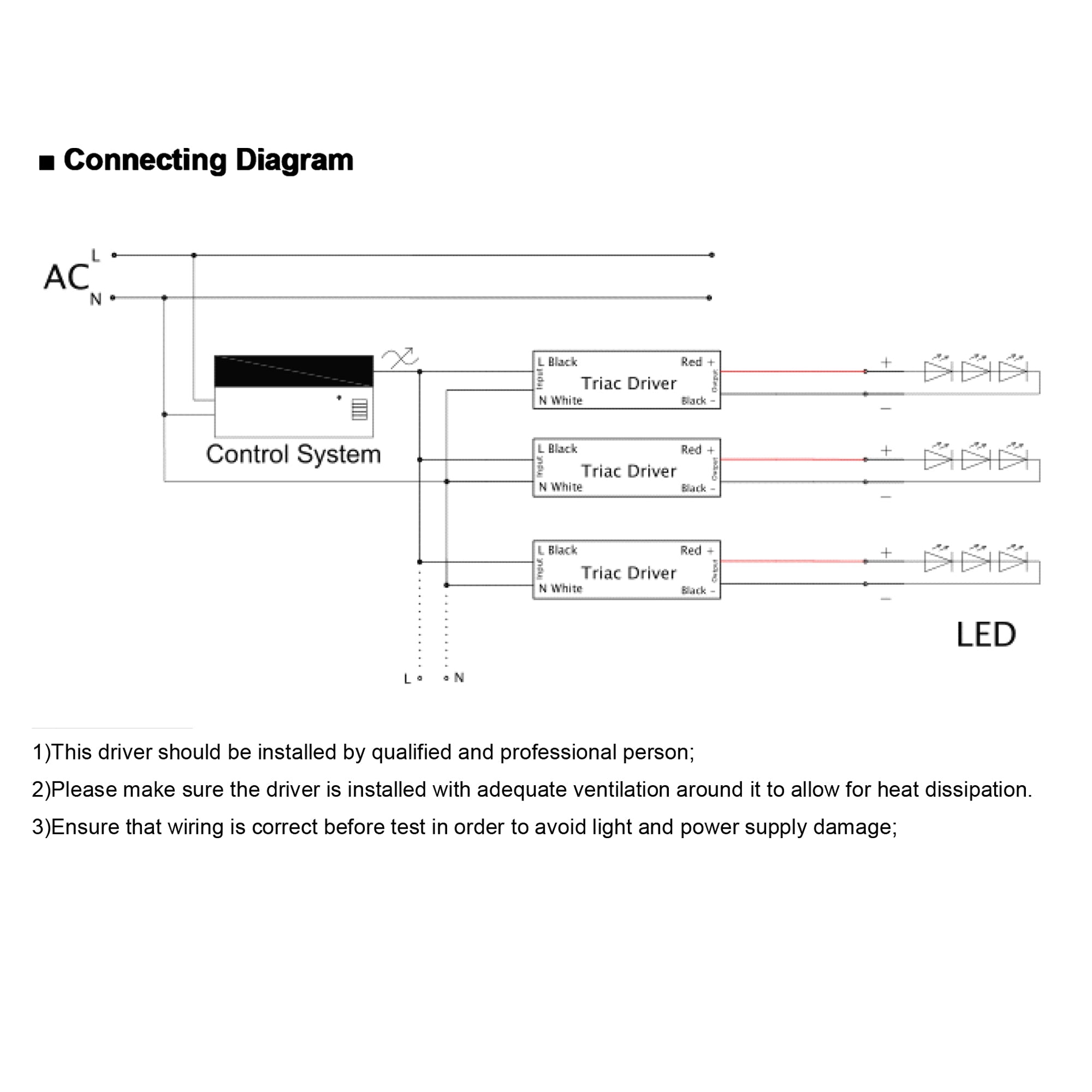

Input Wiring:
-
Black (L), White (N), Green (GND) – 3×18 AWG
-
-
Output Wiring:
-
12V: 2× Red (V+), 2× Black (V–) – 2×16 AWG
-
24V: Red (V+), Black (V–) – 2×16 AWG
-
-
Mounting: Junction-box style with knockouts on all sides
🔹 Applications:
-
LED strip, bar, and signage lighting
-
Outdoor cove and architectural lighting
-
Large-scale commercial installations
-
Zones requiring wet location rated, flicker-free dimming
-
Part Number:
LA-DRV-F1-12V-200W-JB-S1
LA-DRV-F1-24V-200W-JB-S1
