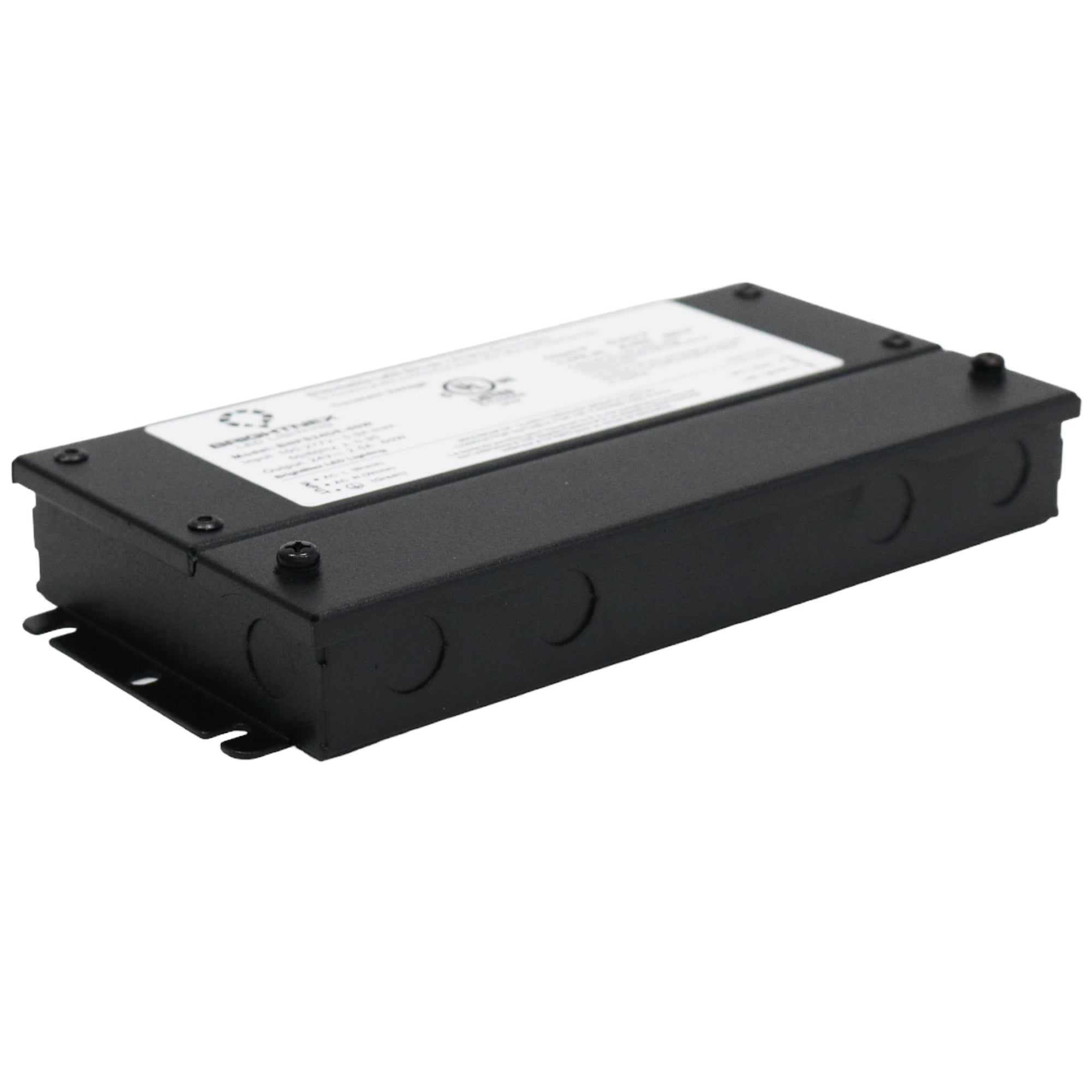

30W TRIAC / ELV / MLV Dimmable LED Driver – 12V / 24V – Flicker-Free – UL Certified

This 30W constant voltage LED driver (KVF-TDWJ series) is engineered for high-quality dimming performance with TRIAC / ELV / MLV phase-cut dimmers, supporting 12V and 24V DC configurations. With a dimming range of 0.1–100% and PWM output, it provides flicker-free performance, ideal for sensitive lighting environments. The driver features UL, FCC, Class 2, Type HL, and RoHS certifications, making it suitable for residential and commercial use in dry and damp locations.

Its active PFC circuit, compact form factor, and robust iron housing ensure energy efficiency, longevity, and safe operation. Protection mechanisms include short-circuit, overload, and over-temperature shutdown with automatic recovery.

🔹 Key Features:

• Output Power: 30W

• Voltage Options: 12V DC @ 2.5A or 24V DC @ 1.25A

• Input Voltage: 100–277V AC, 50/60Hz

• Dimming Type: Compatible with TRIAC, ELV, and MLV dimmers

• Dimming Range: 0.1%–100%

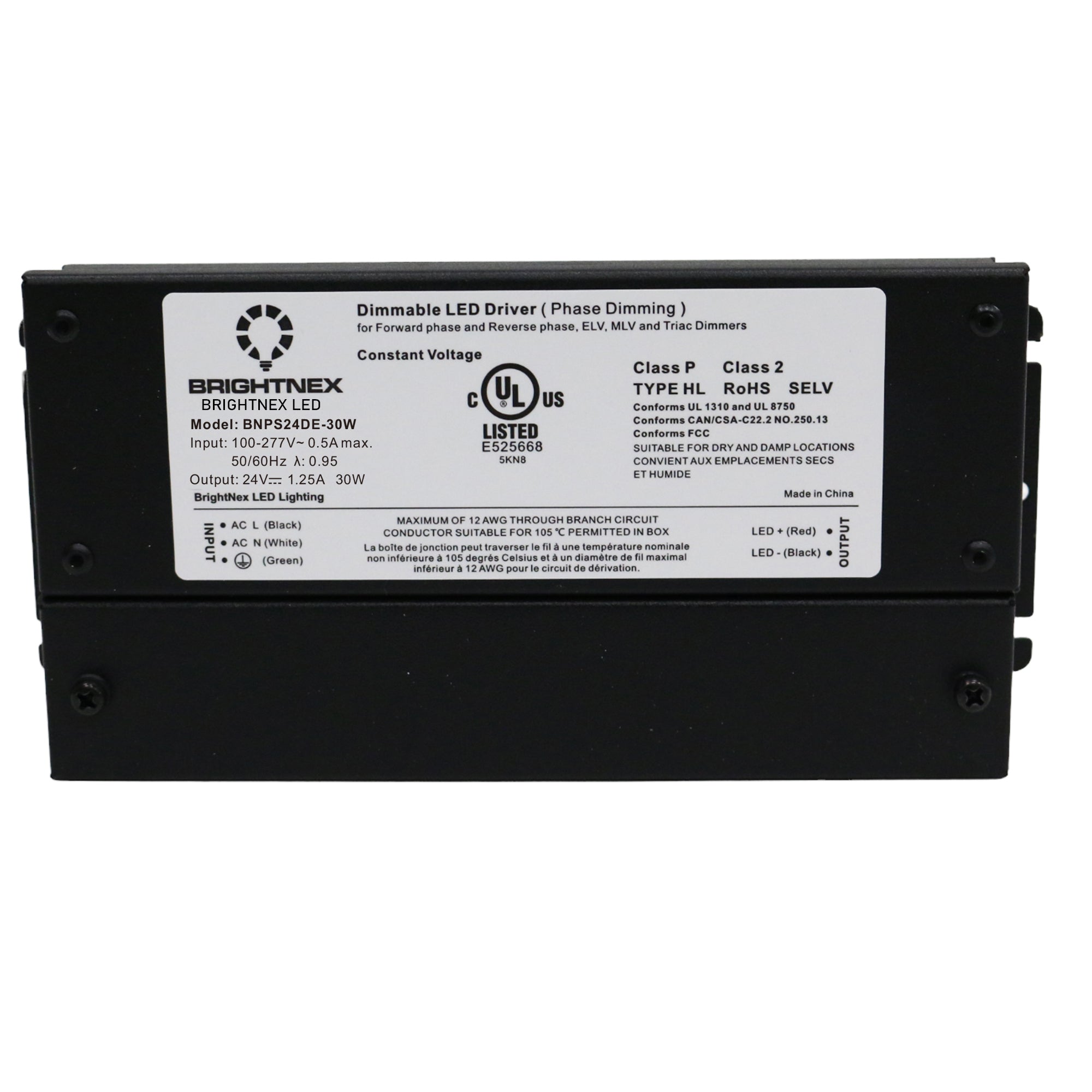

• Certifications: UL Listed, FCC, Class 2, Type HL, RoHS, SELV

• Efficiency: Up to 79%

• Flicker-Free: Yes (PWM dimming, PF > 0.9, THD < 20%)

• Protection: Short circuit, overload, over-temperature

• Cooling: Natural air convection

• Housing: Full iron enclosure for dry and damp environments

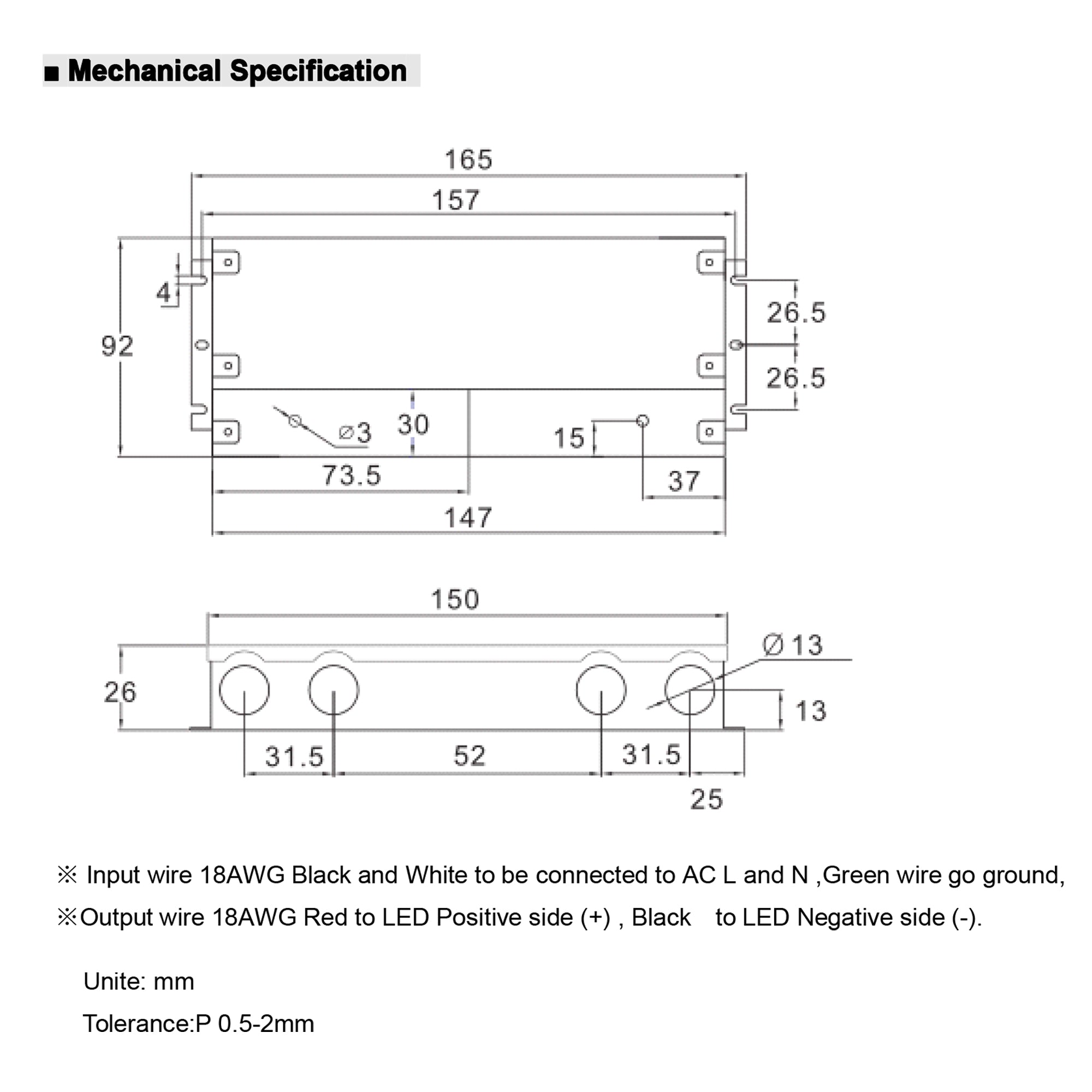

🔹 Mechanical Info:

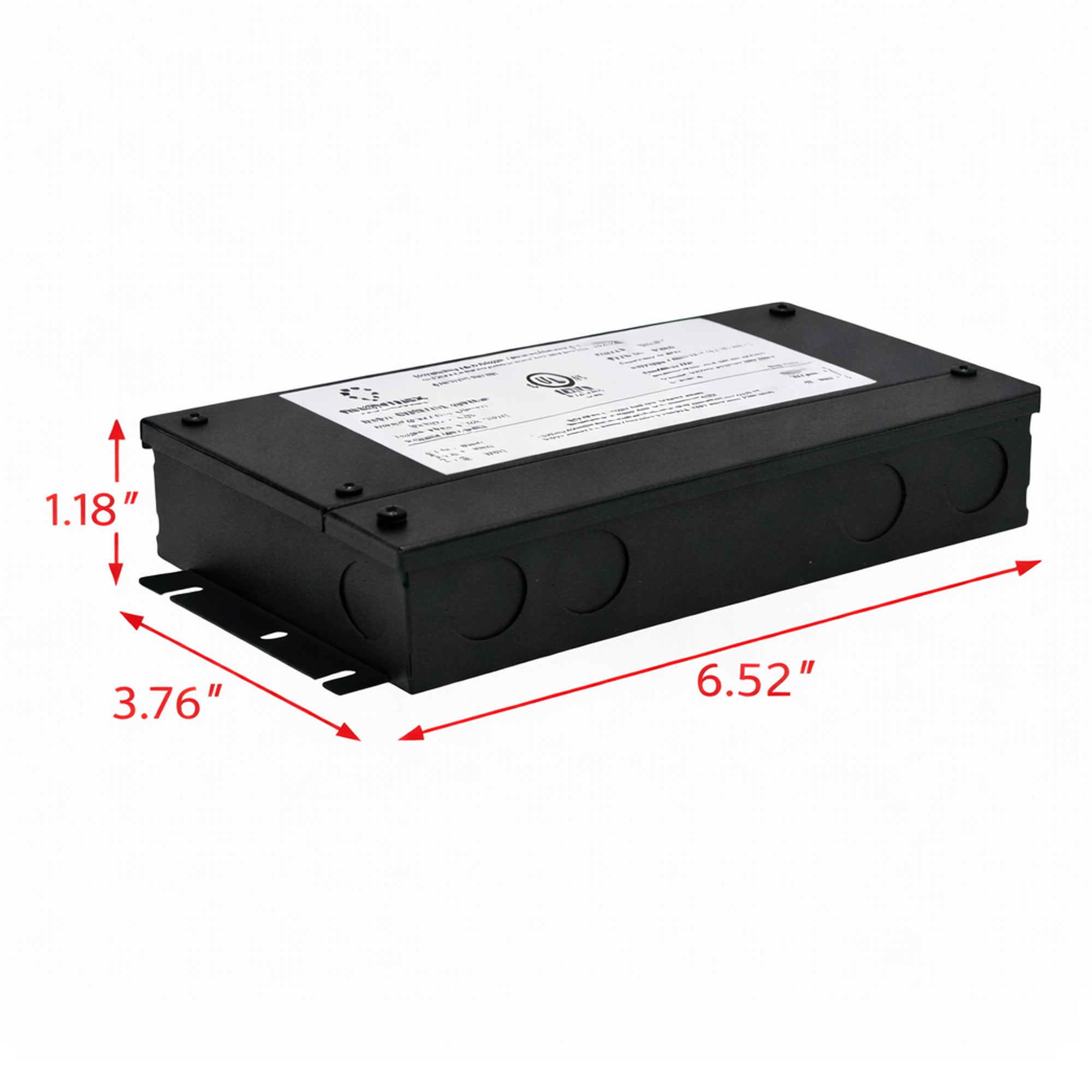

• Dimensions: 6.52 × 3.76 × 1.18 inches

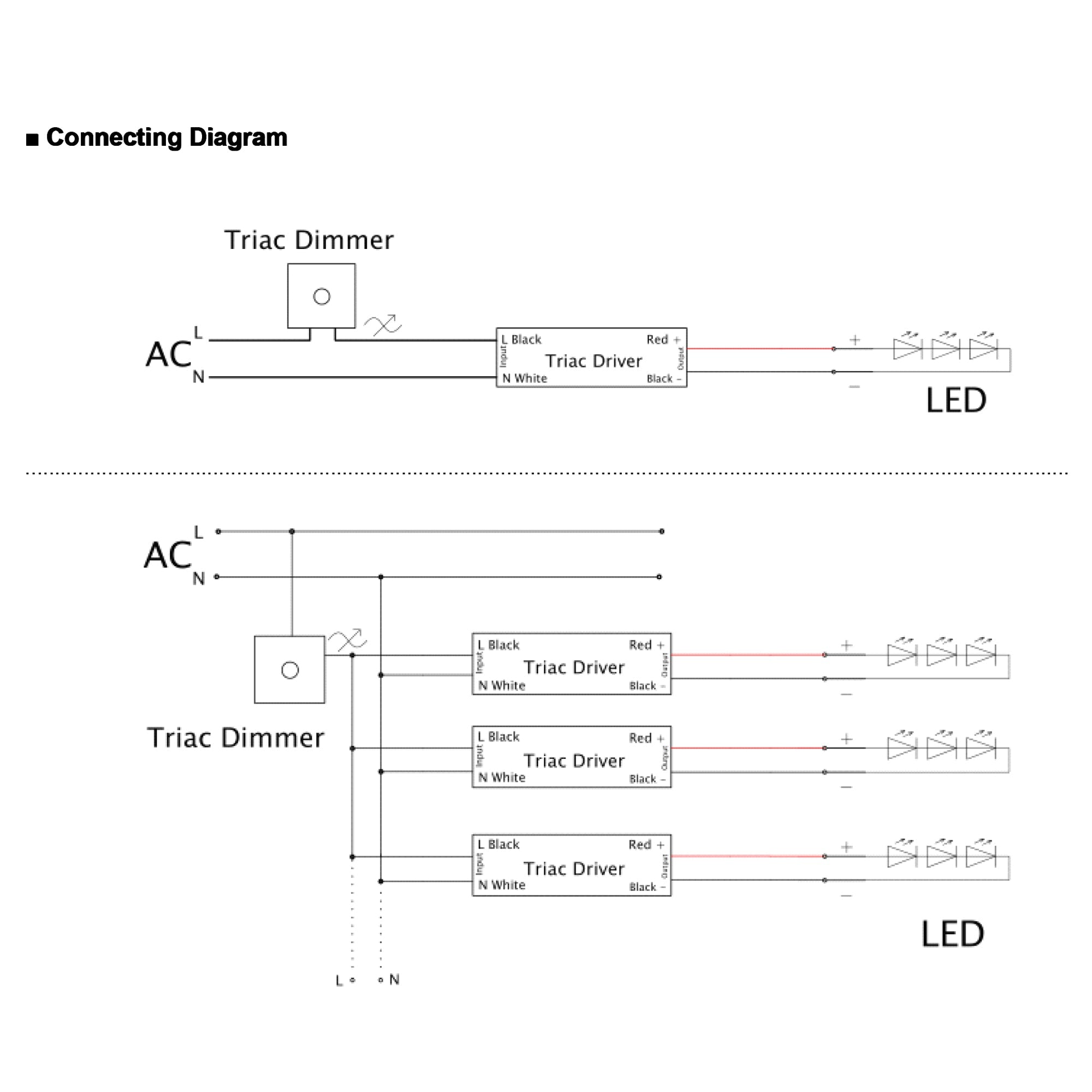

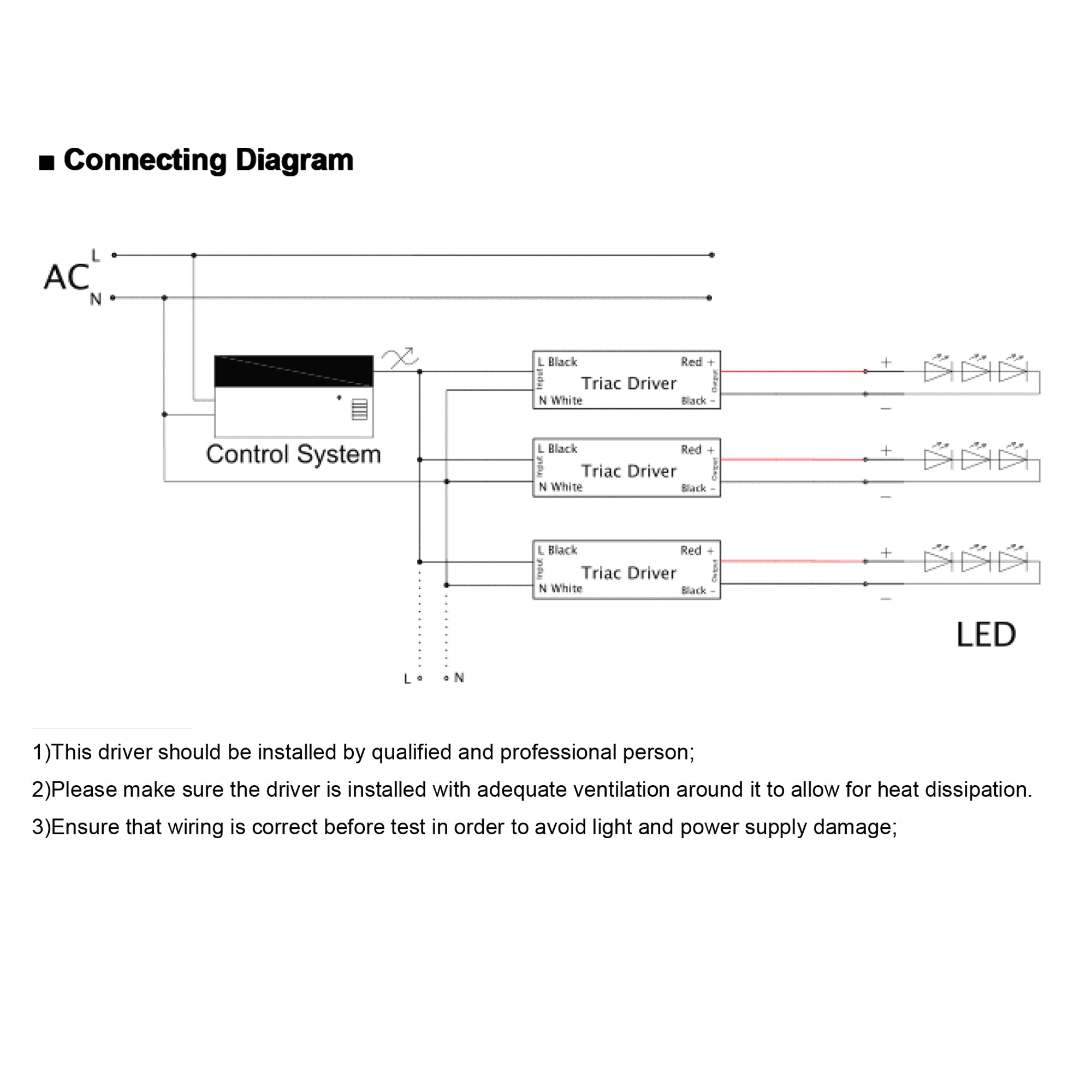

• Wiring:

  • Input: Black (L), White (N), Green (G) – 3×18AWG

  • Output: Red (V+), Black (V–) – 2×18AWG

🔹 Applications:

• LED strip and bar lighting

• Under-cabinet, cove, and architectural lighting

• Retail and display lighting

• Any low-voltage system requiring smooth dimming and flicker-free output

• Part Number:
  LA-DRV-F1-12V-30W-JB-S1
  LA-DRV-F1-24V-30W-JB-S1
