Description
This 60W constant voltage LED driver is designed for seamless dimming performance with TRIAC, ELV, and MLV phase-cut dimmers, supporting both 12V and 24V DC outputs. With PWM dimming, a high power factor (PF > 0.9), and THD < 20%, it delivers flicker-free output across the full dimming range (0.1%–100%).
Certified under UL, FCC, Class 2, Type HL, and RoHS, this driver ensures safe operation in dry and damp locations, making it ideal for architectural, residential, and retail LED installations. It features a durable full iron housing, passive air cooling, and protections against short-circuit, overload, and over-temperature faults — with auto-recovery.
🔹 Key Features:
-
Output Power: 60W
-
Output Voltage Options: 12V DC (5A) or 24V DC (2.5A)
-
Input Voltage: 100–277V AC, 50/60Hz
-

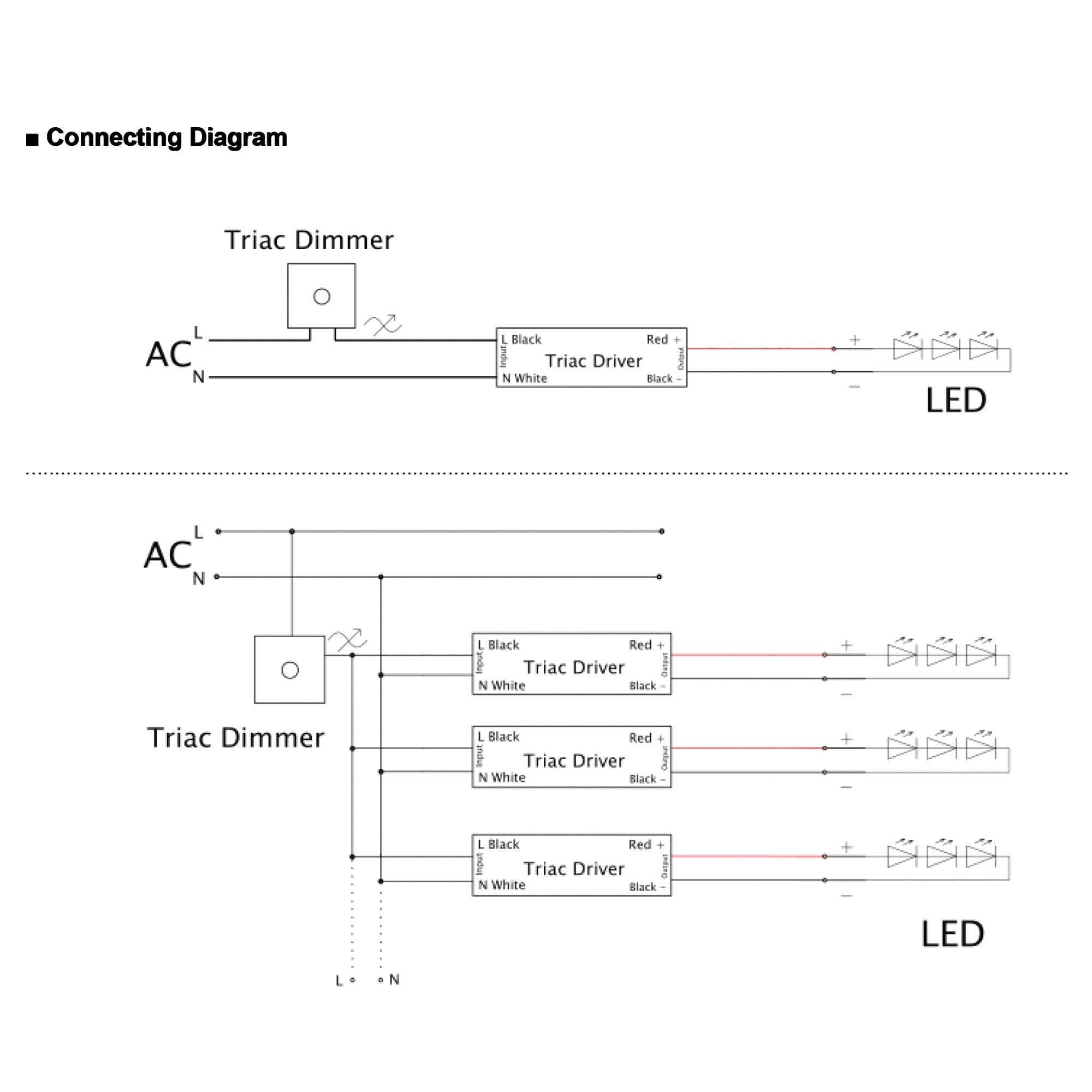

Dimming Compatibility: TRIAC / ELV / MLV dimmers
-
Dimming Range: 0.1–100%, PWM flicker-free
-
Efficiency: Up to 85% @277V AC
-
Power Factor: >0.9 (typical)
-
THD: <20%
-
Certifications: UL Listed, FCC, Class 2, Class P, Type HL, RoHS, SELV
-
Protections: Short-circuit, overload, over-temperature (auto-recovery)
-
Cooling: Natural air convection
-
Environment: Suitable for dry and damp locations
🔹 Mechanical & Wiring Info:
-

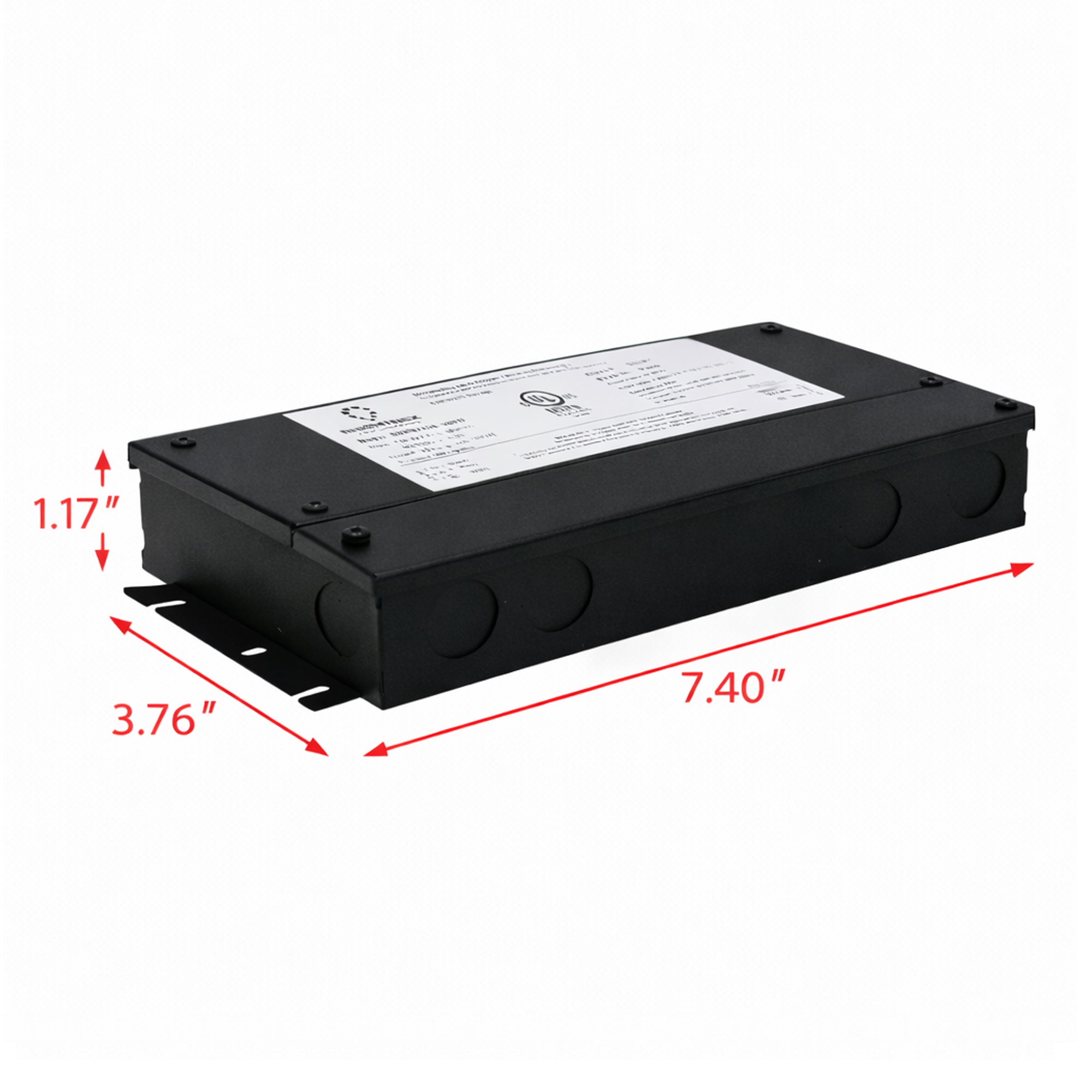

Dimensions: 7.40 × 3.76 × 1.17 inches
-
Weight: ~2.43 lbs
-
Input Wiring: Black (L), White (N), Green (G) – 3×18AWG
-
Output Wiring: Red (V+), Black (V–) – 2×18AWG
-
Case Material: Full iron enclosure for heat dissipation

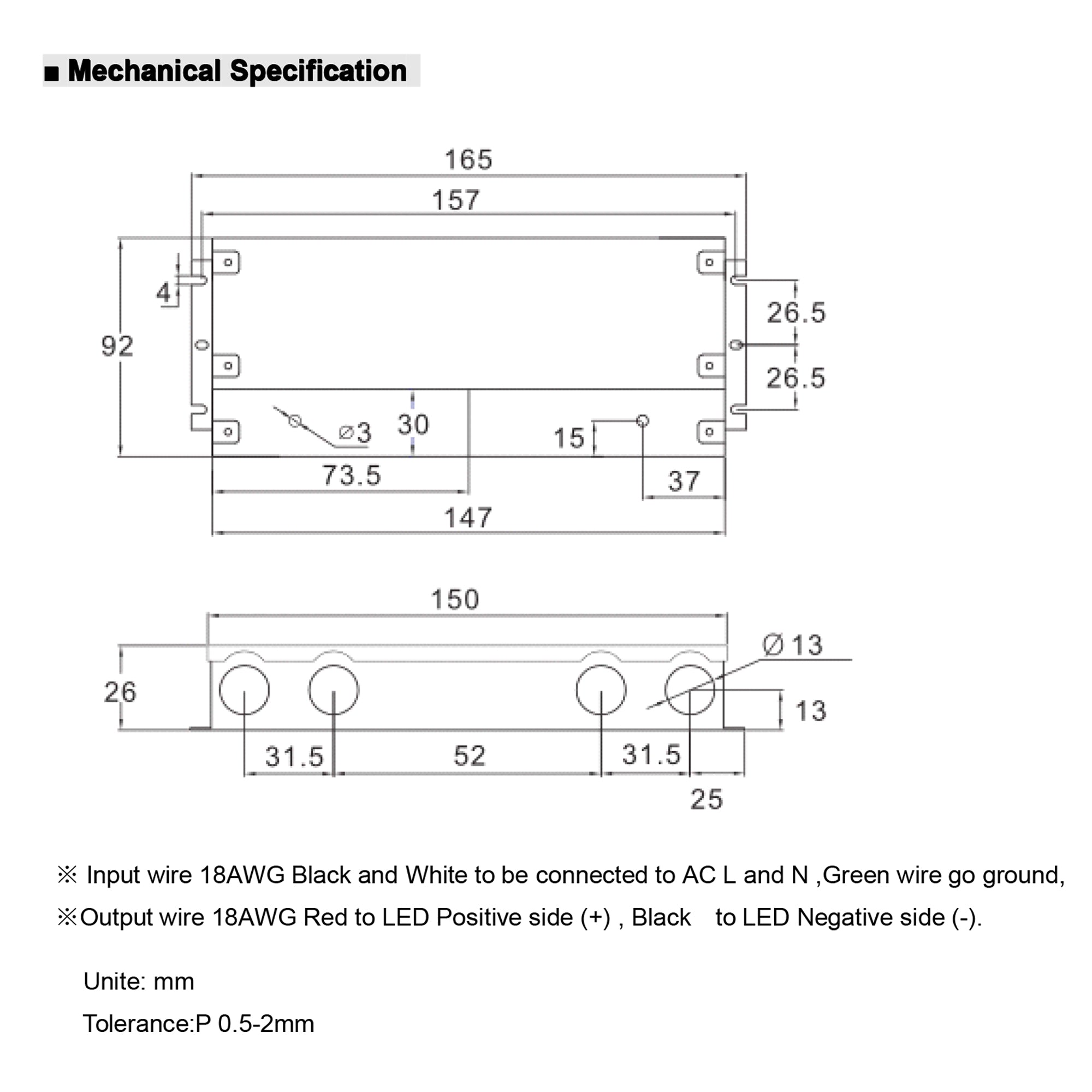

(As illustrated in the mechanical drawing on page 5)
🔹 Applications:
-
LED strip and bar lighting
-
Under-cabinet, cove, or accent lighting
-
Architectural and commercial LED systems
-
Indoor installations where flicker-free dimming is essential
-
Part Number:
LA-DRV-F1-12V-60W-JB-S1
LA-DRV-F1-24V-60W-JB-S1
