Description
This 80W Constant Voltage LED Driver is a professional-grade power supply engineered for smooth, flicker-free dimming using TRIAC, ELV, and MLV phase-cut dimmers. Available in both 12V DC (6.66A) and 24V DC (3.33A) versions, it is designed to support a wide range of LED strip and architectural lighting applications.
The unit features a wide input range of 100–277V AC, built-in active PFC, and is fully UL Listed (Class 2, Class P, Type HL) with FCC, SELV, RoHS, and Reach compliance. With a dimming range of 0.1–100%, PWM output, and total harmonic distortion (THD) under 20%, it ensures energy-efficient and visually comfortable operation.

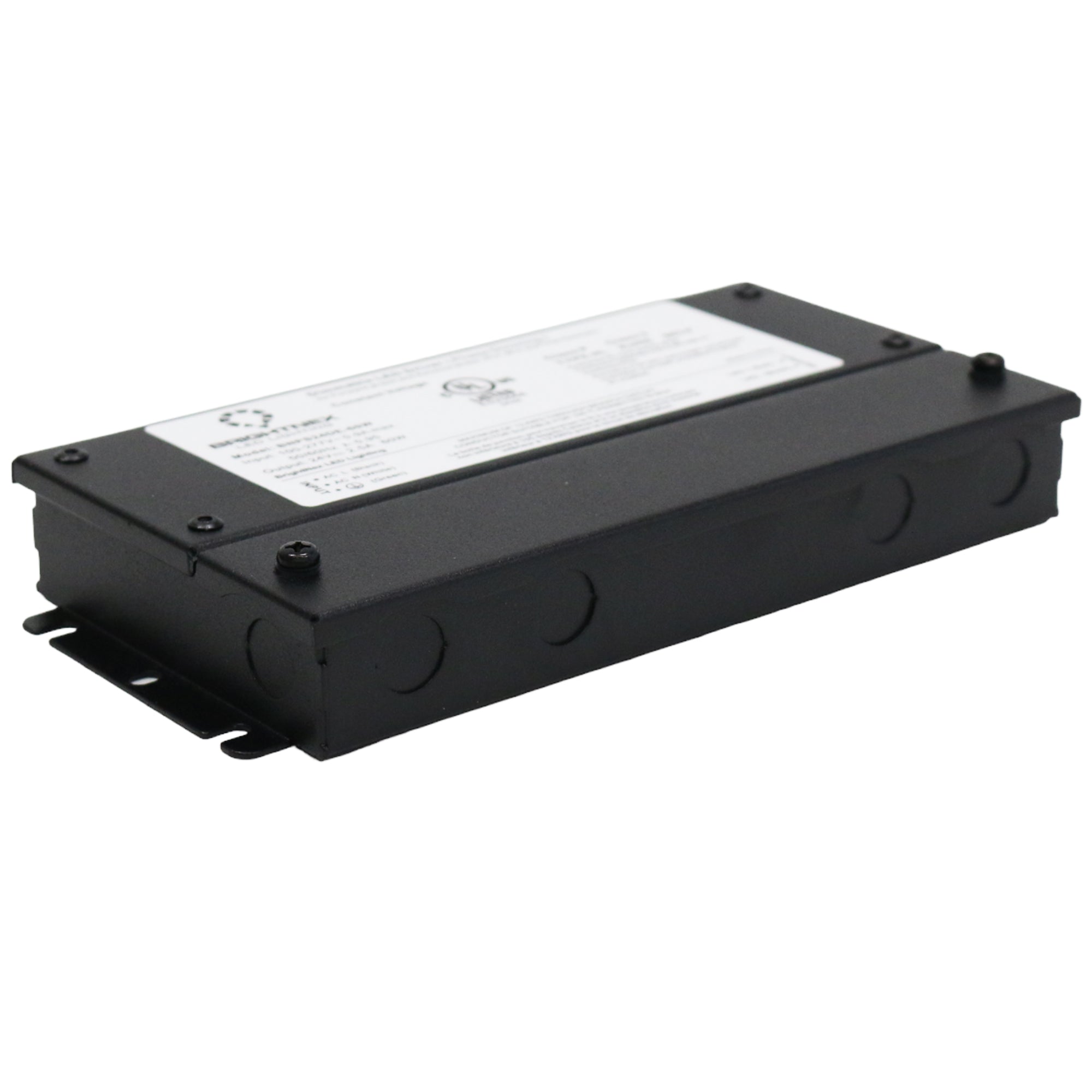

The iron housing offers reliable protection for dry, damp, and wet locations, making it ideal for both indoor and outdoor projects. Short-circuit, overload, and over-temperature protections are built in with auto-recovery.
🔹 Key Features:
-
Output Power: 80W
-
Voltage Options:
-
12V DC @ 6.66A
-
24V DC @ 3.33A
-
-
Input Voltage: 100–277V AC, 50/60Hz
-
Efficiency: Up to 82%
-
Dimming Compatibility: TRIAC, ELV, MLV (Forward & Reverse Phase)
-
Dimming Range: 0.1% – 100% (PWM control, flicker-free)
-
Power Factor: >0.9 (typical)
-
THD: <20%
-
Protections:
-
Short circuit (auto-restart)
-
Overload (≤120%)
-
Over-temperature (100 °C ±10 °C shutoff)
-
-

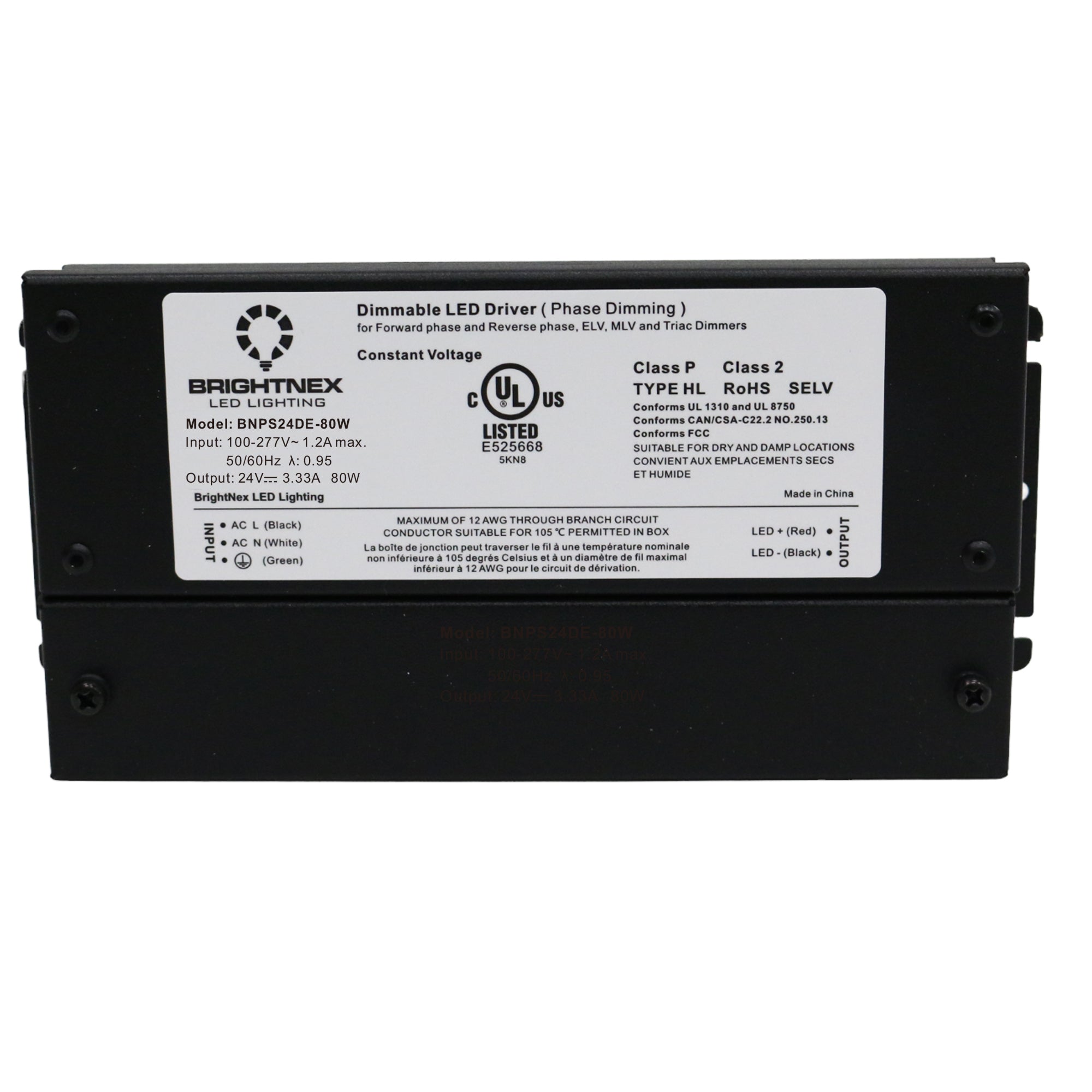

Certifications: UL Listed, Class 2 (24V), Class P, Type HL, FCC, RoHS, SELV
-
Cooling: Natural air convection
-
Environment Rating: Dry, damp, and wet locations (not for Submersion)
🔹 Mechanical & Wiring Info:
-

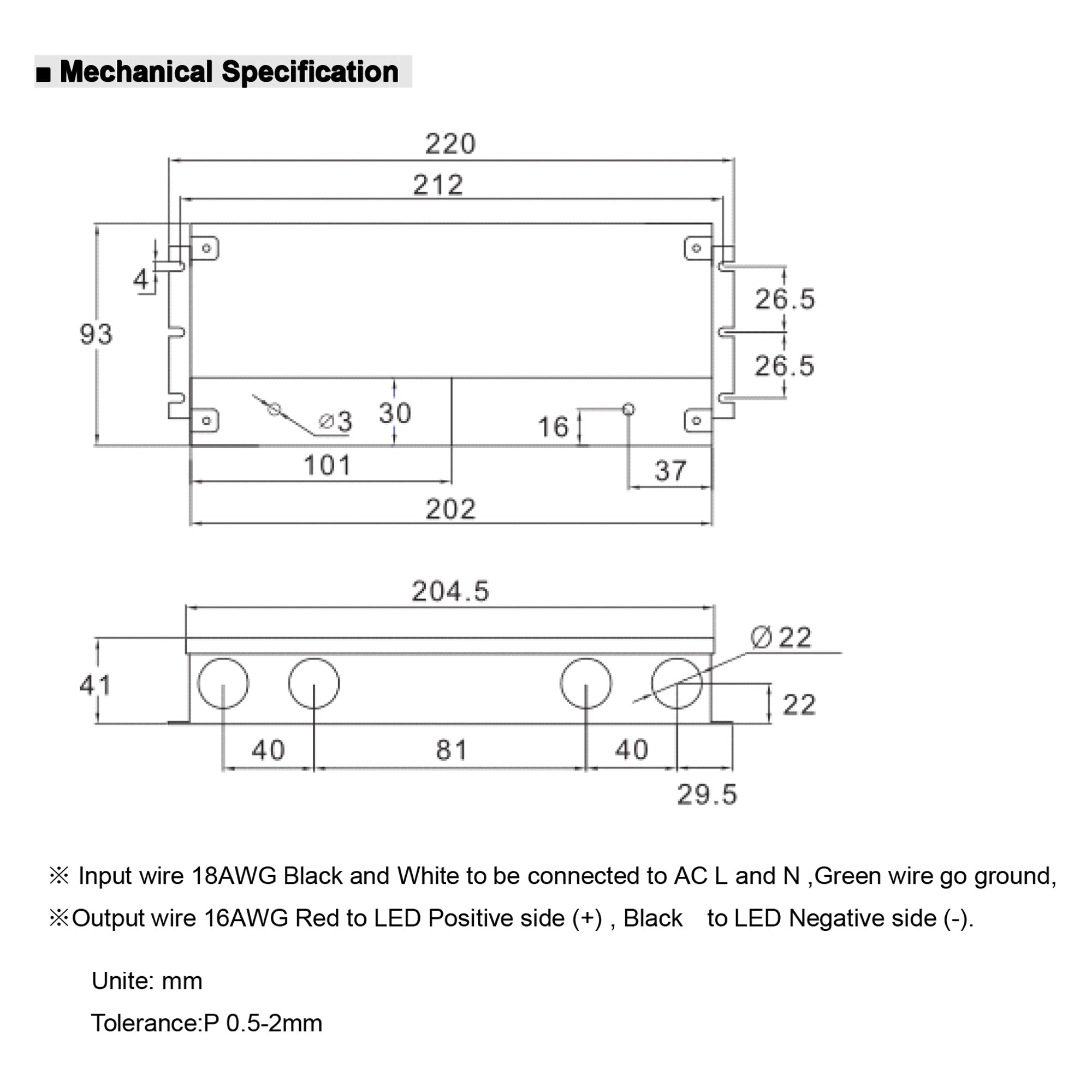

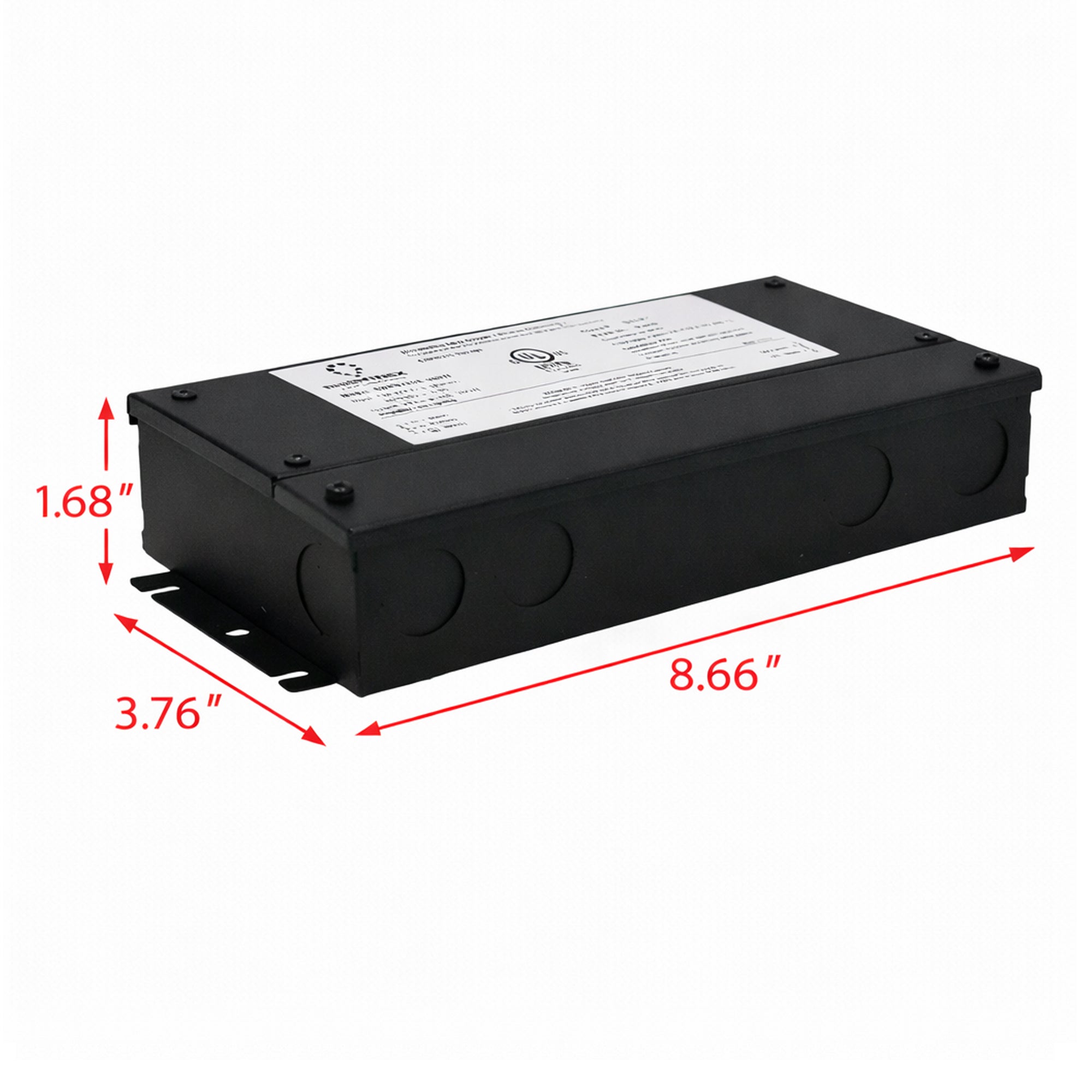

Dimensions: 8.66 × 3.76 × 1.68 inches
-
Weight: 2.87 lbs
-

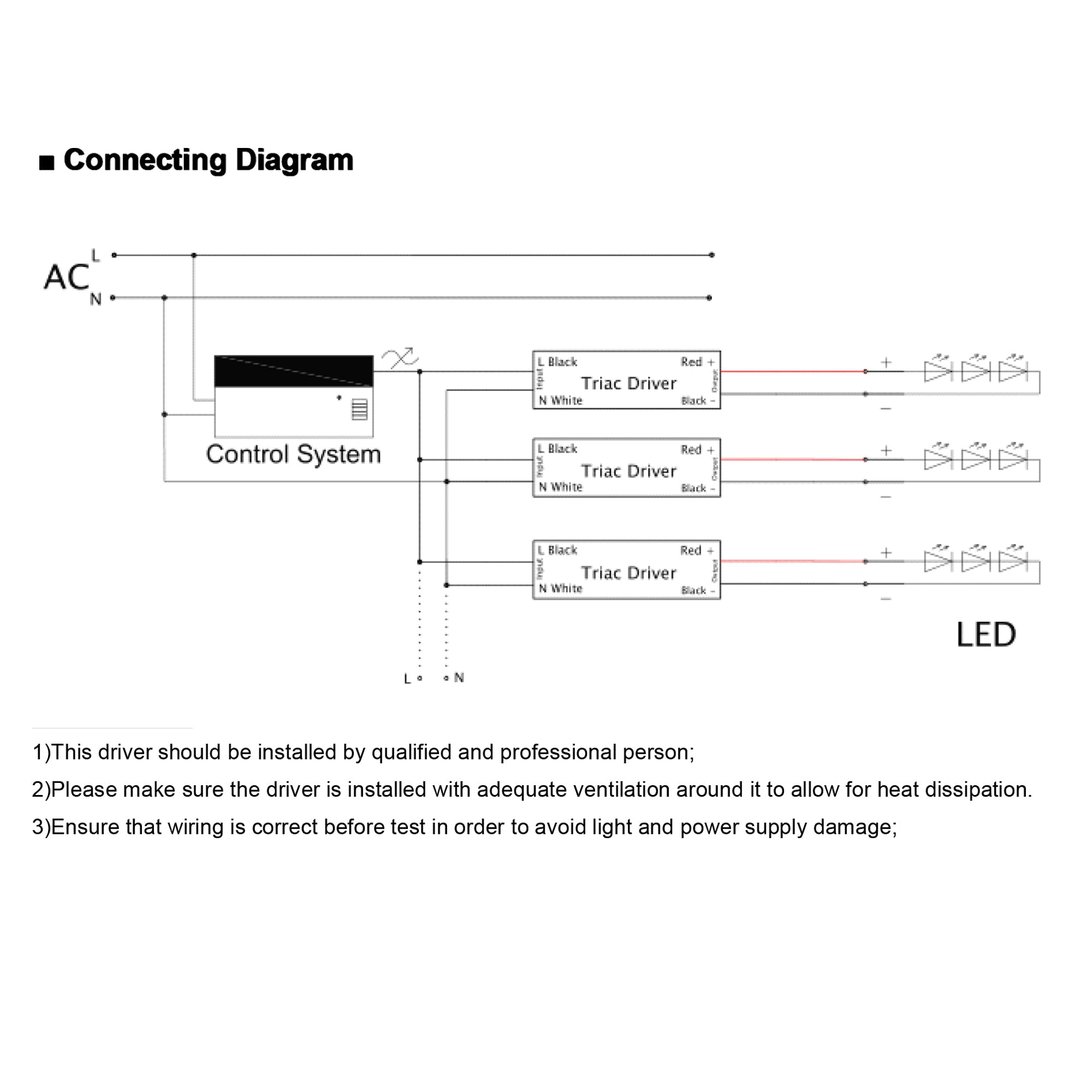

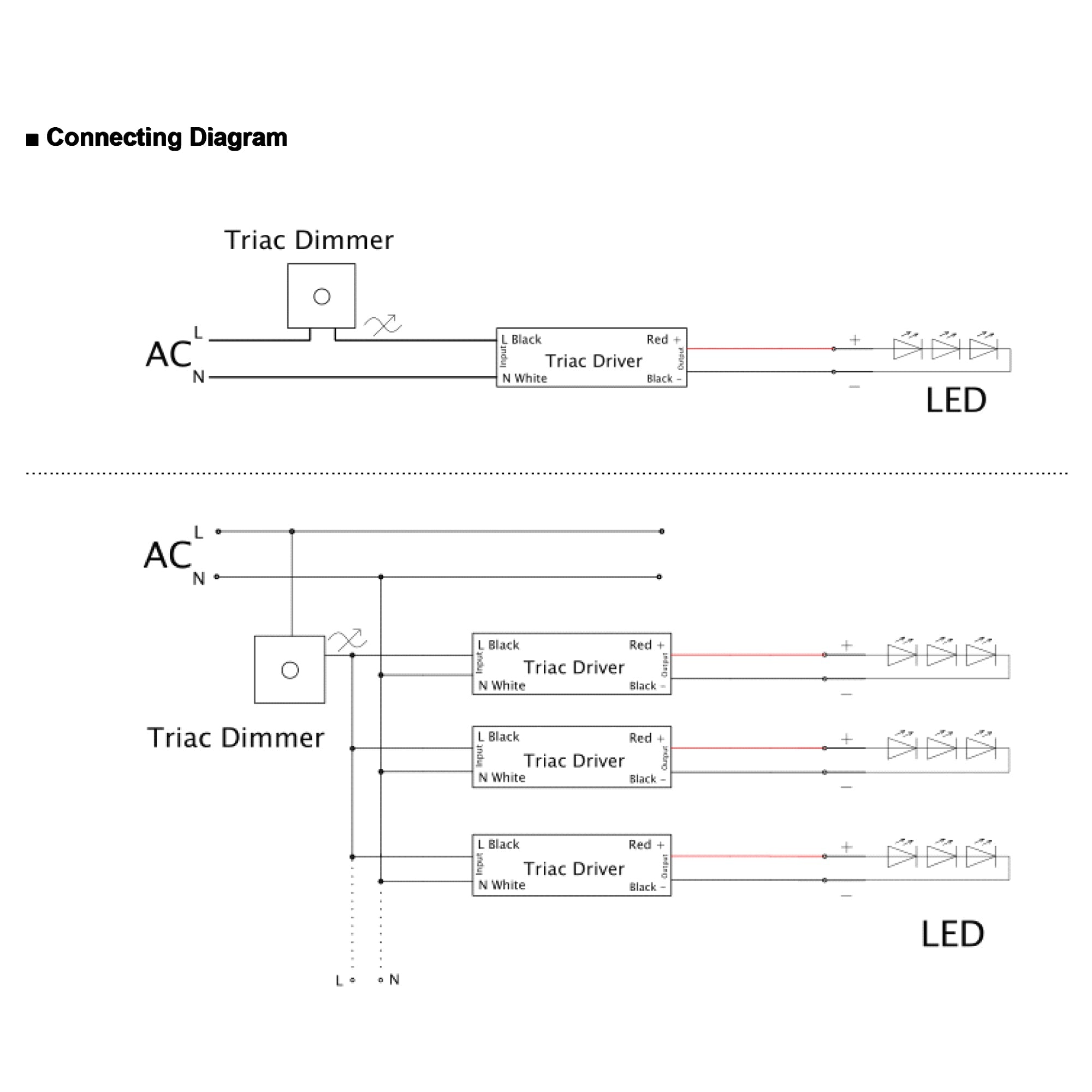

Wiring:
-
Input: Black (L), White (N), Green (GND) – 3×18AWG
-
Output: Red (V+), Black (V–) – 2×18AWG
-
🔹 Applications:
-
LED strip lighting (indoor/outdoor)
-
Cove, under-cabinet, and architectural lighting
-
Commercial displays and signage
-
Lighting zones requiring stable, flicker-free dimming
-
Part Number:
LA-DRV-F1-12V-80W-JB-S1
LA-DRV-F1-24V-80W-JB-S1
