Description

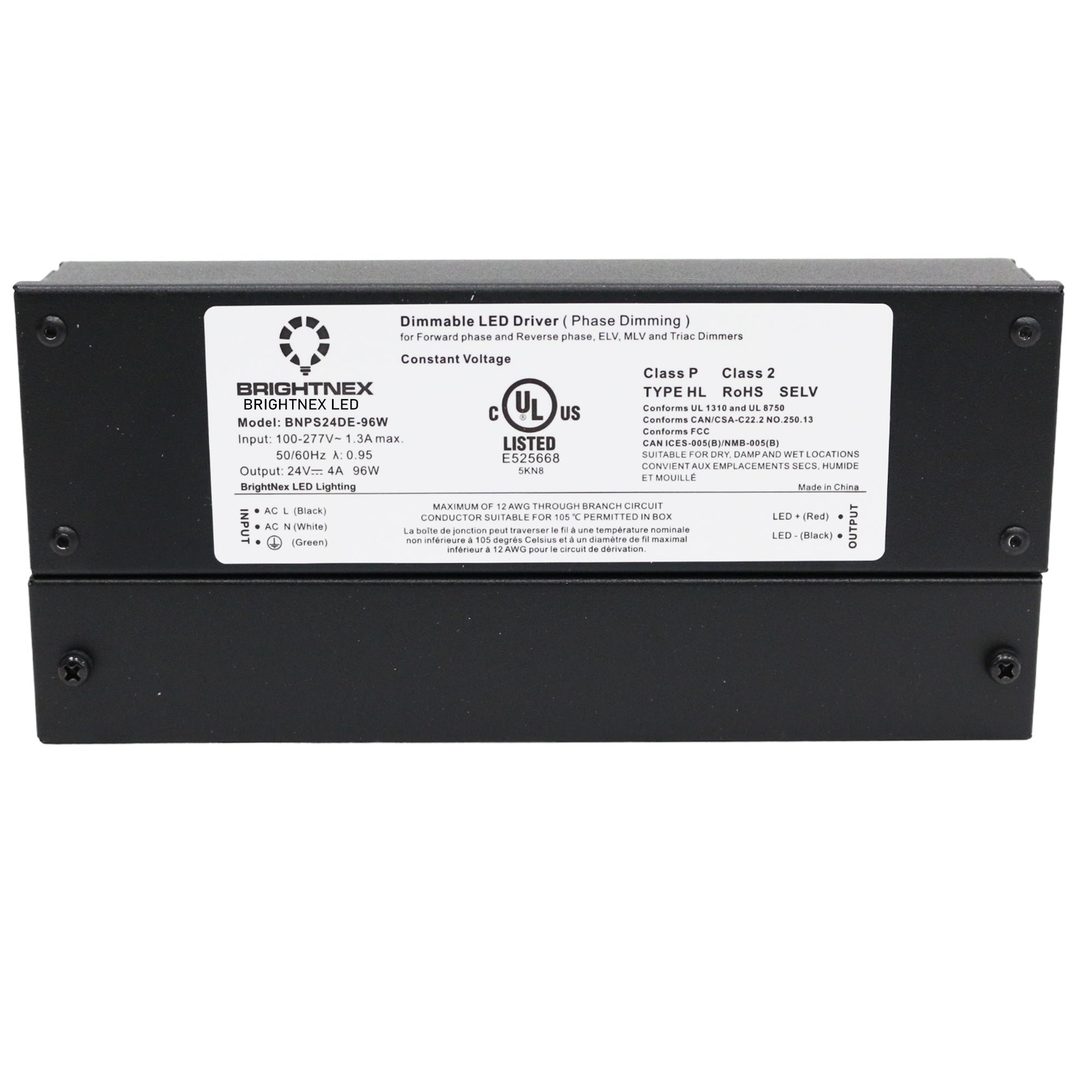

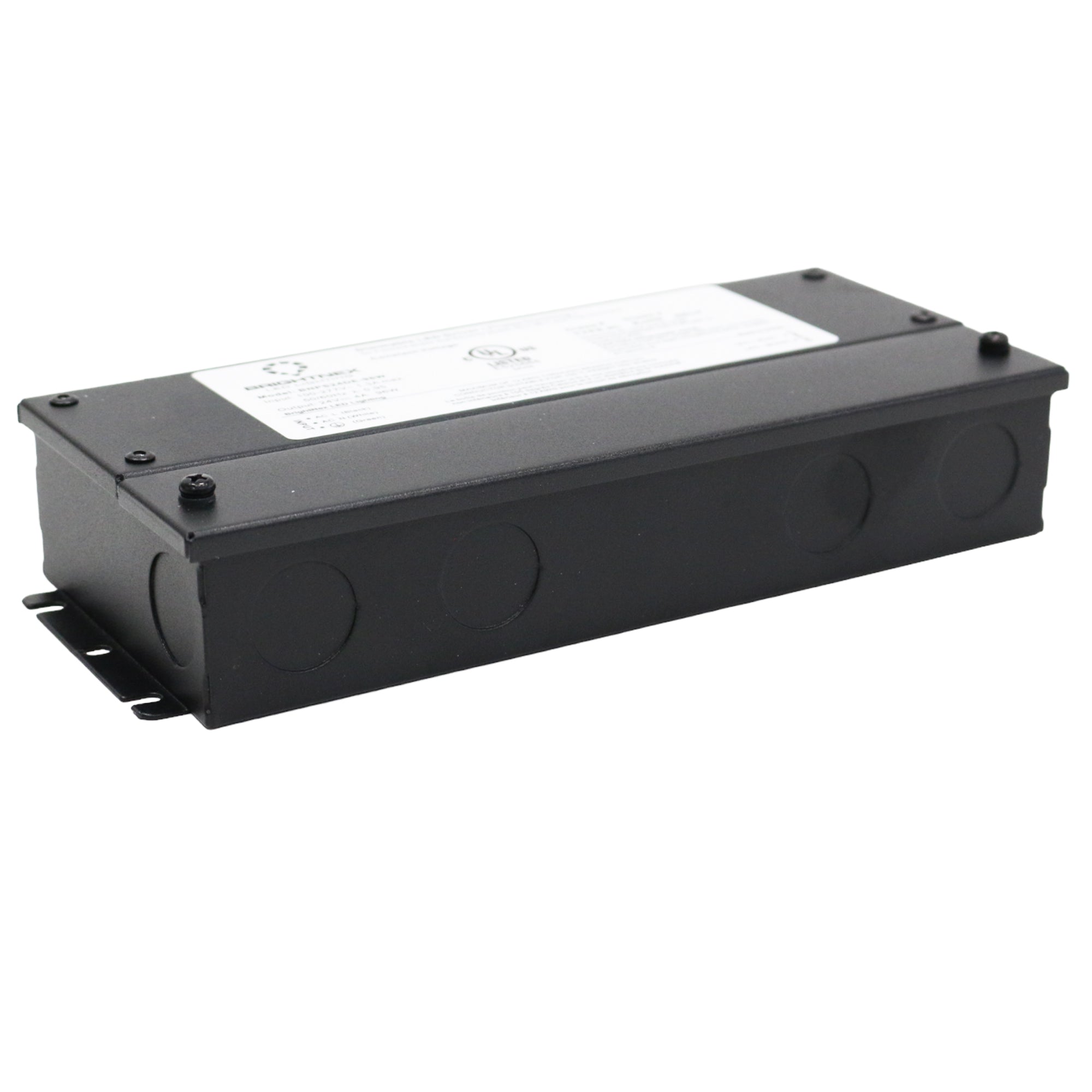

This 96W LED Driver is a high-efficiency constant voltage power supply designed for advanced dimming applications. It supports TRIAC, ELV, and MLV phase-cut dimmers and offers smooth 0.1–100% dimming through PWM control, ensuring flicker-free illumination. This driver is ideal for 24V LED strip lighting, architectural, and outdoor lighting systems.
It features a wide input voltage range (100–277VAC), active PFC, and high power factor (>0.9) with low THD (<20%). Certified by UL, FCC, RoHS, Reach, Class 2, Class P, Type HL, and designed with a robust iron housing, it's rated for use in dry, damp, and wet locations.
🔹 Key Features:
-
Output Power: 96W
-
Output Voltage: 24V DC @ 4A
-
Input Voltage: 100–277V AC, 50/60Hz
-
Dimming Compatibility: TRIAC / ELV / MLV (forward and reverse phase)
-
Dimming Range: 0.1%–100%
-
Flicker-Free: Yes (PWM dimming)
-
Power Factor: >0.9 (typical at full load)
-
THD: <20%
-
Efficiency: 83% (typical at 120V / 277V)
-
Protection Features:
-
Short circuit (auto-recovery)
-
Overload (≤120%, auto-recovery)
-
Over-temperature shutdown at 100 °C ±10 °C
-
-
Certifications: UL Listed, Class 2, Class P, Type HL, FCC, RoHS, SELV, Reach
-
Environment Rating: Dry, damp, and wet locations (Not for Submersion)
-
Cooling: Natural convection

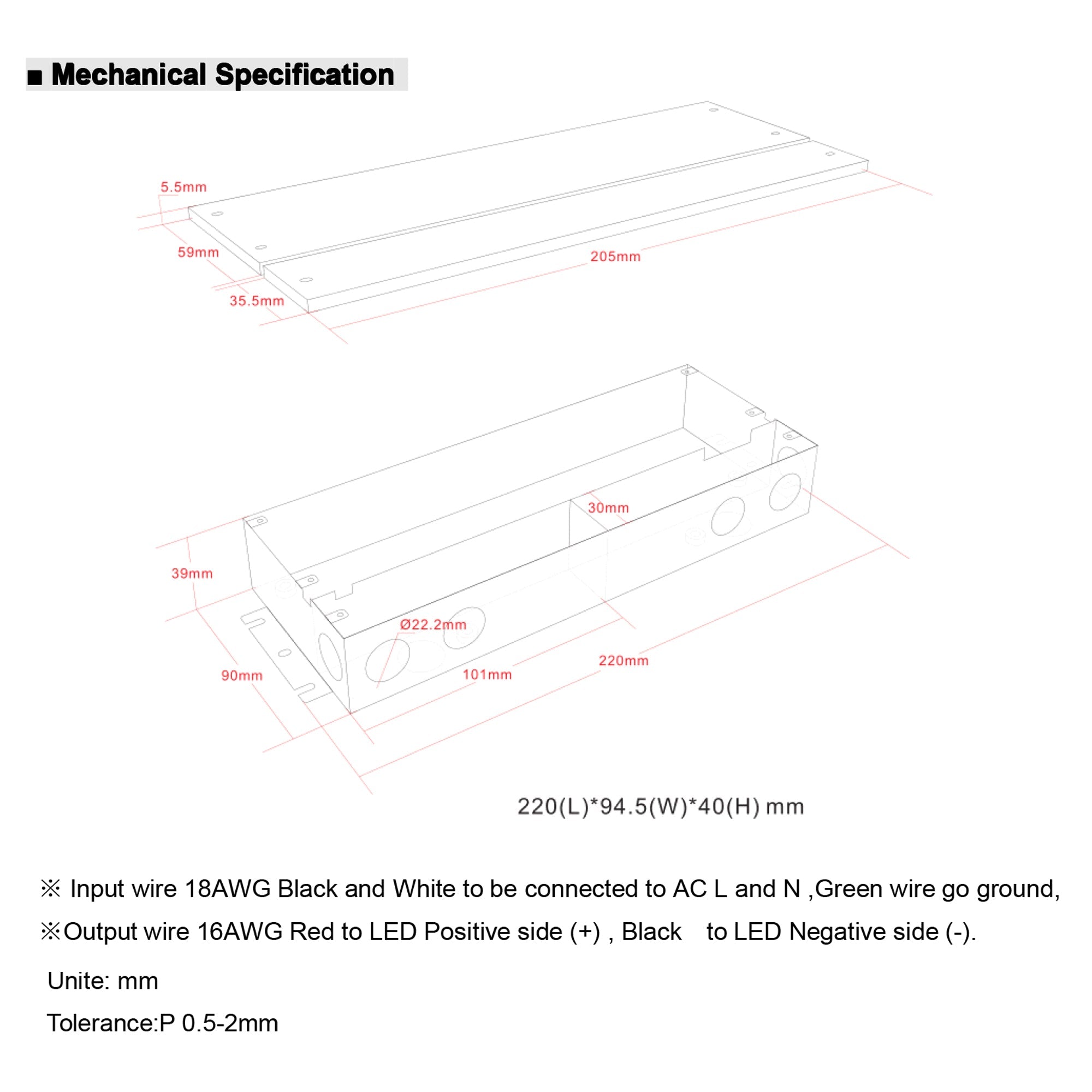

🔹 Mechanical Specs:
-

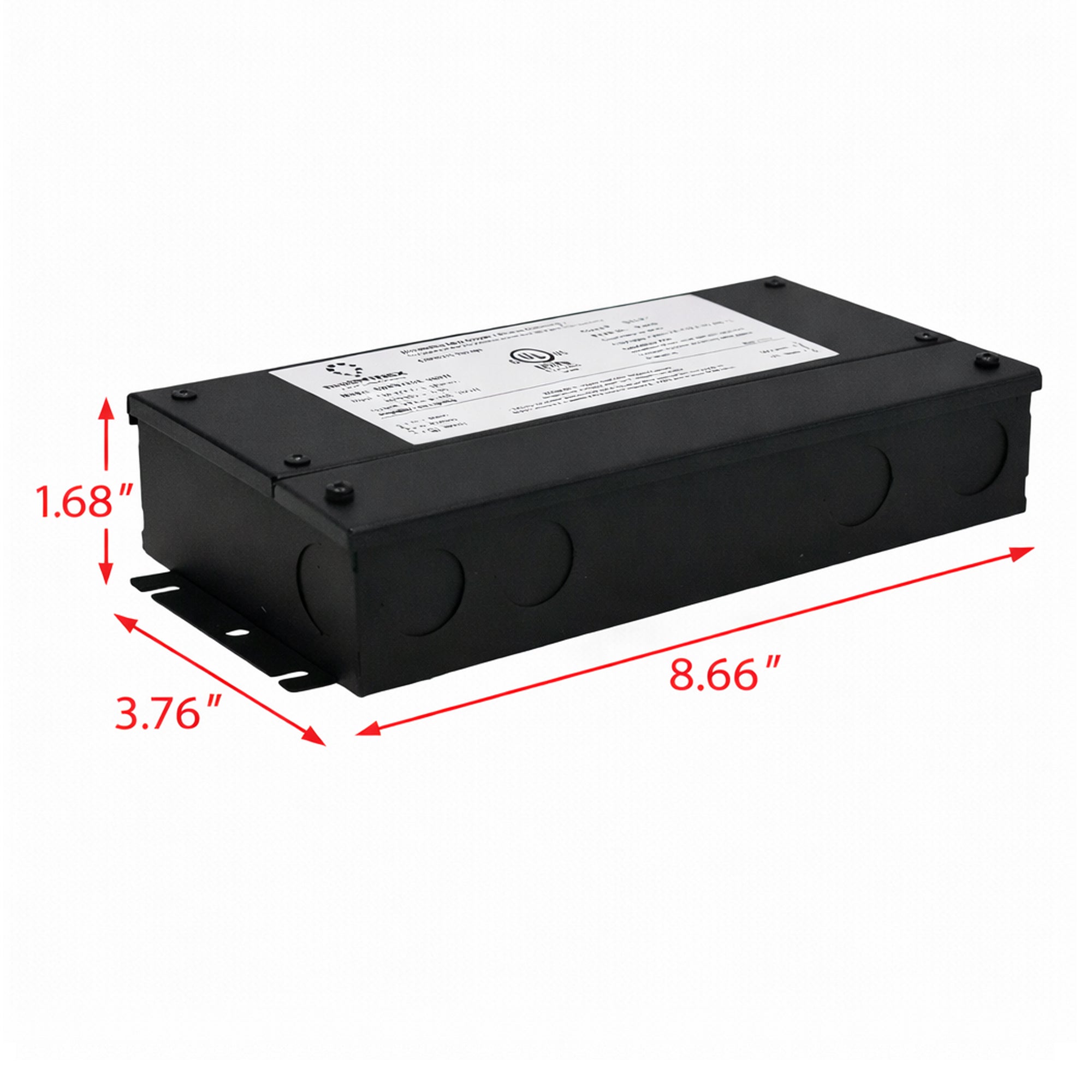

Dimensions: 8.66 × 3.76 × 1.68 inches
-
Weight: 2.82 lbs
-

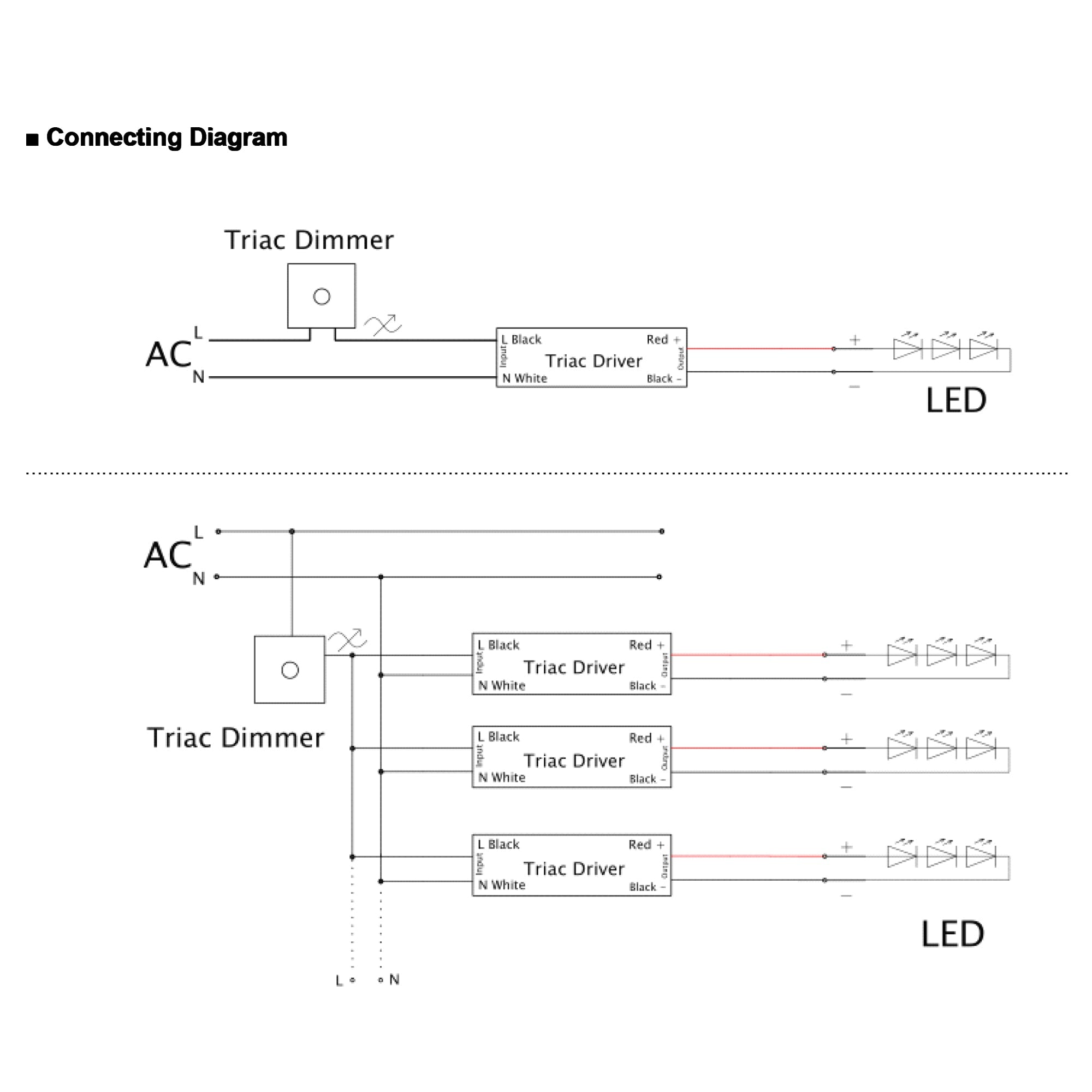

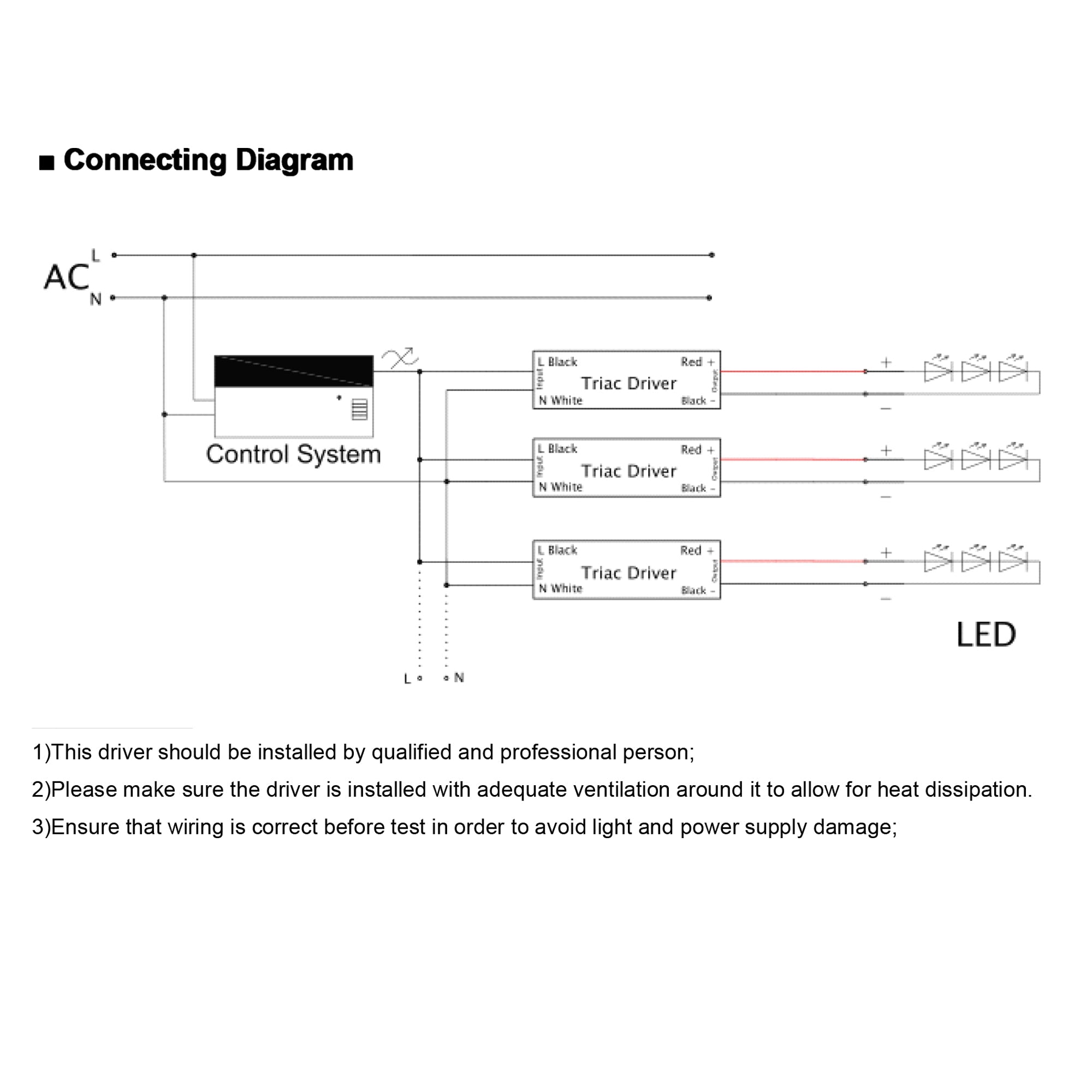

Input Wiring:
-
Black (L), White (N), Green (GND) – 3×18 AWG
-
-
Output Wiring:
-
Red (V+), Black (V–) – 2×18 AWG
-
🔹 Application Scenarios:
-
LED strip and tape lighting (indoor and outdoor)
-
Cove, signage, under-shelf lighting
-
Residential, commercial, and landscape lighting
-
Areas requiring precise, stable, and flicker-free dimming
-
Part Number:
LA-DRV-F1-24V-96W-JB-S1
