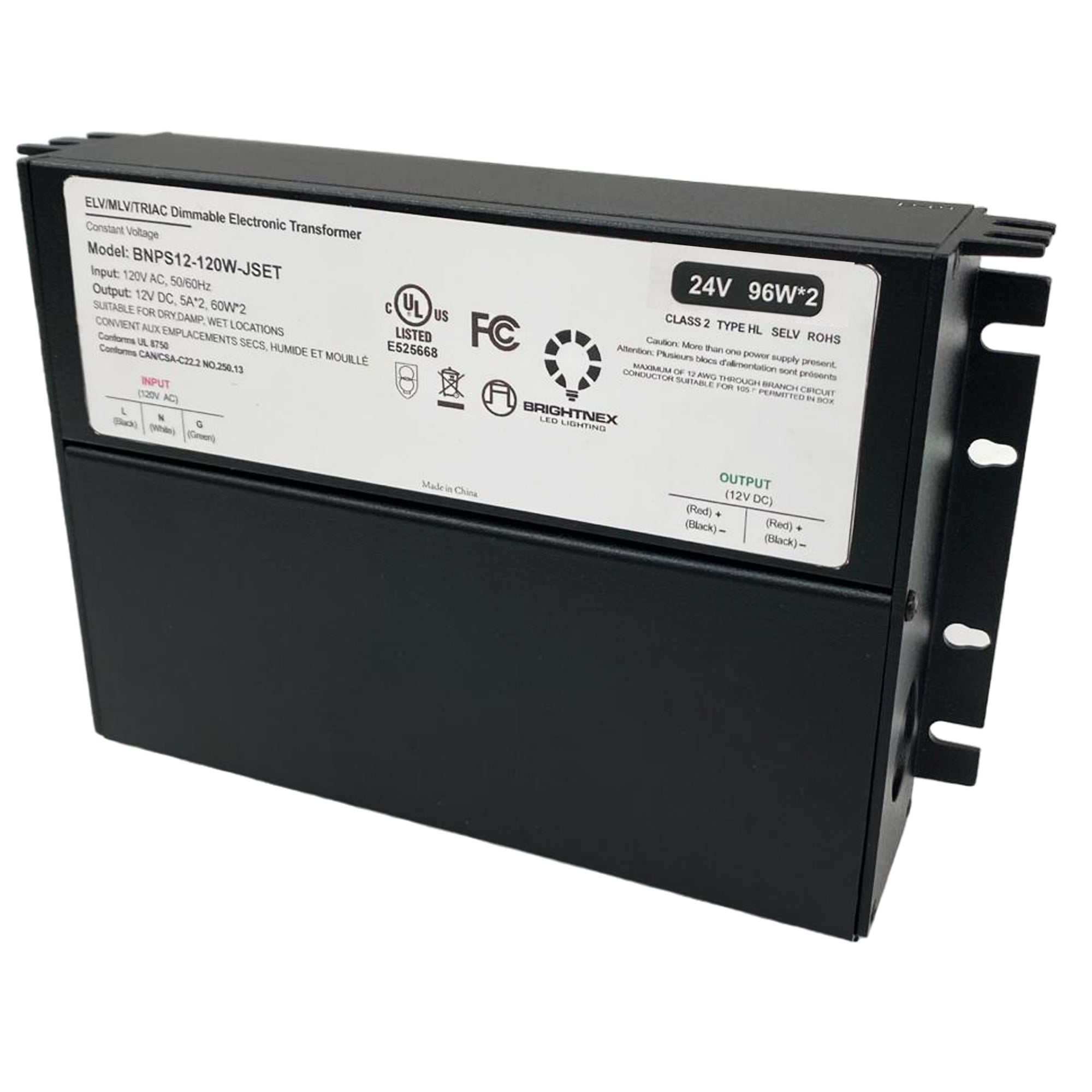

Dimmable LED Driver 24V, 192W for Wet, Damp, Dry Locations, Class 2, UL Certified (Dimmable LED Transformer)
Share
This Class 2 UL-certified dimmable transformer with an aluminum housing has been designed to be used in wet, damp, and dry locations. Dimensions: 7.40x4.74x1.65 inch (L*W*H). This dimmable transformer (LED Driver) is compatible with Triac/ELV/MLV dimming.
Input: 120V, 47-63HZ
Output: 24V, Multi 4A*2, 96W*2

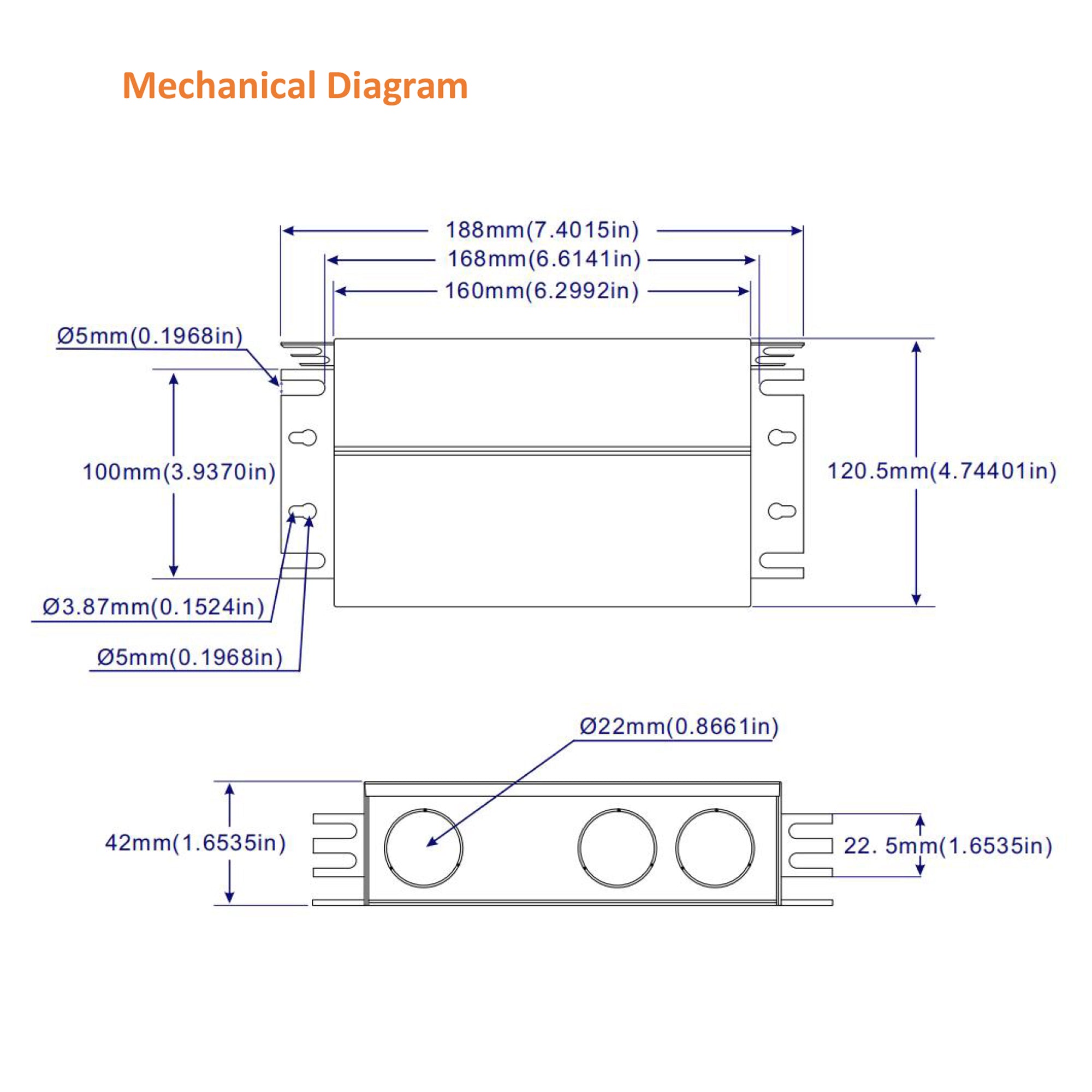

Transformer Dimensions: 7.40x4.74x1.65 inch (L*W*H)
Model Number: BNPS24-192W-JSET
Feature
UL Certified, Class 2, Type HL |

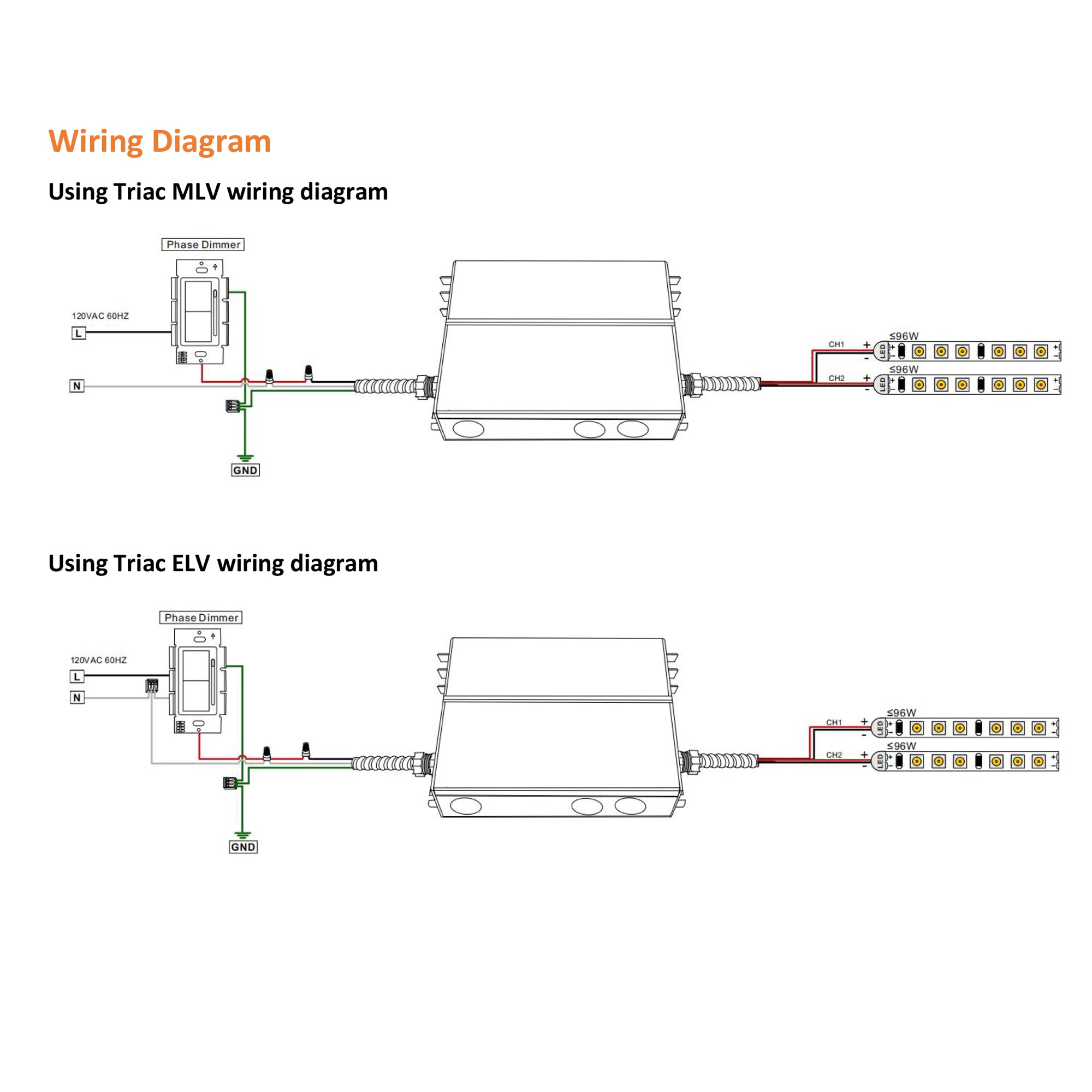

Dimming: Triac/ ELV/ MLV |
Damp,dry, wet location |
120Vac input |
Dimming 0-100% |
Aluminum housing, for dry, damp, wet |
Compatible with popular dimmers in the market, Lutron-CL, Diva series |
Size: 7.40x4.74x1.65 inch (L*W*H) |
Super low loading request, works perfect at 20-100% load |
Short-circuit, over-load protection |
Constant voltage type |
THD<20%@120V Max. load |
Build in active PFC, typical Power factor=0.98 |
