Description

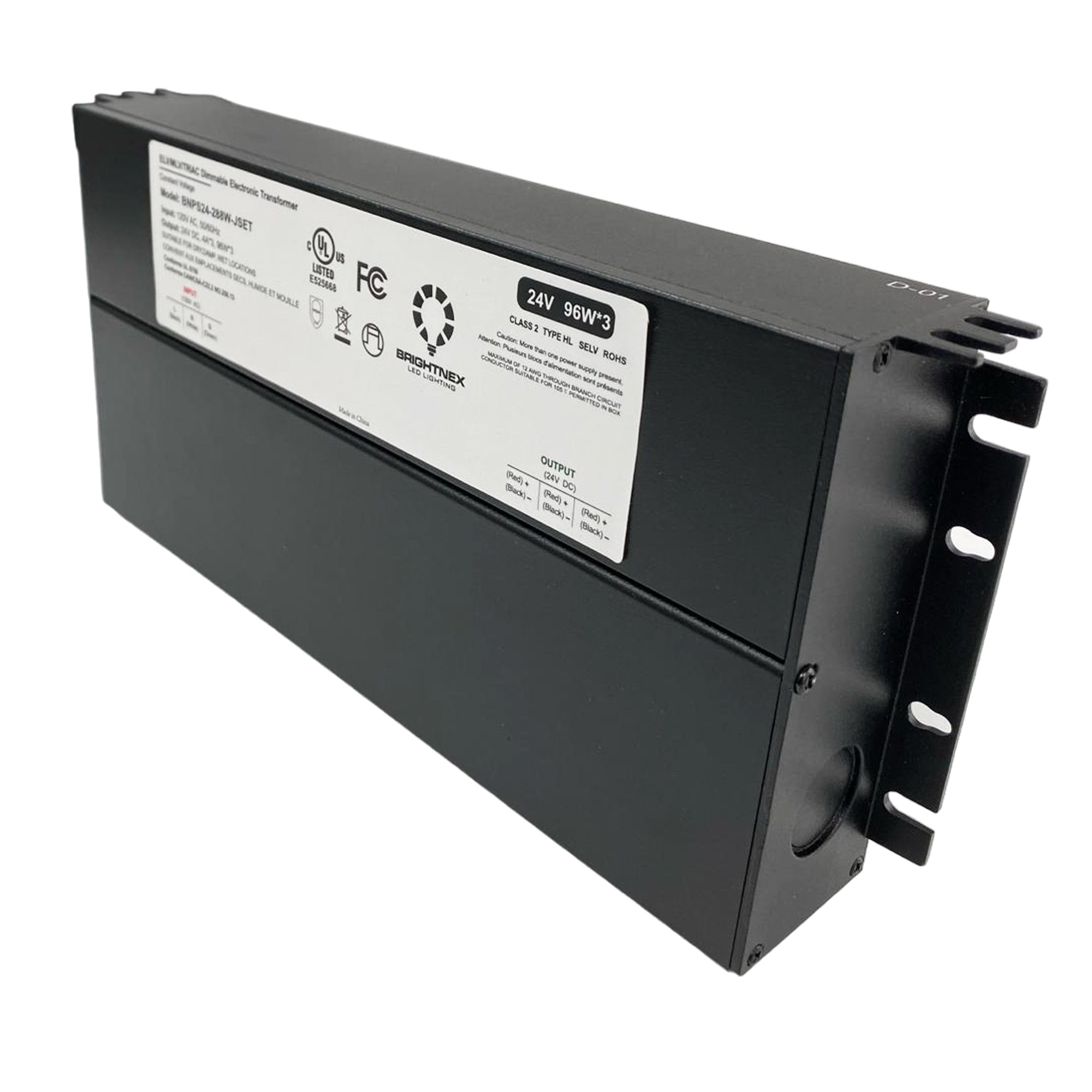

This Class 2 UL-certified dimmable transformer with an aluminum housing has been designed to be used in wet, damp, and dry locations. Dimensions: 10.15x4.74x1.65 inch (L*W*H). This dimmable transformer (LED Driver) is compatible with Triac/ELV/MLV dimming.
Input: 120V, 47-63HZ
Output: 24V, Multi 4A*3, 96W*3

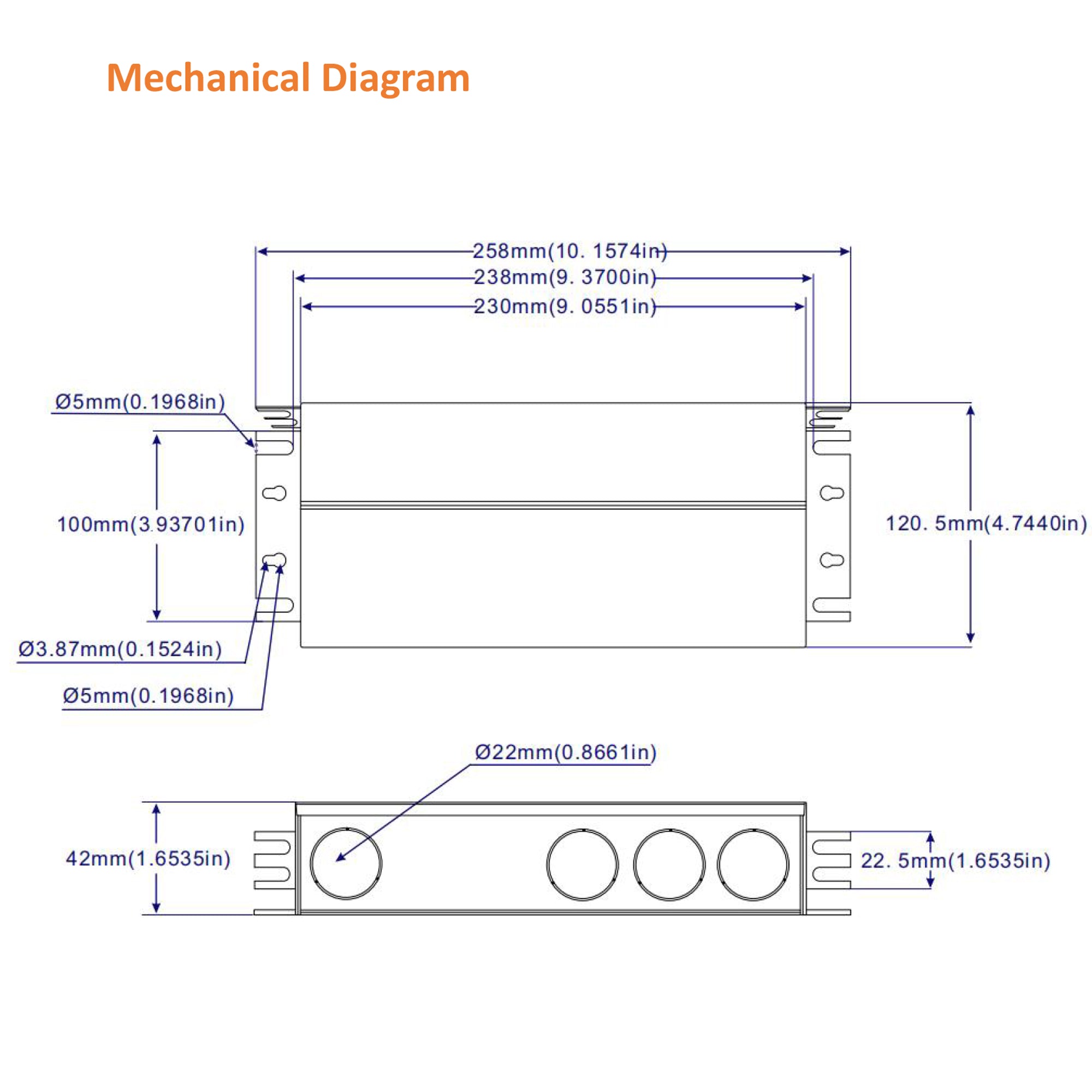

Transformer Dimensions: 10.15x4.74x1.65 inch (L*W*H)
Model Number: BNPS24-288W-JSET
Feature
|
UL Certified, Class 2, Type HL |
|

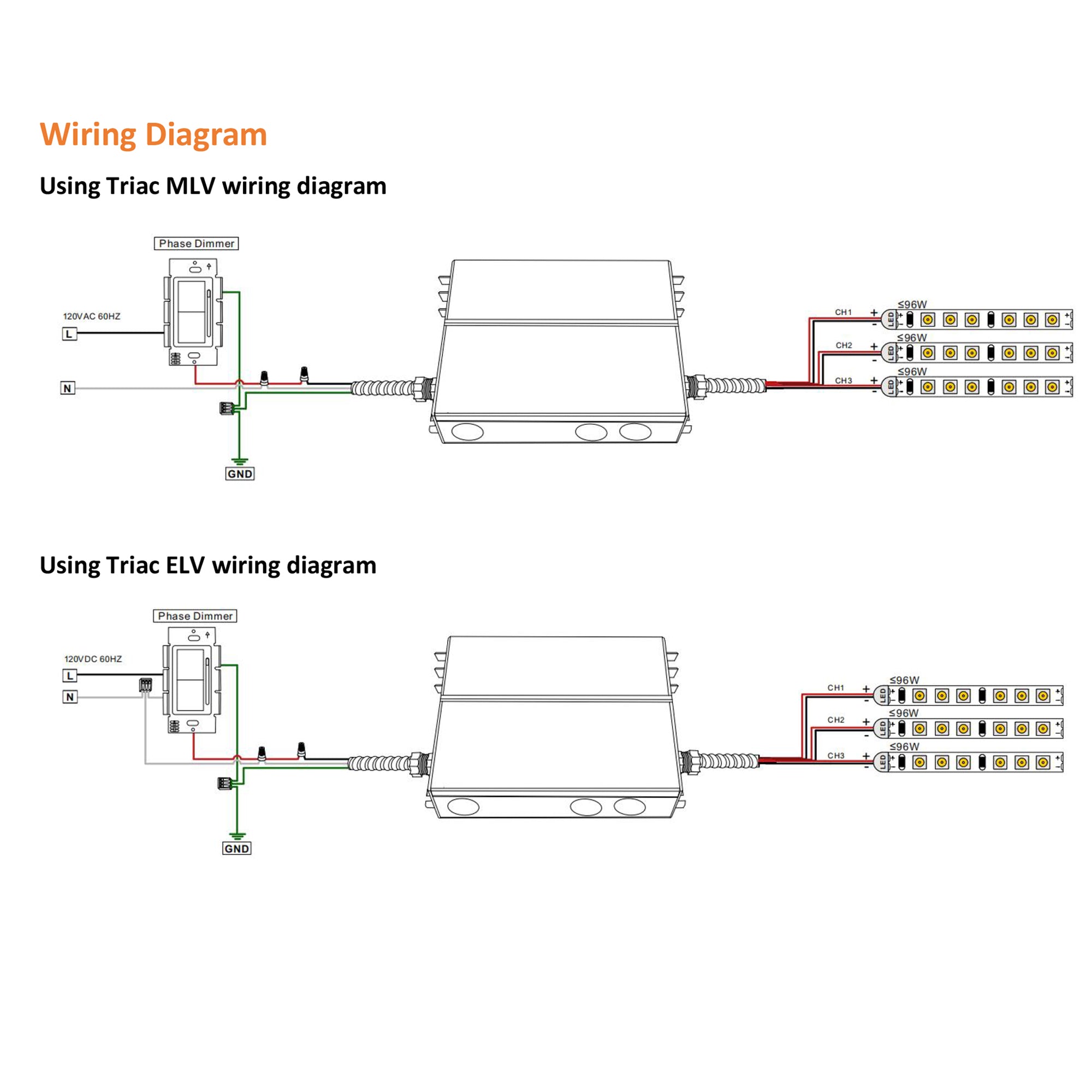

Dimming: Triac/ ELV/ MLV |
|
Damp,dry, wet location |
|
120Vac input |
|
Dimming 0-100% |
|
Aluminum housing, for dry, damp, wet |
|
Compatible with popular dimmers in the market, Lutron-CL, Diva series |
|
Size: 10.15x4.74x1.65 inch (L*W*H) |
|
Super low loading request, works perfect at 20-100% load |
|
Short-circuit, over-load protection |
|
Constant voltage type |
|
THD<20%@120V Max. load |
|
Build in active PFC, typical Power factor=0.98 |
