Description
LA LED dimmable transformer (LED Driver) is UL-certified and compatible with Triac/ ELV/ MLV dimming. Suitable for dry and damp locations. AC input 100-277VAC and 83% efficiency with short circuit protection.
Input: 100-227 V AC, 1.8A max. 50/60Hz
Output: 12V DC, 12.5A, 150W

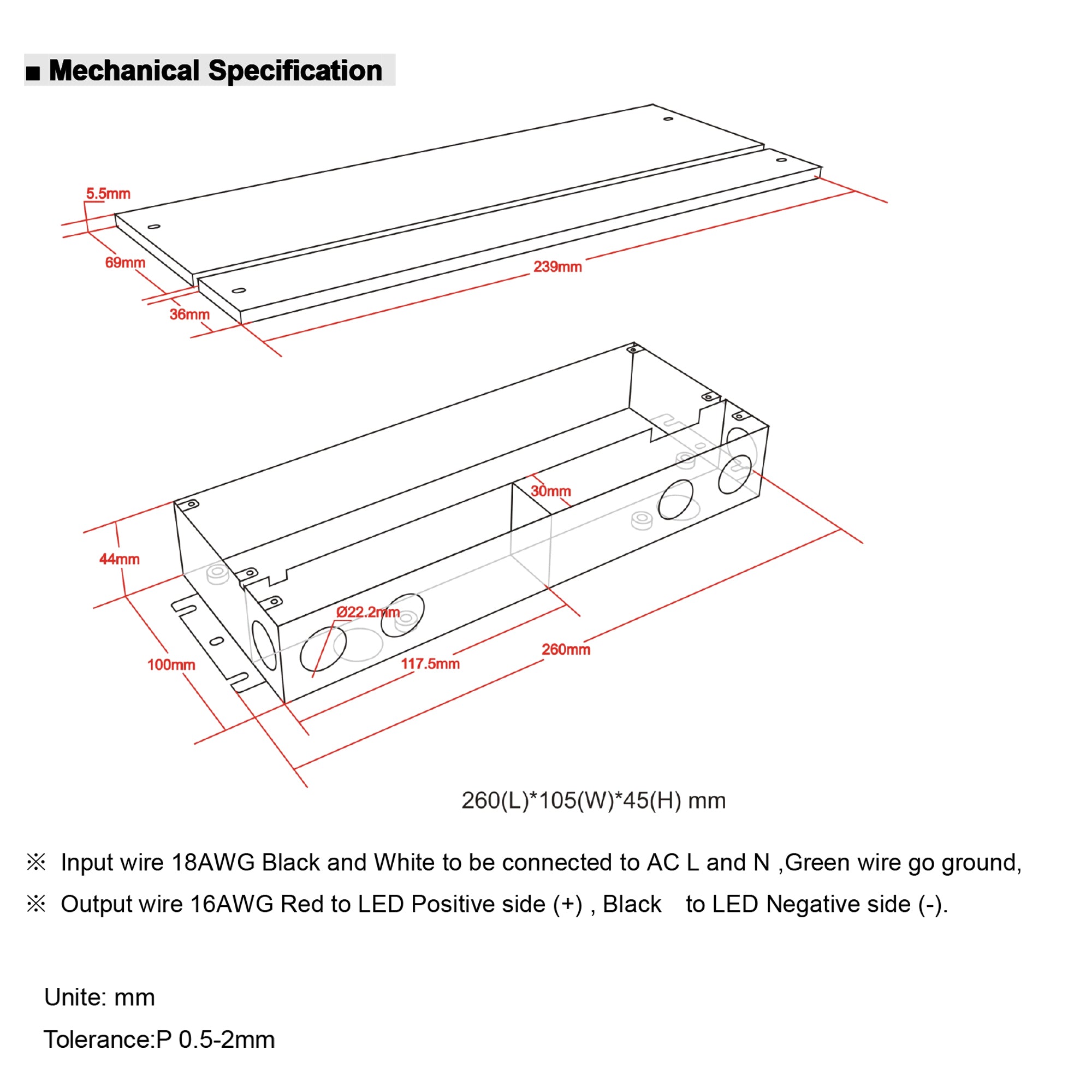

Transformer Dimensions: 10.2x3.9x1.7 inch (L*W*H)
Feature
|

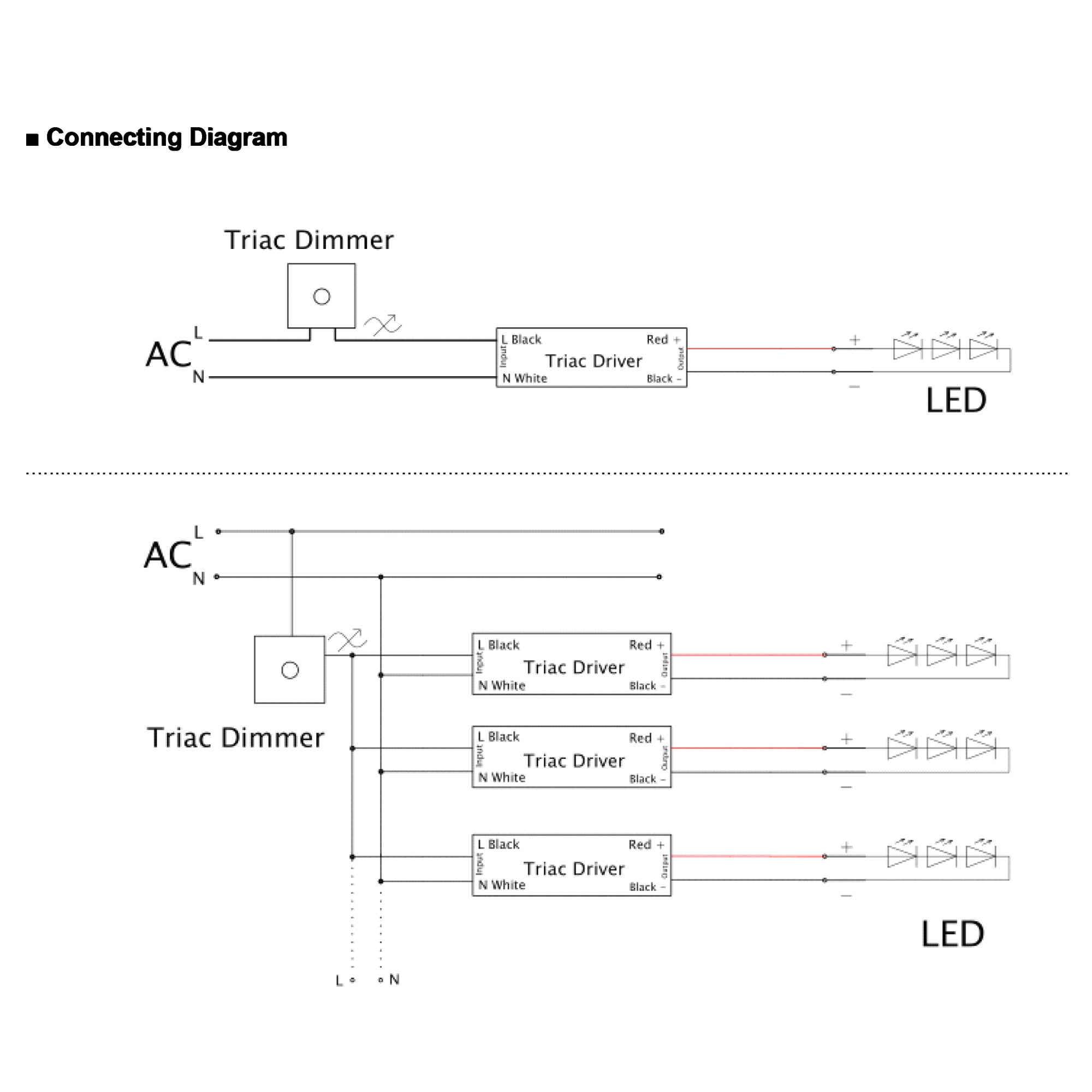

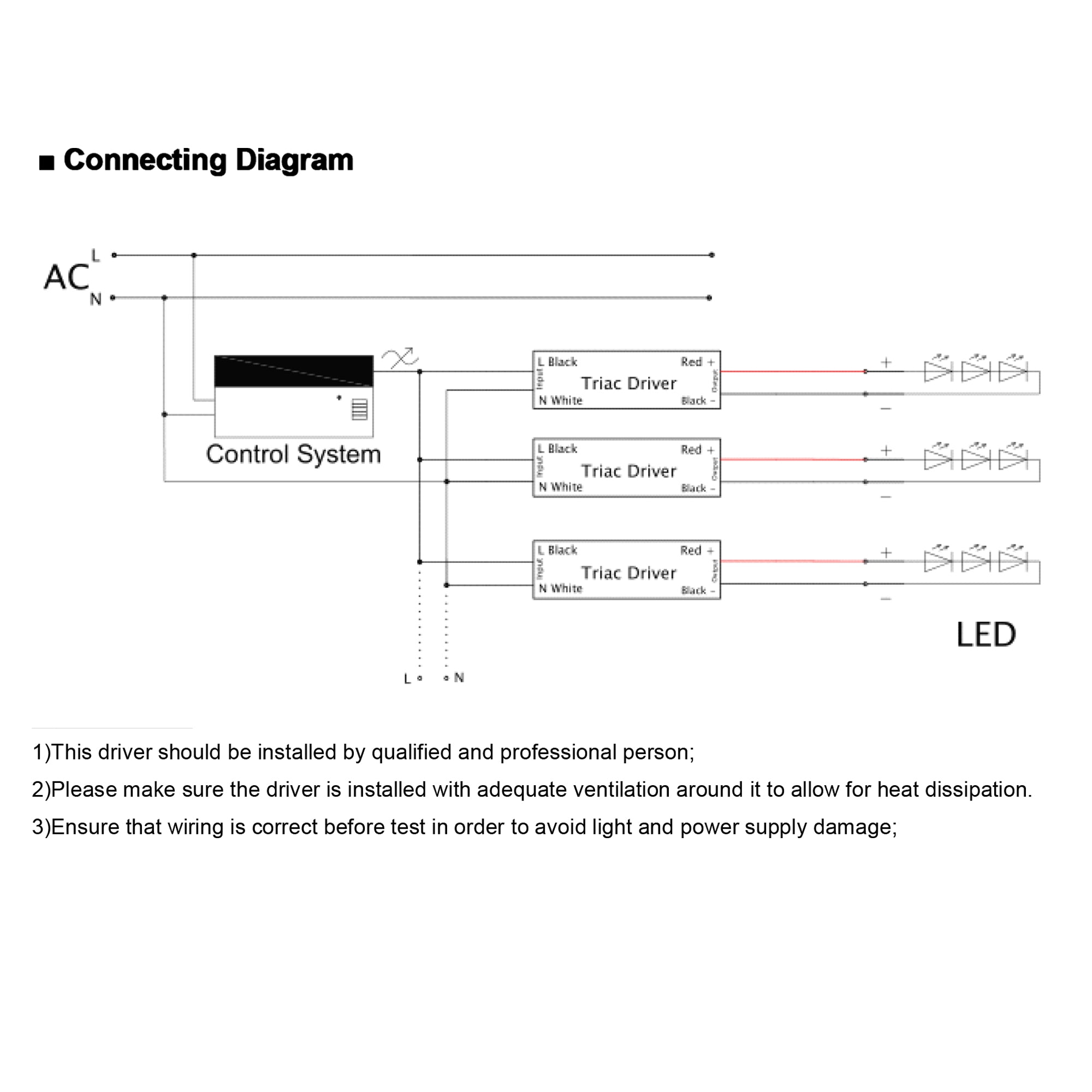

Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers |
|
Dimming range: 0-100% |
|
FCC,UL, cUL Class P, Type HL |
|
Full protection aluminum housing for dry and damp locations. |
|
Universal AC input: 100-277VAC |
|
Power Factor: up to 0.98 |
|
Protection: short circuit/overloading/ Over temperature |
|
Suitable for LED lighting and moving sign applications |
