Description

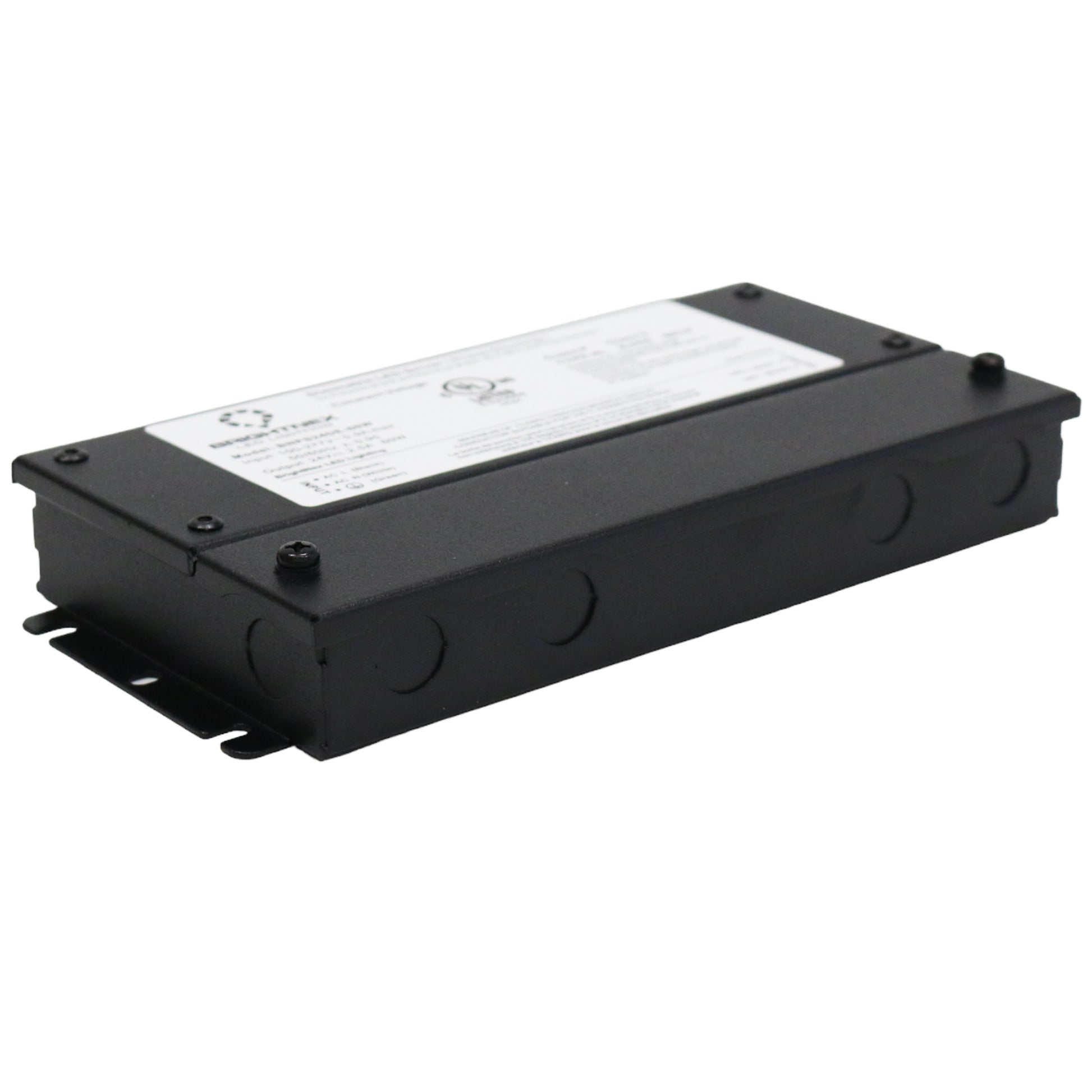

LA LED dimmable transformer (LED Driver) is UL-certified and compatible with Triac/ ELV/ MLV dimming. Suitable for dry and damp locations. AC input 100-277VAC and 83% efficiency with short circuit protection.
Input: 100-227 V AC, 0.9A max. 50/60Hz
Output: 12V DC, 5A, 60W

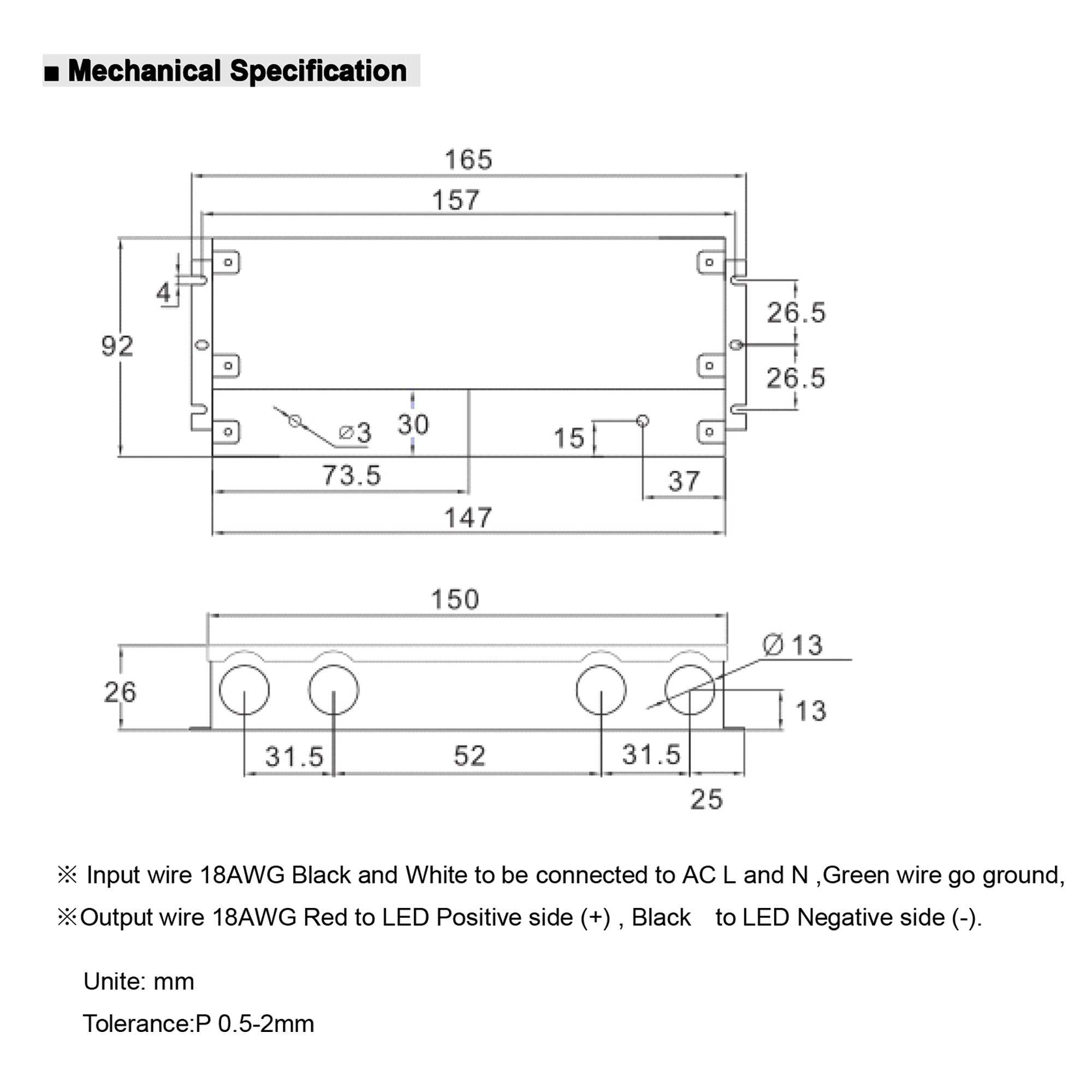

Transformer Dimensions: 6.5x3.6x1 inch (L*W*H)
Feature
|

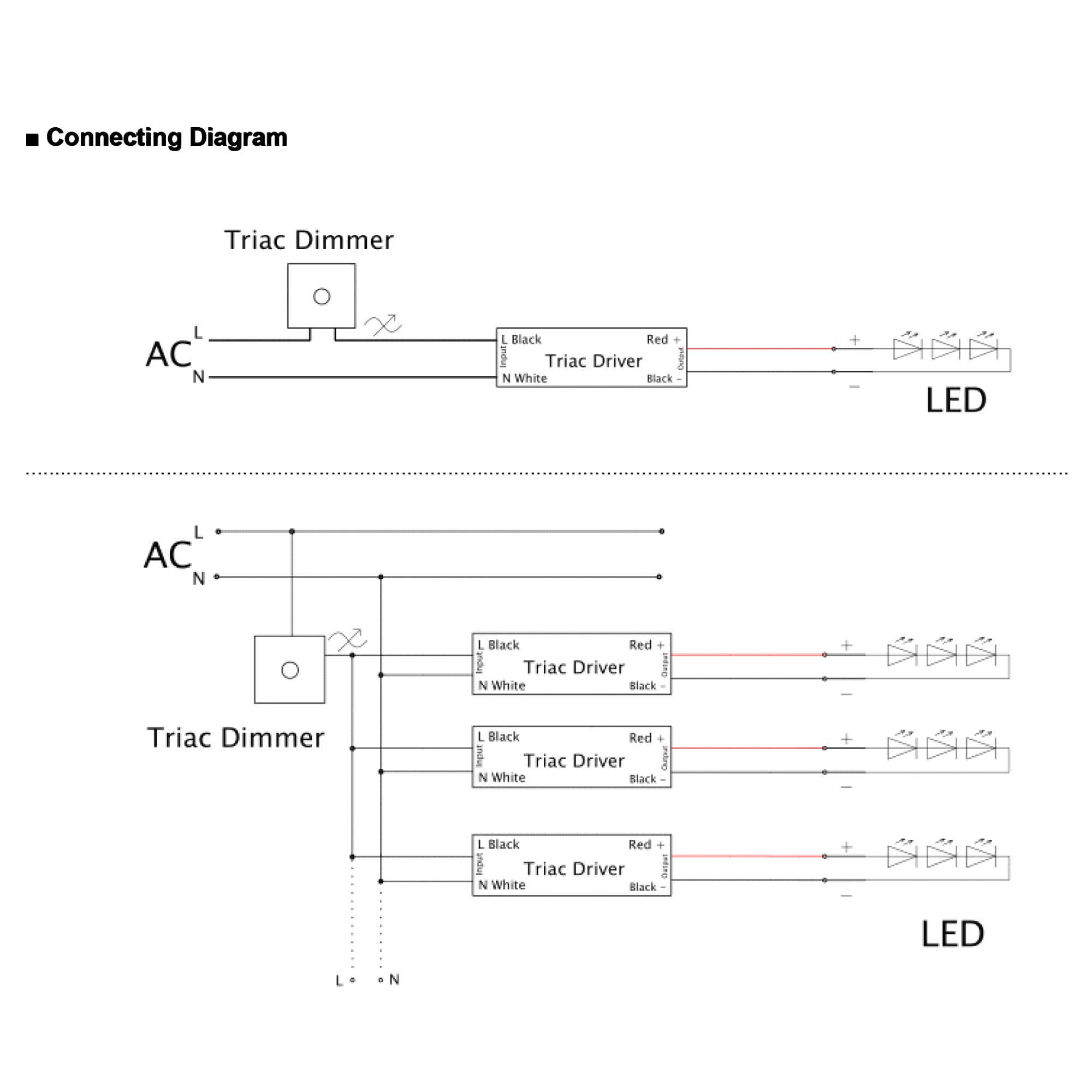

Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers |
|
Dimming range: 0-100% |
|
FCC,UL, cUL, Class 2, Class P, Type HL |
|
Full protection aluminum housing for dry and damp locations. |
|
Universal AC input: 100-277VAC |
|
Power Factor: up to 0.98 |
|
Protection: short circuit/overloading/ Over temperature |
|
Suitable for LED lighting and moving sign applications |
