DIMMABLE TRANSFORMER (LED Driver), 24V, 96W


Price:
Sale price$125.00

Description

LA LED dimmable transformer (LED Driver) is UL-certified and compatible with Triac/ ELV/ MLV dimming. Suitable for dry and damp locations. AC input 100-277VAC and 83% efficiency with short circuit protection.

Input: 100-227 V AC, 1.3A max. 50/60Hz
Output: 24V DC, 4A, 96W

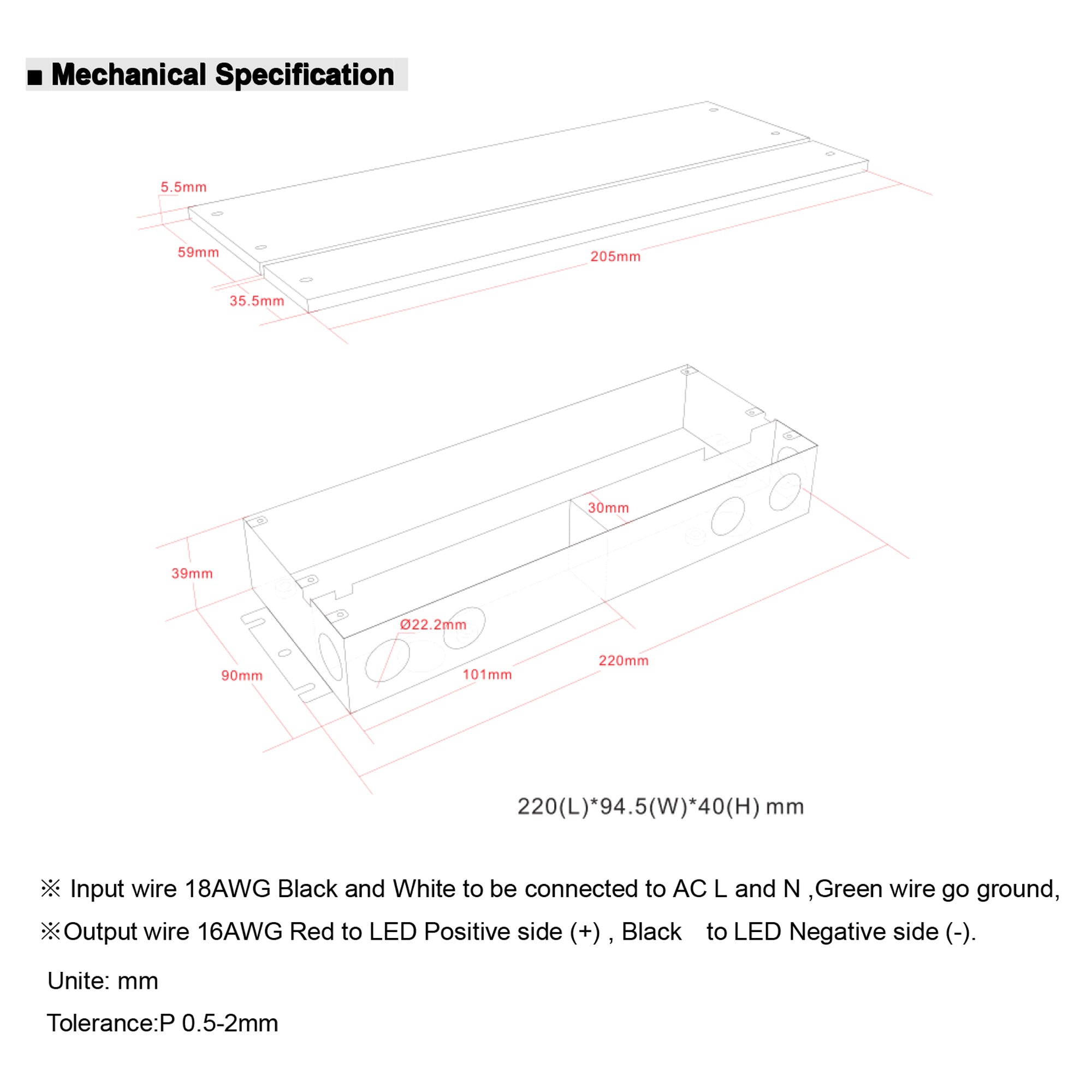

Transformer Dimensions: 8.6x3.5x1.5 inch (L*W*H)

Feature

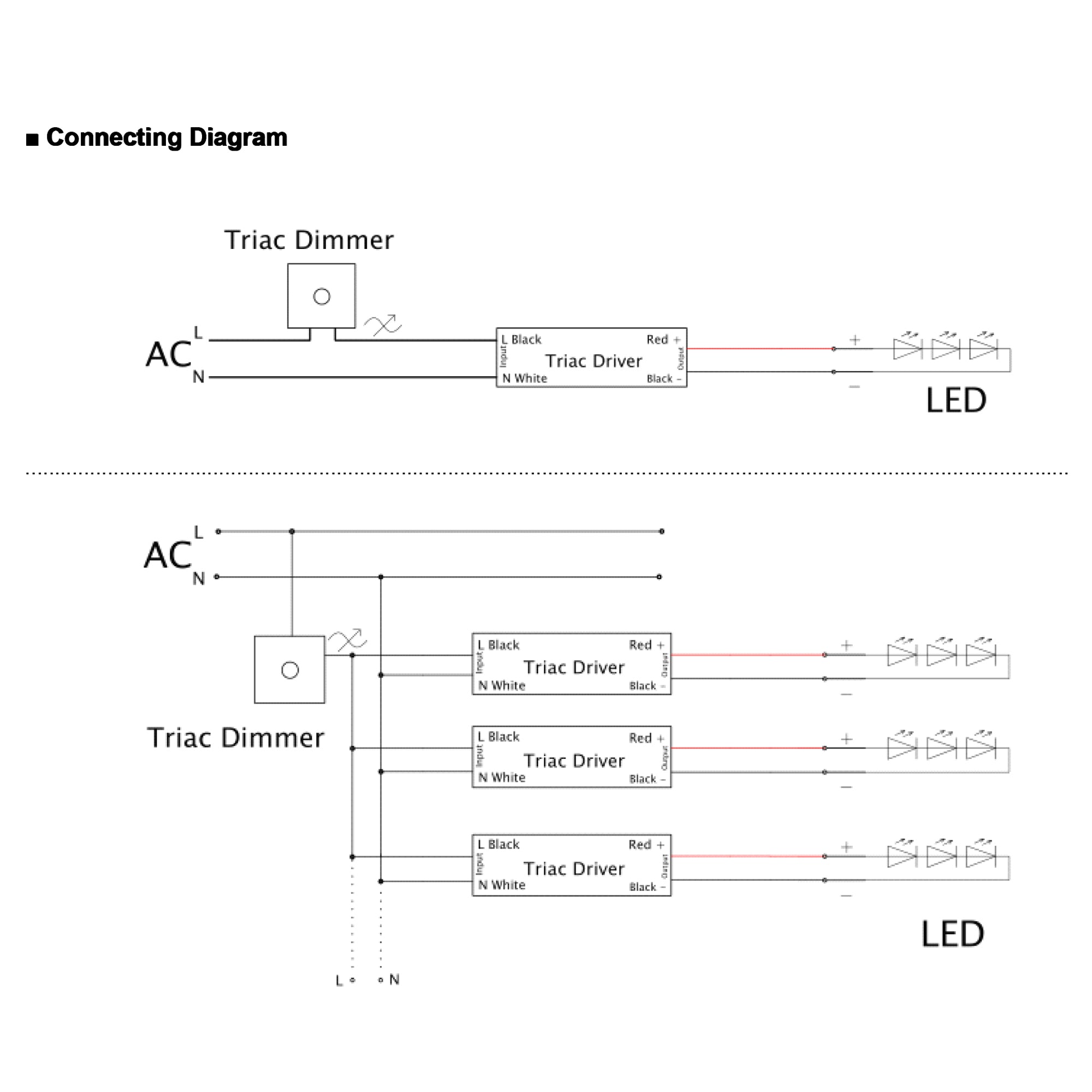

Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

Dimming range: 0-100%

FCC,UL, cUL, Class 2, Class P, Type HL

Full protection aluminum housing for dry and damp locations.

Universal AC input: 100-277VAC

Power Factor: up to 0.98

Protection: short circuit/overloading/ Over temperature

Suitable for LED lighting and moving sign applications
