Description

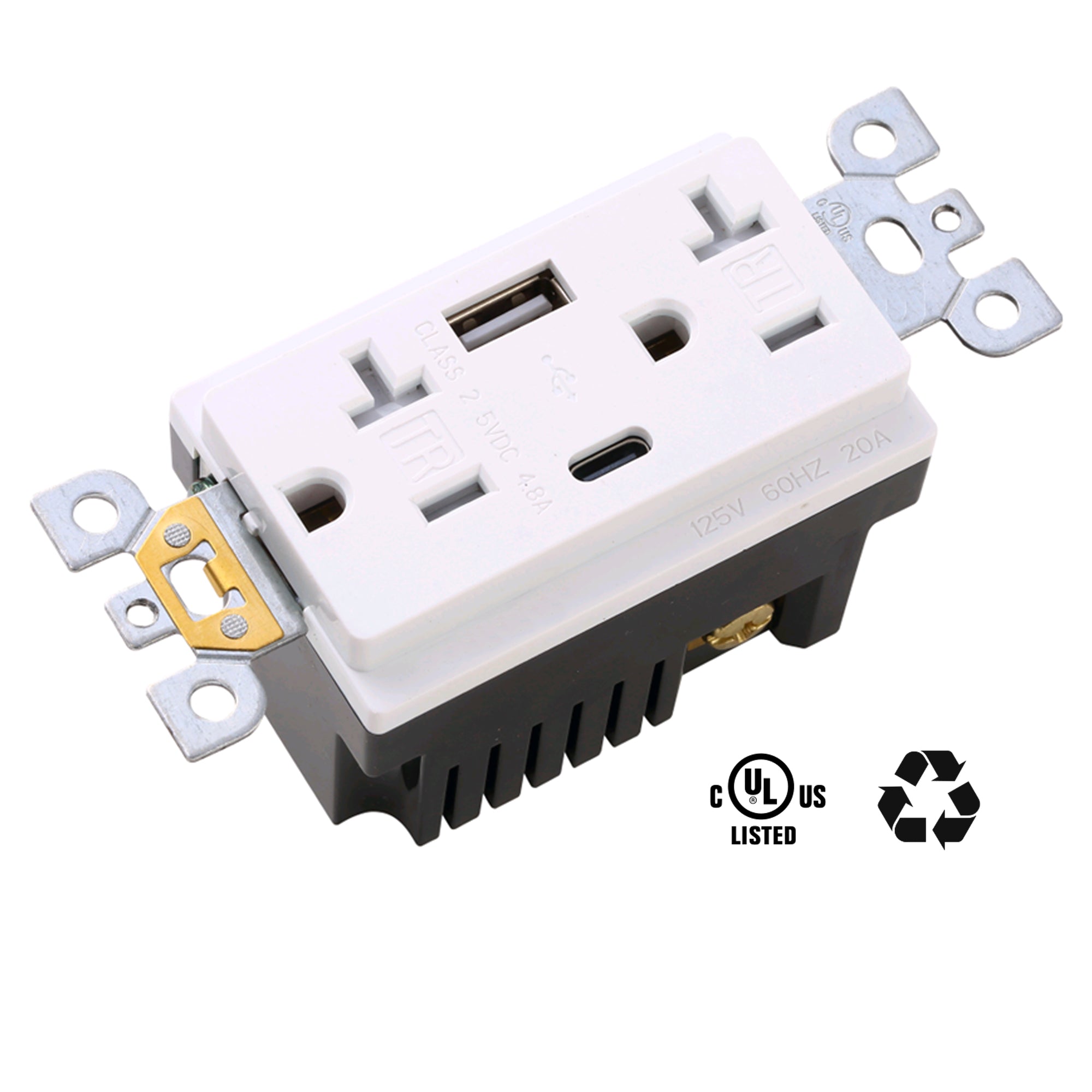

This USB Charger Wall Outlet combines a standard tamper-resistant duplex receptacle with integrated dual USB charging ports — Type A and Type C — enabling simultaneous charging of multiple devices without external adapters. The unit is designed to replace a conventional wall outlet, providing both AC receptacle power and USB charging in one compact device.
Equipped with a 20 Amp, 125 VAC tamper-resistant receptacle, this outlet maintains electrical safety and compliance with NEC code. The USB ports deliver up to 4.8 Amps total at 5 VDC, supporting fast charging for smartphones, tablets, cameras, and other USB-powered devices.
Engineered for versatile installation, the device includes both back and side wiring terminals for easier connection in standard electrical boxes. UL certification ensures safety and reliability for use in homes, offices, and commercial spaces.
📦 Technical Specifications
(Directly from the product page — no guesswork)
-
Model Number: BNOutlet-USBAC
-
Receptacle Rating: 20 Amp, 125 VAC tamper-resistant duplex outlet
-
USB Output Rating: Two USB ports, total 4.8 Amps at 5 VDC
-
USB Compatibility: USB 1.1 / 2.0 / 3.0 devices (including Apple, Android, etc.)
-
Certification: UL Certified
-
Operating Temperature: -4°F to 140°F (-20°C to 60°C)
-
Wire Terminals: #12–#14 AWG (back & side wiring)
-
Feature: Tamper-Resistant Shutters (NEC Code compliance)
Part Number: LA-WOR-USB2-20A
