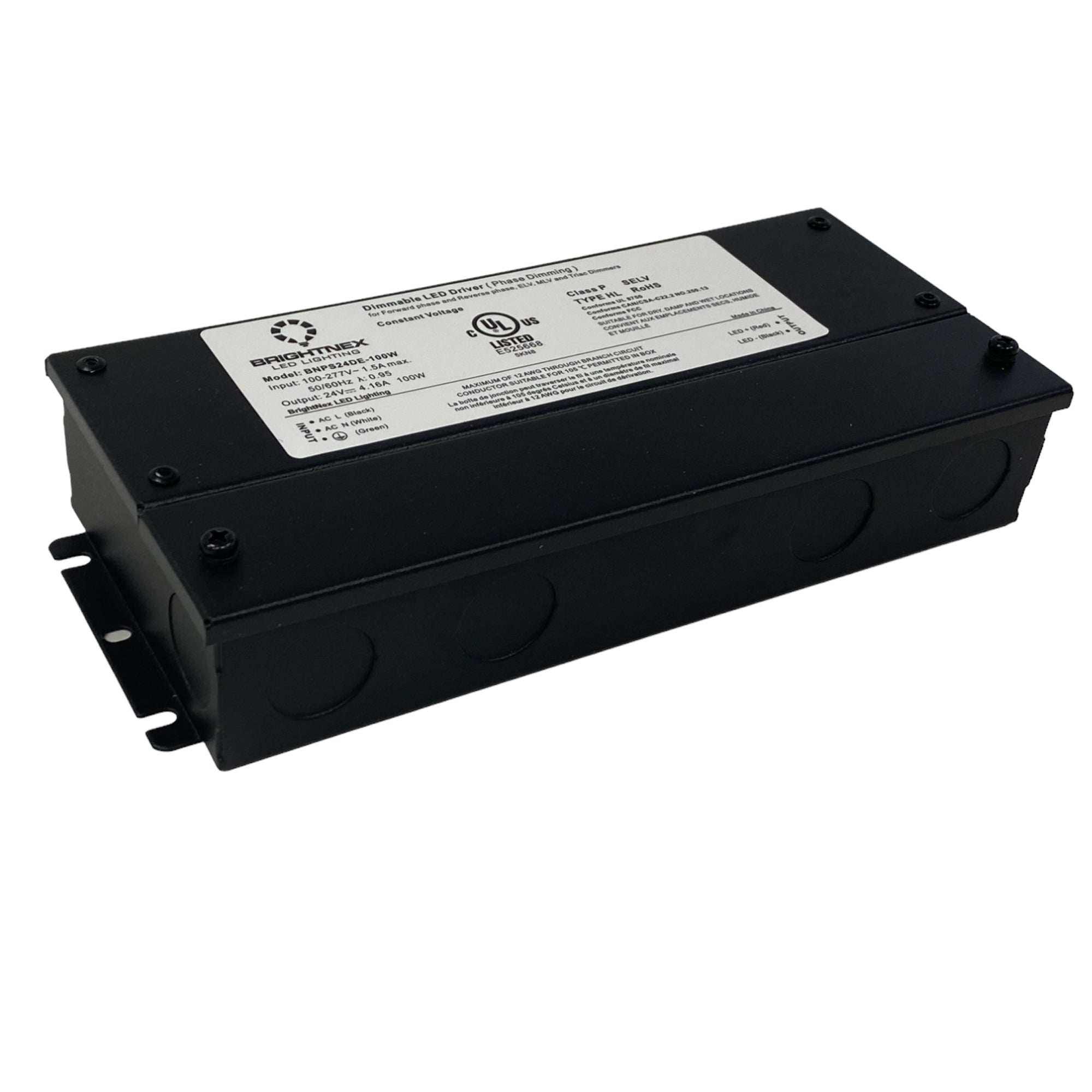

Description
This 100W Constant Voltage LED Driver is designed for reliable, flicker-free performance in demanding LED applications. Compatible with TRIAC, ELV, and MLV phase-cut dimmers, it delivers PWM-based dimming from 0.1% to 100% with high power factor and low THD.
Built with a full iron housing and rated for dry, damp, and wet locations, this driver is ideal for indoor and outdoor installations. It’s certified under UL, FCC, Class P, Type HL, SELV, RoHS, and Reach standards. Protection features include auto-recovery for short-circuit, overload, and over-temperature events.

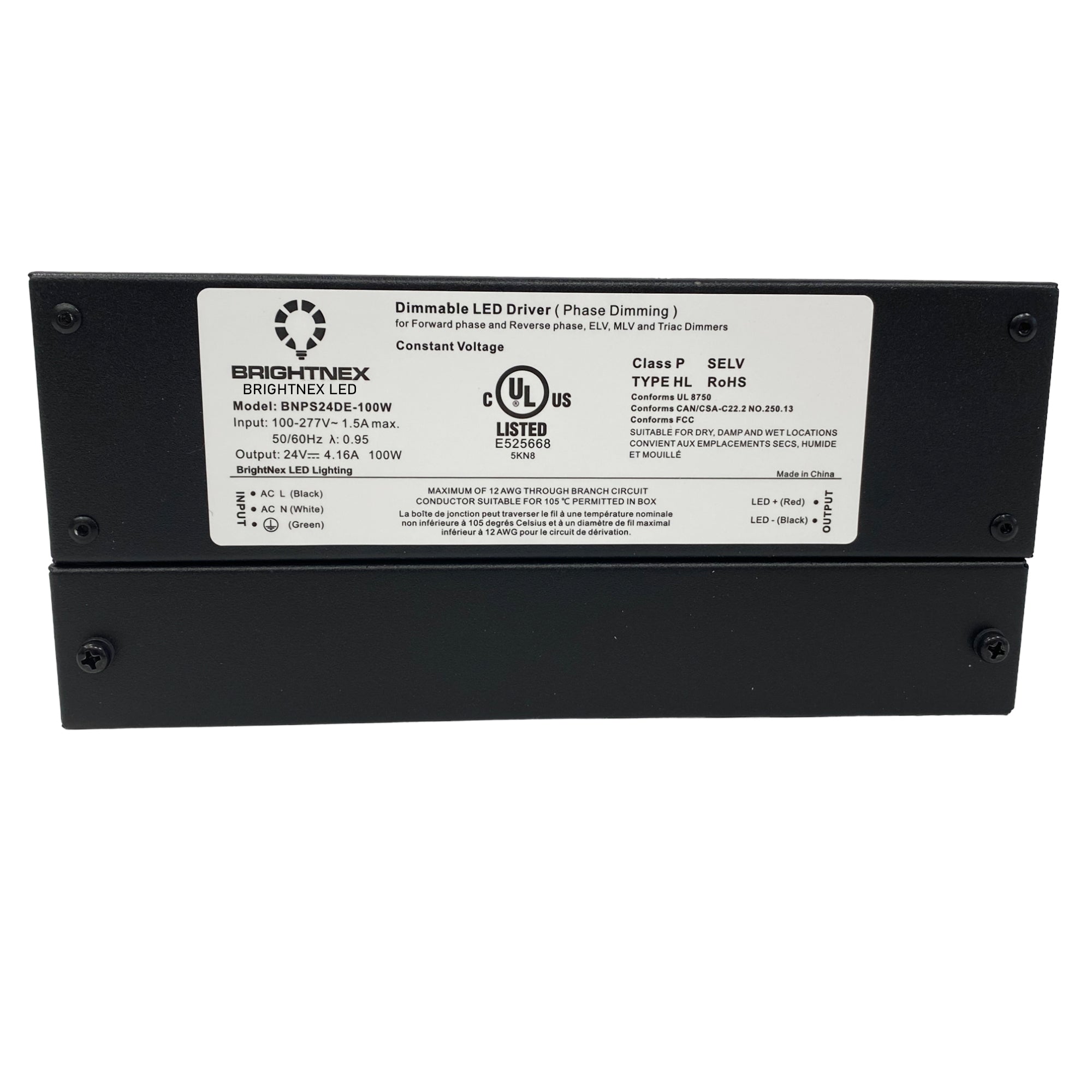

🔹 Key Features:
-
Output Power: 100W
-
Output Voltages:
-
12V DC @ 8.33A
-
24V DC @ 4.16A
-
-
Input Voltage: 100–277V AC, 50/60Hz
-

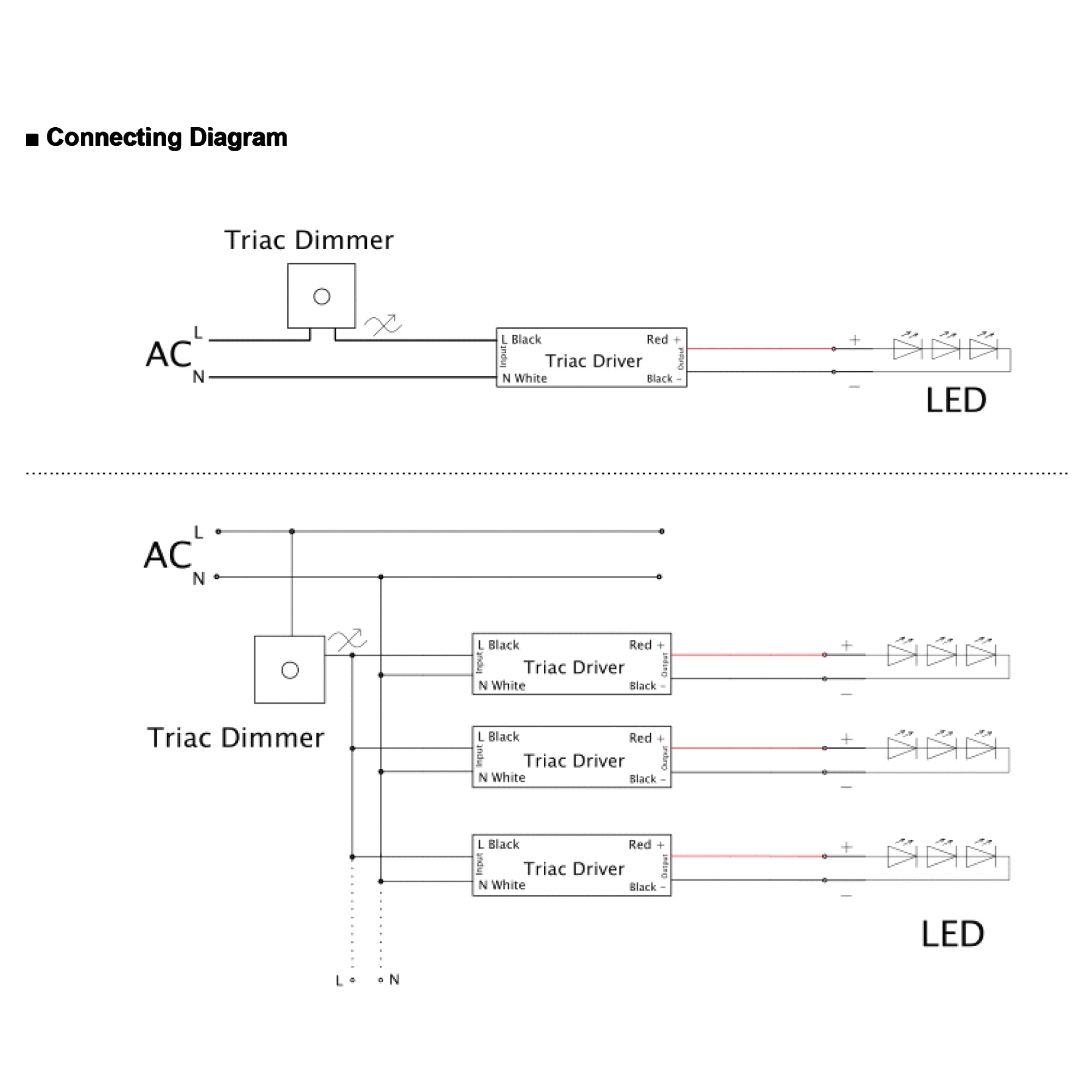

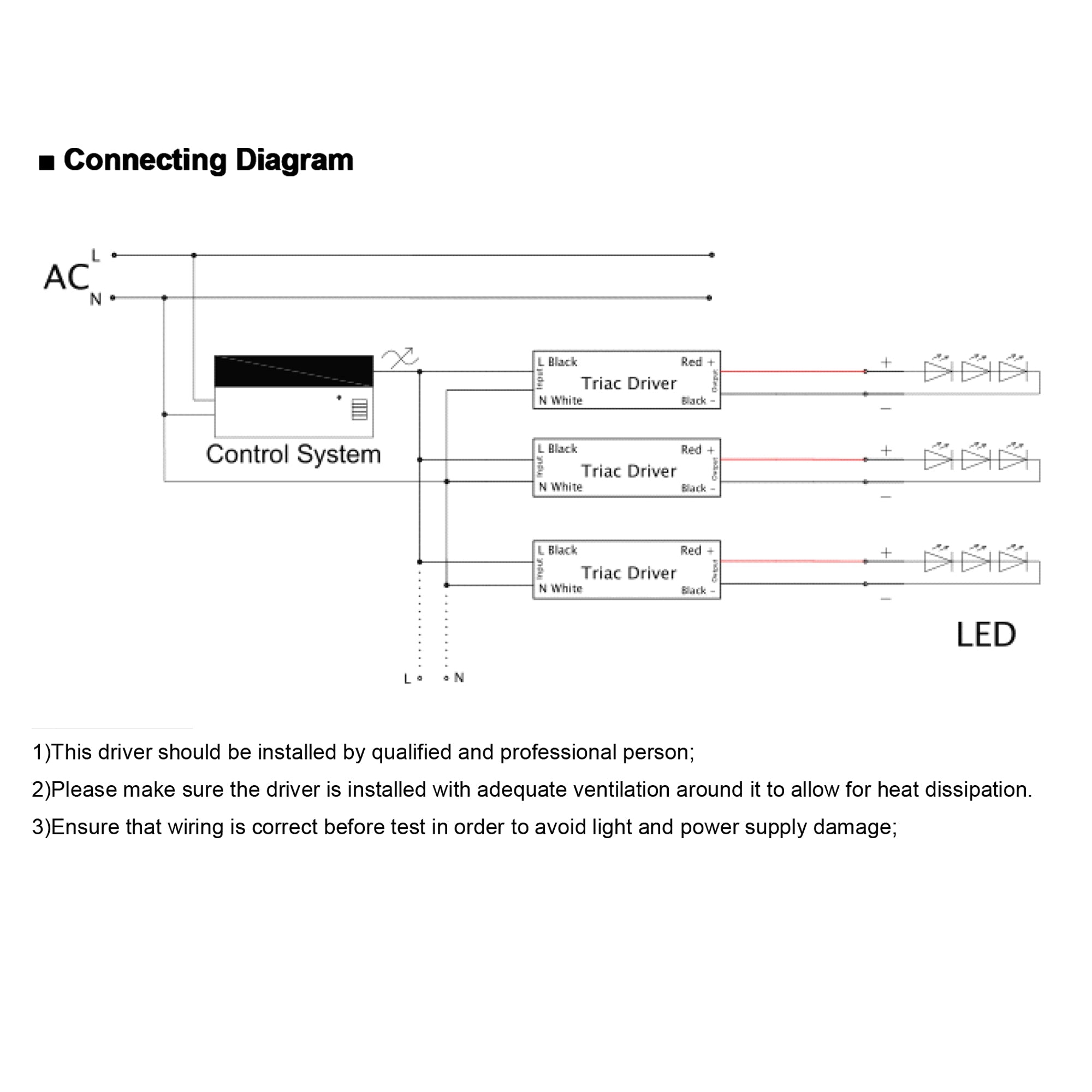

Dimming Compatibility: TRIAC, ELV, MLV (forward & reverse phase)
-
Dimming Range: 0.1% – 100% (PWM dimming, flicker-free)
-
Power Factor: > 0.9 (typical @ full load)
-
THD: < 20%
-
Efficiency:
-
80% @ 120V AC (12V model)
-
86% @ 277V AC (24V model)
-
-
Certifications: UL Listed, FCC, Class P, Type HL, SELV, RoHS, Reach
-
Protection:
-
Short circuit (shutdown & auto-recovery)
-
Overload ≤120%
-
Over-temperature (shutdown @ 100°C ±10°C)
-
-
Environment: Suitable for dry, damp, and wet locations (Not for Submersion)
-
Cooling: Natural air convection

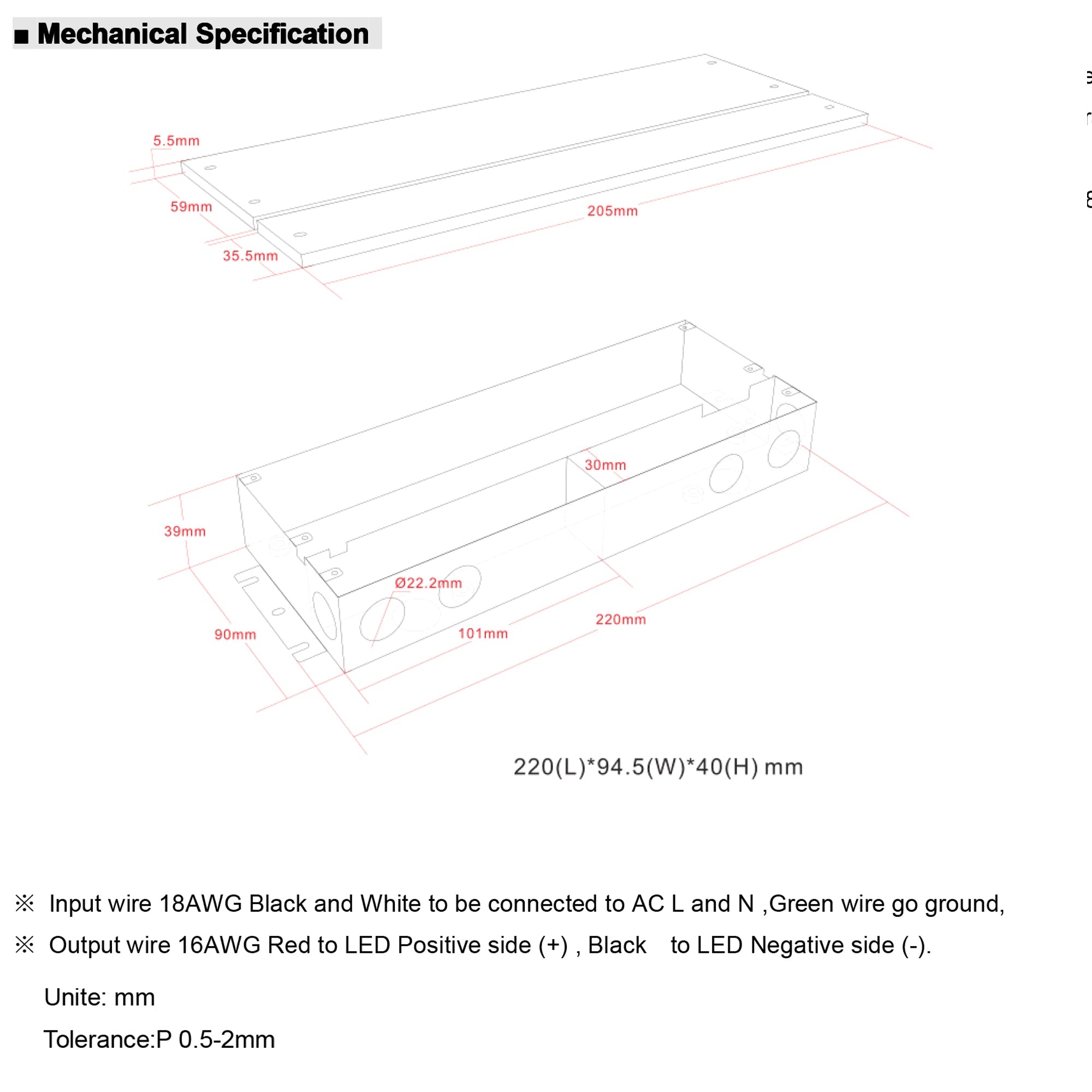

🔹 Mechanical & Wiring Info (p.5):
-

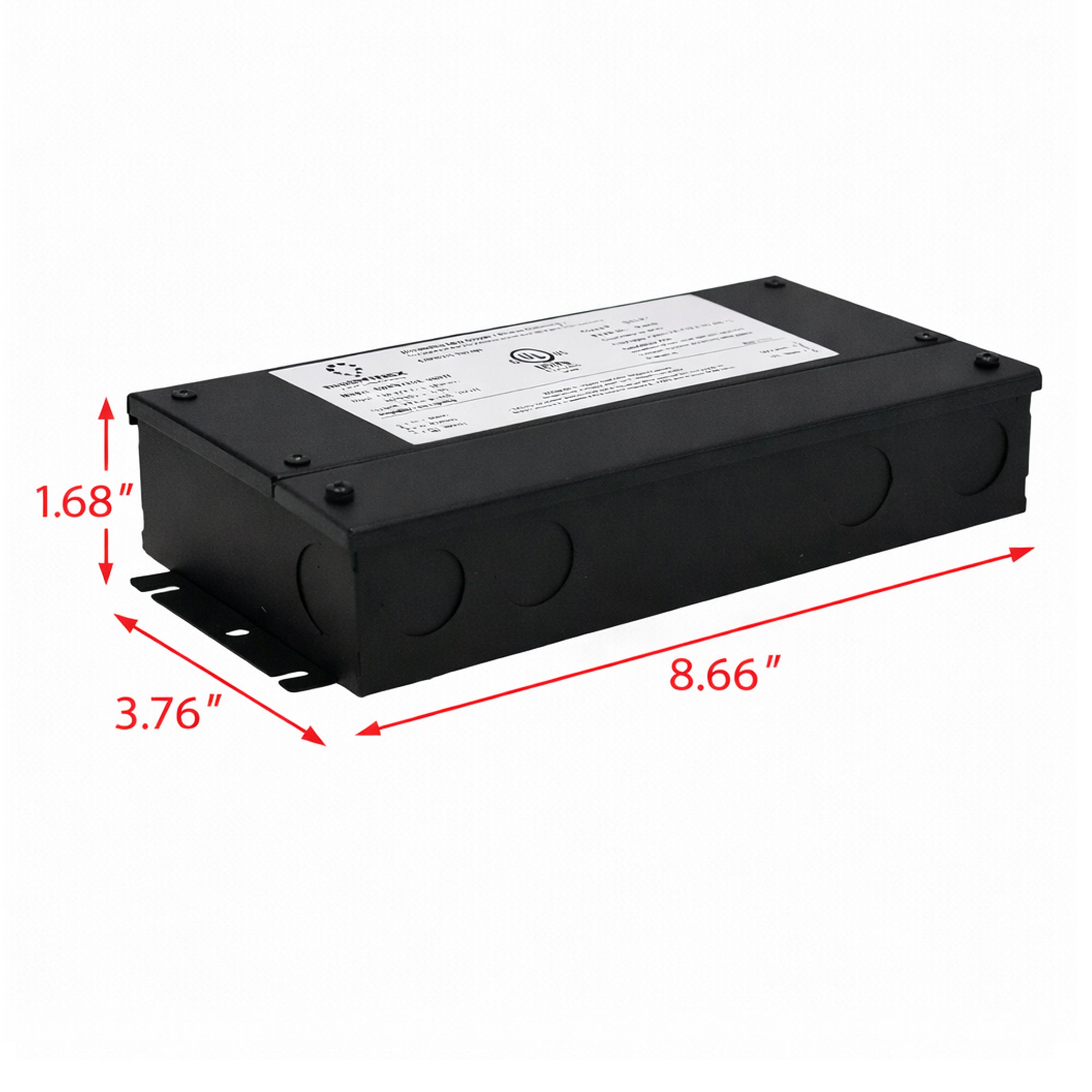

Dimensions: 8.66 × 3.76 × 1.68 inches
-
Weight: 2.82 lbs
-
Input Wiring:
-
Black (L), White (N), Green (G) – 3×18 AWG
-
-
Output Wiring:
-
Red (V+), Black (V–) – 2×16 AWG
-
-
Includes mounting holes and junction box-ready design
🔹 Applications:
-
LED strips and tape lighting (indoor/outdoor)
-
Cove, under-cabinet, and commercial display lighting
-
Outdoor architectural and landscape lighting
-
Low-voltage installations needing stable dimming and wet location durability
-
Part Number:
LA-DRV-F1-12V-100W-JB-S1
LA-DRV-F1-24V-100W-JB-S1
