Cuttable COB LED Strip: What to Know Before You Buy

A poor tape light layout usually becomes obvious at the end of the job. You see dark gaps at the corners, visible LED dots under the lens, or a strip that stops too short or runs past the intended endpoint. That is where a cuttable COB LED strip becomes valuable.

When you need a clean, continuous line of light and precise fitment, cuttable COB strip lighting gives you more control over the final result. It helps installers size each run properly while maintaining the smooth, dotless appearance that makes COB lighting popular in premium residential and commercial projects.

What Is a Cuttable COB LED Strip?

A cuttable COB LED strip is designed with marked cut points so it can be trimmed to fit the exact length of the application.

COB stands for Chip on Board. This construction places LED chips densely across the strip surface, creating a more uniform light output than many traditional SMD strips.

The result is:

  • Smooth, dotless illumination
  • Fewer visible hotspots
  • Cleaner performance in shallow channels
  • Better appearance on reflective surfaces
  • More professional architectural results

The cuttable design allows the strip to fit cabinetry, coves, shelves, niches, toe kicks, and millwork details more accurately.

Why Cut Points Matter

Not all COB strips have the same cut intervals.

Some strips allow shorter cut increments, which is helpful for tight layouts and custom details. Others require longer increments, which may create more waste or make it harder to stop exactly where the design requires.

Cut points matter most in:

  • Custom cabinetry
  • Floating shelves
  • Stair details
  • Toe-kick lighting
  • Display cases
  • Linear reveals
  • Reception desks

The more precise the project, the more important cut spacing becomes.

Best Applications for Cuttable COB LED Strip Lights

Under-Cabinet Lighting

COB strip lighting is one of the best choices for under-cabinet applications because it creates smooth task lighting without visible dots.

The cuttable format allows each cabinet section to be sized properly around:

  • Range hoods
  • Cabinet breaks
  • Corners
  • Appliance openings
  • End panels

Cove Lighting

Cove lighting benefits from continuous illumination and accurate run lengths. COB strips help reduce spotting and create a cleaner indirect glow along ceilings and wall details.

Shelving and Display Lighting

Shelves, closets, retail displays, and niches often place the light source close to the viewer. COB lighting helps the installation look more refined and less technical.

Millwork and Architectural Details

Custom millwork requires precise fitment. A cuttable COB LED strip helps lighting integrate cleanly into narrow reveals, channels, and built-in details.

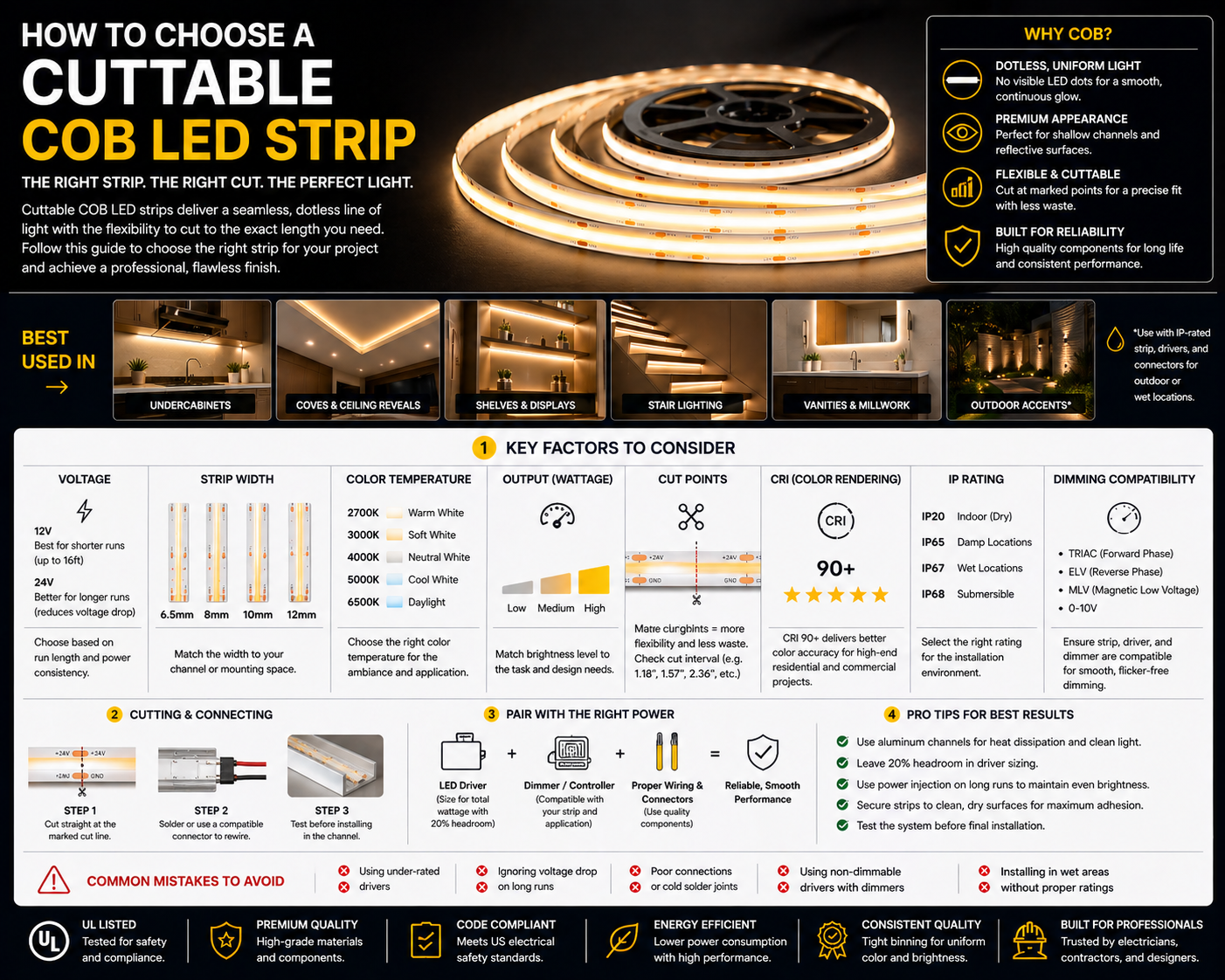

How to Choose the Right Cuttable COB LED Strip

Choose the Right Voltage

Most COB strip lighting systems use either:

  • 12V DC
  • 24V DC

Shorter residential runs may work well with 12V. Longer architectural runs often benefit from 24V because it helps reduce voltage drop and maintain more consistent brightness.

Check the Strip Width

Strip width affects channel compatibility and connector selection.

Common widths include:

  • 6.5mm
  • 8mm
  • 10mm
  • 12mm

Before ordering, confirm that the strip fits the aluminum channel or mounting space.

Select the Right Color Temperature

Color temperature should match the application.

  • 2700K: Warm and comfortable
  • 3000K: Popular for residential interiors
  • 3500K: Clean and balanced
  • 4000K: Crisp and task-focused

For projects that need flexibility, tunable white COB strips may be a better choice.

Match Brightness to the Space

Brighter is not always better.

A kitchen counter may need stronger output than a shelf, toe kick, or vanity accent. Choose lumen output based on how the space will be used.

Drivers, Dimming, and Compatibility

A cuttable COB LED strip is only as reliable as the power system behind it.

Before installation, confirm:

  • Strip voltage
  • Total wattage
  • Driver capacity
  • Dimming method
  • Controller requirements
  • Location rating

Common dimming options include:

  • TRIAC
  • ELV
  • MLV
  • 0-10V

If the strip, driver, and dimmer are not compatible, the system may flicker, buzz, dim poorly, or fail early.

Recommended Driver Option

0-10V Dimmable LED Drivers:
https://laledlighting.com/collections/0-10v-dimmable-led-drivers

These are useful for commercial, architectural, and premium residential projects that require smooth dimming control.

Installation Tips for Better Results

Prepare the Surface

Clean the mounting area before installation. Dust, oil, unfinished wood, and textured surfaces can reduce adhesion.

Use Aluminum Channels

Aluminum channels help:

  • Protect the strip
  • Improve heat dissipation
  • Create a cleaner finished look
  • Keep the strip straight
  • Reduce glare

Cut Only at Marked Points

Never cut outside the designated cut marks. Doing so can damage the circuit and make the section unusable.

Plan for Voltage Drop

Long runs may need:

  • Larger wire gauge
  • Multiple power feeds
  • Shorter sections
  • 24V strip lighting
  • Better driver placement

Planning this before installation helps prevent dimming or uneven brightness at the far end of the run.

Use Proper Connections

Solderless connectors can save time, but they must match the strip width and PCB design.

For demanding applications, soldered connections may provide better long-term reliability.

When COB Is the Right Choice

Choose COB when:

  • The light source may be visible
  • The strip reflects on glossy surfaces
  • A smooth dotless line is required
  • The project has a premium finish level
  • Shallow channels are being used

A standard LED strip may still work in deep channels or hidden applications where dots will not be visible. But for most design-focused projects, COB provides a cleaner result.

Final Thoughts

A cuttable COB LED strip is ideal when the installation requires both visual quality and precise sizing. It delivers smooth, dotless illumination while allowing each run to be trimmed for a cleaner fit.

The best results come from choosing the right voltage, width, color temperature, brightness, driver, and dimming method before installation begins.

When the strip, power supply, controls, and mounting details are selected as one complete system, COB lighting creates a clean architectural finish that looks intentional and performs reliably over time.
