Description
This 100W constant-voltage LED driver delivers reliable, flicker-free dimming performance for residential, commercial, and architectural lighting projects. With full 5-in-1 dimming support—TRIAC, ELV, MLV, 0–10V, PWM, and potentiometer—it gives installers maximum flexibility to pair with existing or new dimming systems.
The built-in junction box simplifies wiring and is rated for dry, damp, and wet locations (not for submersion), making it suitable for both indoor and outdoor lighting environments. High efficiency, strong power factor, and full electrical protection ensure long-lasting performance.
🔧 Key Features
-
5-in-1 Dimming: Compatible with TRIAC, ELV, MLV, 0–10V, 1–10V, PWM, and potentiometer dimmers
-
Smooth Dimming Range: 0.1% to 100% flicker-free dimming
-
Constant Voltage Output:
-
12V DC – 8.33A (100W)
-
24V DC – 4.17A (100W)
-
-
Wide Input Voltage: 100–277VAC
-
High Efficiency: Up to 89% depending on voltage and load
-
Active PFC: PF > 0.9 for improved performance
-
Full Protection: Short-circuit, overload, and over-temperature shutdown with auto-recovery
-
Wet-Location Rated: Safe for dry, damp, and wet locations (not for submersion)
-
UL / cUL / FCC / TYPE HL / SELV / RoHS Certified
-
Cooling: Natural air convection — no fans, silent operation
-

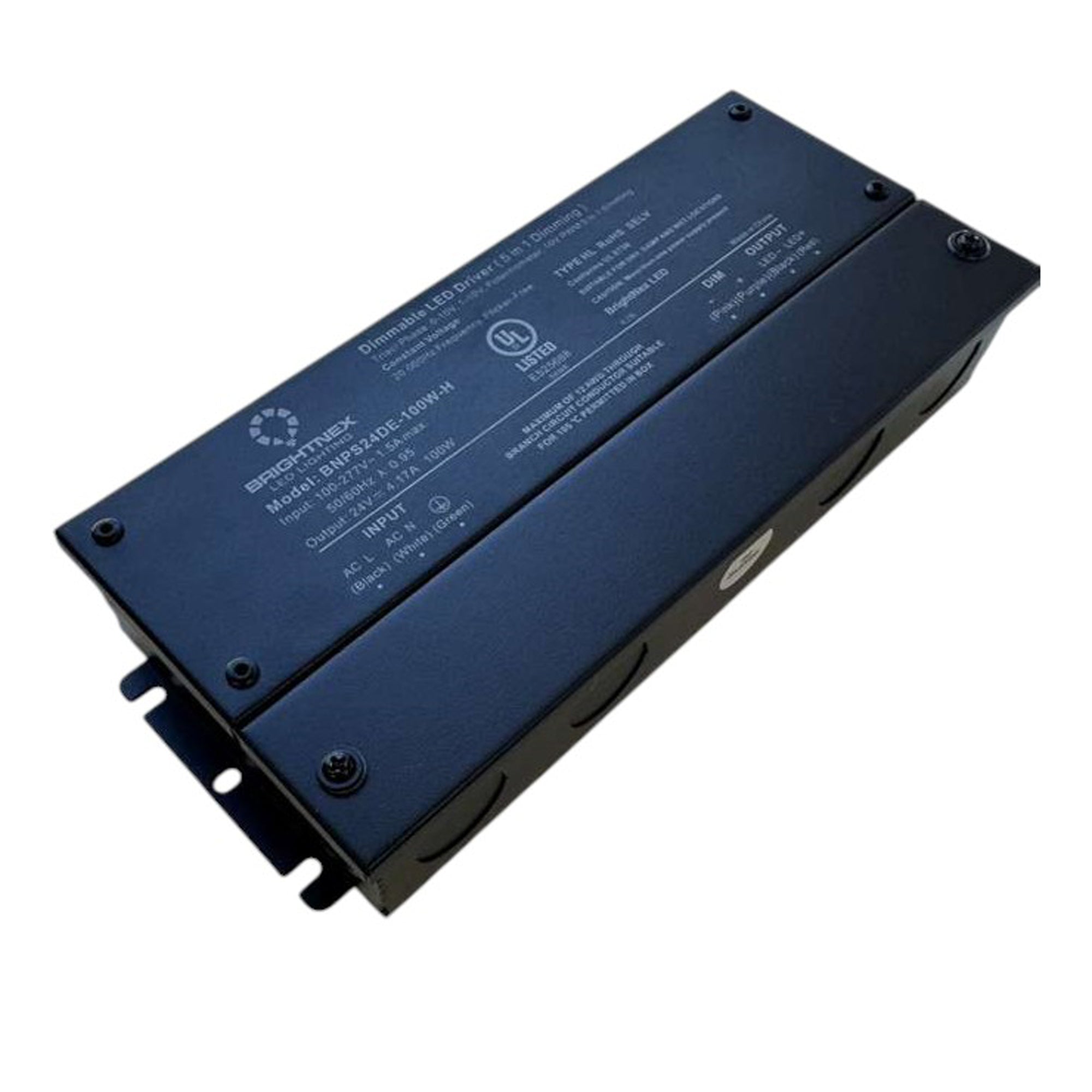

Durable Build: Integrated metal junction box for safe and clean installation
-
Mechanical Specs (Imperial Units):
-

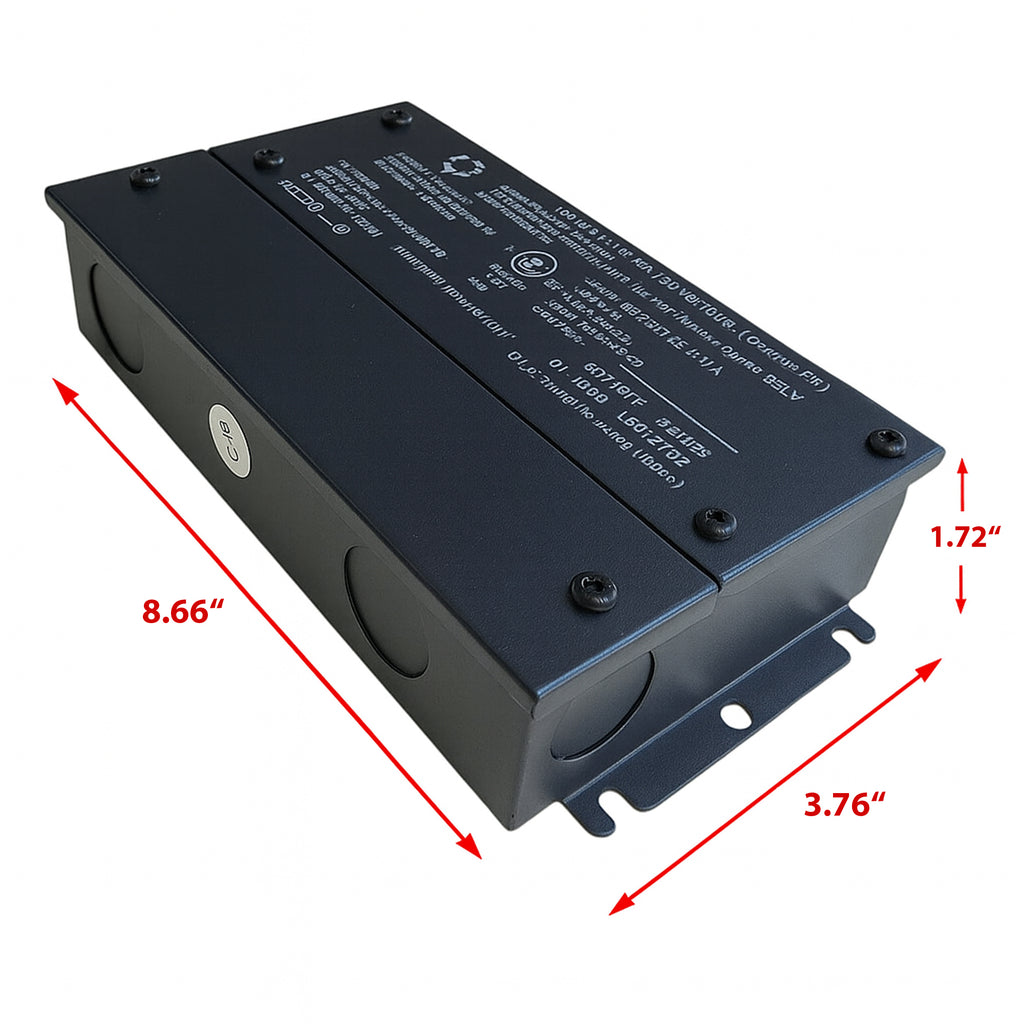

Dimensions: 8.66" × 3.75" × 1.72"
-
Weight: 3.03 lb (1.375 kg)
-
Wiring:
-
Input: Black (L), White (N), Green (GND) – 3×18 AWG
-
Output: Red (V+), Black (V–) – 2×16 AWG
-
Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG
-
🧰 Applications
Ideal for powering:
-
12V or 24V LED strip lighting
-
Under-cabinet and cove lighting
-
Accent and architectural lighting
-
Residential dimming systems
-
Commercial lighting and display illumination
-
Outdoor lighting (not for submersion)
-
Signage, displays, and retail lighting
-
Part Number:
LA-DRV-G1-12V-100W-JB-S1
LA-DRV-G1-24V-100W-JB-S1
