Description
Reliable 150W constant-voltage LED driver with full 5-in-1 dimming support (TRIAC / ELV / MLV / 0–10V / PWM). Offers smooth 0.1–100% dimming, built-in junction box, and UL certification — ideal for LED strips, signage, and architectural lighting projects.
🔧 Key Features
-
5-in-1 Dimming Compatibility – Works with TRIAC, ELV, MLV, 0–10V, PWM, and potentiometer dimmers
-
Smooth & Flicker-Free Dimming – 0.1–100% output, stable PWM at high frequency
-
Universal Input – 110–277VAC with active power factor correction (PF up to 0.99)
-
Constant Voltage Output – 12V DC or 24V DC, 150W total power
-

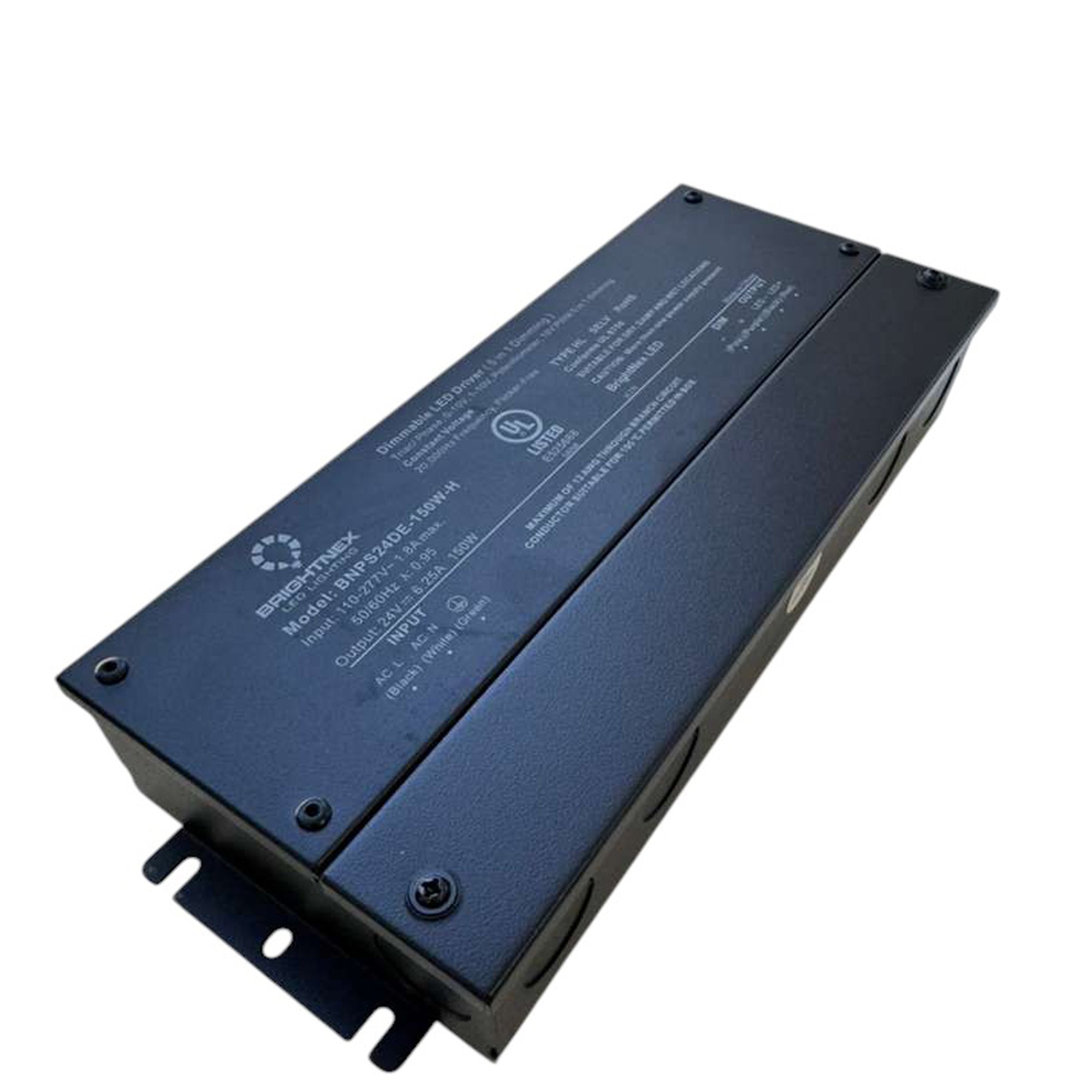

Built-In Junction Box – Safe, professional wiring; rated for dry, damp & wet locations (not for submersion)
-
Full Protection – Overload, short-circuit, over-voltage, and thermal protection with auto-recovery
-
Certified and Safe – UL / cUL / FCC / TYPE HL / SELV / RoHS compliant
-
Mechanical Specs (Imperial Units):
-

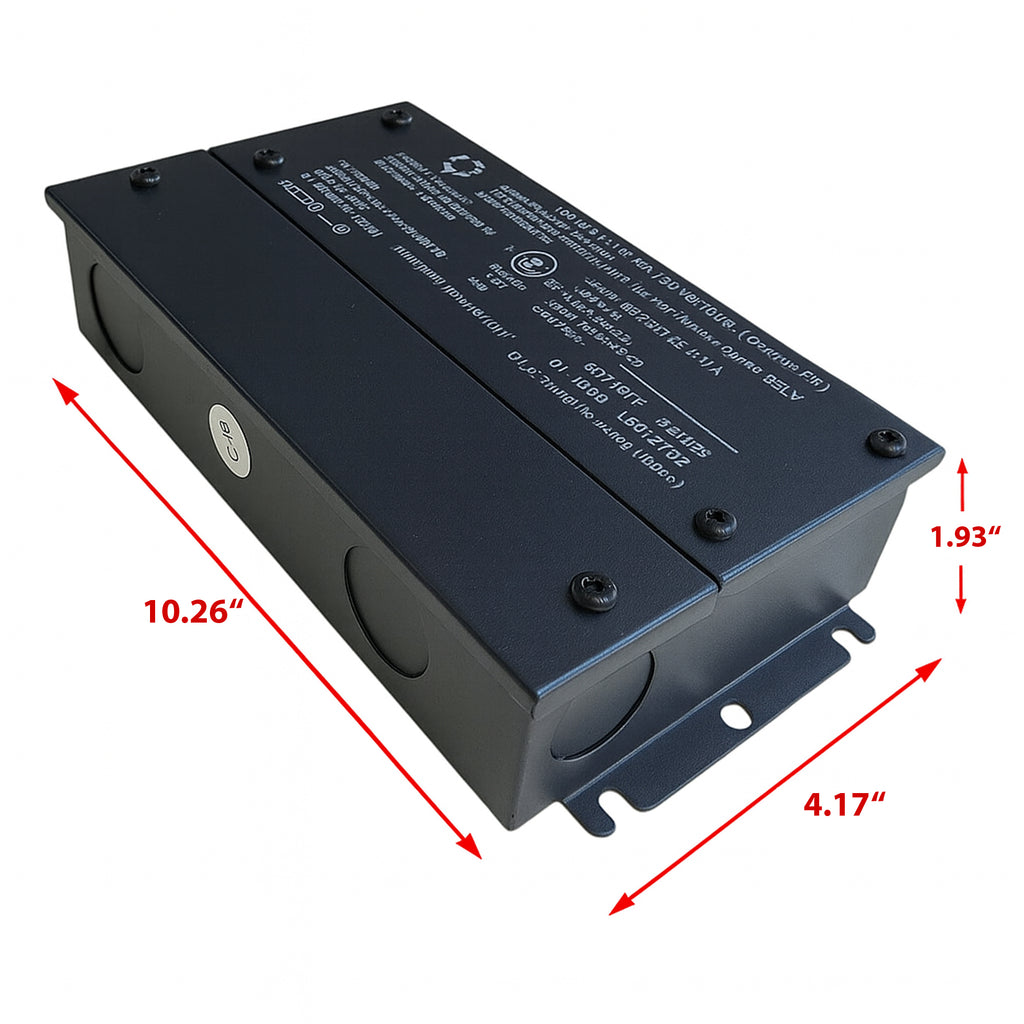

Dimensions: 10.26" × 4.17" × 1.93"
-
Weight: 3.97 lb (1.8 kg)
-

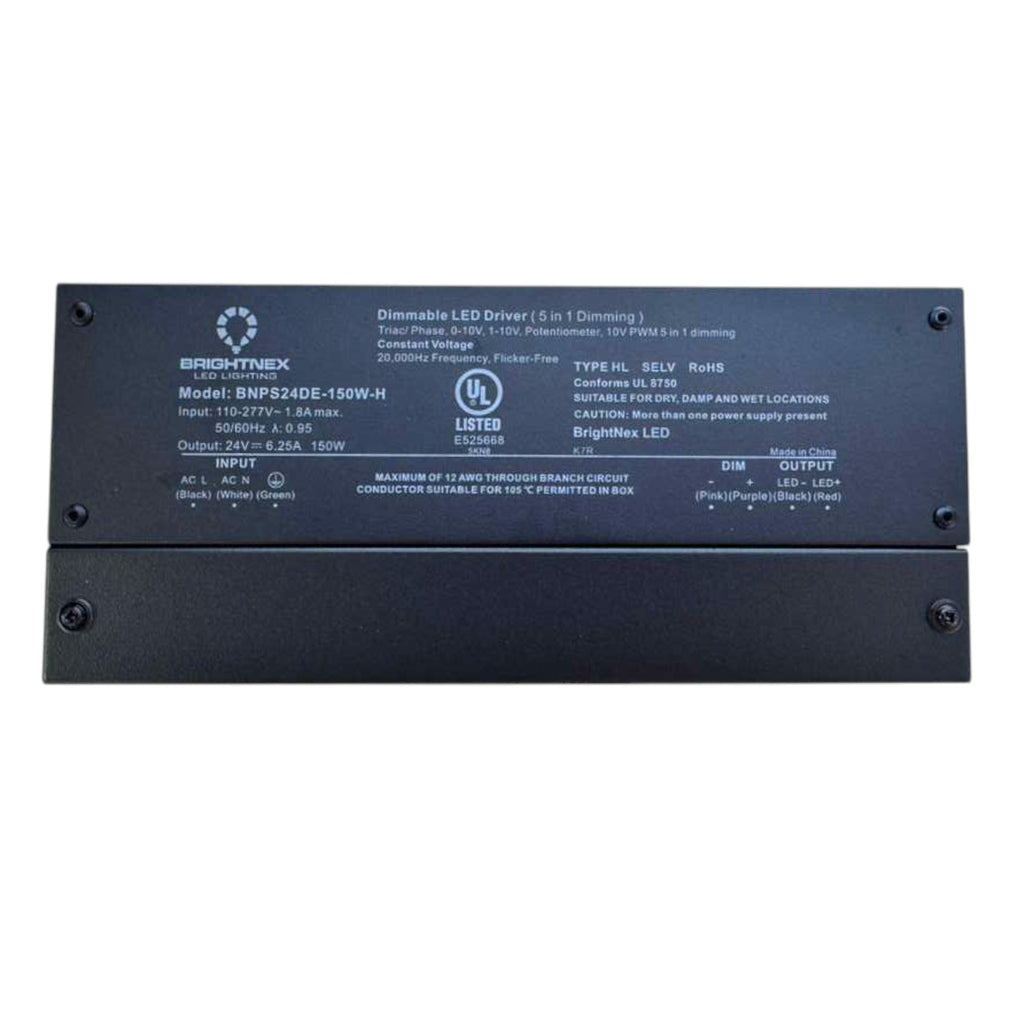

Wiring:
-
Input: Black (L), White (N), Green (GND) – 3×18 AWG
-
Output: Red (V+), Black (V–) – 2×16 AWG (12V = dual set)
-
Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG
-
🧰 Applications
A great choice for:
-
LED strip lighting (12V or 24V)
-
Cove and accent lighting
-
Under-cabinet lighting
-
Commercial and residential dimmable lighting systems
-
Signage and display lighting
Part Number:
LA-DRV-G1-12V-150W-JB-S1
LA-DRV-G1-24V-150W-JB-S1
-
