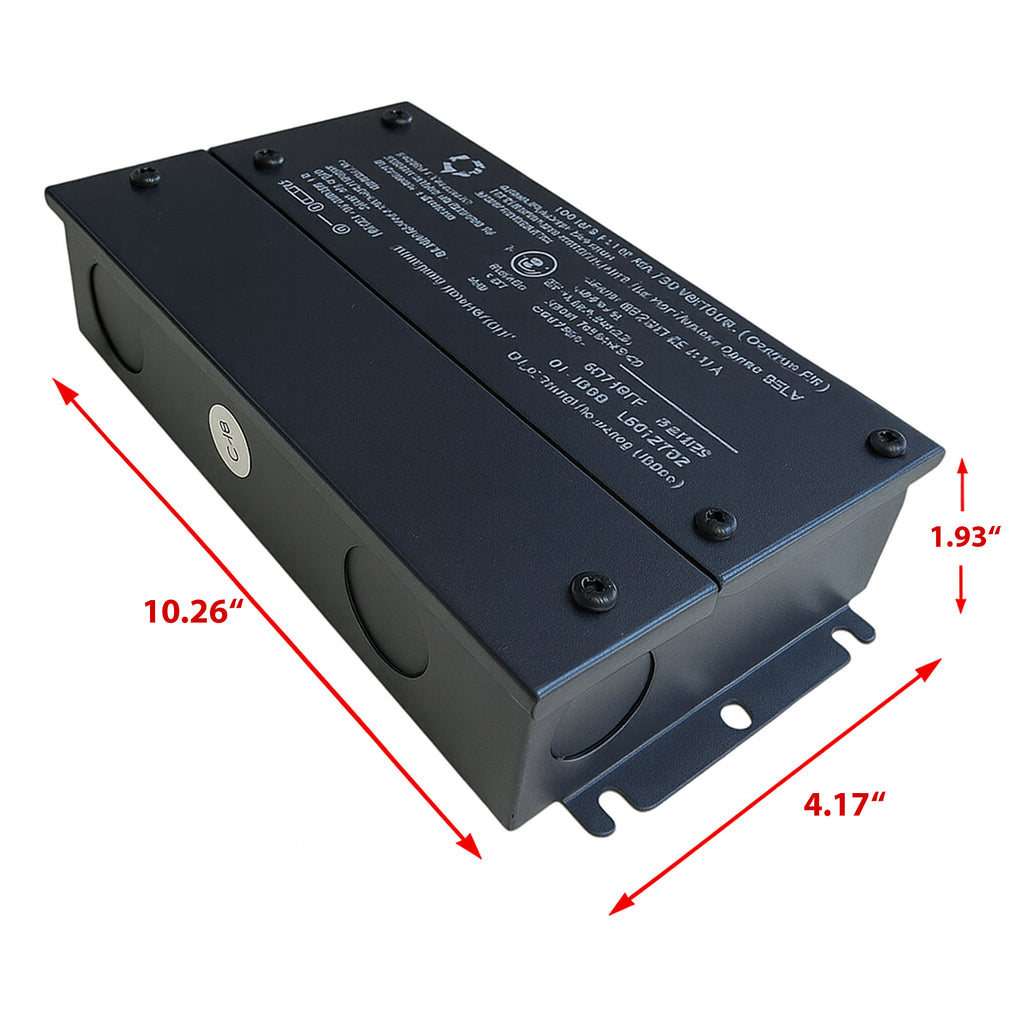

Dimensions of 200W LED driver – 10.26 ×4.17 × 1.93 inches
30W LED driver with open junction box showing AC input wires, dimming wires and 12V/24V LED output leads

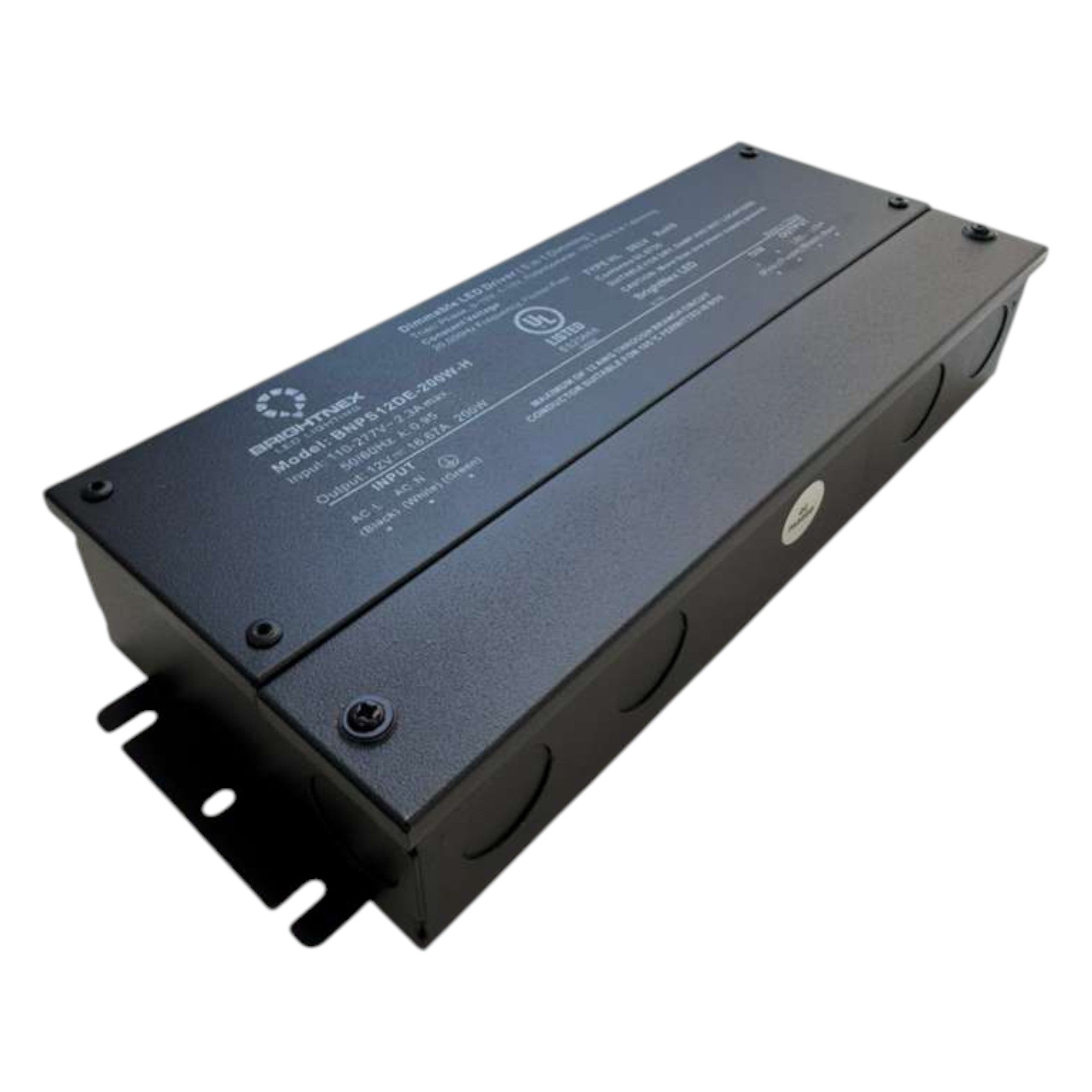

Side view of 200W dimmable LED driver showing compact metal housing and built-in junction box.
Connection diagram for 5-in-1 dimmable LED driver supporting TRIAC and 0–10 V control
Wiring guide for 0–10 V, PWM, and potentiometer dimming options on BrightNex driver
Roll over image to zoom in Click on image to zoom
200W 5-in-1 dimmable LED driver with UL Listed junction box, 12V/24V constant voltageDimensions of 200W LED driver – 10.26 ×4.17 × 1.93 inches30W LED driver with open junction box showing AC input wires, dimming wires and 12V/24V LED output leadsSide view of 200W dimmable LED driver showing compact metal housing and built-in junction box.Connection diagram for 5-in-1 dimmable LED driver supporting TRIAC and 0–10 V controlWiring guide for 0–10 V, PWM, and potentiometer dimming options on BrightNex driver

200W 5-in-1 Dimmable LED Driver – 12V / 24V | UL Listed, Junction Box | TRIAC / ELV / MLV / 0-10V / PWM

LA LED Lighting
Output Voltage:: 12V DC
Price:
$124.99

Description

This 200W constant-voltage LED driver is engineered for smooth, professional-grade dimming across all major control systems. With full 5-in-1 dimming support (TRIAC, ELV, MLV, 0–10V, PWM, Potentiometer), it offers maximum flexibility for contractors, electricians, and homeowners upgrading to high-performance LED lighting.

It delivers stable, flicker-free output from 0.1% to 100%, features a durable built-in junction box for safe installation, and is fully rated for dry, damp, and wet locations (not for submersion). Ideal for architectural, residential, and commercial LED lighting projects.

🔧 Key Features

5-in-1 Dimming Compatibility

Works with TRIAC, ELV, MLV, 0–10V, PWM, and potentiometer dimmers — one driver supports all major dimming systems.

Smooth, Flicker-Free Dimming

20kHz high-frequency PWM ensures quiet, stable 0.1–100% dimming performance.

Universal Input Voltage

110–277VAC operation with active power factor correction (PF up to 0.99).

High Efficiency

Energy-efficient design with performance above 90% depending on load.

Output Options

Choose the voltage your project requires:

  • 12V DC – 16.7A (200W)

  • 24V DC – 8.3A (200W)

Built-In Junction Box

Simplifies wiring and protects internal components.
Rated for dry, damp & wet locations (not for submersion).

Full Electrical Protection

Overload, short-circuit, over-voltage, and thermal shutdown with auto-recovery.

Certified & Safe

UL / cUL Listed, FCC compliant, TYPE HL, SELV, RoHS.

Mechanical Specs (Imperial Units):

  • Dimensions: 10.26" × 4.17" × 1.93"

  • Weight: 3.97 lb (1.8 kg)

  • Wiring:

    • Input: Black (L), White (N), Green (GND) – 3×18 AWG

    • Output (12V): Red (V+), Black (V–) – 2×16 AWG (×2 pairs)

    • Output (24V/48V): Red (V+), Black (V–) – 2×16 AWG

    • Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG

🧰 Applications

This 200W dimmable LED driver is ideal for:

  • LED strip lighting (12V or 24V)

  • Cove and indirect lighting

  • Under-cabinet lighting

  • Accent and architectural lighting

  • Commercial and residential dimming systems

  • LED signage & display illumination

Its 5-in-1 dimming capability makes it especially useful for installations where the dimming method may vary or be upgraded in the future.
Part Number:
LA-DRV-G1-12V-200W-JB-S1
LA-DRV-G1-24V-200W-JB-S1
