Description

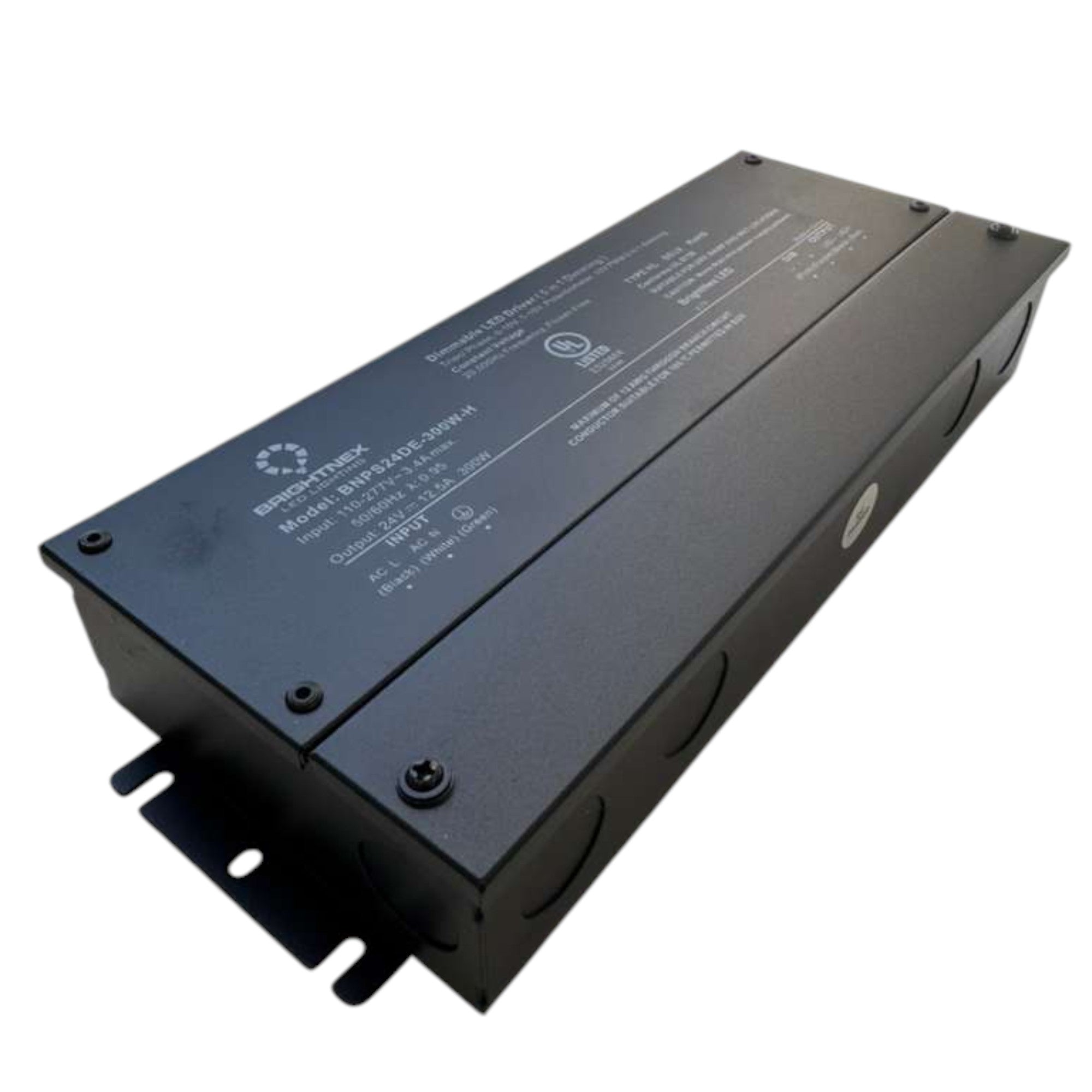

Professional-grade 300W 5-in-1 dimmable LED driver compatible with TRIAC, ELV, MLV, 0-10V, PWM, and potentiometer dimmers. Provides smooth, flicker-free dimming from 0.1%–100%, with high efficiency, full circuit protection, and a built-in junction box for safe wiring. UL Listed for dry, damp, and wet locations (not for submersion) making it perfect for indoor or outdoor architectural lighting projects.
Key Features
-
Mechanical Specs (Imperial Units):
-
Dimensions: 10.94" × 4.33" × 1.92" (278mm × 110mm × 48.8mm)
-
Weight: 4.81 lb (2.18 kg)
-
Input Wiring: 3×18 AWG – Black (L), White (N), Green (G)
-
Output Wiring (12V): 4×14 AWG – Red (V+), Black (V–)
-
Output Wiring (24V / 36V / 48V): 2×14 AWG – Red (V+), Black (V–)
-
Dimming Wiring: 2×18 AWG – Purple (DIM+), Pink (DIM–)
-
5-in-1 Dimming: Works with TRIAC, ELV, MLV, 0-10V, PWM, and Potentiometer dimmers
-
Smooth Dimming Range: 0.1–100% flicker-free light control
-
Universal Input: 110–277VAC, PF up to 0.99
-
High Efficiency: Up to 91.75% energy performance
-
Constant Voltage Output:
-
12V DC (25A, 300W)
-
24V DC (12.5A, 300W)
-
-
Built-In Junction Box: Streamlined wiring, suitable for dry, damp & wet locations (not submersible)
-
Full Circuit Protection: Overload, short circuit & thermal protection
-
Certified Safe: UL / cUL / FCC / TYPE HL / SELV / RoHS compliant
-
Part Number:
LA-DRV-G1-12V-300W-JB-S1
LA-DRV-G1-24V-300W-JB-S1
🧰 Applications
Ideal for:
-
LED strip lighting
-
Cove & under-cabinet lighting
-
Signage and display illumination
-
Commercial and residential dimming systems
-
