This compact 30W dimmable LED driver provides smooth, flicker-free performance and works with nearly every popular dimming system. With full 5-in-1 dimming support—TRIAC, ELV, MLV, 0–10V, 1–10V, PWM, and potentiometer—it's a versatile solution for small to mid-scale LED lighting installations.

Designed for reliability, the integrated junction box makes installation safe and code-friendly, and the driver is rated for dry, damp, and wet locations (not for submersion). High power factor, solid efficiency, and full electronic protections ensure dependable operation for years.

🔧 Key Features

• 5-in-1 Dimming Compatibility: Supports TRIAC, ELV, MLV, 0-10V, PWM, and Potentiometer control

• Dimming Range: 0.1–100% smooth dimming performance

• Universal Input: 100–277VAC with built-in active PFC (up to 0.99 PF)

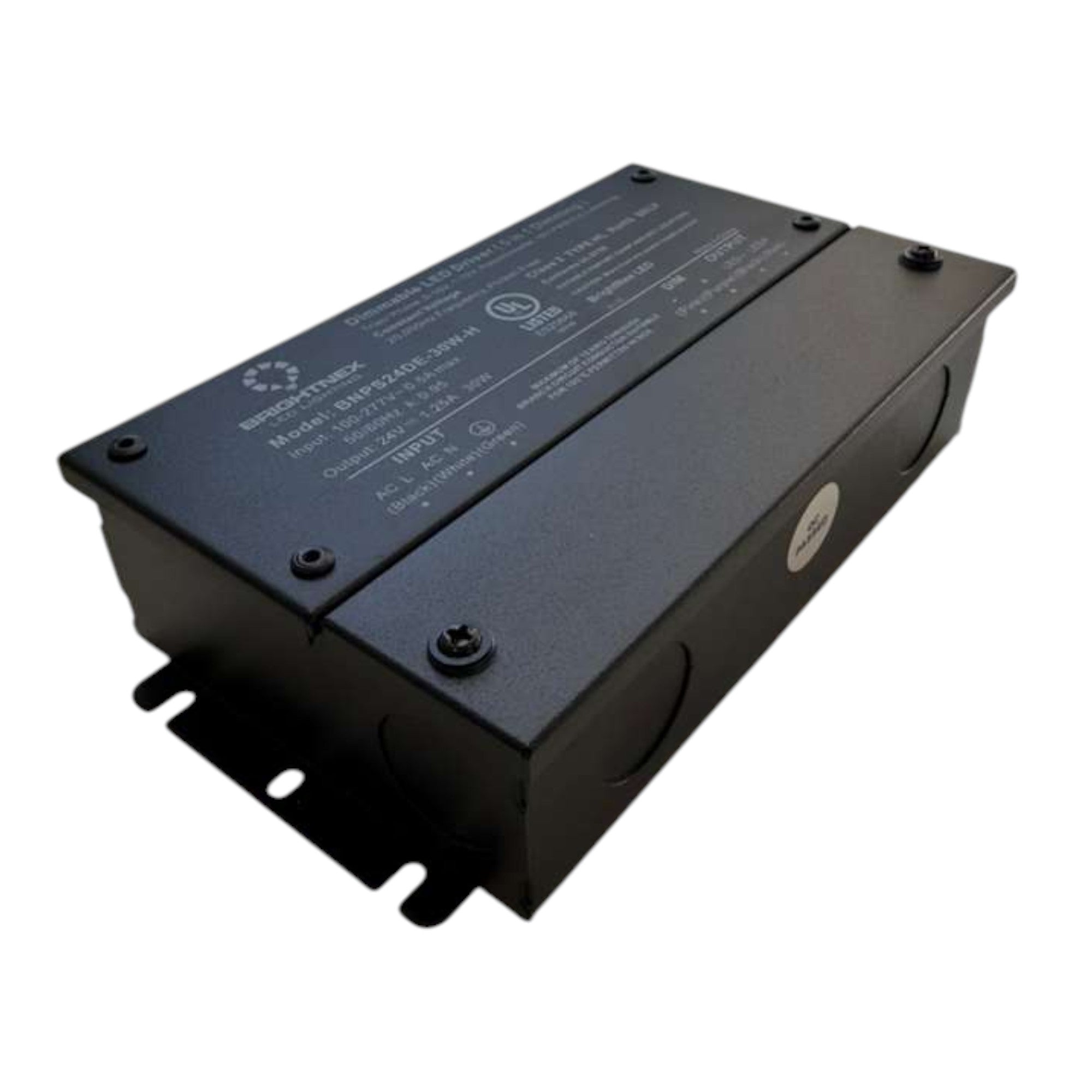

• Built-In Junction Box: Streamlined wiring for easy installation, For dry, damp and wet locations (not for submersion).



• Input Voltage: 100–277VAC with built-in active PFC (up to 0.99 PF)

• Constant Voltage Output: Available in 12V (2.5A) and 24V (1.25A)

• Certified Safe: UL, cUL, FCC, Class 2, RoHS, TYPE HL, SELV

• Flicker-Free: High-frequency 20kHz PWM output ensures stable lighting

• Full Protection: Overload, short circuit, and thermal shutdown with auto recovery

• Efficiency: Up to 81% at full load; THD < 20%

• Mechanical Specs :

  • • Dimensions: 6.50" × 3.75" × 1.72"

    • Weight: 2.05 lb

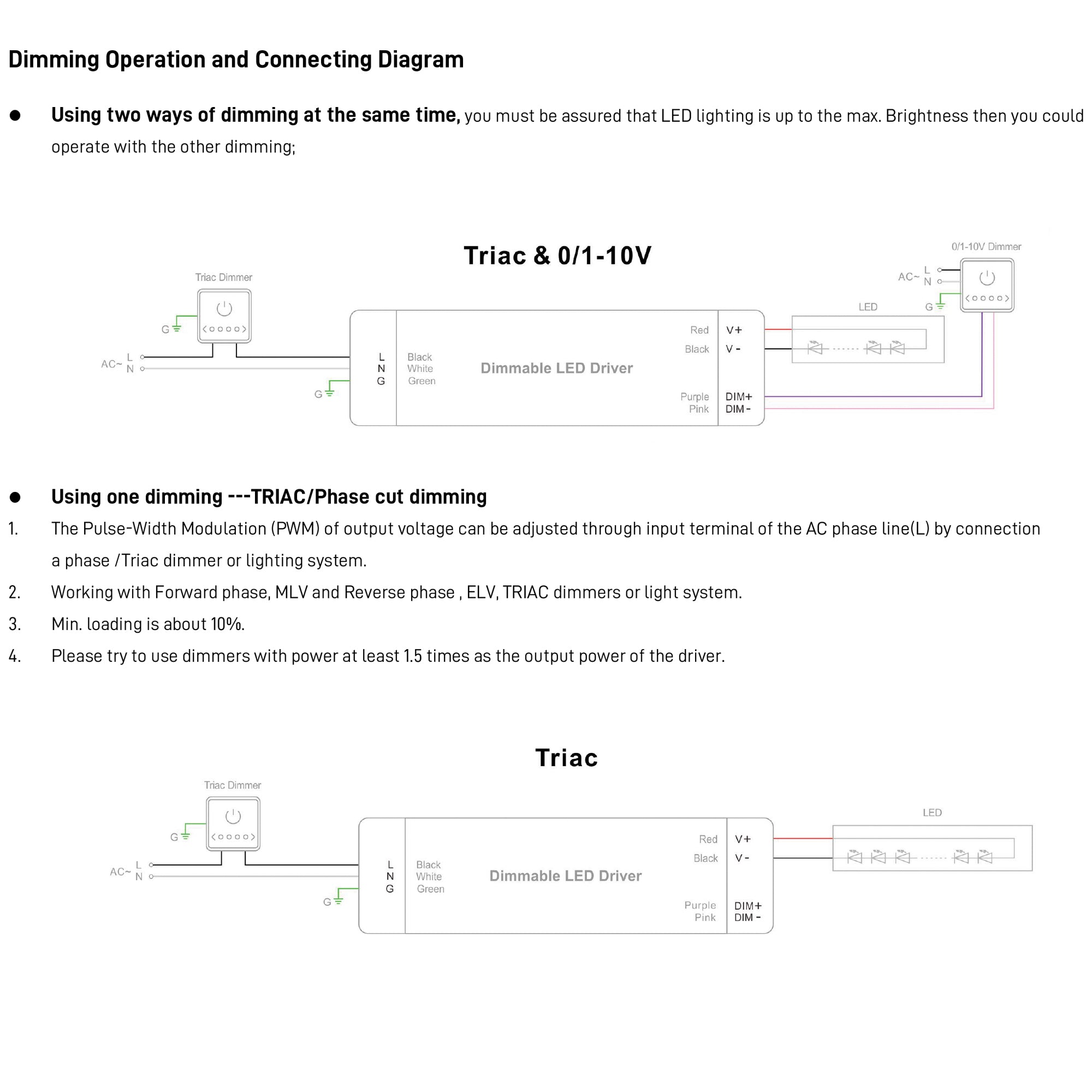

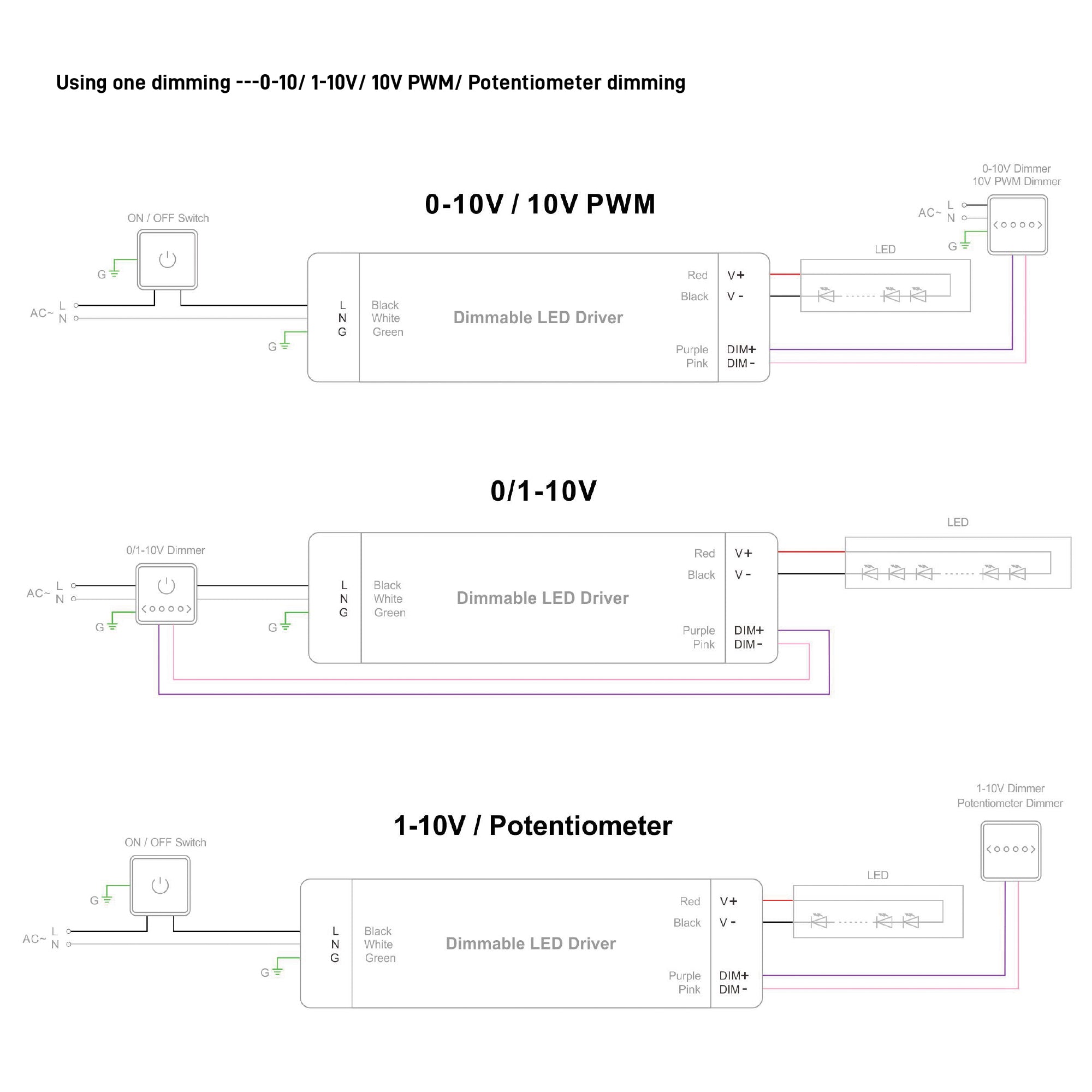

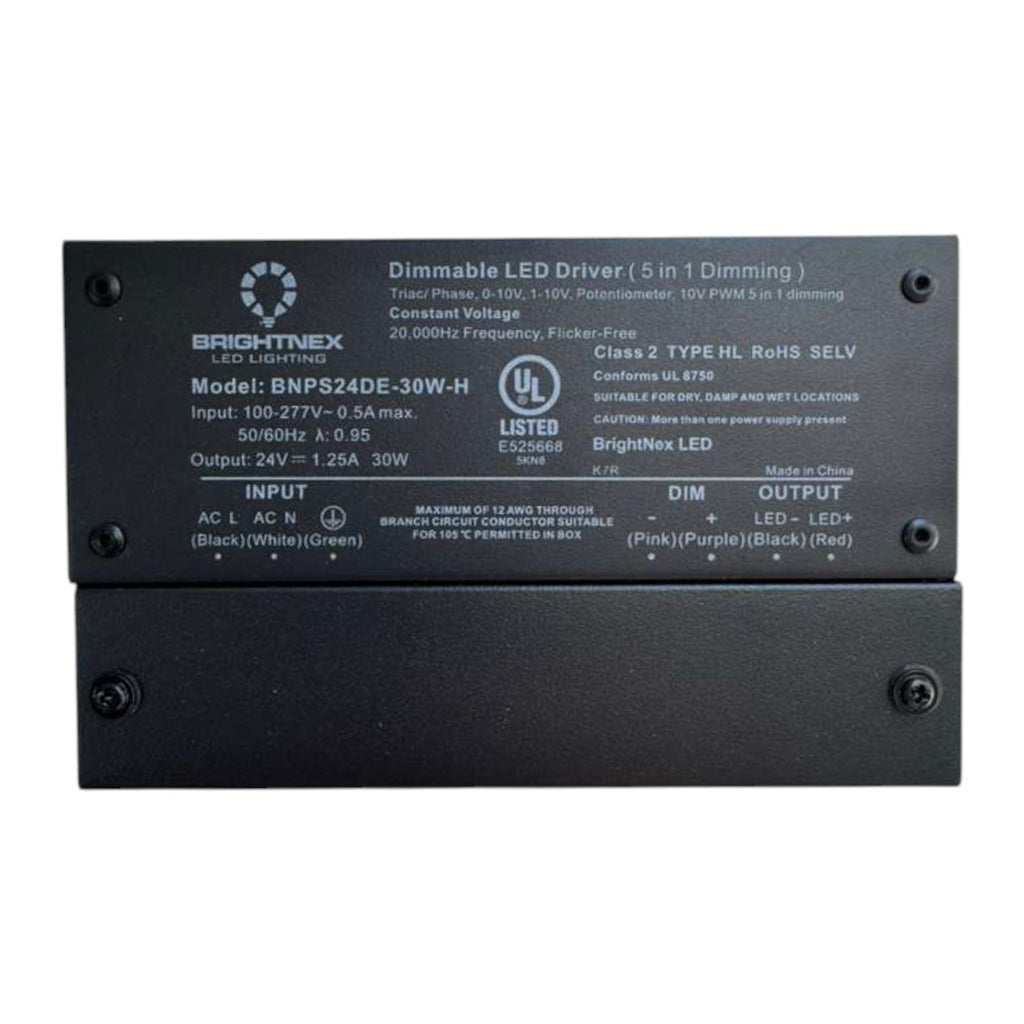

    • Wiring (AWG):

      • Input: Black (L), White (N), Green (GND) – 3×18 AWG

      • Output: Red (V+), Black (V–) – 2×18 AWG

      • Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG

  🧰 Applications

  Ideal for:

  • Small LED strip lighting runs (12V / 24V )

  • Under-cabinet and accent lighting

  • Cove lighting

  • Residential dimming systems

  • Retail fixtures & signage

  • Outdoor lighting, wet-location rated, (not for submersion)

  • Display & showcase lighting

    Part Number:
    LA-DRV-G1-12V-30W-JB-S1
    LA-DRV-G1-24V-30W-JB-S1
