384W LED Driver is a professional-grade, multi-channel constant voltage dimmable driver designed for demanding architectural and commercial lighting applications.

Engineered with 4 independent 96W channels (96W × 4), this driver delivers stable PWM output at 4000Hz constant frequency, ensuring flicker-free performance across the full dimming range of 0.1%–100%.

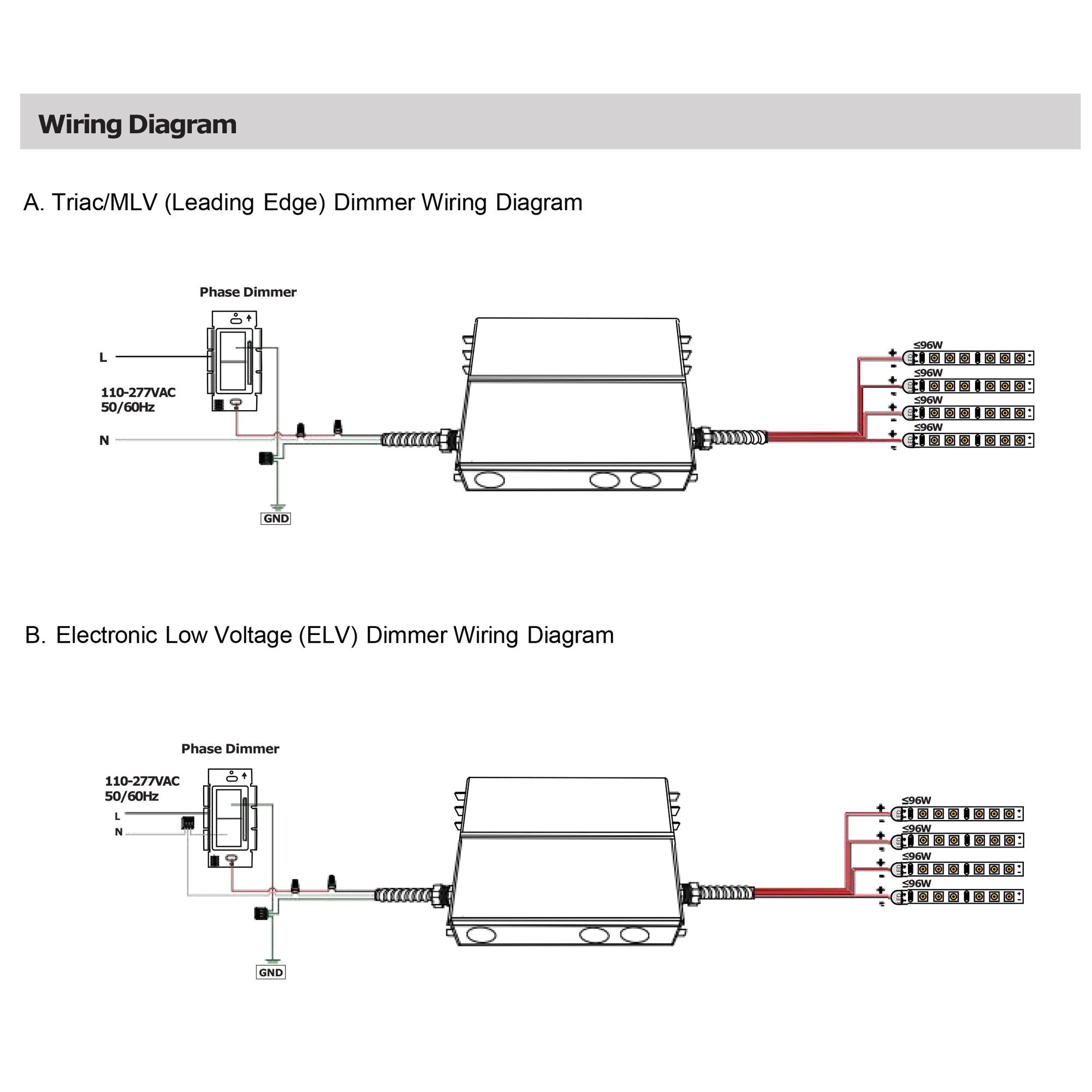

Compatible with:

• TRIAC (Forward Phase)

• Reverse Phase

• ELV

• MLV dimming systems

It features high efficiency up to 93%, power factor up to 0.99, and operates on universal 110–277VAC input.

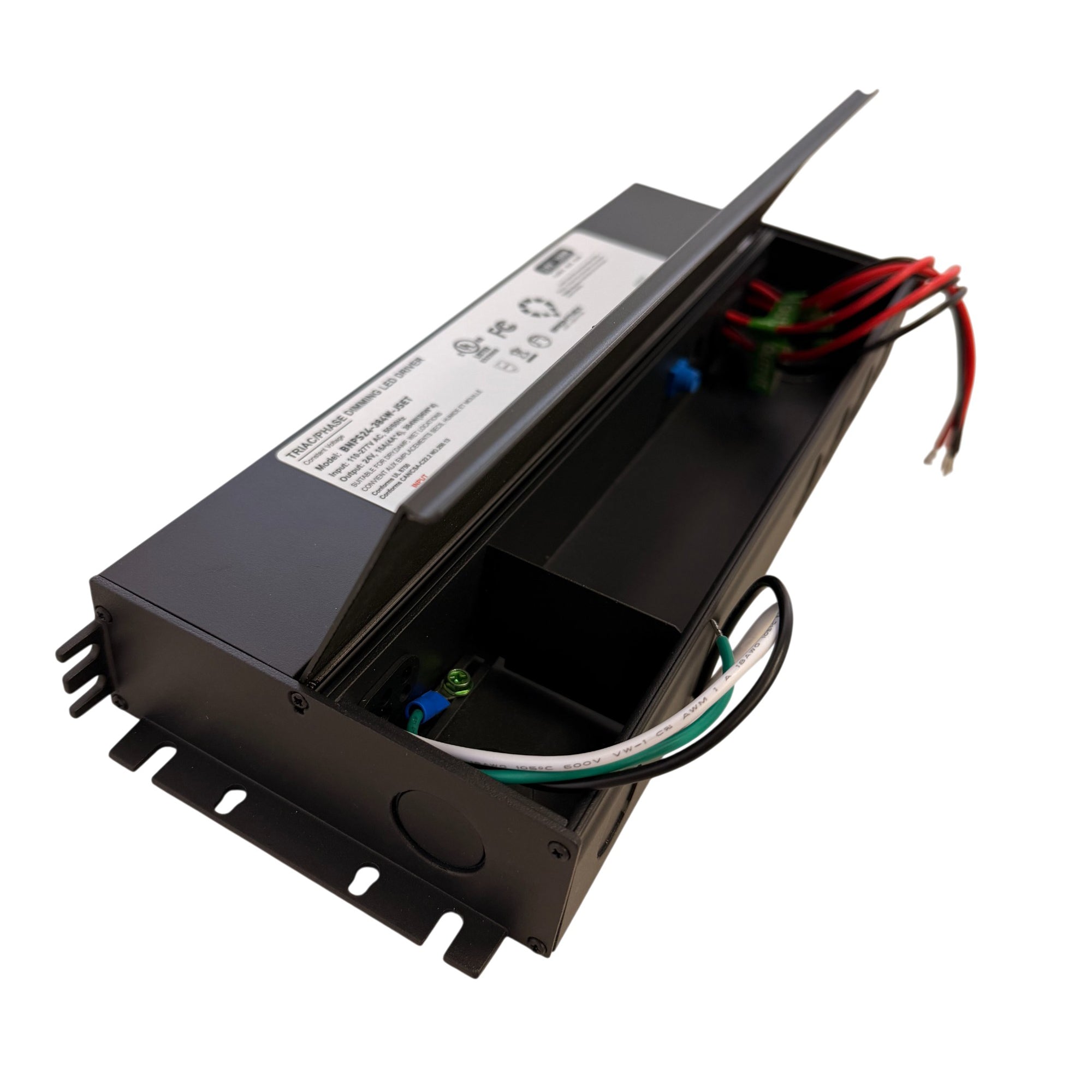

The patented aluminum clamshell junction box design allows easy wiring, excellent heat dissipation, and flexible mounting options (flat, vertical, or side mounting).

Suitable for dry, damp, and wet locations (IP65 / NEMA 4X).

---

✅ KEY FEATURES

• 384W Total Power (96W × 4 Channels)

• 4 Independent Output Channels

• Constant Voltage Output 24V

• TRIAC / ELV / MLV / Phase Dimmable

• 0.1–100% Smooth Flicker-Free Dimming

• PWM Output – 4000Hz Constant Frequency

• Universal Input: 110–277VAC

• Power Factor > 0.95

• Efficiency up to 93%

• Fine-Tune Output Voltage Adjustment

• IP65 / NEMA 4X Rated

• UL8750 Listed (E534745)

• Title 24 / JA8 Compliant

• Class P / Class 2


---

✅ TECHNICAL SPECIFICATIONS

Output

• Rated Power: 384W (96W × 4)

• Output Voltage:

  • 24V DC


• Rated Current:

  • 4CH × 4A (24V)


• Voltage Tolerance: ±0.5V

• Load Regulation: ±1%

Input

• Voltage Range: 110–277VAC

• Frequency: 47–63Hz

• Power Factor: 0.99 @120V

• Efficiency: Up to 93%

• THD < 15%

Environmental

• Operating Temp: -40°C to +60°C

• IP Rating: IP65

• Suitable for Wet Location

• NEMA 4X

• Weight: 1.7kg

Protection

• Short Circuit Protection

• Overload Protection (Hiccup Mode)

• Over-Temperature Protection

• Intelligent Voltage Reduction

---

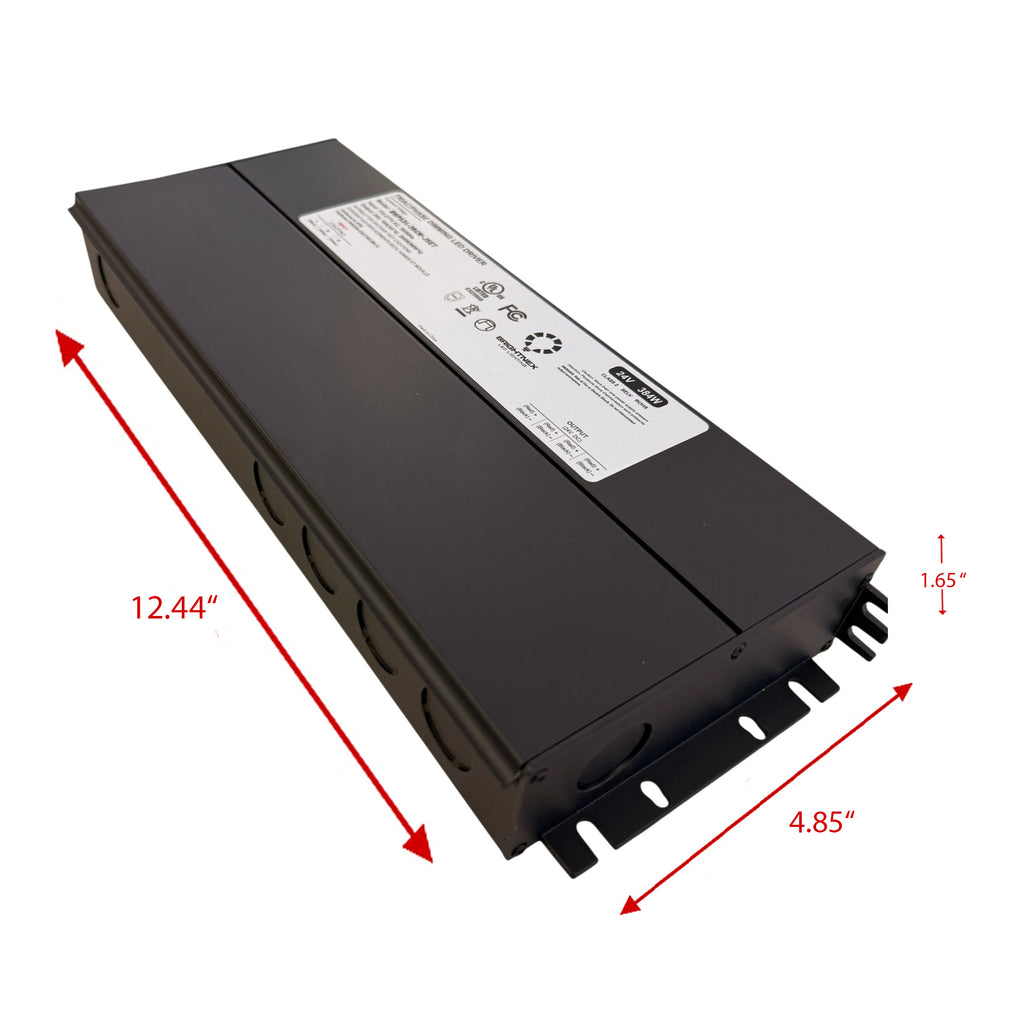

✅ DIMENSIONS

12.44" L × 4.85" W × 1.65" H
(316mm × 123mm × 42mm)

Part Number:
LA-DRV-F1-24V-384W-JB-D1
