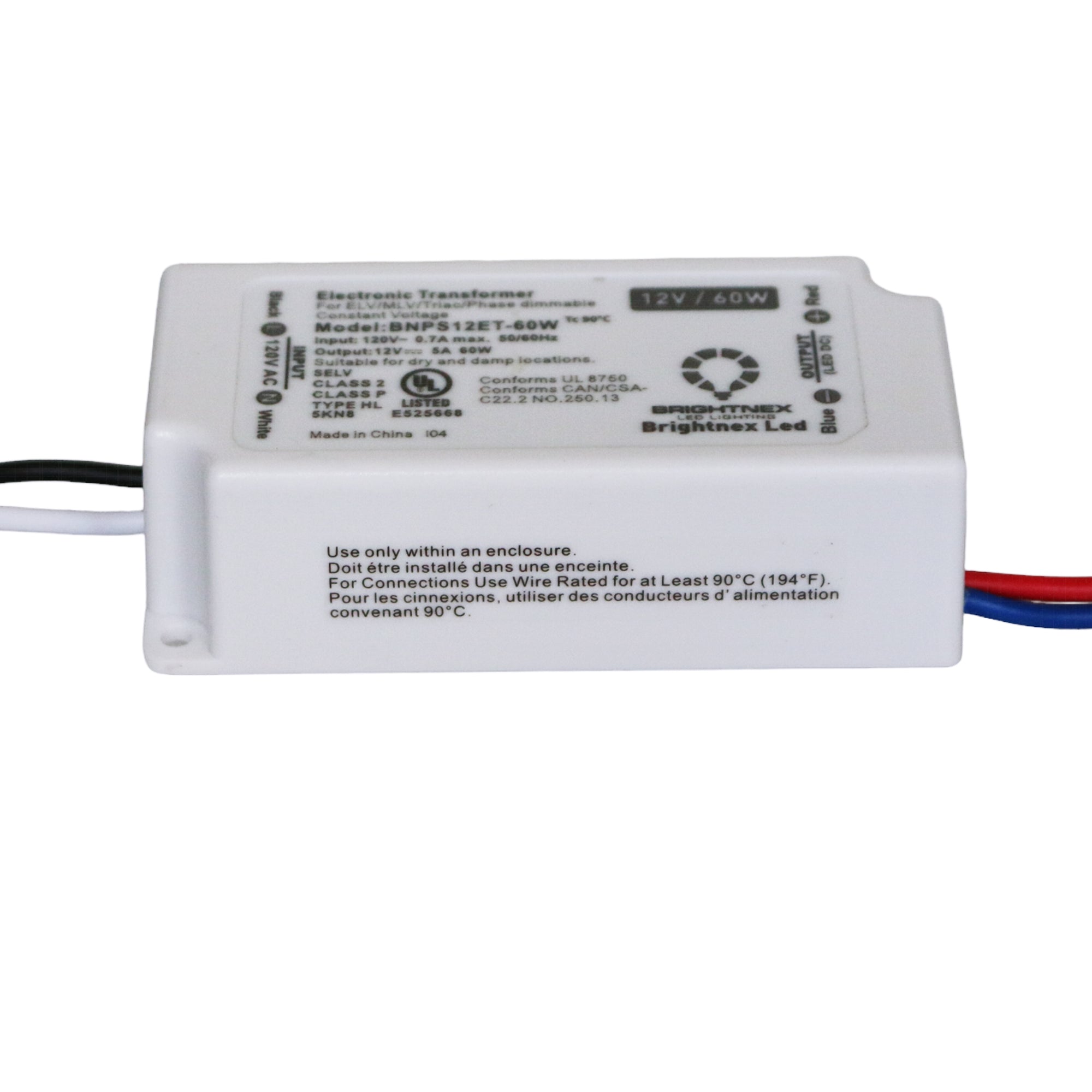

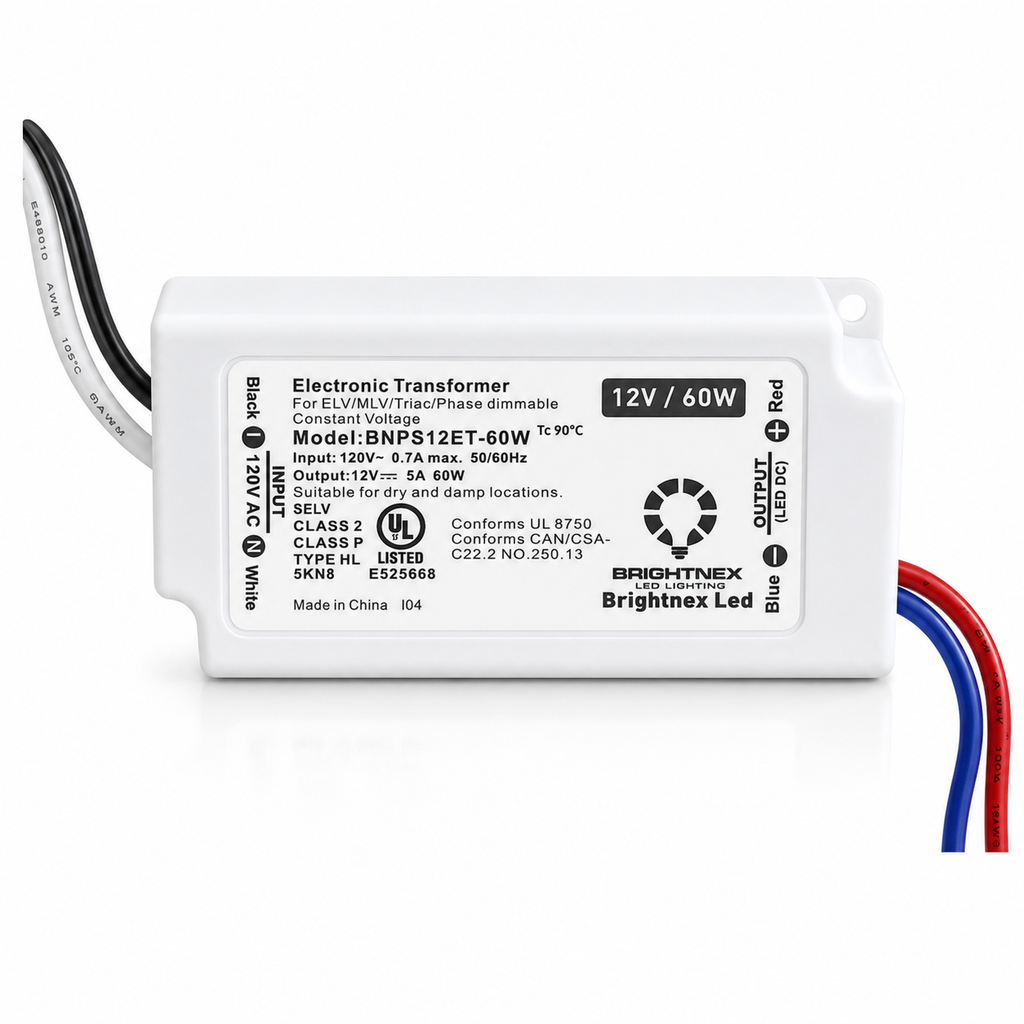

60W 12V dimmable LED transformer Class 2 Class P constant voltage with input and output wires
Compact 96W 24V dimmable LED transformer showing product dimensions and enclosure size for installation reference
60W 12V dimmable LED transformer Class 2 Class P constant voltage with input and output wires

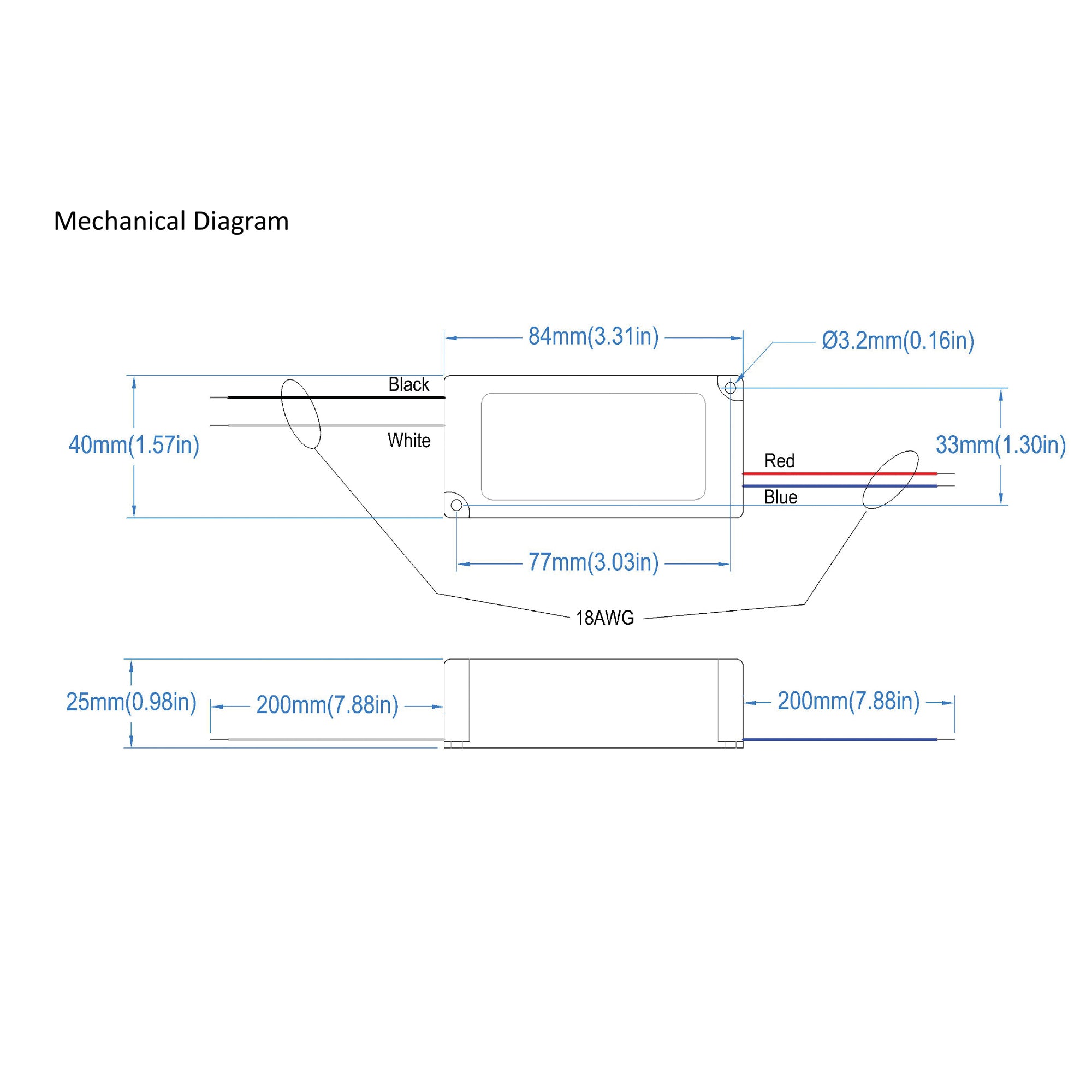

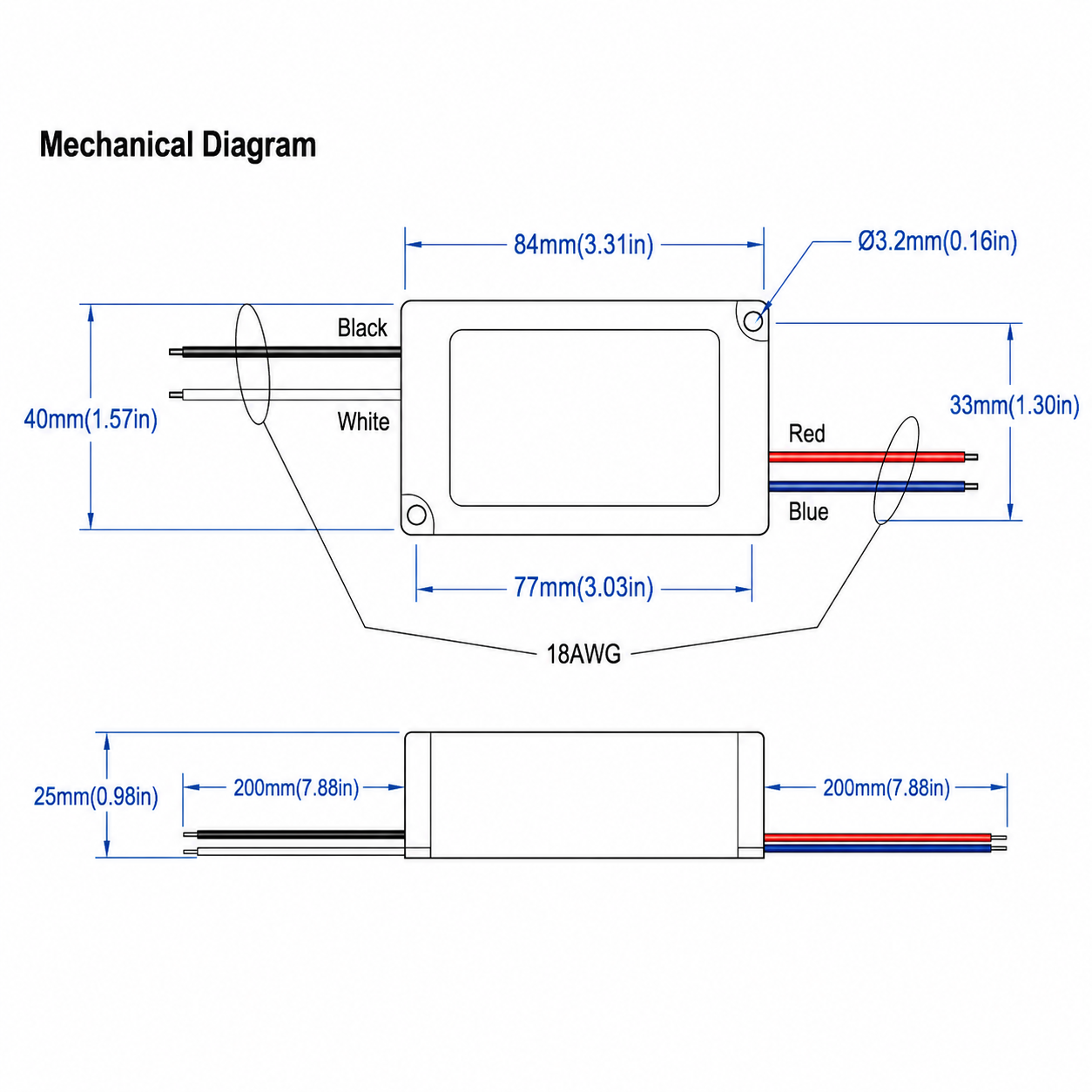

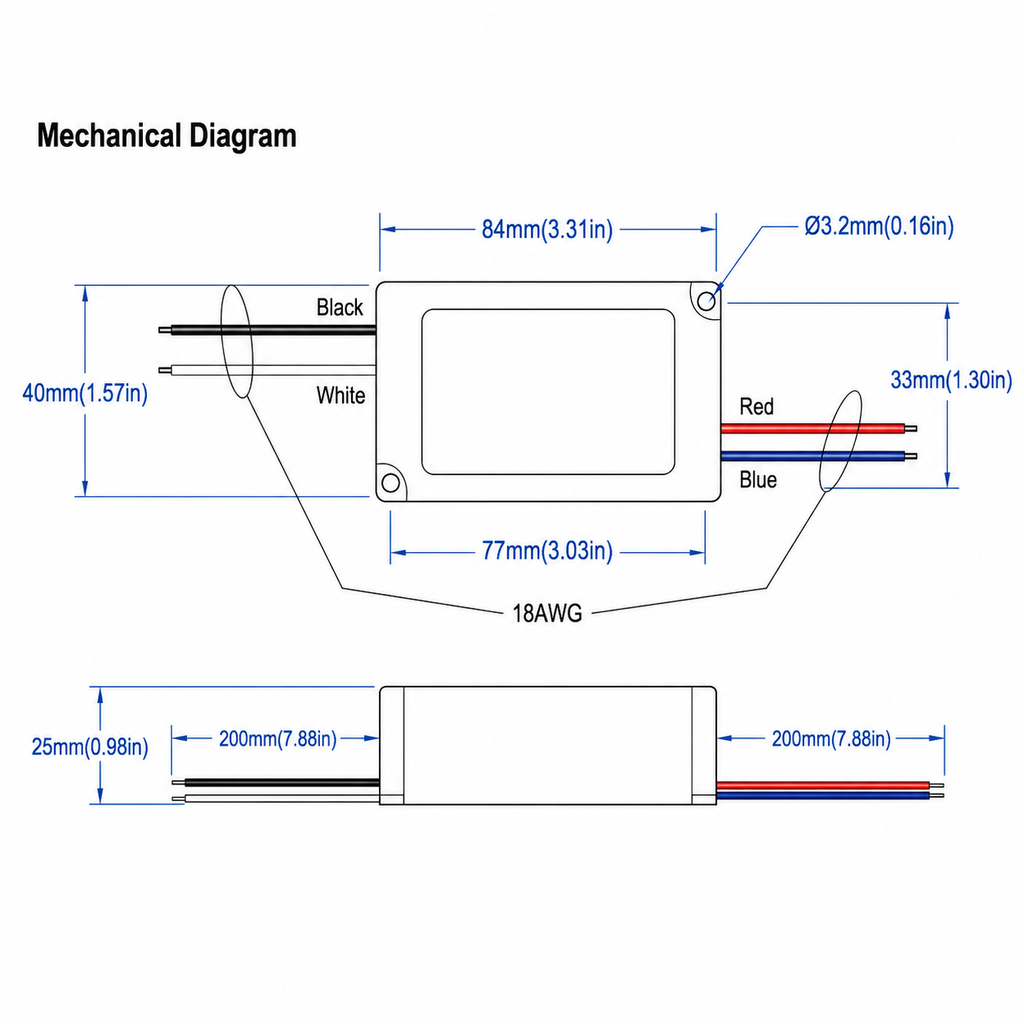

Mechanical dimensions diagram of 60W 12V compact LED transformer showing housing size and wire length specifications

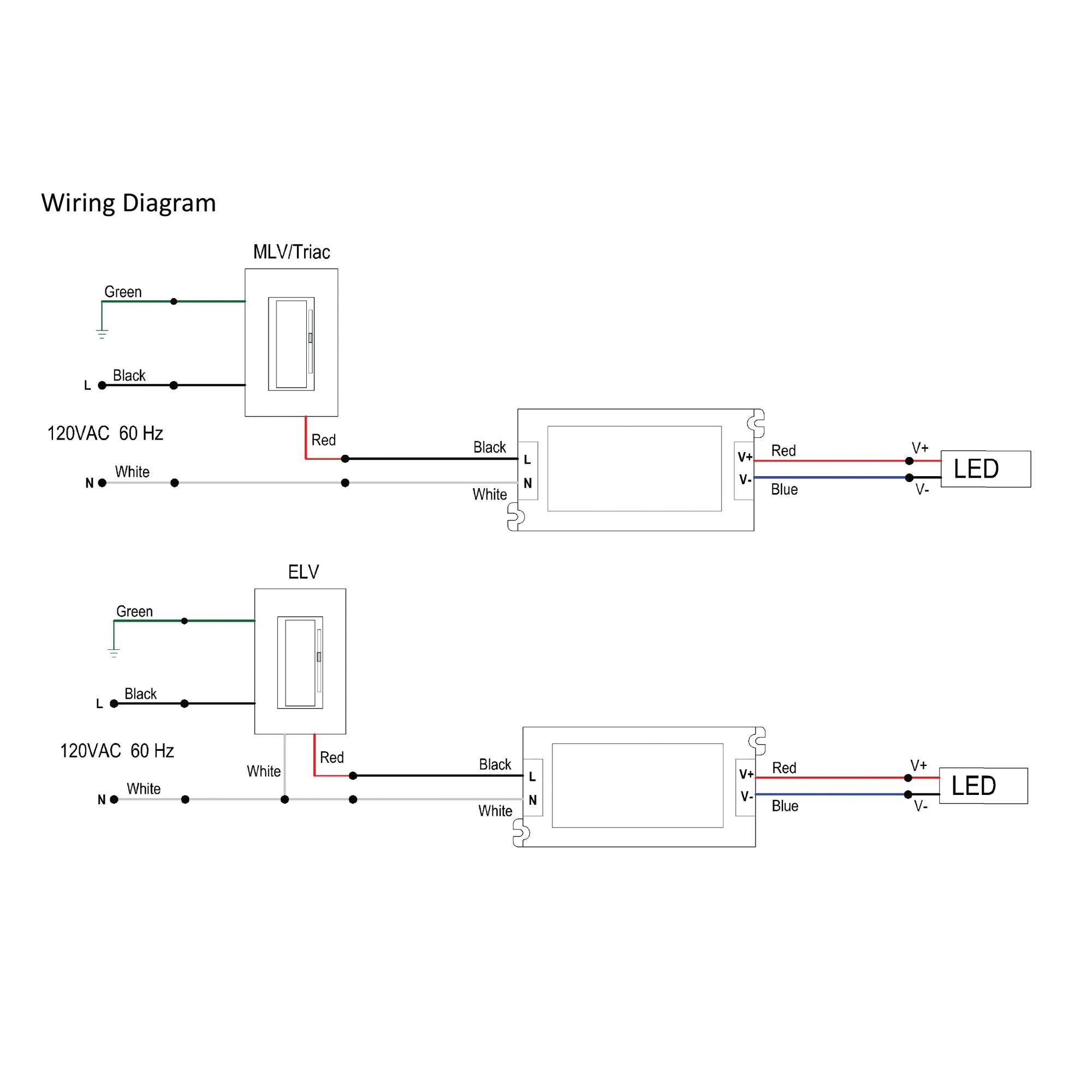

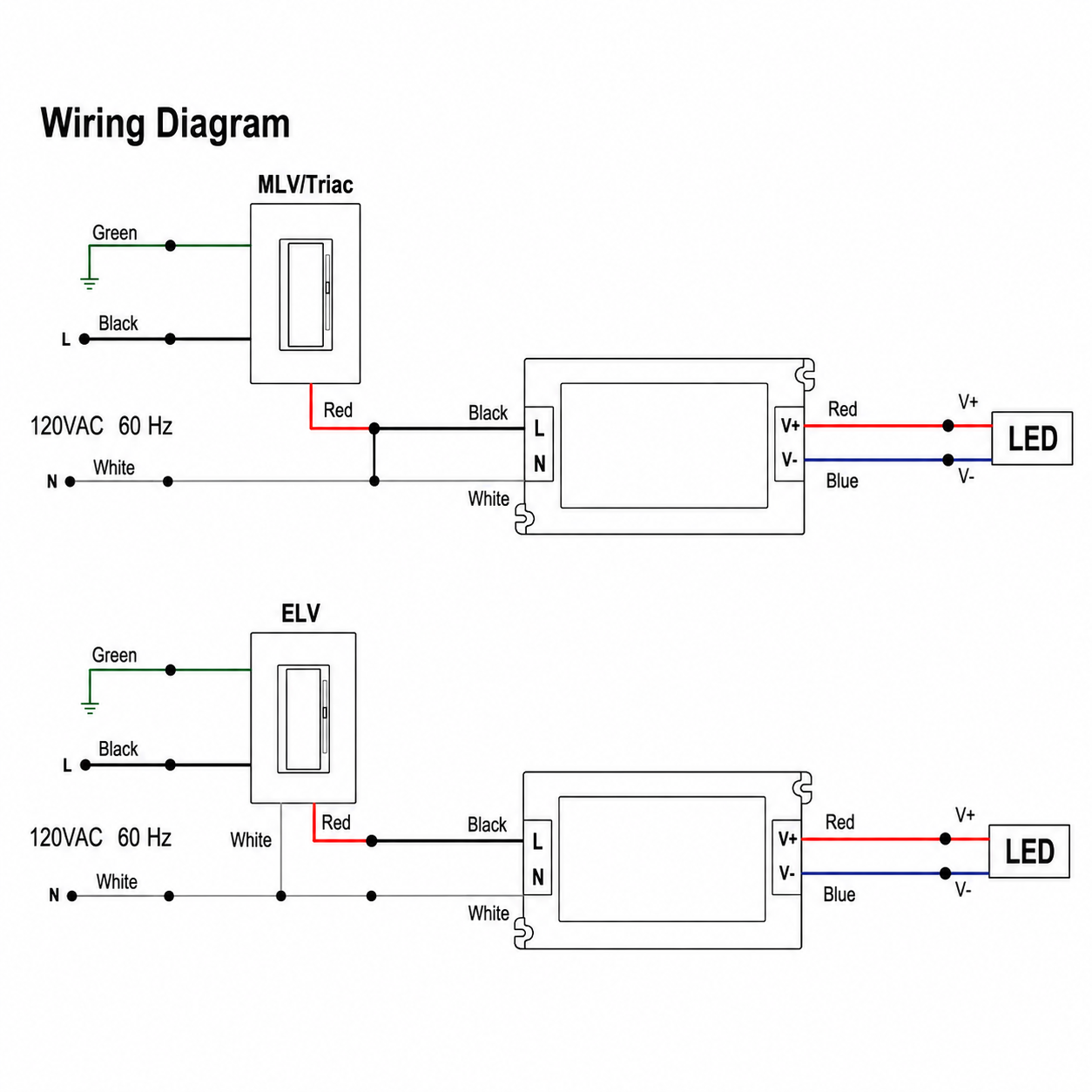

Wiring diagram for 60W 12V dimmable LED transformer showing TRIAC MLV and ELV dimmer connections for LED lighting

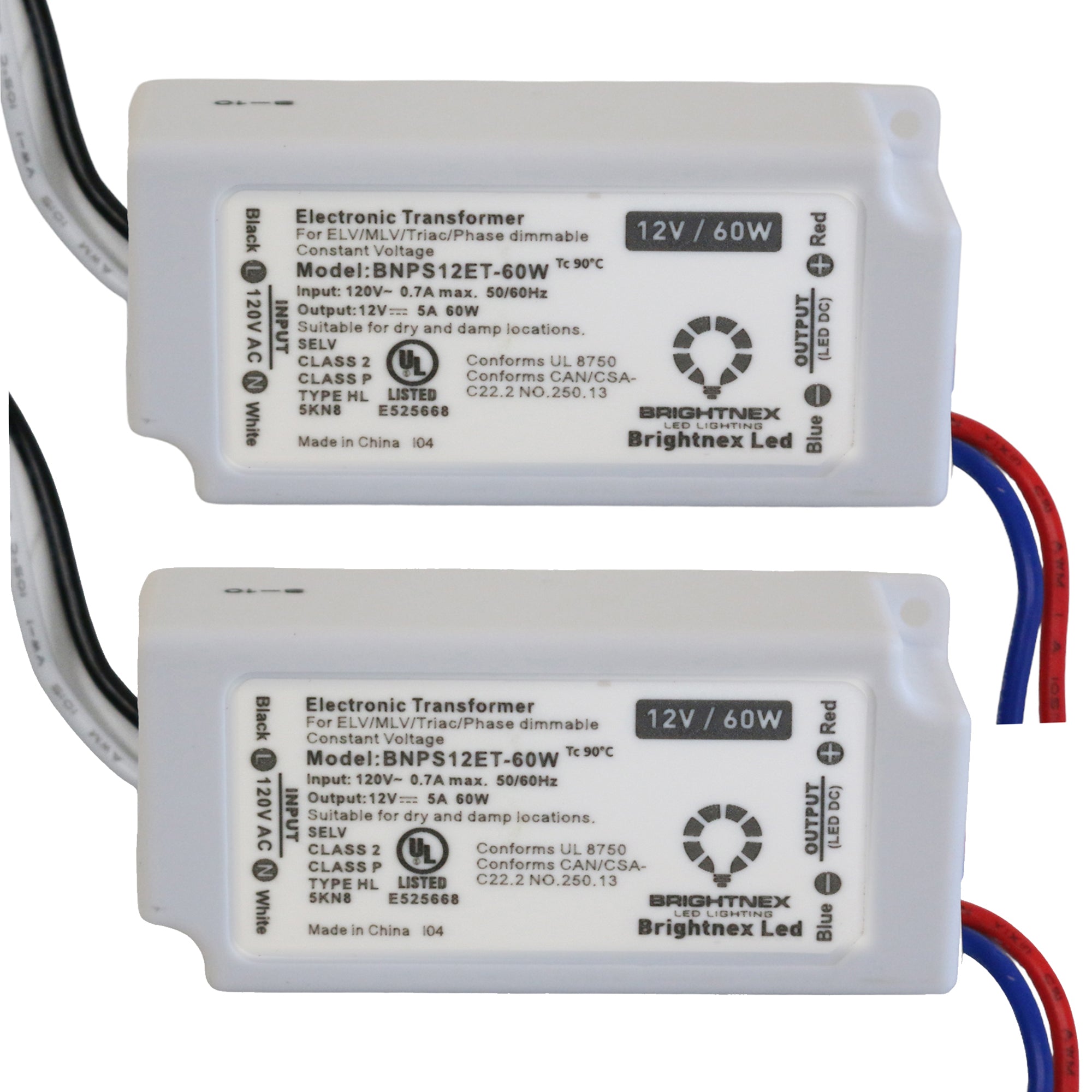

compact 60W 12V dimmable LED transformer Class 2 Class P constant voltage power supply for LED lighting
Roll over image to zoom in Click on image to zoom
60W 12V dimmable LED transformer Class 2 Class P constant voltage with input and output wires Compact 96W 24V dimmable LED transformer showing product dimensions and enclosure size for installation reference 60W 12V dimmable LED transformer Class 2 Class P constant voltage with input and output wires Mechanical dimensions diagram of 60W 12V compact LED transformer showing housing size and wire length specifications Wiring diagram for 60W 12V dimmable LED transformer showing TRIAC MLV and ELV dimmer connections for LED lighting compact 60W 12V dimmable LED transformer Class 2 Class P constant voltage power supply for LED lighting

60W Compact Dimmable LED Transformer – 12V | TRIAC/ELV/MLV Compatible | UL Listed | Class 2,P

LA LED Lighting
Quantity: 1 Item
Price:
$32.99

Description

This 12V dimmable LED transformer offers a compact, efficient solution for powering low-voltage LED lighting systems up to 60W. It supports full-range dimming from 0% to 100% using TRIAC, ELV, or MLV dimmers, and operates reliably across a wide load range (20–100%).

At just 3.3 inches in length, this transformer is perfect for tight spaces such as cabinets, shelves, and recessed fixtures. Designed for dry and damp locations, it includes built-in protection for short circuit and overload with automatic recovery.

🔧 Key Features:

  • Output Power: 60W

  • Output Voltage: 12V DC

  • Output Current: 5.0A

  • Input Voltage: 120V AC (50/60Hz)

  • Dimming: TRIAC / ELV / MLV (0–100%)

  • Efficiency: 88% typical @ full load

  • Power Factor: > 0.95

  • THD: < 20%

  • Protections: Short-circuit & overload (hiccup mode, auto-recovery)

  • Working Temp: -40°C to +60°C

  • Humidity: 20–95% RH

  • Dimensions: 84 × 40 × 25 mm (3.31" × 1.57" × 0.98")

  • Wiring: 18 AWG input and output leads

  • Certifications: UL Listed, Class 2, Class P, Type HL, FCC, RoHS, SELV, REACH

  • For Use In: Dry and damp locations only

💡 Typical Applications:

  • 12V LED strip and tape lighting

  • Cabinet, cove, and accent lighting

  • Display shelves and showcases

  • Low-voltage indoor LED modules

  • Residential and commercial installs where space is limited

  • Part Number: LA-TRF-12V-60W-C-S1
