Description

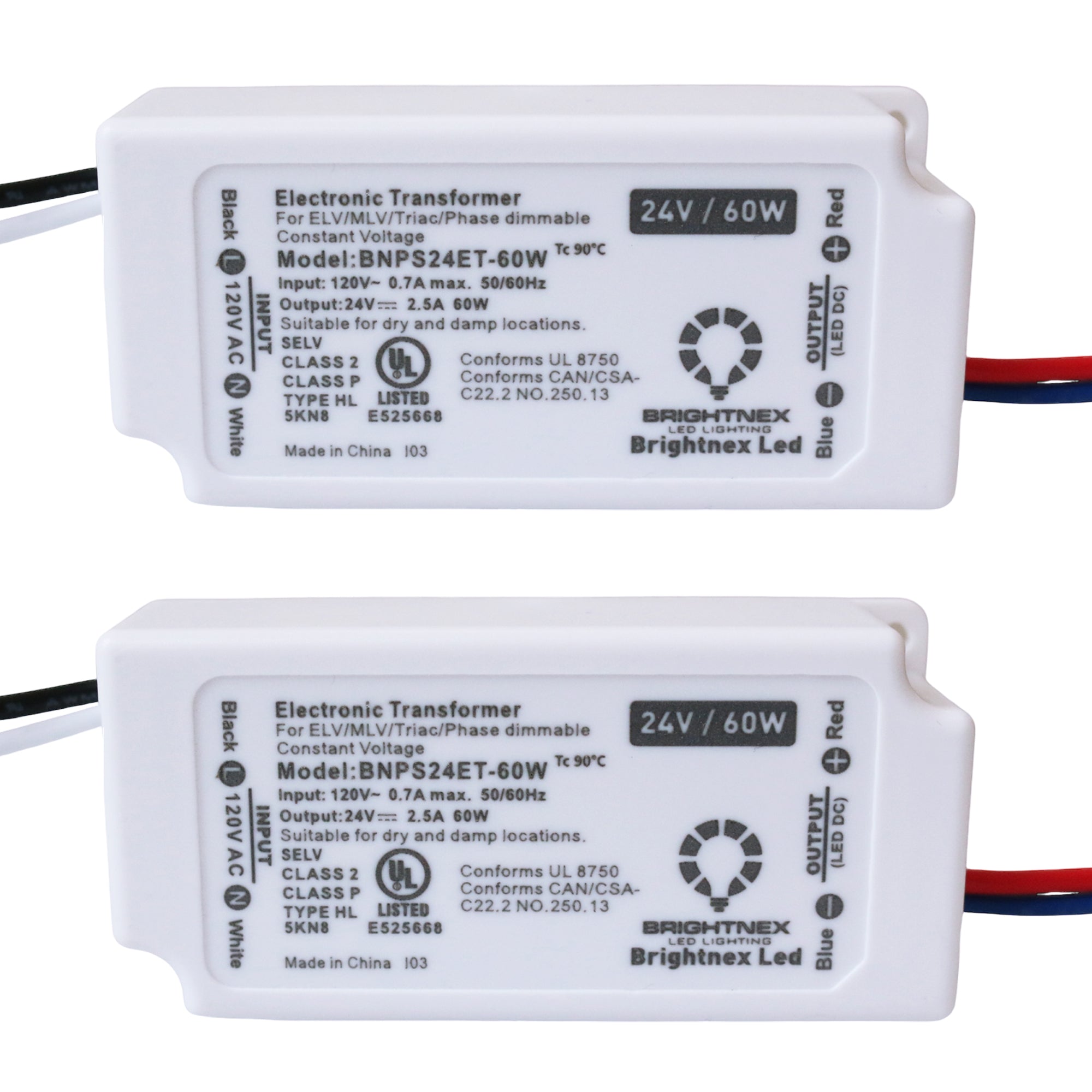

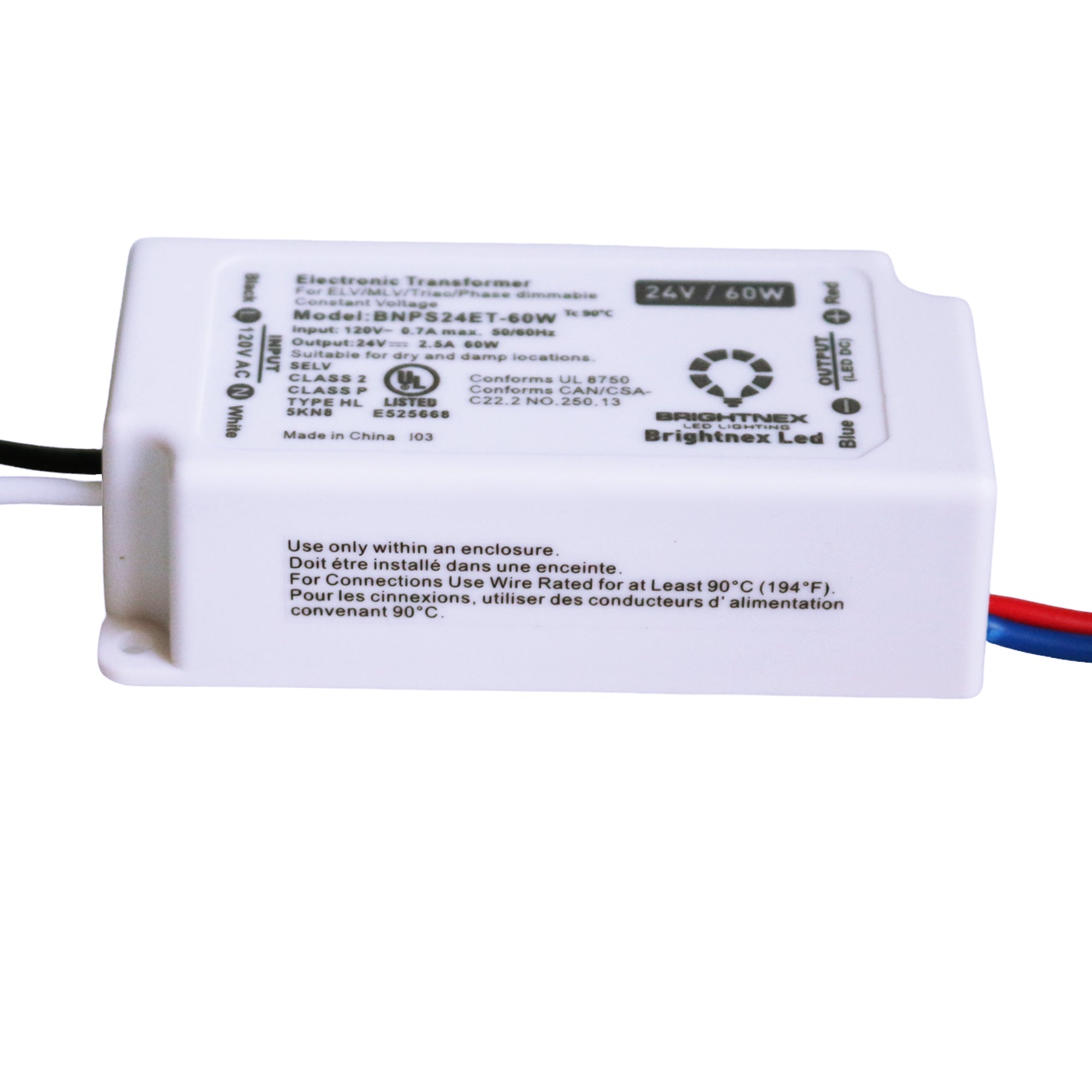

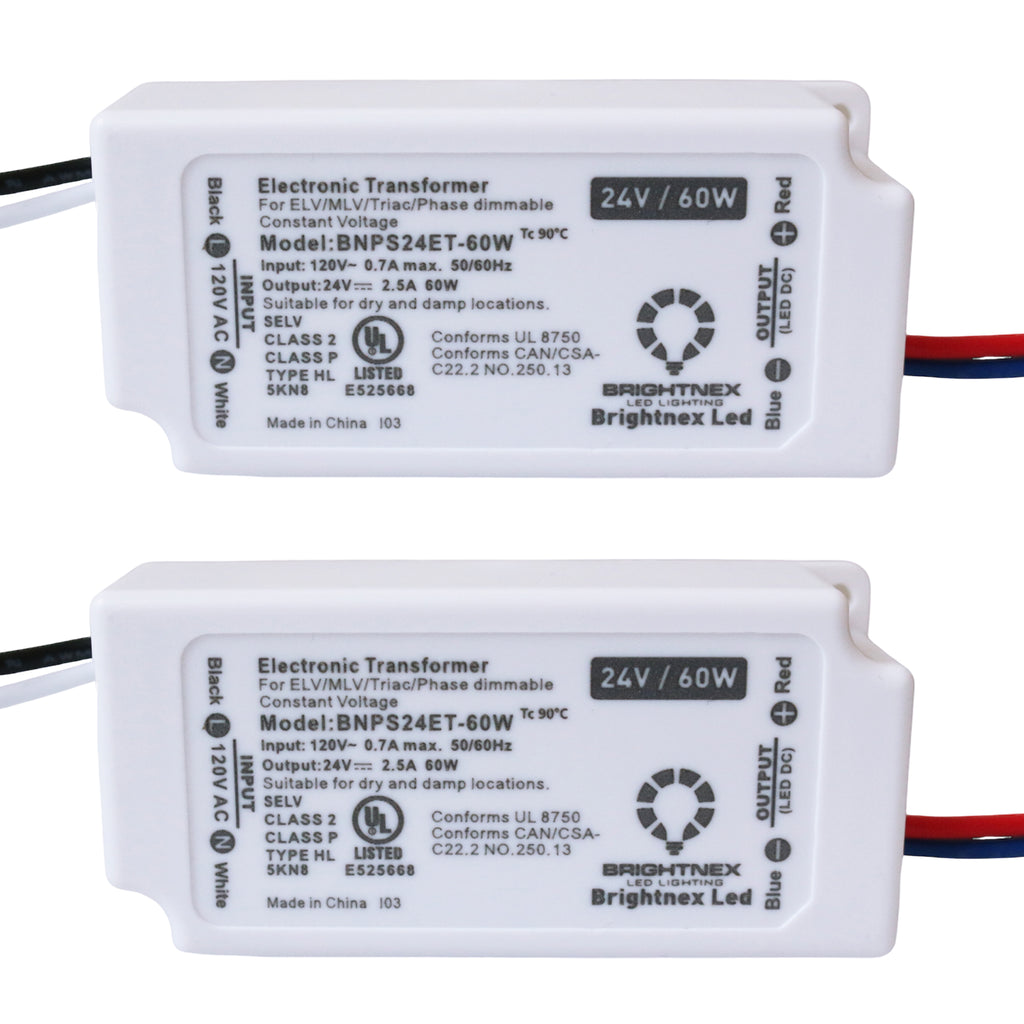

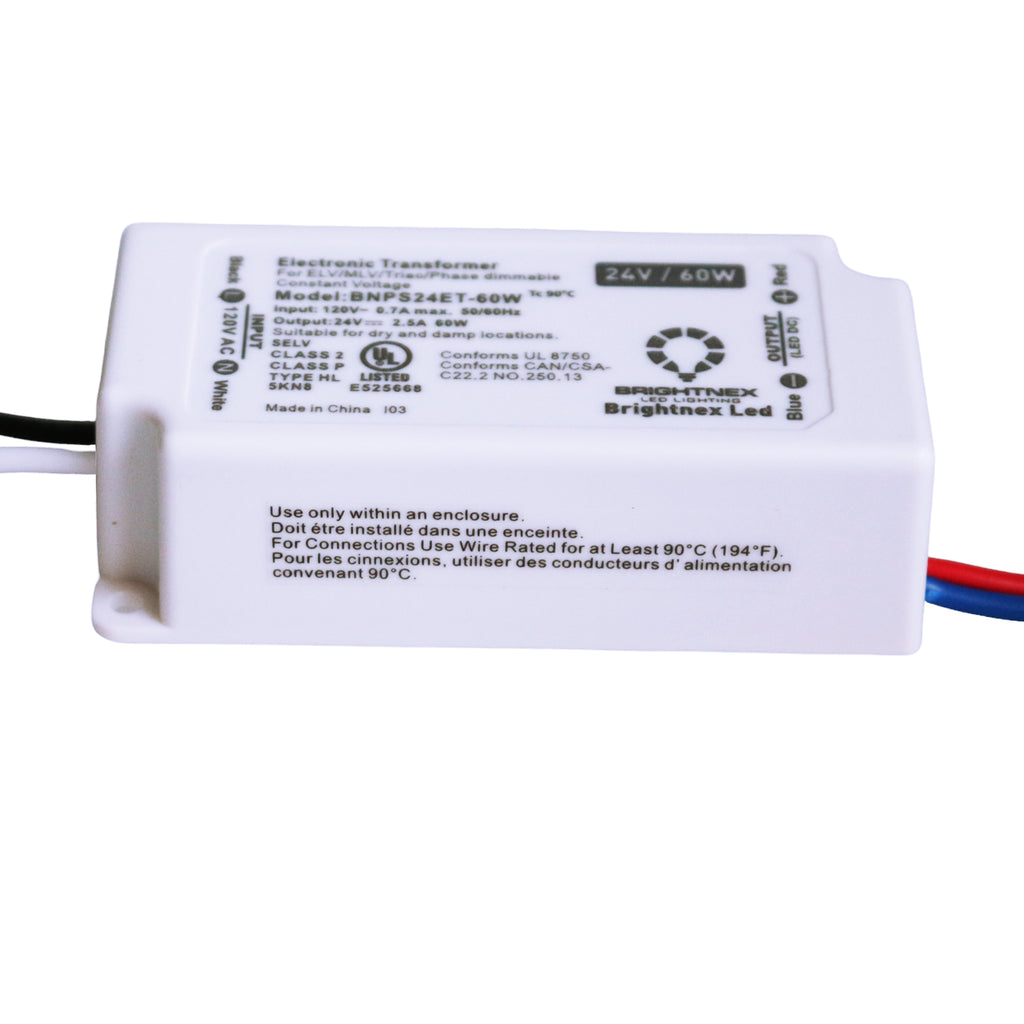

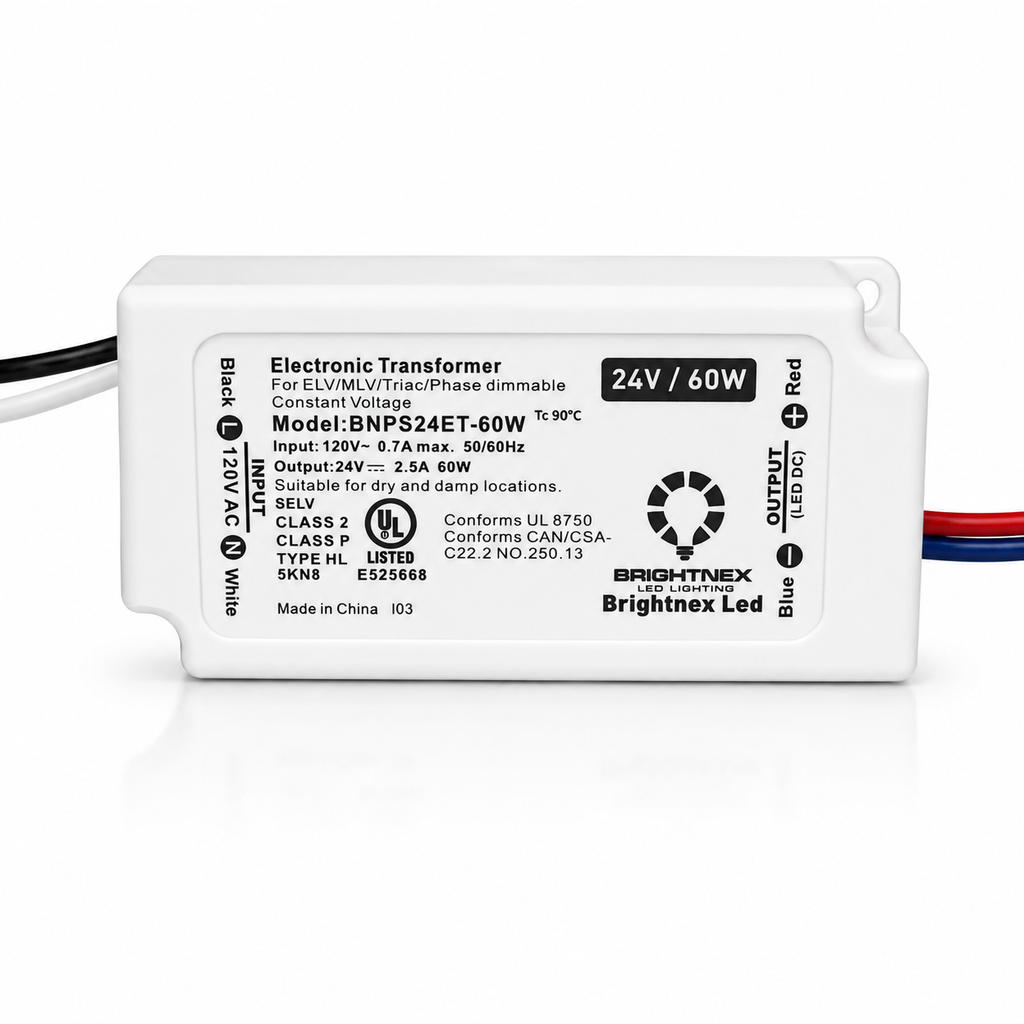

This 24V compact dimmable LED transformer delivers up to 60W of constant voltage power with smooth, full-range dimming using TRIAC, ELV, or MLV dimmers. It's ideal for powering LED strips, modules, or tape lighting in tight spaces like cabinets, displays, or shallow enclosures.
With high efficiency (88%), low THD, and auto-recovery protection against short-circuit and overload, this transformer ensures safe, reliable performance in dry and damp locations. At just 3.3 inches long, it fits where standard drivers cannot.
🔧 Key Features:
-
Output Power: 60W
-
Output Voltage: 24V DC
-
Output Current: 2.5A
-
Input Voltage: 120V AC (50/60Hz)
-

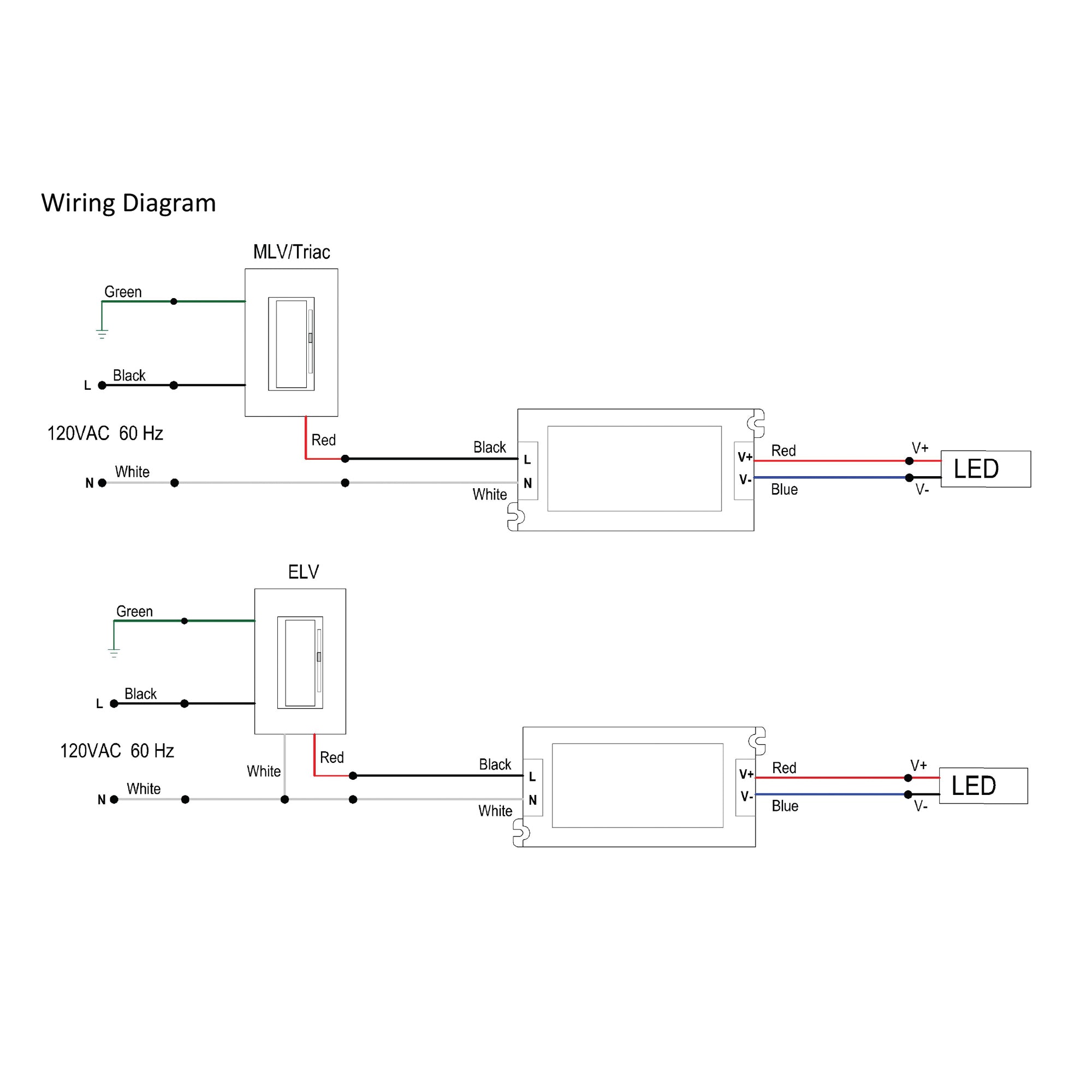

Dimming: TRIAC / ELV / MLV (0–100%)
-
Efficiency: 88%
-
Power Factor: > 0.95
-
THD: < 20% @ full load
-
Protections: Short circuit & overload (hiccup mode, auto-recovery)
-
Working Temp: -40°C to +60°C
-
Humidity: 20–95% RH
-

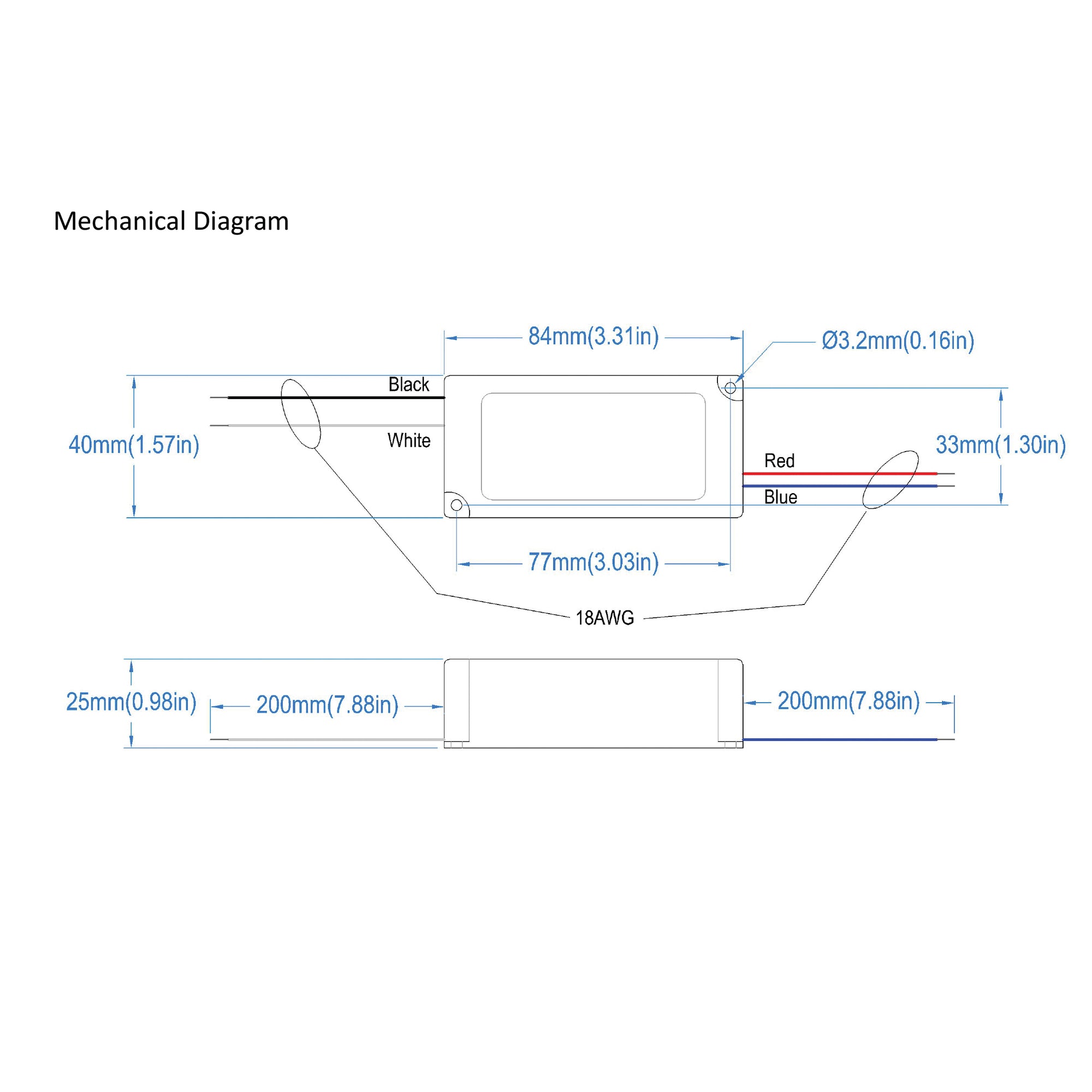

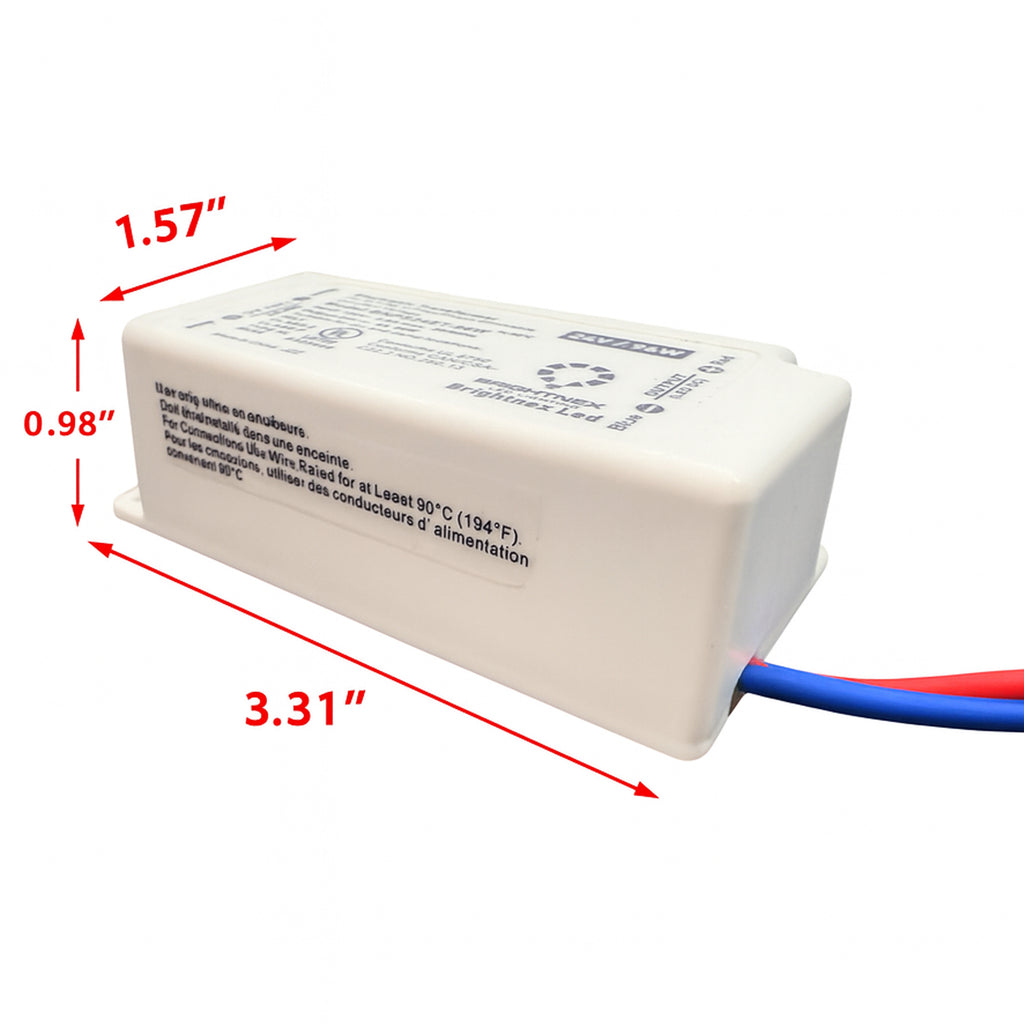

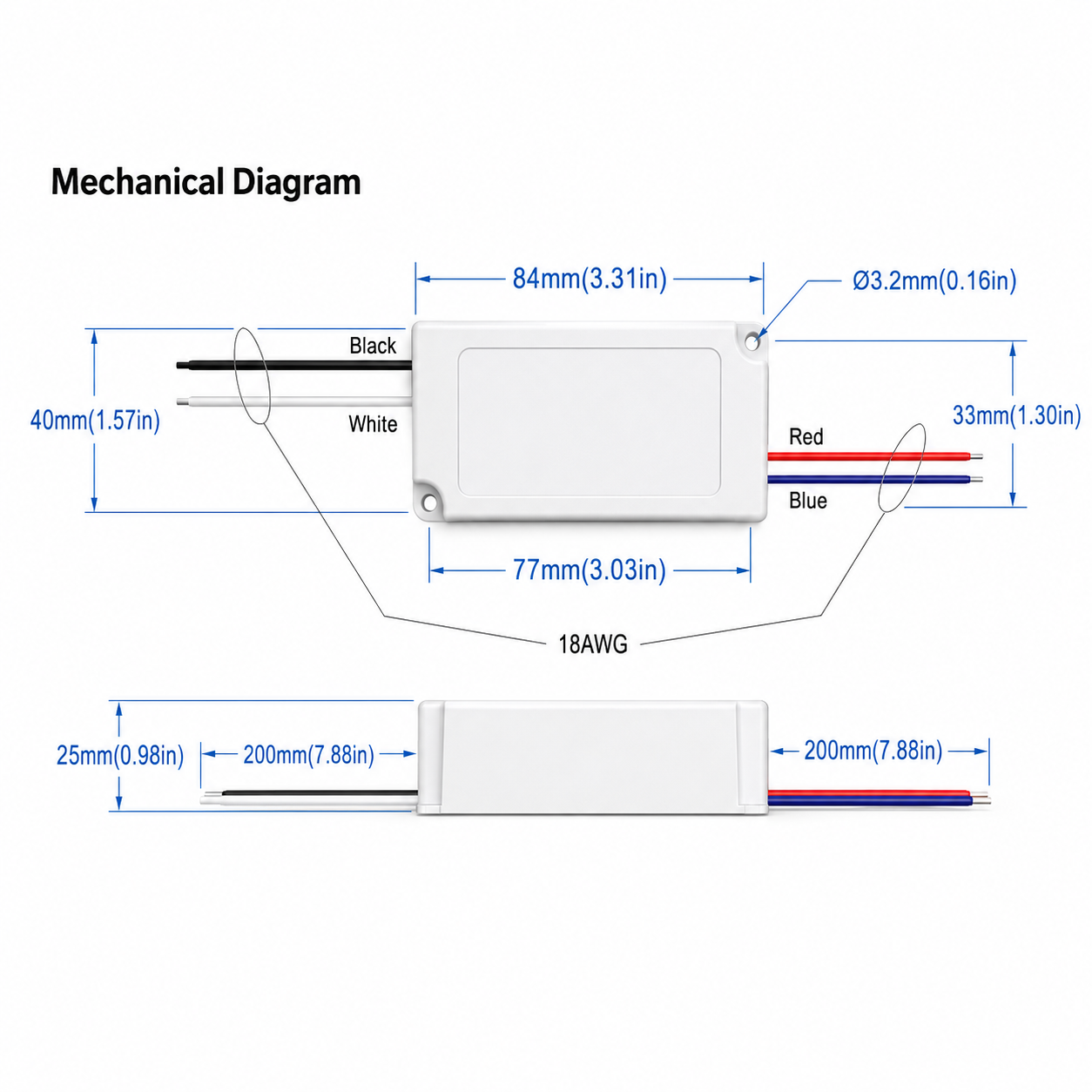

Dimensions: 84 × 40 × 25 mm (3.31" × 1.57" × 0.98")
-

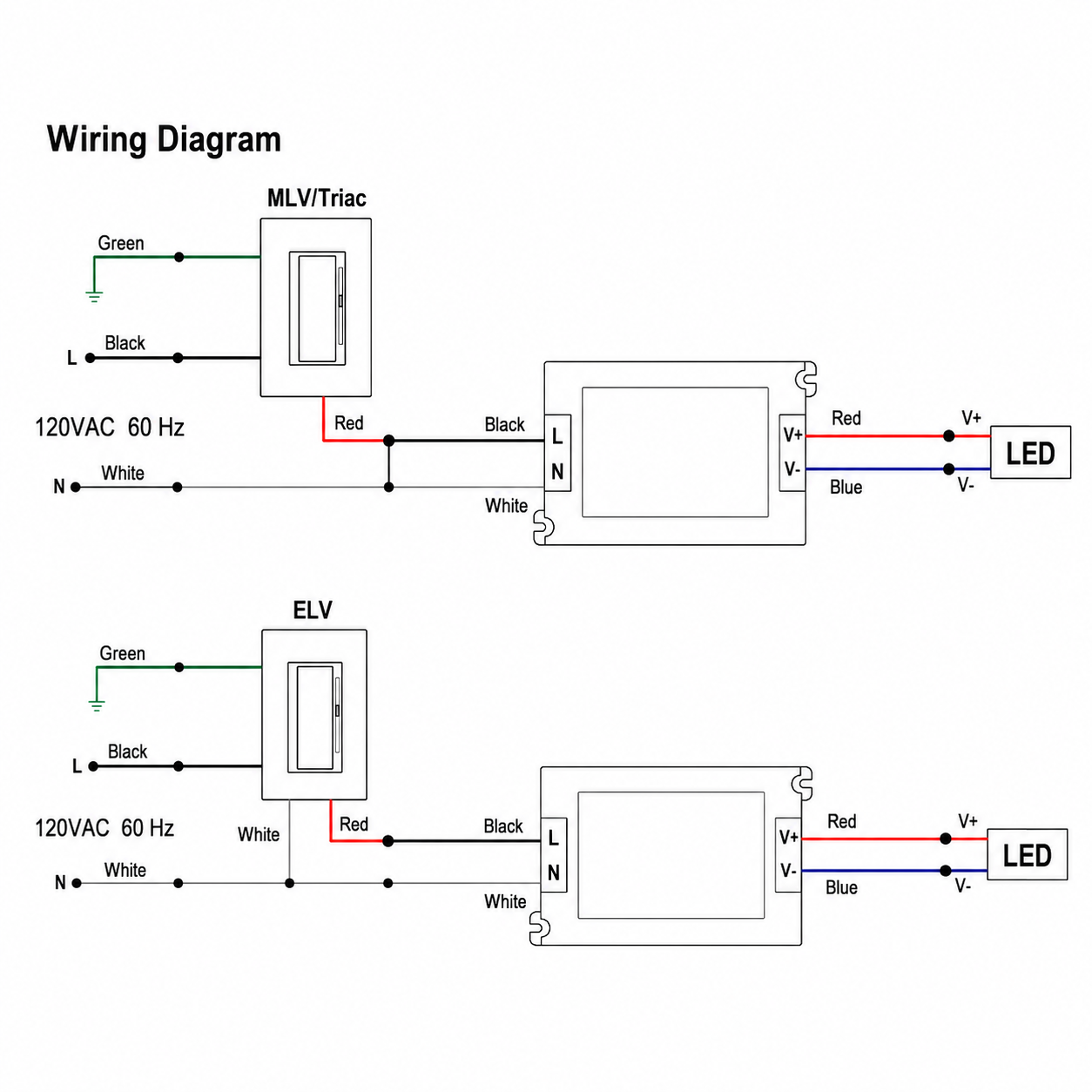

Wiring: 18 AWG input and output leads
-
Certifications: UL Listed, Class 2, Class P, Type HL, FCC, RoHS, SELV, REACH
-
For Use In: Dry and damp locations only
💡 Typical Applications:
-
24V LED strip lighting
-
Architectural and display lighting
-
Compact enclosures and tight spaces
-
Under-cabinet & shelf lighting
-
Residential or commercial low-voltage systems
-
Part Number: LA-TRF-24V-60W-C-S1
