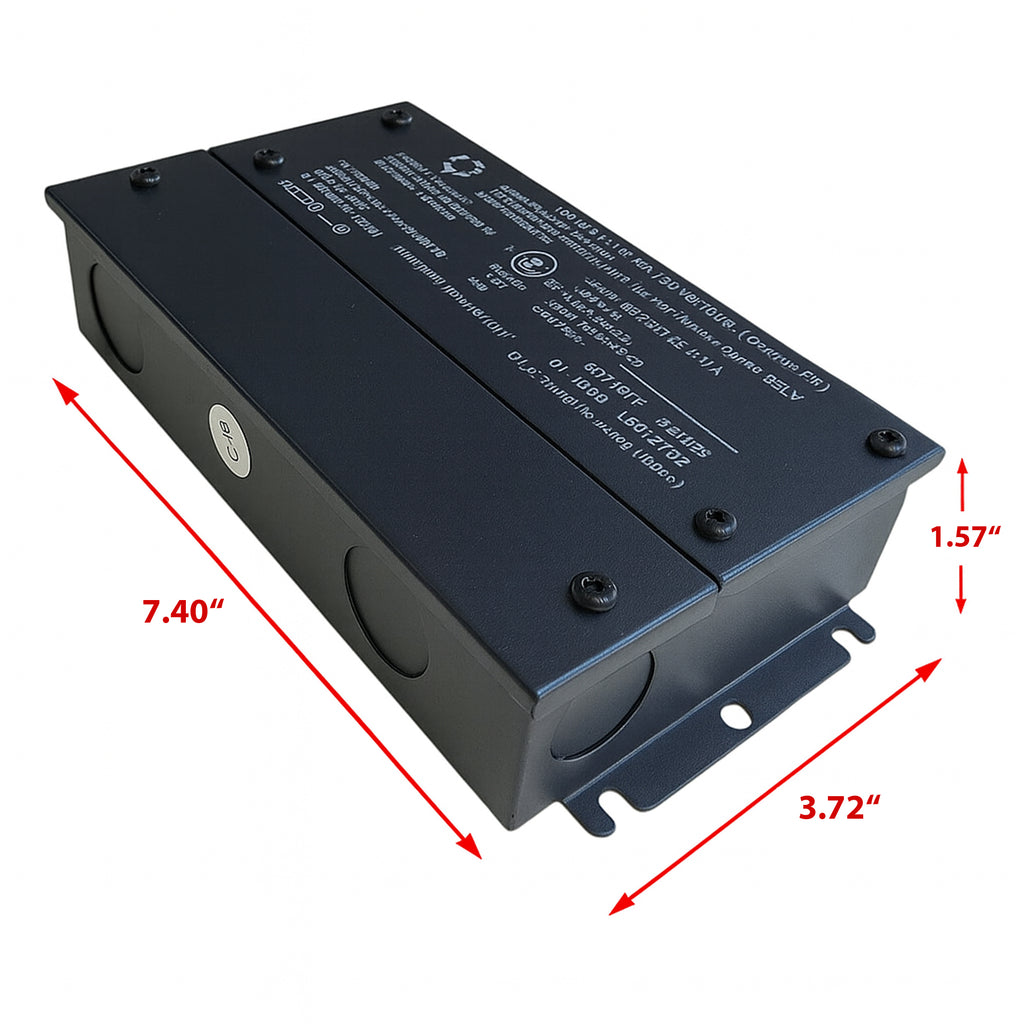

Dimensions of 60W LED driver measuring 7.40" × 3.72" × 1.57"
30W LED driver with open junction box showing AC input wires, dimming wires and 12V/24V LED output leads
Side view of 60W LED driver metal enclosure with junction box and conduit openings

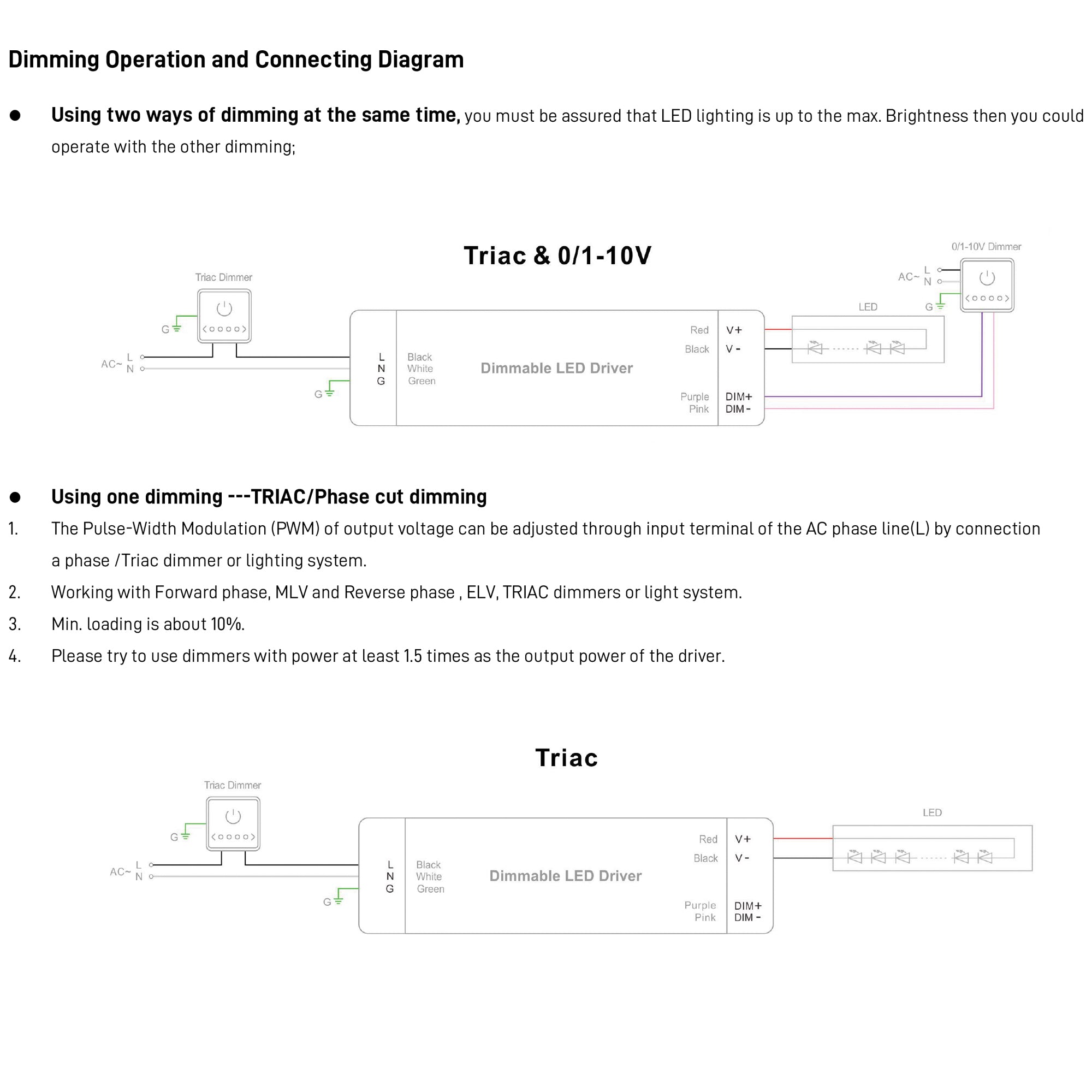

Connection diagram for 5-in-1 dimmable LED driver supporting TRIAC and 0–10 V control

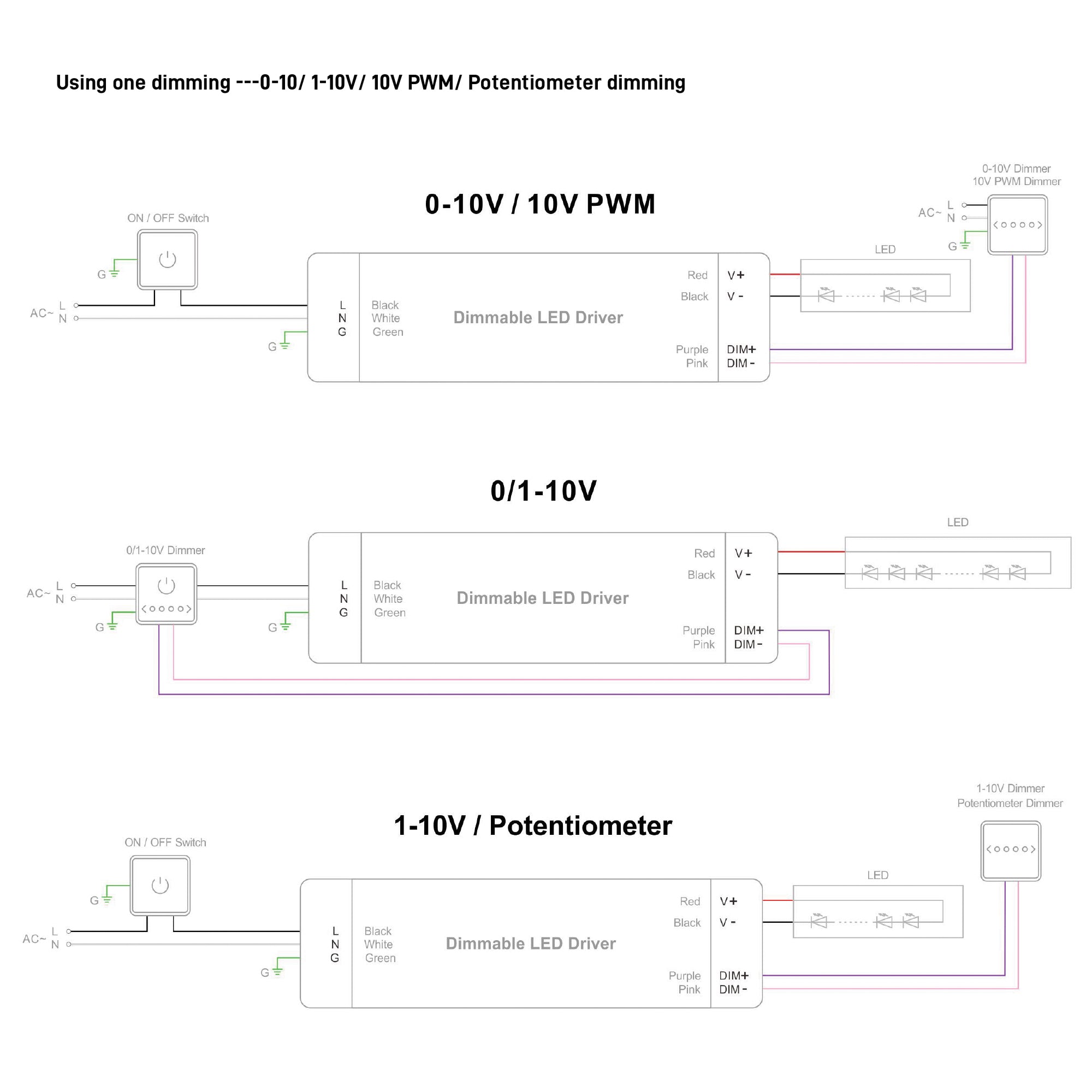

Wiring guide for 0–10 V, PWM, and potentiometer dimming options on BrightNex driver
Roll over image to zoom in Click on image to zoom
60W 5-in-1 dimmable LED driver with UL Listed junction box and constant voltage outputDimensions of 60W LED driver measuring 7.40" × 3.72" × 1.57" 30W LED driver with open junction box showing AC input wires, dimming wires and 12V/24V LED output leadsSide view of 60W LED driver metal enclosure with junction box and conduit openingsConnection diagram for 5-in-1 dimmable LED driver supporting TRIAC and 0–10 V controlWiring guide for 0–10 V, PWM, and potentiometer dimming options on BrightNex driver

60W 5-in-1 Dimmable LED Driver – 12V / 24V | UL Listed, Junction Box

LA LED Lighting
Output Voltage:: 12V DC
Price:
$69.99

Description

This 60W constant-voltage LED driver delivers smooth, flicker-free dimming and supports all major dimming systems used in residential and commercial lighting. Designed with 5-in-1 dimming compatibility, it works with TRIAC, ELV, MLV, 0–10V, 1–10V, PWM, and potentiometer dimmers — offering maximum flexibility for installers and lighting professionals.

The built-in metal junction box ensures a safe, code-compliant installation and is rated for dry, damp, and wet locations (not for submersion). With high power factor correction, excellent efficiency, and full electronic protections, this 60W driver is ideal for low-voltage LED strip lighting, architectural lighting, and accent lighting applications

🔧 Key Features

  • 5-in-1 Dimming Compatibility: Supports TRIAC, ELV, MLV, 0-10V, PWM, and Potentiometer control

  • Dimming Range: Smooth 0–100% brightness control

  • Universal Input: 100–277VAC with built-in active power factor correction (up to 0.98)

  • Flicker-Free Performance: 20kHz PWM output maintains stable light quality

  • Constant Voltage Output: Available in 12V (5A) and 24V (2.5A) configurations

  • Full Protection: Safeguards against short circuit, overload, and over-temperature

  • Certified and Durable: UL, cUL, FCC, Class2, Class P, Type HL, SELV, RoHS rated for dry, damp, and wet locations (not for submersion)

  • Efficient Operation: Up to 85% efficiency; THD < 20%

  • Built-In Junction Box: Streamlined wiring for easy installation, For dry, damp and wet locations (not for submersion).

  • Mechanical Specs (Imperial Units):

    • Dimensions: 7.40" × 3.75" × 1.72"

    • Weight: 2.36 lb

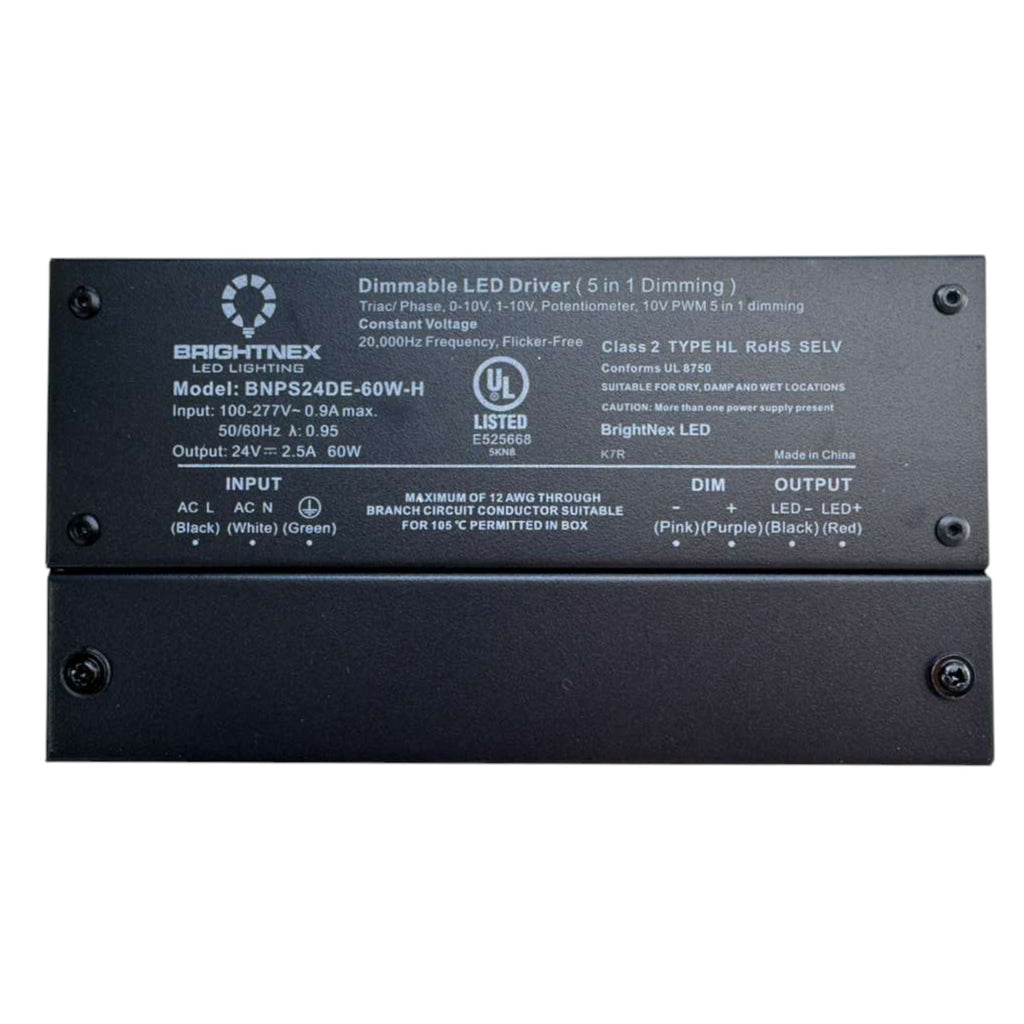

    • Wiring (AWG):

      • Input: Black (L), White (N), Green (GND) – 3×18 AWG

      • Output: Red (V+), Black (V–) – 2×18 AWG

      • Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG


    🧰 Applications

    Suitable for:

    • LED strip lights (12V / 24V )

    • Cove and under-cabinet lighting

    • Accent and architectural lighting

    • Retail displays and signage

    • Residential dimming systems

    • Commercial LED installations

    • Outdoor lighting (wet-location rated, not for submersion

      Part Number:
      LA-DRV-G1-12V-60W-JB-S1
      LA-DRV-G1-24V-60W-JB-S1
