This 80W constant-voltage LED driver delivers smooth, flicker-free dimming across all major dimming systems, making it ideal for residential, commercial, and architectural lighting projects. It supports full 5-in-1 dimming—TRIAC, ELV, MLV, 0–10V, 1–10V, PWM, and potentiometer—allowing compatibility with nearly any dimmer on the market.

Built with a rugged metal housing and an integrated junction box, this driver is UL Listed and rated for dry, damp, and wet locations (not for submersion). High efficiency, active power factor correction, and full electronic protections ensure long-term reliability in demanding installations.

🔧 Key Features

• 5-in-1 Dimming Compatibility: TRIAC, ELV, MLV, 0–10V, PWM, and Potentiometer

• Dimming Range: Ultra-smooth 0.1–100% control

• Flicker-Free Performance: 20kHz PWM output ensures consistent lighting

• High Power Factor: Up to 0.98 @120VAC

• Active PFC: For energy-efficient, stable operation

• Constant Voltage Output: 12V at 6.67A, 24V at 3.33A, 80W total output

• Built-In Junction Box: Streamlined wiring for easy installation, For dry, damp and wet locations (not for submersion).



• Full Protection: Against short circuit, overload, and over-temperature

• Certified: UL, cUL, FCC, Class 2, Type HL, RoHS, SELV

• Versatile Mounting: Rated for dry, damp, and wet locations (not for submersion)

• Mechanical Specs (Imperial Units):

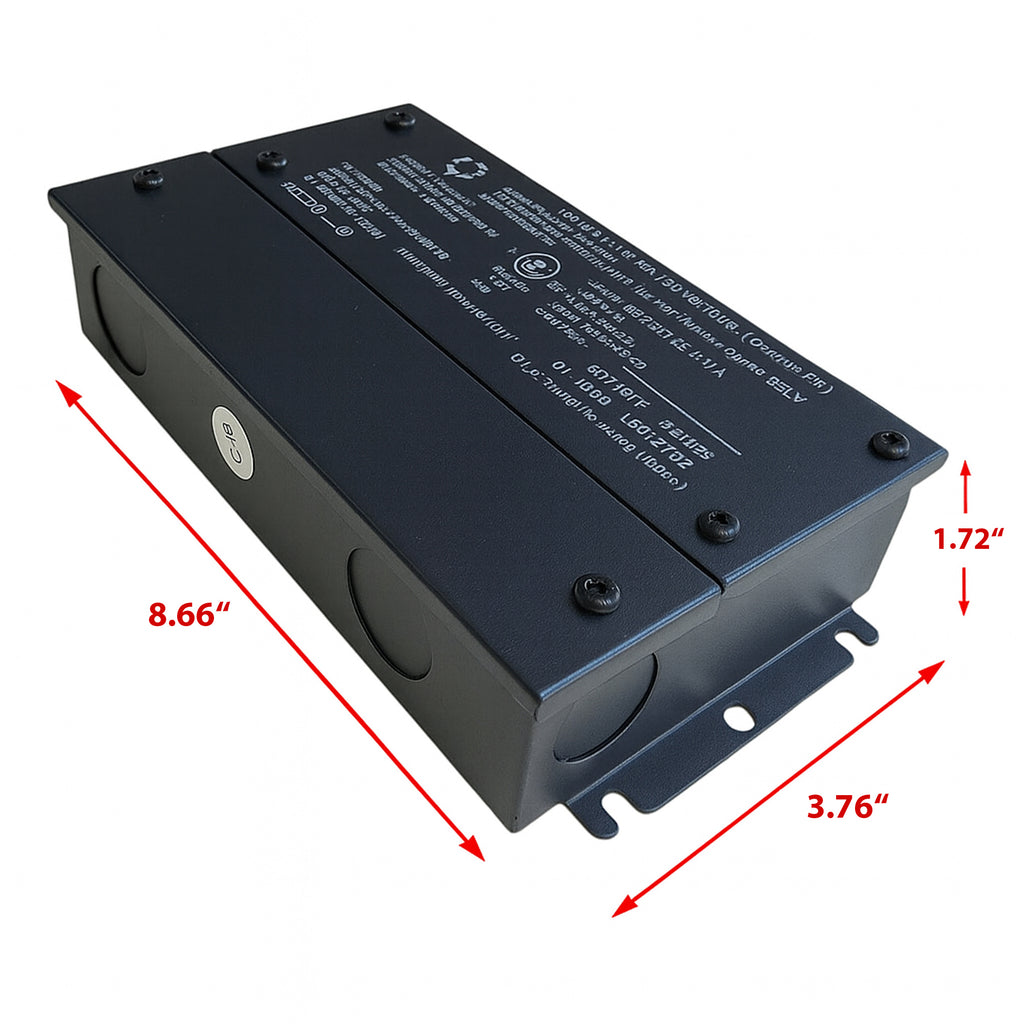

  • Dimensions: 8.66" × 3.75" × 1.72"

  • Weight: 3.02 lb (1.37 kg)

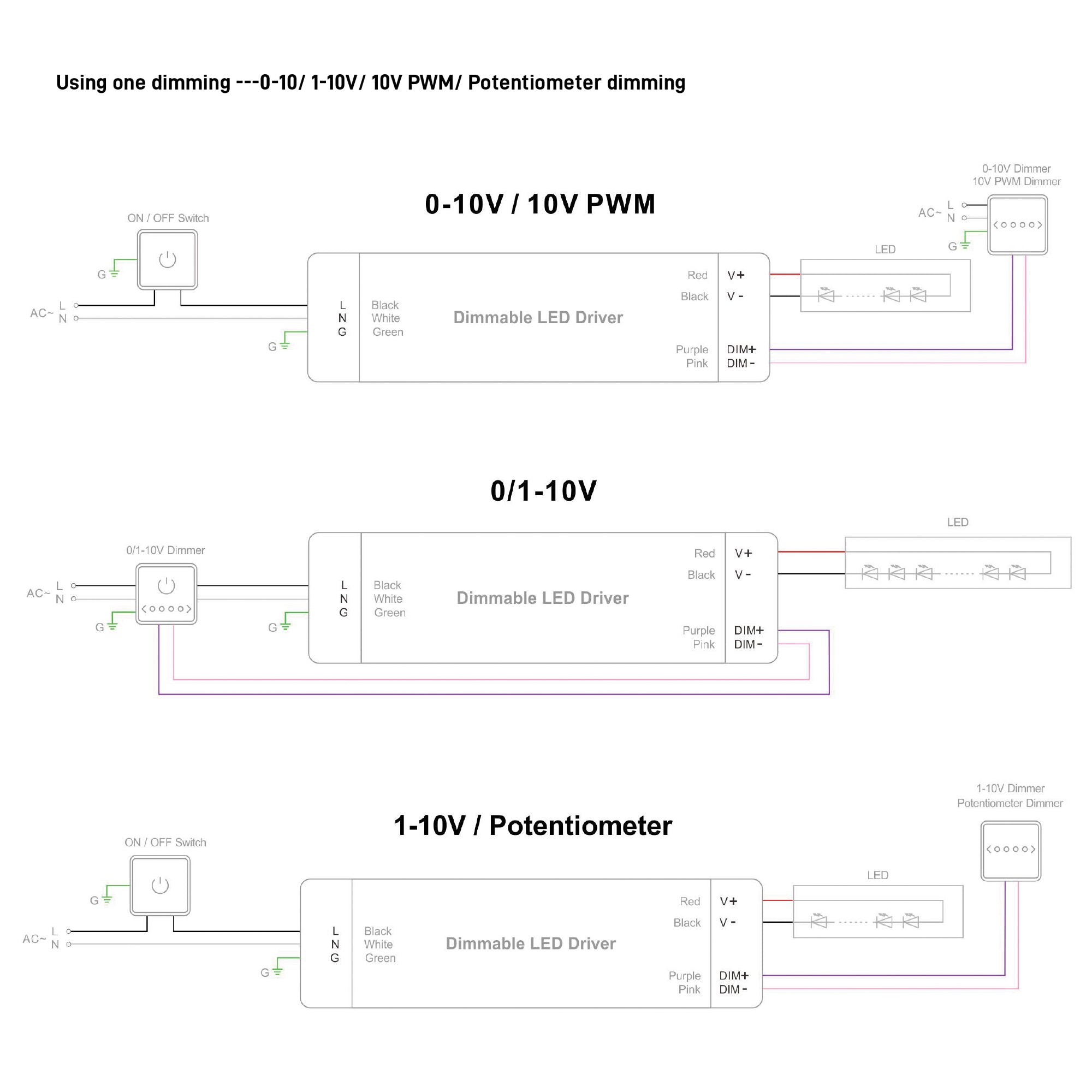

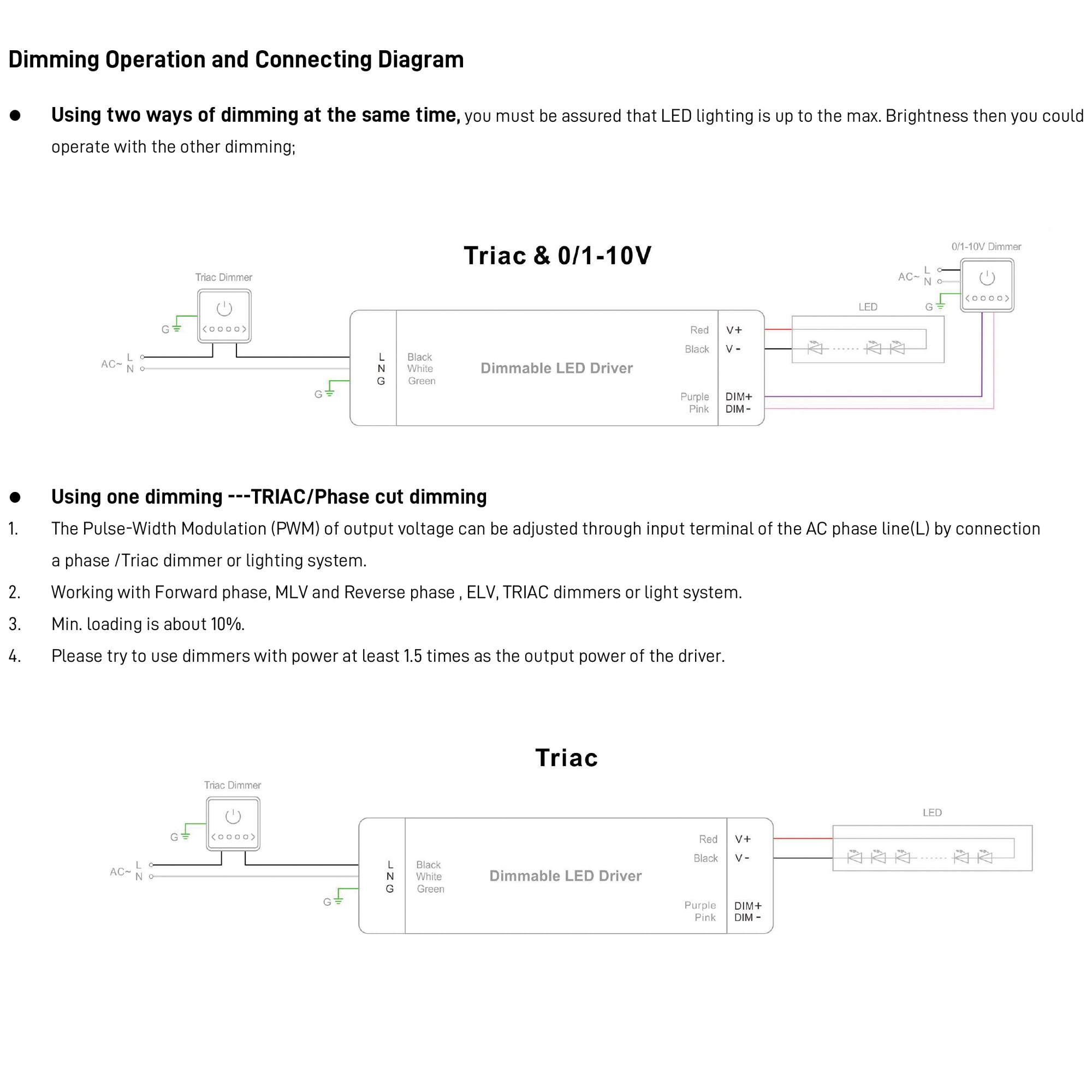

  • Wiring (AWG):

    • Input: Black (L), White (N), Green (GND) – 3×18 AWG

    • Output: Red (V+), Black (V–) – 2×16 AWG

    • Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG

  🧰 Applications

  Perfect for powering:

  • 24V LED strip lighting

  • Cove and accent lighting

  • Under-cabinet lighting

  • Commercial and residential dimming systems

  • Architectural lighting installations

  • Retail displays & signage

  • Outdoor lighting (wet-location rated, not for submersion)

    Part Number:
    LA-DRV-G1-12V-80W-JB-S1
    LA-DRV-G1-24V-80W-JB-S1
