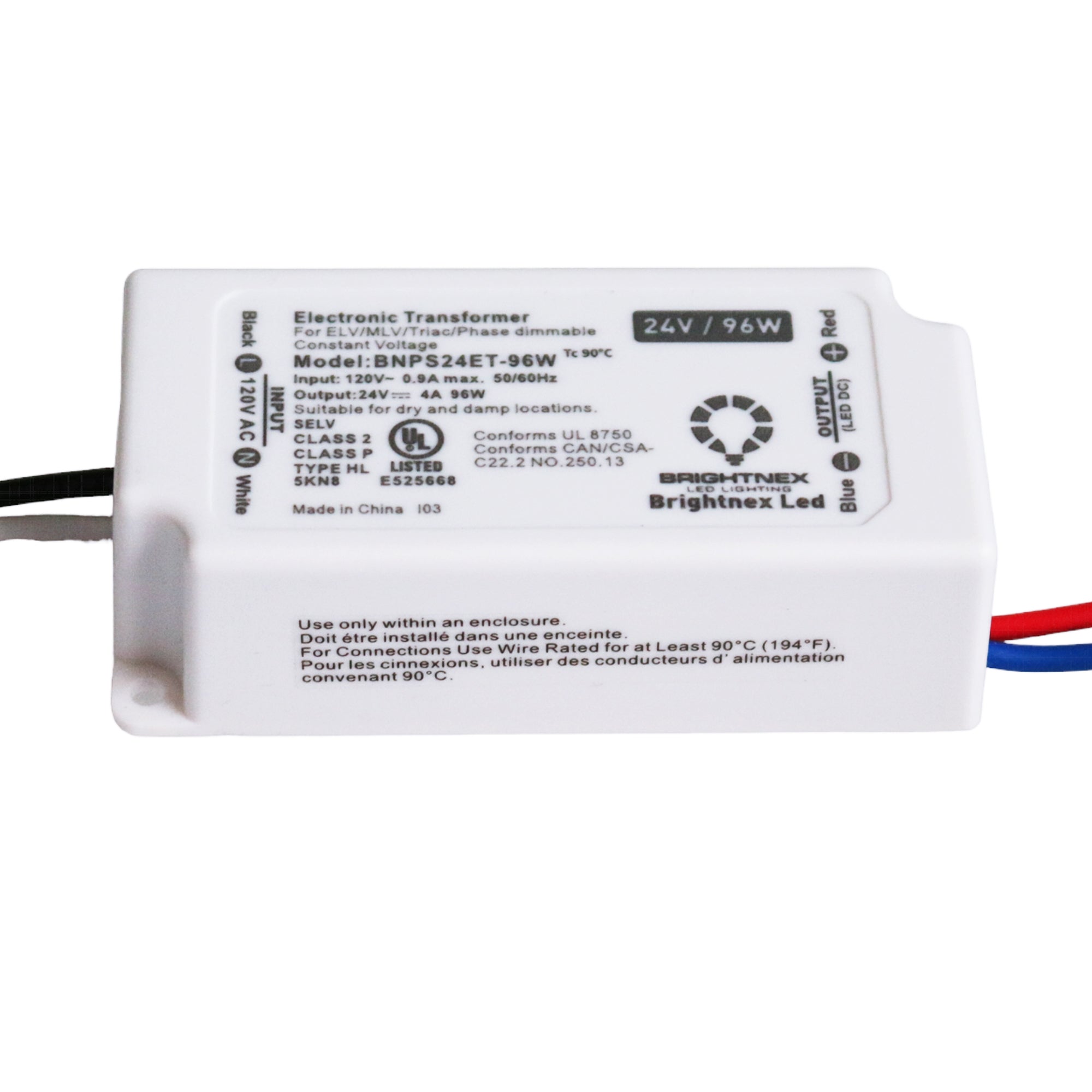

Compact 96W 24V dimmable LED transformer angled view showing constant voltage LED transformer with output wires

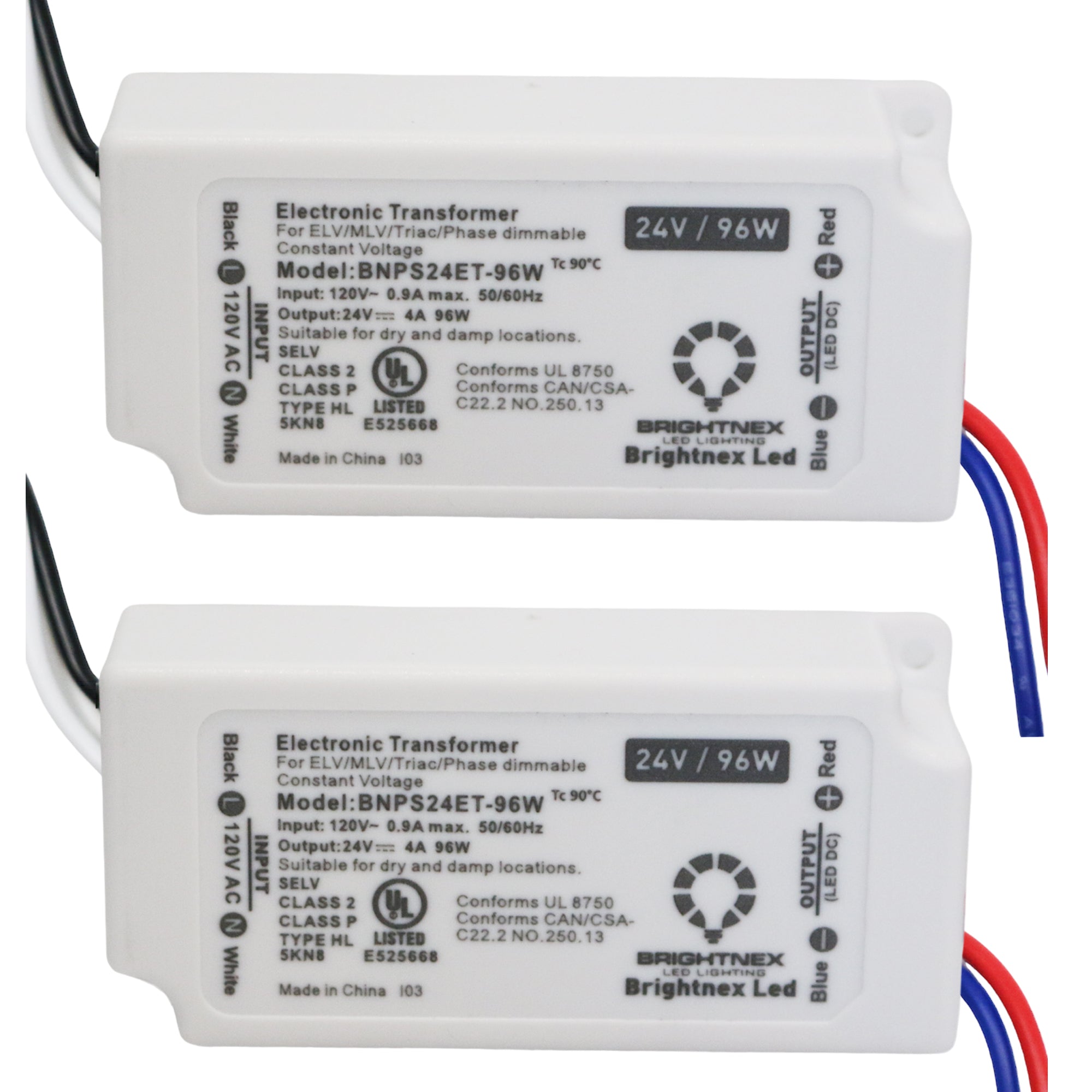

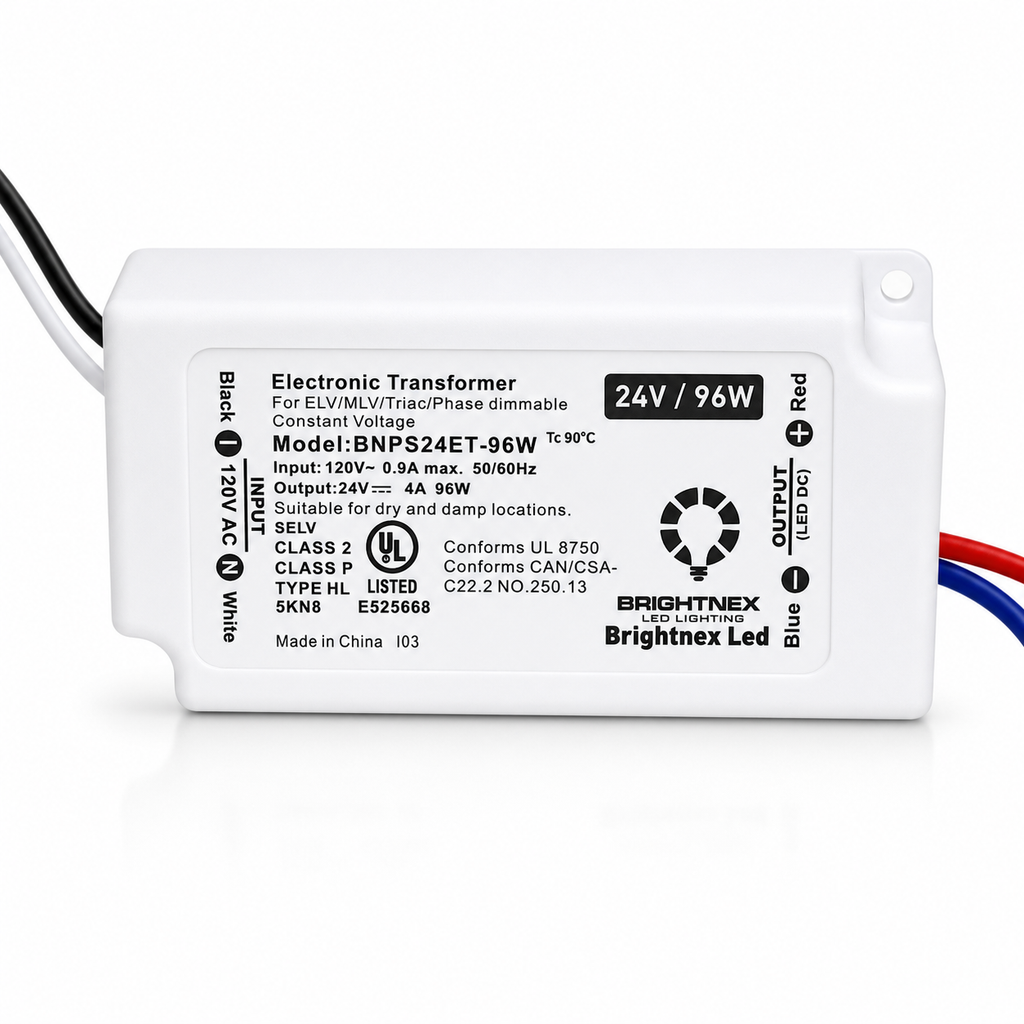

Specification label of 24V 96W Brightnex dimmable LED transformer showing electrical ratings and certifications, class 2, class p
96W Compact Dimmable LED Transformer – 24V | TRIAC/ELV/MLV | UL Listed | Class 2, P
96W Compact Dimmable LED Transformer – 24V | TRIAC/ELV/MLV | UL Listed | Class 2, P
Roll over image to zoom in Click on image to zoom
96W Compact Dimmable LED Transformer – 24V | TRIAC/ELV/MLV | UL Listed | Class 2, PCompact 96W 24V dimmable LED transformer showing product dimensions and enclosure size for installation reference Infographic on how to choose a compact dimmable LED transformer with UL listing, covering voltage selection, load calculation, dimmer compatibility, efficiency, installation location, and built-in safety protectionsCompact 96W 24V dimmable LED transformer angled view showing constant voltage LED transformer with output wiresSpecification label of 24V 96W Brightnex dimmable LED transformer showing electrical ratings and certifications, class 2, class p96W Compact Dimmable LED Transformer – 24V | TRIAC/ELV/MLV | UL Listed | Class 2, P96W Compact Dimmable LED Transformer – 24V | TRIAC/ELV/MLV | UL Listed | Class 2, P

96W Compact Dimmable LED Transformer – 24V | TRIAC/ELV/MLV | UL Listed | Class 2, P

LA LED Lighting
Quantity: 1 Item
Price:
$39.99

Description

This transformer delivers constant 24V DC output in a compact, low-profile package ideal for modern LED strip and tape lighting. It supports TRIAC, ELV, and MLV dimming, providing smooth 0–100% control when paired with compatible wall dimmers such as Lutron Diva, CL series, and others.

Despite its small size, this transformer is built for performance and safety, featuring high efficiency (88%), low THD (<20%), and auto-recovery protections for short circuit and overload conditions. Rated for dry and damp locations, it’s ideal for under-cabinet, architectural, and commercial lighting applications.

🔧 Key Features:

  • Output Power: 96W

  • Output Voltage: 24V DC

  • Output Current: 4A

  • Input Voltage: 120V AC, 50/60Hz

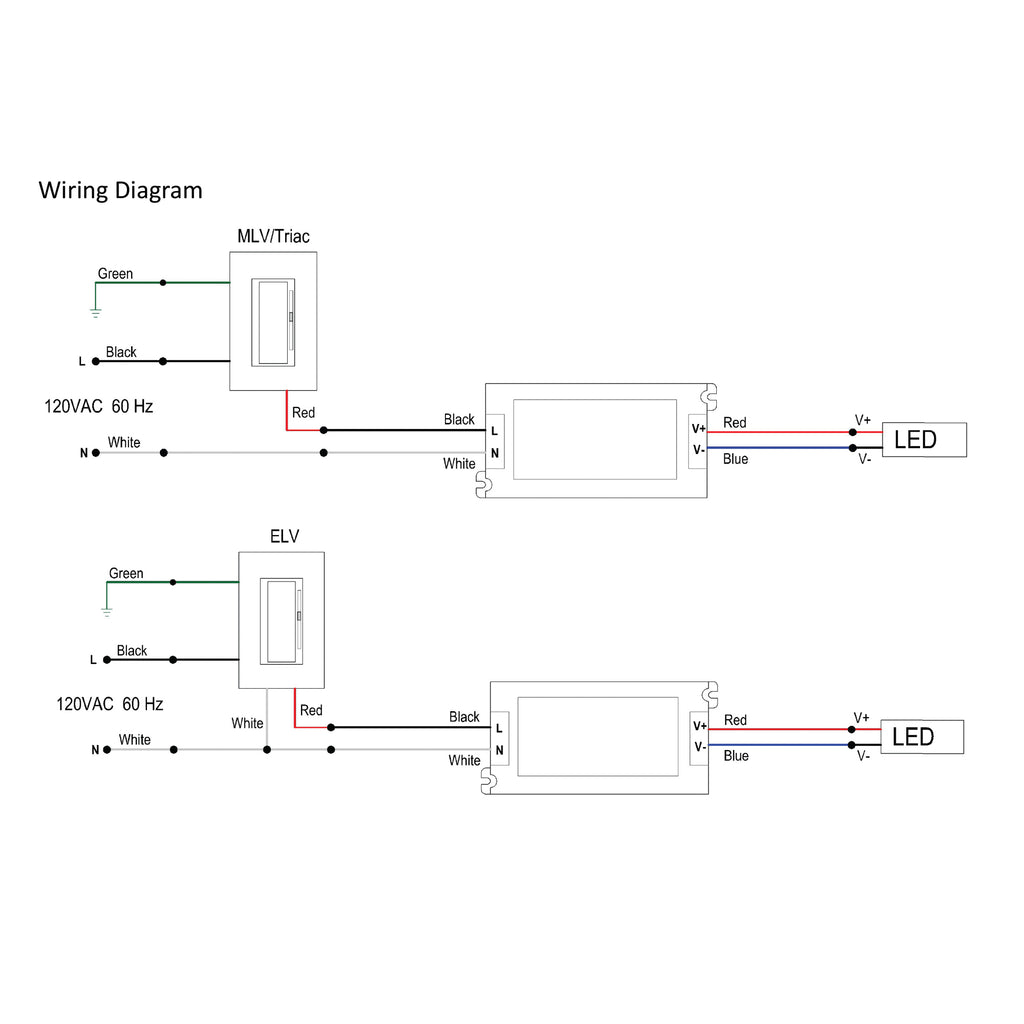

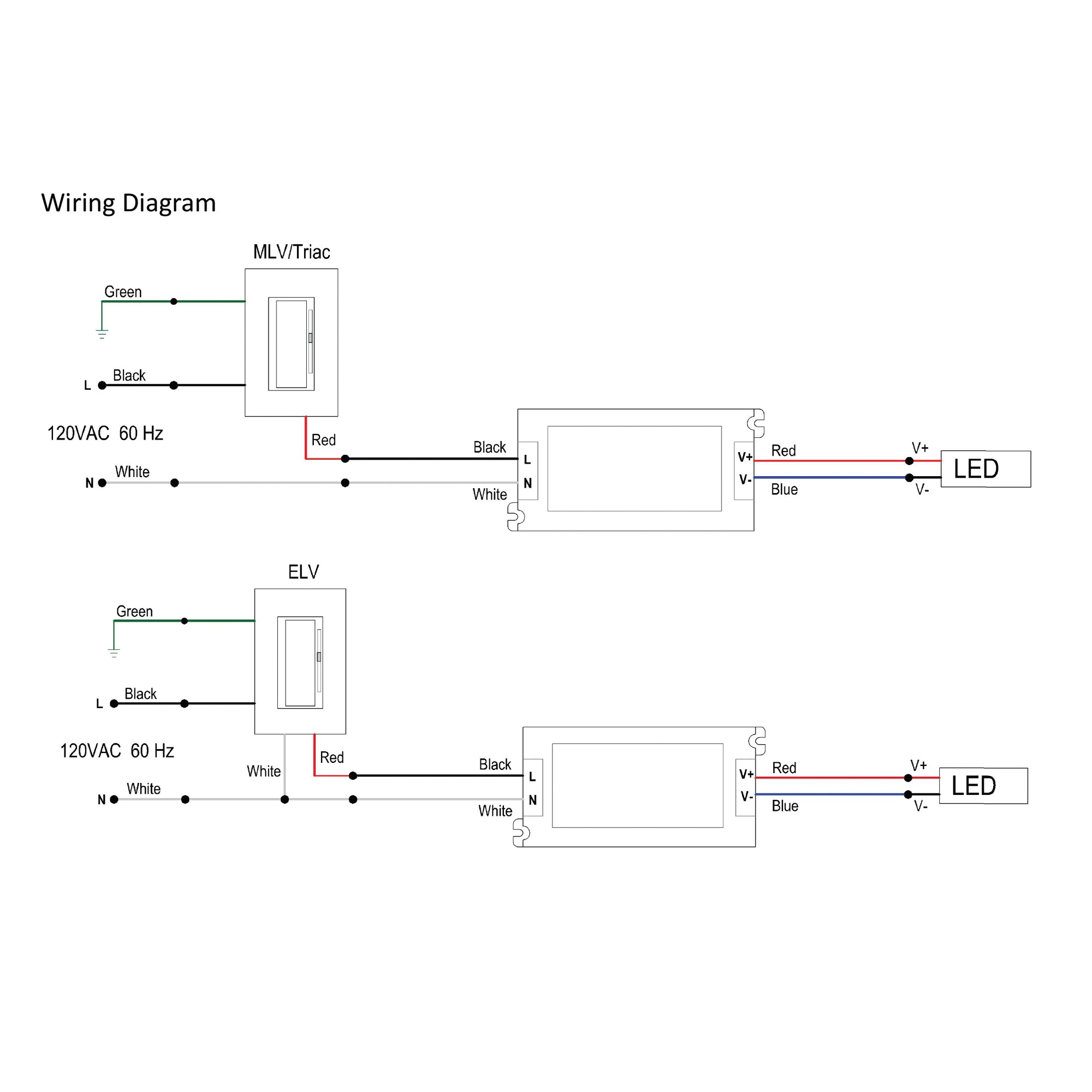

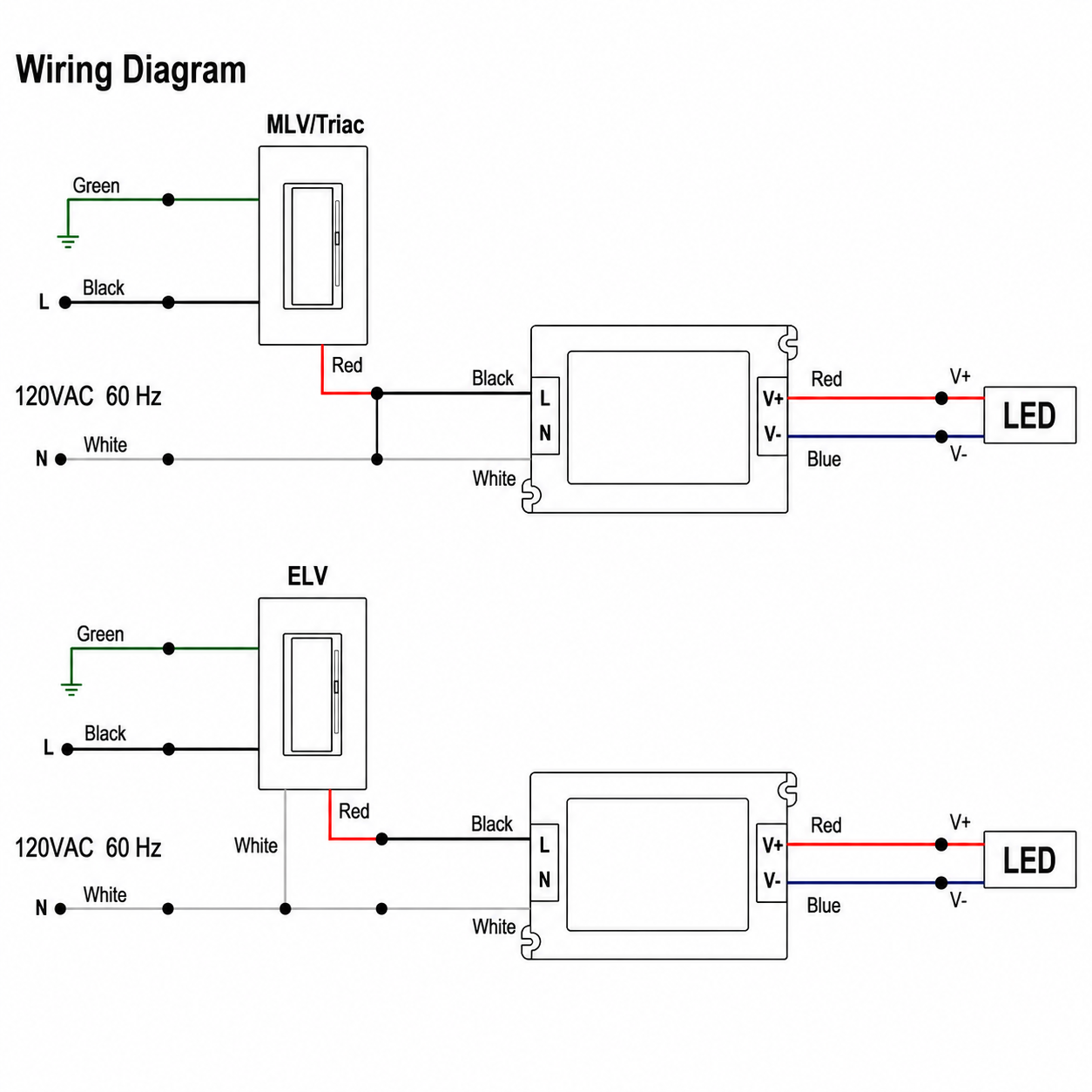

  • Dimming Compatibility: TRIAC / ELV / MLV

  • Dimming Range: 0–100%

  • Efficiency: 88% @ 120VAC

  • Power Factor: > 0.95

  • THD: < 20% @ full load

  • Load Range: Operates from 20–100% load

  • Protections:

    • Short Circuit – hiccup mode, auto-recovery

    • Overload – auto-recovery

  • Working Temp: -40°C to +60°C

  • Humidity: 20–95% RH (non-condensing)

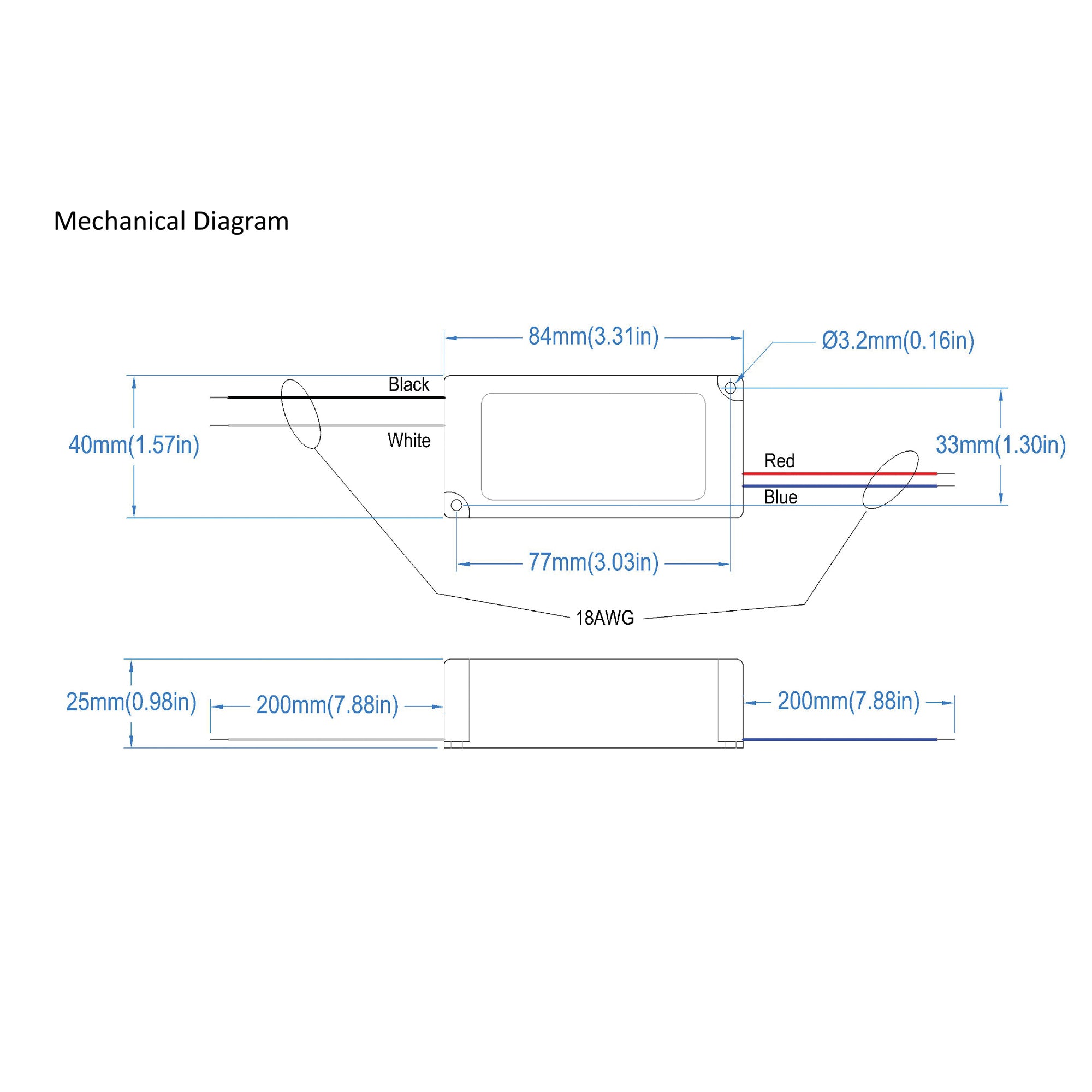

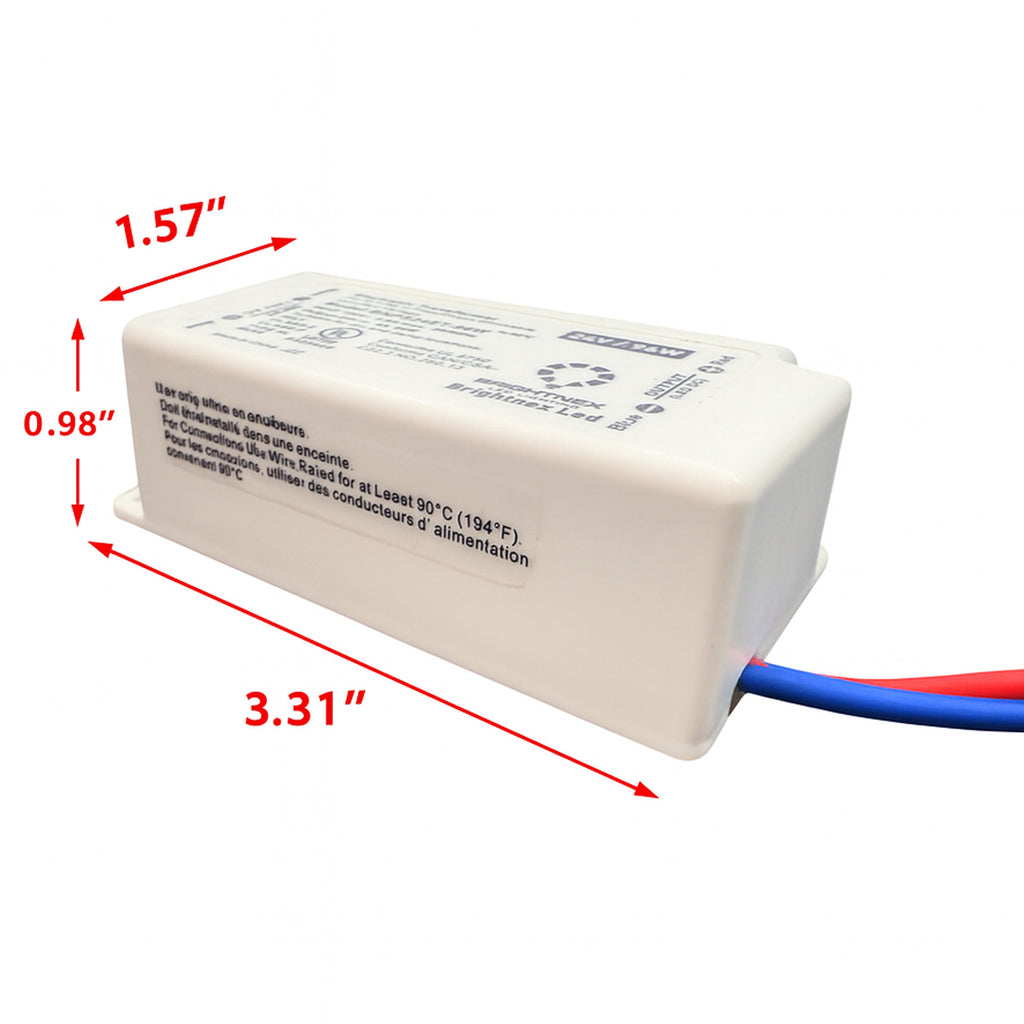

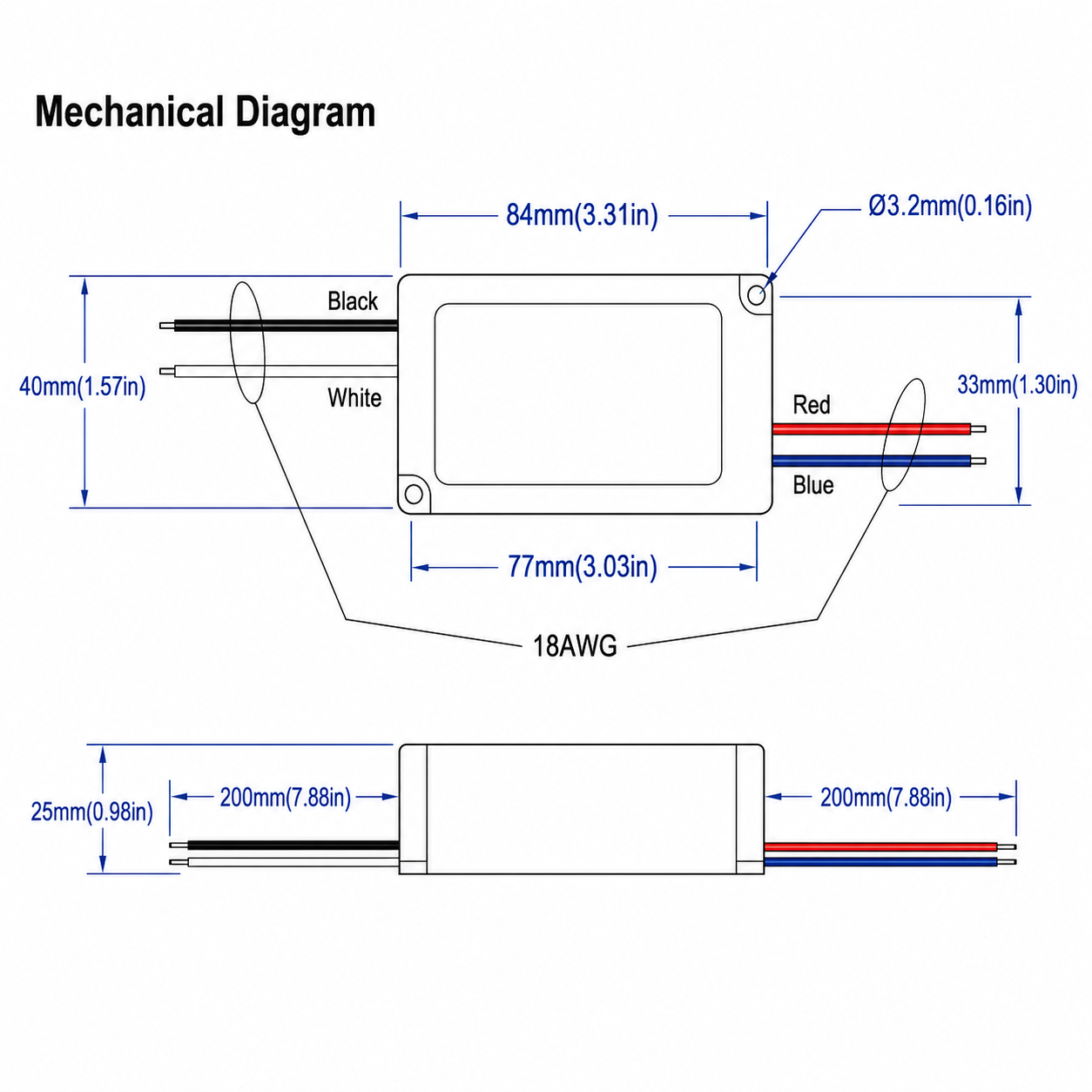

  • Dimensions: 84 × 40 × 25 mm (3.31" × 1.57" × 0.98")

  • Wiring: 18 AWG input & output leads

  • Certifications: UL Listed, FCC, ICES-005, Class P, Class 2, Type HL, SELV, RoHS, REACH

  • Location Rating: Dry and Damp

💡 Typical Applications:

  • 24V LED strip & tape lighting

  • Under-cabinet and cove lighting

  • Compact lighting enclosures

  • Display & signage lighting

  • Residential and commercial interiors

  • Part Number: LA-TRF-24V-96W-C-S1

Professional Installation Recommended: Consult a licensed Electrician
