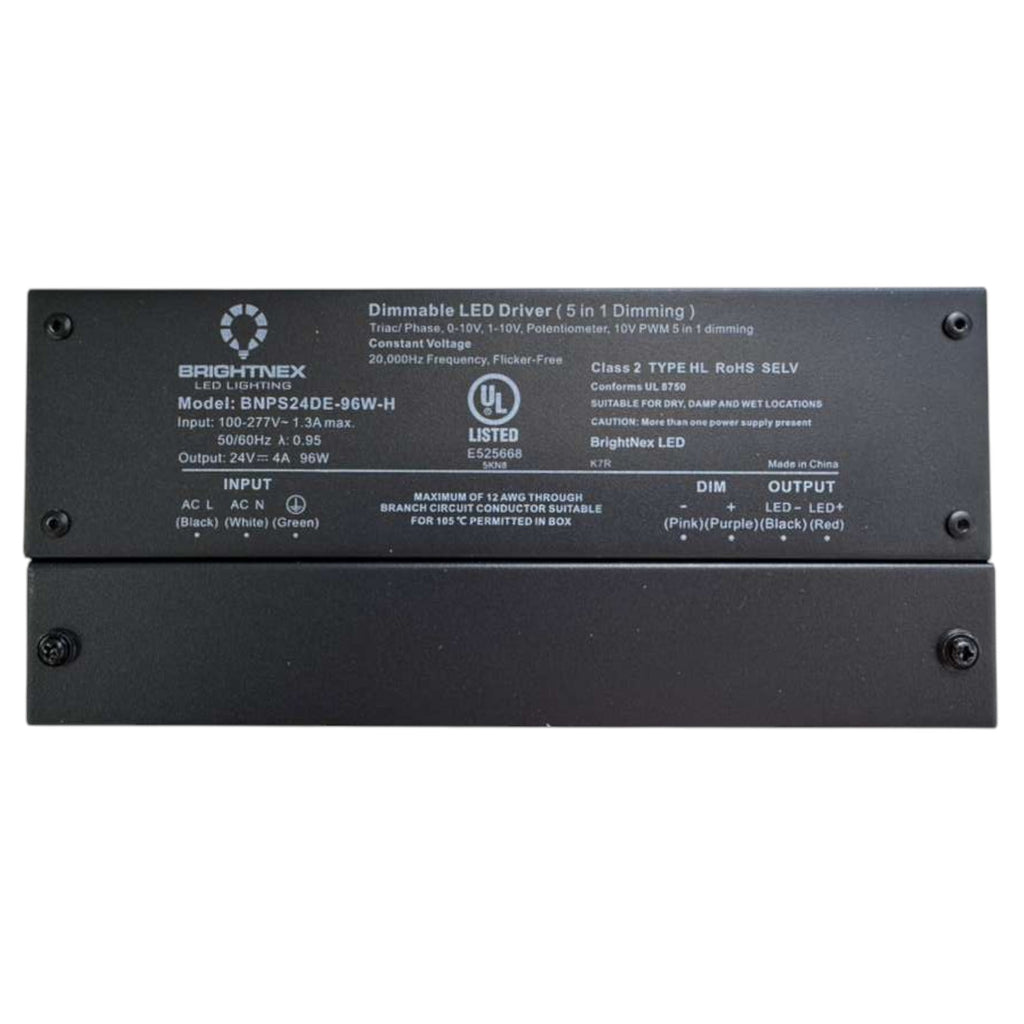

This 96W constant-voltage LED driver delivers reliable, flicker-free dimming performance for residential and commercial lighting installations. With full 5-in-1 dimming compatibility—TRIAC, ELV, MLV, 0-10V, PWM, and potentiometer—this driver integrates easily into new or existing dimming systems.

Built with an integrated junction box and certified for dry, damp, and wet locations (not for submersion), it provides safe and stable power to LED strip lighting, cove lighting, architectural fixtures, and signage. High efficiency, active PFC, and full protection circuitry ensure long-term reliability in demanding environments.

🔧 Key Features

• 5-in-1 Dimming Compatibility: TRIAC, ELV, MLV, 0–10V, PWM, and Potentiometer

• Dimming Range: Ultra-smooth 0.1–100% control

• Flicker-Free Output: 20kHz PWM maintains light consistency

• High Power Factor: Up to 0.98 @120VAC


• Built-in Active PFC: Energy-efficient, stable performance



• Constant Voltage Output: 24V DC @ 4A, 96W max

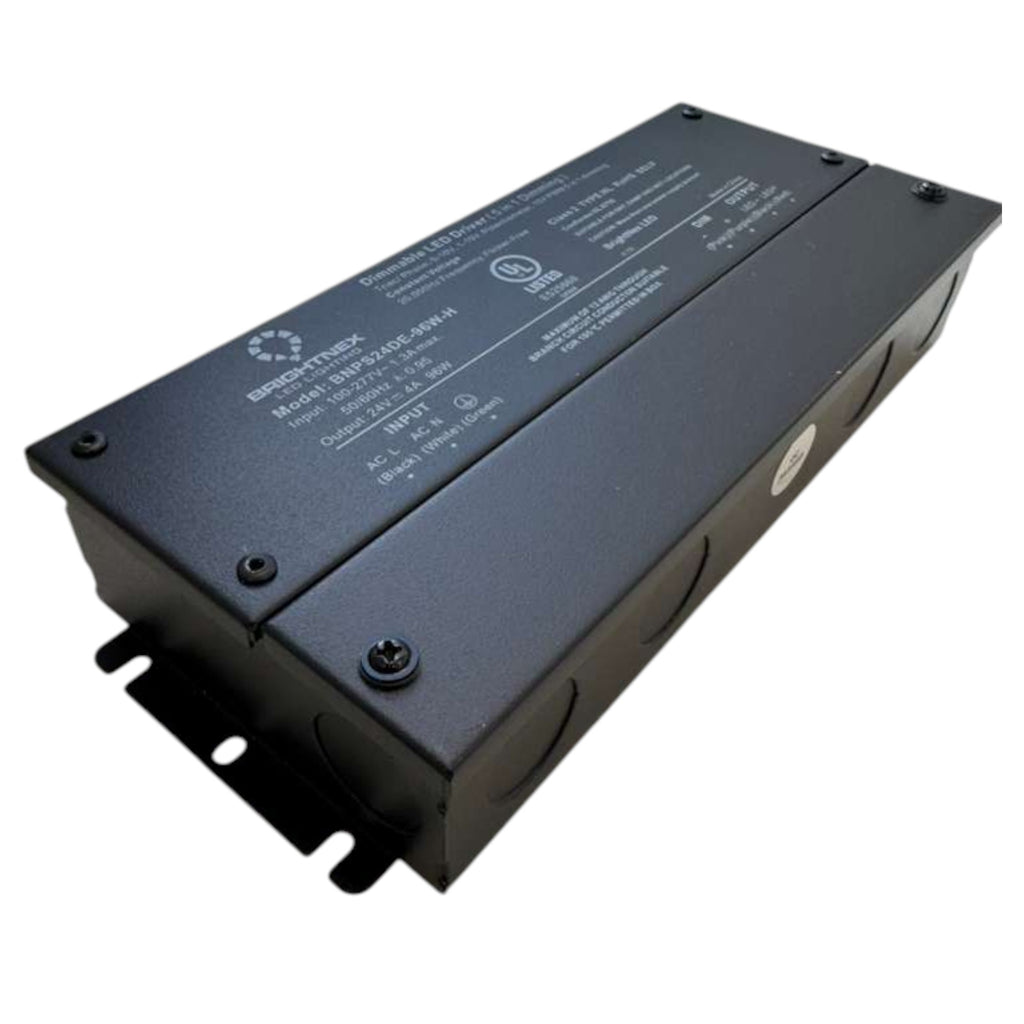

• Junction Box Included: Simplifies installation and wiring

• Certified Safe: UL, FCC, Class2, Type HL, RoHS, SELV, REACH

• Built for All Conditions: Rated for dry, damp, and wet locations


• Mechanical Specs (Imperial Units):

  • Dimensions: 8.66" × 3.75" × 1.72"

  • Weight: 3.02 lb

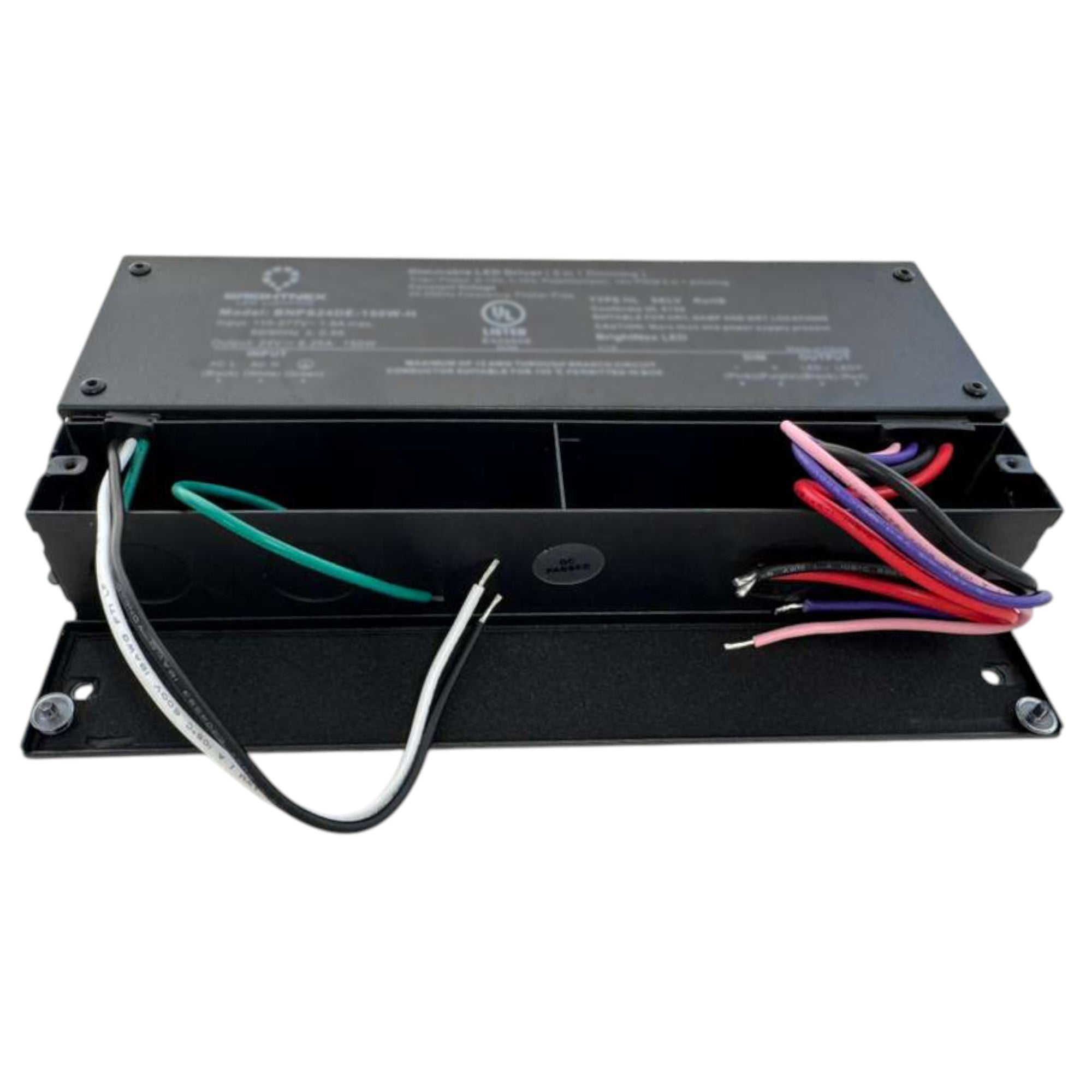

  • Wiring:

    • Input: Black (L), White (N), Green (GND) – 3×18 AWG

    • Output: Red (V+), Black (V–) – 2×16 AWG

    • Dimming: Purple (DIM+), Pink (DIM–) – 2×18 AWG

🧰 Applications

Ideal for powering:

• 24V LED strip lighting

• Cove and under-cabinet lighting

• Architectural and accent lighting

• Retail displays & signage

• Outdoor lighting (wet-location rated, not for submersion)

• Commercial 0–10V dimming systems

  Part Number: LA-DRV-G1-24V-96W-JB-S1
