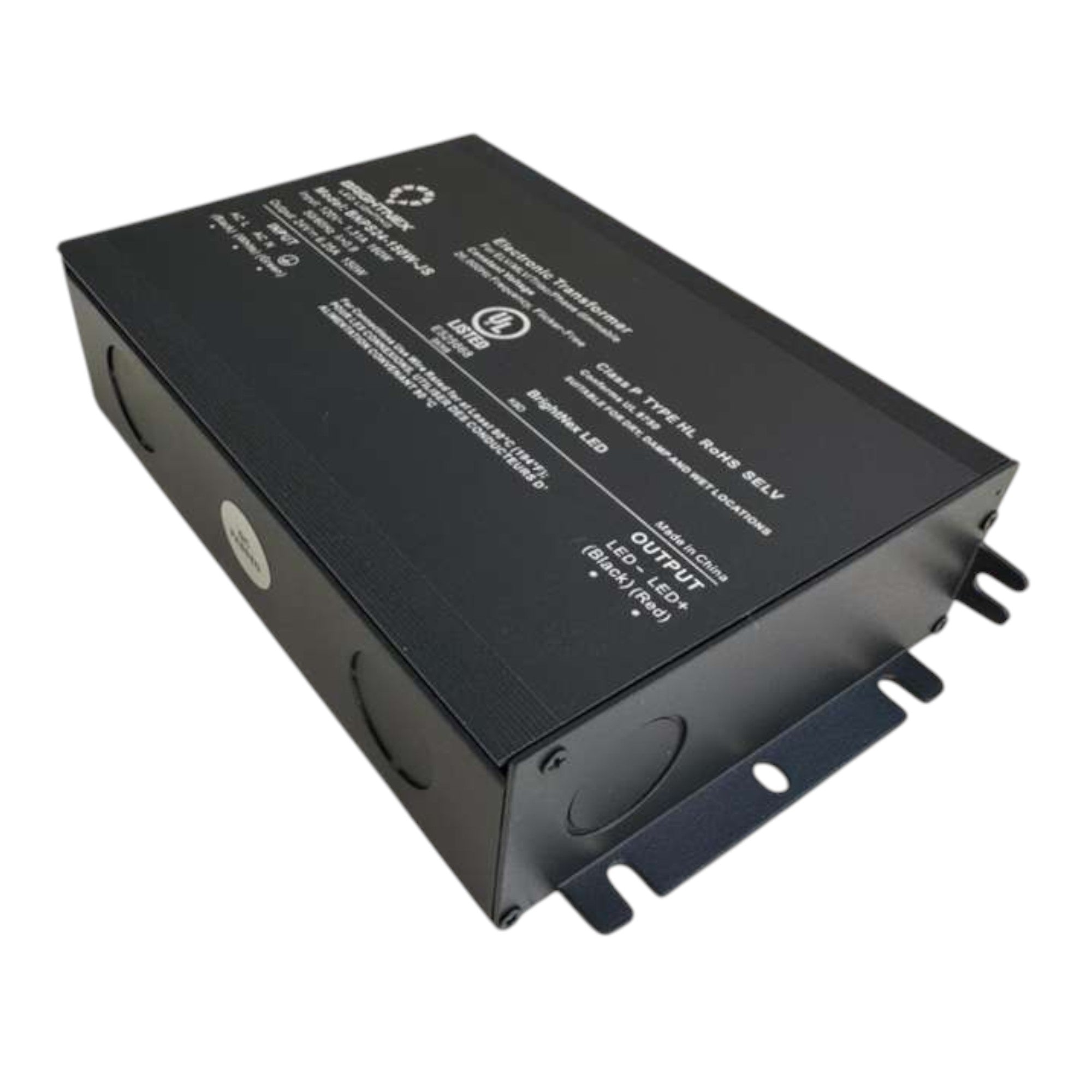

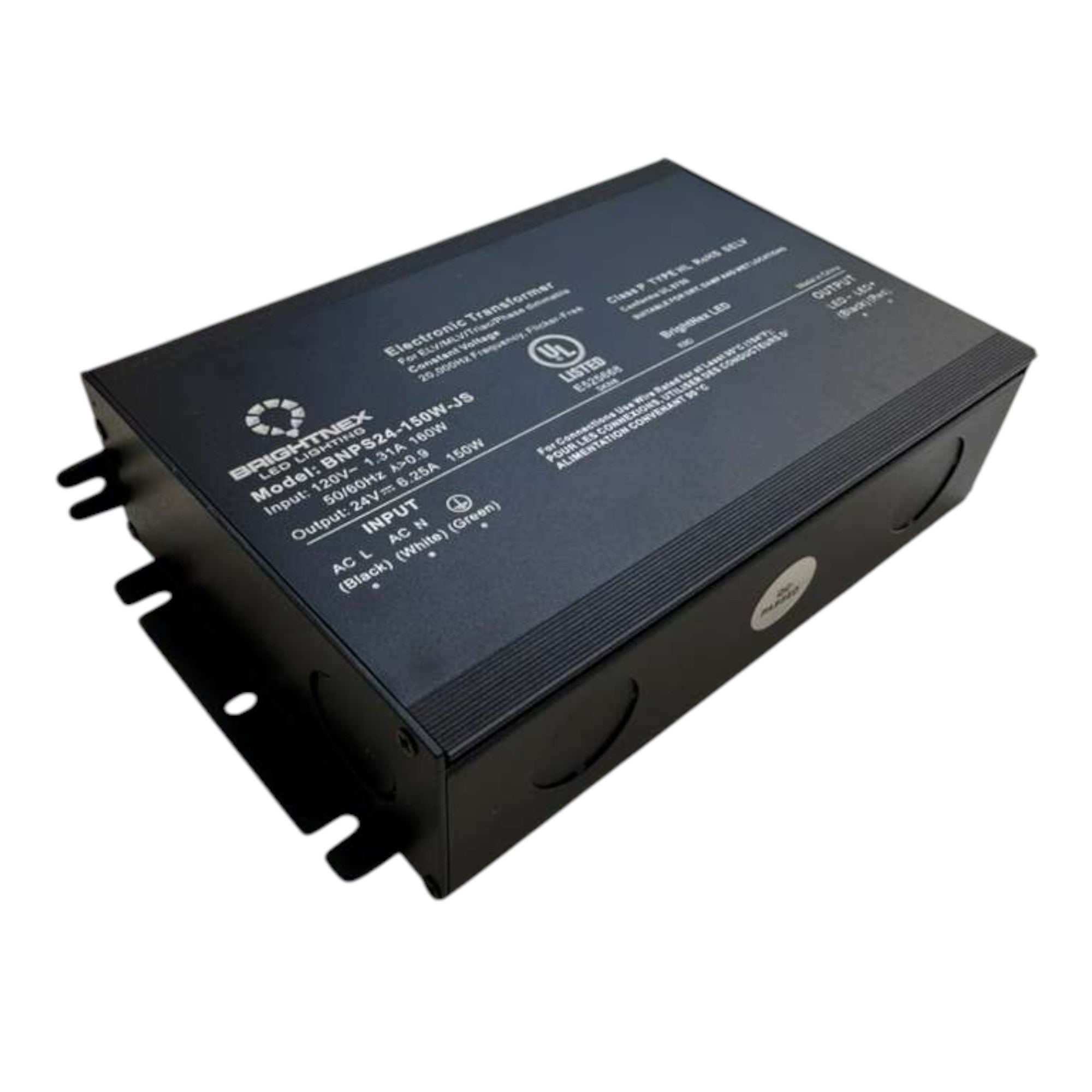

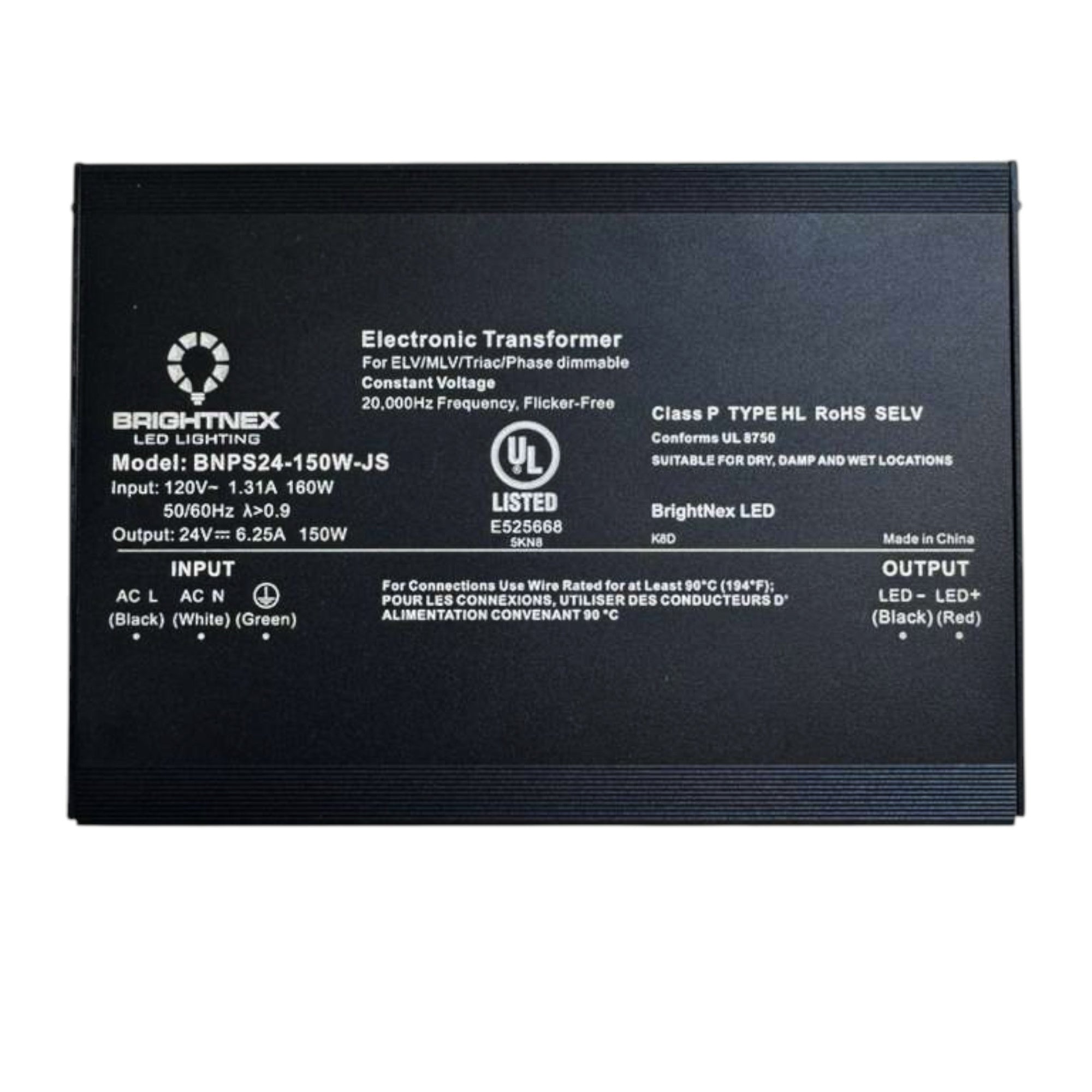

Description
This compact 150W dimmable LED transformer provides constant 24V DC output, making it a reliable power solution for demanding low-voltage LED systems. Compatible with TRIAC, ELV, and MLV dimmers, it enables smooth, full-range dimming from 0 to 100%.
Built with a durable metal housing and integrated junction box, this transformer is rated for wet, damp, and dry locations, making it suitable for both indoor and outdoor installations. Designed for energy efficiency and safety, it includes short-circuit and overload protection, a high power factor, and operates reliably from 10% to 100% load.
🔧 Key Features:
-
Output Power: 150W
-
Output Voltage: 24V DC
-
Output Current: 6.25A
-
Input Voltage: 120V AC (50/60Hz)
-
Dimming Type: TRIAC / ELV / MLV (0–100%)
-
Efficiency: 90% @ full load
-
Power Factor: > 0.9
-
THD: < 20%
-
Load Range: Operates from 10% – 100%
-
Protection Features:
-
Short-Circuit – auto-recovery
-
Overload – auto-recovery
-
-
Leakage Current: < 0.5mA @ 120V
-
Operating Temp: -40°C to +60°C
-
Humidity: 20–95% RH
-
Certifications: UL, FCC, ICES-005, Class P, Type HL, RoHS, SELV, REACH
-
Enclosure: Compact metal housing with junction box
-
Waterproof Rating: Wet, Damp, Dry Location Rated
-

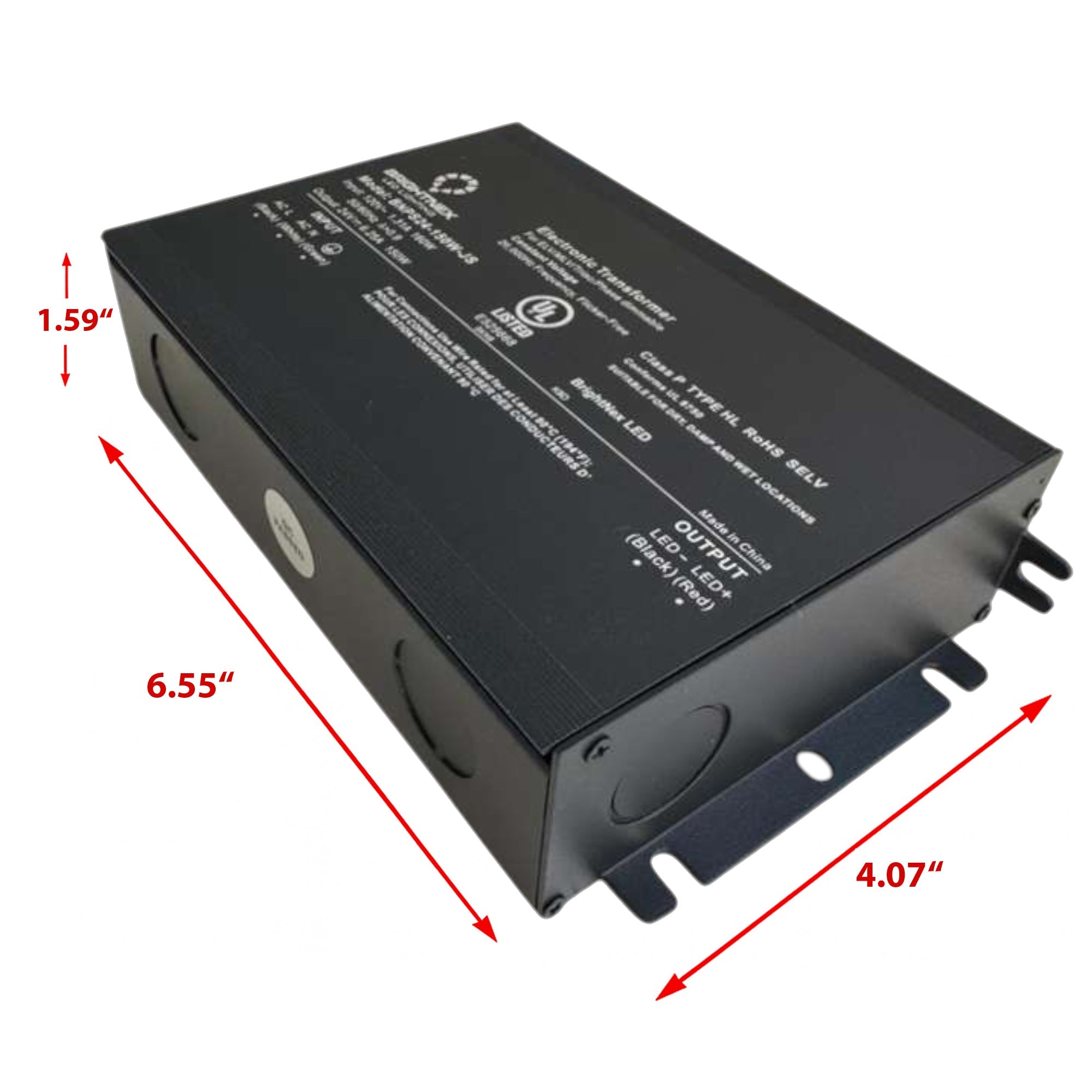

Dimensions: 6.55" × 4.07" × 1.59"

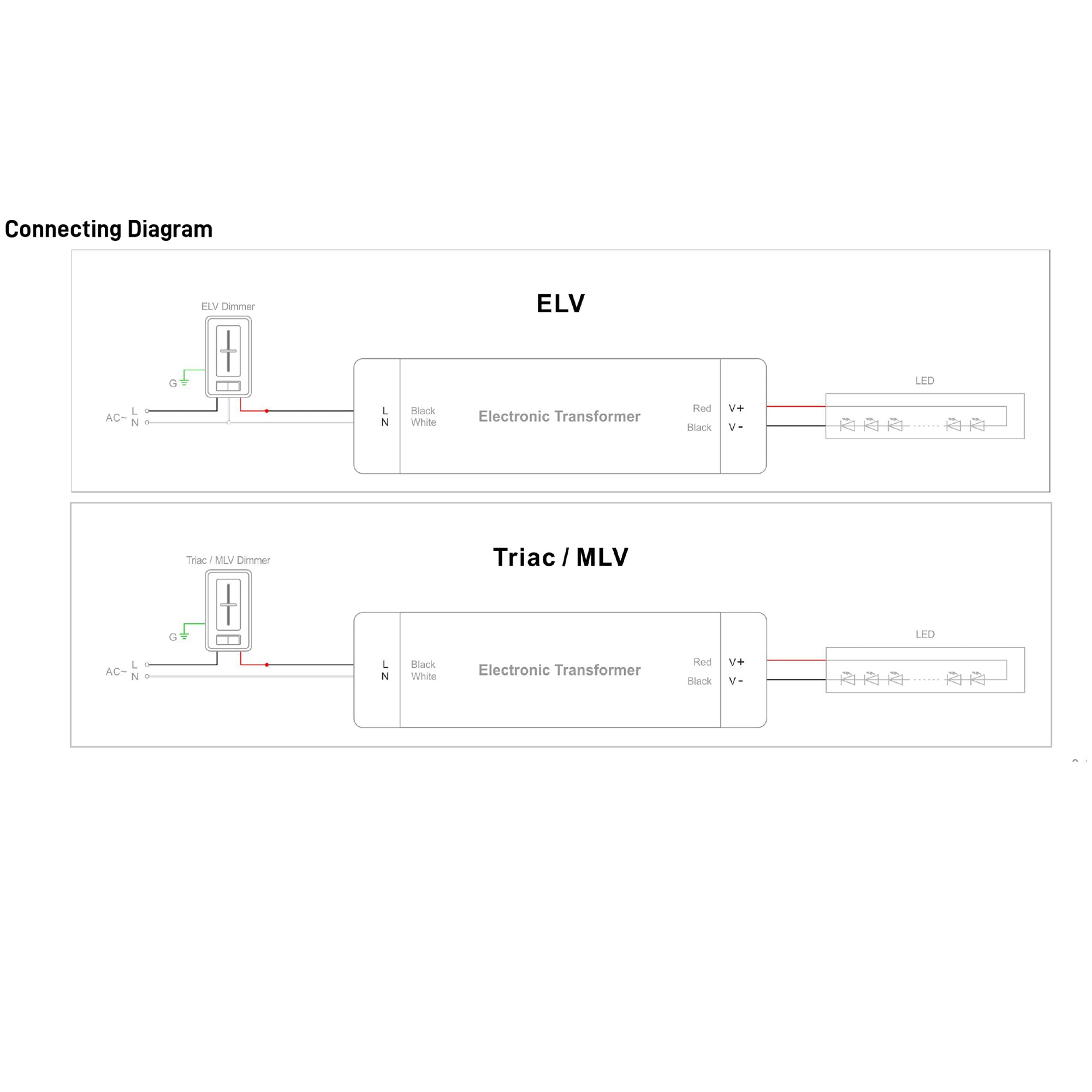

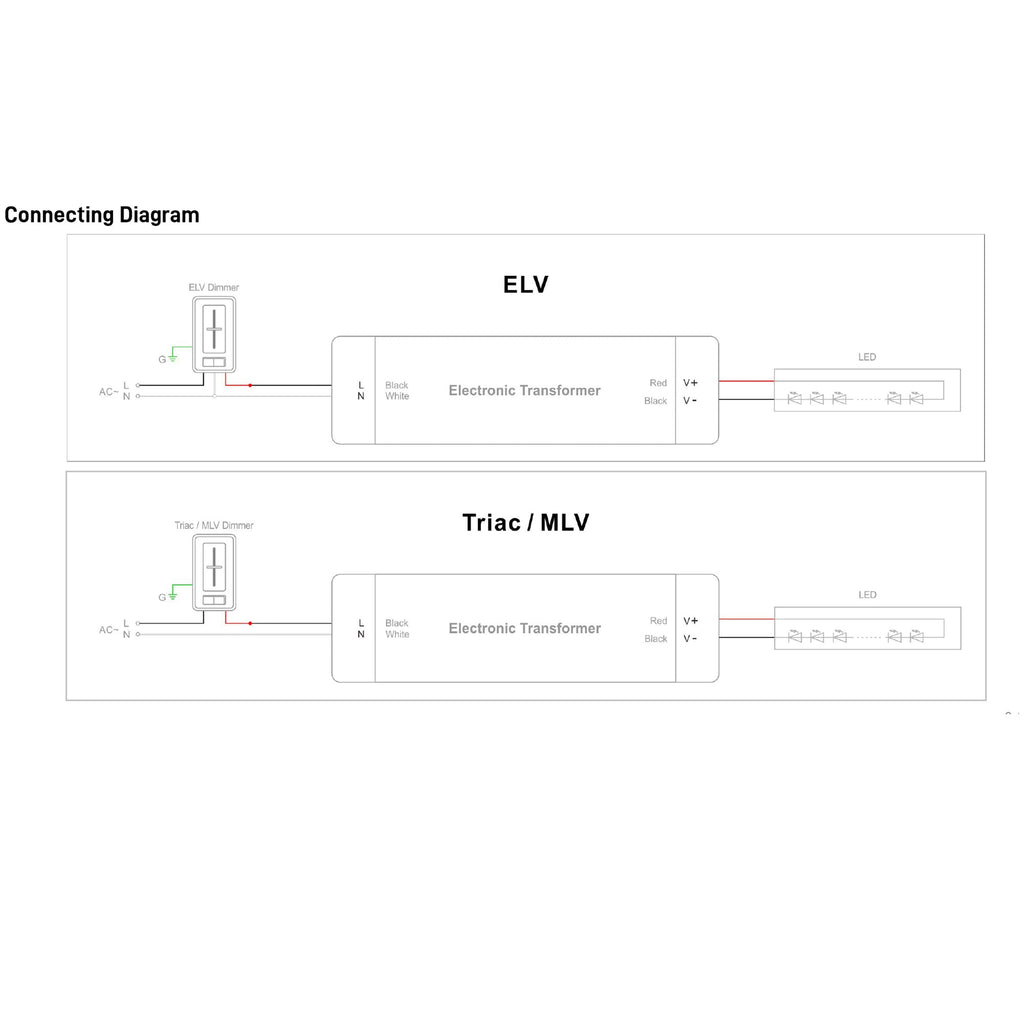

🔌 Wiring:
-
Input (120V AC):
-
Black (Live) – 18 AWG
-
White (Neutral) – 18 AWG
-
Green (Ground) – 18 AWG
-
-
Output (24V DC):
-
Red (V+) – 18 AWG
-
Blue (V–) – 18 AWG
-
💡 Typical Applications:
-
24V LED strip and tape lighting
-
Outdoor signage and architectural lighting
-
Landscape lighting systems
-
Retail, cove, and accent lighting
-
Indoor/outdoor Class 2 low-voltage LED systems
- Part Number: LA-TRF-24V-150W-C-JB-S1
