Description

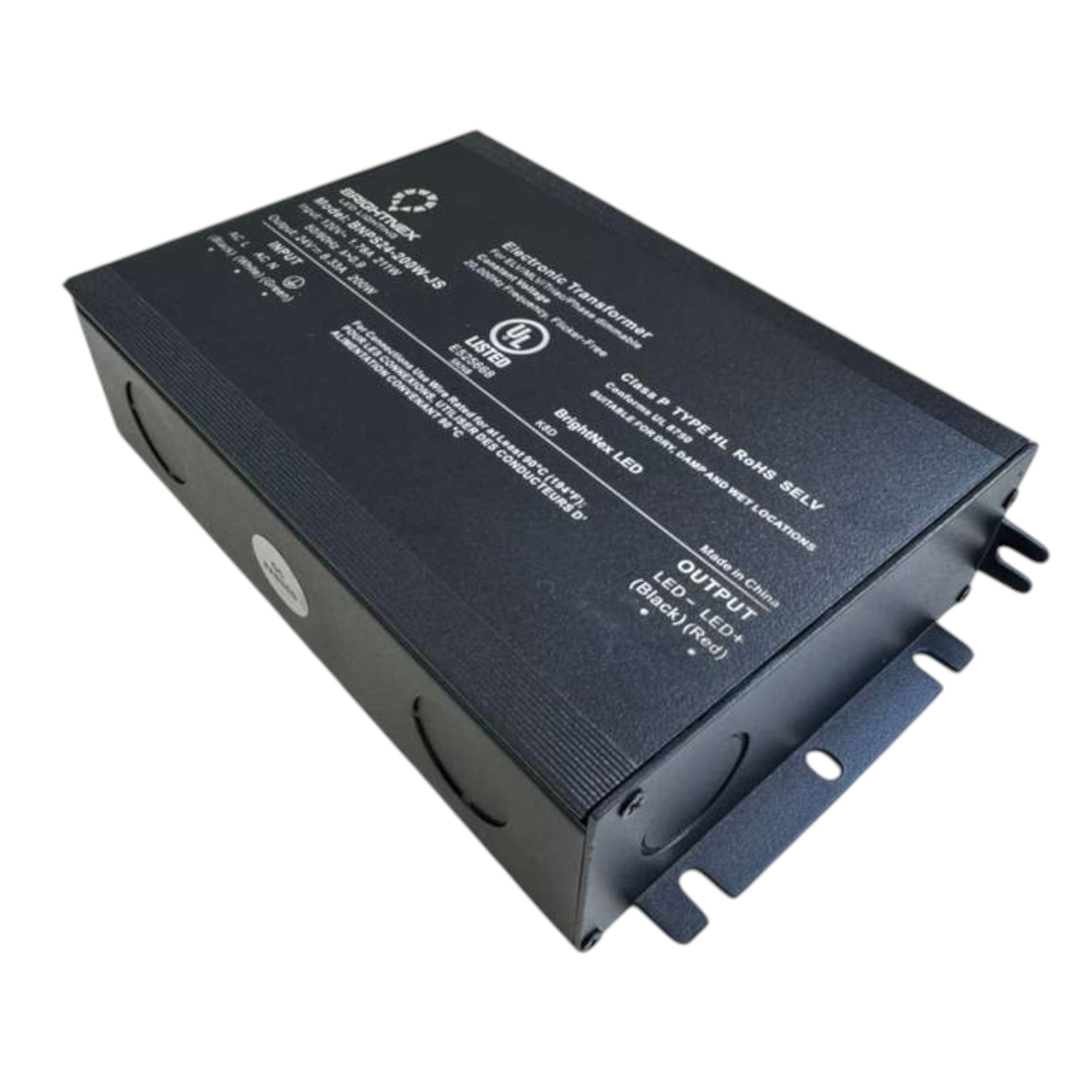

This compact 200W dimmable LED transformer delivers a constant 24V DC output, perfect for larger LED lighting systems. Compatible with TRIAC, ELV, and MLV dimmers, it allows smooth 0–100% dimming and performs efficiently even at 10% load.
With a low-profile metal housing and integrated junction box, this transformer is rated for wet, damp, and dry locations. It features built-in short-circuit and overload protection.
🔧 Key Features:
-
Output Power: 200W
-
Output Voltage: 24V DC
-
Output Current: 8.34A
-
Input Voltage: 120V AC (50/60Hz)
-
Dimming Type: TRIAC / ELV / MLV (0–100%)
-
Efficiency: 90% @ full load
-
Power Factor: > 0.9
-
THD: < 20% @ 100% load
-
Load Range: 10% – 100%
-
Leakage Current: < 0.5mA @ 120V
-
Protections:
-
Short-Circuit: Auto-recovery (hiccup mode)
-
Overload: Auto-recovery (hiccup mode)
-
-
Operating Temp: -40°C to +60°C
-
Humidity: 20–95% RH
-
Certifications: UL, FCC, ICES-005, Class P, Type HL, SELV, RoHS, REACH
-
Enclosure: Compact metal housing with integrated junction box
-
Waterproof Rating: Wet, Damp, Dry Location Approved
-

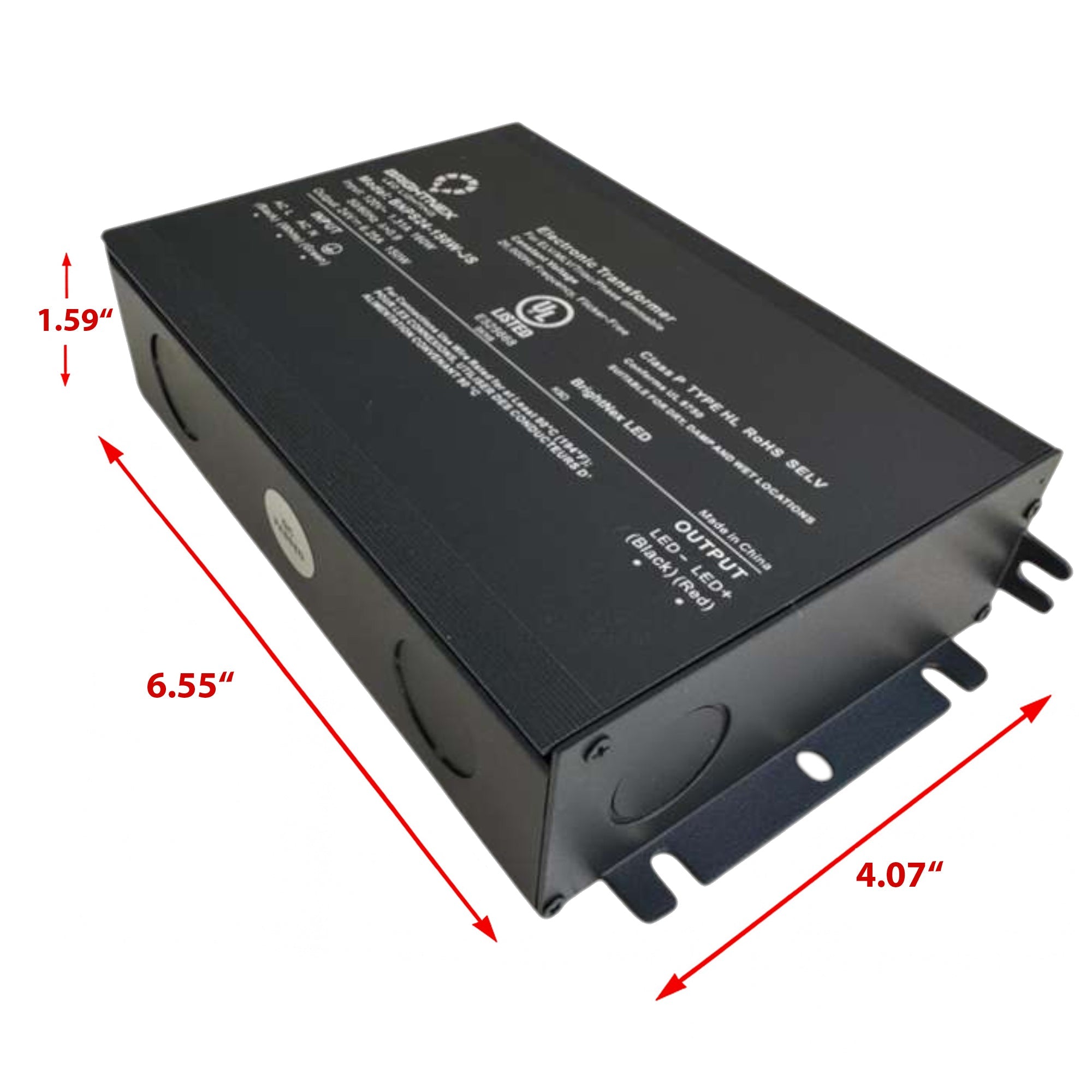

Dimensions: 6.55" × 4.07" × 1.59"

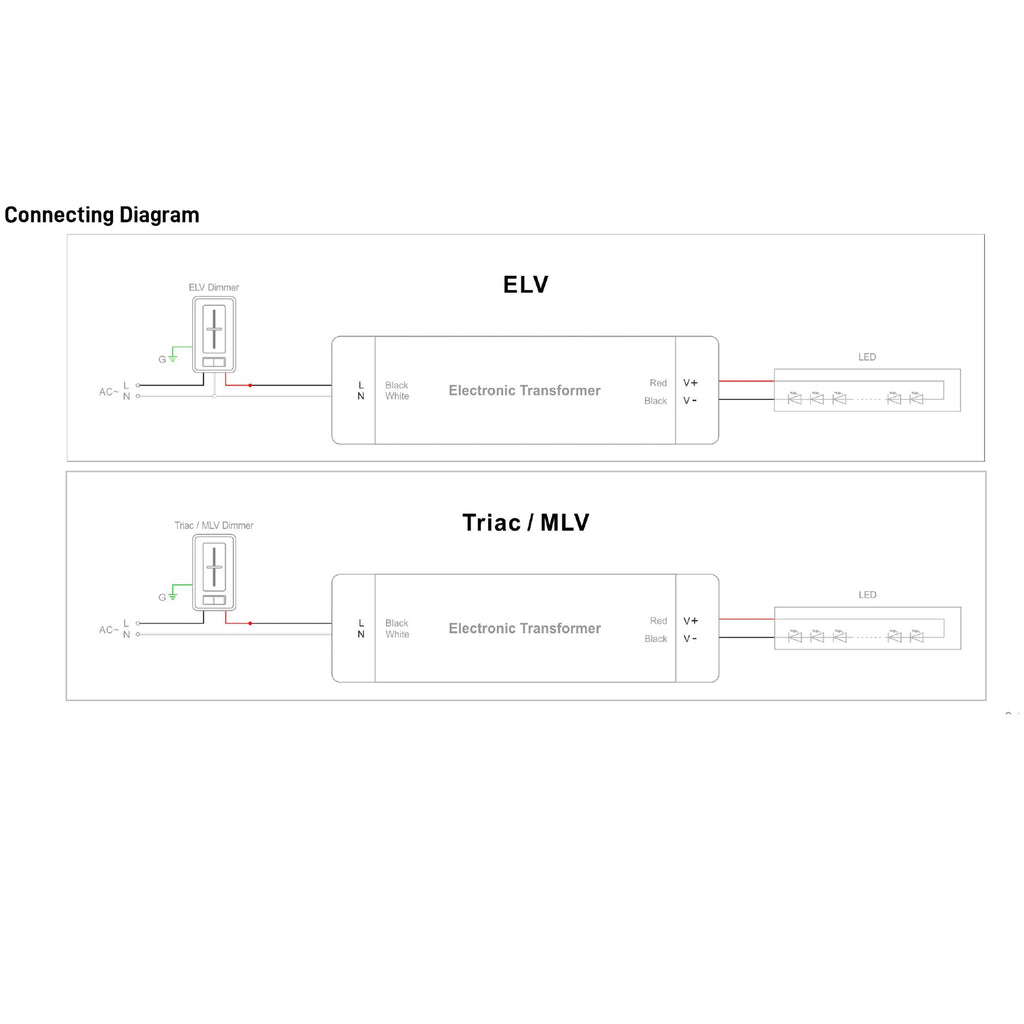

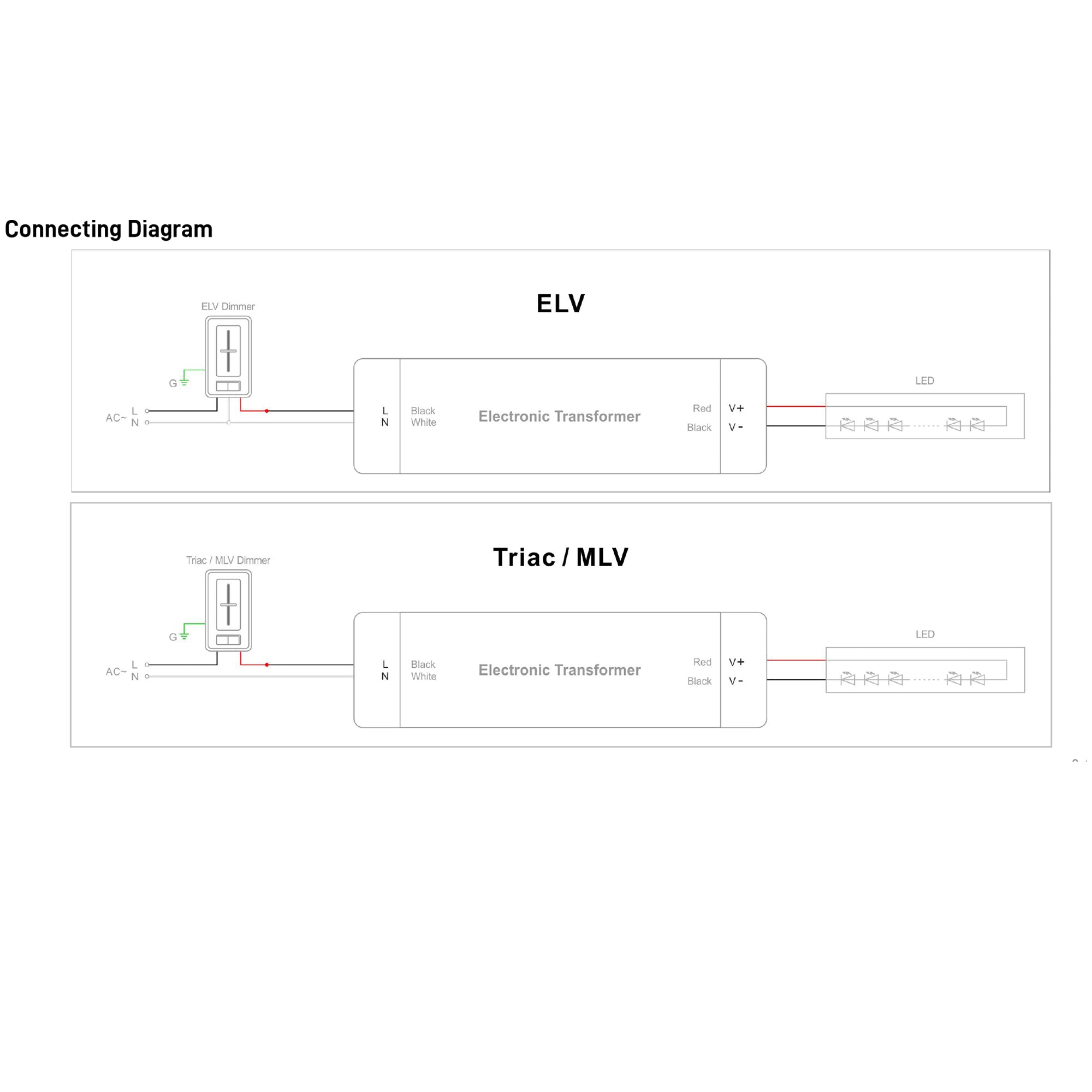

🔌 Wiring:
-
Input (120V AC):
-
Black (Live) – 18 AWG
-
White (Neutral) – 18 AWG
-
Green (Ground) – 18 AWG
-
-
Output (24V DC):
-
Red (V+) – 18 AWG
-
Blue (V–) – 18 AWG
-
💡 Typical Applications:
-
24V LED strip, tape, and module lighting
-
Outdoor signage and architectural lighting
-
Cove, accent, and display lighting
-
Wet-location and IP-rated installations
- Part Number: LA-TRF-24V-200W-C-JB-S1
