Compact 300W Dimmable LED Transformer – 24V | TRIAC/ELV/MLV Compatible | UL | Wet Rated

This compact 300W dimmable LED transformer provides a stable 24V DC constant voltage output, ideal for powering large-scale LED strip lighting and outdoor lighting systems. Compatible with a wide range of TRIAC, ELV, and MLV dimmers, it supports smooth 0–100% dimming and performs reliably even at 10% load.

Housed in a low-profile metal enclosure with an integrated junction box, this transformer is approved for use in wet, damp, and dry locations. It features short-circuit and overload protection, high efficiency.

🔧 Key Features:

• Output Power: 300W

• Output Voltage: 24V DC

• Output Current: 12.5A

• Input Voltage: 120V AC (50/60Hz)

• Dimming Type: TRIAC / ELV / MLV (0–100%)

• Efficiency: 90% @ full load

• Power Factor: > 0.9

• THD: < 20% @ 100% load

• Load Range: Operates from 10% – 100%

• Leakage Current: < 0.5mA @ 120V

• Protection:

  • Short-Circuit: Auto-recovery (hiccup mode)

  • Overload: Auto-recovery (hiccup mode)

• Operating Temp: -40°C to +60°C

• Humidity: 20–95% RH

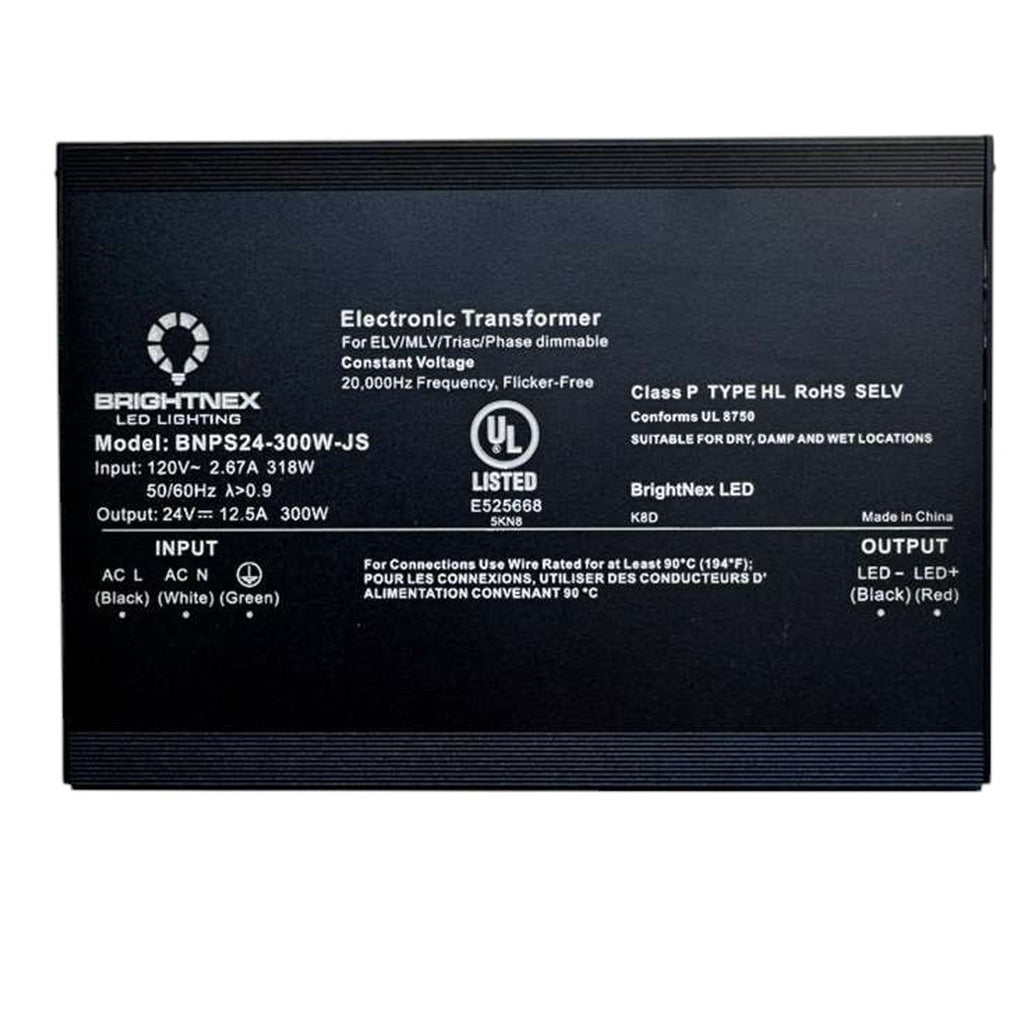

• Certifications: UL, FCC, ICES-005, Class P, Type HL, RoHS, SELV, REACH

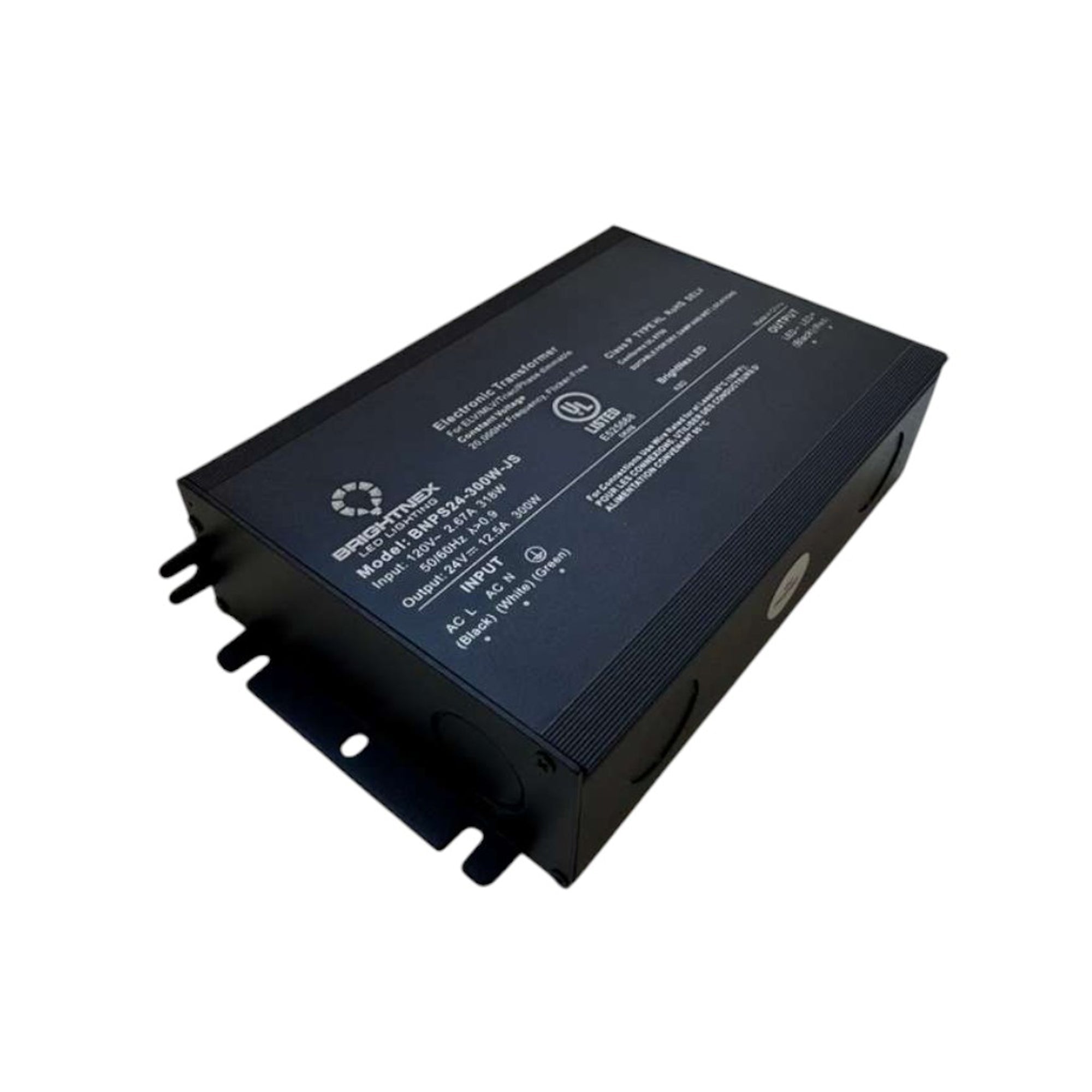

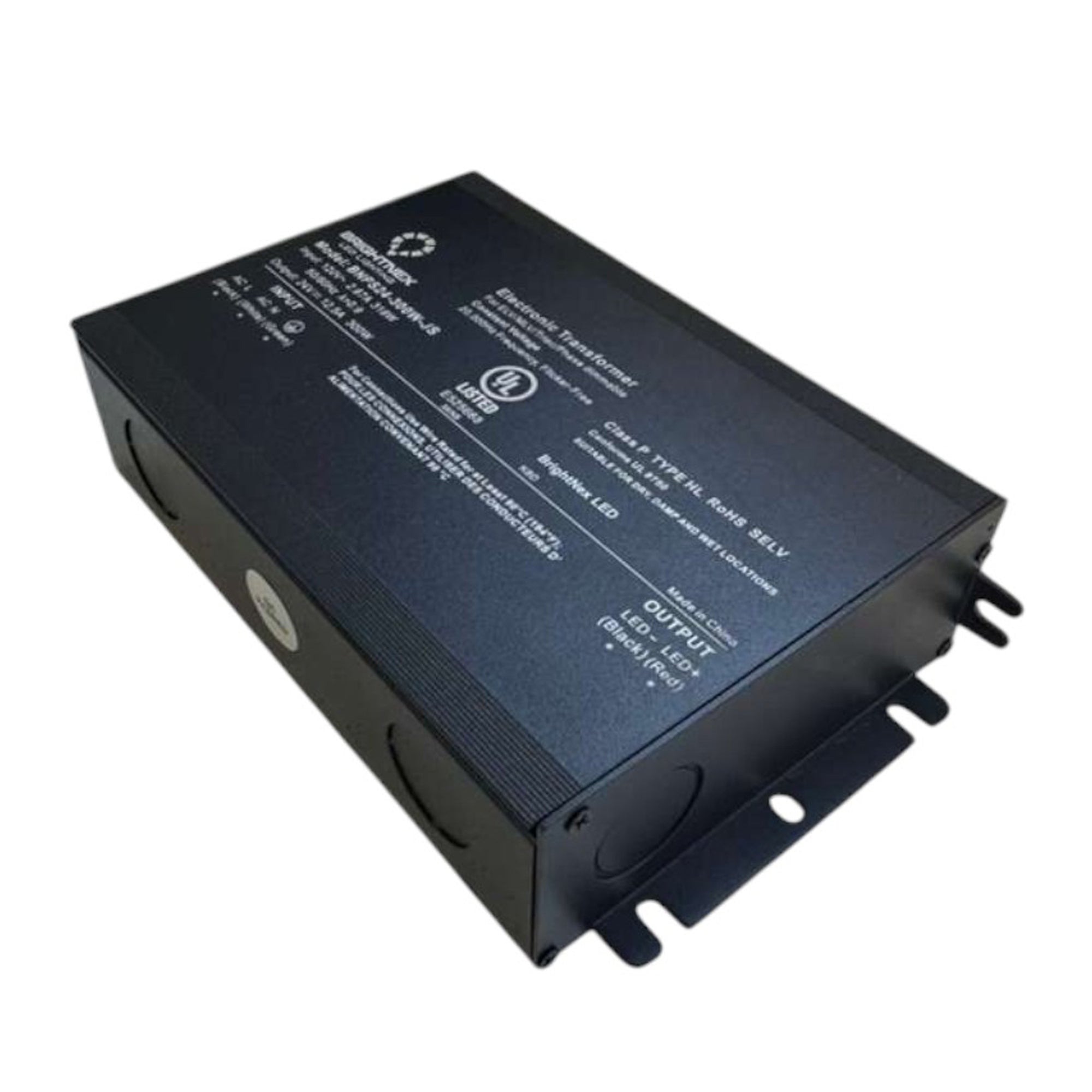

• Enclosure: Compact metal housing with junction box

• Location Rating: Wet, Damp, and Dry approved

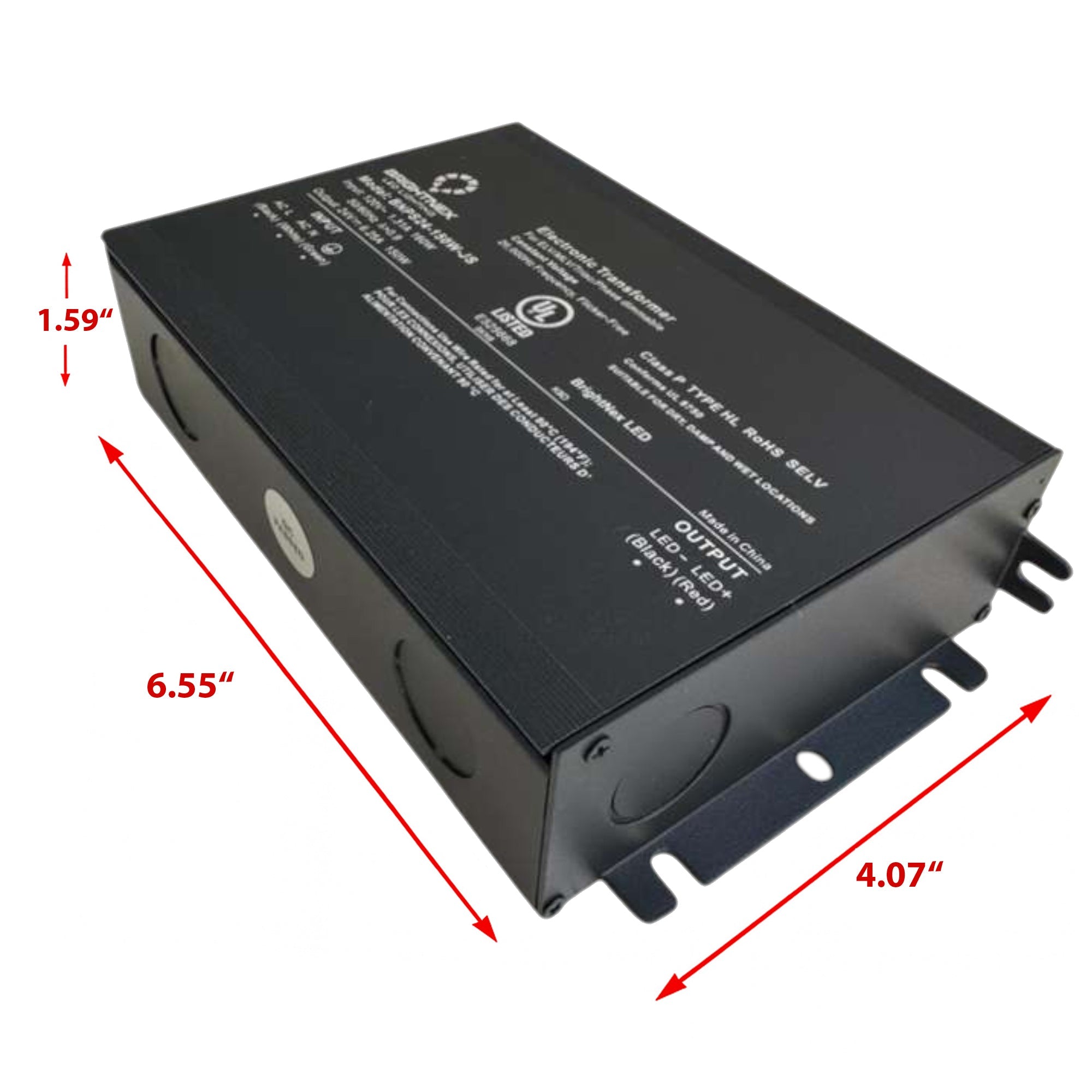

• Dimensions: 6.55" × 4.07" × 1.59"

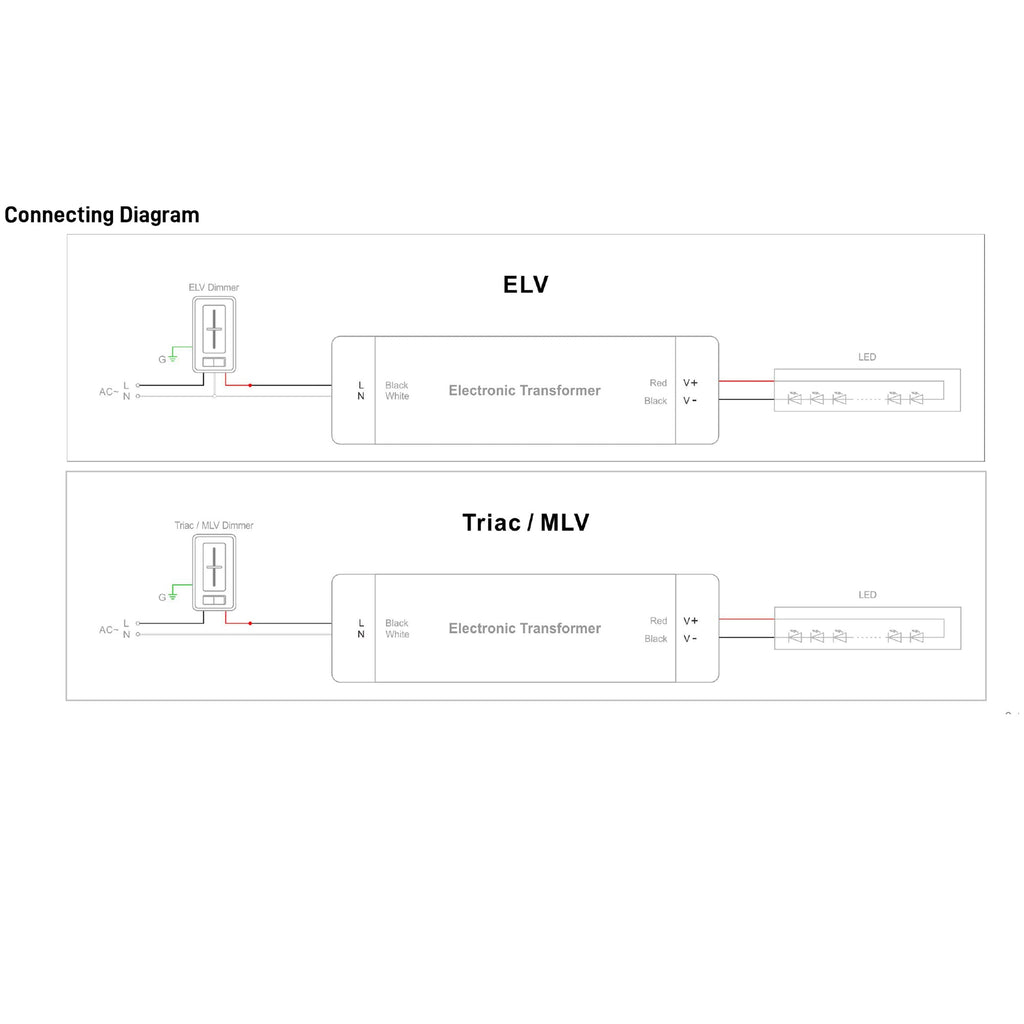

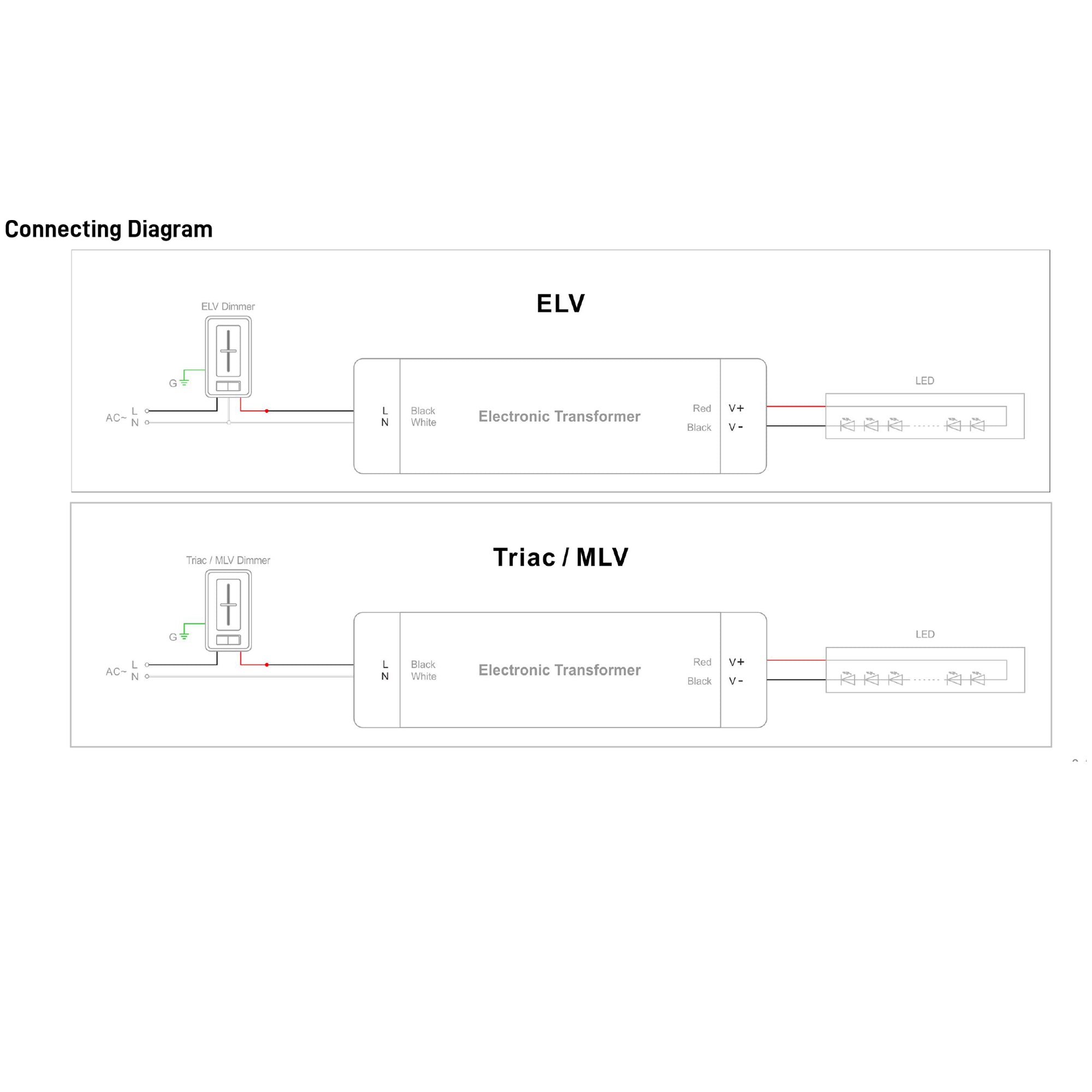

🔌 Wiring:

• Input (120V AC):

  • Black (Live) – 18 AWG

  • White (Neutral) – 18 AWG

  • Green (Ground) – 18 AWG

• Output (24V DC):

  • Red (V+) – 18 AWG

  • Blue (V–) – 18 AWG


💡 Typical Applications:

• 24V LED strip, tape, and module lighting

• Architectural lighting


• Cove and commercial lighting installations

• Residential LED systems requiring high-capacity drivers

Part Number: LA-TRF-24V-300W-C-JB-S1
