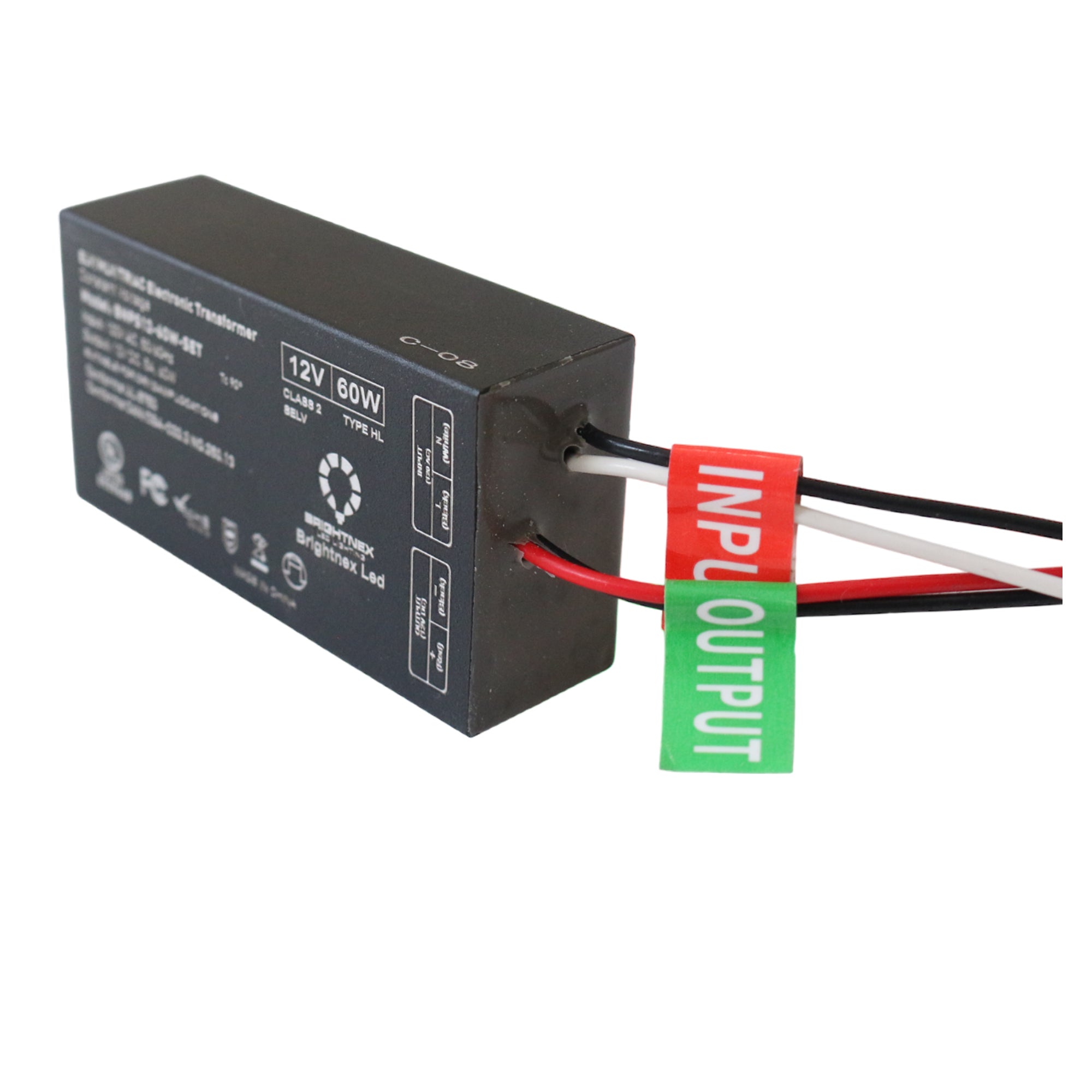

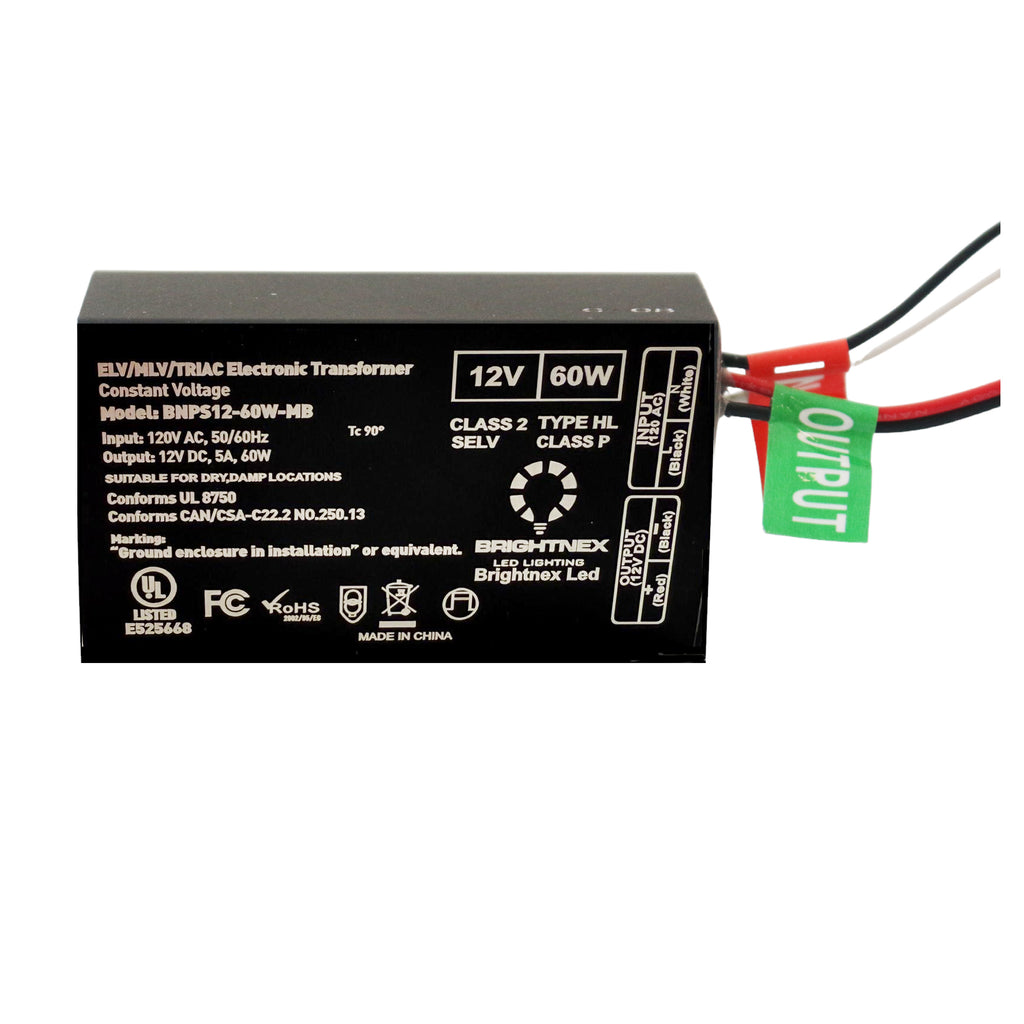

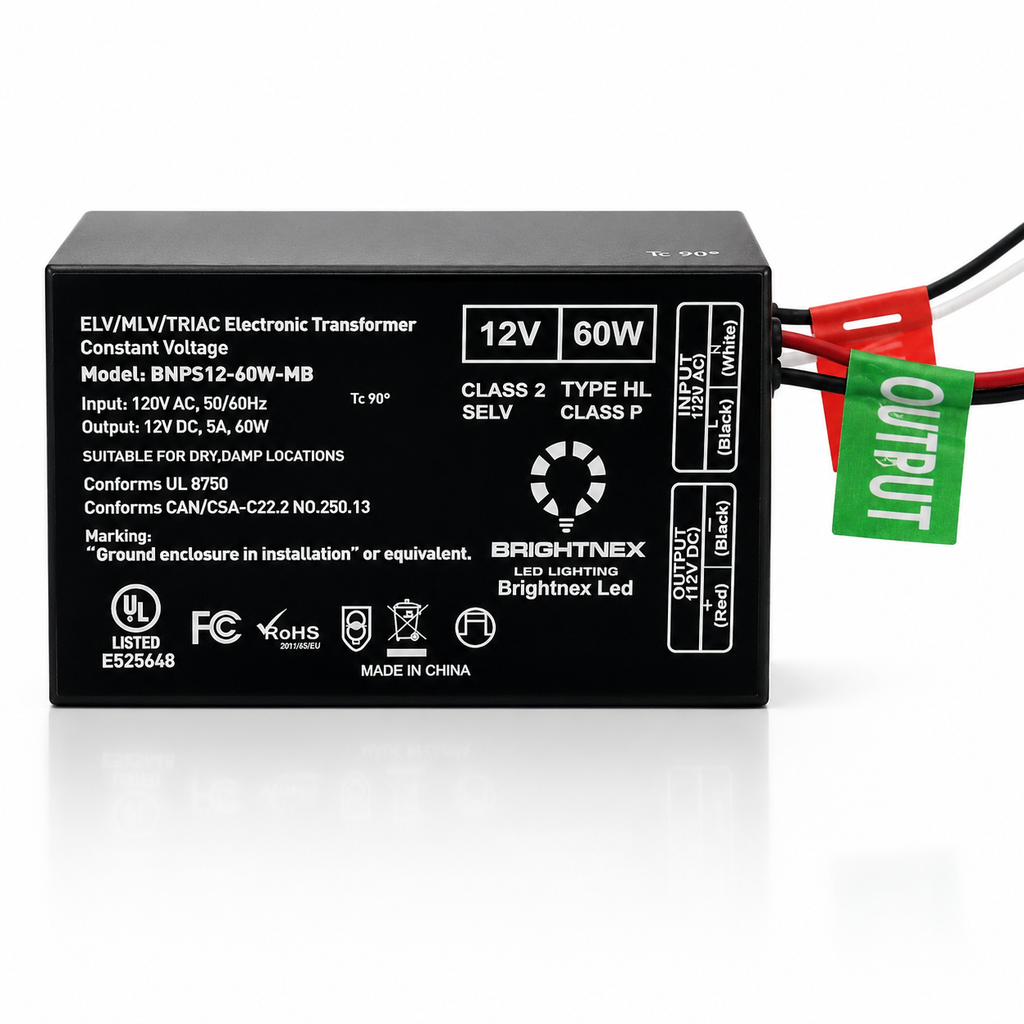

Specification label of 12V 60W Brightnex dimmable LED transformer showing electrical ratings and certifications

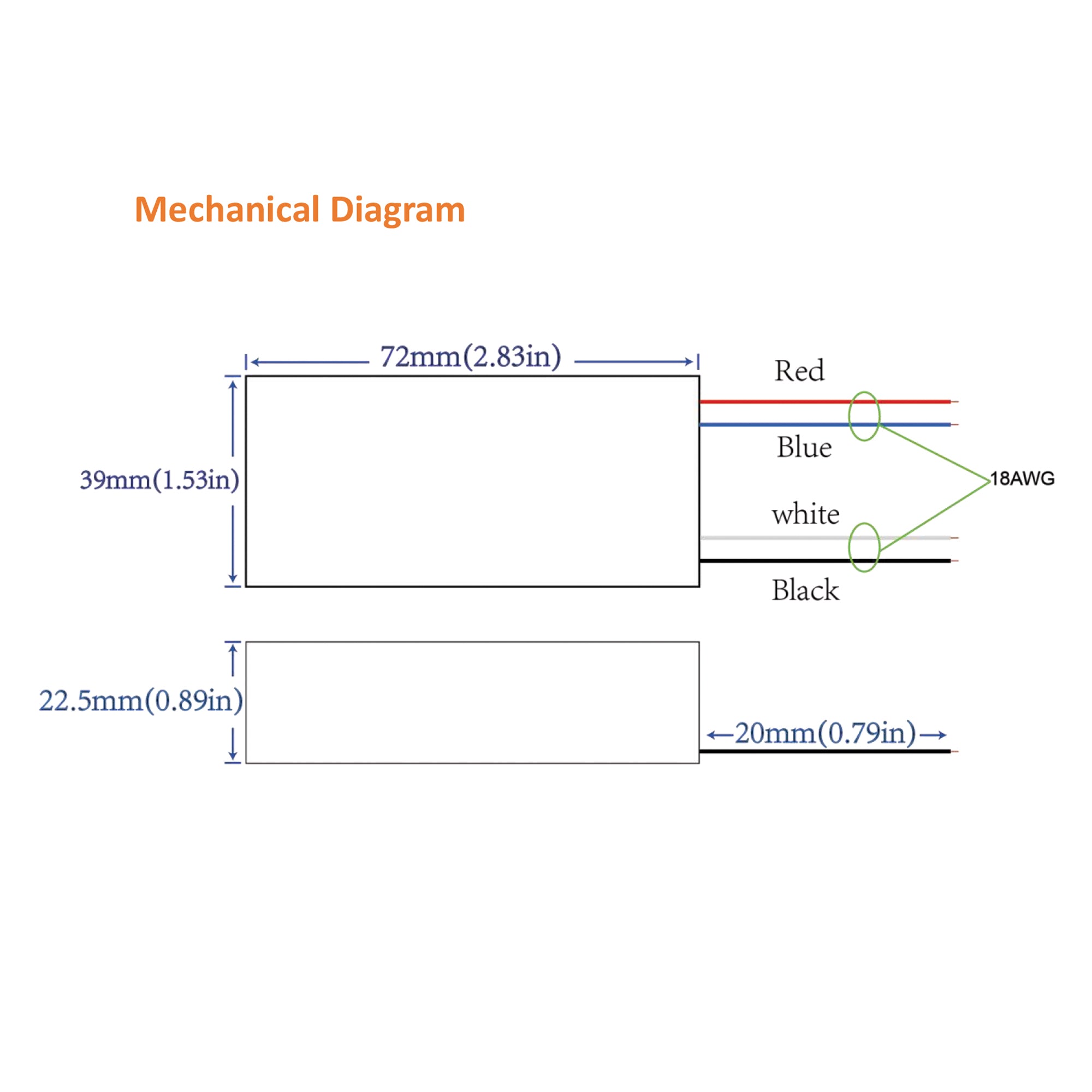

Mechanical dimensions diagram of compact 60W 12V LED transformer showing size measurements and wire specifications

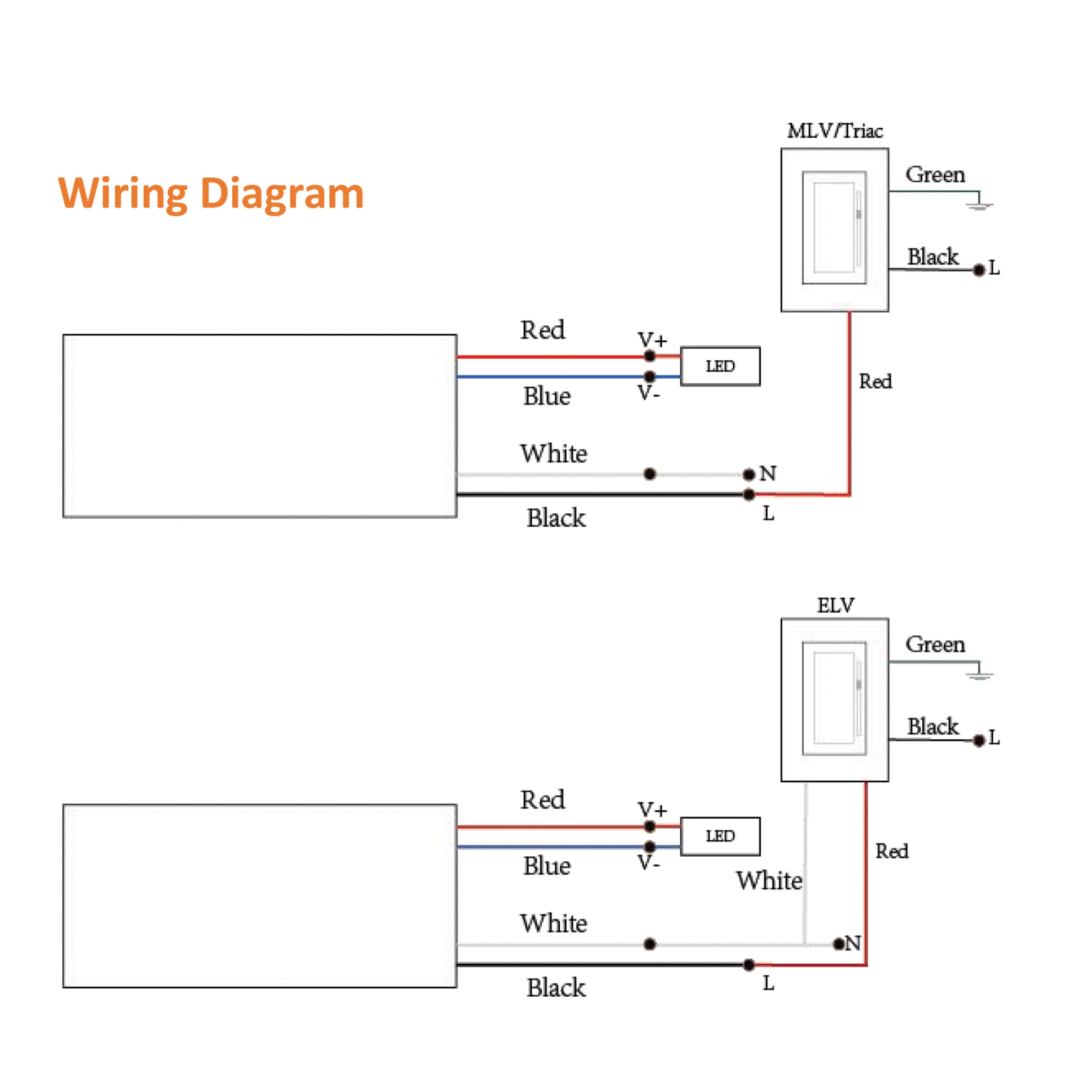

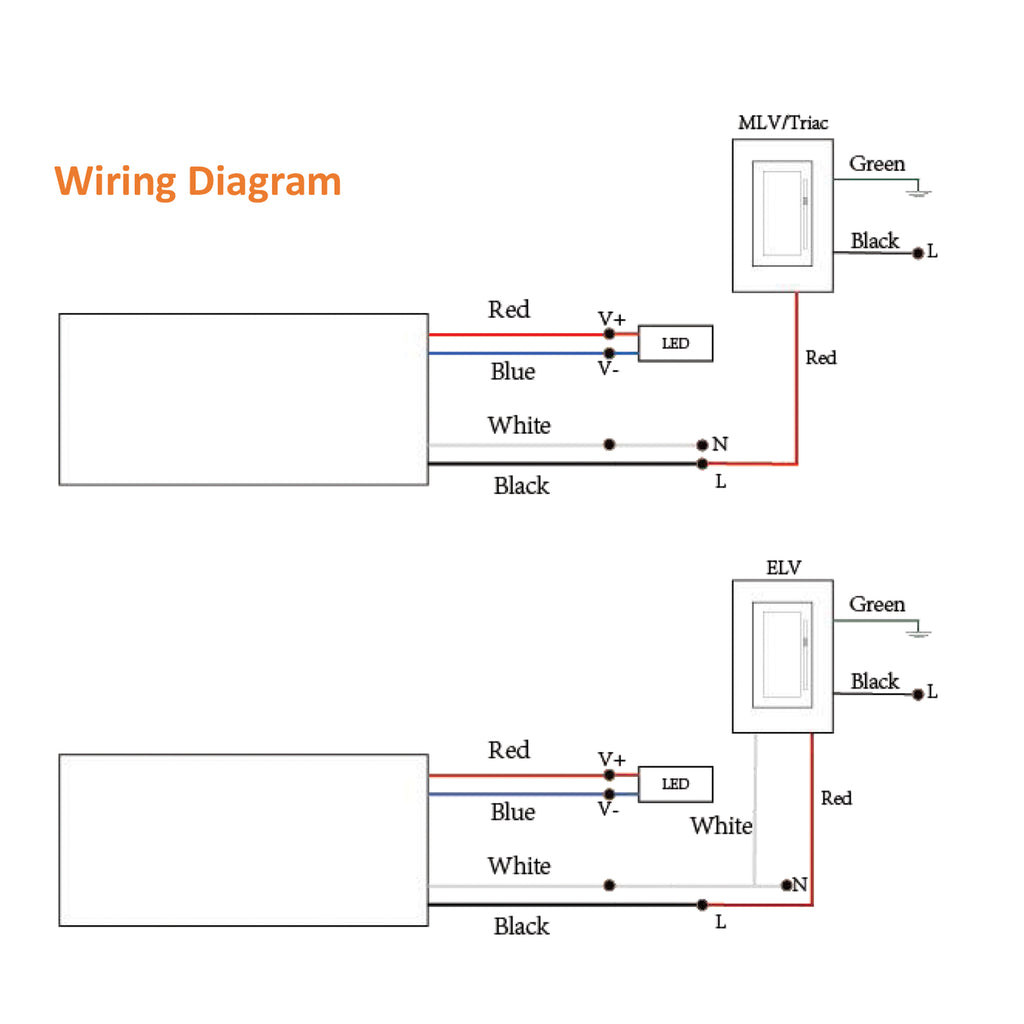

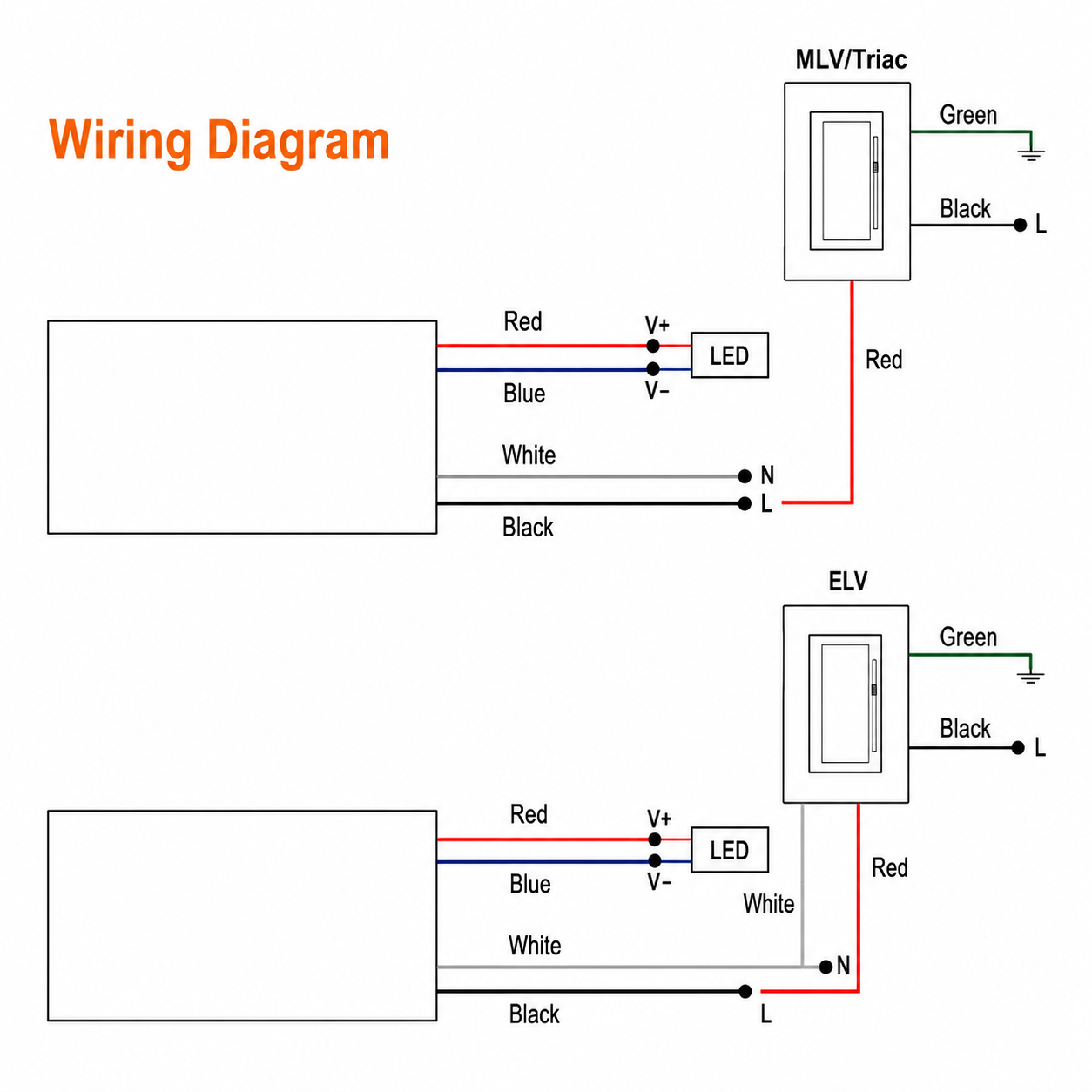

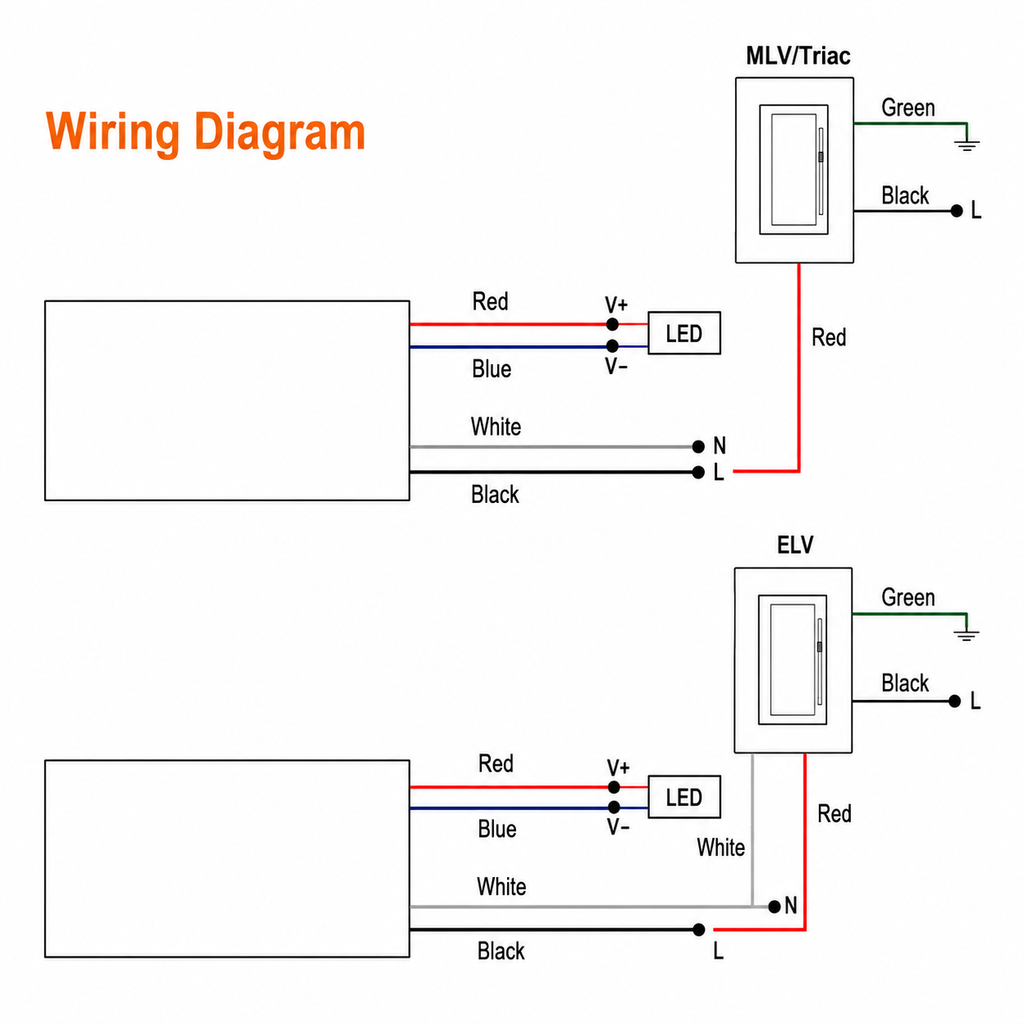

Wiring diagram of 60W 12V dimmable LED transformer showing MLV ELV and TRIAC dimmer connections

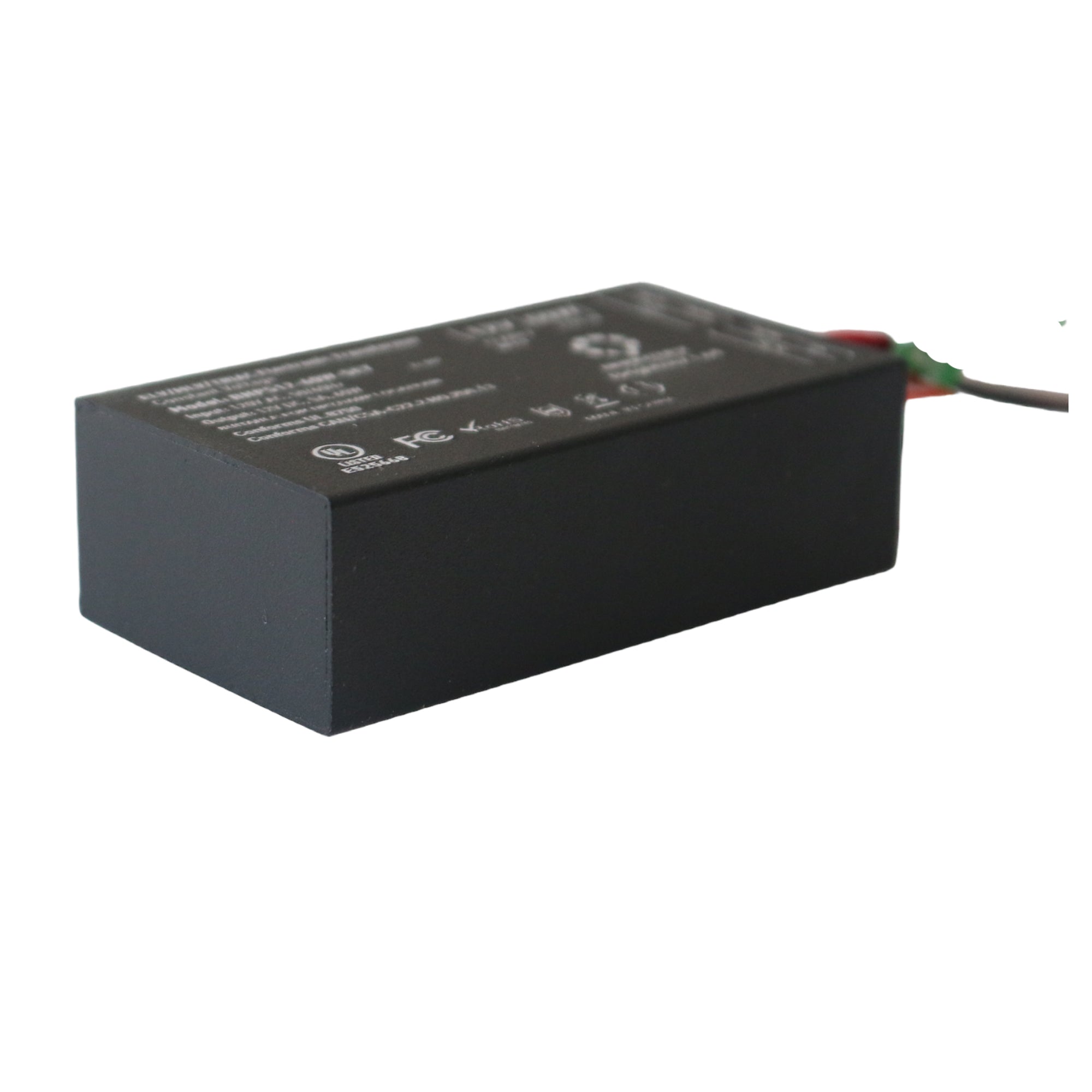

Compact 60W 12V dimmable LED transformer angled view showing constant voltage LED driver with output wires

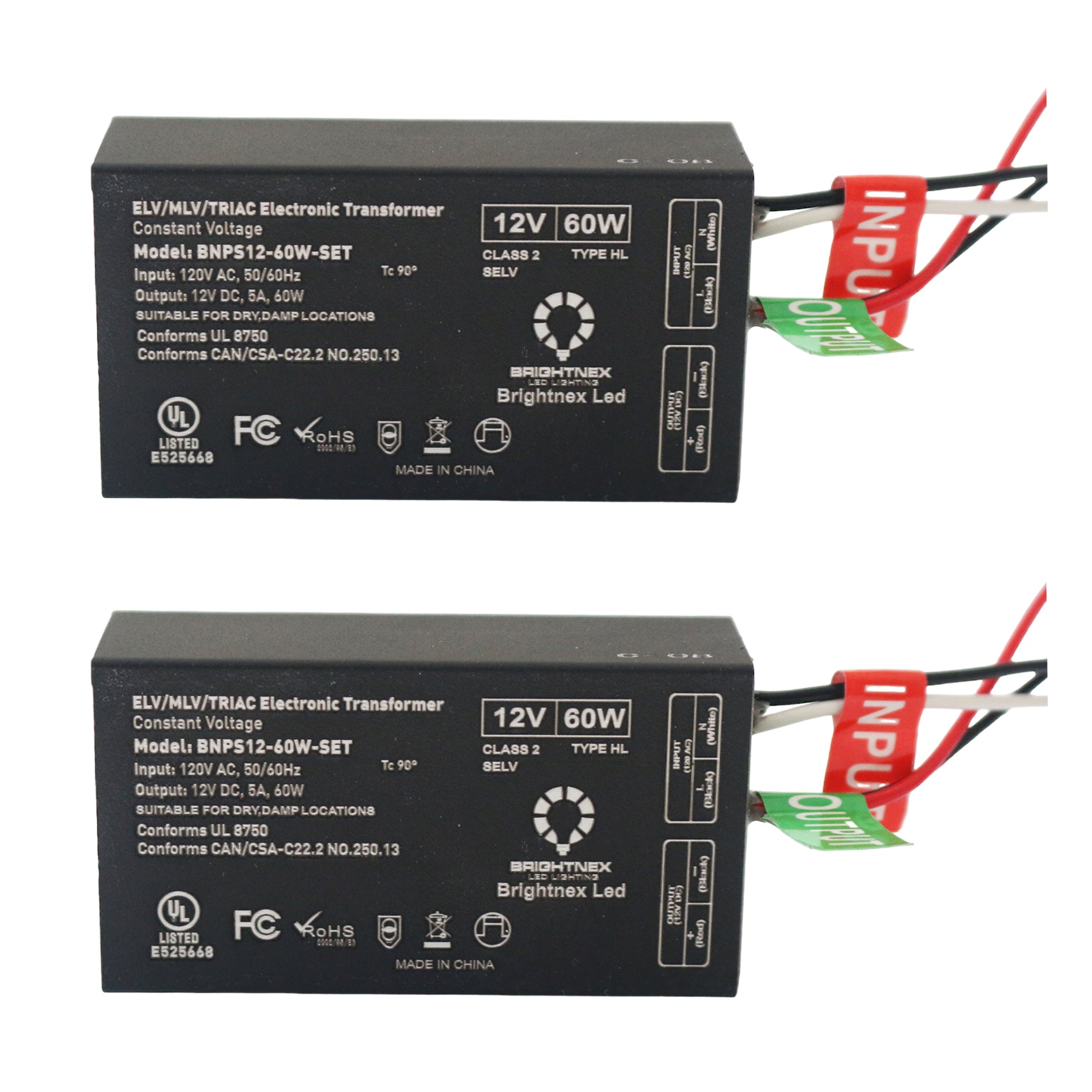

Specification label of 12V 60W dimmable LED transformer showing electrical ratings and certifications
Roll over image to zoom in Click on image to zoom
Compact 60W 12V dimmable LED transformer Class 2 Class P constant voltage LED driver for indoor lighting applicationsCompact 96W 24V dimmable LED transformer with labeled dimensions showing length width and height measurements Smallest Dimmable LED Driver (Dimmable LED Transformer), 12V, 60WSpecification label of 12V 60W Brightnex dimmable LED transformer showing electrical ratings and certificationsMechanical dimensions diagram of compact 60W 12V LED transformer showing size measurements and wire specificationsWiring diagram of 60W 12V dimmable LED transformer showing MLV ELV and TRIAC dimmer connectionsCompact 60W 12V dimmable LED transformer angled view showing constant voltage LED driver with output wiresSpecification label of 12V 60W dimmable LED transformer showing electrical ratings and certifications

Compact 60W Dimmable LED Transformer – 12V | TRIAC/ELV/MLV Compatible | UL Class 2, P

LA LED Lighting
Quantity: 1 Item
Price:
$32.99

Description

This dimmable LED transformer delivers a stable 12V DC constant voltage output up to 60W. Compatible with TRIAC, ELV, and MLV dimmers, it supports smooth dimming from 0 to 100%, making it ideal for LED strips, accent lighting, and other low-voltage lighting needs.

This compact transformer features a slim aluminum housing, short-circuit and overload protection, and operates safely in dry or damp environments. With high efficiency (85%), power factor of 0.95, and low THD (<20%), it meets UL Class 2, P safety standards in a footprint under 3 inches long.

🔧 Key Features:

  • Output Power: 60W

  • Output Voltage: 12V DC

  • Output Current: 5A

  • Input Voltage: 120V AC

  • Dimming: TRIAC / ELV / MLV (0–100%)

  • Efficiency: 85% @ 120VAC

  • Power Factor: ≥ 0.95

  • THD: < 20% @ full load

  • Load Range: Operates from 20–100%

  • Protection:

    • Short-Circuit – hiccup mode, auto-recovery

    • Overload – auto voltage/power reduction, recovery on reset

  • Operating Temp: -40°C to +60°C

  • Humidity: 20–95% RH

  • Leakage Current: < 0.5mA @ 120V

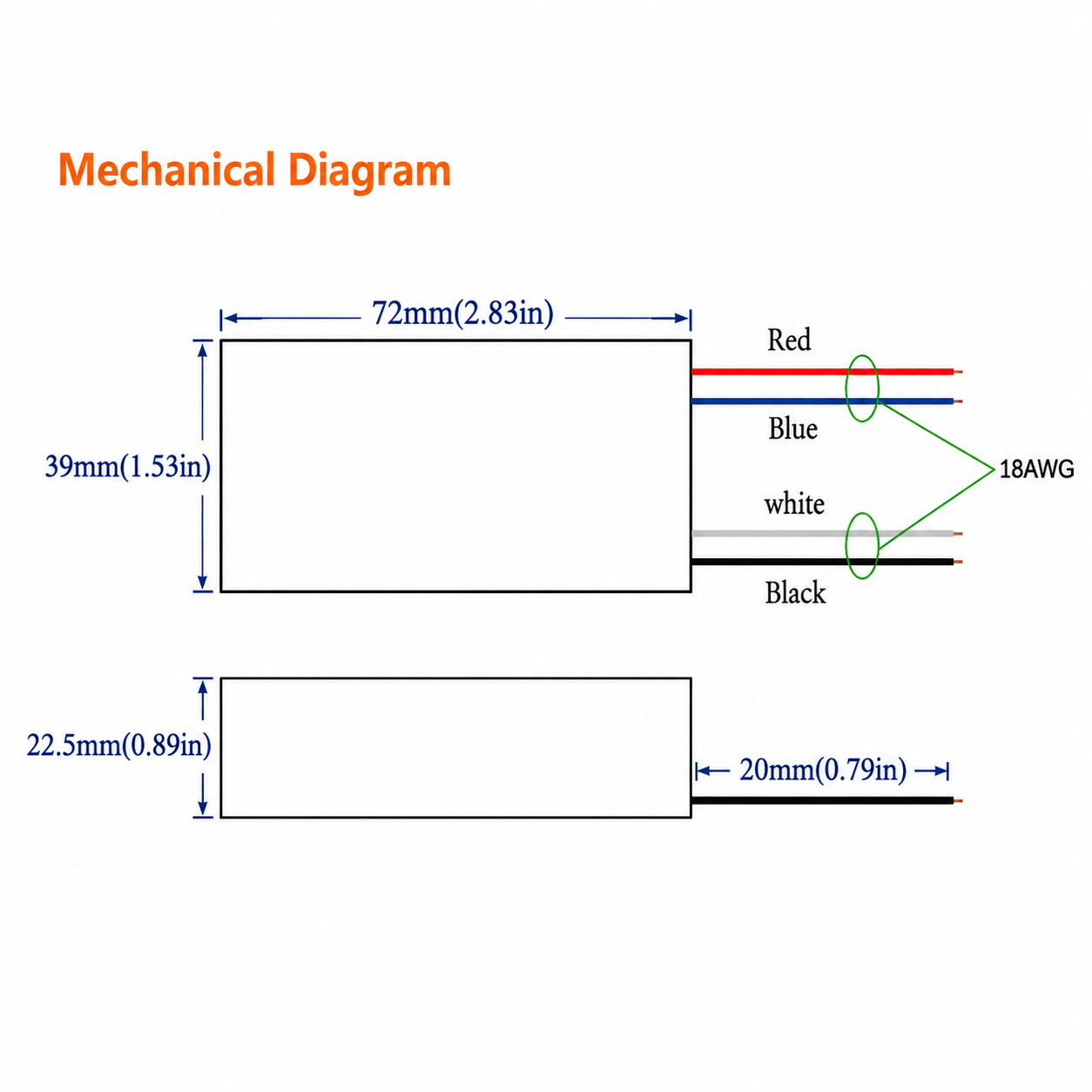

  • Dimensions: 2.89" × 1.53" × 0.89"

  • Wiring: 18 AWG input/output leads

  • Certifications: UL, Class 2, Class P, Type HL, FCC, RoHS, SELV

💡 Typical Applications:

  • 12V LED strip and tape lighting

  • Under-cabinet and shelf lighting

  • Display and signage illumination

  • Compact indoor installations

  • Residential and commercial LED systems

  • Part Number: LA-TRF-12V-60W-C-D1-C2P
