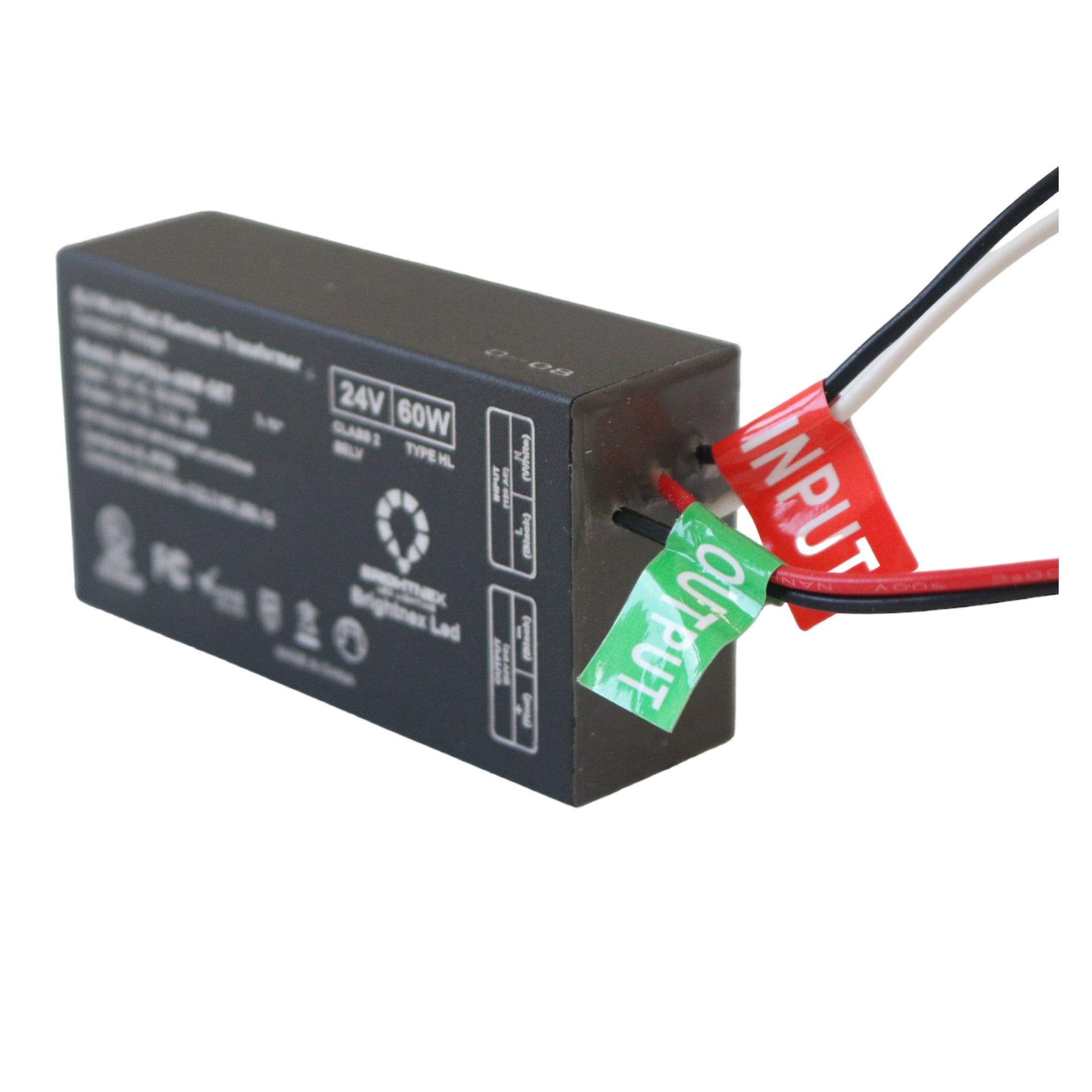

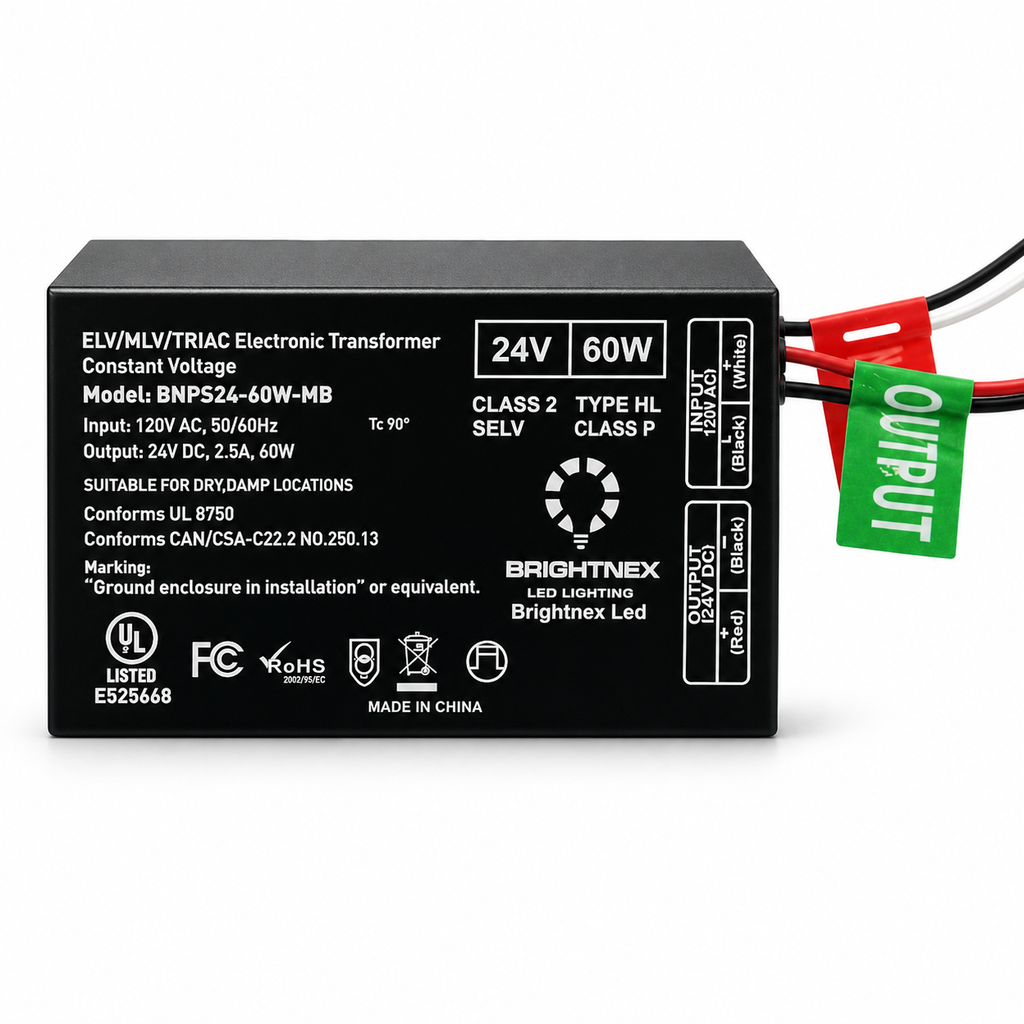

Specification label of 24V 60W dimmable LED transformer showing electrical ratings and certifications
Specification label of 24V 60W dimmable LED transformer showing electrical ratings and certifications
Compact 60W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, P
Compact 60W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, P
Roll over image to zoom in Click on image to zoom
Compact 60W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, PCompact 96W 24V dimmable LED transformer with labeled dimensions showing length width and height measurementsInfographic on how to choose a compact dimmable LED transformer with UL listing, covering voltage selection, load calculation, dimmer compatibility, efficiency, installation location, and built-in safety protections Smallest Dimmable LED Driver (Dimmable LED Transformer), 24V, 60WSpecification label of 24V 60W dimmable LED transformer showing electrical ratings and certificationsSpecification label of 24V 60W dimmable LED transformer showing electrical ratings and certificationsCompact 60W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, PCompact 60W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, P

Compact 60W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, P

LA LED Lighting
Quantity: 1 Item
Price:
$32.99

Description

This compact 60W dimmable LED transformer provides a reliable 24V DC constant voltage output, making it ideal for powering LED strips, tape lights, and other low-voltage 24V lighting systems. It supports smooth, full-range dimming via TRIAC, ELV, and MLV dimmers, allowing easy integration with most standard wall dimmers.

Designed for tight spaces, the transformer features a slim aluminum housing, operates at up to 85% efficiency, and includes short-circuit and overload protection with auto-recovery. It's UL Class 2 listed, FCC compliant, and rated for use in dry and damp locations.

šŸ”§ Key Features:

  • Output Power: 60W

  • Output Voltage: 24V DC

  • Output Current: 2.5A

  • Input Voltage: 120V AC (47ā€“63Hz)

  • Dimming Type: TRIAC / ELV / MLV (0ā€“100%)

  • Efficiency: 85% @ full load

  • Power Factor: ā‰„ 0.95

  • THD: < 20%

  • Load Range: 20ā€“100%

  • Protection Features:

    • Short Circuit (auto-recovery)

    • Overload (power reduction with reset)

  • Operating Temp: -40Ā°C to +60Ā°C

  • Humidity: 20ā€“95% RH

  • Leakage Current: < 0.5mA @ 120V

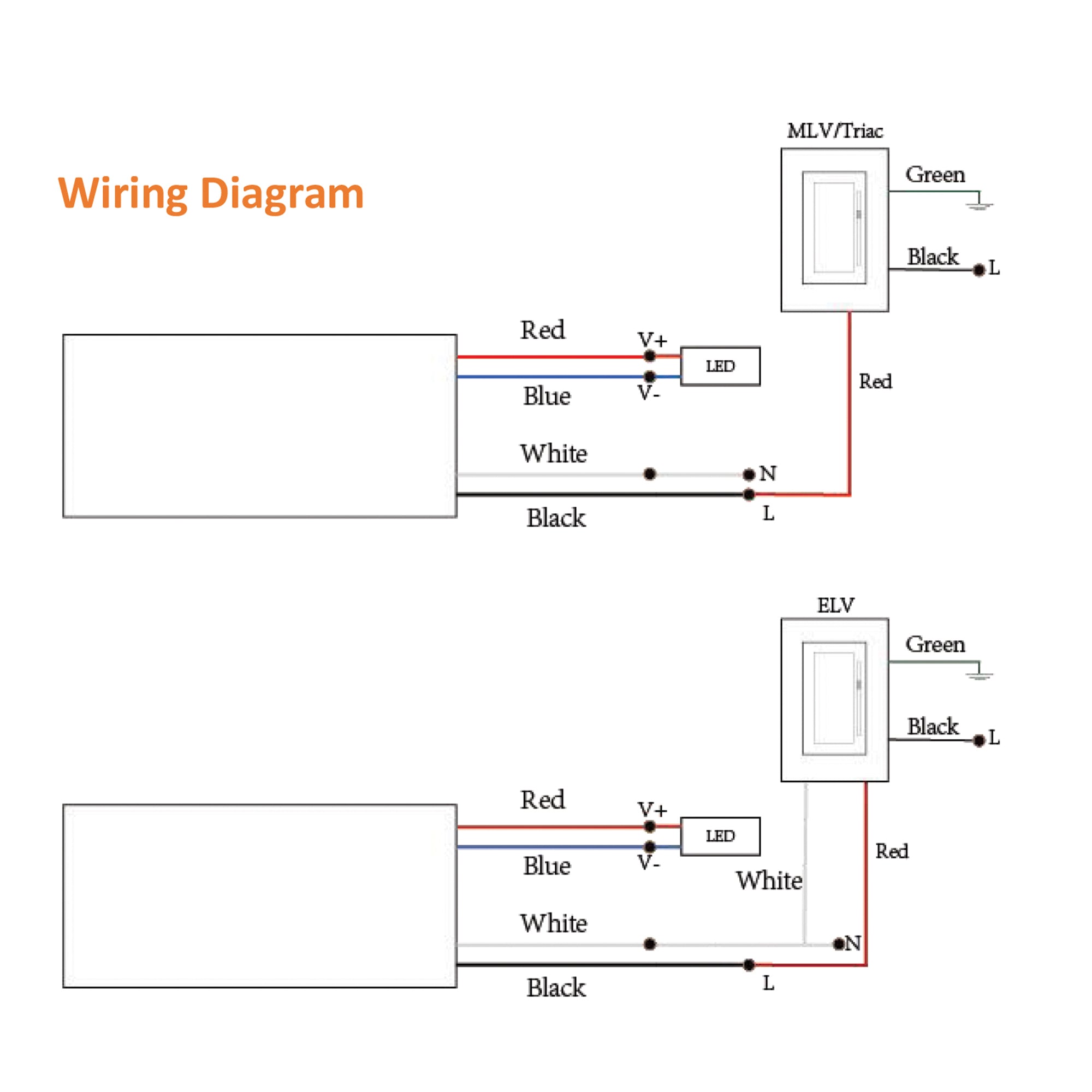

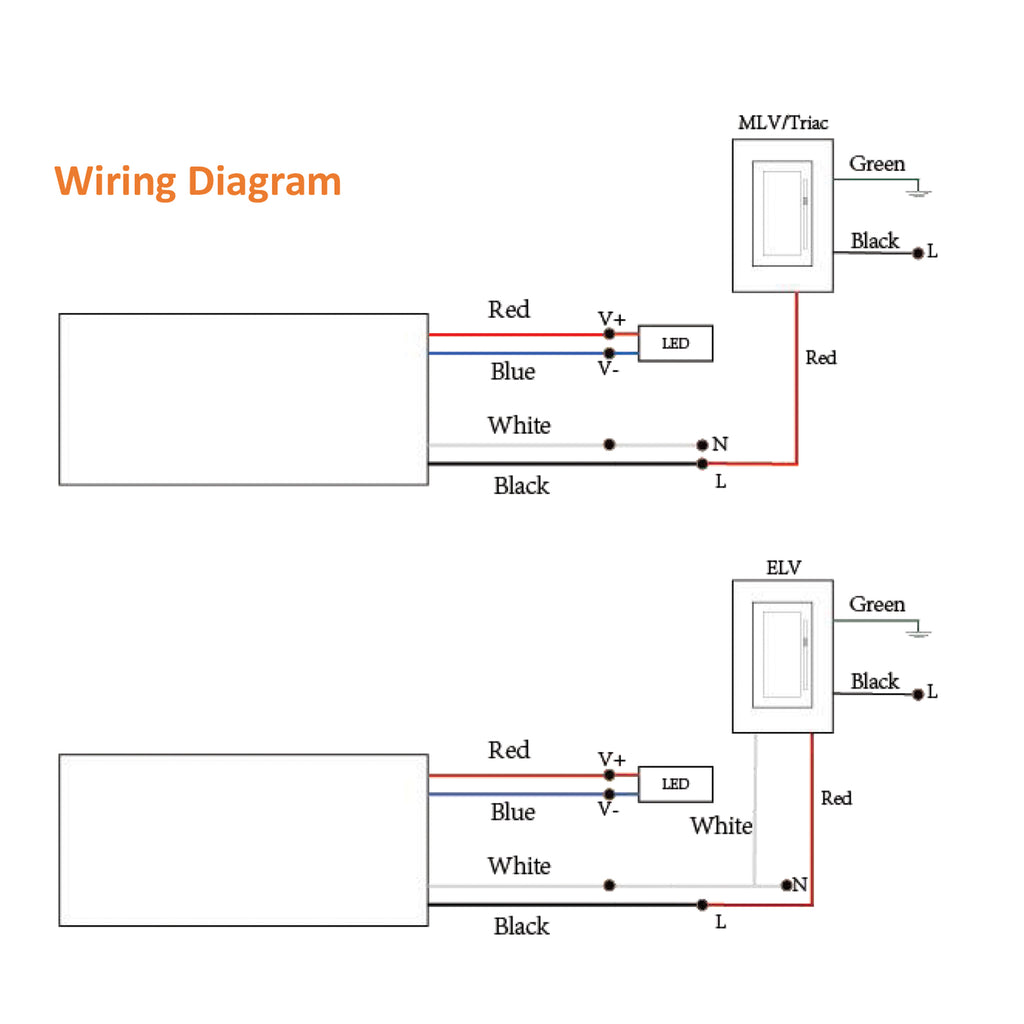

  • Wiring: 18 AWG input/output leads

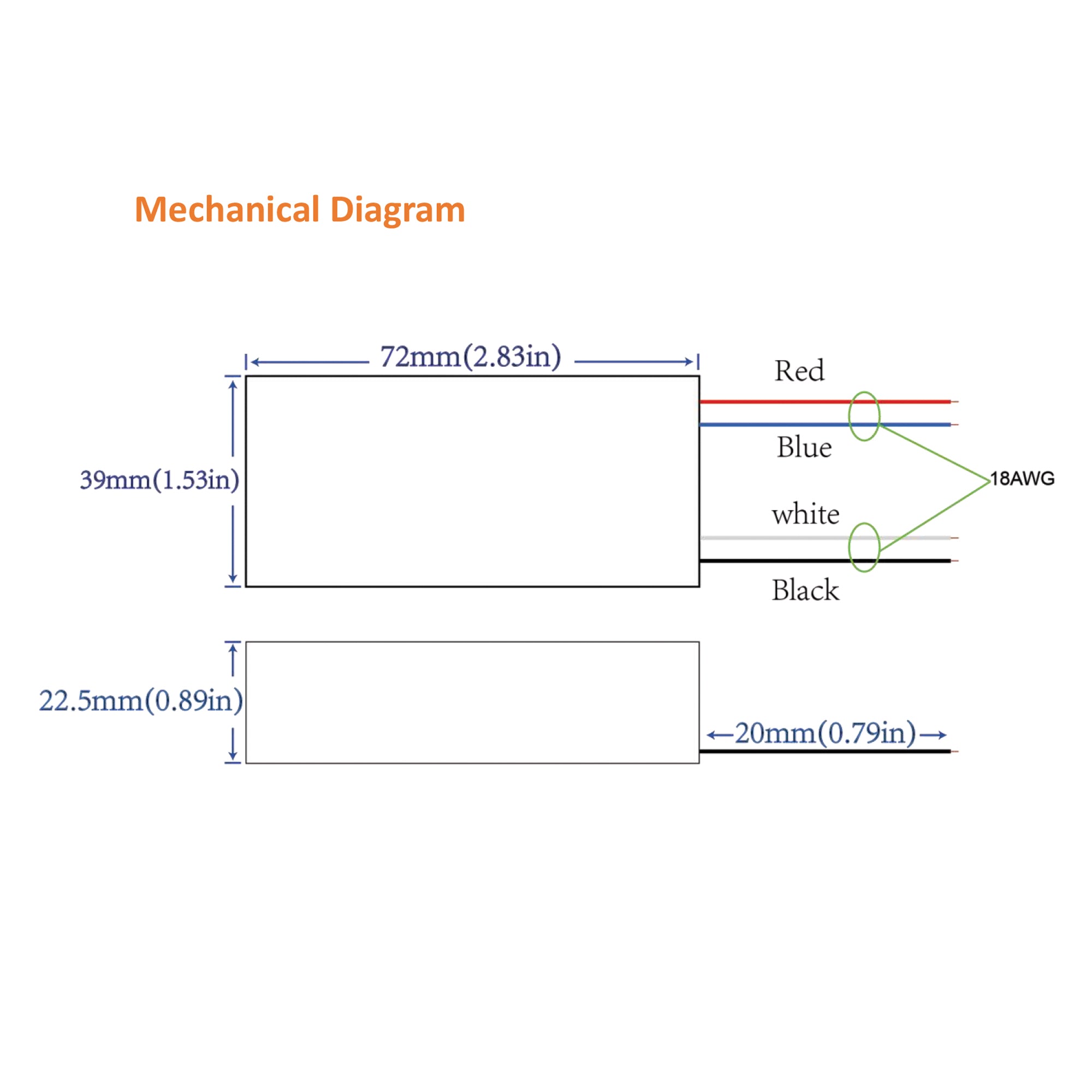

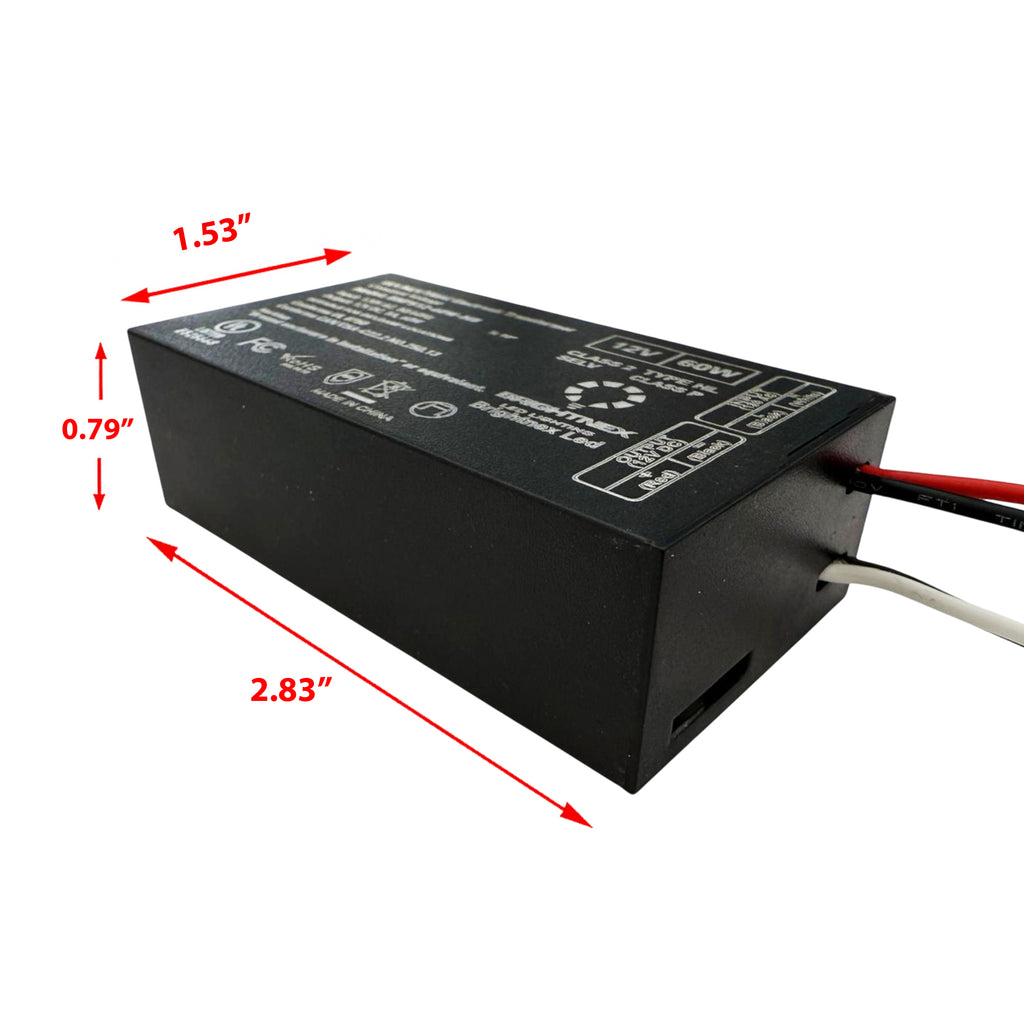

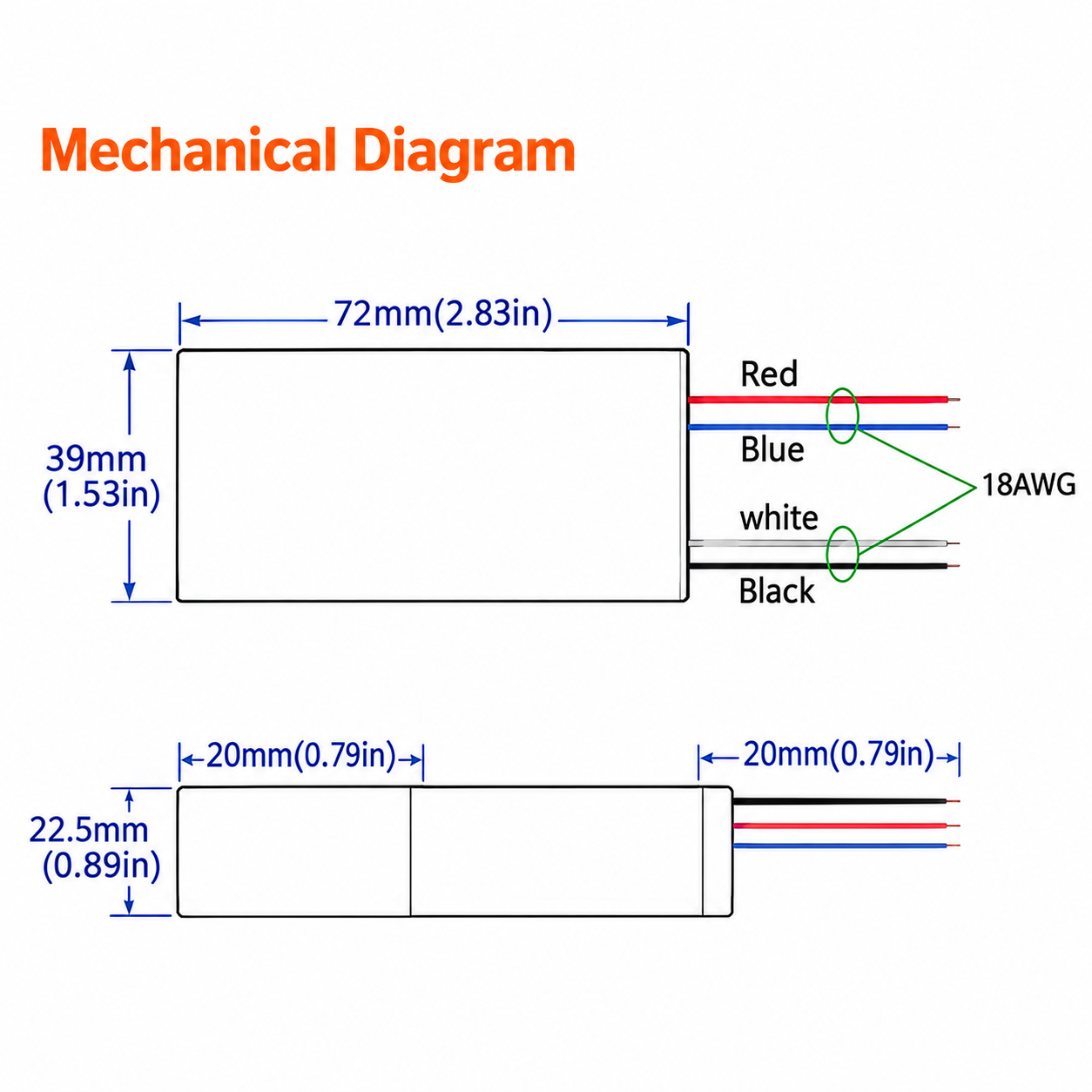

  • Dimensions: 2.89" Ɨ 1.53" Ɨ 0.89"

  • Certifications: UL Listed, Class 2, Class P, Type HL, FCC, RoHS, SELV

  • Location Rating: Dry and Damp

šŸ’” Typical Applications:

  • 24V LED strip and tape lighting

  • Accent and cove lighting

  • Compact or shallow lighting enclosures

  • Retail display lighting

  • Residential and commercial low-voltage installs

  • Part Number: LA-TRF-24V-60W-C-D1-C2P

Professional Installation Recommended: Consult a licensed Electrician
