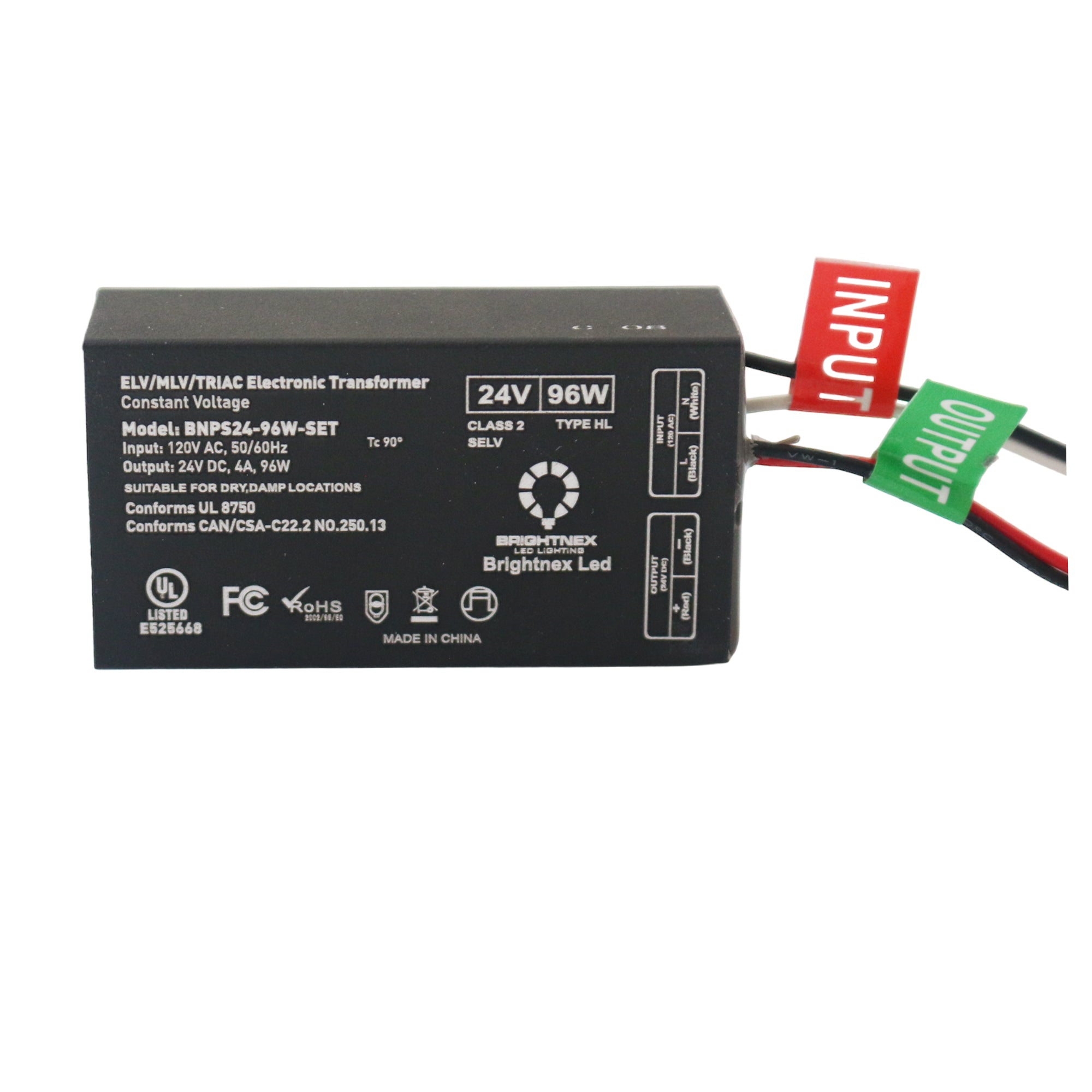

Specification label of 24V 96W dimmable LED transformer showing electrical ratings and certifications, class2, class p

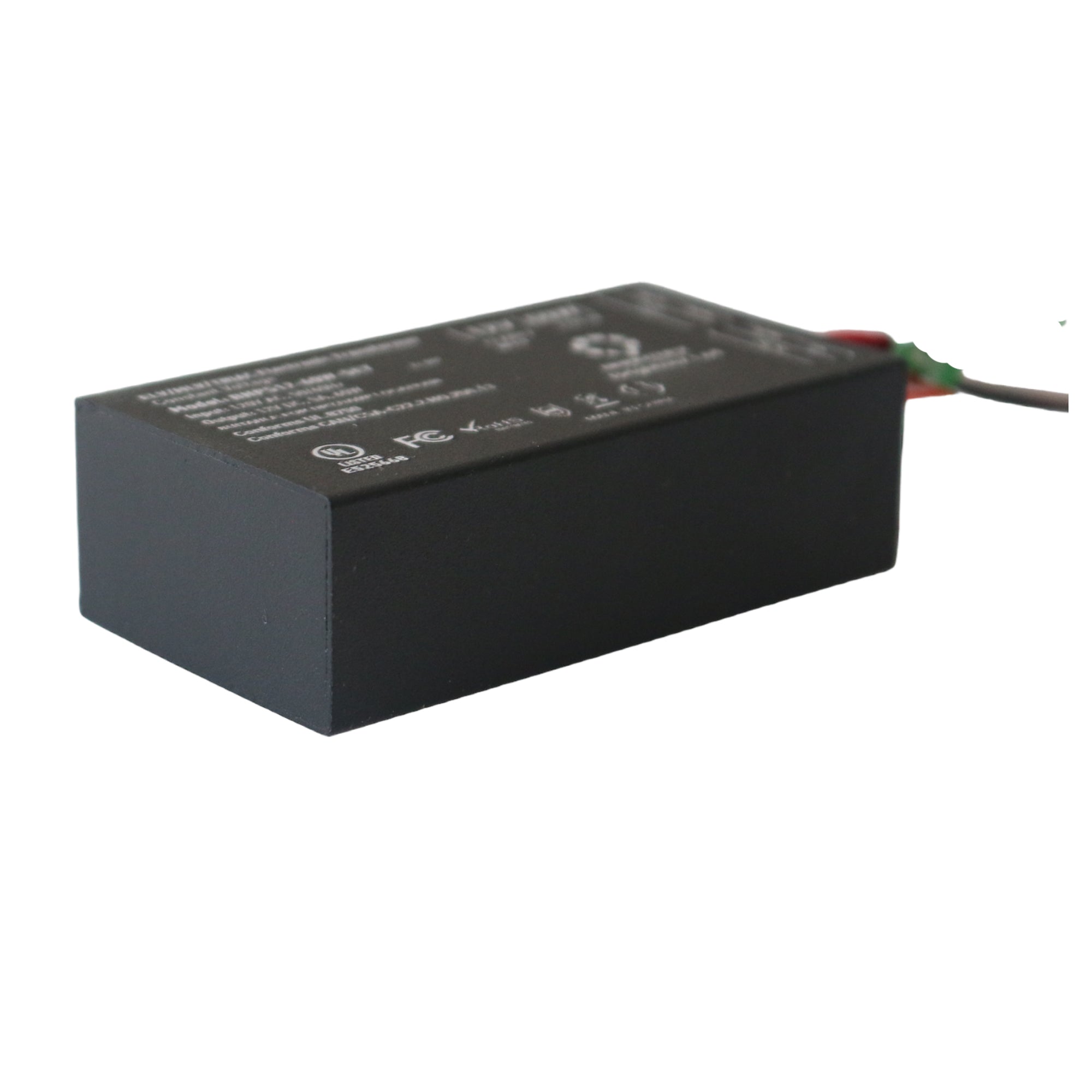

Compact 96W 24V dimmable LED transformer angled view showing constant voltage LED transformer with output wires

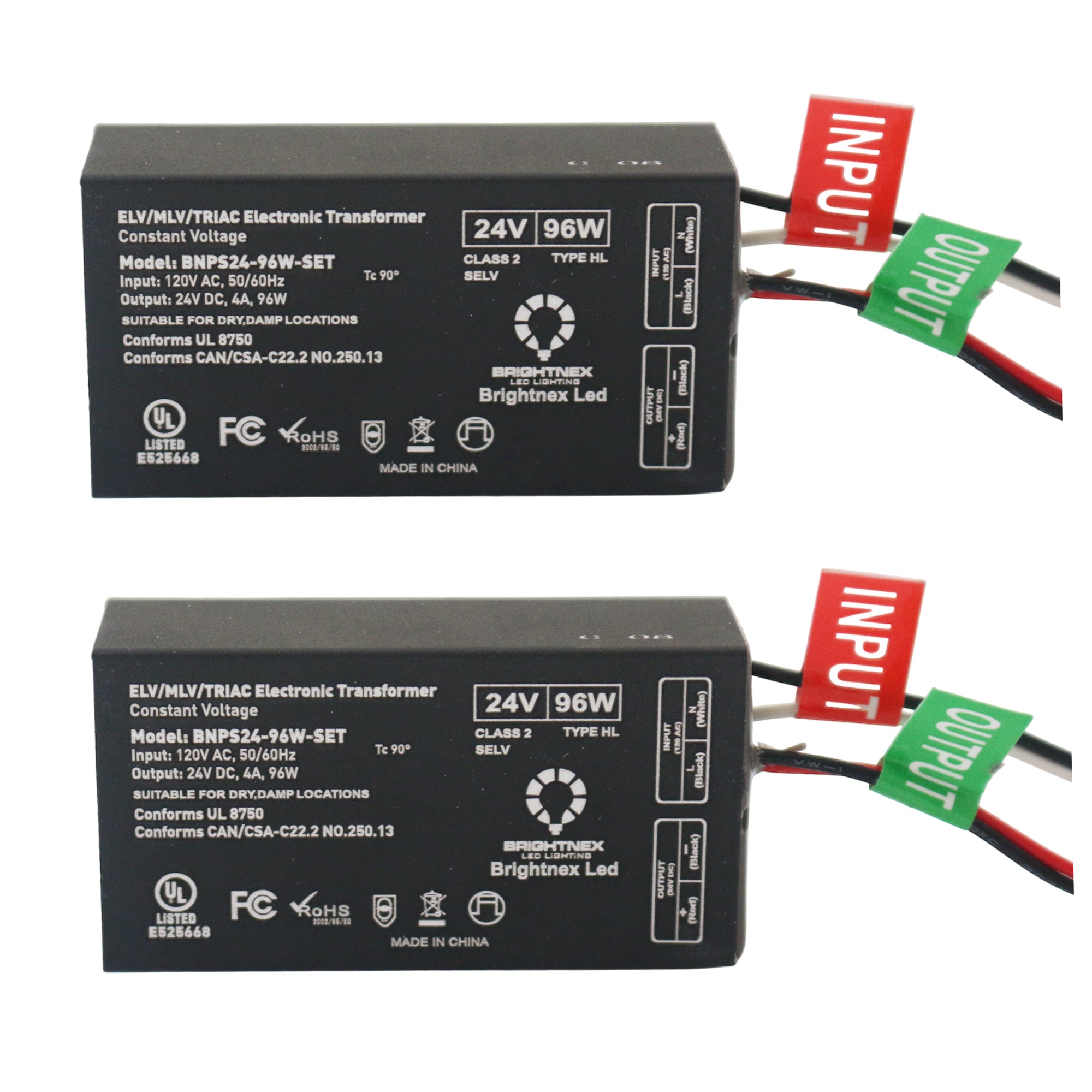

Specification label of 24V 96W dimmable LED transformer showing electrical ratings and certifications, class 2, class p
Compact 96W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, P
Compact 96W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, P
Roll over image to zoom in Click on image to zoom
Compact 96W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, PCompact 96W 24V dimmable LED transformer with labeled dimensions showing length width and height measurementsInfographic on how to choose a compact dimmable LED transformer with UL listing, covering voltage selection, load calculation, dimmer compatibility, efficiency, installation location, and built-in safety protections Smallest Dimmable LED Driver (Dimmable LED Transformer), 24V, 96WSpecification label of 24V 96W dimmable LED transformer showing electrical ratings and certifications, class2, class pCompact 96W 24V dimmable LED transformer angled view showing constant voltage LED transformer with output wiresSpecification label of 24V 96W dimmable LED transformer showing electrical ratings and certifications, class 2, class pCompact 96W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, PCompact 96W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, P

Compact 96W Dimmable LED Transformer ā€“ 24V | TRIAC/ELV/MLV Compatible | UL Class 2, P

LA LED Lighting
Quantity: 1 Item
Price:
$39.99

Description

This compact 96W dimmable transformer delivers a constant 24V DC output, perfect for powering LED strip lighting, cove lighting, and low-voltage architectural fixtures. It supports full-range dimming (0ā€“100%) using TRIAC, ELV, or MLV wall dimmers, including popular options like Lutron Diva and CL series.

The aluminum housing is compact (under 3" long) and is rated for dry and damp locations. Built-in short-circuit and overload protection ensure safe operation. With high efficiency and low THD, it provides reliable, high-quality power for LED lighting systems.

šŸ”§ Key Features:

  • Output Power: 96W

  • Output Voltage: 24V DC

  • Output Current: 4A

  • Input Voltage: 120V AC | Frequency: 47ā€“63Hz

  • Dimming: TRIAC / ELV / MLV (0ā€“100%)

  • Efficiency: 86% @ 120VAC (full load)

  • Power Factor: 0.95 typical

  • THD: < 20%

  • Load Range: Works reliably from 20ā€“100%

  • Protections:

    • Short-circuit ā€“ hiccup mode, auto-recovery

    • Overload ā€“ voltage/power reduction, auto-recovery

  • Operating Temp: -40Ā°C to +60Ā°C

  • Humidity: 20ā€“95% RH (non-condensing)

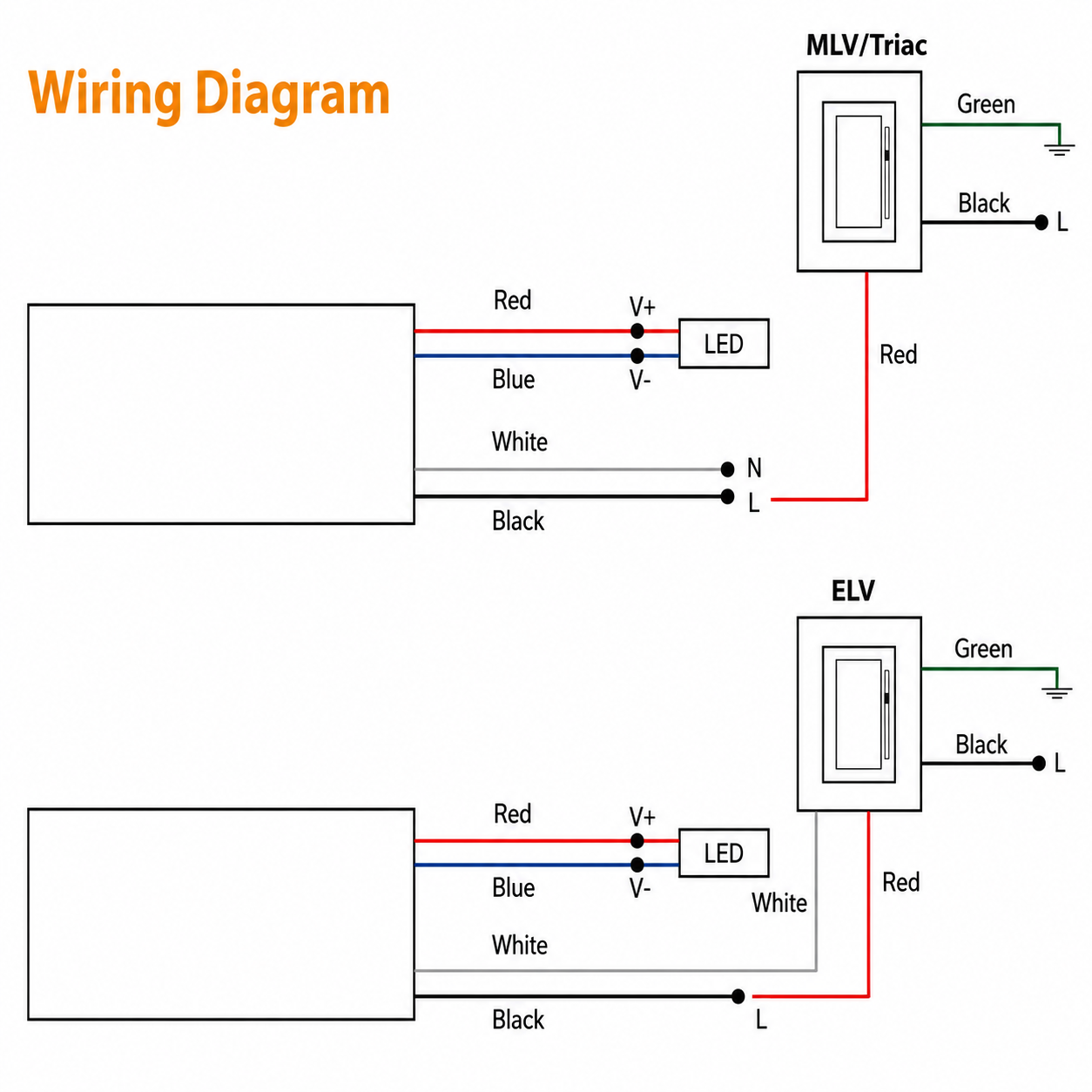

  • Wiring: 18 AWG input & output leads

  • Leakage Current: < 0.5mA @ 120V

  • Enclosure Material: Aluminum

  • Location Rating: Dry & Damp

  • Certifications: UL Listed, Class 2, Class P, Type HL, FCC, RoHS, SELV

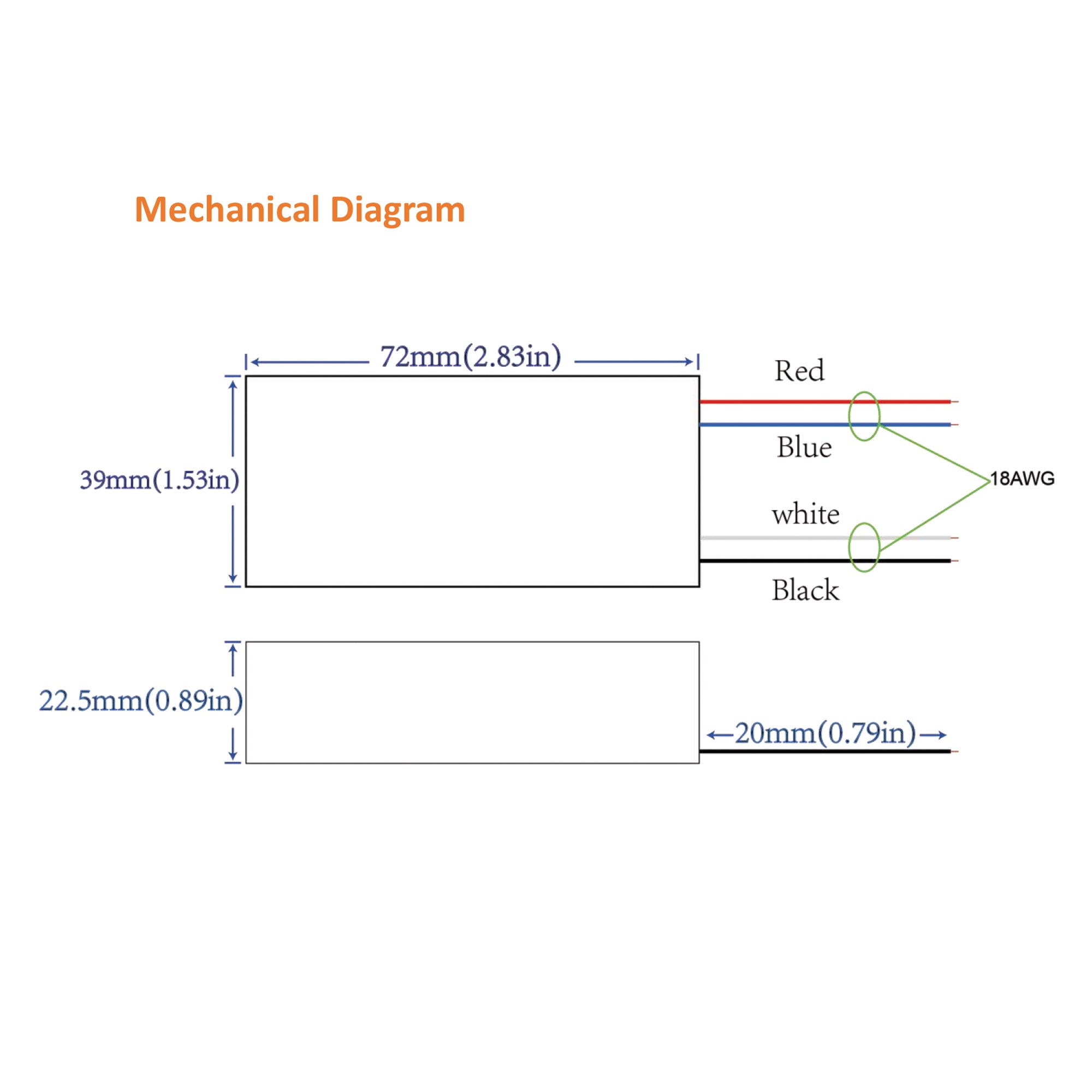

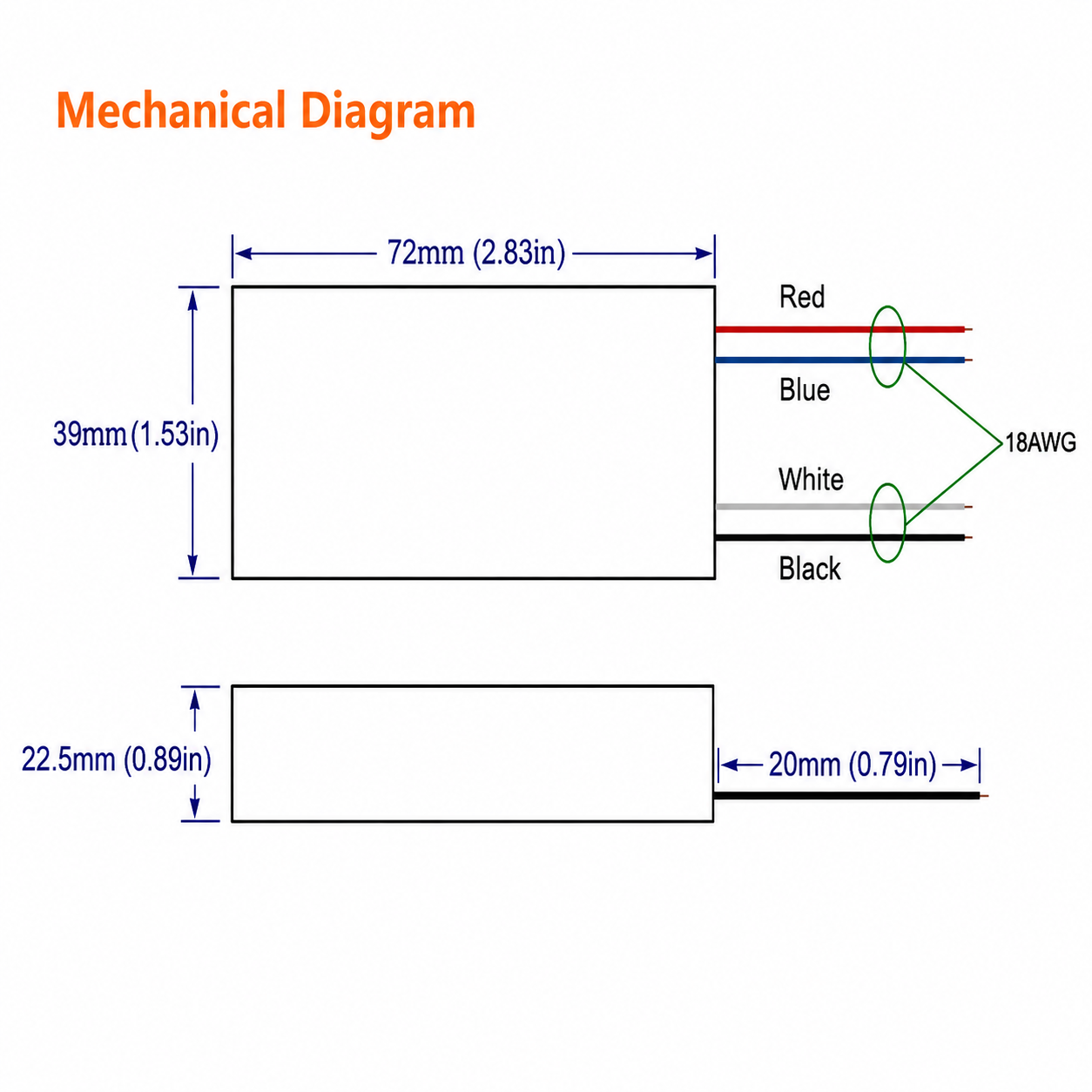

  • Dimensions: 2.89" Ɨ 1.53" Ɨ 0.89"

šŸ’” Typical Applications:

  • 24V LED strip and tape lighting

  • Under-cabinet and accent lighting

  • Commercial or retail display lighting

  • Tight-space installations

  • Residential LED lighting projects

  • Part Number: LA-TRF-24V-96W-C-D1-C2P

Professional Installation Recommended: Consult a licensed Electrician
