Description

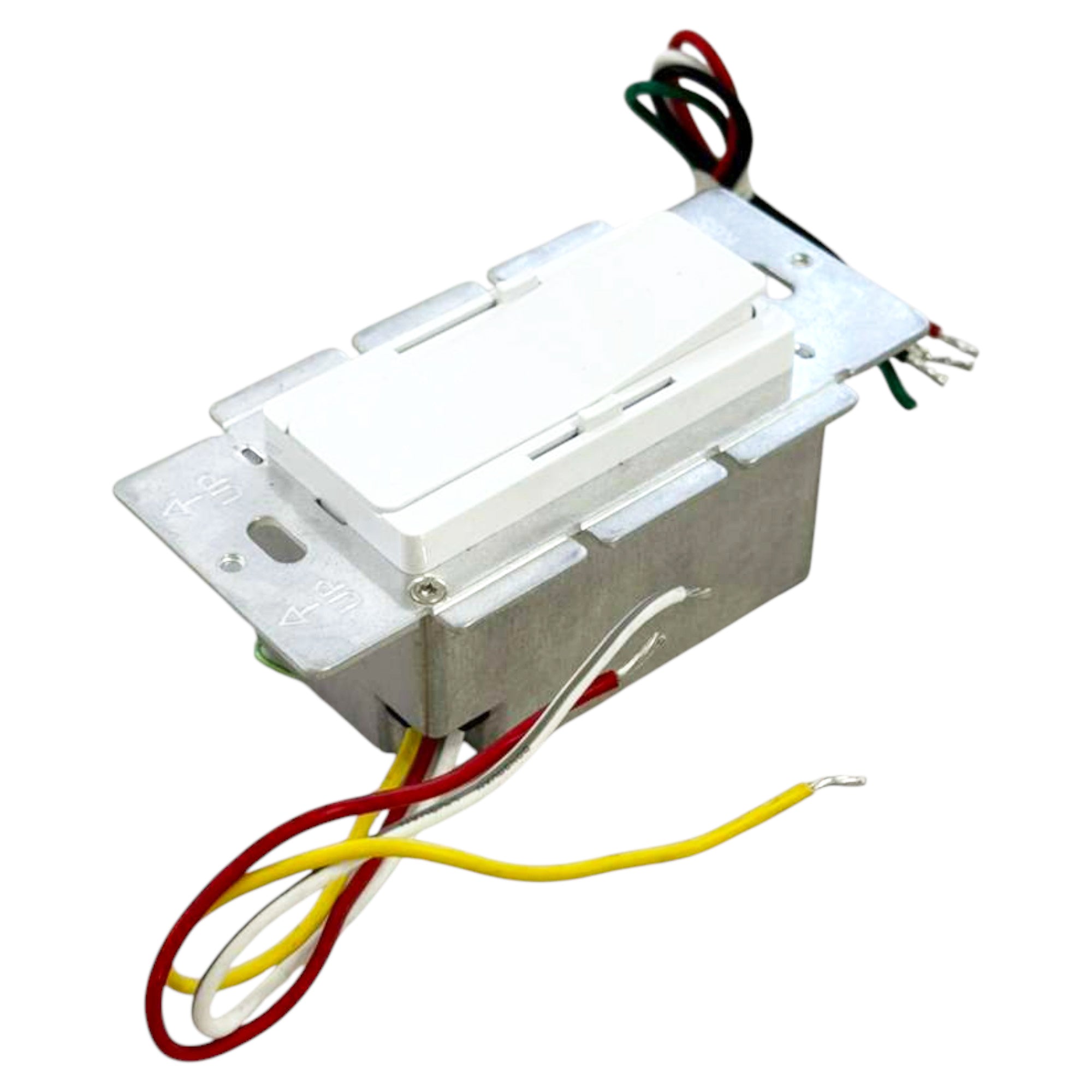

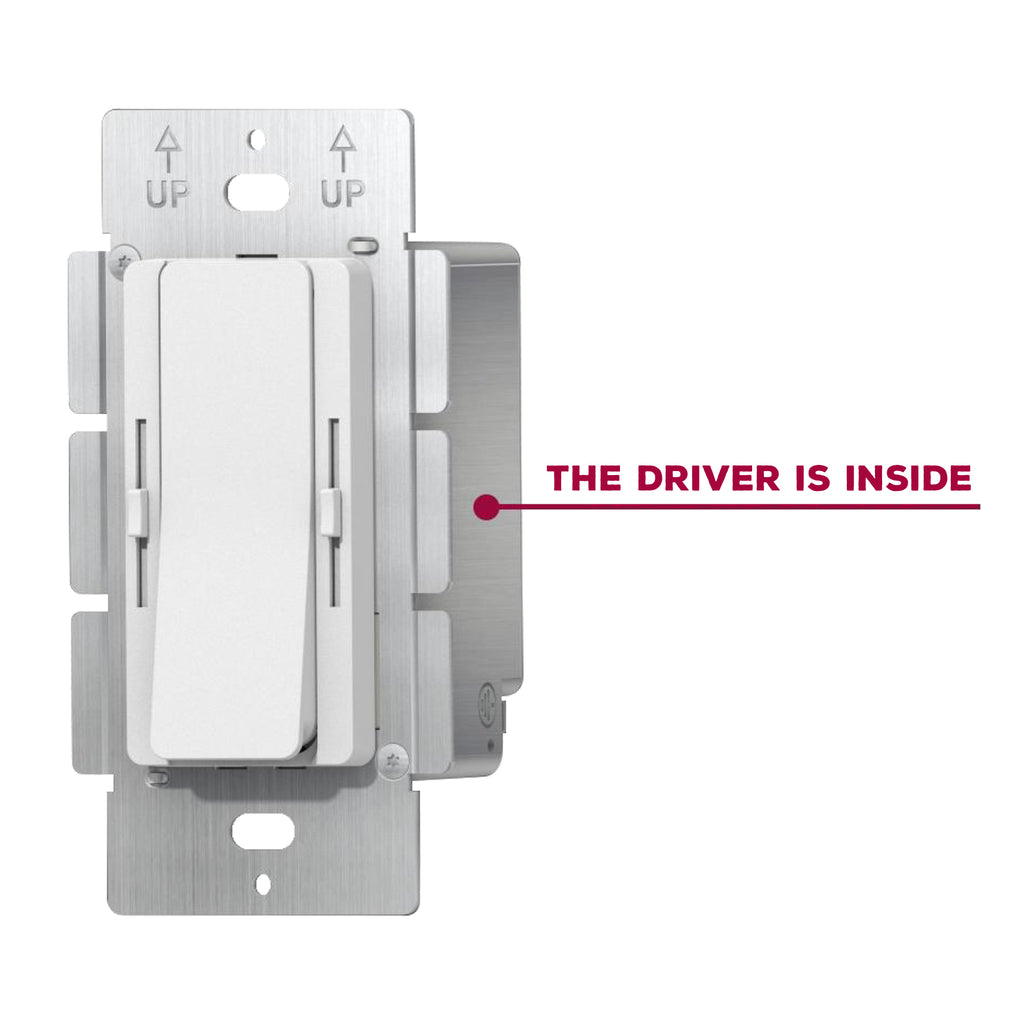

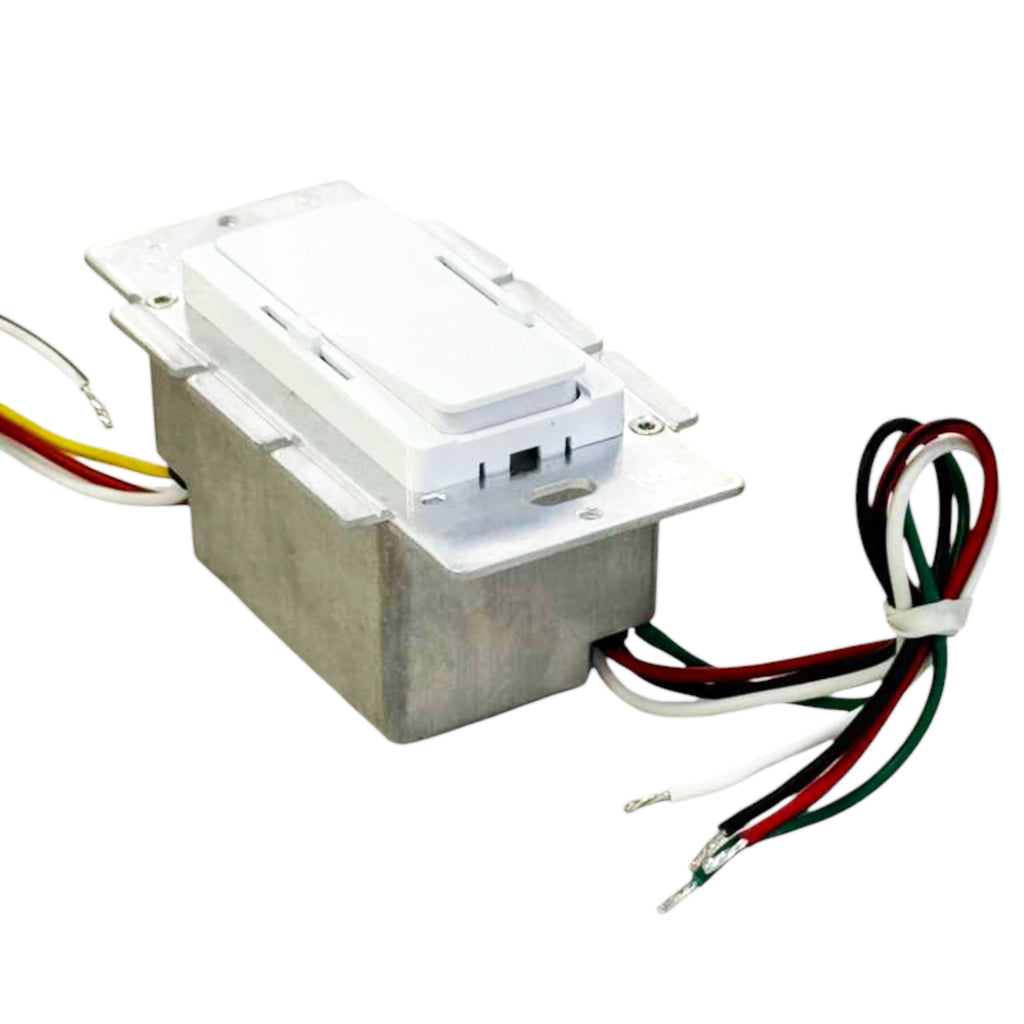

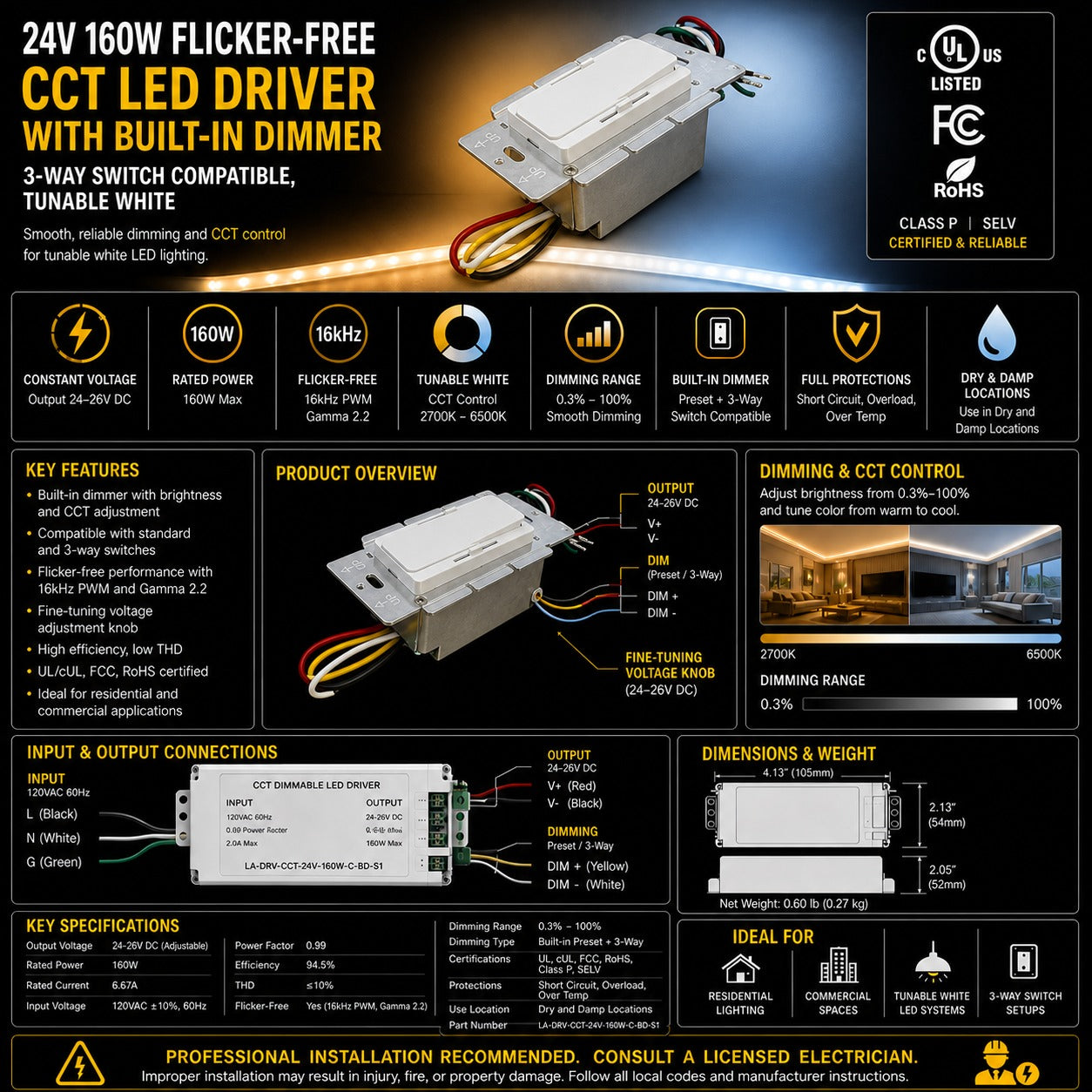

The 24V 160W CCT LED Driver with Built-In Dimmer is a professional-grade constant-voltage power supply engineered for demanding tunable white LED lighting applications. Combining high-capacity power delivery with advanced integrated dimming technology, this driver provides exceptional performance while simplifying installation by eliminating the need for external dimming controls.

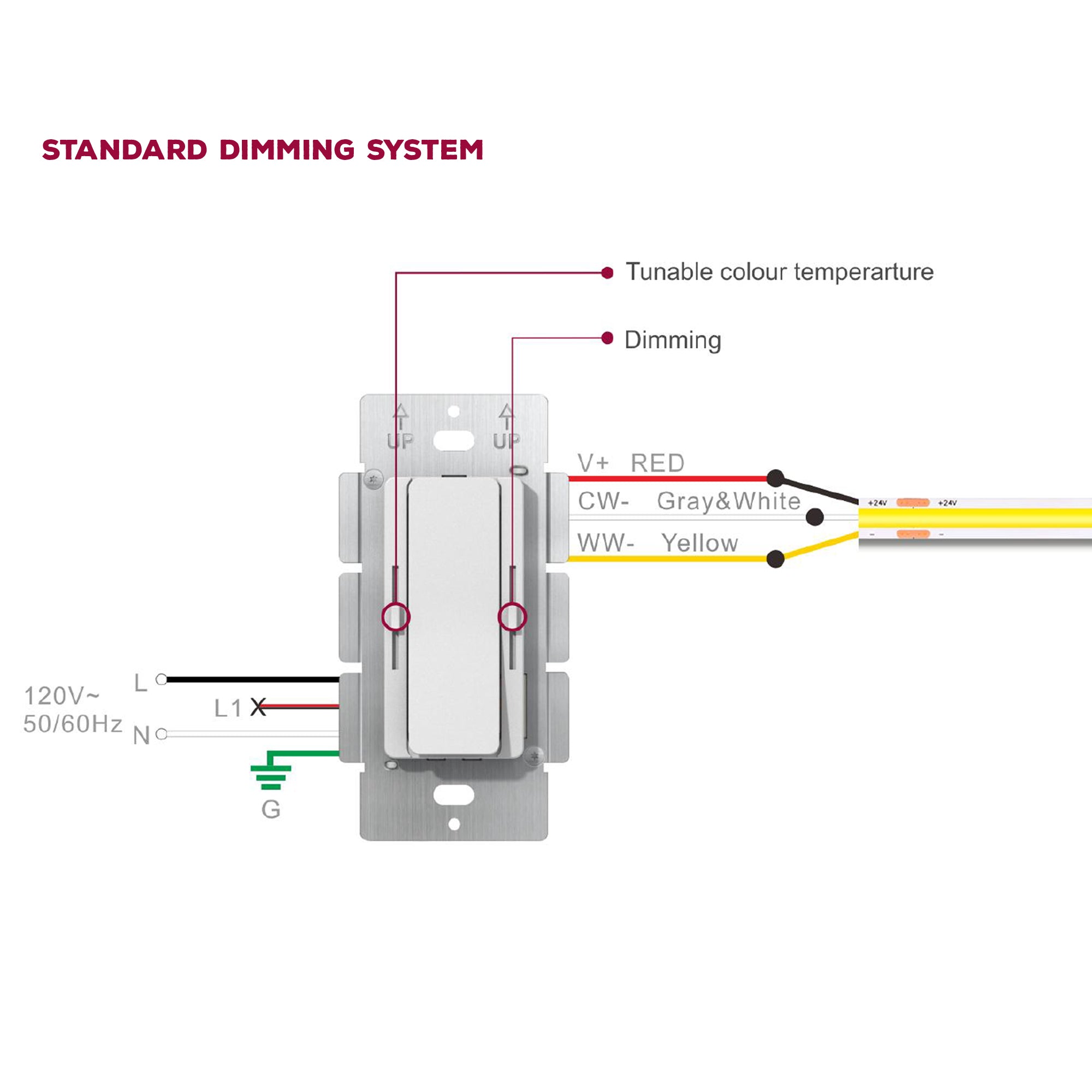

Featuring a built-in dimmer, the driver delivers smooth, flicker-free brightness adjustment, allowing precise control over lighting levels for enhanced comfort and energy efficiency. It is also compatible with standard 3-way wall switches, enabling convenient operation from multiple locations—ideal for residential, hospitality, retail, and commercial environments.

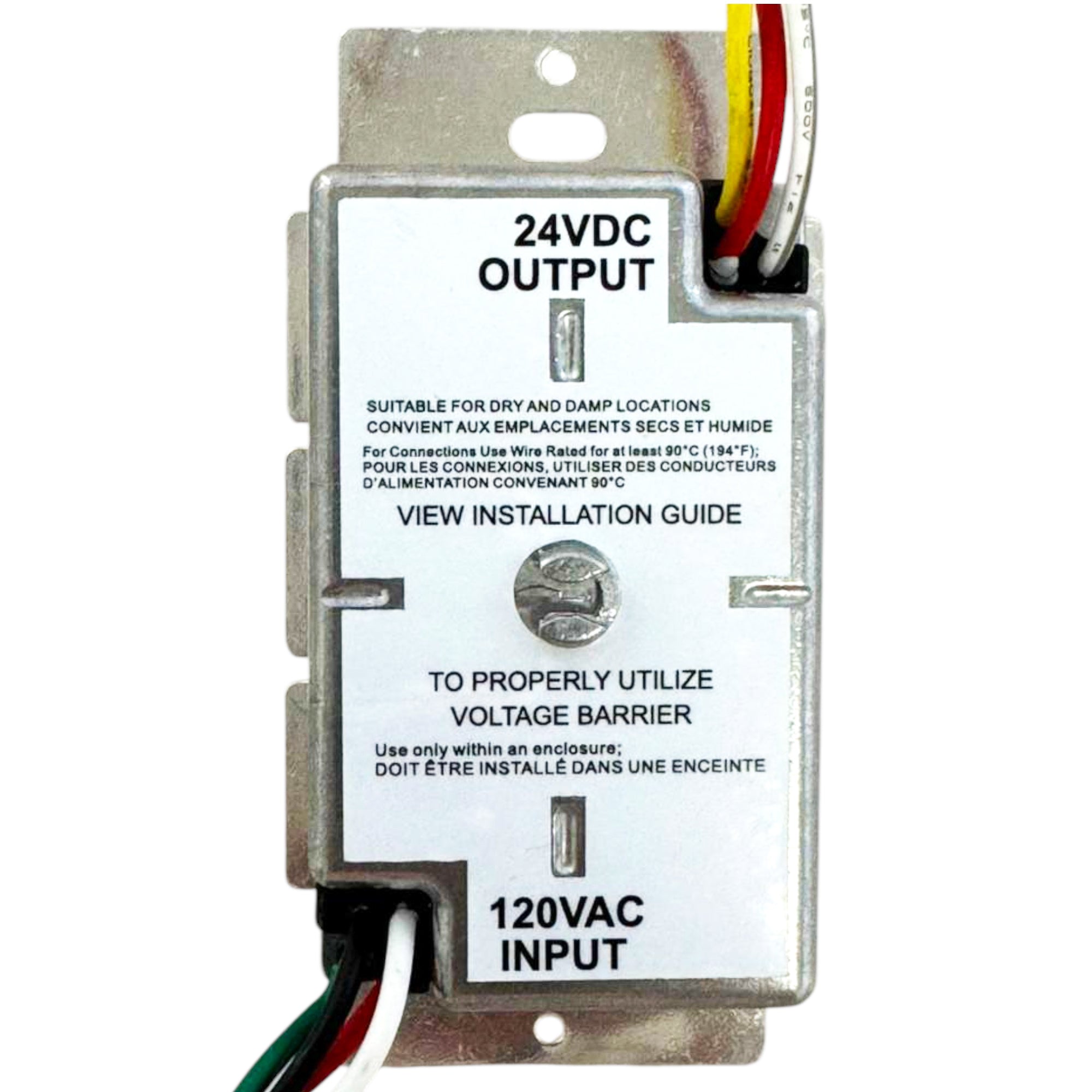

A fine-tuning voltage adjustment knob is integrated into the driver, allowing installers to accurately calibrate the output voltage for optimal LED performance, minimize voltage drop on longer runs, and maintain consistent illumination throughout the lighting system.
With a 24V DC constant-voltage output and a 160W maximum power rating, this driver is designed to support larger LED strip installations and higher electrical loads. It is an excellent choice for CCT tunable white LED strip lights, architectural lighting, cove lighting, under-cabinet lighting, display lighting, hospitality lighting, and other professional low-voltage LED applications requiring dependable power and advanced lighting control.
Built with reliability, efficiency, and long-term performance in mind, this driver is suitable for both new construction and retrofit projects where high-performance LED power management is essential.
⭐ Key Features
- Built-In LED Dimmer

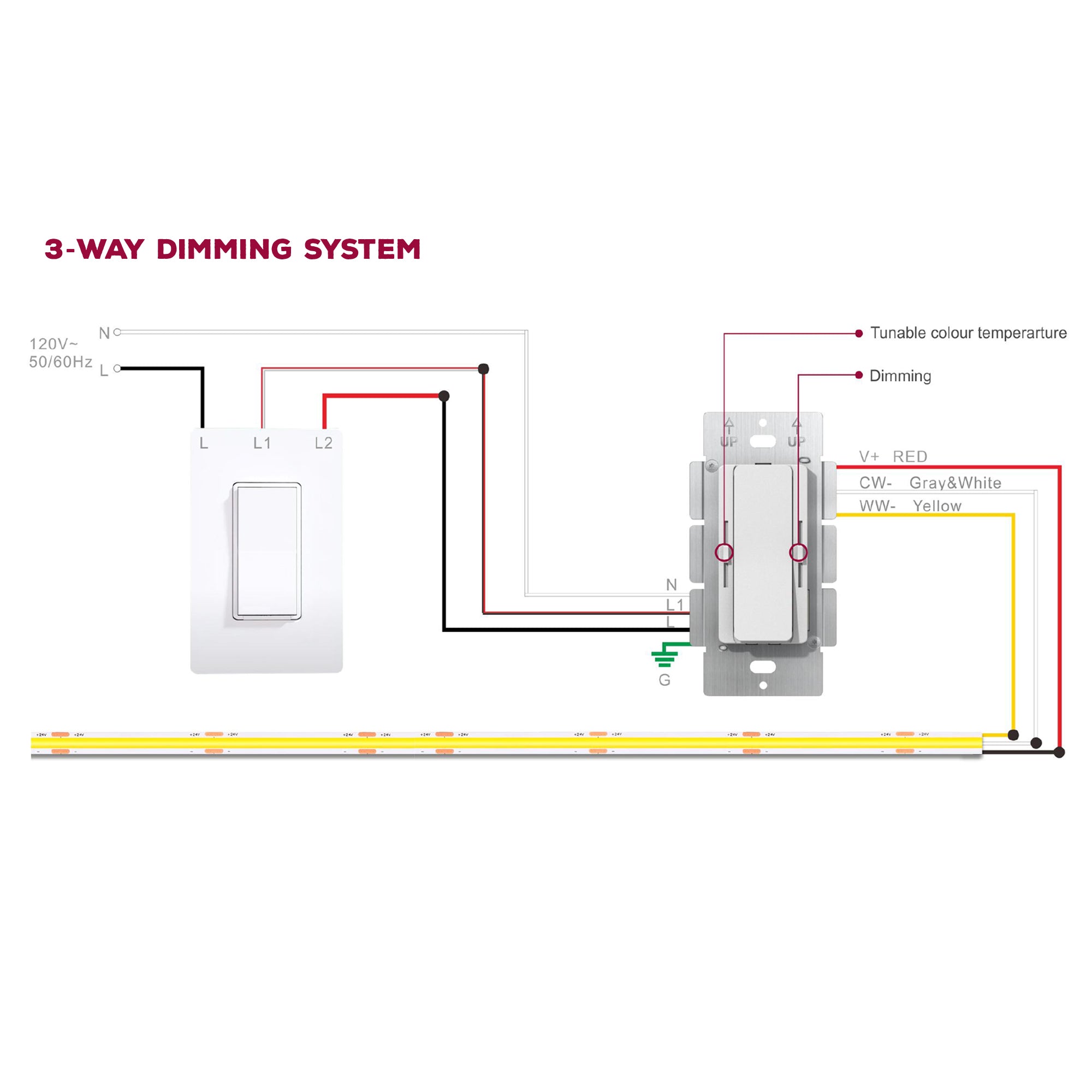

- Compatible with Standard 3-Way Wall Switches
- Fine-Tuning Output Voltage Adjustment Knob
- Constant 24V DC Output
- 160W Maximum Output Power
- Designed for CCT Tunable White LED Lighting Systems
- Smooth, Flicker-Free Dimming Performance
- Stable Constant Voltage for Consistent LED Operation
- Supports Higher-Power LED Installations
- Compact, Professional-Grade Design
- Suitable for Residential, Commercial, Hospitality, and Architectural Lighting Applications
- Ideal for LED Strip Lights, Cove Lighting, Under-Cabinet Lighting, Display Lighting, Accent Lighting, and Linear LED Systems
📐 Key Specifications
-
Output Voltage: Adjustable 24–26V DC
-
Rated Power: 160W
-
Rated Current: 6.67A
-
Input Voltage: 120VAC ±10%, 60Hz
-
Power Factor: 0.99
-
Efficiency: 94.5%
-
THD: ≤10%
-
Flicker-Free: Yes (16kHz PWM, Gamma 2.2)
-
Dimming Range: 0.3% – 100%
-
Dimming Type: Built-in Preset + 3-Way
-
Certifications: UL, cUL, FCC, RoHS, Class P, SELV
-
Protections: Short Circuit, Overload, Over Temp
-
Use Location: Dry and Damp Locations
- Part Number: LA-DRV-CCT-24V-160W-C-BD-S1

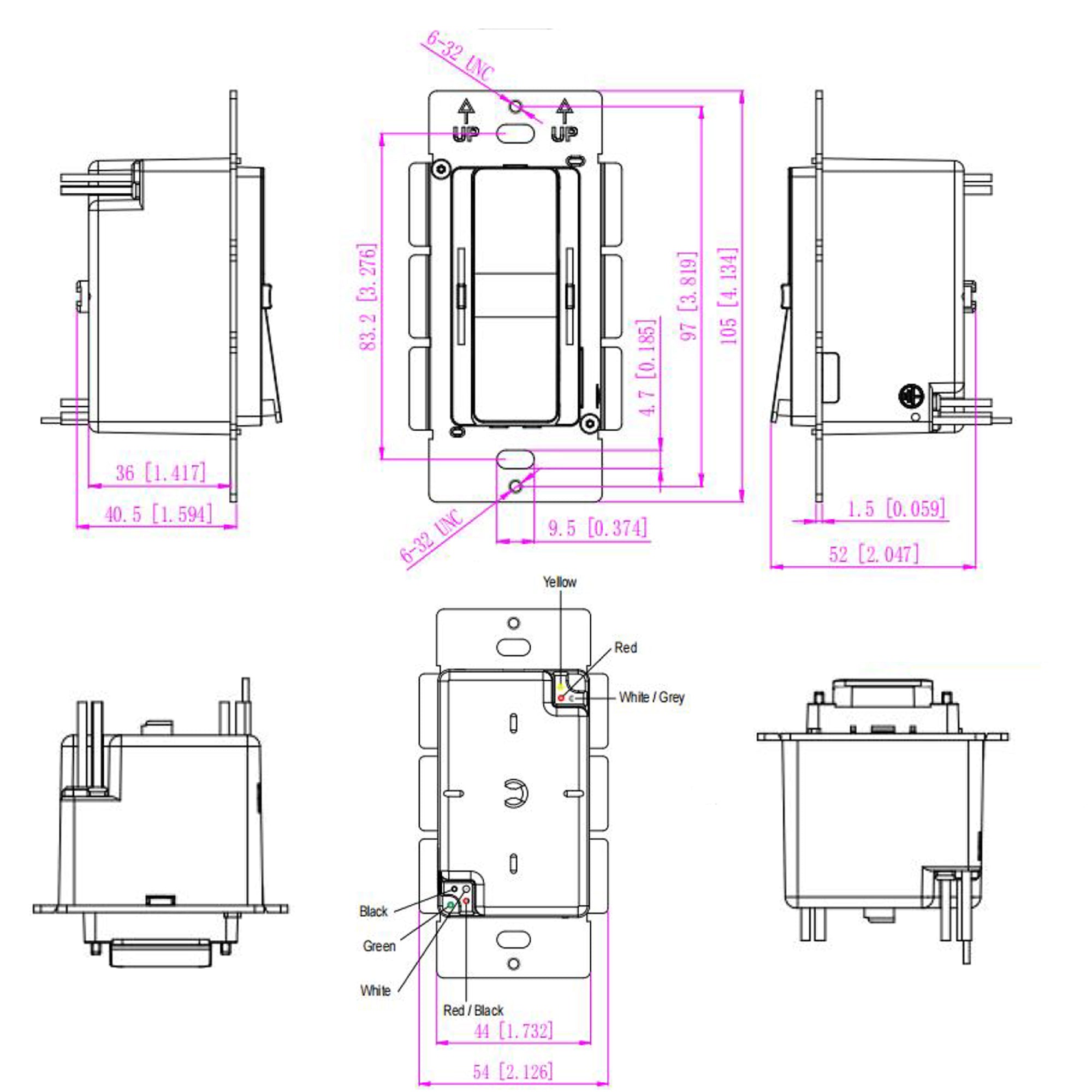

📏 Dimensions & Weight
-
Dimensions: 4.13" × 2.13" × 2.05" (105 × 54 × 52 mm)
-
Net Weight: 0.60 lb (0.27 kg)
