Description

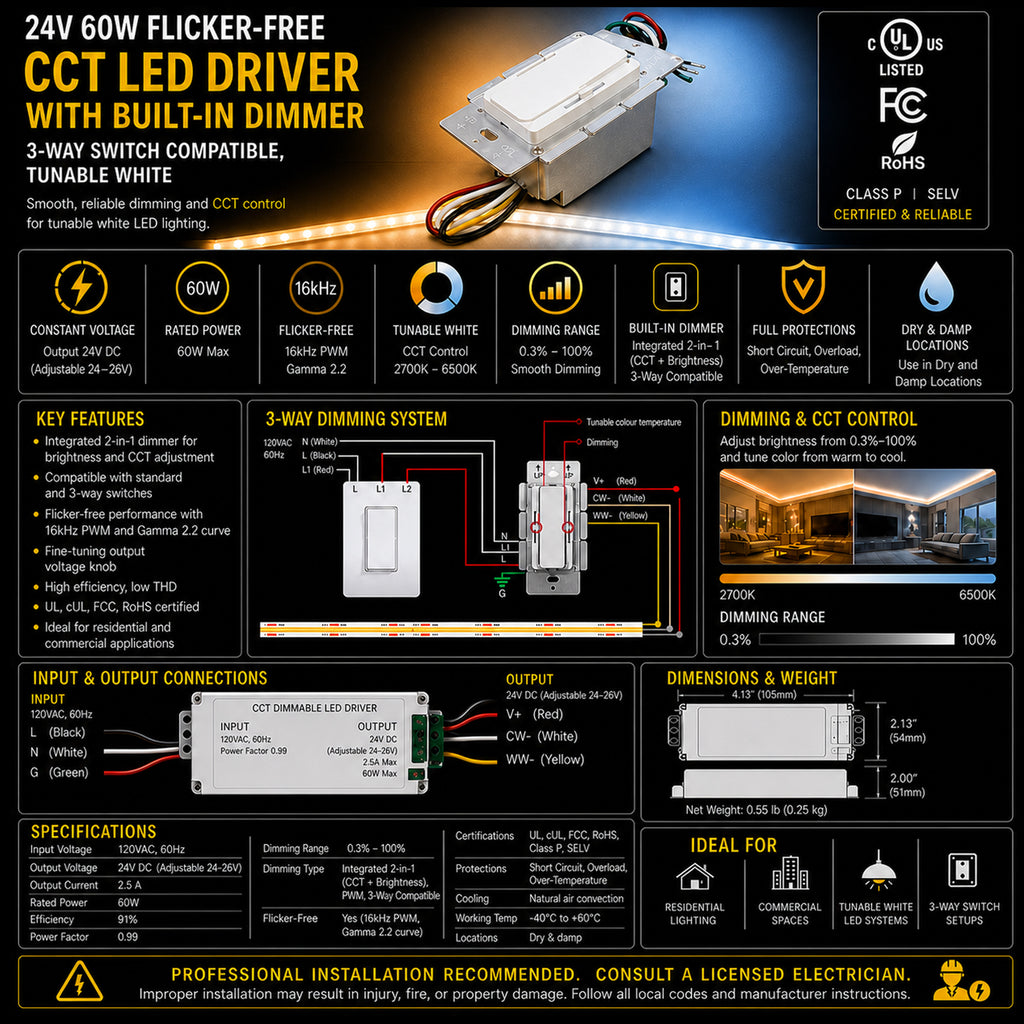

The 24V 60W CCT LED Driver with Integrated Dimmer is a premium constant-voltage power supply engineered for tunable white LED lighting systems. Designed for reliable performance and precise lighting control, this driver combines stable power delivery with an integrated dimming solution in one compact unit.
Featuring a built-in dimmer, the driver allows smooth brightness adjustment without requiring an external dimming module. It is also compatible with standard 3-way wall switches, providing convenient control from multiple locations while simplifying installation in residential and commercial applications.
For enhanced performance and installation flexibility, the driver includes a fine-tuning voltage adjustment knob, allowing installers to accurately calibrate the output voltage for optimal LED strip performance and consistent light output.
Designed for 24V constant-voltage LED products, this driver is ideal for CCT tunable LED strip lights, under-cabinet lighting, cove lighting, architectural illumination, display lighting, and other low-voltage LED applications. Its durable construction, reliable output, and integrated control features make it an excellent choice for both new installations and retrofit projects.
⭐ Key Features
- Built-in LED Dimmer
- Compatible with Standard 3-Way Wall Switches
- Fine-Tuning Output Voltage Adjustment Knob
- Constant 24V DC Output
- 60W Maximum Output Power
- Designed for CCT Tunable White LED Lighting
- Smooth, Flicker-Free Dimming Performance
- Compact Design for Easy Installation
- Reliable Power Supply for Residential & Commercial Applications
- Ideal for LED Strip Lights, Cove Lighting, Under-Cabinet Lighting, and Architectural Lighting
This version reads much more like a premium manufacturer's product page and emphasizes the value-added features (built-in dimmer, 3-way compatibility, and fine-tuning adjustment) instead of simply listing specifications.
📐 Specifications
-
Input Voltage: 120VAC, 60Hz
-
Output Voltage: 24V DC (adjustable 24–26V)
-
Output Current: 2.5 A
-
Rated Power: 60W
-
Efficiency: 91%
-
Power Factor: 0.99
-
Dimming Range: 0.3% – 100%
-
Dimming Type: Integrated 2-in-1 (CCT + Brightness), PWM, 3-Way Switch Compatible
-
Flicker-Free: Yes (16kHz PWM, Gamma 2.2 curve)
-
Certifications: UL, cUL, FCC, RoHS, Class P, SELV
-
Protections: Short Circuit, Overload, Over-Temperature
-
Cooling: Natural air convection
-
Working Temp: -40°C to +60°C
-
Locations: Dry & damp
- Part Number: LA-DRV-CCT-24V-60W-C-BD-S1
📏 Dimensions & Weight
-
Dimensions: 4.13" × 2.13" × 2.00" (105 × 54 × 51 mm)
-
Net Weight: 0.55 lb (0.25 kg)
