Description

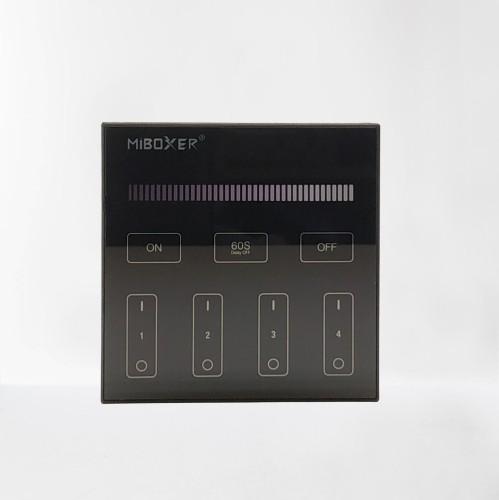

The MiBoxer B1-B Black Single Color LED Wall Controller provides convenient wireless control for single-color LED lighting installations with a sleek, modern black touch-panel design.
Featuring 4-zone control, the B1-B allows compatible single-color LED lighting zones to be managed individually or together. The touch-sensitive brightness slider provides quick and convenient dimming control, making it ideal for residential and commercial LED lighting applications.
Using 2.4GHz RF wireless technology, the controller offers a control distance of up to 30 meters and communicates wirelessly with compatible MiBoxer 2.4GHz single-color LED receivers.
The compact 86 × 86mm wall-panel design provides a clean installed appearance and operates using two AAA batteries, eliminating the need to run control wiring directly to the panel.
Key Features
- Black Single Color LED Wall Controller
- 4 independent lighting zones
- Touch-sensitive brightness adjustment
- Individual or simultaneous zone control
- 2.4GHz RF wireless technology
- Up to 30m control distance
- Modern black touch-panel design
- 86 × 86mm panel size
- Powered by 2 × AAA batteries
- Low standby power consumption
- Compatible with MiBoxer 2.4GHz single-color LED receivers
- Suitable for residential and commercial LED lighting
Technical Specifications
| Specification | Details |
|---|---|
| LA LED Part Number | LA-CTR-B1B-SC-4Z |
| Brand | MiBoxer |
| Model | B1-B |
| Product Type | Single Color Wall Controller |
| Color | Black |
| Zones | 4 Zones |
| Operating Voltage | 3V |
| Battery | 2 × AAA |
| Transmission Frequency | 2400–2483.5MHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Control Distance | Up to 30m |
| Standby Current | 20μA |
| Panel Size | 86 × 86mm |
| Communication | 2.4GHz RF |
Compatibility
The B1-B is designed for single-color LED lighting systems and works wirelessly with compatible MiBoxer 2.4GHz single-color receivers/controllers.
Important: The B1-B is a wireless wall controller and requires a compatible MiBoxer 2.4GHz receiver/controller between the wall panel and LED strip.
Compatible accessories:
FUT036S
Applications
Ideal for:
- Cove lighting
- Under-cabinet lighting
- Living rooms and bedrooms
- Kitchens
- Restaurants and hospitality spaces
- Retail displays
- Offices
- Architectural lighting
- Multi-zone single-color LED installations
