Description
The MiBoxer PA5H 5-Channel High Performance LED Amplifier is designed to expand the load capacity of LED lighting systems while keeping the output signal synchronized with the main controller.
Operating on 12V–24V DC, the PA5H delivers up to 15A per channel with a maximum total output of 30A, making it ideal for larger and higher-power LED strip installations.

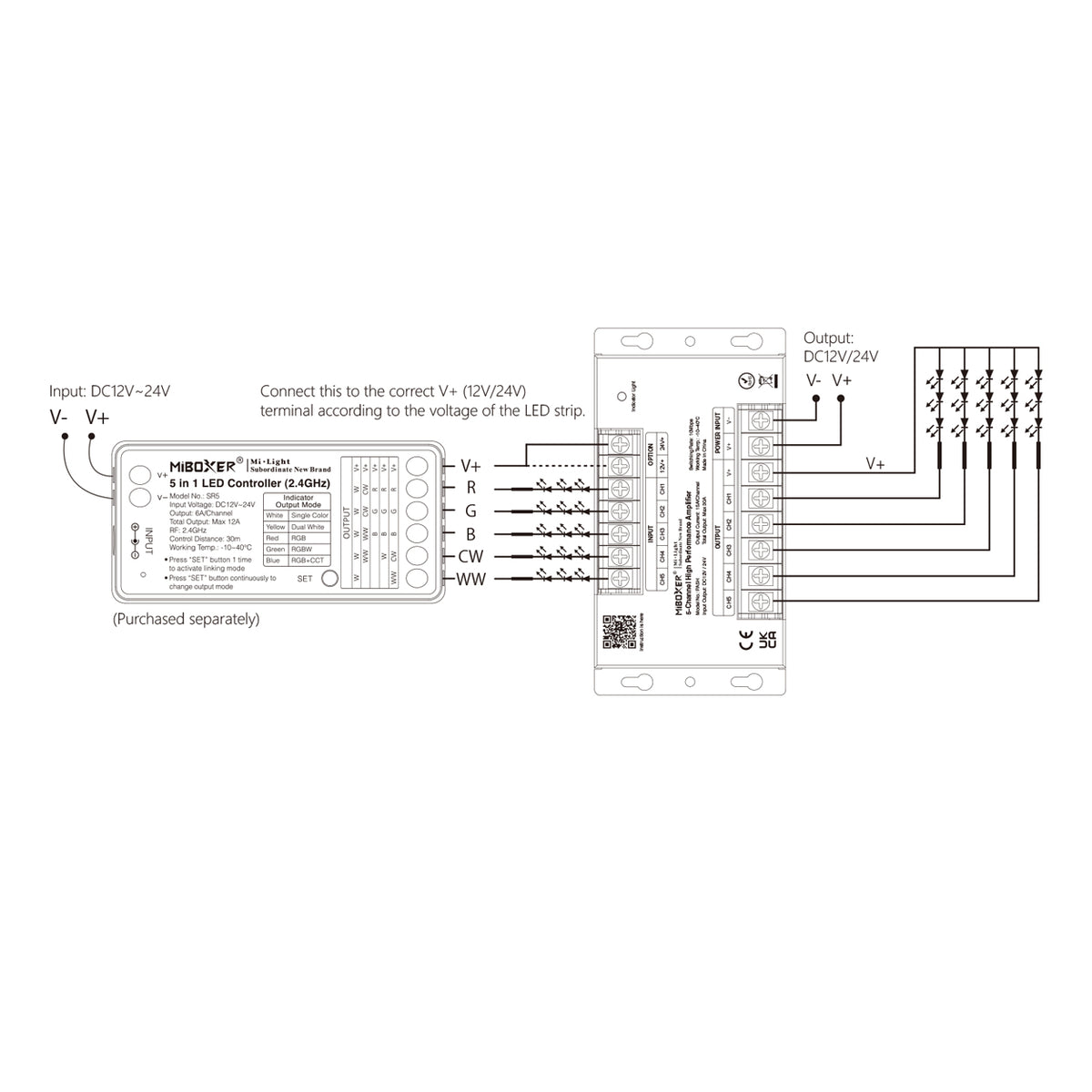

Its five-channel design makes it suitable for RGB+CCT, RGBW, RGB, CCT and single-color PWM LED systems, depending on the connected controller and LED strip configuration. It is compatible with MiBoxer/Mi-Light controllers as well as other common-anode PWM LED controllers.
Key Features
- 5-channel high-performance LED amplifier
- 30A maximum total output
- Up to 15A per channel
- DC 12V–24V
- High-speed 10Mbps signal transmission
- Common-anode connection
- Synchronizes output with the main LED controller
- Compatible with MiBoxer/Mi-Light controllers
- Compatible with PWM LED controllers
- High-current MOSFET design
- IP20 rated
- Operating temperature: -10°C to 40°C
- Ideal for larger LED strip installations

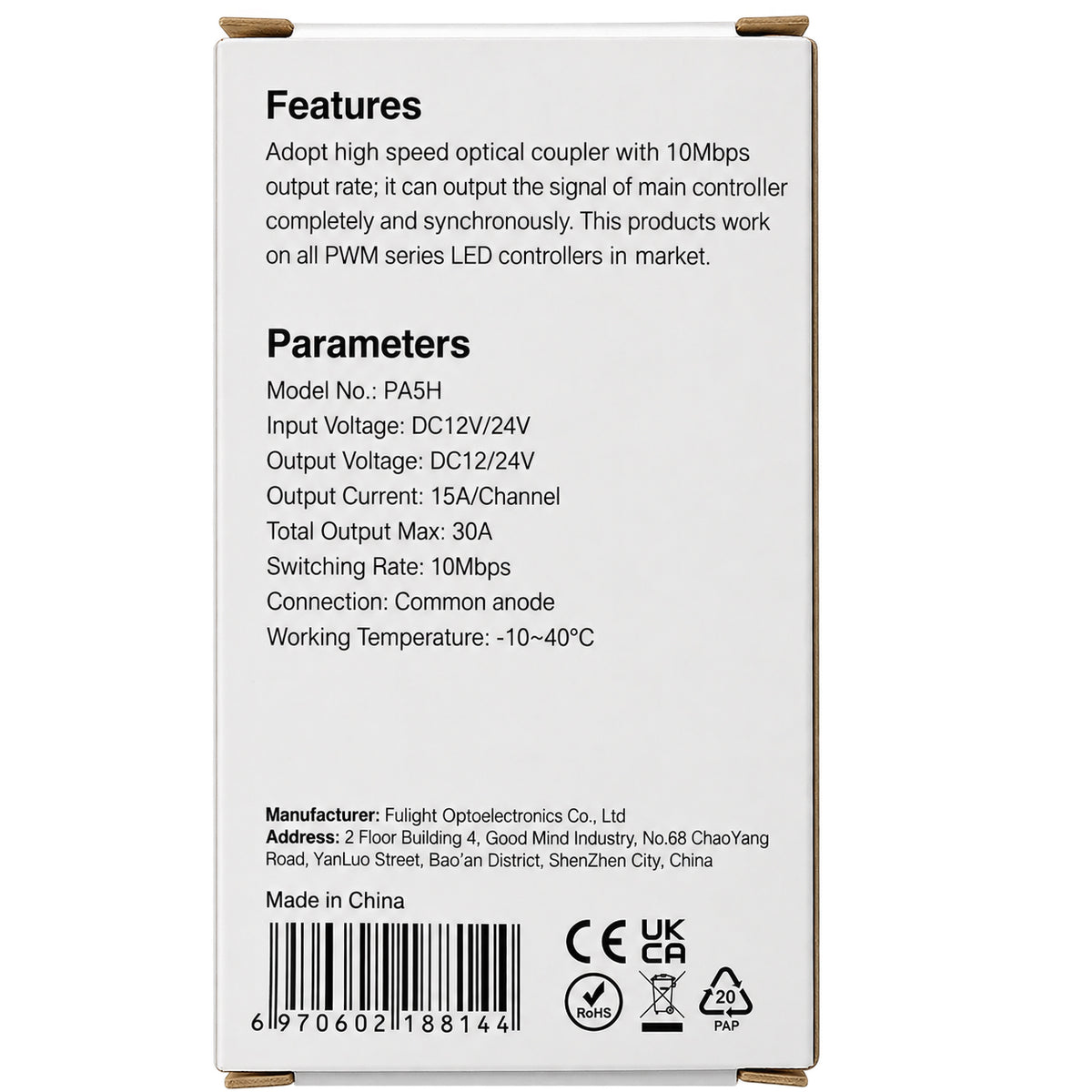

Technical Specifications
| Specification | Details |
|---|---|
| LA LED Part Number | LA-AMP-PA5H-5CH-30A |
| Model | PA5H |
| Product Type | 5-Channel LED Amplifier |
| Input Voltage | DC 12V–24V |
| Output Current | 15A/Channel |
| Total Output | Max. 30A |
| Channels | 5 |
| Switching Rate | 10Mbps |
| Connection | Common Anode |
| IP Rating | IP20 |
| Working Temperature | -10°C to 40°C |
Compatible Accessories:
FUT039
