Description

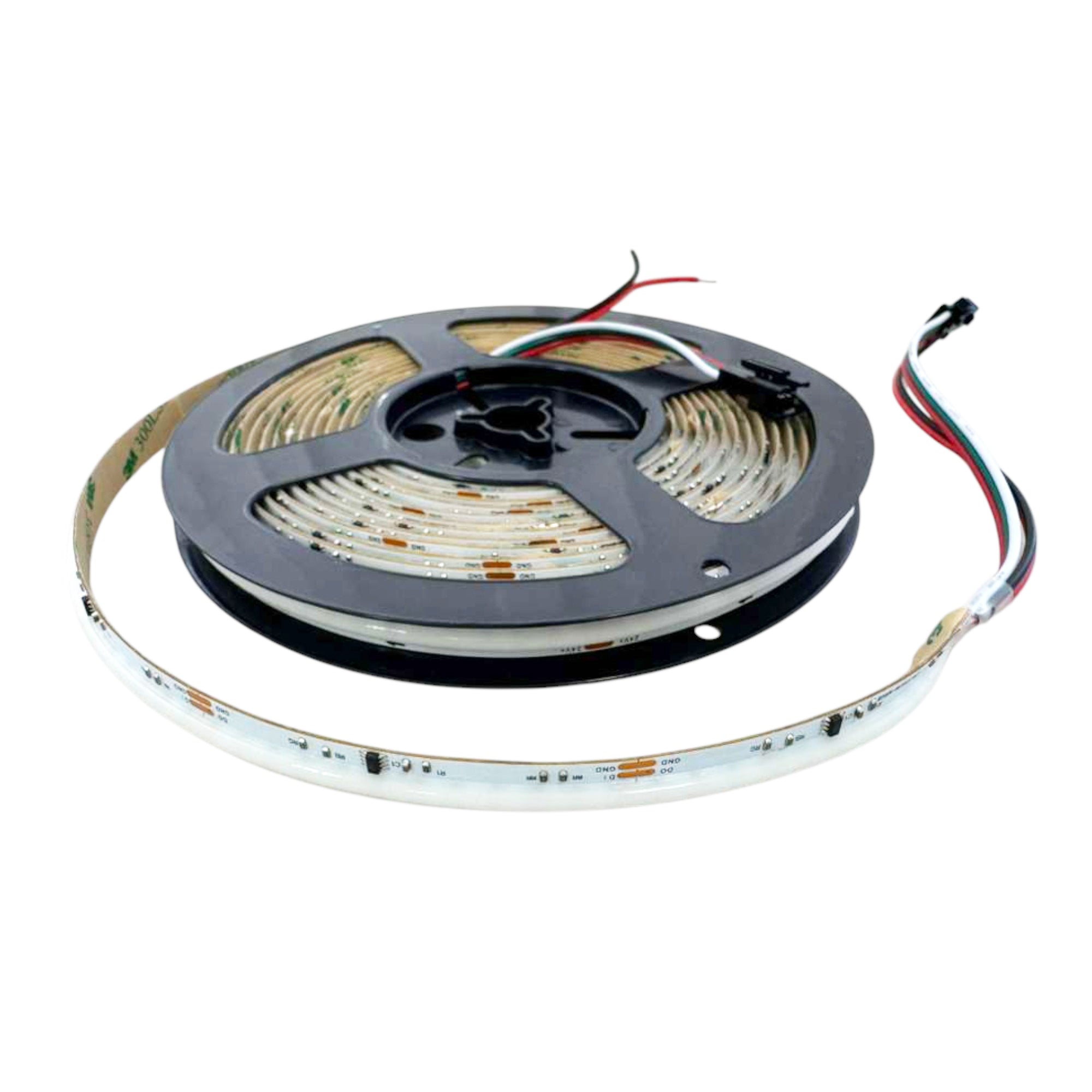

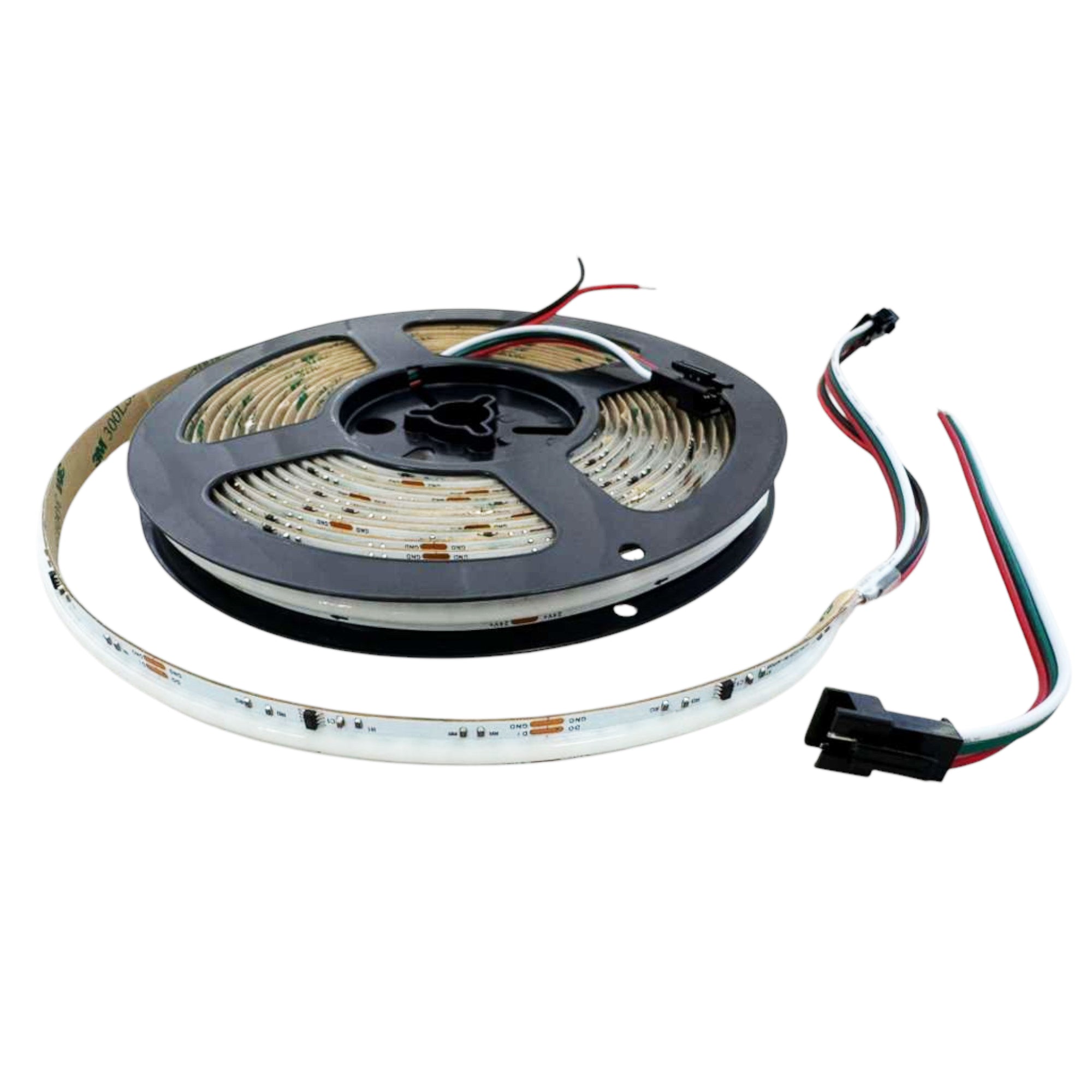

Bring dynamic lighting to your projects with the COB IC RGB LED Strip Light, designed for advanced indoor applications requiring precision and pixel-level control. Powered by WS2811 IC, this strip allows individually addressable RGB lighting with ultra-smooth color transitions.
With 576 LEDs per meter, a 10mm slim PCB, and cut points every 62.5mm, it offers high density, full flexibility, and professional-grade brightness for signage, displays, and ambient installations.
-

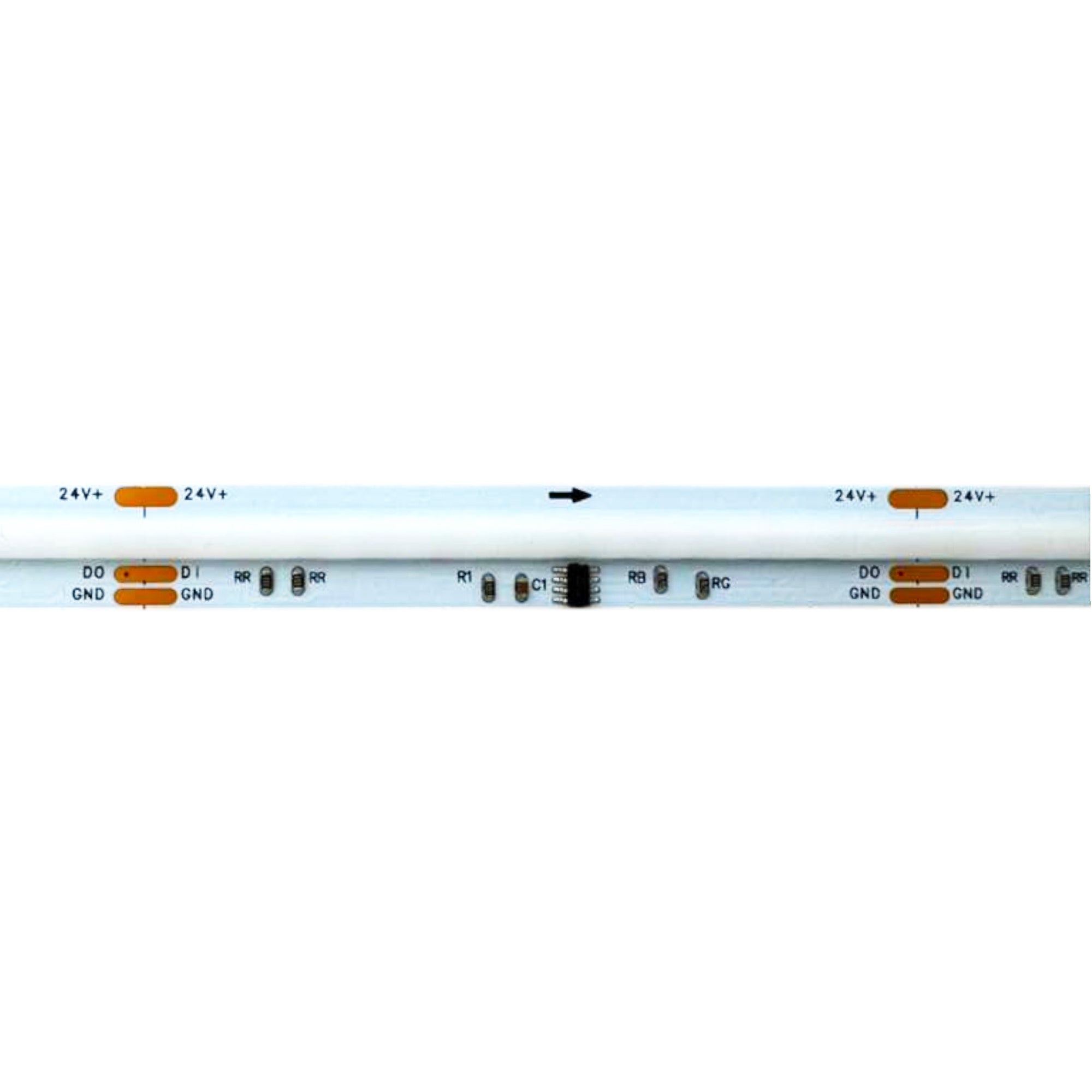

Individually Addressable: WS2811 IC for full RGB pixel control
-
High Density: 576 LEDs/m – seamless, dot-free lighting
-
Voltage: 24V DC for stable, low-voltage operation
-
Power Consumption: ~4.27W/ft (±10%)
-
Lenght: 16.5ft
-

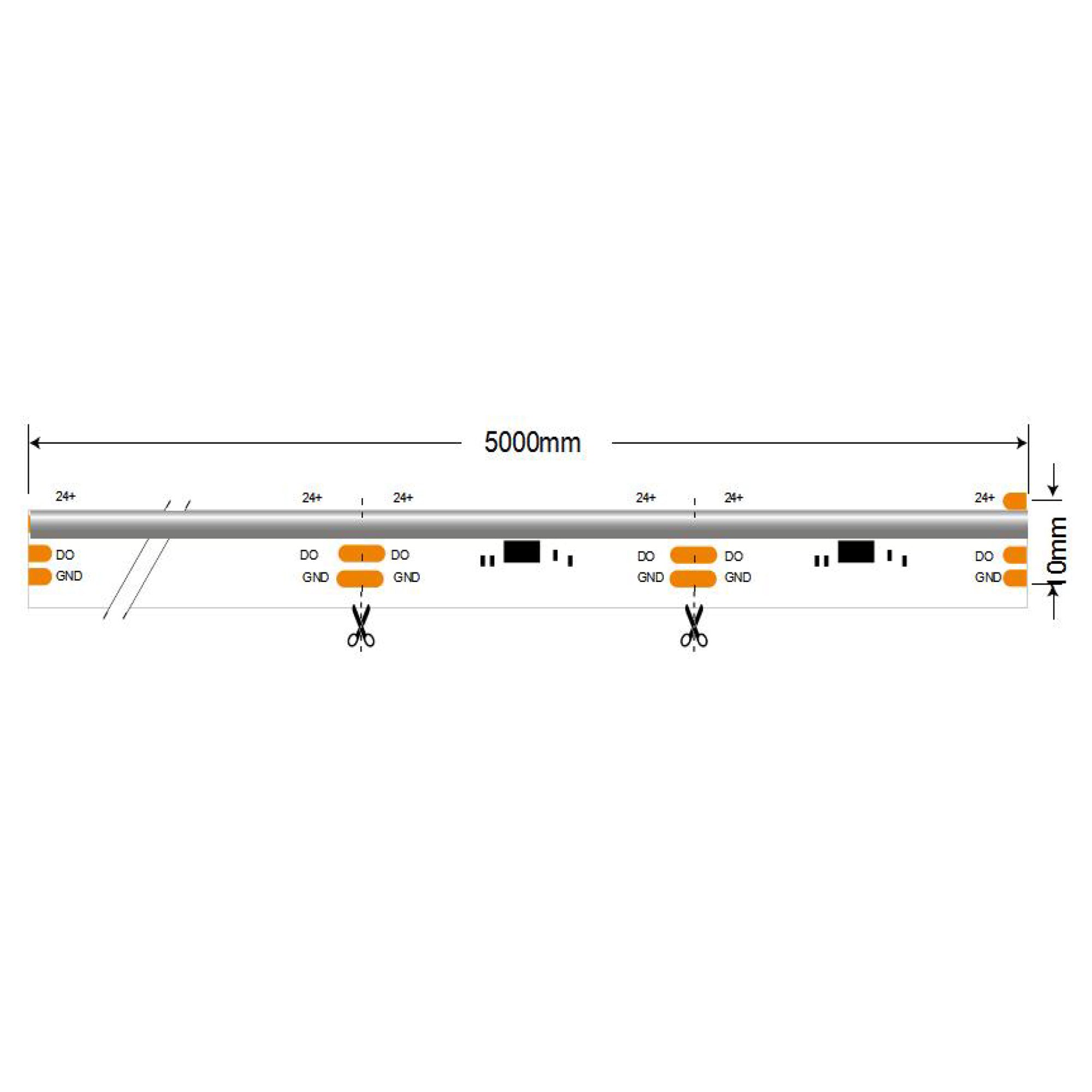

Cuttable Every 62.5mm: For highly customizable lengths
-

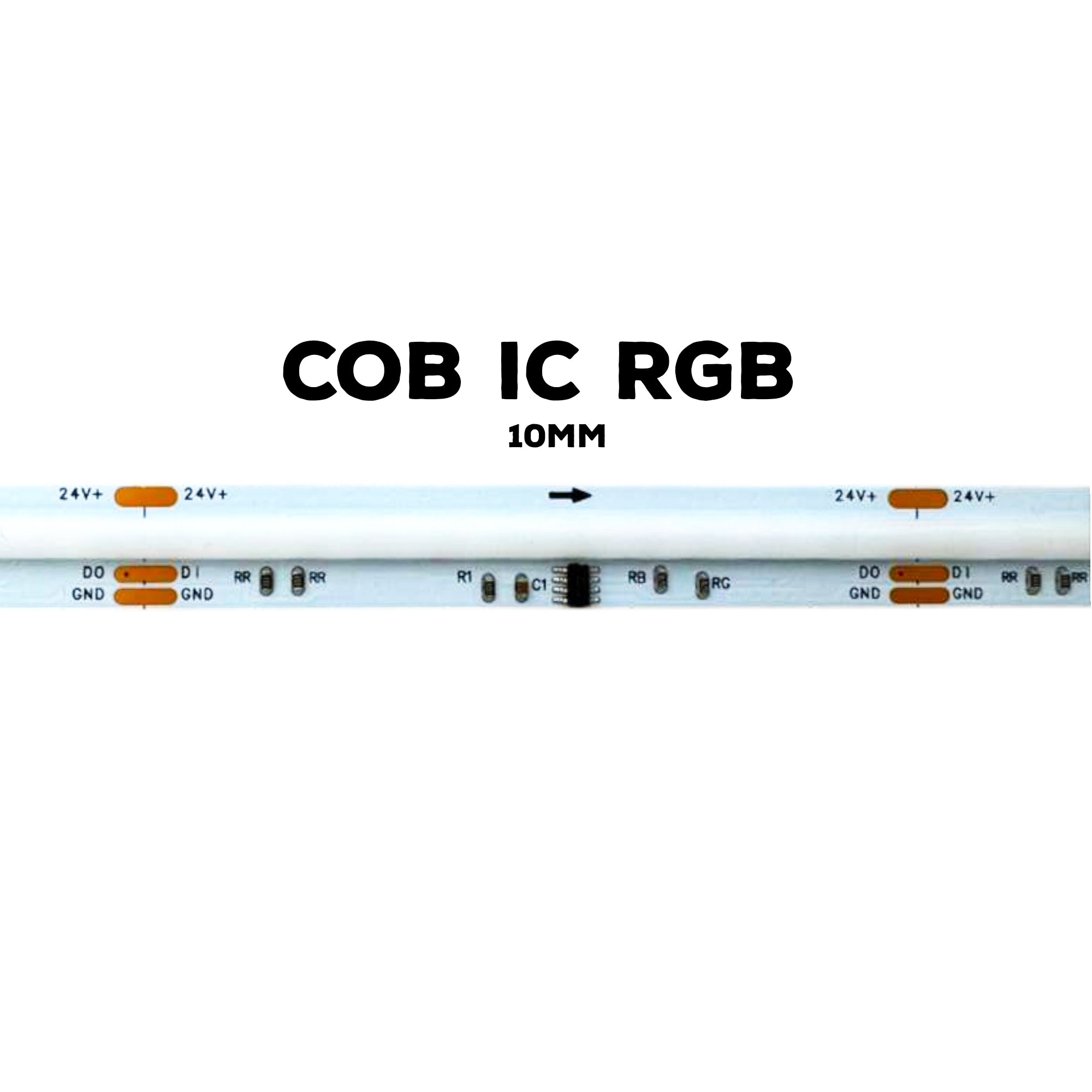

PCB Width: 10mm – compatible with most profiles
-
Beam Angle: 180° for wide, uniform coverage
-
Indoor Use Only: IP20 rated – for dry environments
-
Compatible Controllers: BN277-IC-Controller, BN277-IC-Remote
-
Ideal Applications: Signs, architectural lighting, interior effects
-
Features: Dimmable & Dynamic Color Effects with LED Controller
-
Compatible Accessories:
MiBoxer Addressable RGB LED Kit
- Part Number: LA-STR-10IC-RGB-16-IP20-24V
Recommended Power
- Power: about 4.27W per foot, so a full 16.5 ft run draws about 70W. Load a transformer to no more than 80% of its rating, so one run needs at least 88W.

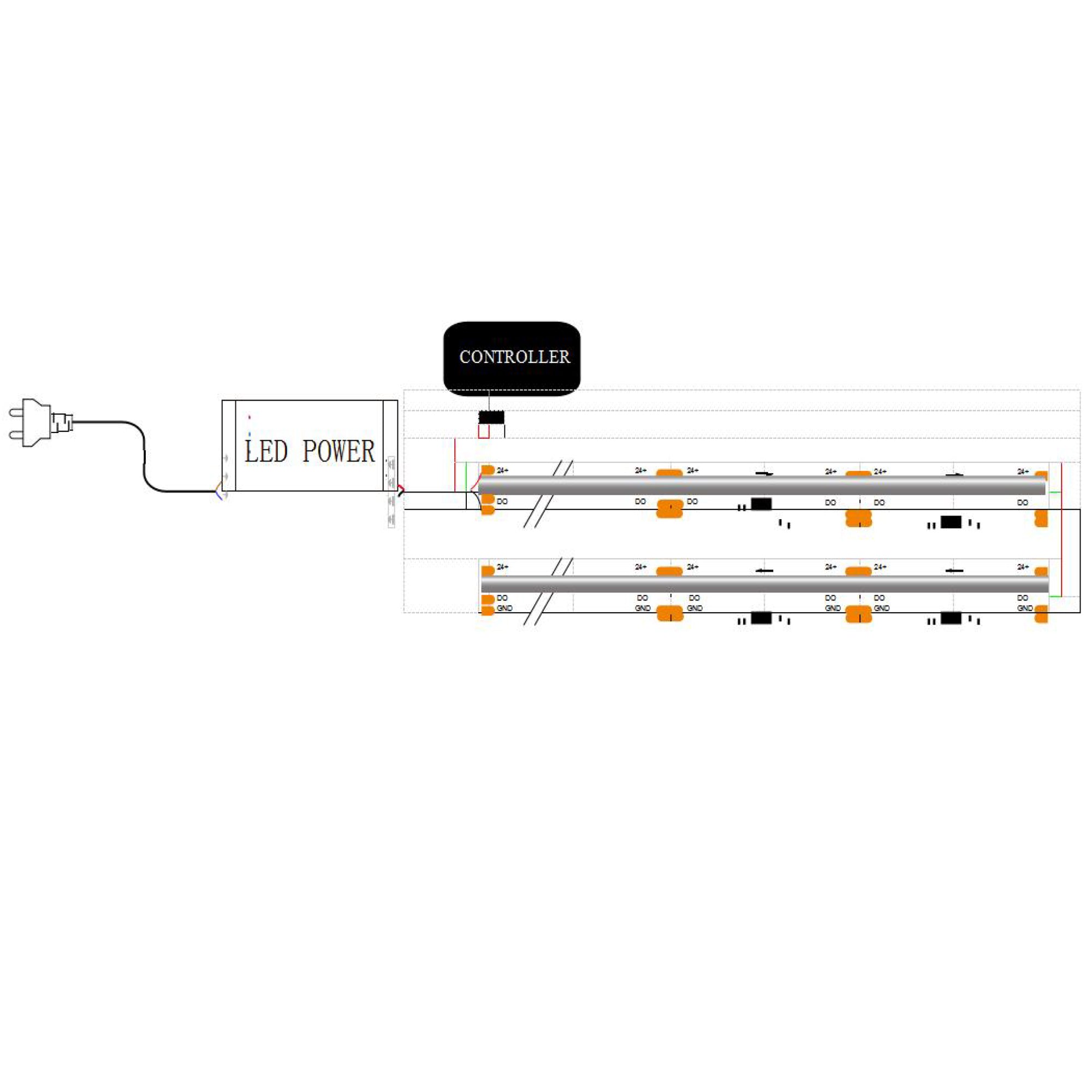

Recommended transformers (power your addressable controller, which handles color, effects and dimming):
- Indoor / dry location: Compact 96W 24V LED Transformer – White | Black
- Damp or wet location: 96W 24V LED Transformer (IP65)
- Do not put a wall dimmer on the transformer's line when using a controller. Check that the controller is rated for the wattage of the run it controls.
- Connecting any transformer to 120V power should be done by a licensed electrician.
Professional Installation Recommended: Consult a licensed Electrician
