Description

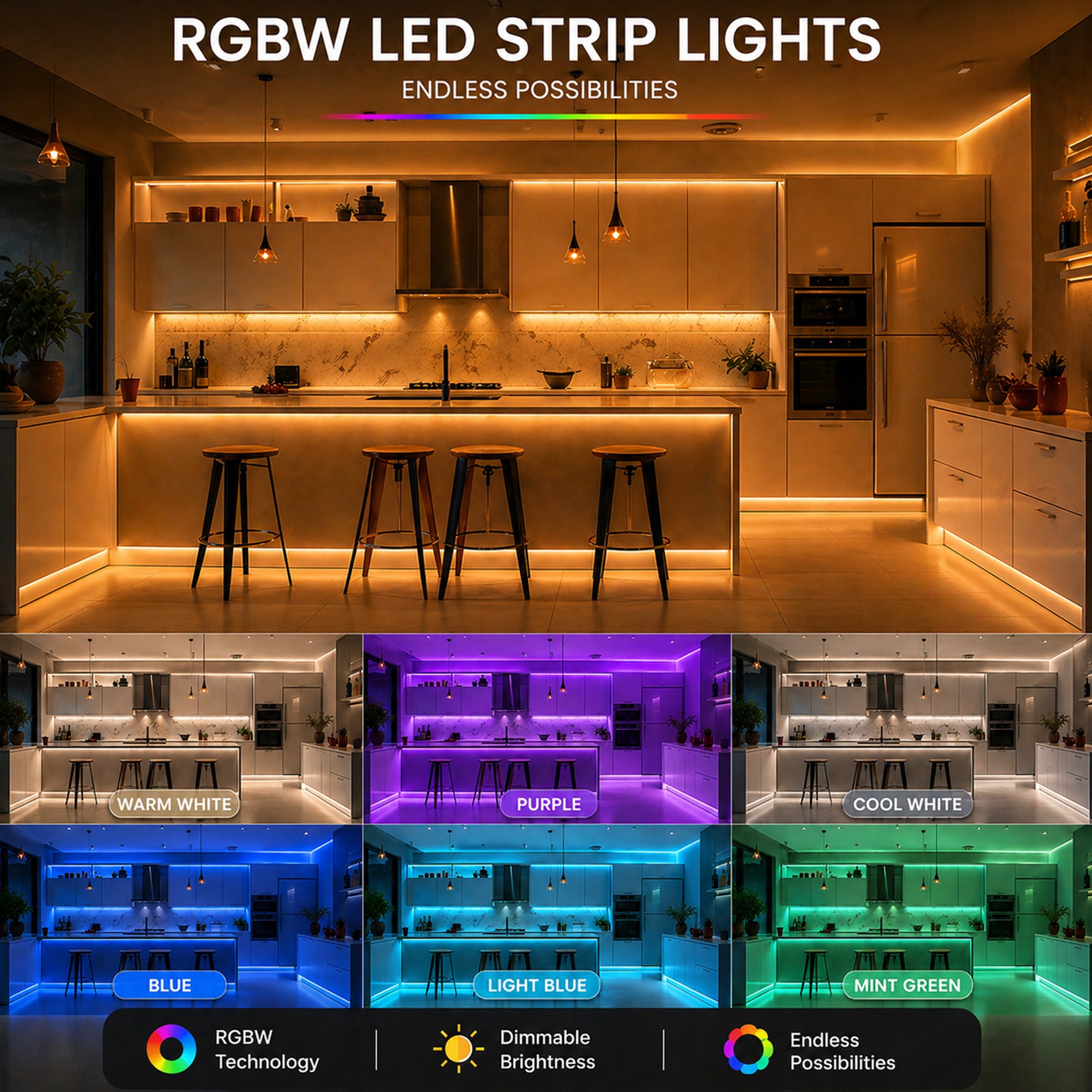

Achieve vibrant and high-performance color lighting with the RGBW COB LED Strip Light, designed for seamless dot-free output and true white tone blending. Featuring 784 LEDs per meter, this strip combines full-spectrum RGB with selectable warm white (3000K) or cool white (5000K) — ideal for residential, retail, or architectural appl
ications.
With its 12mm wide PCB, 24V input, and high CRI of ~90, it offers premium light quality and flexibility. Each strip is UL Certified and safe for dry indoor environments.
-

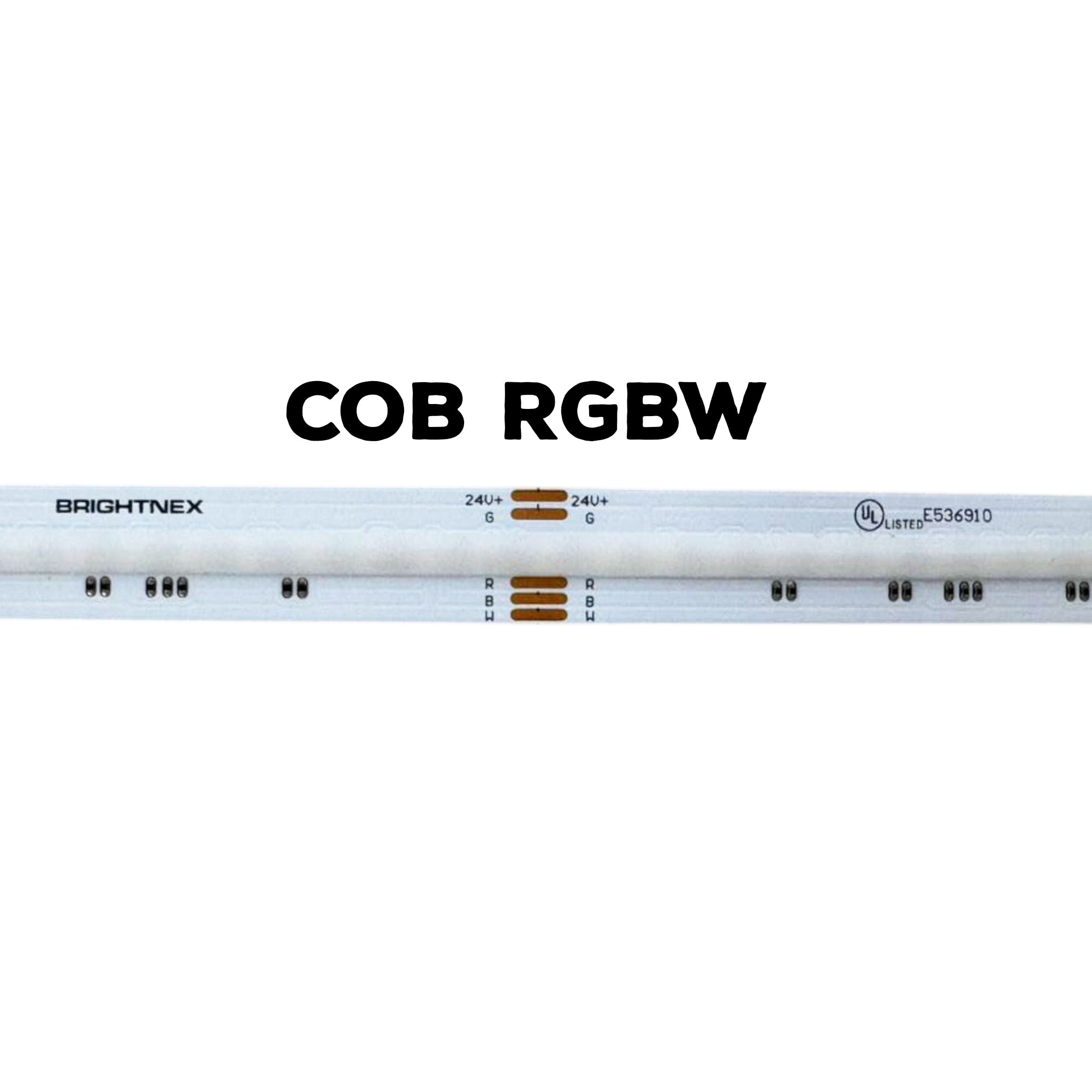

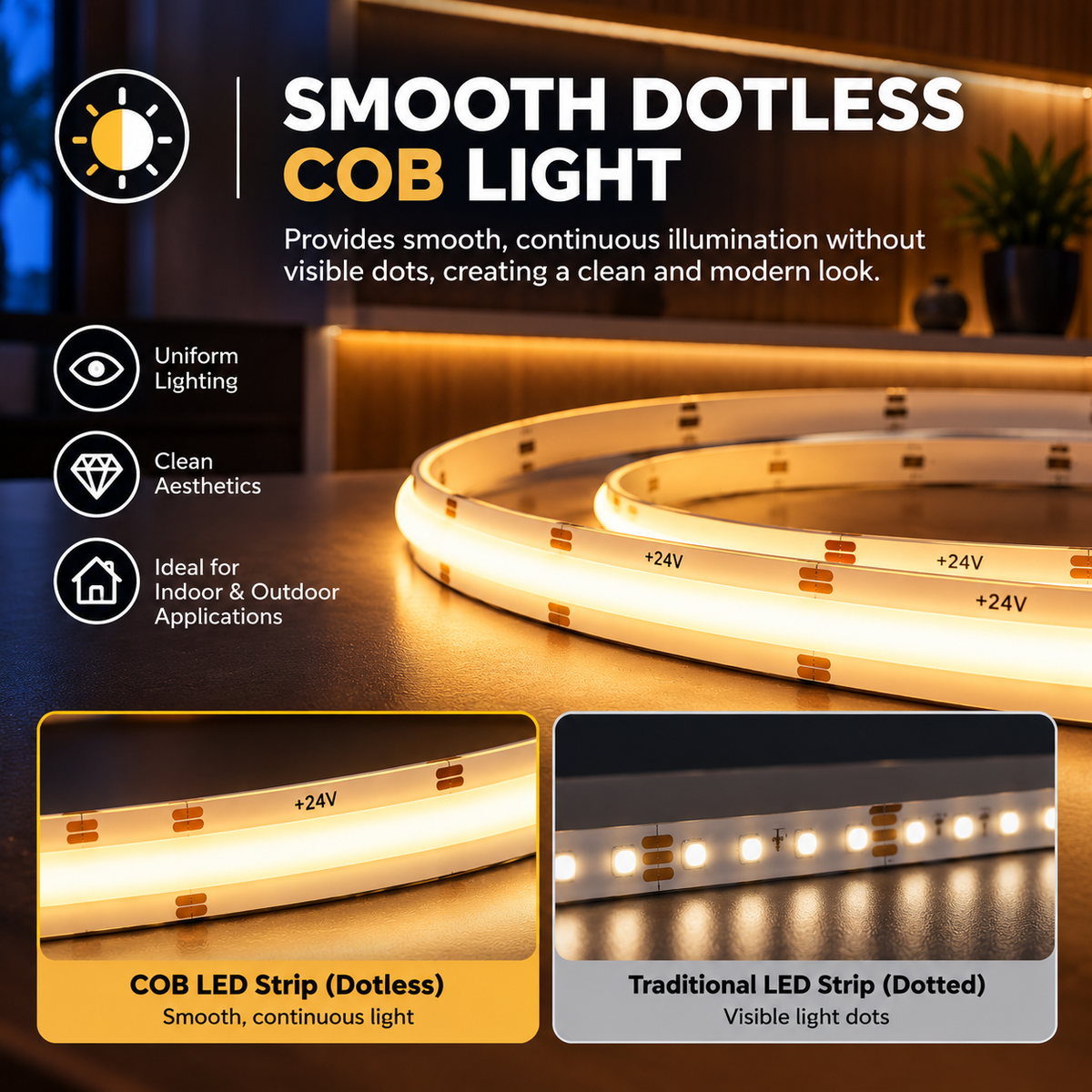

Dotless RGBW COB Technology: Smooth output with no visible LED points
-
LED Density: 784 LEDs/m (~239 LEDs/ft)
-

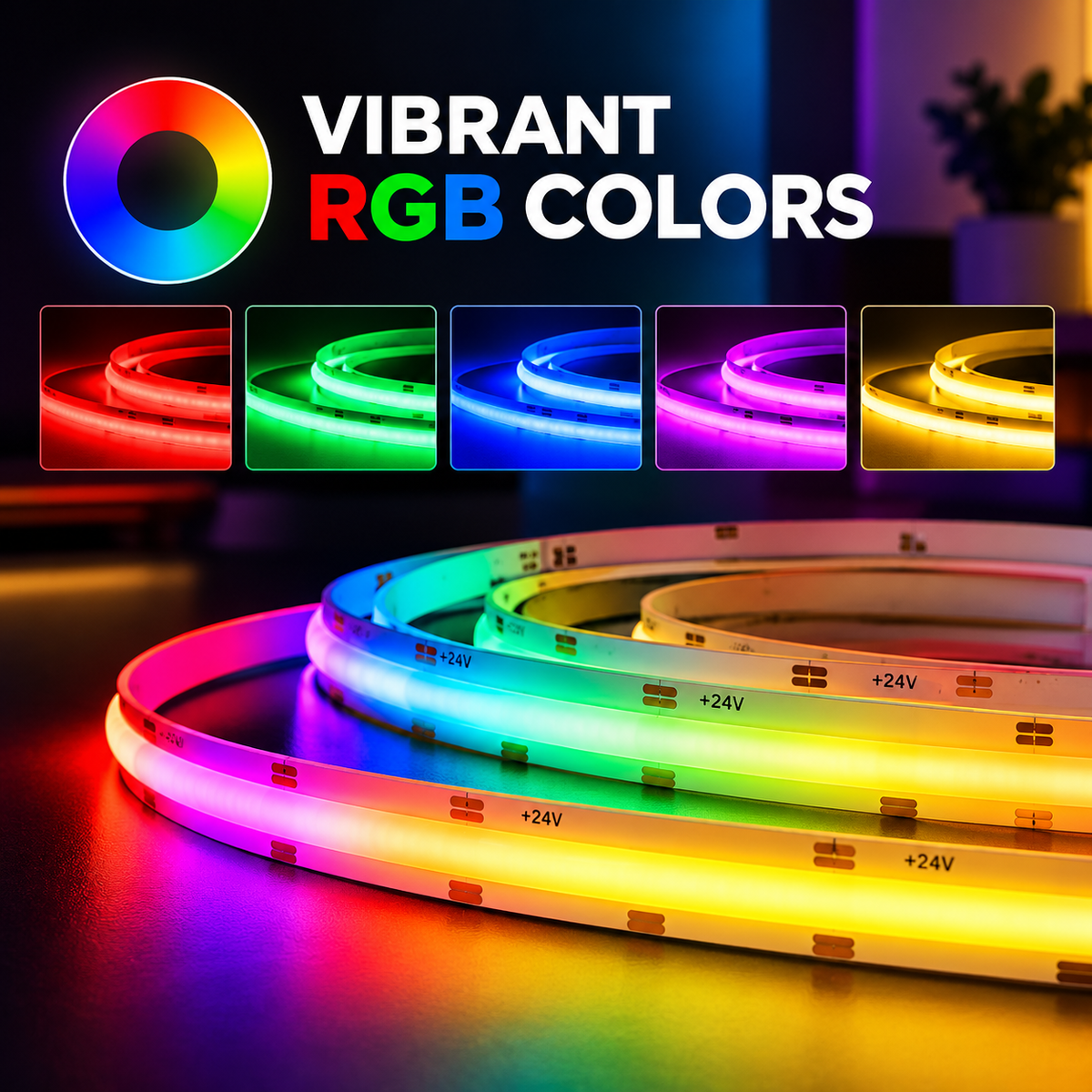

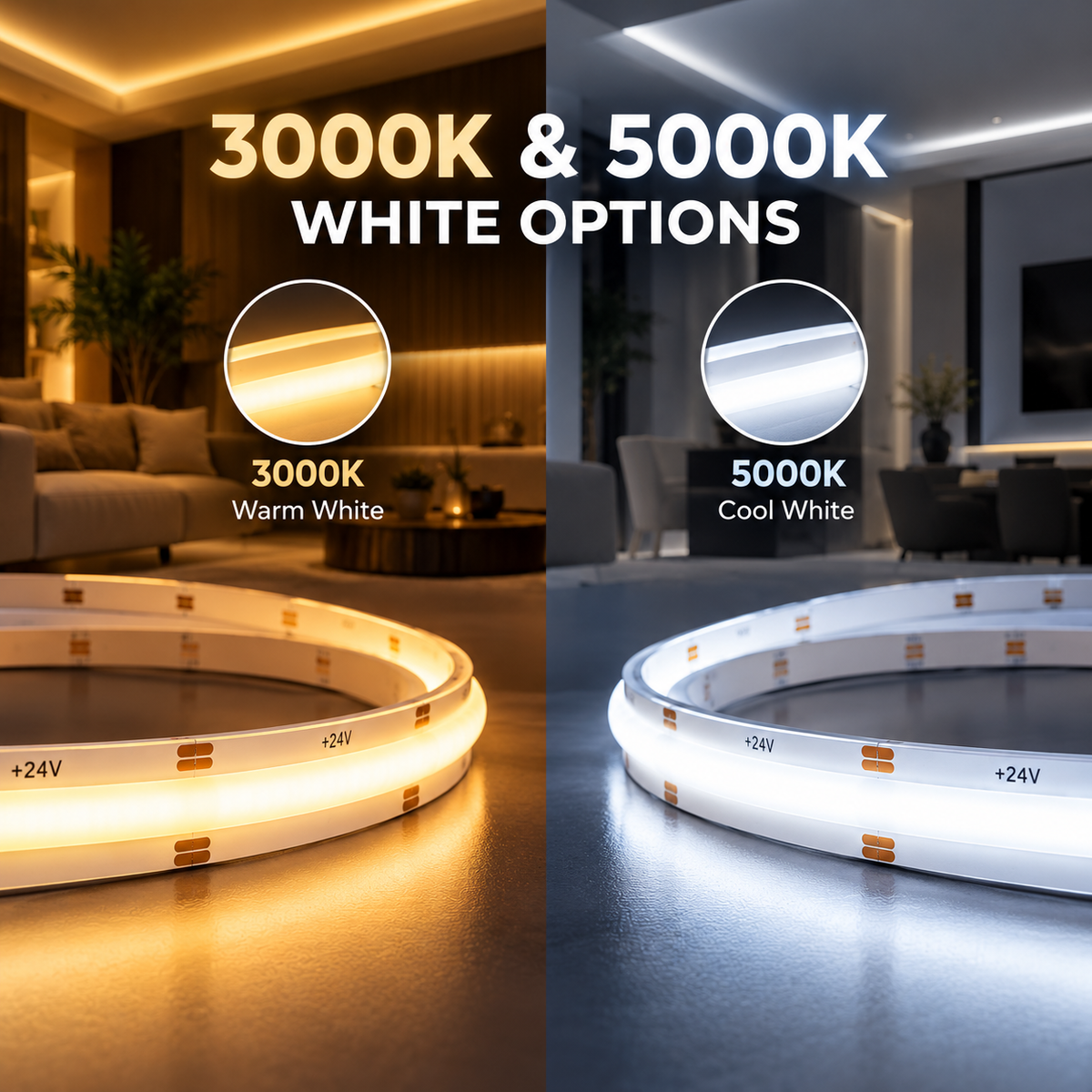

Color Temperatures: RGB + 3000K or RGB + 5000K
-
Lumen:
3000K: 102 lm/ft (335 lm/m)
5000K: 114 lm/ft (374 lm/m)
-
Voltage: 24V DC – efficient and reliable power
-
Power Consumption: ~4.6W/ft (±10%)
-

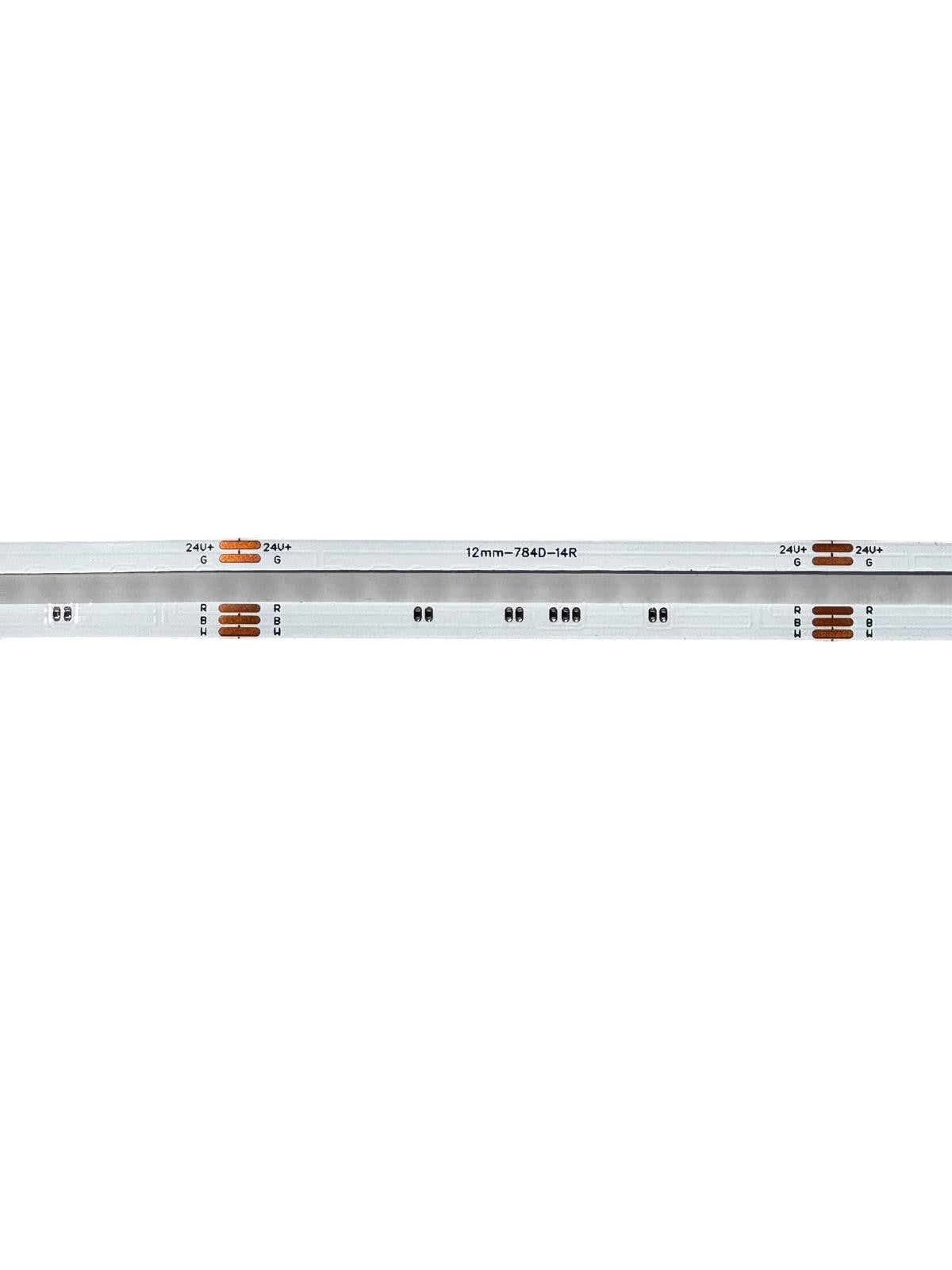

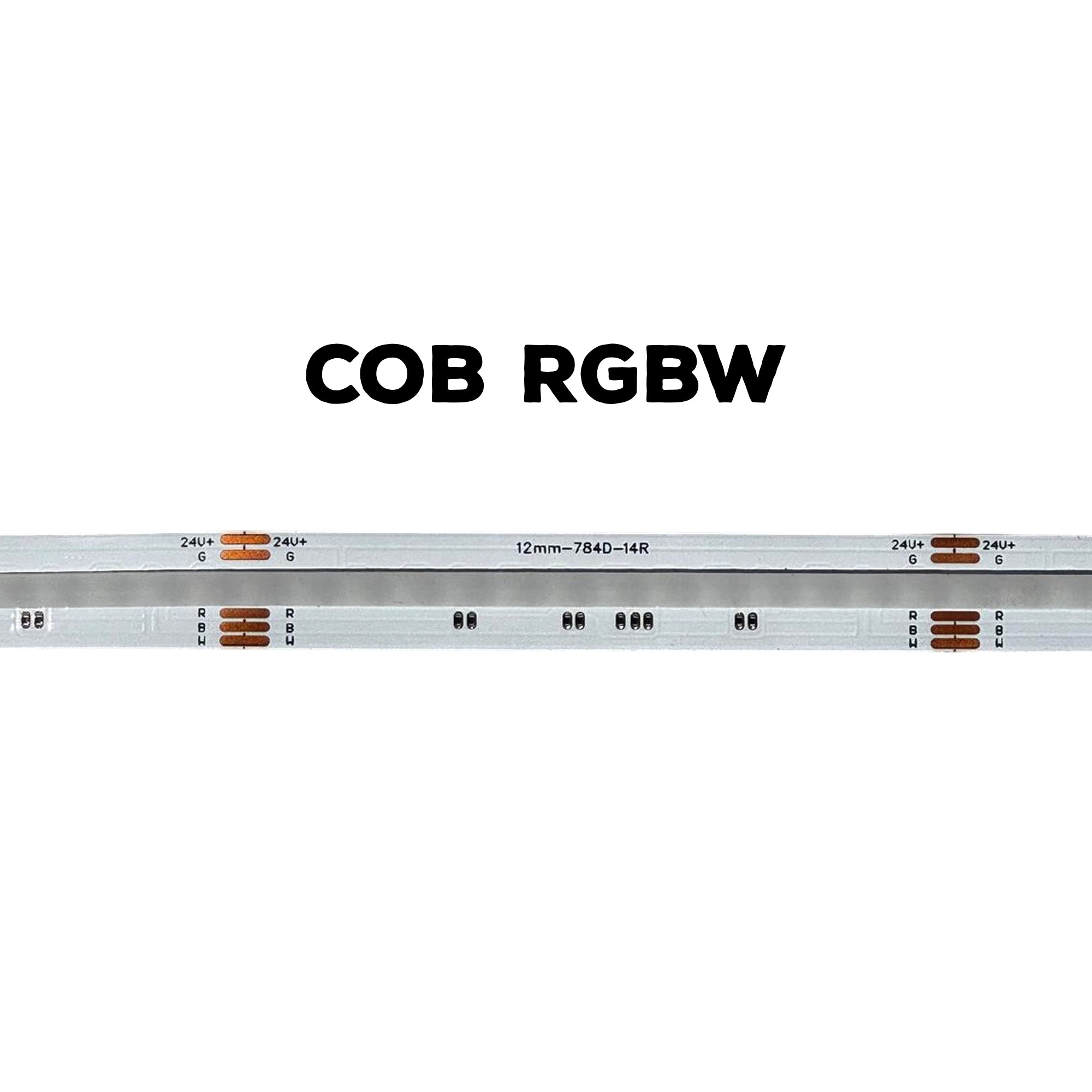

Cut Points: Every 1 inch – precision customization
-
Beam Angle: 180° wide coverage
-

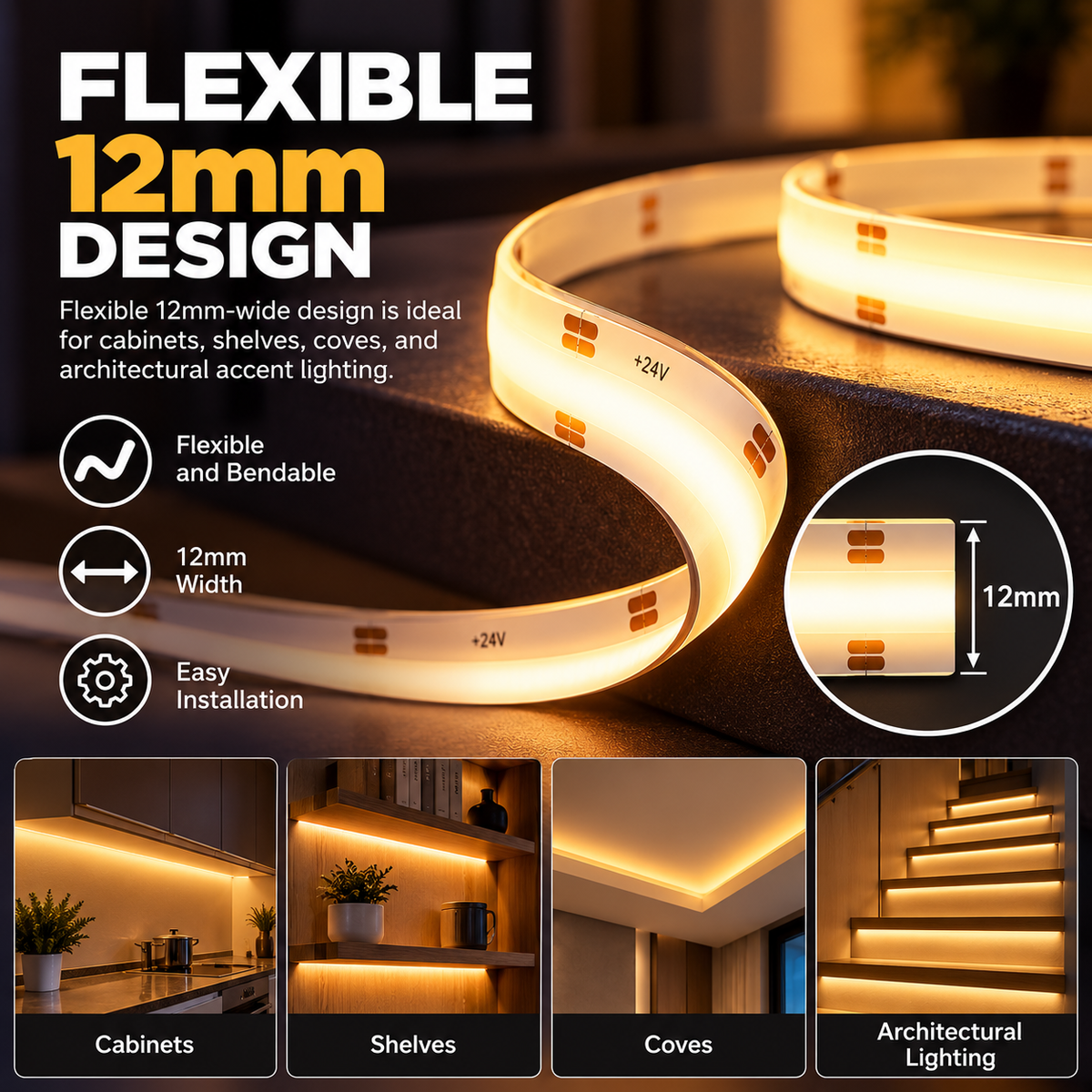

PCB Width: 12mm – supports high current and stable performance
-

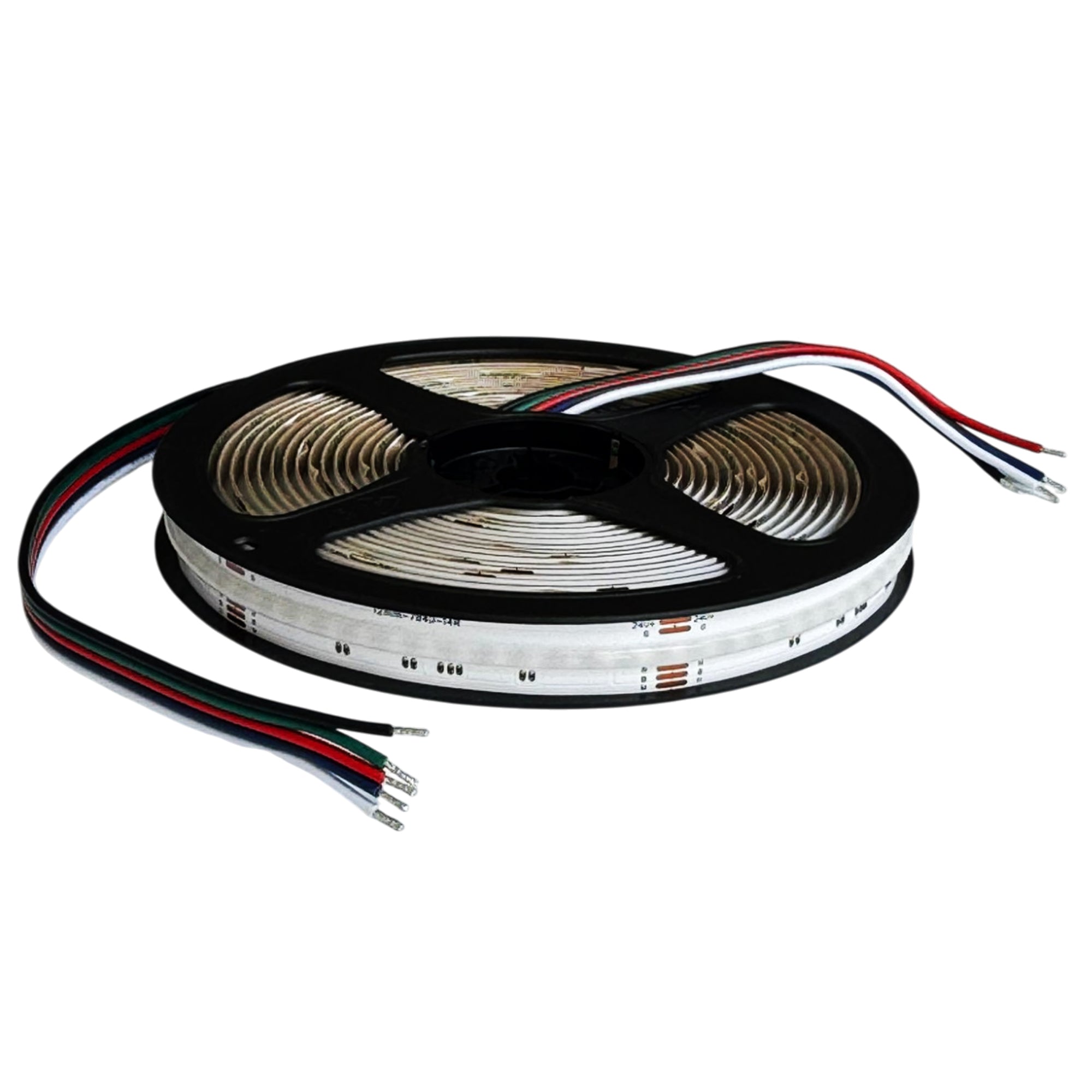

Lengths Available: 16.5ft, 48ft and 82ft
-
Indoor Use Only: IP20 rated
-

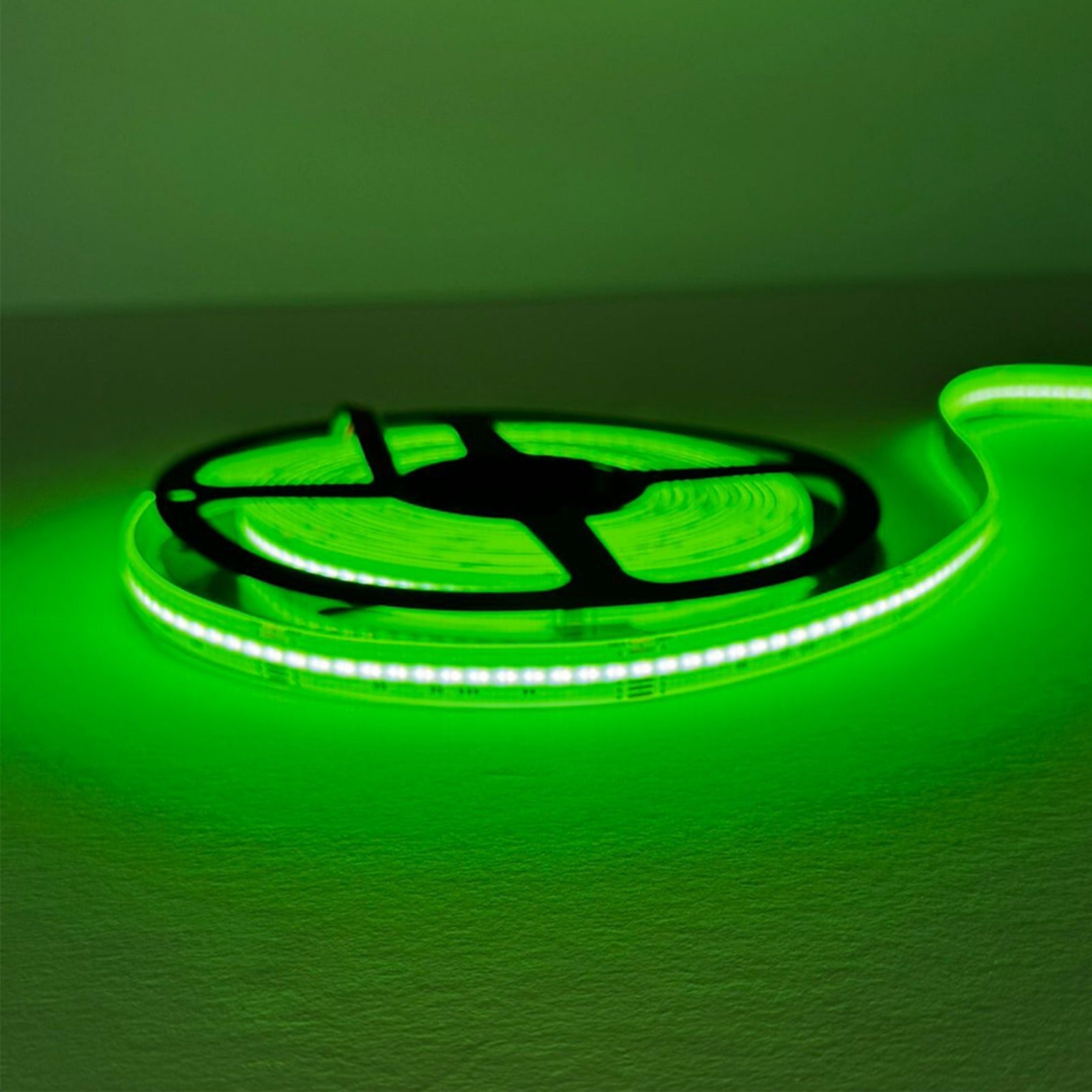

Features: Dimmable & Color Changing with LED Controller
-

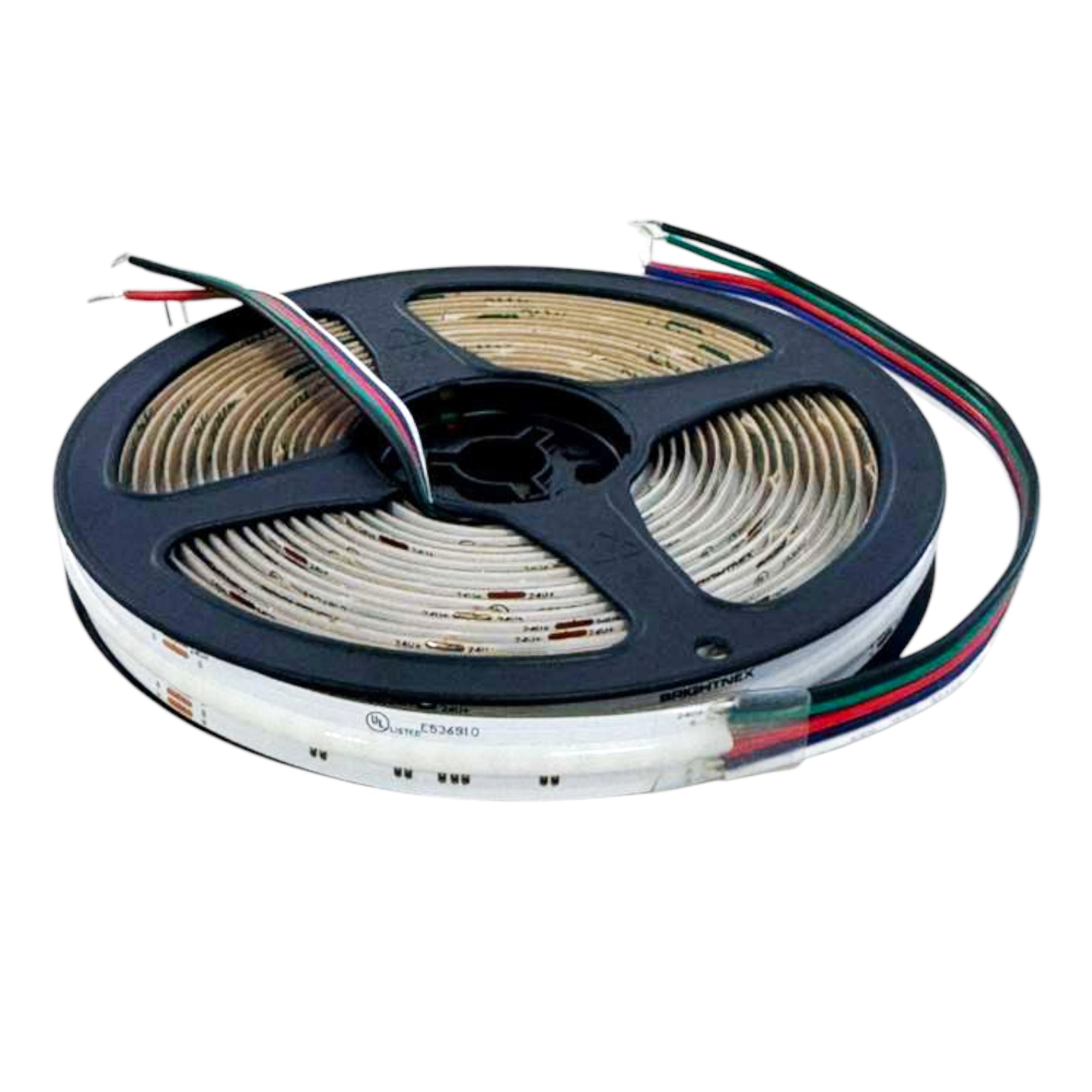

UL Certified: Compliant with U.S. electrical safety standards
-
CRI: ~90 – vibrant, accurate color rendering
-

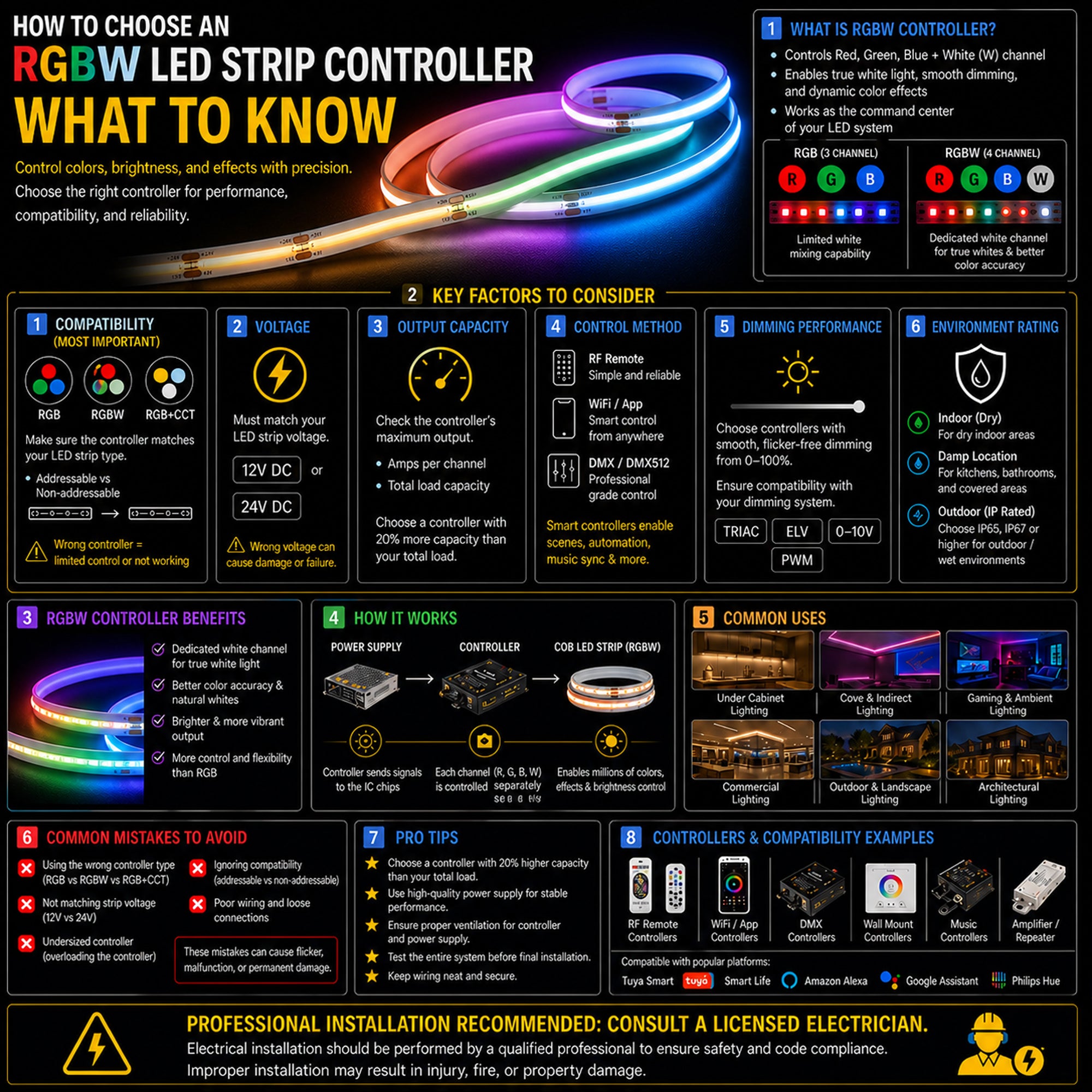

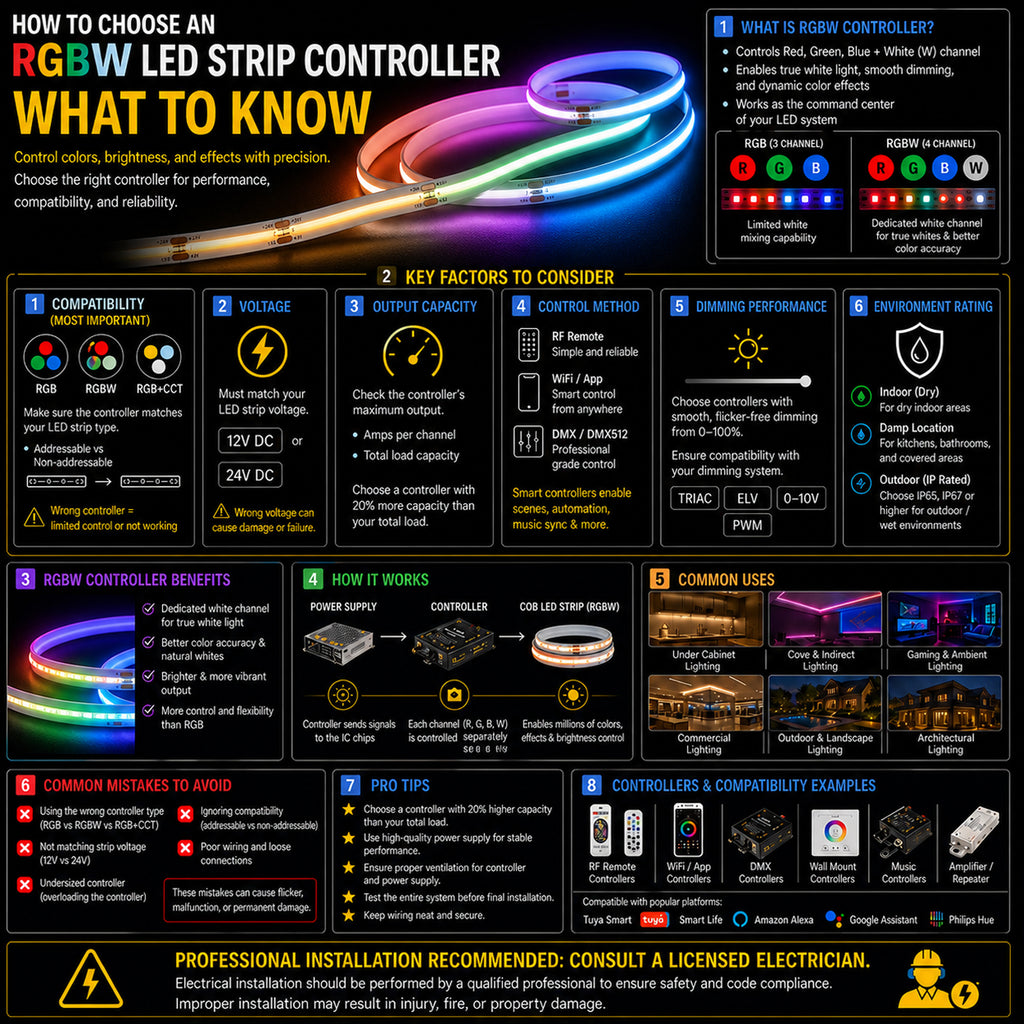

Compatible Controllers:
MiBoxer RGBW LED Control Kit
MiBoxer RGBW Wall Panel Control Kit
-
Part Numbers:
LA-STR-12RW-W3K-16-IP20-24V
LA-STR-12RW-W3K-48-IP20-24V
LA-STR-12RW-W3K-82-IP20-24V
LA-STR-12RW-W5K-16-IP20-24V
LA-STR-12RW-W5K-48-IP20-24V
LA-STR-12RW-W5K-82-IP20-24V
Max Run Length & Recommended Power
- Maximum run: 16.5 ft (5 m) per power feed. The 48 ft and 82 ft reels must be cut into runs of 16.5 ft or less, each with its own feed wire.
- Power: about 4.6W per foot, so a full 16.5 ft run draws about 76W. Load a transformer to no more than 80% of its rating, so one run needs at least 95W.

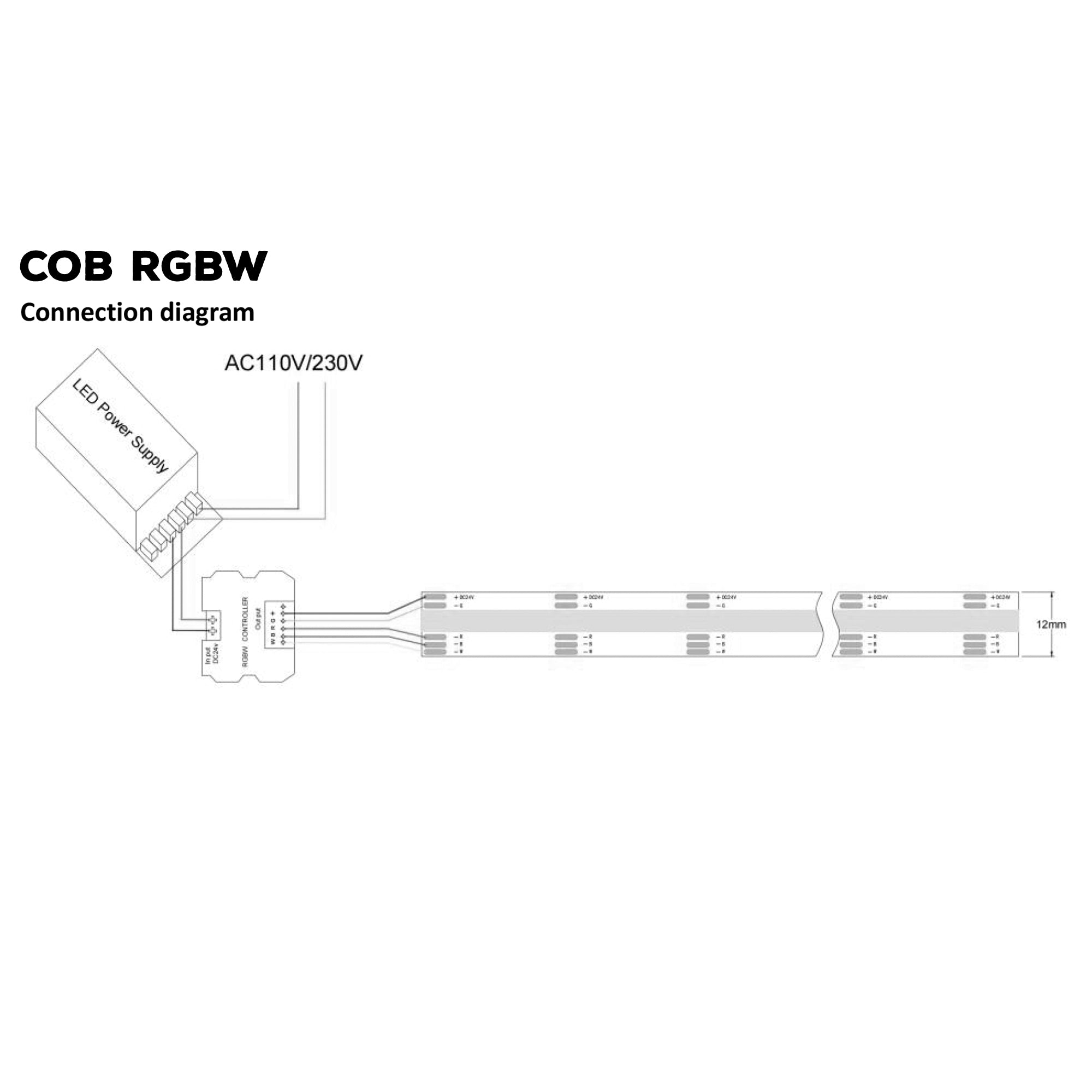

Recommended transformers (power your RGBW controller, which handles color and dimming):
- Indoor / dry location: Compact 96W 24V LED Transformer – White | Black
- Damp or wet location: 96W 24V LED Transformer (IP65)
- Do not put a wall dimmer on the transformer's line when using an RGBW controller. Check that the controller is rated for the wattage of the run it controls.
- Connecting any transformer to 120V power should be done by a licensed electrician.
Professional Installation Recommended: Consult a licensed Electrician
