Description

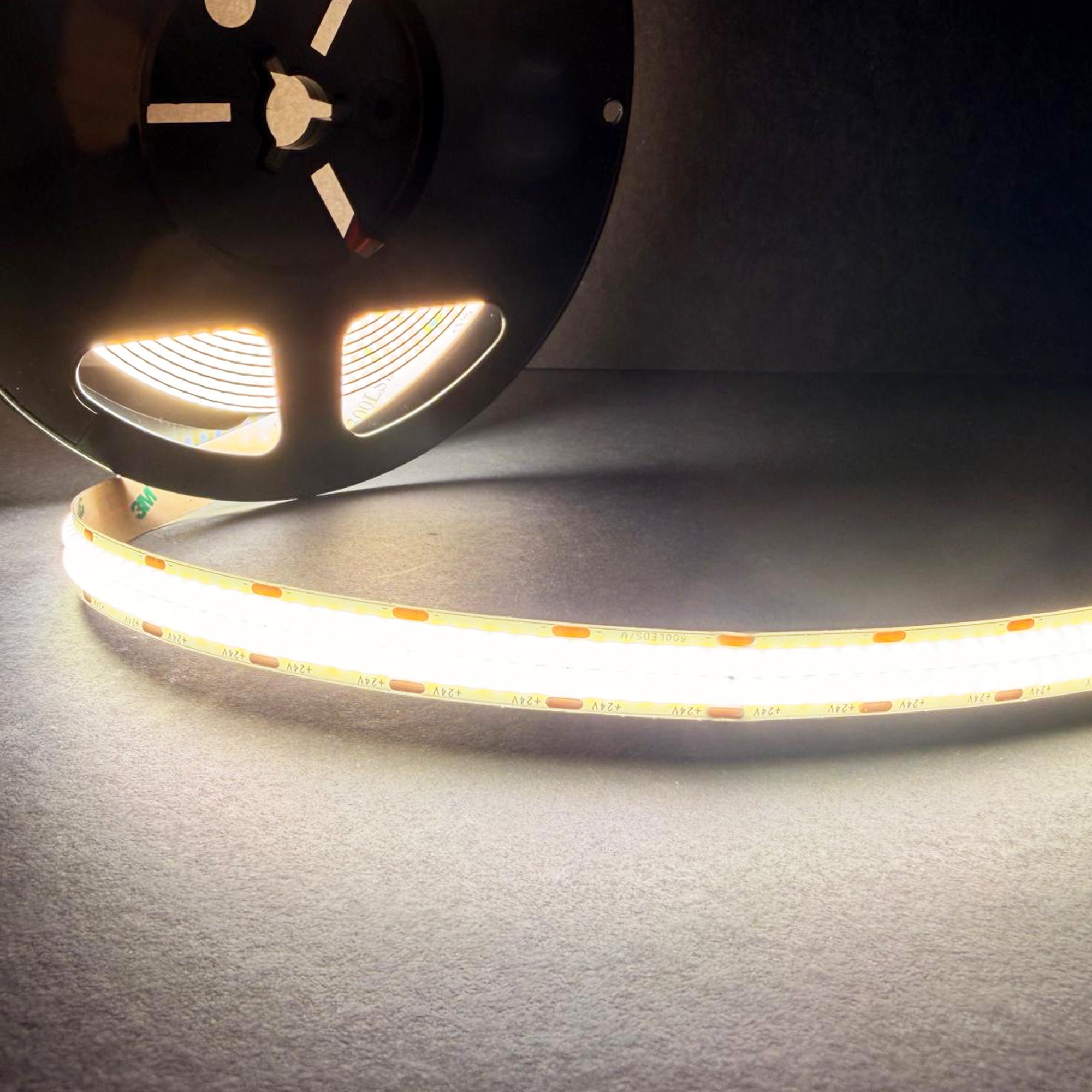

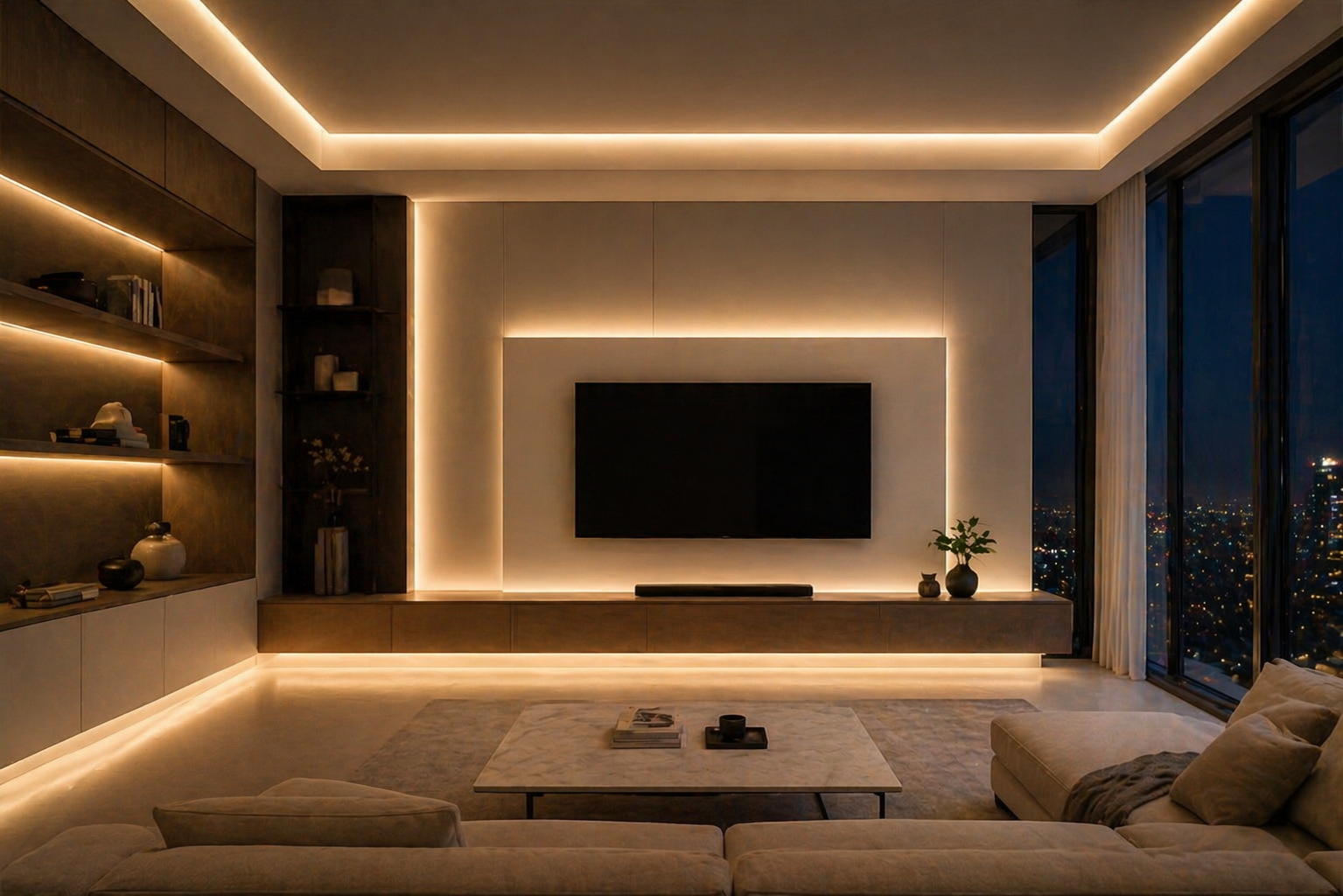

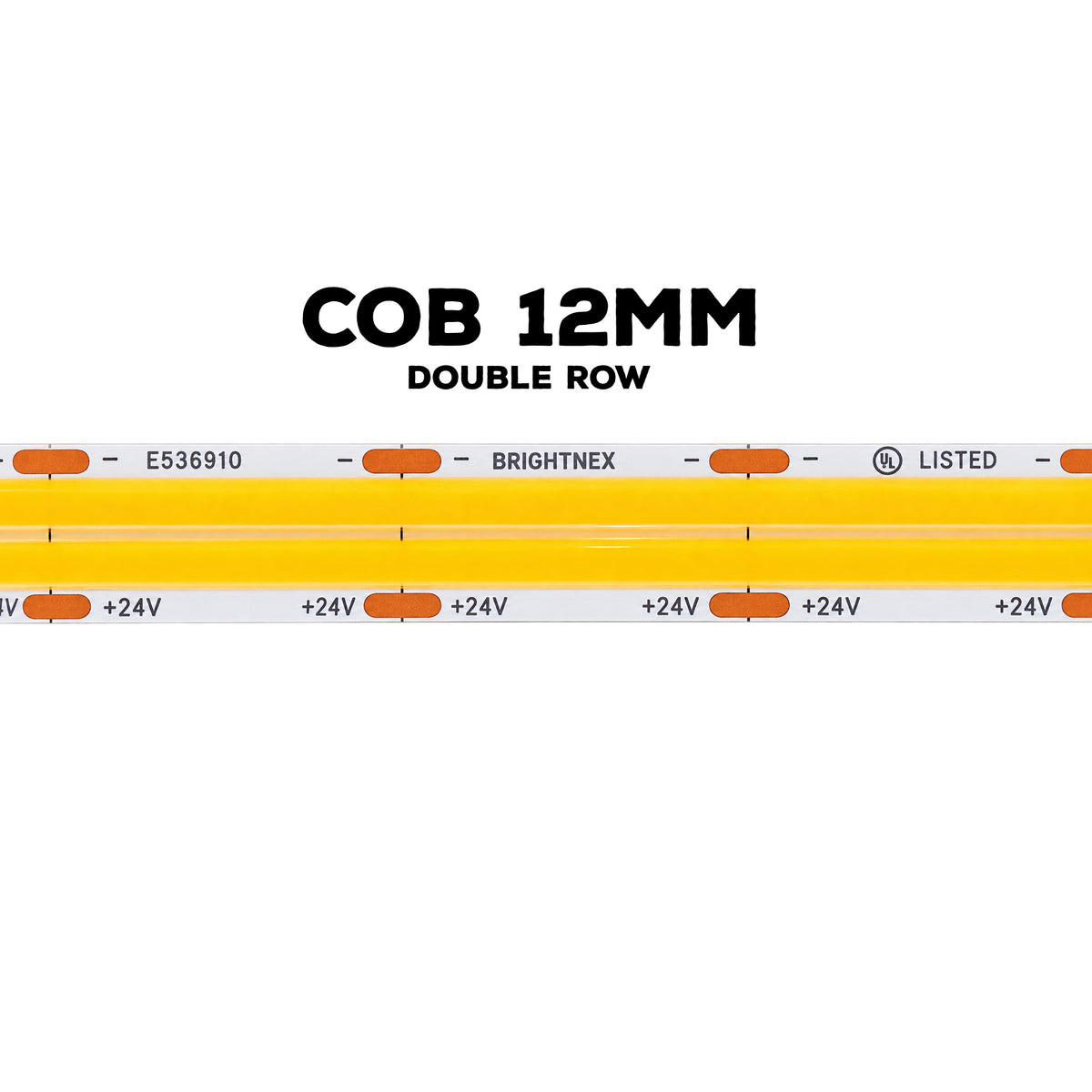

The FCOB 600 COB LED Strip Light delivers exceptionally high brightness and uniform dotless light output, making it ideal for signage, task lighting, architectural accents, and premium indoor projects. With a 12mm PCB width and dense 600 LEDs per meter, this strip provides up to 1850 lumens per meter while maintaining a slim profile.
-
Available Color Temperatures: 2700K / 3000K / 4000K / 5000K
-
Lumen Output:
-
2700K – 545 lm/ft (1787 lm/m)
-
3000K – 560 lm/ft (1863 lm/m)
-
4000K – 600 lm/ft (1969 lm/m)
-
5000K – 635 lm/ft (2083 lm/m)
-
-

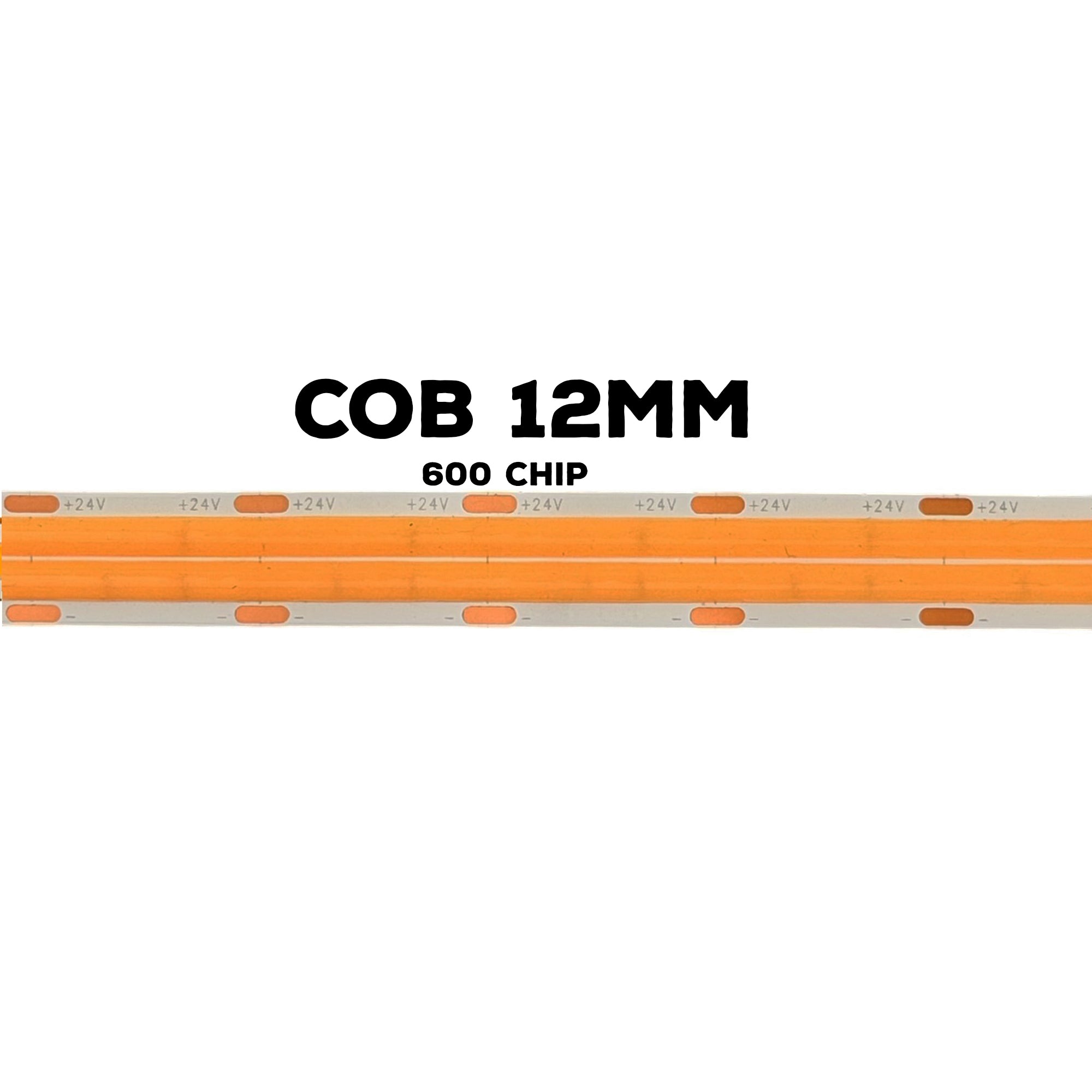

LED Density: 600 LEDs/m
-
Voltage: 24V DC
-
Power Consumption: 7.32W/ft (24W/m) ±10%
-
Current Draw: 1A/m
-

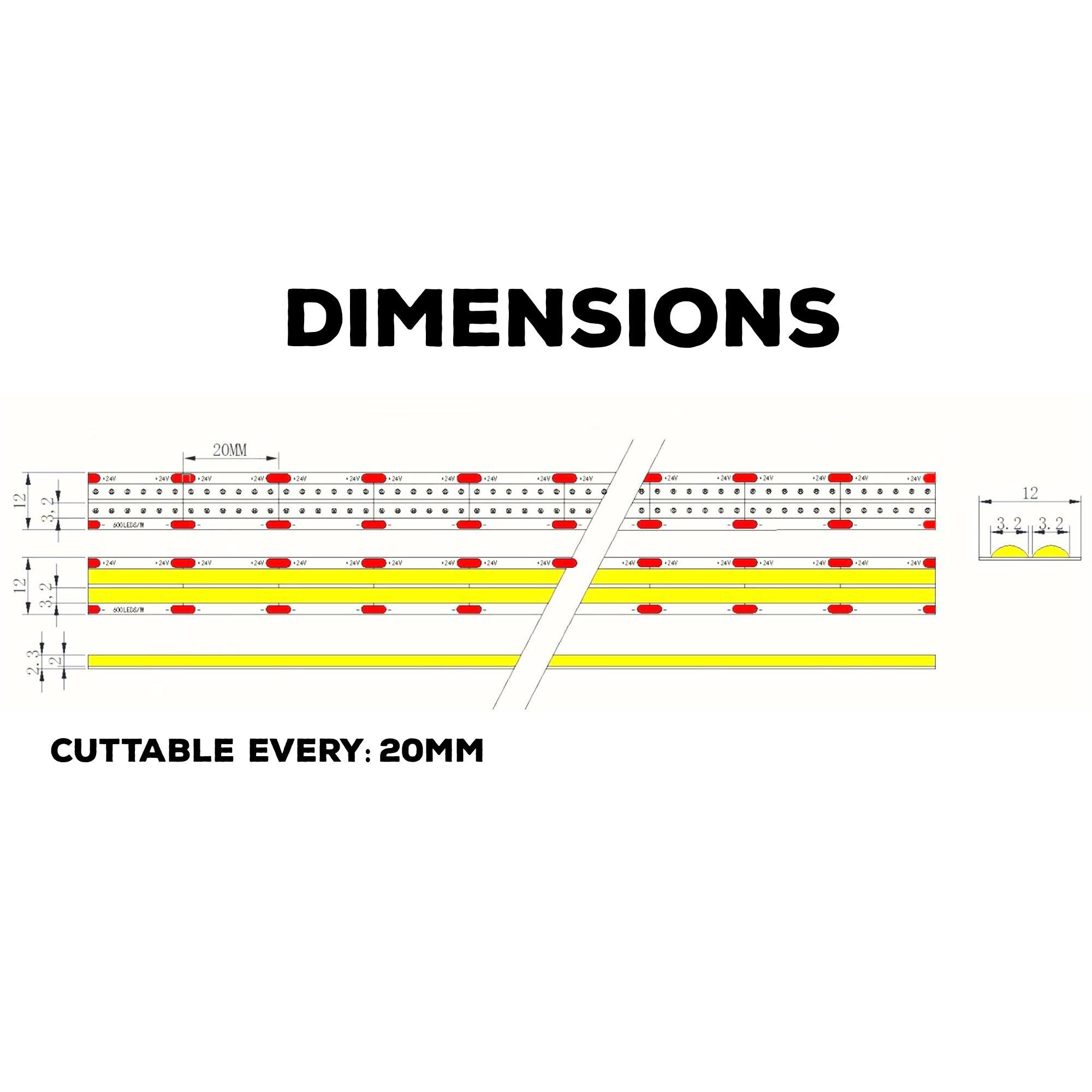

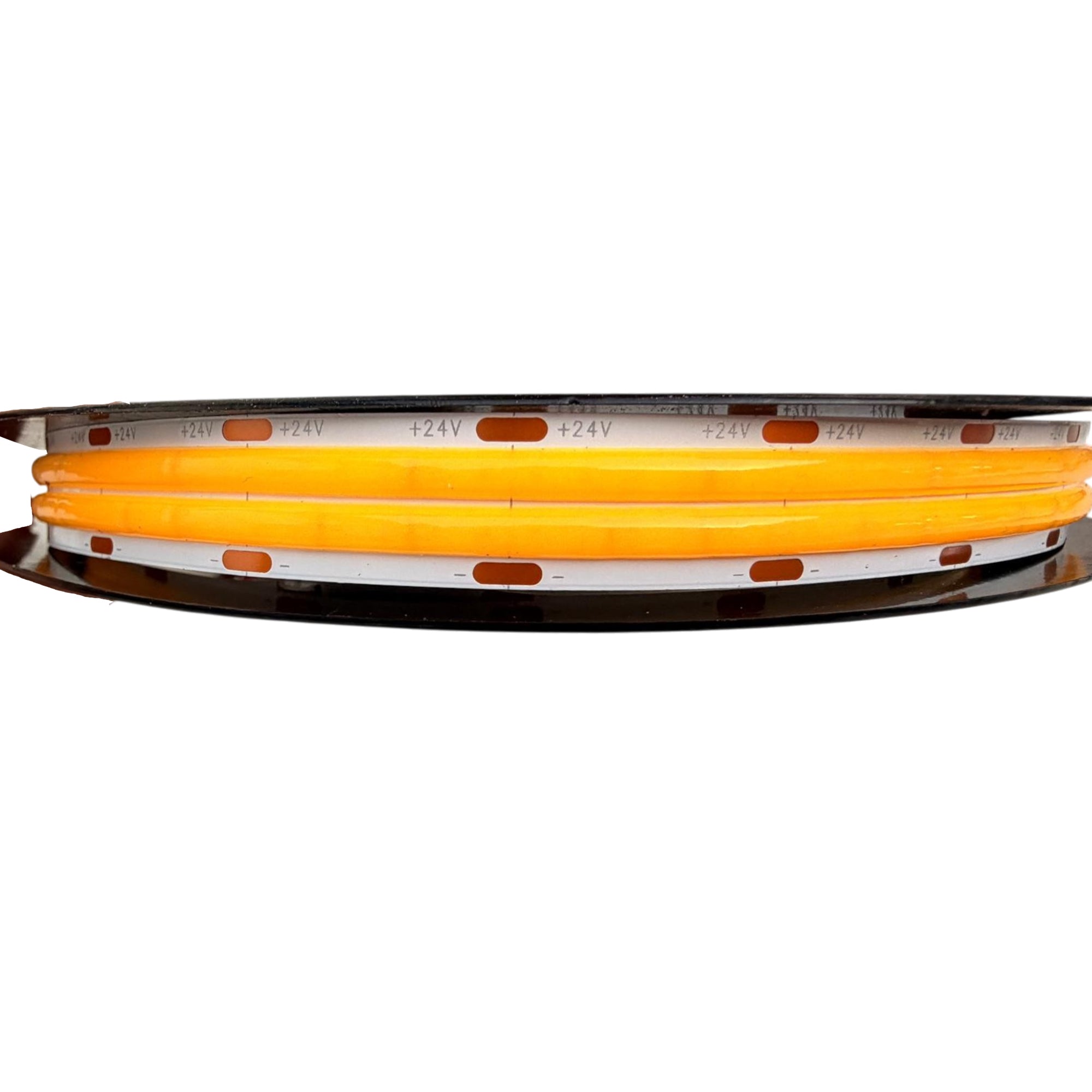

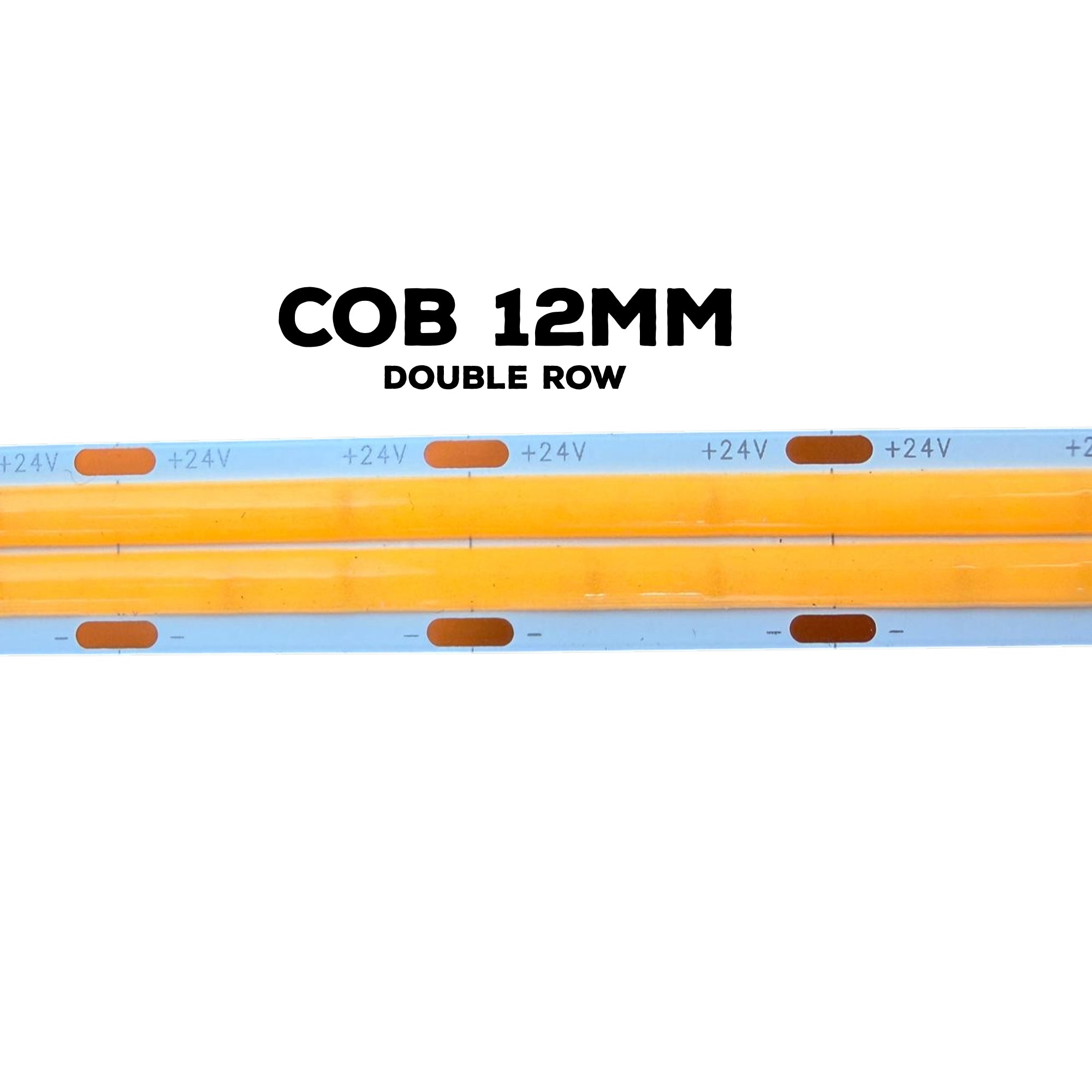

PCB Width: 12mm, Double row
-
Cuttable Every: 20mm
-
Beam Angle: 180° wide beam
-
Length: 5m (16.4ft) per roll
-
Operating Temp: -30°C to +55°C
-
Protection Rating: IP20 – indoor use only
-
Adhesive Backing: 3M tape pre-applied
-
UL Certified: Complies with strict safety and performance standards
-
Compatible Accessories:
MiBoxer Smart RGB+CCT Lighting Kit
-
Part Numbers:
LA-STR-12HB-W27K-16-IP20-24V
LA-STR-12HB-W3K-16-IP20-24V
LA-STR-12HB-W4K-16-IP20-24V
LA-STR-12HB-W5K-16-IP20-24V
Recommended Power
- Power: this is a high-output strip at about 7.32W per foot, so a full 16.5 ft run draws about 121W. Load a transformer or driver to no more than 80% of its rating, so a full run needs at least 151W.
Recommended transformers (for TRIAC/ELV/MLV wall dimmers or an on/off switch):
- Full 16.5 ft run: Compact 200W 24V Dimmable LED Transformer
- Up to 16 ft: Compact 150W 24V Dimmable LED Transformer
- Up to 10 ft in a damp or wet location: 96W 24V Dimmable LED Transformer (IP65)
Recommended drivers (for 0-10V, PWM or wall dimmers; choose the 24V version):
- Full 16.5 ft run: 200W 5-in-1 Dimmable LED Driver
- Up to 16 ft: 150W 5-in-1 Dimmable LED Driver
- Powering more than one run from one unit? Add up the wattage of all runs and keep the total under 80% of its rating.
- Connecting any transformer or driver to 120V power should be done by a licensed electrician.
Professional Installation Recommended: Consult a licensed Electrician
