Description

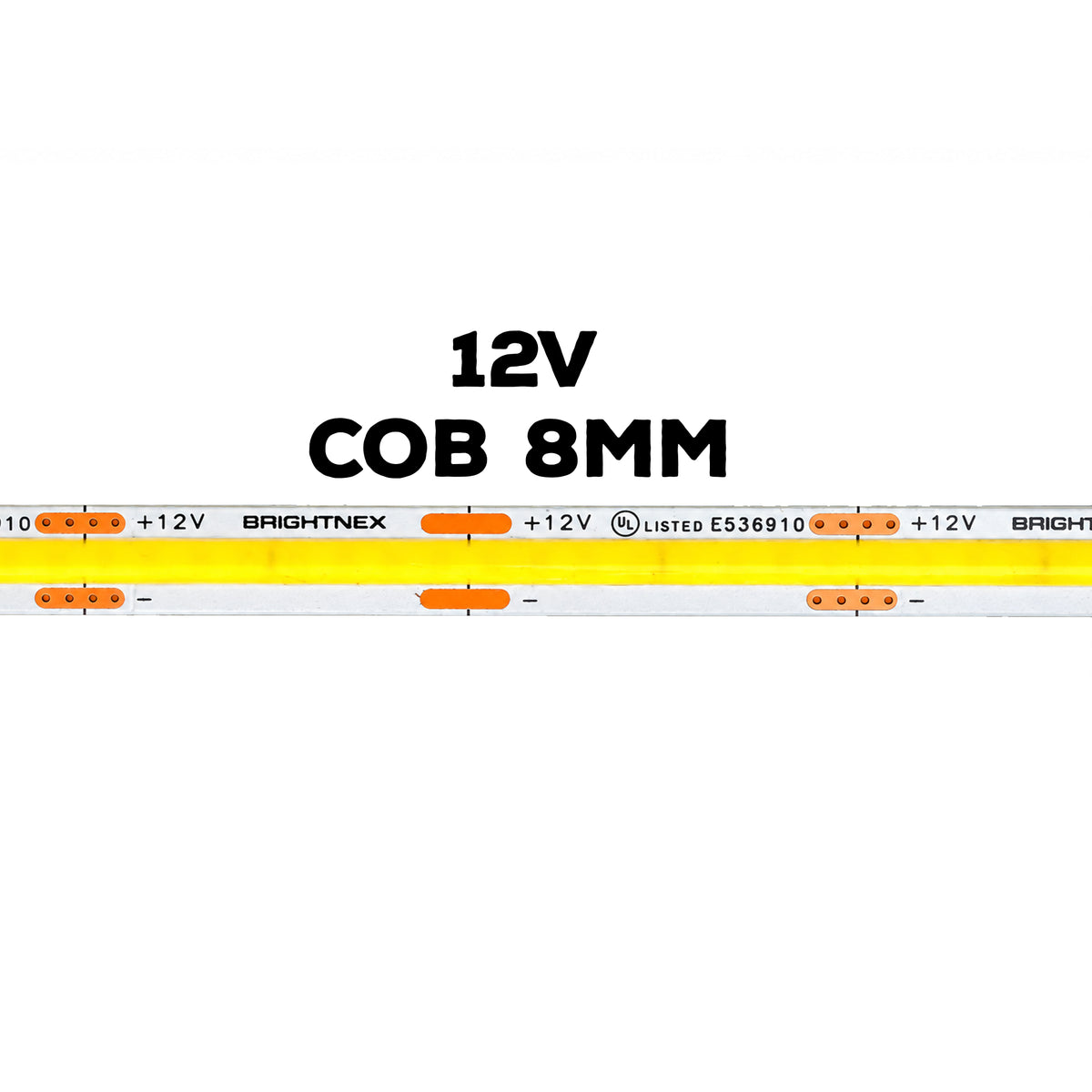

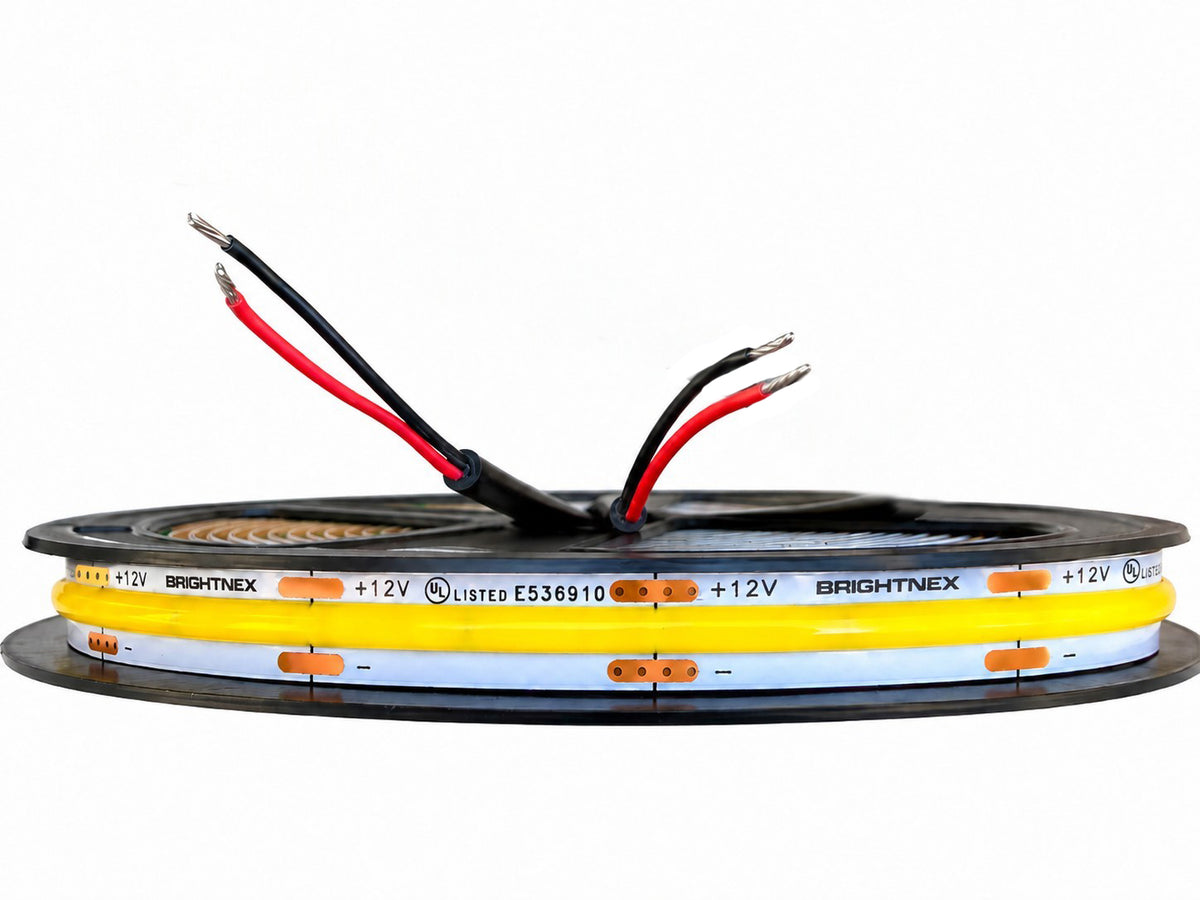

This COB LED strip provides continuous, dot-free illumination thanks to its high LED density of 320 LEDs per meter. The advanced chip-on-board design ensures smooth and uniform light output, making it ideal for professional lighting applications where consistent brightness is required.
The strip operates on 12V DC constant voltage and consumes approximately 3.05W per feet, offering a balance of efficiency and brightness.
Its flexible PCB design (8mm width) allows easy installation in tight spaces such as cabinets, signage, shelves, and decorative architectural lighting.
The strip can be cut every 25mm, making it adaptable for custom lighting lengths.
Available in multiple color temperatures ranging from warm white to cool white, as well as ice blue, it can suit various lighting environments.
✅ TECHNICAL SPECIFICATIONS
Electrical
-
Voltage: 12V DC
-
Power Consumption: 10W per meter (≈3.05W/ft)
-
Current: 0.83A/m (≈0.25A/ft)
-
Beam Angle: 180°
LED Configuration
-
LED Type: COB (Chip-on-Board)
-
LED Density: 320 LEDs/m (≈98 LEDs/ft)
PCB & Mechanical
-
PCB Width: 8mm
-
Cuttable Length: 25mm
-
Standard Reel Length: 5m (16.4ft)
✅ COLOR OPTIONS + BRIGHTNESS
| Color Temperature | Brightness |
|---|---|
| 2700K Warm White | 290 lm/ft |
| 3000K Warm White | 300 lm/ft |
| 4000K Neutral White | 315 lm/ft |
| 5000K Daylight White | 320 lm/ft |
| 6500K Cool White | 325 lm/ft |
Recommended Power
- Power: about 3.05W per foot, so a full 16.5 ft run draws about 50W. Load a transformer or driver to no more than 80% of its rating, so a full run needs at least 63W.
Recommended transformers (12V only):
- Plug-in, full 16.5 ft run, no dimming: 12V Plug-In Transformer (6A / 72W)
- Hardwired with a TRIAC/ELV/MLV wall dimmer, up to 15.5 ft: Compact 60W 12V Dimmable LED Transformer – White | Black
- Damp or wet location, up to 15.5 ft: 60W Dimmable LED Transformer (IP65) (choose the 12V version)
Recommended driver (hardwired, full 16.5 ft run, for 0-10V, PWM or wall dimmers):
- 80W 5-in-1 Dimmable LED Driver (choose the 12V version)
- Only use a 12V transformer or driver with this strip. A 24V unit will damage it.
- Hardwiring any transformer or driver to 120V power should be done by a licensed electrician.
Professional Installation Recommended: Consult a licensed Electrician
