Description
Elevate your lighting designs with our RGB Dotless COB LED Strip Light, engineered for smooth, uninterrupted color lighting in high-end indoor applications. With 630 LEDs per meter, this strip delivers a continuous and vibrant glow — with no visible LED dots, even at low brightness levels.
Ideal for architectural details, ambient lighting, signage, and mood-enhancing installations, this COB RGB strip supports precise color control via compatible RGB controllers.
-
Dotless RGB Output: Seamless color transitions with no spotting
-

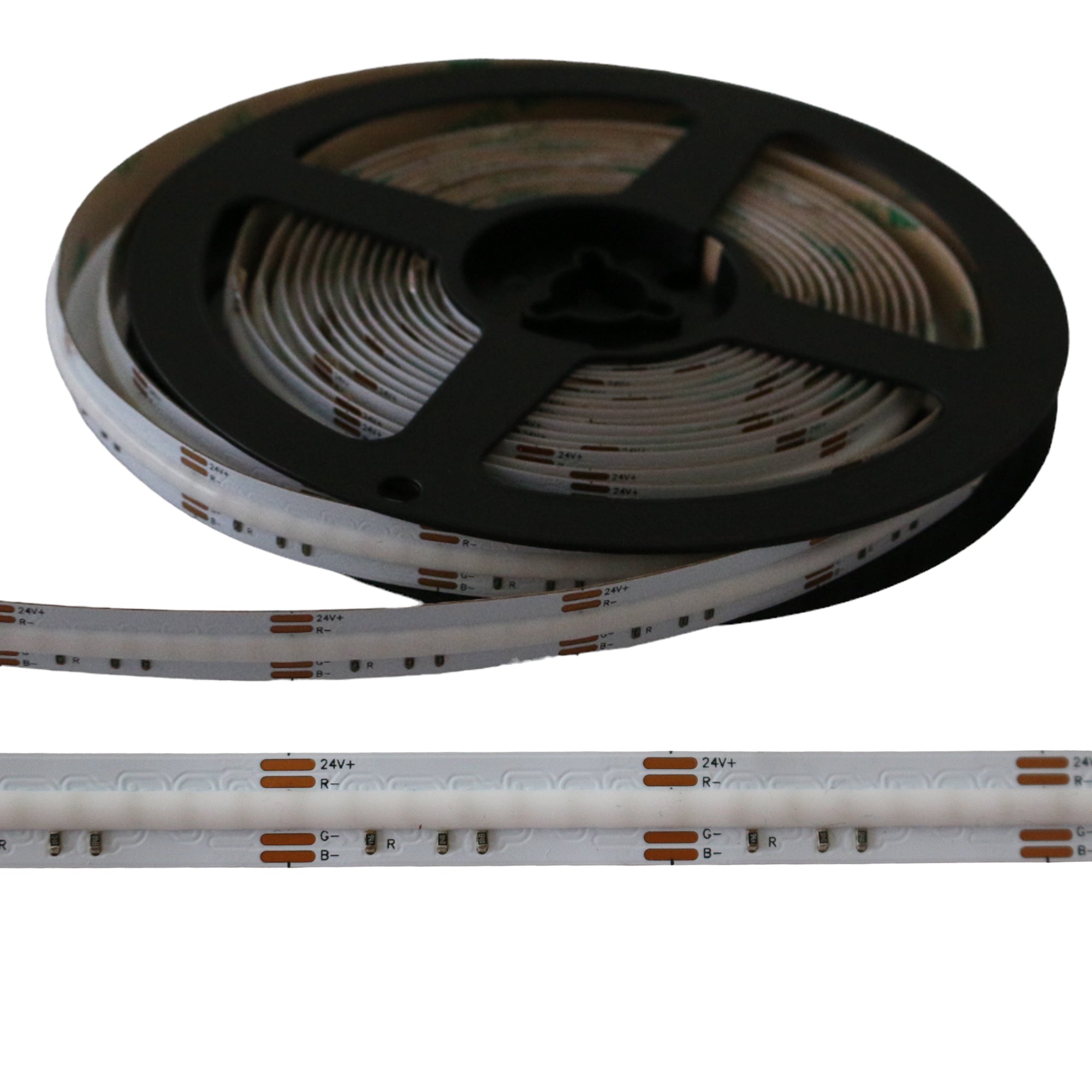

LED Density: 630 LEDs/m (~192 LEDs/ft)
-
Lumen Output: ~210 lumens/ft
-
Input Voltage: 24V DC
-
Wattage (W/ft): 5.5W
-

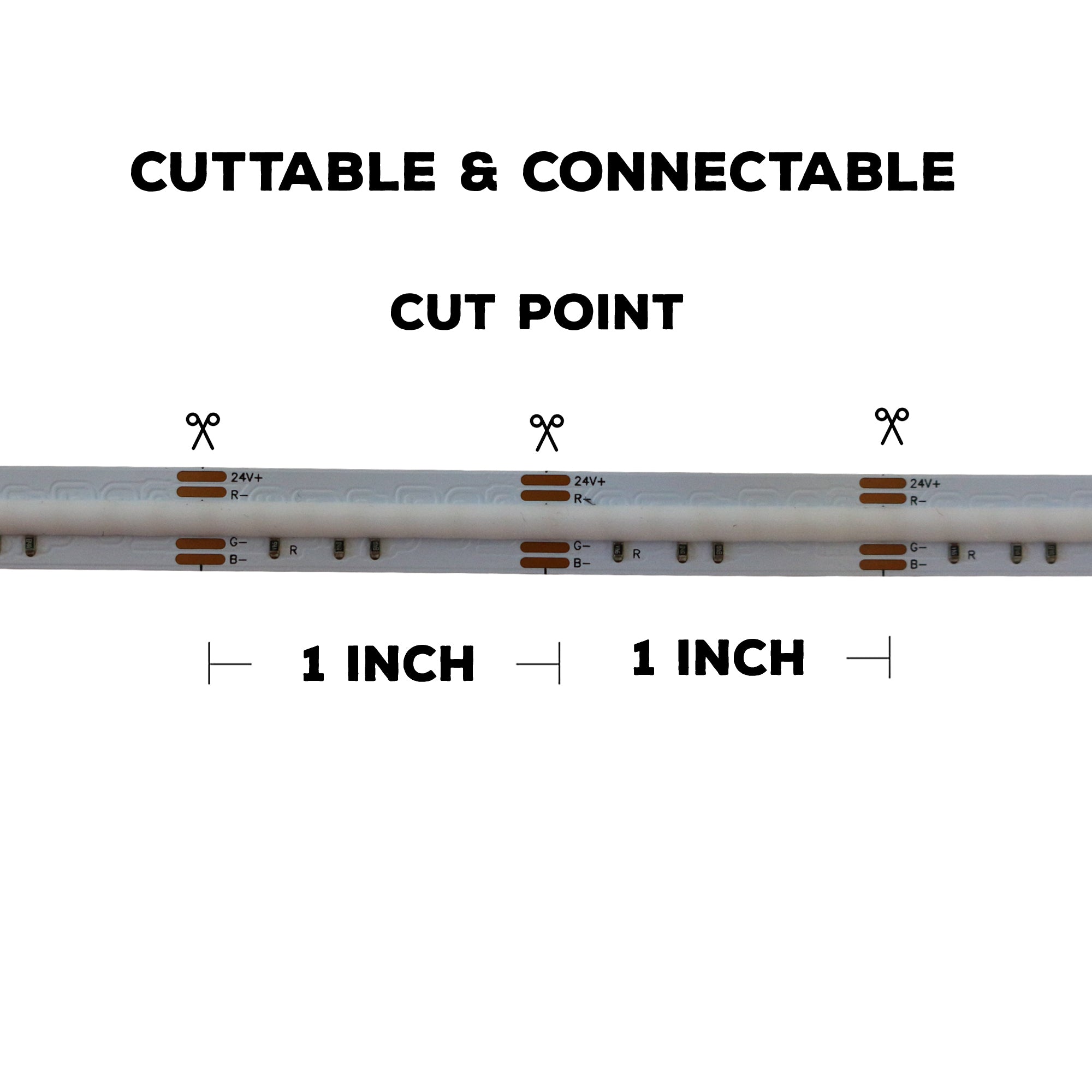

Cut Points: Every 1 inch for easy customization
-

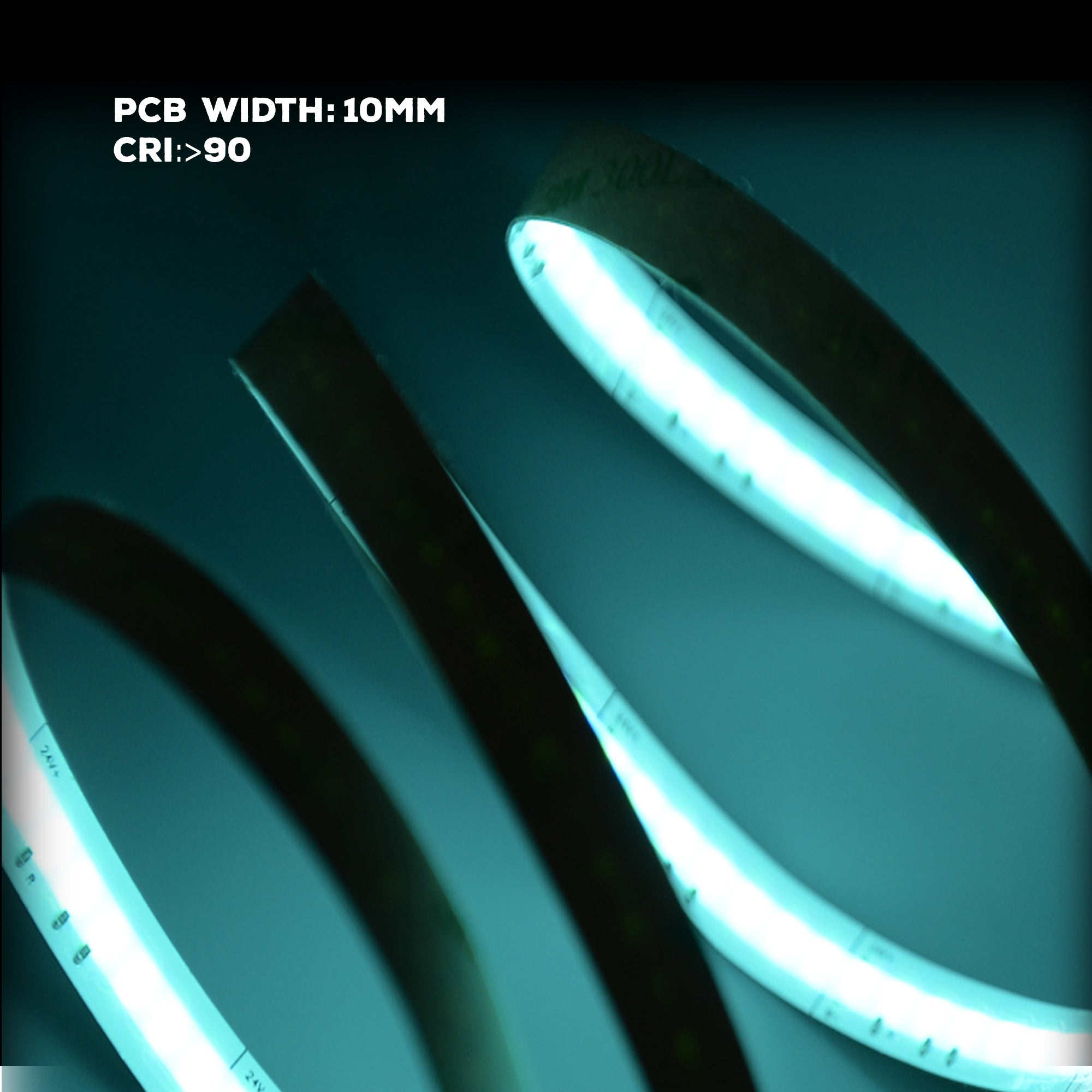

CRI ~90: Excellent color rendering for professional environments
-

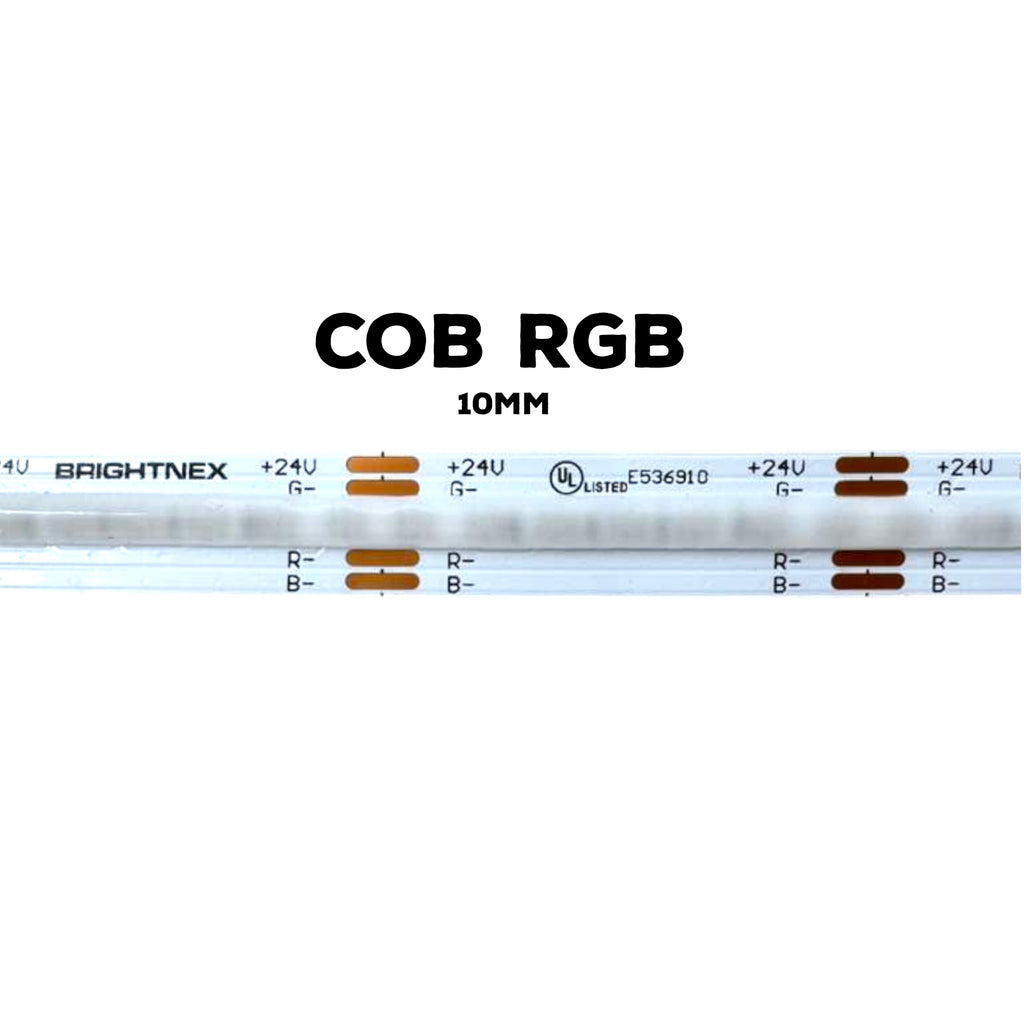

Width: 10mm PCB – fits most RGB-compatible aluminum profiles
-
Lengths Available: 16.5ft, 32ft and 82ft
-
Dimmable: Requires compatible 24V RGB controller
-
IP Rating: IP20 – for dry, indoor use only
-
UL Certified: Tested for safety and compliance
-
Compatible Accessories:
MiBoxer Smart RGB+CCT Lighting Kit
-
Part Number:
LA-STR-10R-16-IP20-24V
LA-STR-10R-32-IP20-24V
LA-STR-10R-82-IP20-24V
This RGB strip light is perfect for designers, installers, and architects looking for high-end color control, dot-free aesthetics, and UL-certified reliability.
Max Run Length & Recommended Power
- Maximum run: 16.5 ft (5 m) per power feed. The 32 ft and 82 ft reels must be cut into runs of 16.5 ft or less, each with its own feed wire.
- Power: about 5.5W per foot, so a full 16.5 ft run draws about 91W. Load a transformer to no more than 80% of its rating, so a full run needs at least 113W.
Recommended transformers (power your RGB controller, which handles color and dimming):
- Full 16.5 ft run: Compact 150W 24V LED Transformer
- Up to 13.5 ft: Compact 96W 24V LED Transformer – White | Black
- Up to 13.5 ft in a damp or wet location: 96W 24V LED Transformer (IP65)
- Do not put a wall dimmer on the transformer's line when using an RGB controller. Check that the controller is rated for the wattage of the run it controls.
- Connecting any transformer to 120V power should be done by a licensed electrician.
Professional Installation Recommended: Consult a licensed Electrician
