Description

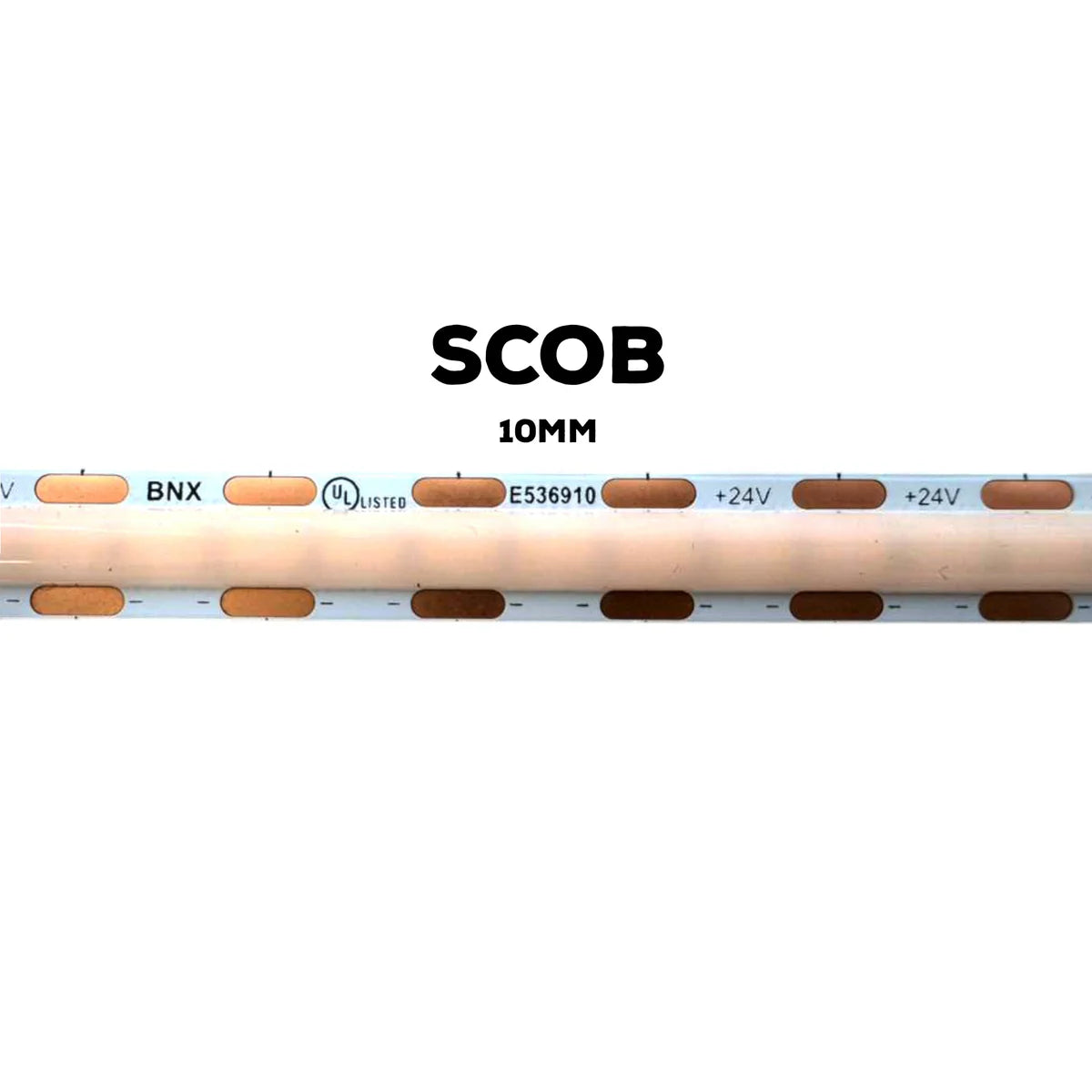

This dimmable SMD COB LED Strip Light delivers precision lighting with ultra-smooth, dot-free output engineered for premium indoor applications where both aesthetics and performance matter. Built with advanced SMD COB technology, this 10mm-wide strip features 320 LEDs per meter and cut points every 12.5mm, giving professionals maximum control and flexibility.

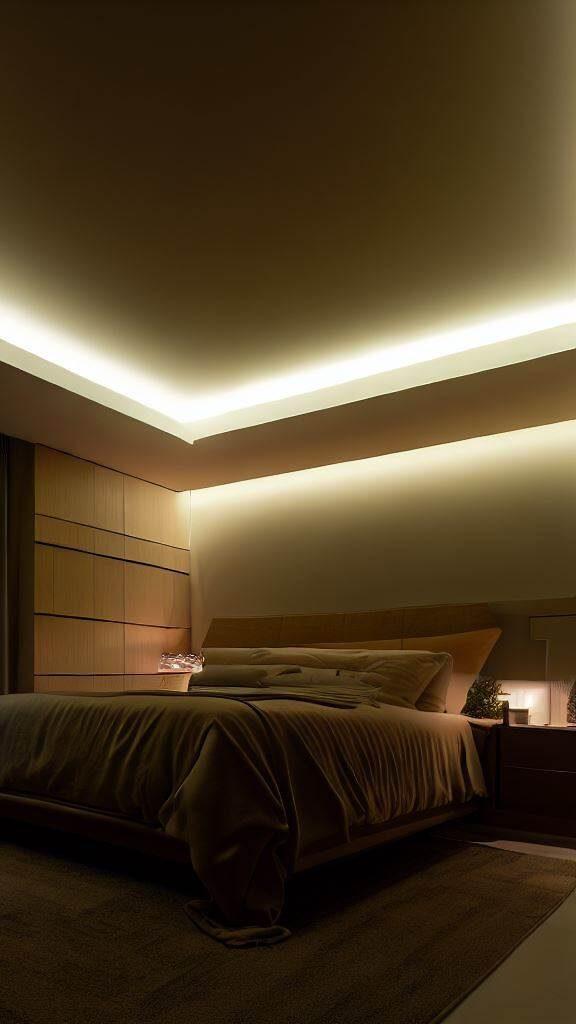

Perfect for cove, under-cabinet, display, and architectural lighting, it provides consistent brightness, high color accuracy, and excellent energy efficiency.
-
SMD COB Technology: Seamless, continuous illumination with no visible LED dots
-
High LED Density: 320 LEDs per meter for refined, professional light output
-
Power Consumption: ~4.57W per foot (±10%)
- Brightness: Up to 1725 lumens/meter (varies by color temp)
2700K: ~1575 lm/m
3000K: ~1650 lm/m
4000K: ~1700 lm/m
5000K: ~1725 lm/m
-
Color Temperatures: Warm White (2700K, 3000K), Natural White (4000K) and Cool White (5000K)
-
Voltage: 24V DC
-
High CRI (~90): Excellent color rendering for vibrant, natural light
-
Cuttable: Every 12.5mm, Ideal for precise and custom-fit installations
-
Strip Width: 10mm – fits standard LED channels and profiles
-

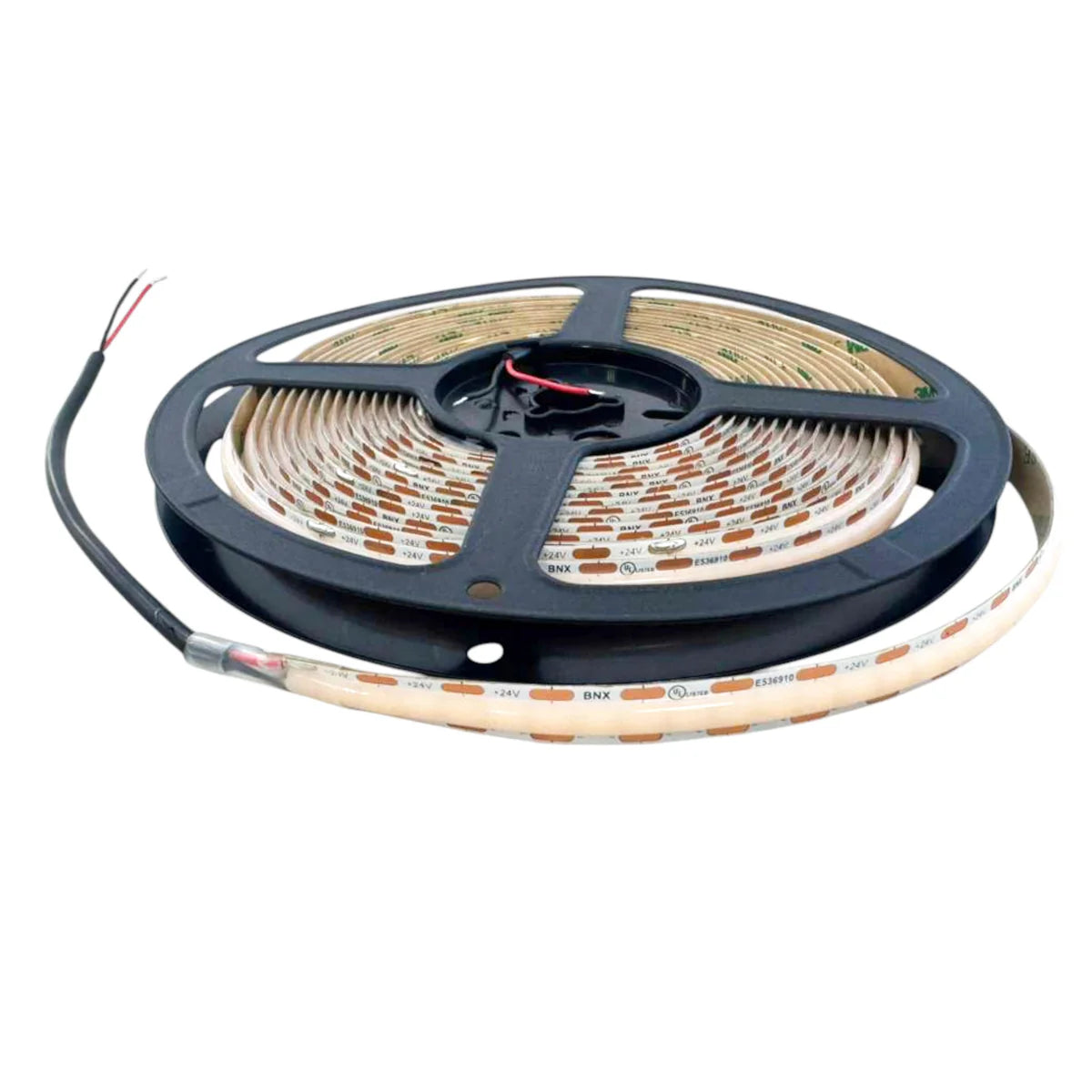

Flexible Lengths: Available in 16.5ft and 82ft rolls
-
Indoor Use: IP20 rated – for dry, interior environments
-
Features: Dimmable with LED Controller
-
UL Certified: Complies with strict safety and performance standards
-
Compatible accessories:
MiBoxer Smart RGB+CCT Lighting Kit
-
Part Numbers:
LA-STR-10SC-W27K-16-IP20-24V
LA-STR-10SC-W27K-82-IP20-24V
LA-STR-10SC-W3K-16-IP20-24V
LA-STR-10SC-W3K-82-IP20-24V
LA-STR-10SC-W4K-16-IP20-24V
LA-STR-10SC-W4K-82-IP20-24V
LA-STR-10SC-W5K-16-IP20-24V
LA-STR-10SC-W5K-82-IP20-24V
This LED strip is a go-to solution for contractors, electricians, and lighting designers who need professional-grade, flexible, and dotless linear lighting.
Recommended Power
- Power: about 4.57W per foot, so a full 16.5 ft run draws about 75W. Load a transformer or driver to no more than 80% of its rating, so one run needs at least 94W.
Recommended transformers (for TRIAC/ELV/MLV wall dimmers or an on/off switch):
- Indoor / dry location: Compact 96W 24V Dimmable LED Transformer – White | Black
- Damp or wet location: 96W 24V Dimmable LED Transformer (IP65)
Recommended driver (for 0-10V, PWM or wall dimmers):
- 100W 5-in-1 Dimmable LED Driver (choose the 24V version)
- Powering more than one run from one unit? Add up the wattage of all runs and keep the total under 80% of its rating.
- Connecting any transformer or driver to 120V power should be done by a licensed electrician.
Professional Installation Recommended: Consult a licensed Electrician
