Description

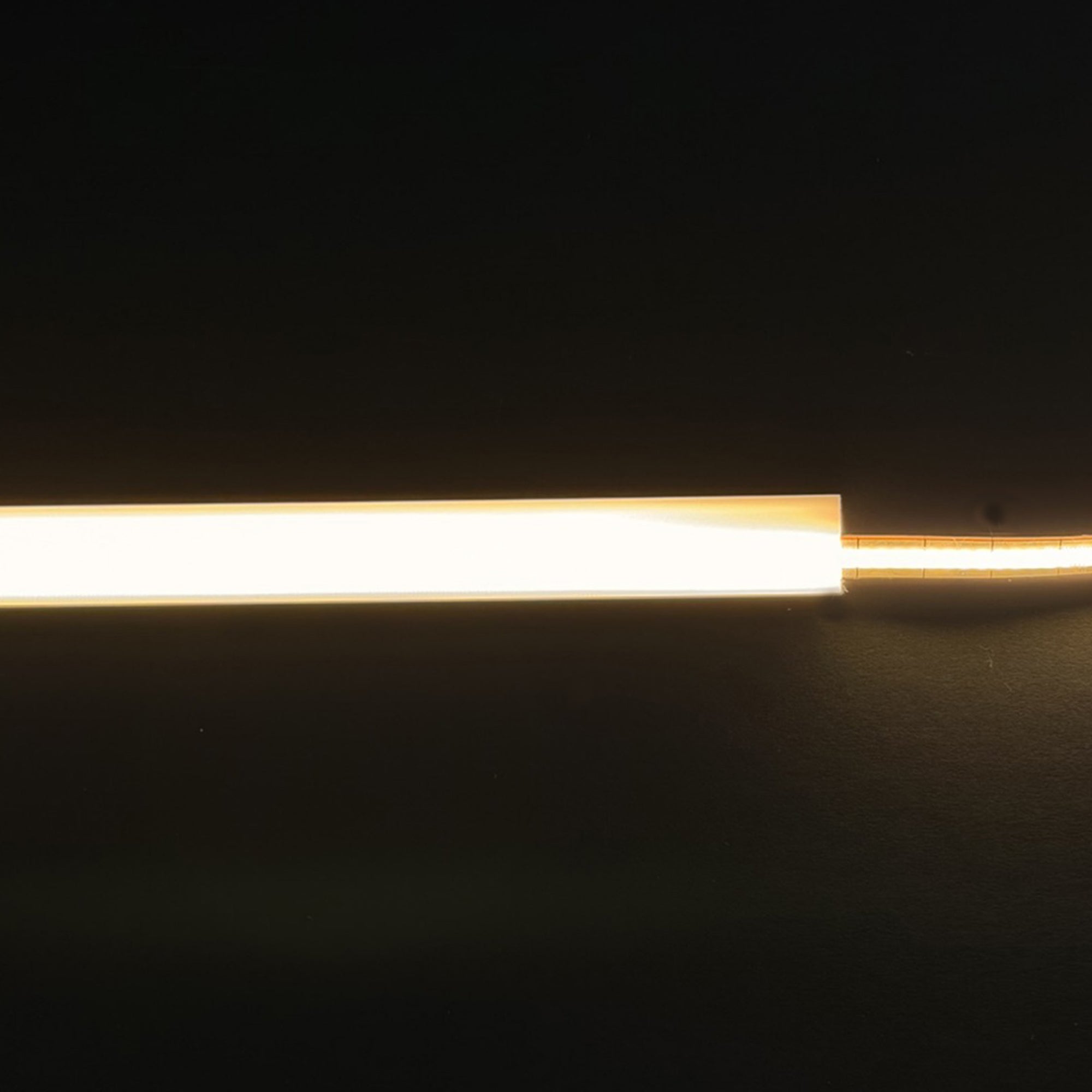

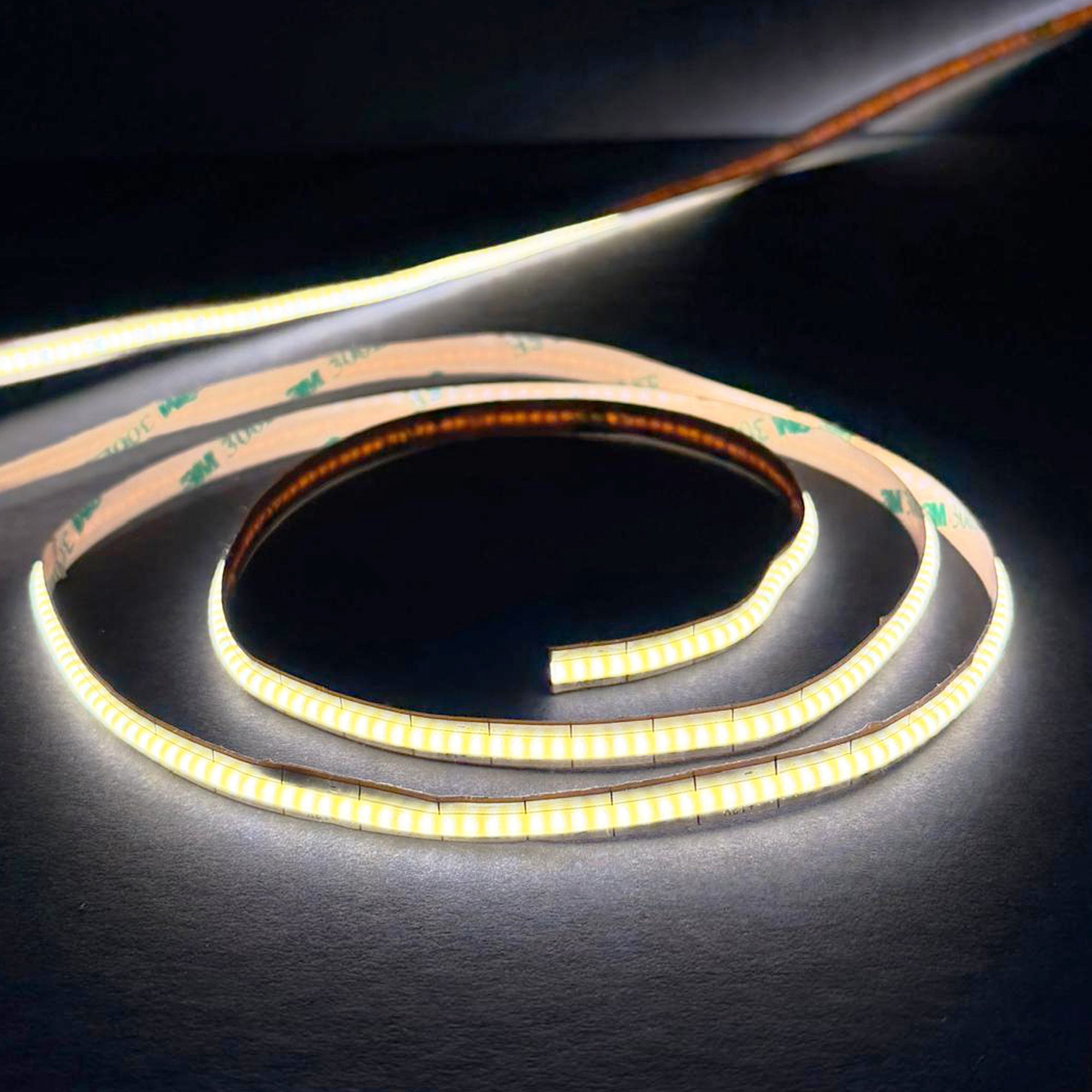

The Ultra Slim COB LED Strip Light delivers precise, dot-free white lighting in a compact 6.5mm-wide form factor — perfect for narrow profiles, tight spaces, or clean architectural lines. With 400 LEDs per meter, this strip ensures smooth, uniform light output across all four color temperature options.

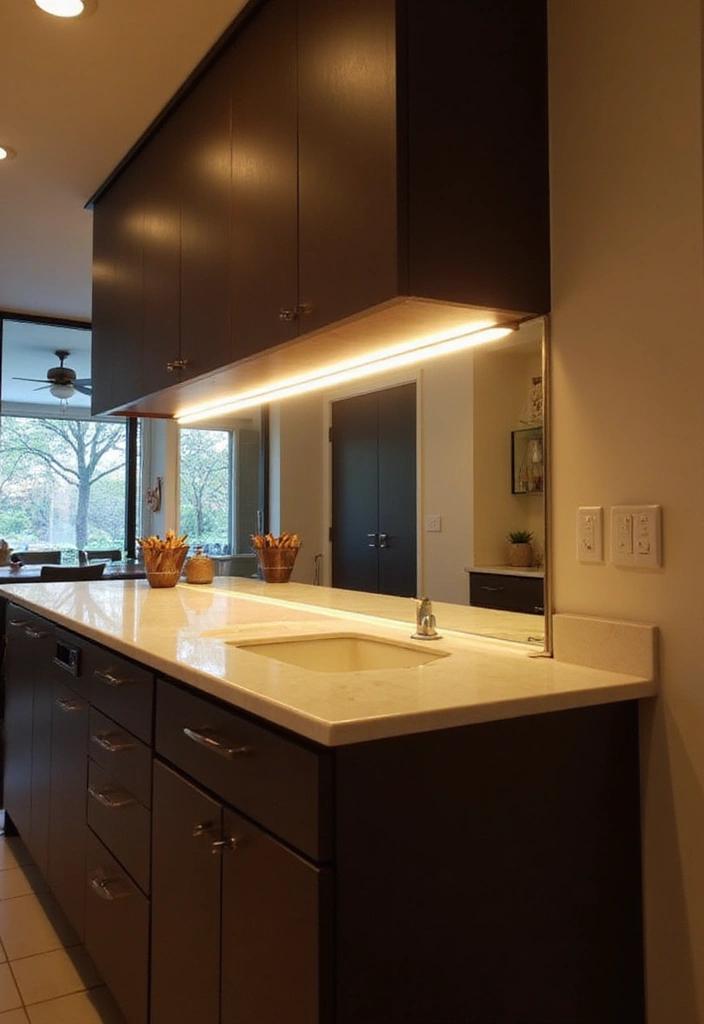

Ideal for accent lighting, display cases, cove lighting, or signage where minimal size and maximum brightness are required.
-
Available CCTs: 2700K / 3000K / 4000K / 5000K
-
Lumen Output:
-
2700K – 200 lm/ft
-
3000K – 210 lm/ft
-
4000K – 220 lm/ft
-
5000K – 225 lm/ft
-
-

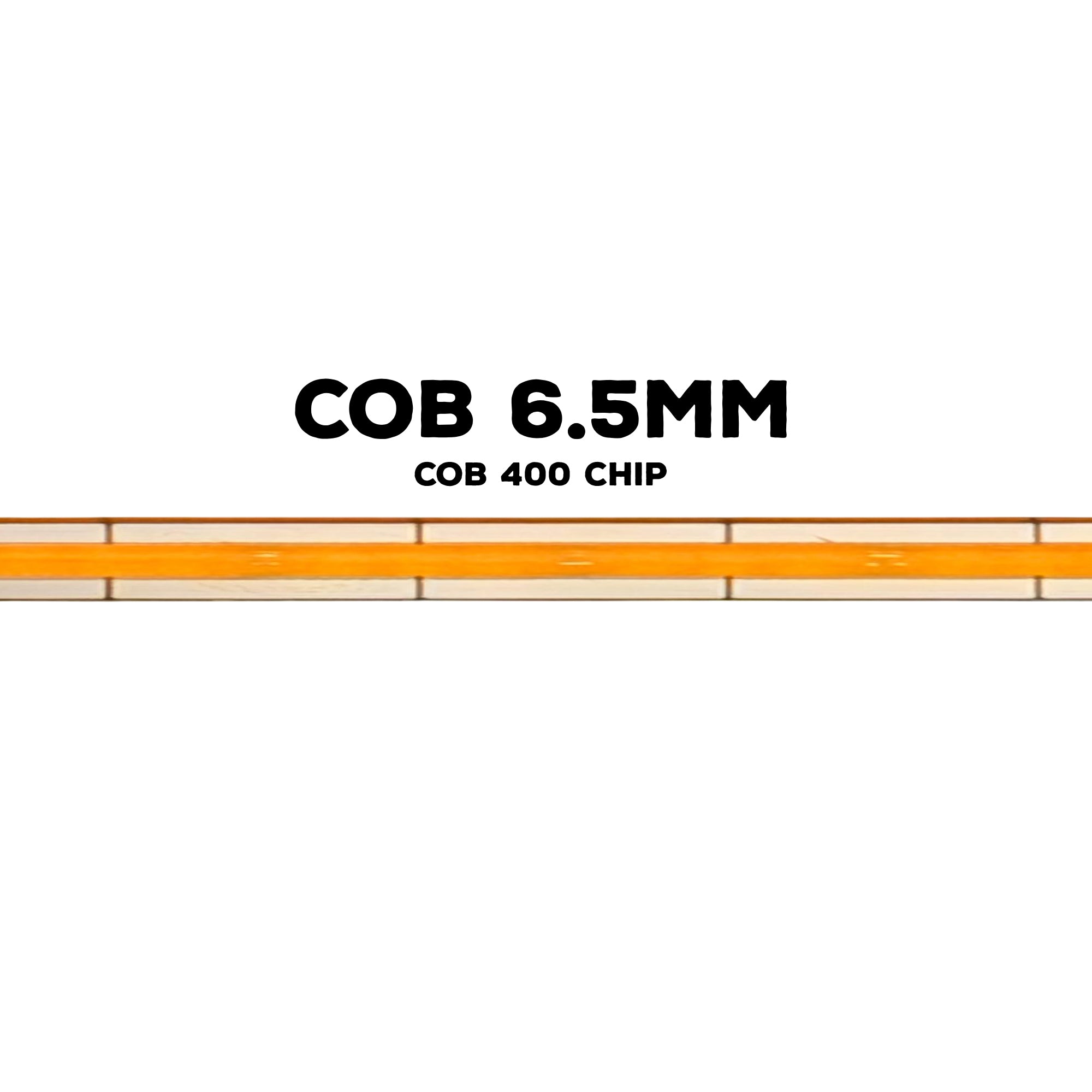

LED Density: 400 LEDs/m
-
Voltage: 24V DC
-
Power Consumption: 1.83W/ft (6W/m) ±10%
-
Current Draw: 0.25A/m
-

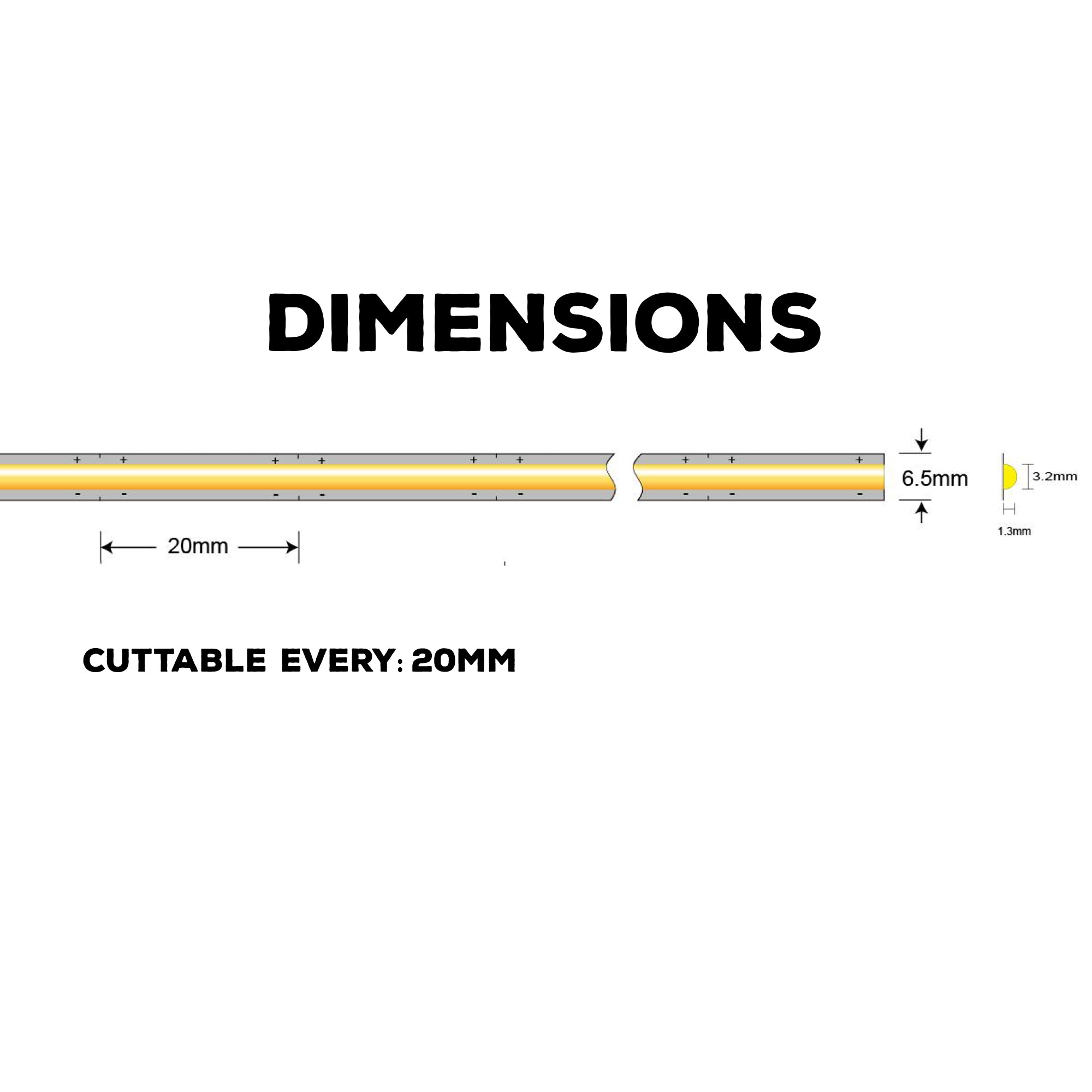

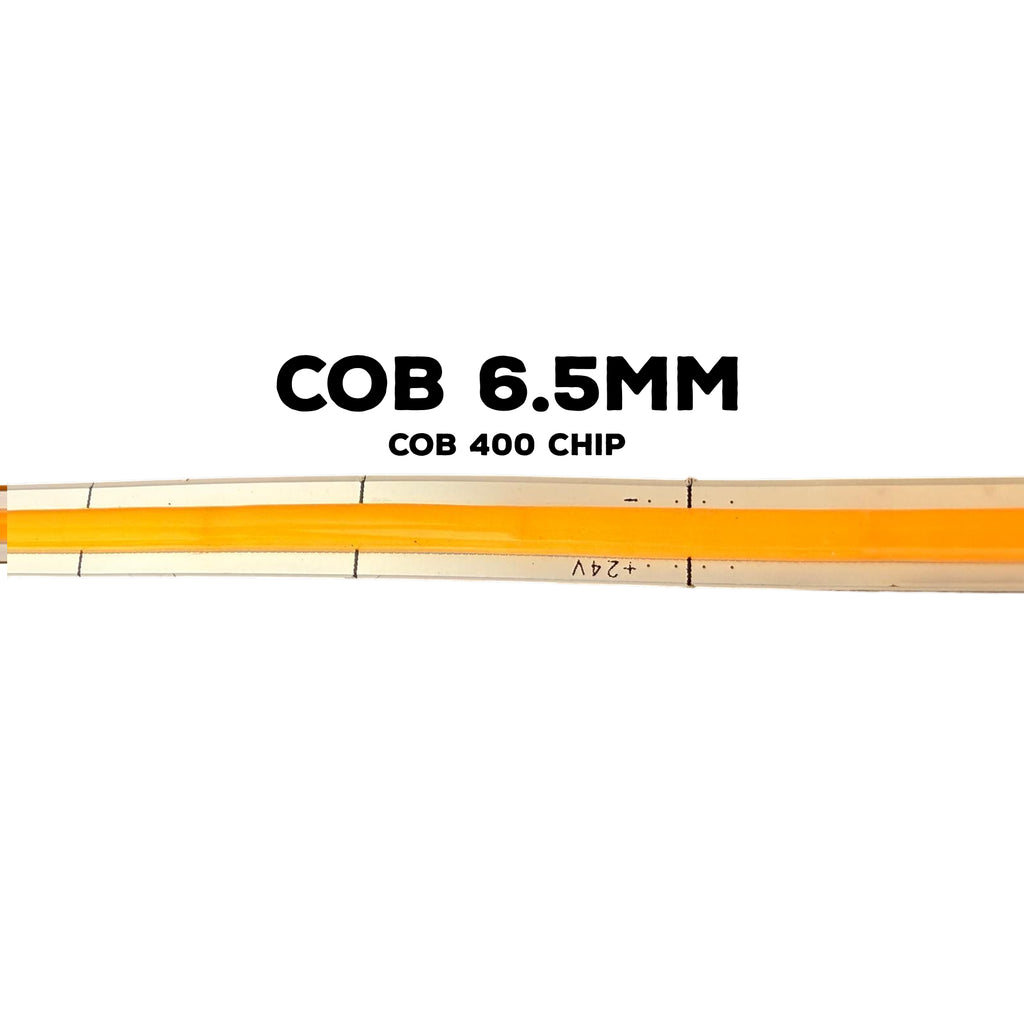

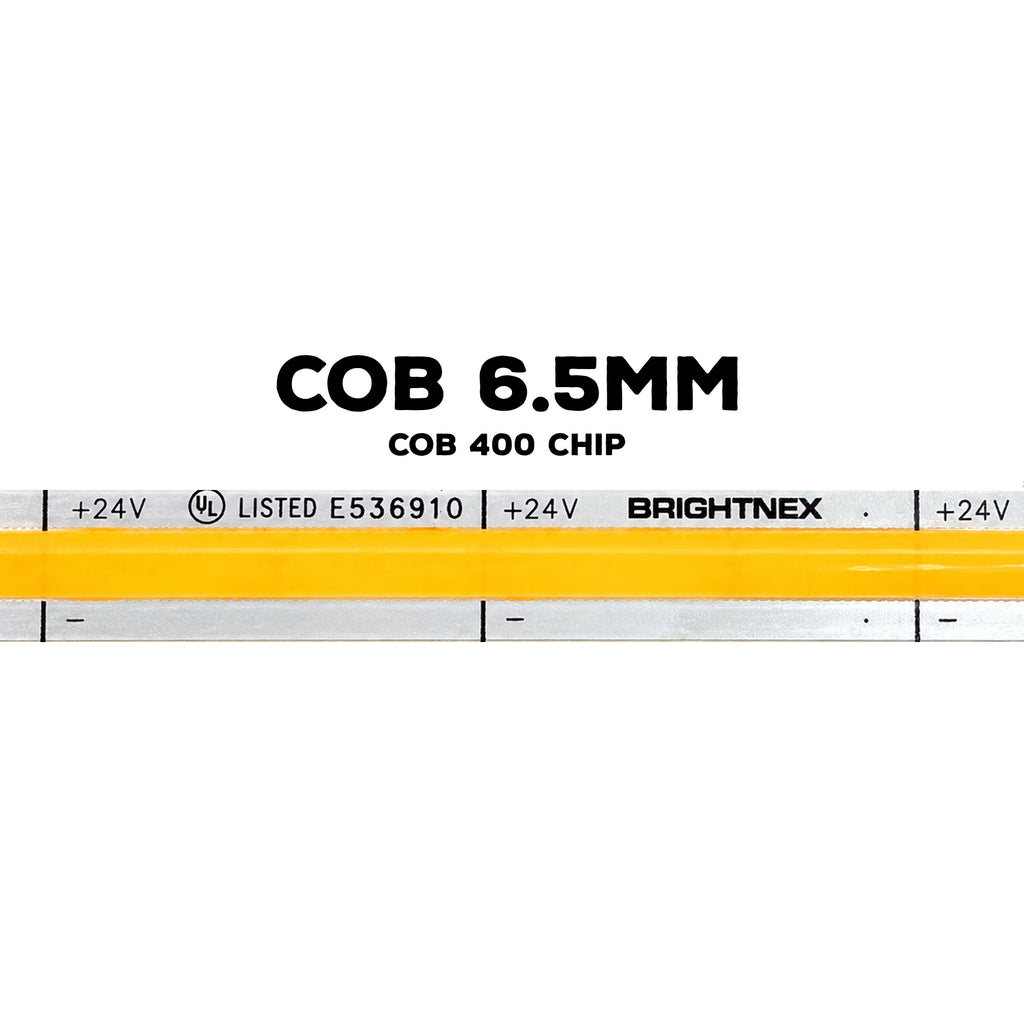

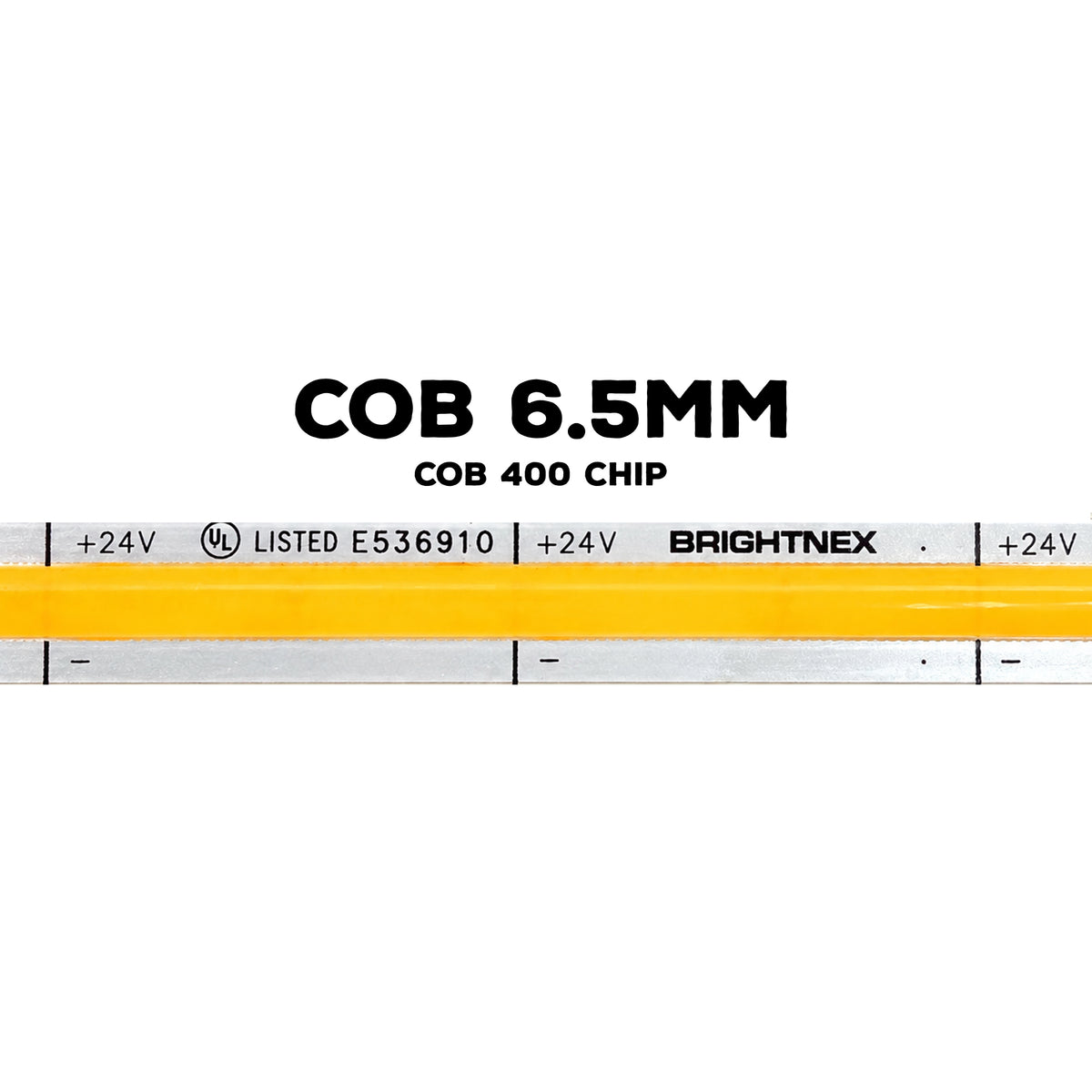

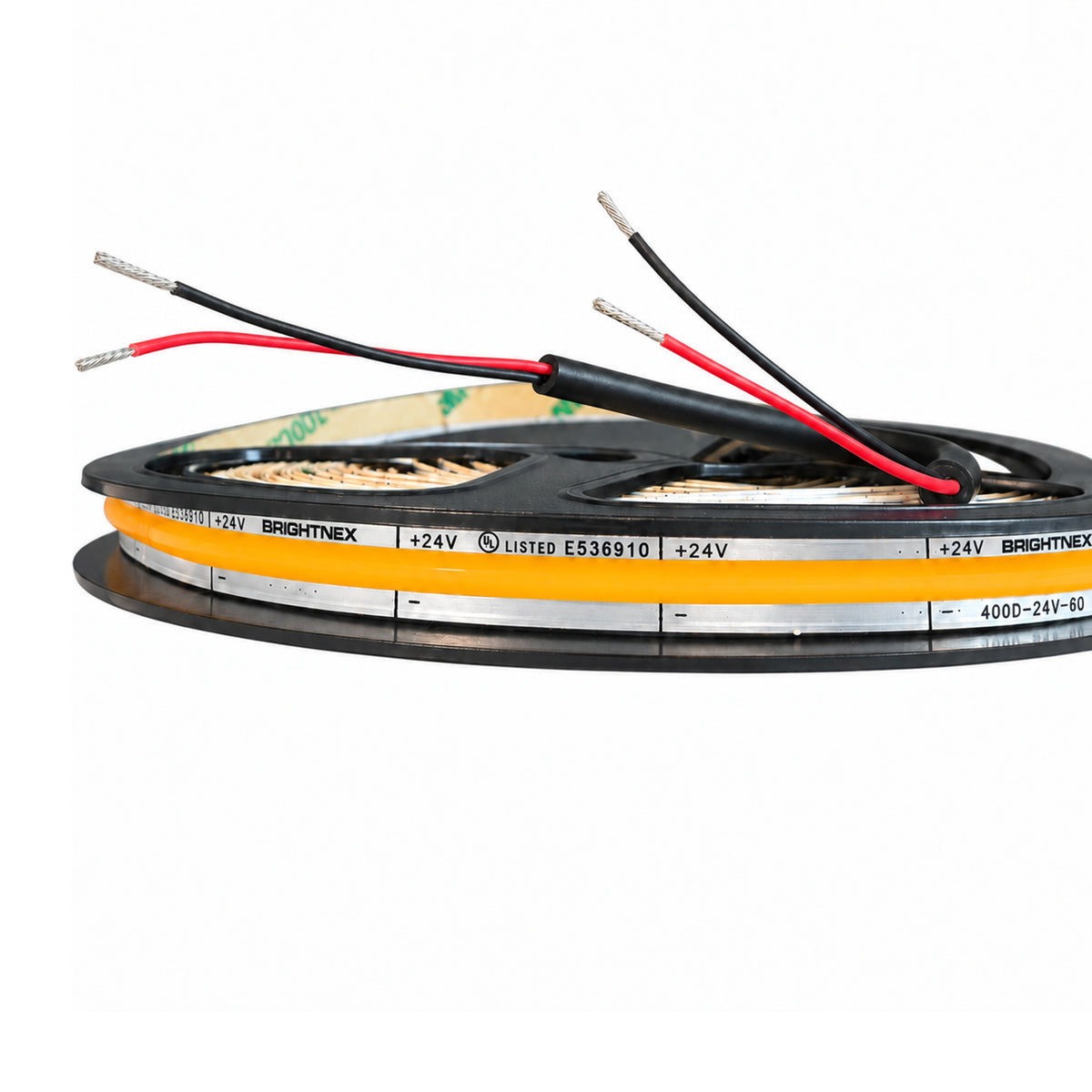

PCB Width: 6.5mm
-
Cuttable Every: 20mm
-
CRI: ~90 – Natural, accurate color rendering
-
Beam Angle: 180°
-

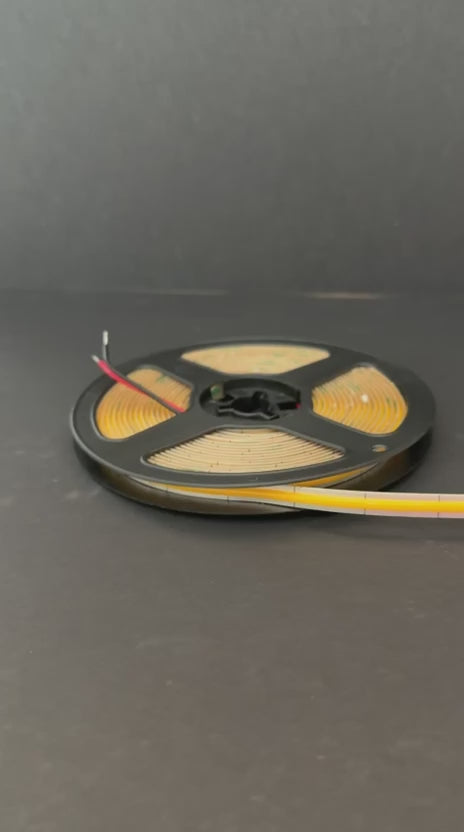

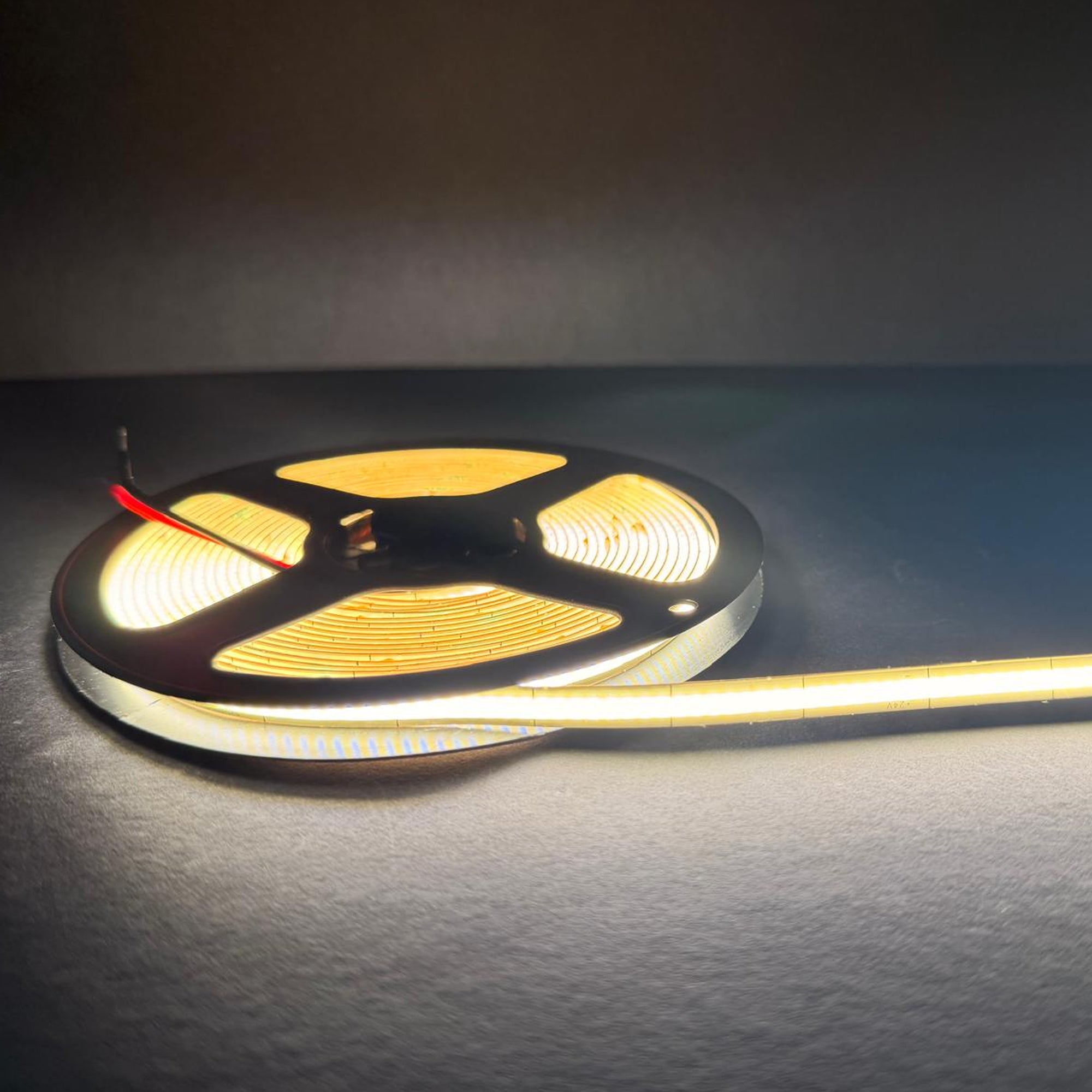

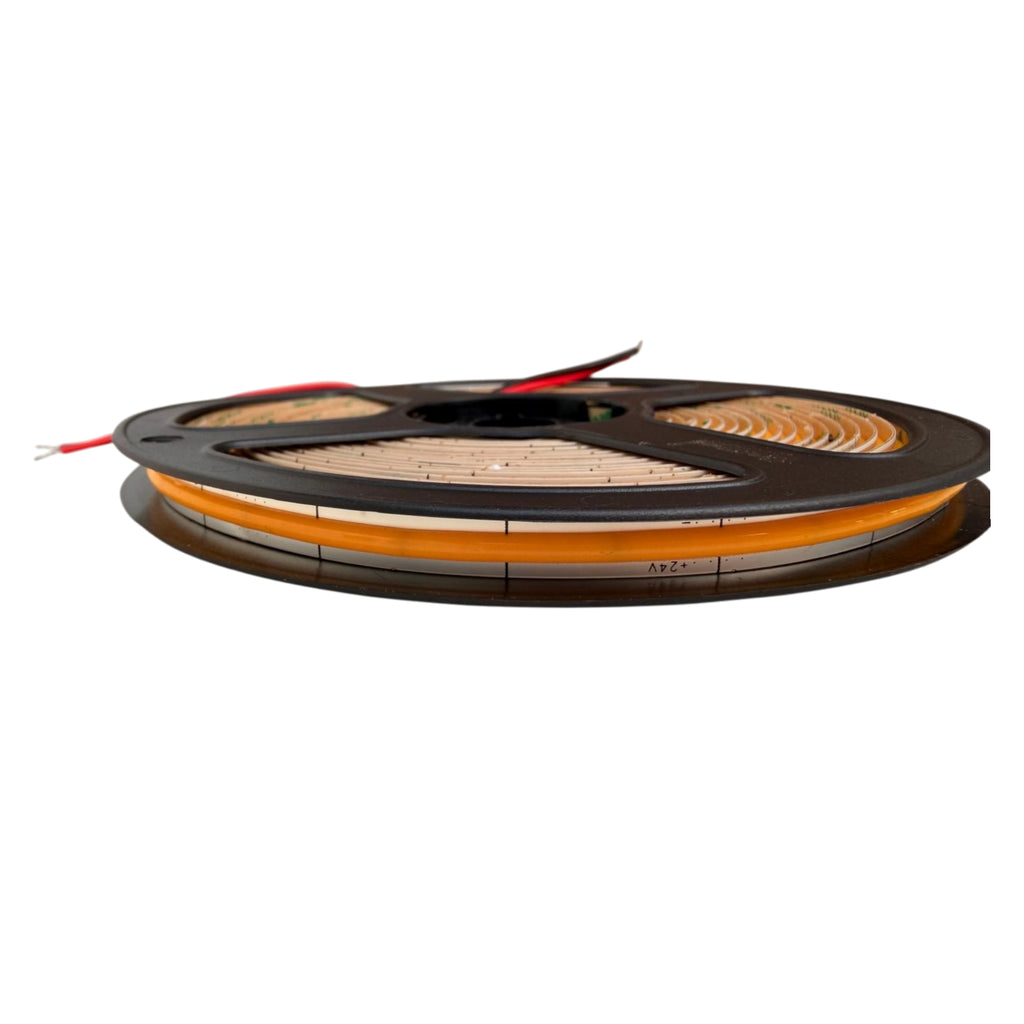

Length: 5 meters (16.4ft per roll)
-
Protection: IP20 – Indoor use only
-
Temperature Range: -30°C to +55°C
-
Adhesive: 3M backing pre-applied
-
RoHS Compliant
-
Ideal Applications: Letter signage backlight, Ambient lighting, Advertising signs
-
Compatible Accessories:
MiBoxer Smart RGB+CCT Lighting Kit
-
Part Numbers:
LA-STR-65C-W27K-16-IP20-24V
LA-STR-65C-W3K-16-IP20-24V
LA-STR-65C-W4K-16-IP20-24V
LA-STR-65C-W5K-16-IP20-24V
Recommended Power
- Power: about 1.83W per foot, so a full 16.5 ft run draws about 30W. Load a transformer or driver to no more than 80% of its rating, so one run needs at least 38W.
Recommended transformers (for TRIAC/ELV/MLV wall dimmers or an on/off switch):
- Indoor / dry location: Compact 60W 24V Dimmable LED Transformer – White | Black
- Damp or wet location: 60W Dimmable LED Transformer (IP65) (choose the 24V version)
Recommended driver (for 0-10V, PWM or wall dimmers):
- 60W 5-in-1 Dimmable LED Driver (choose the 24V version)
- Powering more than one run from one unit? Add up the wattage of all runs and keep the total under 80% of its rating.
- Connecting any transformer or driver to 120V power should be done by a licensed electrician.
Professional Installation Recommended: Consult a licensed Electrician
