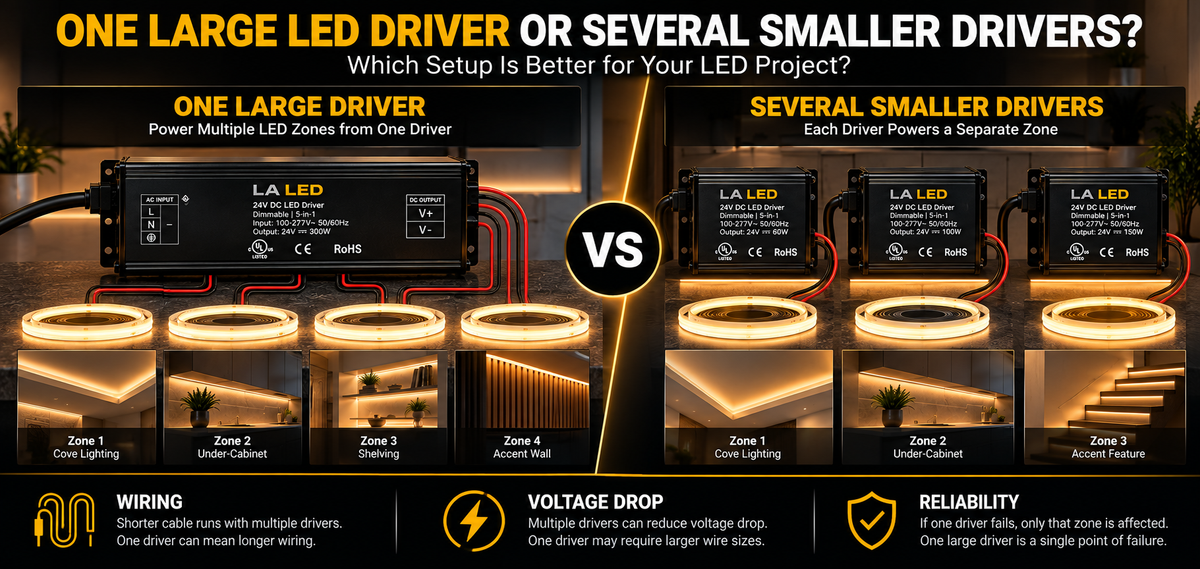

Should I Use One Large LED Driver or Several Smaller Drivers?

You're planning a large LED strip installation.

After calculating the total load, you realize you have two basic options:

Option A: One Large LED Driver

or

Option B: Several Smaller LED Drivers

Which is better?

There isn't one answer for every project.

For a compact installation with short cable runs, one properly sized driver may provide a simple and practical solution.

But for a large home, commercial installation, long perimeter, multiple rooms, or separate lighting zones, several smaller drivers can sometimes provide better power distribution, serviceability, and control.

The decision should be based on more than total wattage.

You should consider:

• Total LED load
• Distance between driver and strips
• Voltage drop
• Wire size
• Number of lighting zones
• Driver locations
• Dimming and controls
• Maintenance access
• Reliability requirements
• Installation cost
• Future expansion

Let's compare both approaches.

---

First: Calculate Your Total LED Load

Before deciding how many drivers you need, determine how much power the LED installation requires.

For LED strips:

Watts per Foot × Total Feet = Total LED Load

For example, suppose your 24V COB strip uses:

4.5W per foot

and your project requires:

60 feet

The approximate load is:

4.5W × 60 = 270W

Now you know the lighting requires approximately 270 watts.

But that doesn't automatically mean you should simply purchase one driver slightly above 270W—such as our 300W 5-in-1 Dimmable LED Driver—and be done with it.

You still need to consider how those 60 feet are physically distributed throughout the project.

---

Option 1: One Large LED Driver

A centralized design might look like:

120V AC

↓

Large 24V LED Driver

↓

Multiple Low-Voltage Branches

↓

COB Strip Zone A

COB Strip Zone B

COB Strip Zone C

COB Strip Zone D

The main advantage is simplicity at the power-conversion point.

Instead of installing multiple drivers, one unit supplies several LED runs.

---

Advantages of One Large LED Driver

1. Fewer Power Supplies

The obvious benefit is that you have fewer individual drivers to:

• Purchase
• Mount
• Wire
• Locate
• Maintain

For a relatively compact project, this can simplify the installation.

---

2. Centralized Maintenance

If the driver is installed in an accessible location, servicing can be convenient.

Instead of searching for multiple power supplies around the building, you know where the main driver is located.

This can be particularly useful in:

• Custom cabinetry
• Retail displays
• Architectural installations
• Equipment rooms

However, centralization also creates a potential disadvantage—which we'll discuss shortly.

---

3. Potentially Cleaner Equipment Layout

A centralized driver location can reduce the number of power-supply enclosures distributed throughout the project.

For some architectural installations, this can create a cleaner equipment layout.

But remember:

Cleaner equipment layout does not automatically mean simpler wiring.

You may need significantly more low-voltage cable.

---

4. Easier Central Power Management

In certain installations, having one centralized driver can make the power architecture easier to understand.

For example:

One Driver → Distribution → Multiple LED Runs

This may be appropriate when the LED runs are relatively close together.

---

Disadvantages of One Large LED Driver

1. Longer Low-Voltage Wire Runs

This is one of the biggest considerations.

If one driver is powering LED strips located far away, the low-voltage wiring may become long.

At 12V or 24V, voltage drop can become significant depending on:

• Current
• Wire gauge
• Cable length
• Connection quality

A powerful driver doesn't eliminate voltage drop.

You can have:

300W Driver + Long Undersized Cable = Poor Performance

even though the driver itself has more than enough wattage.

---

2. Higher Current on the Main Output

Remember the basic relationship:

Power = Voltage × Current

or:

Current = Power ÷ Voltage

For example, a 240W load at 24V theoretically draws approximately:

240 ÷ 24 = 10A

At 12V:

240 ÷ 12 = 20A

This is one reason 24V systems are often practical for larger LED strip installations. Every COB strip in our single-colour range runs at 24V for this reason.

Higher current can require:

• Larger wire
• Appropriate connectors
• Proper distribution
• Careful circuit design

---

3. One Driver Can Become a Single Point of Failure

Suppose one large driver powers:

Living Room Cove

Kitchen Lighting

Hallway Lighting

Shelf Lighting

If that single driver fails:

Everything connected to it may go dark.

This is known as a single point of failure.

With several drivers, a failure may affect only one lighting section.

For larger projects, this can be an important reliability consideration.

---

4. Independent Control Can Become More Complicated

What if you want:

Zone A → 100%

Zone B → 30%

Zone C → OFF

Zone D → 60%

A single driver may still be usable depending on the controller architecture, but you'll need to plan the control system carefully.

Multiple independently controlled zones often benefit from a more distributed system design.

---

Option 2: Several Smaller LED Drivers

Instead of one centralized driver, you might divide the project:

Driver 1 → Zone A

Driver 2 → Zone B

Driver 3 → Zone C

Driver 4 → Zone D

Each driver is located closer to the LED load it powers.

This can offer several important advantages.

Our 5-in-1 range starts at 30W and steps up through 60W and 80W, which covers most single-zone loads in a distributed design.

---

Advantages of Several Smaller Drivers

1. Shorter Low-Voltage Runs

This can be one of the strongest reasons to distribute drivers.

Instead of:

Driver → 50 ft cable → LED Strip

you might have:

Driver → 6 ft cable → LED Strip

Shorter low-voltage wiring can help reduce voltage-drop challenges.

This can be particularly useful for large homes and commercial installations.

---

2. Better Distribution Across Large Spaces

Imagine an architectural project with LED strips installed in:

• Reception
• Hallway
• Conference room
• Display wall
• Kitchen
• Lounge

Trying to power everything from one location may create unnecessary wiring complexity.

Multiple drivers allow power to be distributed closer to each load.

---

3. One Failure Doesn't Shut Down Everything

Suppose you use four drivers.

If:

Driver 3 fails

then:

Zone 3 stops working

while:

Zones 1, 2 and 4 remain operational.

This can improve practical system resilience.

For commercial spaces, that can be valuable.

---

4. Easier Troubleshooting

If one lighting zone develops a problem, the troubleshooting area is smaller.

For example:

Zone B flickers

You can focus on:

Driver B → Wiring B → Controller B → LED Strip B

rather than investigating one large interconnected system.

---

5. Easier Independent Dimming

Multiple drivers can work well when different areas need separate control.

For example:

Zone 1

Cove Lighting

Zone 2

Under-Cabinet Lighting

Zone 3

Shelving

Zone 4

Accent Wall

Each can potentially have its own:

• Dimmer
• Controller
• Schedule
• Brightness level

depending on the system design.

---

6. Easier Future Expansion

Suppose you initially install:

40 feet of COB strip

but later add:

20 more feet.

With a distributed design, you may be able to add another appropriately sized driver for the new zone rather than redesigning the entire existing power system.

Planning ahead makes expansion easier.

---

Disadvantages of Multiple Drivers

Multiple drivers are not automatically better.

There are trade-offs.

More Equipment

Instead of one driver, you may have:

2, 3, 4 or more.

Each requires:

• Space
• Wiring
• Mounting
• Appropriate connections
• Service access

---

More Line-Voltage Connections

Depending on the system architecture, multiple drivers may mean additional AC-side wiring.

That can increase installation complexity.

Line-voltage work should comply with applicable electrical requirements and be performed by qualified personnel where required.

---

More Installation Locations

Every driver needs an appropriate place.

You need to consider:

• Accessibility
• Ventilation
• Temperature
• Moisture
• Enclosure requirements
• Distance to LEDs

Don't solve one problem by hiding several drivers in inaccessible locations.

An integrated junction box reduces the number of separate splice points each location needs—see our transformers with junction box.

---

One Large Driver vs. Several Smaller Drivers

Neither approach wins every category.

The project determines the best solution.

---

There Is a Middle Option: Multi-Output Drivers

The choice isn't strictly one driver or many.

A multi-output transformer provides several independent low-voltage outputs from a single enclosure and a single AC connection.

That means you get:

One AC connection + One mounting location + Separate feeds per zone

Our multi-output range covers 192W with two outputs, 288W with three, and 384W with four channels, plus a 120W dual-output 12V version.

This can capture much of the wiring benefit of distributed drivers without multiplying AC connections and mounting points—though it is still one enclosure, so the single-point-of-failure consideration remains.

---

Voltage Drop Can Decide the Answer

This is one of the most important points in this article.

Imagine you have enough driver capacity for the entire project.

But the driver is:

40 feet away

from one LED run.

The problem isn't necessarily driver wattage.

It may be the voltage lost through the cable.

Voltage drop depends on factors including:

Current + Distance + Wire Resistance

If too much voltage is lost, you may experience:

• Reduced brightness
• Color inconsistency
• Unstable operation
• Different brightness between zones

Proper wire sizing and power distribution are critical.

---

A Larger Driver Does Not Push More Voltage Down the Wire

This is a common misunderstanding.

Suppose you have a:

24V 300W driver

Replacing it with:

24V 400W driver

does not mean the second driver automatically pushes more than 24V to overcome cable loss.

Both are designed to provide the specified output voltage under their rated conditions.

The larger wattage rating means greater available power capacity—not automatically higher output voltage.

If your problem is voltage drop, simply increasing driver wattage may not solve it.

---

When One Large Driver Makes Sense

A single large driver can be a good option when:

• LED runs are relatively close together
• Low-voltage cable distances are manageable
• The system uses one main lighting zone
• Centralized maintenance is desirable
• Proper wire sizing is practical
• The driver can be installed in a suitable accessible location

For example, imagine a large custom cabinet with several short COB runs all located within a few feet of one service area.

A centralized driver may be very practical—a 200W or 300W 5-in-1 driver covers most installations of that kind.

---

When Several Smaller Drivers Make Sense

Multiple drivers may be preferable when:

• LED runs are far apart
• The project spans multiple rooms
• Separate zones need independent control
• Voltage drop is a concern
• Redundancy is valuable
• You want easier troubleshooting
• Future expansion is expected
• Suitable driver locations exist near each load

Large architectural and commercial projects often benefit from thinking in zones rather than simply adding all wattage together.

---

Example 1: Kitchen

Imagine a kitchen with:

Under-Cabinet COB Strip → 45W

Island Accent Lighting → 30W

Toe-Kick Lighting → 35W

Total:

110W

You could potentially use one appropriately sized driver, such as the 150W 5-in-1.

But ask:

Are all three runs close together?

Do they turn on together?

Do they dim together?

If yes, one driver may be practical.

If each area needs independent control, multiple drivers or a properly designed multi-zone control system may be better—three zones is exactly what the 288W Triple-Output Transformer was built for.

---

Example 2: Large Living Room

Suppose a living room has:

Cove A → 80W

Cove B → 75W

TV Wall → 30W

Shelves → 25W

Total:

210W

A single large driver may technically provide enough wattage.

But if the runs are physically distributed around the room, you should also evaluate:

• Cable lengths
• Current
• Voltage drop
• Control zones
• Serviceability

Two or three smaller drivers may sometimes create a cleaner electrical design. Four separate runs at 210W total also maps neatly onto the 384W 4-Channel Driver, which gives each run its own output from one unit.

---

Example 3: Commercial Project

Imagine a retail store with:

Front Display

Shelving

Checkout Area

Feature Wall

Perimeter Lighting

Instead of using:

One Huge Driver

you might divide the system into logical zones.

For example:

Driver A → Front Display

Driver B → Shelving

Driver C → Feature Wall

Driver D → Perimeter

If one driver fails, the entire store does not lose its architectural lighting.

Maintenance can also be targeted to the affected zone.

Sizing each zone independently from the 5-in-1 driver range keeps the dimming method consistent across the whole installation.

---

Don't Forget Maximum LED Strip Run Length

Driver size and strip run length are separate issues.

Suppose your driver can theoretically power:

100 feet of LED strip

based purely on wattage.

That does not mean you should connect:

100 feet in one continuous series run.

The LED strip itself has maximum recommended run lengths.

Long runs may require:

• Parallel wiring
• Power injection
• Multiple feeds
• Additional drivers

Follow the LED strip manufacturer's specifications. Where a genuinely long single run is unavoidable, a line-voltage product such as the 100ft 110V COB Strip sidesteps the low-voltage run-length limit altogether.

---

Parallel Wiring Is Important

Large LED strip systems are commonly divided into parallel branches.

Conceptually:

24V Driver

↙ ↓ ↘

Strip A Strip B Strip C

rather than:

Driver → Strip A → Strip B → Strip C → Strip D

This can help distribute power more effectively.

But each branch and conductor must still be properly sized and protected according to the system design.

A multi-output transformer such as the 192W Dual-Channel provides these branches as separate terminated outputs rather than as splices made in the field.

---

One Driver Does Not Mean One Long Strip

This distinction is important.

A single large driver can power several shorter parallel LED runs.

For example:

300W Driver

could potentially supply several separate branches when:

• Total load is within specifications
• Wiring is correctly sized
• Distribution is properly designed
• Each strip run follows manufacturer limits

So the real choice isn't simply:

One Driver vs. Many Drivers

It is:

What power-distribution architecture works best for this project?

---

Several Drivers Do Not Automatically Eliminate Voltage Drop

Another important point.

Suppose you use several smaller drivers—but place all of them 50 feet away from their LED strips.

You may still have voltage-drop problems.

The advantage of distributed drivers comes largely from being able to locate the power conversion closer to the loads.

Placement matters.

---

What About Dimming?

Before choosing the driver architecture, determine how the lights need to be controlled.

Ask:

Should all LEDs dim together?

or:

Should each area have independent brightness?

If everything should behave as one lighting zone, a centralized driver may simplify some designs.

If you need multiple independent zones, distributed drivers or multi-channel controllers may provide greater flexibility.

Whichever architecture you choose, keeping every driver on the same dimming protocol simplifies the controls—our 5-in-1 drivers all accept TRIAC, ELV, MLV, 0–10V and PWM.

---

One Remote, Multiple Zones?

Modern LED control systems can allow multiple zones to be controlled from one remote or wall control.

That means:

Multiple Drivers ≠ Multiple Remotes

necessarily.

Depending on the controller system, you may have:

One Remote

controlling:

Zone 1

Zone 2

Zone 3

Zone 4

individually or together.

This can combine distributed power with convenient centralized control.

Our LED controllers and remotes cover this, and the MiBoxer WL5 5-in-1 Controller handles single colour, CCT, RGB, RGBW and RGB+CCT from one unit if the zones use different strip types.

---

Driver Accessibility Matters

Whichever option you choose, plan for future service.

A driver may eventually need:

• Inspection
• Replacement
• Rewiring
• Troubleshooting

Avoid placing drivers permanently behind inaccessible finished surfaces unless the equipment and installation method are specifically designed for that situation.

A beautifully hidden LED strip should not require destroying a ceiling just to replace its power supply.

---

Heat Management Matters Too

One large driver may generate more total heat in one location.

Several smaller drivers distribute that heat across multiple locations.

But multiple drivers hidden in tiny unventilated spaces can also overheat.

For every driver, consider:

• Ambient temperature
• Ventilation
• Manufacturer clearance requirements
• Case temperature
• Nearby heat sources

Driver quantity alone does not solve thermal problems.

---

What About Outdoor Installations?

For outdoor projects, every driver location must be suitable for its environment.

If you use multiple drivers, you may also create multiple outdoor electrical locations that require appropriate protection.

Check:

• IP/environmental rating
• Water exposure
• Temperature
• Connections
• Enclosures
• Cable entries

Sometimes a centralized protected driver location is preferable.

Other times, appropriately rated distributed drivers make more sense.

Again, project layout determines the answer. Our IP65-rated transformers run from 60W to 384W, so either architecture can be built with rated equipment.

---

Which Option Costs Less?

It depends.

One Large Driver

May reduce:

• Number of drivers
• Mounting points
• Some installation labor

But may increase:

• Low-voltage cable length
• Wire gauge requirements
• Distribution complexity

Several Smaller Drivers

May increase:

• Number of power supplies
• AC connections
• Installation points

But may reduce:

• Long heavy-gauge DC cable runs
• Distribution distances
• Troubleshooting complexity

Compare the complete system cost, not only the price of the drivers.

---

Reliability: Which Is Better?

There are two ways to look at reliability.

One Large Driver

Fewer components mean fewer individual power supplies that can fail.

But if that one driver fails:

All connected lighting may stop.

Multiple Drivers

There are more components, so there are more individual drivers in the system.

But one failure affects a smaller portion of the installation.

For critical commercial spaces, this partial redundancy can be valuable.

---

How Many Drivers Should I Use?

Instead of starting with a number, divide the project logically.

Ask:

Where are the LED strips?

Map their physical locations.

How much power does each area need?

Calculate each zone.

How long are the low-voltage cable runs?

Consider voltage drop.

Which lights should operate together?

Define control zones.

Where can drivers be safely installed?

Consider access and ventilation.

Then choose the number and size of drivers.

---

A Better Way to Plan Large LED Projects

Use this sequence:

Step 1 — Map the LED Runs

Mark every strip location.

Step 2 — Calculate Wattage

Determine the load of each run.

Step 3 — Create Logical Zones

Group strips that should operate together.

Step 4 — Measure Cable Distances

Determine where voltage drop may become important.

Step 5 — Choose Driver Locations

Keep serviceability and environmental conditions in mind.

Step 6 — Size Each Driver

Provide adequate capacity according to product specifications. Every product page in our drivers and transformers range lists output voltage, wattage, load range and dimming methods.

Step 7 — Plan Controls

Determine dimmers, controllers, remotes, or automation.

Step 8 — Plan Power Distribution

Determine parallel feeds or power injection where required.

This produces a much better system than simply adding all the wattage and buying the largest available driver.

---

Quick Decision Guide

Consider One Large Driver When:

✓ LED runs are close together
✓ Cable runs are short/manageable
✓ Lights operate as one zone
✓ Centralized service is desirable
✓ Proper distribution wiring is practical

Consider Several Smaller Drivers When:

✓ LED runs are spread across a large area
✓ Separate zones need independent control
✓ Long DC cable runs would otherwise be required
✓ Partial redundancy is valuable
✓ Easier zone-by-zone troubleshooting is important
✓ Future expansion is likely

---

What About 24V vs. 12V?

For larger LED strip installations, 24V systems can offer advantages because they require less current than 12V systems for the same power.

For example:

240W ÷ 12V = 20A

while:

240W ÷ 24V = 10A

Lower current can make power distribution more manageable.

However, voltage alone doesn't determine maximum strip length or eliminate voltage drop.

Always follow the LED strip specifications. If a project includes both voltages, a selectable driver such as the 60W 5-in-1 can be set to either—though each unit still feeds one voltage at a time.

---

Common Mistake: Buying the Biggest Driver Possible

Bigger isn't automatically better.

A very large driver may:

• Cost more
• Require more space
• Concentrate heat
• Create a larger single point of failure
• Require substantial distribution wiring

Choose a driver architecture based on the project—not simply maximum wattage.

---

Common Mistake: Too Many Tiny Drivers

The opposite extreme can also create problems.

Using a separate driver for every short LED strip may result in:

• Excessive equipment
• More wiring
• More AC connections
• More installation locations
• More complicated maintenance

The goal is not:

Fewest Drivers

or:

Most Drivers

The goal is:

The simplest reliable system that properly powers and controls the installation.

---

Final Thoughts

So, should you use one large LED driver or several smaller drivers?

For a small or compact installation, one properly sized driver can be the simplest solution.

For a large, distributed, multi-zone installation, several smaller drivers can offer important advantages in:

Power Distribution + Voltage Drop + Control + Troubleshooting + Reliability

But there is no universal winner.

The best design depends on:

Load + Distance + Wire Size + Zones + Controls + Accessibility + Environment

Most importantly, don't choose your driver architecture based only on total wattage.

A well-designed LED system considers the entire path:

AC Power → Driver → Wiring → Controller → LED Strip

When those components are planned together, both centralized and distributed driver systems can deliver reliable performance. Compare the full drivers and transformers range by capacity, output count, dimming method and IP rating.

---

FAQ

Is one large LED driver better than several smaller drivers?

Not necessarily. One large driver can simplify compact installations, while several smaller drivers may be better for distributed loads, separate zones, long distances, and easier troubleshooting.

Can one LED driver power multiple LED strips?

Yes, when the driver has the correct output voltage and sufficient capacity and the strips are connected using an appropriate power-distribution design. A multi-output transformer provides separate terminated feeds for this purpose.

Can I use one 300W driver instead of three 100W drivers?

Potentially, but wattage alone does not determine whether this is a good design. Cable length, current, voltage drop, control zones, wiring, and serviceability must also be considered.

Do multiple LED drivers reduce voltage drop?

They can when they allow drivers to be located closer to the LED loads. Simply adding more drivers without reducing cable distances does not automatically solve voltage drop.

What happens if one large LED driver fails?

All lighting powered by that driver may stop working, making the driver a single point of failure.

Are several smaller drivers more reliable?

They can provide greater system redundancy because one driver failure may affect only one zone. However, the system also contains more individual components.

Can multiple LED drivers use one remote?

Yes, depending on the controller system. Multi-zone controllers and remotes can allow several lighting zones to be controlled individually or together from one compatible remote.

Should each room have its own LED driver?

Not necessarily. Driver layout should be based on load, distance, control requirements, wiring, and serviceability rather than simply assigning one driver per room.

Is 24V better for large LED strip projects?

24V is often practical for larger installations because the same wattage requires less current than at 12V, but proper wiring, run lengths, and power distribution are still necessary.

Should LED drivers be accessible?

Planning reasonable service access is strongly recommended because drivers are electronic components that may eventually need inspection or replacement.
