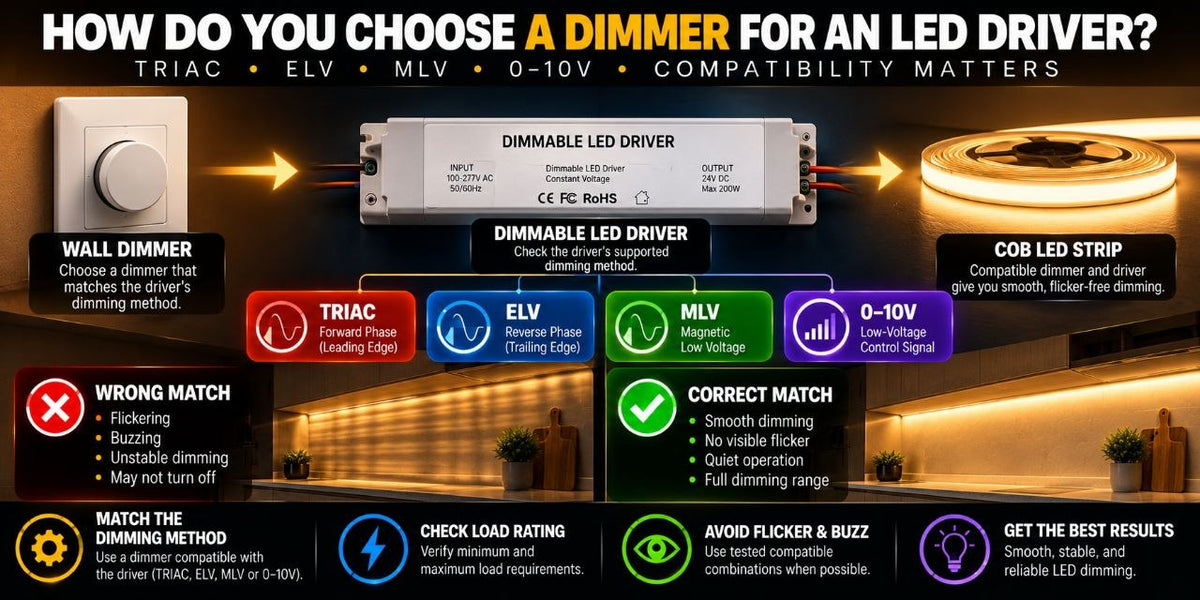

LED dimmer and driver compatibility guide showing TRIAC, ELV, MLV, and 0–10V dimming options connected to a dimmable driver and COB LED strip.

How Do You Choose a Dimmer for an LED Driver?

You have selected your COB LED strip, calculated the wattage, and chosen an LED driver.

Now you want to dim the lights.

Can you simply buy any LED dimmer?

No.

One of the most important rules in LED lighting is:

The dimmer must be compatible with the LED driver's dimming method.

A dimmer and driver can both be high-quality products and still perform poorly when paired incorrectly.

Compatibility problems can cause:

Flickering
Buzzing
Lights that won't turn on
Lights that won't turn completely off
Limited dimming range
Sudden jumps in brightness
Dropout at low levels
Unstable operation

The good news is that choosing the right dimmer becomes much easier once you understand a few basic concepts.

Start With the LED Driver, Not the Dimmer

Before buying a dimmer, check the LED driver's specifications.

Look for terms such as:

TRIAC

Forward Phase

ELV

Reverse Phase

MLV

0–10V

PWM

or:

5-in-1 Dimming

These terms tell you how the driver expects to receive a dimming signal.

Your dimmer needs to provide a compatible signal.

For example:

TRIAC Driver → Compatible Phase-Cut Dimmer

0–10V Driver → Compatible 0–10V Dimmer

You should not assume that every wall dimmer works with every dimmable LED driver.

Every product page in our drivers and transformers range lists the supported dimming methods, which is the specification this whole decision turns on.

First Question: Is the LED Driver Dimmable?

This sounds obvious, but it is the first thing you should verify.

Not every LED driver is dimmable.

If a driver is labeled:

Non-Dimmable

you generally cannot make it dimmable simply by connecting a wall dimmer to it.

Instead, select a driver designed for the dimming method you want to use.

What Is a Dimmable LED Driver?

An LED driver converts incoming electrical power into the voltage or current required by the LED load.

A dimmable LED driver also responds to a control signal that allows the LED output to be adjusted.

Depending on the driver, that control signal might come from:

TRIAC / phase-cut dimmer
ELV dimmer
MLV dimmer
0–10V control
PWM control
Smart lighting system
Compatible controller

The driver acts as the bridge between your building's power/control system and the LEDs.

The Basic Dimming System

A simple low-voltage LED strip installation might look like:

AC POWER

↓

WALL DIMMER

↓

DIMMABLE LED DRIVER

↓

24V COB LED STRIP

But not every system is arranged this way.

For example, a 0–10V installation also uses dedicated control conductors.

And some low-voltage LED systems use a controller after the driver instead of dimming the driver's AC input.

Understanding which architecture you're using is essential.

What Is TRIAC Dimming?

TRIAC dimming is commonly associated with phase-cut dimming on the AC input side.

The dimmer modifies part of the AC waveform, and a compatible LED driver interprets that change to adjust the LED output.

TRIAC/phase-cut dimming is popular because it can work with familiar wall-dimmer installations.

However, the driver must specifically support the type of phase control being used.

Our compact dimmable transformers support TRIAC, ELV and MLV, which covers the common residential wall-dimmer cases.

Forward-Phase Dimming

Forward-phase dimming cuts part of the beginning of each AC half-cycle.

It has historically been associated with traditional incandescent and magnetic low-voltage loads.

You may see terms such as:

Forward Phase

Leading Edge

or sometimes:

TRIAC

on compatible products.

Some LED drivers are designed to work with this type of dimmer.

What Is ELV Dimming?

ELV stands for:

Electronic Low Voltage

ELV dimmers commonly use reverse-phase / trailing-edge control.

Rather than cutting the beginning of the waveform, reverse-phase control cuts the end of each half-cycle.

Compatible LED drivers can often provide smooth dimming with ELV controls.

But again:

Check the actual driver specification.

Do not assume that because a driver is “dimmable,” it automatically supports ELV.

Forward Phase vs. Reverse Phase

A simplified comparison:

Dimming Type	Common Term	Typical Application
Forward Phase	Leading Edge / TRIAC	Compatible phase-dimmable loads
Reverse Phase	Trailing Edge / ELV	Compatible electronic loads
0–10V	Low-voltage control signal	Architectural/commercial systems

The exact compatibility always depends on the driver and dimmer.

What Is MLV Dimming?

MLV means:

Magnetic Low Voltage

MLV dimmers are traditionally designed for magnetic transformer loads and commonly use forward-phase control.

Some modern multi-mode LED drivers may list compatibility with:

TRIAC / ELV / MLV

But you should verify the manufacturer's documentation rather than treating these terms as interchangeable.

What Is a 5-in-1 Dimmable LED Driver?

A 5-in-1 dimmable driver is designed to support multiple control methods.

Depending on the specific model, these may include combinations of:

TRIAC
ELV
MLV
0–10V
1–10V
Potentiometer
PWM

The exact five methods are not necessarily identical for every manufacturer or driver.

Always check the specification sheet for the actual product.

The advantage is flexibility.

One driver may be usable across several different lighting-control environments.

Our own 5-in-1 dimmable drivers support TRIAC, ELV, MLV, 0–10V and PWM, and run from 30W through to 300W, all 12V/24V selectable.

Why 5-in-1 Drivers Are Useful

Imagine you're installing COB LED lighting in several projects.

Project A

Existing residential wall dimmer.

Project B

Commercial 0–10V control.

Project C

Architectural lighting control system.

Using a flexible multi-protocol driver can simplify product selection—provided its listed dimming methods match the controls being used.

This can be particularly useful for:

Contractors
Electricians
Remodels
Commercial installations
Architectural lighting projects

For a contractor stocking one part number across all three scenarios, the 100W and 200W models cover most residential and light-commercial loads.

What Is 0–10V Dimming?

0–10V is widely used in commercial and architectural lighting.

Instead of relying only on modification of the AC power waveform, the system uses a separate low-voltage control signal.

A simplified system might look like:

AC POWER → LED DRIVER → LED LOAD

plus:

0–10V DIMMER → CONTROL WIRES → DRIVER

The control signal tells the driver what output level to provide.

Why Use 0–10V?

0–10V control can be useful for:

Offices
Commercial buildings
Restaurants
Retail spaces
Architectural lighting
Large lighting zones
Building control systems

It is particularly common when many fixtures or drivers need coordinated control.

Every driver in our 0–10V dimmable range accepts the control signal alongside the four phase-cut and PWM methods.

Can I Use a TRIAC Dimmer With a 0–10V Driver?

Not unless the driver is specifically designed to accept both control methods.

A driver labeled only:

0–10V Dimmable

should not automatically be assumed to work with a TRIAC wall dimmer.

Likewise, a driver labeled only:

TRIAC Dimmable

should not be assumed to accept a 0–10V control signal.

This is why the driver's specification is the first thing you should check.

What About a 5-in-1 Driver?

If the driver explicitly supports both:

TRIAC / Phase Cut

and:

0–10V

then you may have more flexibility.

But wiring and setup can differ depending on which method you're using.

Follow the manufacturer's wiring diagram for the selected control method.

This is exactly the case our 150W 5-in-1 driver is built for — it accepts either method, so the control decision can be made on site rather than at the point of order.

Dimmer Compatibility Is More Than the Word “LED”

You may find a wall dimmer labeled:

LED Compatible

That's useful information—but it isn't enough by itself.

You still need to determine whether it is compatible with the specific:

LED Driver + Dimming Method + Electrical Load

A dimmer designed for one type of LED bulb does not automatically guarantee perfect operation with every external LED driver.

Check the Driver's Compatible Dimmer List

Some LED driver manufacturers provide a tested dimmer compatibility list.

If available, this is extremely useful.

It may show specific dimmer models that have been tested for:

Smooth operation
Low-end dimming
Startup
Flicker
Audible noise

When possible, using a tested combination reduces guesswork.

Check the Dimmer's Load Rating

Dimming compatibility isn't the only consideration.

You also need to verify that the dimmer can handle the electrical load.

Suppose your LED system uses:

150W

Do not automatically assume that any dimmer labeled:

600W

is appropriate.

Why?

Because dimmer ratings may differ depending on the type of load.

A dimmer may have one rating for:

Incandescent

and a different rating for:

LED / Electronic Loads

Always use the appropriate rating for your actual application.

LED Load Ratings Can Be Lower

A wall dimmer might advertise a high maximum wattage prominently on the packaging.

But the LED load rating may be significantly different.

So don't read only the largest number.

Look specifically for the rating that applies to:

LED

or the applicable:

Electronic / Driver Load

according to the manufacturer's documentation.

Minimum Load Matters Too

Maximum load gets most of the attention.

But minimum load can also matter.

Some dimmers or drivers may not perform properly when the connected load is extremely small.

Possible symptoms include:

Flickering
Failure to turn on
Unstable low-end dimming
Lights remaining faintly illuminated

This is particularly relevant when controlling a very short LED strip.

Some drivers state this range explicitly — our 60W Compact Dimmable Transformer, for example, is specified for 0–100% dimming across a 20–100% load range.

Example: Small COB Installation

Imagine you have only:

3 ft of COB strip

using:

4 W/ft

Total LED load:

12W

If your dimmer/driver combination requires a higher minimum operating load, you could experience poor performance.

This is why small installations deserve the same compatibility checks as large ones.

For a load this small, the 30W 5-in-1 driver is the smallest in our range and keeps the load closer to the driver's intended operating band than an oversized unit would.

Don't Confuse Driver Load With Dimmer Load

Suppose you have:

100W of 24V COB LED strip

connected to:

One 24V dimmable driver

The wall dimmer is interacting primarily with the driver's AC input behavior, not directly with the 24V strip as though it were a 100W AC lamp.

This distinction is important when interpreting dimmer ratings and compatibility information.

Follow the specifications of both the driver and dimmer.

How Much Driver Capacity Do You Need?

Before choosing the dimmer, you should already have calculated the LED load.

For example:

COB Strip = 4 W/ft

Length = 20 ft

Total:

4 × 20 = 80W

Now select a compatible 24V driver with adequate capacity according to the manufacturer's requirements.

Then select a dimmer compatible with that driver.

The selection sequence should generally be:

LED Strip → Driver → Dimmer

not:

Dimmer → Random Driver → LED Strip

An 80W load wants a 100W 5-in-1 driver as a minimum, with the 150W leaving room to extend the run later.

Voltage Must Match Too

If you're using a constant-voltage LED strip:

12V Strip → 12V Driver

24V Strip → 24V Driver

The wall dimmer does not change this requirement.

A dimmable driver still needs to provide the correct output voltage for the LED strip.

A selectable unit such as the 60W 5-in-1 can be set to either output, so one driver covers both voltages — though each unit still feeds one voltage at a time.

Constant Voltage vs. Constant Current Matters

Most flexible LED strips commonly used for architectural lighting operate from a constant-voltage supply, often 12V or 24V.

But many LED fixtures use:

Constant Current Drivers

These are different systems.

Before choosing a dimmer, determine whether the LED load requires:

Constant Voltage

or:

Constant Current

Then choose the correct driver and compatible control method.

Every strip in our COB range is constant-voltage 24V, which is the architecture this article's examples assume.

Why Do LEDs Flicker When Dimmed?

Flickering can have several causes.

Common possibilities include:

Incompatible dimmer
Incompatible LED driver
Poor-quality driver
Incorrect load
Low-end instability
Wiring problems
Voltage fluctuations
Controller compatibility issues

If an LED installation works perfectly at full brightness but begins flickering when dimmed, compatibility should be one of the first things you investigate.

Why Do LEDs Buzz When Dimmed?

Buzzing can come from:

Wall dimmer
LED driver
Transformer
Fixture
Electrical components

Sometimes a particular dimmer-driver combination can produce audible noise even though both products operate.

Switching to a tested compatible dimmer may improve performance.

But persistent or abnormal buzzing should be investigated rather than ignored.

Why Won't My LEDs Dim Very Low?

A common expectation is:

100% → 0% perfectly smoothly

But actual minimum dimming levels vary.

A driver might provide stable dimming only down to:

10%

while another system may reach:

or lower under suitable conditions.

The dimmer, driver, and load all affect the final result.

If very low-level architectural lighting is important, check the specified dimming range before buying the system.

What Is Low-End Trim?

Some modern wall dimmers allow you to adjust the minimum dimming level.

This feature may be called:

Low-End Trim

or:

Minimum Brightness Adjustment

Suppose the LEDs become unstable below 8%.

You can potentially configure the dimmer so that its lowest user setting corresponds to the lowest stable output level.

Instead of:

8% → 7% → Flicker → Off

you get:

8% → Off

This can make the user experience much smoother.

High-End Trim Can Be Useful Too

Some dimmers also allow:

High-End Trim

This limits the maximum output.

Why would you want that?

Imagine your COB lighting is brighter than necessary at full output.

Instead of allowing users to run it at 100%, you might limit the maximum setting.

This can help create a more comfortable lighting range for the room.

Does Dimming Save Electricity?

Generally, reducing LED light output with a properly designed dimming system can reduce electrical power consumption.

The exact relationship between:

Dimmer Position

and:

Power Consumption

depends on the driver and system.

A dimmer at 50% perceived brightness does not necessarily mean exactly 50% electrical consumption.

But dimming can reduce unnecessary light output and energy use.

Choosing a Dimmer for COB LED Strips

For a typical single-color COB installation, first identify:

COB Voltage

For example:

24V

Then determine:

Total Wattage

Then choose:

Compatible 24V Dimmable Driver

Then choose:

Dimmer Compatible With That Driver's Dimming Method

This gives you a complete system.

Each strip in our COB range lists its W/ft, so the second step is a single multiplication.

Example: Residential COB Cove Lighting

Imagine:

30 ft of 24V COB strip

at:

4 W/ft

Total load:

120W

You select an appropriately sized 24V dimmable driver.

If that driver supports:

TRIAC + ELV

you can then choose a compatible wall dimmer from the driver's supported/tested options.

System:

120V AC

↓

Compatible Wall Dimmer

↓

24V Dimmable Driver

↓

24V COB Strip

This is a common type of architectural lighting configuration.

In practice that is 30ft of our 10mm COB strip (4.27 W/ft, so about 128W) on a 150W 5-in-1 driver.

Example: Commercial 0–10V Installation

Imagine a commercial cove uses several dimmable LED drivers.

Instead of using traditional residential wall phase dimming, the project uses:

0–10V control.

The drivers must support 0–10V.

The control wiring connects the dimmer/control system to the drivers.

This approach can work well for larger lighting zones and commercial control systems.

For larger exterior or multi-zone commercial work, the 384W 4-Channel Driver handles four separately fed runs from one IP65-rated enclosure.

What About RGB and RGBW LED Strips?

RGB and RGBW strips are typically controlled differently from a basic single-color strip.

A common arrangement is:

AC POWER

↓

LED DRIVER

↓

RGB / RGBW CONTROLLER

↓

LED STRIP

In this case, the controller manages the individual color channels.

You generally should not assume that the same wall-dimmer arrangement used for a single-color COB strip applies to an RGB system.

Our RGB and RGBW COB strips pair with units from the controllers and remotes range rather than with a wall dimmer.

What About CCT Adjustable Strips?

Tunable-white or CCT-adjustable strips usually have multiple channels.

For example:

Warm White

Cool White

The controller changes the balance between them.

A compatible CCT controller may provide:

Brightness Control + Color Temperature Control

So the system architecture may differ from a simple phase-dimmed single-color strip.

Our CCT drivers with built-in controls combine the driver and the controller in one unit and work with a standard 3-way switch, which removes the dimmer-matching question entirely — pair them with the CCT COB Strip.

Don't Put Two Independent Dimming Systems Together Without Planning

For example, avoid randomly combining:

AC Wall Dimmer

↓

Dimmable Driver

↓

Low-Voltage Dimmer

↓

LED Strip

unless the products and system are specifically designed to work together that way.

Two separate dimming methods can interact unpredictably.

Choose one intentional control architecture based on the products being used.

What About Smart Dimmers?

Smart wall dimmers can work with LED lighting, but the same compatibility rules still apply.

A smart dimmer may offer:

Wi-Fi
App control
Scheduling
Voice control
Scenes
Automation

But those features do not automatically guarantee compatibility with every LED driver.

You still need to check:

Dimming Type + Load Rating + Driver Compatibility

An alternative is to put the intelligence after the driver instead of in the wall — a unit such as the MiBoxer WL5 Wi-Fi Controller provides app control, scheduling and scenes on the low-voltage side, with a plain compatible driver upstream.

Can a Regular Light Switch Control a Dimmable Driver?

Generally, yes, a dimmable driver can often operate at full output when controlled by a standard compatible on/off switch, depending on the driver design.

But the switch won't provide dimming.

If you want adjustable brightness, you need the appropriate control method specified for that driver.

Can You Use a Non-Dimmable Driver With a Dimmer?

Generally, no.

If a driver is not designed for dimming, putting a phase-cut dimmer in front of it can cause:

Flickering
Unstable operation
Failure to start
Noise
Possible product damage or reduced reliability

Use a driver explicitly rated for the intended dimming method.

What About Driver and Dimmer Brands?

They do not necessarily need to be the same brand.

What's more important is:

Electrical Compatibility

and ideally:

Tested Compatibility

Two different brands can work very well together if the manufacturers' specifications support the combination.

Likewise, two products from the same brand should not automatically be assumed compatible unless specified.

Why Tested Compatibility Is Valuable

LED dimming involves electronic interaction between:

Dimmer + Driver + LED Load

Specifications can tell you a lot.

But real-world testing can reveal:

Low-end behavior
Startup behavior
Flicker
Buzzing
Dropout
Smoothness

This is why manufacturer dimmer compatibility charts are so valuable.

What If You Have Several Drivers on One Dimmer?

This is common in larger installations.

For example:

One Wall Dimmer

controls:

Driver 1 + Driver 2 + Driver 3

You must verify:

Dimmer capacity
Driver compatibility
Number of drivers permitted
Inrush current considerations
Wiring method
Applicable electrical requirements

Do not simply add the LED output wattages and assume the dimmer is suitable.

Multiple electronic drivers can behave differently from a simple resistive lighting load.

One way to avoid the problem is to use fewer, larger units: a 288W Triple-Output Transformer feeds three separate runs while presenting a single driver to the dimmer.

Inrush Current Can Matter

Electronic LED drivers may draw a brief current surge when energized.

With one small driver, this may not be significant for your design.

With many drivers controlled together, it can become more important.

For large commercial installations, check manufacturer specifications for:

Inrush Current

and any recommended maximum number of drivers per control or circuit.

Where Should the Dimmer Be Installed?

For a conventional wall-controlled installation, the dimmer is generally installed at the normal wall-control location.

The driver may be located:

In an accessible cabinet
In a suitable electrical enclosure
Above an accessible ceiling
In another approved serviceable location

depending on the product and installation requirements.

The driver should not simply be buried somewhere inaccessible.

Our transformers with integrated junction box terminate the AC connection inside the driver's own enclosure, which simplifies the wiring at whichever service location you choose.

Should the Driver Be Near the LED Strip?

Keeping low-voltage cable runs reasonable can help manage voltage drop.

However, driver location also needs to consider:

Accessibility
Ventilation
Environment
Wiring
Code requirements
Noise
Serviceability

Don't choose driver location based only on appearance.

How to Choose the Right Dimmer: Step by Step

Here is the practical process.

Step 1 — Identify the LED Load

Determine whether you're using:

Single-Color COB

CCT

RGB

RGBW

or another LED system.

Step 2 — Confirm Voltage

For constant-voltage strips:

12V or 24V

must match the driver.

Step 3 — Calculate Wattage

Use:

Watts per Foot × Total Feet

Step 4 — Select the Driver

Choose the correct:

Voltage + Capacity + Dimming Method

All three are listed on every product page in our drivers and transformers range.

Step 5 — Read the Dimming Specification

Look for:

TRIAC / Forward Phase / ELV / Reverse Phase / MLV / 0–10V / etc.

Step 6 — Find a Compatible Dimmer

Prefer a model listed or tested by the driver manufacturer when available.

Step 7 — Verify Dimmer Load Rating

Check the rating for the actual electronic/LED load.

Step 8 — Check Minimum Load

Especially for small installations.

Step 9 — Check Dimming Range

If very low-level dimming matters, confirm it before buying.

Step 10 — Test Before Completing the Installation

Verify:

Startup + Full Brightness + Midrange + Low End + Off

and listen for abnormal buzzing.

Quick Compatibility Guide

LED Driver Says	Look for a Dimmer / Control Supporting
TRIAC / Forward Phase	Compatible forward-phase / phase-cut control
ELV / Reverse Phase	Compatible reverse-phase / ELV dimmer
MLV	Compatible MLV control
0–10V	Compatible 0–10V control
5-in-1	One of the explicitly supported control methods
Non-Dimmable	Do not use an input dimmer unless manufacturer states otherwise

Always check the documentation for the specific products.

If you would rather not have to match the dimmer to the driver at all, a 5-in-1 driver accepts all five of the methods in the table above.

Common Dimmer Selection Mistakes

Avoid these mistakes:

Buying the dimmer before checking the driver
Assuming every “LED dimmer” works with every driver
Using a non-dimmable driver
Ignoring forward vs. reverse phase
Connecting a TRIAC dimmer to a 0–10V-only driver
Ignoring minimum load
Reading the incandescent wattage rating instead of the LED/electronic rating
Ignoring low-end dimming performance
Using incompatible controls with RGB/CCT systems
Putting multiple dimming methods in the same system without proper design
Ignoring driver inrush when controlling many drivers
Hiding the driver somewhere inaccessible
Assuming buzzing or flickering is normal

What If Your Existing Dimmer Causes Flickering?

If you're replacing an older lighting system and want to keep the existing dimmer, first determine what type of dimmer it is.

Then check whether your new LED driver supports it.

If the combination produces flicker, poor low-end performance, or buzzing, replacing the dimmer with a tested compatible model may solve the problem.

Don't automatically assume the LED strip itself is defective.

Where the existing dimmer has to stay, choosing a driver that accepts whatever protocol it uses is often the simpler fix — that is the case our 5-in-1 drivers are designed for.

What If the LEDs Stay Slightly On?

If LEDs remain faintly illuminated when the dimmer is supposedly off, possible causes include:

Dimmer design
Leakage current
Driver compatibility
Control wiring
Smart-dimmer electronics

This is another situation where tested dimmer-driver compatibility can matter.

A qualified electrician can diagnose persistent electrical issues.

What If the Lights Suddenly Turn Off at Low Brightness?

This is often called dropout.

For example:

100% → Fine

50% → Fine

20% → Fine

10% → Fine

7% → OFF

The system has reached the lowest level at which that dimmer-driver-load combination can operate reliably.

If the dimmer has adjustable low-end trim, you may be able to set its minimum above the dropout point.

Do You Need 1% Dimming?

Not every project does.

For kitchen task lighting, a system that dims smoothly to 10% may be perfectly adequate.

But for:

Restaurants
Hotels
Home theaters
Luxury residences
Architectural ambience

very low dimming levels may be much more important.

Decide what performance you need before selecting the driver and dimmer.

Residential vs. Commercial Dimming

Residential

Often prioritizes:

Familiar wall controls
Simple wiring
Smooth dimming
Smart-home integration

Phase-cut dimming can be convenient when supported by the driver.

Commercial

May prioritize:

Large zones
Building controls
Centralized systems
Coordinated fixtures

0–10V and other control protocols may be more common.

Neither approach is automatically better.

Choose the system that fits the project.

Because our 5-in-1 drivers accept both families of control, the same part number can serve a residential wall dimmer on one job and a 0–10V building system on the next.
